Glycan microarrays are one of the most useful high-throughput platforms for mapping how proteins, antibodies, enzymes, and other research-stage binding probes recognize carbohydrate structures. For teams deciding whether glycan-focused profiling fits a mechanism study, a grant concept, or an exploratory omics workflow, the value of the platform lies in its ability to test many structurally defined glycans in parallel and convert those interactions into an interpretable binding profile. Over the past two decades, glycan arrays have become a core research tool for studying glycan-binding proteins, multivalent recognition, glycan-dependent recognition logic in host-like or model biological systems, and structure–function relationships in glycobiology. (RSC Publishing)
Figure 1. Glycan microarray workflow from glycan library design to binding-profile interpretation.
What Is a Glycan Microarray? Definition and Core Principles
A glycan microarray is a solid-surface platform in which hundreds to thousands of defined glycans are immobilized in spatially separated spots and then interrogated with a labeled or otherwise detectable binding partner. The output is a binding pattern rather than a single yes/no result, which makes the technology fundamentally different from one-target assays. In practice, the platform is used to reveal which carbohydrate motifs are recognized, how strongly the interaction appears under the chosen assay format, and how specificity shifts across a structurally diverse glycan panel. (RSC Publishing)
The core principle is molecular recognition in parallel. A glycan-binding protein, antibody, enzyme-associated recognition domain, or other probe is exposed to the printed slide. If the probe recognizes certain glycan motifs, those spots generate signal. Because all printed glycans are presented on the same surface and read under matched conditions, the resulting profile gives a compact view of relative specificity. This is especially useful in early-stage projects when the goal is to test questions such as whether a candidate binder prefers sialylated, fucosylated, sulfated, or high-mannose motifs, whether closely related glycans are distinguished by linkage or branching, or whether a recognition pattern is strong enough to justify orthogonal follow-up.
Compared with a traditional ELISA-style format, glycan microarrays offer three major research advantages. They are much higher throughput, they use very small amounts of glycan material and probe, and they can better represent multivalent recognition than one-glycan-at-a-time screening. That does not mean they recreate every aspect of a native surface. It means they provide experimentally interpretable multivalent binding signals under defined array conditions, which is often exactly what a project needs at the direction-setting stage.
For teams planning a broader carbohydrate workflow, a general glycomics service can be a useful entry point when glycan array screening is only one part of a larger specificity-mapping or structural-analysis strategy.
Construction of Glycan Microarrays: Surface Chemistry and Printing
The construction logic of a glycan microarray determines whether the final binding profile is merely attractive-looking or genuinely trustworthy. Most research-grade glycan arrays are built on functionalized solid supports, commonly glass slides with chemistries such as epoxy, NHS-activated, hydrazide, nitrocellulose, or related reactive surfaces. The right surface depends on how the glycan is derivatized, whether a reducing end is available, how much orientation control is required, and how the project balances coupling efficiency against background behavior.
Glycan library source defines the interpretation boundary
A glycan array is only as informative as the library that is printed onto it. Those glycans may come from natural purification, chemical synthesis, or enzymatic and chemoenzymatic preparation. Natural sources can preserve biologically relevant structures but may limit structural breadth or batch consistency. Synthetic routes support highly defined motif sets. Chemoenzymatic methods are often used to expand diversity while preserving structural control. The practical implication is simple: a negative result may mean true non-binding, but it may also mean that the relevant glycan was never present on the array or was not displayed in a compatible form. Array coverage is therefore part of interpretation, not just fabrication.
Teams that need deeper structural follow-up after the screen often pair array hits with glycan sequencing or structural characterization of glycans so that hit motifs can be traced back to well-defined glycan features.
Surface chemistry shapes accessibility and apparent specificity
Once glycans are prepared, they must be immobilized in a way that preserves accessibility to the incoming probe. This is where linker design and surface chemistry become critical. Immobilization is not a passive attachment step. It shapes local density, spacing, flexibility, and the degree to which binding epitopes remain exposed. For weak interactions, especially those strengthened by avidity, these presentation effects can materially shift the observed profile. A platform can therefore appear to show specificity differences that are driven partly by surface presentation rather than glycan composition alone. (RSC Publishing)
Hydrazide-type surfaces can be useful when glycans with free reducing ends are available, while NHS- or epoxy-like chemistries are often matched with appropriately derivatized glycoconjugates. For non-specialists, the key design rule is that glycan format, linker strategy, and slide chemistry must be matched as one system.
Contact vs. non-contact printing
Microarray fabrication usually relies on either contact printing, in which a pin physically transfers liquid from the source plate to the slide, or non-contact printing, such as piezoelectric dispensing, in which droplets are deposited without physical contact. Both can generate high-quality arrays, but they differ in droplet control, contamination risk, maintenance behavior, and sensitivity to viscosity or wetting. The most important question is not which printer label sounds more advanced. It is whether the process produces reproducible spot diameter, morphology, and local glycan density across the array. (Springer Nature Experiments)

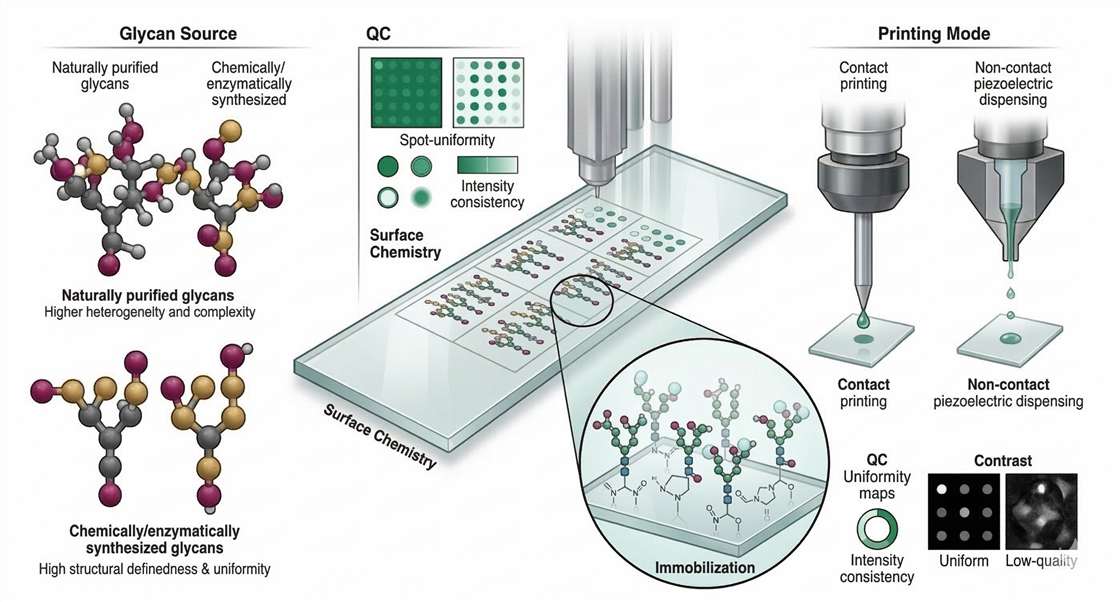

Figure 2. Fabrication logic of a glycan microarray.
Detection Strategies and Signal Readout
After fabrication, the next major choice is how binding will be detected. Most users first encounter glycan arrays through fluorescent readouts, but the detection architecture changes what kind of information the assay emphasizes and how much interpretation discipline is needed.
Direct fluorescence vs. indirect fluorescence
In a direct format, the probe itself carries the fluorescent label. This is conceptually clean because the signal originates from the bound probe, but direct labeling can sometimes alter activity or reduce usable material. In an indirect format, the primary probe binds first and is then detected by a labeled secondary reagent. This can improve flexibility and amplify signal, but it also introduces another variable: secondary-reagent specificity, amplification behavior, and background effects all influence the final pattern. Neither format is automatically better. The best option depends on probe availability, expected affinity range, background tolerance, and whether signal amplification is essential. (Frontiers)
Label-free approaches
Label-free approaches such as surface plasmon resonance imaging and related surface-sensitive optical methods can be valuable when the question extends beyond endpoint intensity and toward more continuous interaction behavior. These formats are often used as follow-up or specialized readouts rather than default discovery screens, because they typically involve more specialized instrumentation or lower practical throughput than standard fluorescence scanning. Their advantage is that they reduce fluorophore-related confounders and may provide a more continuous view of surface interaction behavior.
Scanner settings and analysis workflow
Even a well-built array can generate misleading results if readout conditions are poorly controlled. Scanner wavelength, laser power, PMT settings, spatial resolution, saturation handling, and background subtraction all influence the final dataset. Comparative interpretation is strongest when all slides in a batch are scanned using harmonized settings and control logic. For readers who want to go deeper into post-scan processing, see advanced data interpretation and bioinformatic analysis. When projects move beyond image generation into pattern extraction and ranking, glycan quantification is often most useful when paired with a defined readout and consistent thresholding workflow.

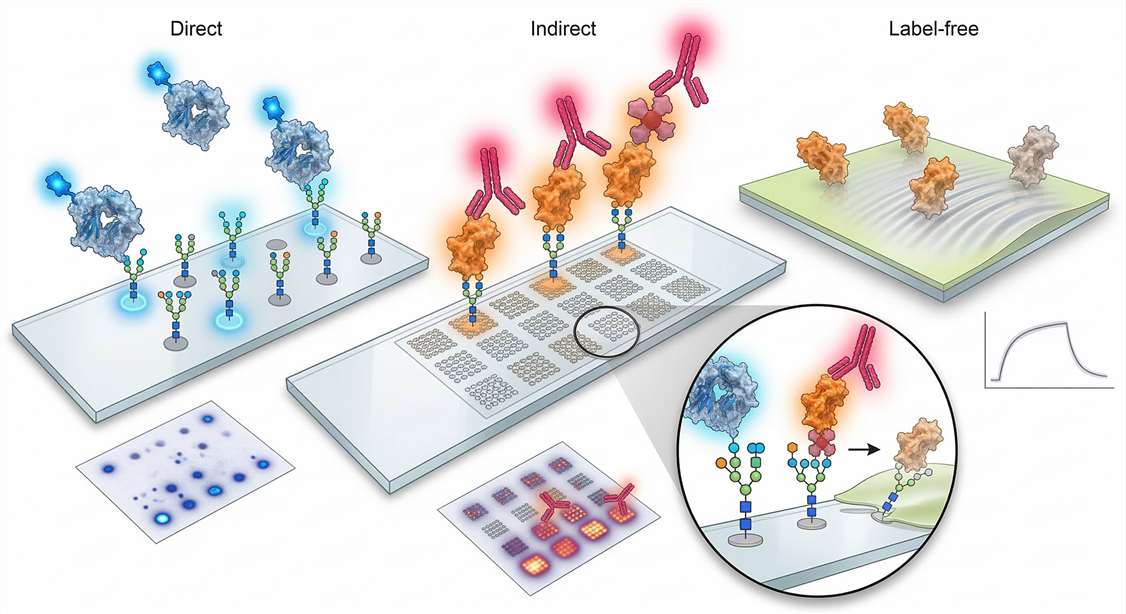

Figure 3. Detection modes used in glycan microarray workflows.
Applications in Modern Glycomics Research
Glycan microarrays are most powerful when the project question is about specificity mapping, interaction discovery, or comparative recognition logic.
Screening glycan-binding proteins
This is the classic use case. Arrays can rapidly profile lectins, antibodies, microbial adhesins, enzyme-associated recognition domains, or newly discovered proteins suspected to bind glycans. The result is rarely the endpoint by itself, but it is often the fastest way to reduce a large mechanistic space into a focused shortlist of motifs worth validating. (Frontiers)
Profiling glycan-dependent binding patterns in model systems
Because glycans often mediate first-contact recognition, glycan arrays are widely used to study how microbial or viral proteins interact with host-associated or model glycan motifs used for research-stage binding comparisons. In RUO settings, this is valuable for research-stage receptor-class hypothesis generation, tropism-related binding comparisons, and prioritizing follow-up validation systems. The array does not replace orthogonal assays, but it is an efficient front-end screen for specificity mapping under controlled conditions. (Frontiers)
For a more application-centered view, see applications of glycan microarrays in viral glycan-binding specificity research. Projects centered on microorganism-facing glycan recognition can also benefit from a dedicated microbial glycan microarray assay when the glycan panel needs to match the biological model more closely.
Platform narrowing and follow-up planning
Sometimes the biggest value of a glycan array is not a discovery figure but a better next-step decision. A strong binding pattern can justify focused synthesis, structural confirmation, or glycopeptide-level follow-up. A weak or diffuse pattern can also be informative, suggesting that recognition may depend more heavily on local presentation, non-glycan cofactors, or a context not represented well on an isolated glycan surface. For teams that already suspect peptide or protein context will matter, glycopeptide analysis is often a more logical next move than simply repeating the same array screen.
When to Use a Glycan Microarray — and When Not to Use One
Use a glycan microarray when:
- You need a high-throughput specificity map across many defined glycans.
- You are in a pilot or hypothesis-generation phase and need fast directional data.
- You suspect a protein or other binder interacts with carbohydrates but do not yet know which motifs matter.
- You need a screening step that can guide downstream validation, synthesis, or follow-up assay selection.
- You want to compare binding changes between constructs, preparation states, conditions, or probe variants.
Do not make it your first choice when:
- The key biology depends mainly on native membrane architecture or multi-component presentation that an array surface cannot model well.
- You need absolute affinity constants rather than a relative binding profile.
- The critical glycans are not available in the printed library.
- Recognition is likely dominated by glycopeptide, protein-backbone, or broader matrix context rather than isolated glycan motifs.
- You do not yet have a realistic plan for validating the highest-priority hits.
It is especially effective when it is used to narrow possibilities rather than to claim final biological interpretation.
Quick Platform Selection Framework
A glycan microarray is usually the best first screen when the project question is motif specificity across many defined glycans. A lectin microarray assay is more suitable when the sample’s broader glycopattern is the starting point. A comparative resource such as Glycan Microarray vs. Lectin Microarray: Choosing the Optimized Platform for Glycan Profiling is useful when a team is still deciding which first-pass platform fits the project better. A glycopeptide-focused format becomes more relevant when local backbone context is expected to influence recognition. Native or model-system validation remains important when membrane architecture, multicomponent binding, or presentation effects are central to interpretation.
| Research question | Best-fit first platform | Why | Typical follow-up |
|---|---|---|---|
| Which glycan motifs are recognized? | Glycan microarray | Defined motif panel and parallel screening | Structural confirmation or orthogonal binding assay |
| What is the sample’s broader glycopattern? | Lectin microarray | Pattern-level readout rather than single-motif specificity | Glycan structural analysis |
| Does peptide or protein context matter? | Glycopeptide-focused workflow | Context-sensitive recognition is more likely | Targeted validation in a model assay |
| Is the main issue downstream interpretation? | Data-analysis-first review of array outputs | Rank ordering alone may miss motif logic | Reprocessing, motif analysis, and comparison workflow |
For outsourcing decisions, the most practical sequence is often to define the probe and hypothesis first, choose the smallest glycan library that can separate competing explanations, run the array under a controlled detection format, and then reserve orthogonal follow-up for the highest-priority hits rather than for every positive spot.
Practical QC and Troubleshooting
Strong glycan array work depends on two levels of QC: fabrication QC and assay/readout QC. Fabrication QC should confirm acceptable spot morphology, limited splash artifacts, usable replicate consistency, stable control behavior, and manageable surface background. Assay/readout QC should confirm that the scan settings preserve both weak and strong spots, that positive and negative controls separate as expected, and that replicate behavior supports the biological interpretation. Platform variability studies have shown that batch factors, printing behavior, and readout logic can all influence observed binding profiles, which is why cross-batch comparison should never be assumed without controls. (ScienceDirect)
| Symptom | Likely cause | Practical fix |
|---|---|---|
| Many spots are bright but the pattern is unconvincing | High nonspecific binding, overamplified indirect detection, or insufficient blocking | Increase assay stringency, review the secondary reagent, and optimize blocking and wash conditions |
| Known positive motifs are weak | Presentation issue, low local density, probe damage, or underexposure | Review linker compatibility, print concentration, probe integrity, and scanner settings |
| Replicates disagree | Uneven printing, hydration variation, wash inconsistency, or scan artifact | Tighten fabrication QC, standardize handling, and review bad-spot filtering |
| Hits are hard to explain structurally | Branched complexity, multiple weak motifs, or limited analysis workflow | Shift from rank-order reading to motif-level interpretation and database-supported comparison |
If the project is likely to generate multi-condition data or several binder classes, clustering analysis service can help organize pattern-level similarities before downstream prioritization. A deeper technical companion on glycan microarray data analysis and database integration is also useful when simple ranking is no longer enough.
What a Research Team Should Clarify Before Outsourcing
First, what exactly is the probe? A recombinant protein, purified antibody, enzyme domain, intact particle, and mixed preparation may each require a different detection strategy and control design.
Second, what is the actual scientific question? Are you trying to identify top motifs, compare variants, narrow a recognition class, or simply decide whether glycan-dependent recognition is plausible enough to justify a larger workflow?
Third, what library scope is needed? A broad mammalian-style panel, a specialized microorganism-oriented panel, or a custom motif set may produce very different value.
Fourth, which controls define success? Negative controls, known binders, competition conditions, replicate strategy, and scanner criteria should be agreed early.
Fifth, what are the expected deliverables? A useful RUO deliverable package usually includes raw images, processed intensity tables, replicate summaries, control interpretation, ranked hit lists, and a short narrative that explains what the array does and does not support.
For custom study design, a dedicated glycan microarray assay can be a natural fit when the workflow is already defined. When the study question does not fit a standard panel or requires unusual controls, customized experiments often provide a better route than forcing a standard template onto a non-standard question.
Deliverables and How to Judge Whether the Project Worked
A successful glycan microarray project should not be judged by how many bright spots it produces. It should be judged by whether the study moves the project forward in a technically defensible way.
| Deliverable | Why it matters |
|---|---|
| Raw scan files | Enable re-reading, QC review, and transparency |
| Processed intensity table | Supports ranking, thresholding, and comparison |
| Replicate summary | Shows reproducibility and spot-level stability |
| Control interpretation | Validates readout logic |
| Hit list with annotations | Guides follow-up decisions |
| Assay settings record | Preserves interpretability across batches |
A project usually worked well when the top hits are coherent with controls, replicate behavior is stable, background is manageable, and the interpretation clearly narrows the next experiment. A project usually underperformed when the library was poorly matched to the question, controls do not support the claimed pattern, or no follow-up path was defined before the array was run. For discovery-stage programs that later need cross-omic integration, integrated proteomics and metabolomics analysis may become relevant after the glycan-recognition question has been narrowed to interpretable candidates.
Conclusion
For research-stage teams, glycan microarray technology is best understood as a specificity-mapping platform rather than a generic screening buzzword. Its strength lies in combining a defined glycan library, controlled surface presentation, scalable detection, and structured interpretation into one decision-support workflow. That makes it particularly useful for PI-led exploratory projects, pilot studies, and mechanism-oriented programs where the immediate question is which glycan-recognition path is worth pursuing further.
When used with the right expectations, glycan microarrays can sharply reduce trial-and-error. When used without enough attention to library scope, surface chemistry, controls, and downstream validation, they can generate attractive but shallow data. The difference is the quality of experimental design around the platform. For RUO teams, the best outcomes usually come when array screening is planned together with controls, data interpretation criteria, and an orthogonal follow-up path.
FAQ
1) Is a glycan microarray the same as a lectin microarray?
No. In a glycan microarray, defined glycans are printed and the probe is tested against them. In a lectin microarray, lectins are printed and the sample’s glycopattern is profiled through lectin binding. They answer related but different questions.
2) Can glycan microarrays tell me binding affinity?
Usually they provide a relative binding profile rather than definitive affinity constants. Some label-free or orthogonal assays can add kinetic context, but the array itself is primarily a specificity-screening platform.
3) How many glycans should be on the array?
More is not automatically better. The best library is the one that covers the motifs relevant to your question with enough diversity to distinguish competing explanations.
4) Are weak signals useless?
Not necessarily. Many glycan interactions are intrinsically weak and become interpretable only through surface presentation and multivalency. Weak but reproducible patterns can still be informative when controls are strong.
5) What is the biggest mistake early-stage teams make?
Treating the array as a standalone endpoint. The most productive use is as a front-end decision tool that guides structural confirmation or orthogonal follow-up.
6) What if my target depends on glycopeptide or cell-surface context?
Then a standard glycan array may be only part of the answer. Glycopeptide-focused follow-up, structural analysis, or model-system validation may be needed.
7) Do I need bioinformatics for glycan array data?
At small scale, simple ranked outputs may be enough. At larger scale or with multiple conditions, motif discovery and comparison become much more important because binder/non-binder logic is not always obvious by eye.
8) Is glycan microarray a good choice for grant preparation or pilot studies?
Yes, often. It is especially useful when the goal is to establish technical plausibility, narrow a motif hypothesis, or justify a more focused follow-up package.
References:
- Kim Y, Hyun JY, Shin I. Glycan microarrays from construction to applications. Chemical Society Reviews. 2022;51(19):8276-8299. DOI: 10.1039/D2CS00452F.
- Gao C, Wei M, McKitrick TR, McQuillan AM, Heimburg-Molinaro J, Cummings RD. Glycan Microarrays as Chemical Tools for Identifying Glycan Recognition by Immune Proteins. Frontiers in Chemistry. 2019;7:833. DOI: 10.3389/fchem.2019.00833.
- Hyun JY, Pai J, Shin I. The Glycan Microarray Story from Construction to Applications. Accounts of Chemical Research. 2017;50(4):1069-1078. DOI: 10.1021/acs.accounts.7b00043.
- Temme JS, Gildersleeve JC. General Strategies for Glycan Microarray Data Processing and Analysis. In: Glycan Microarrays: Methods and Protocols. 2022. DOI: 10.1007/978-1-0716-2148-6_5.
- Cao Y, Park SJ, Mehta AY, Cummings RD, Im W. GlyMDB: Glycan Microarray Database and analysis toolset. Bioinformatics. 2020;36(8):2438-2442. DOI: 10.1093/bioinformatics/btz934.
- Temme JS, Campbell CT, Gildersleeve JC. Factors contributing to variability of glycan microarray binding profiles. Faraday Discussions. 2019;219:90-111. DOI: 10.1039/C9FD00021F.
