Digital Microfluidics MS for Automated Nanoscale Sample Processing

Program individual droplets on an electrode array — extract, derivatize, purify, and ionize at the nanoliter scale, all under software control, with direct mass spectrometric readout.

Digital microfluidics (DMF) manipulates discrete droplets on an open or covered array of insulated electrodes using electrowetting-on-dielectric (EWOD). Unlike channel-based microfluidics, DMF has no pumps, no valves, and no fixed fluid paths — every droplet is individually addressable by activating a sequence of electrodes. When integrated with electrospray ionization mass spectrometry, DMF becomes a programmable sample-to-MS platform: nanoliter-volume samples are dispensed, mixed, reacted, extracted, and delivered directly to the MS inlet under full software automation.

Our digital microfluidics MS service leverages this architecture for applications where manual sample preparation introduces variability, consumes precious sample, or limits throughput. We deliver integrated DMF-MS workflows for proteomics sample processing, on-chip chemical derivatization, magnetic bead-based solid-phase extraction, and multi-step reaction monitoring — each droplet a self-contained micro-laboratory with direct MS readout.

Submit Your DMF-MS Project View sample requirements

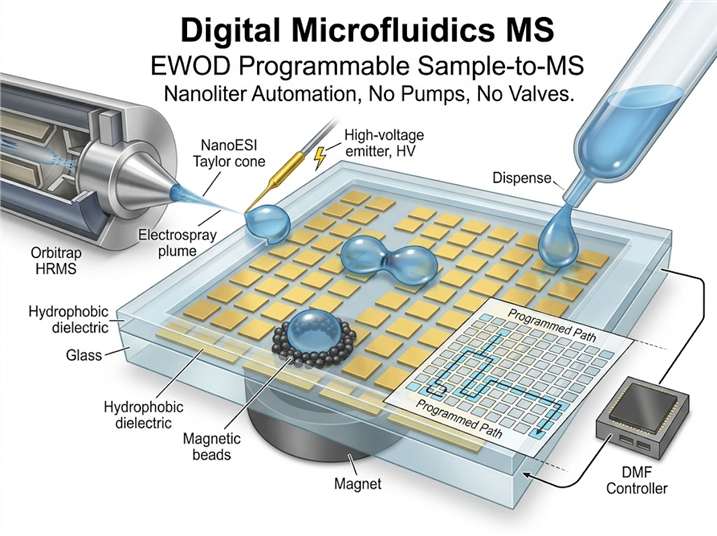

Digital microfluidics EWOD chip coupled to electrospray mass spectrometry platform diagram

What Is Digital MS Service Overview Technology Comparison Workflow Sample Demo Case Study FAQ

What Is Digital Microfluidics–Mass Spectrometry?

Digital microfluidics–mass spectrometry (DMF-MS) combines electrowetting-on-dielectric (EWOD) droplet actuation with electrospray ionization mass spectrometry. An EWOD chip consists of an array of independently addressable electrodes coated with a hydrophobic dielectric layer — typically a Parylene-C insulator topped with Teflon-AF. Applying an AC or DC voltage (50–200 V_RMS) to an adjacent electrode asymmetrically modulates the droplet contact angle via the Lippmann-Young equation, generating a surface tension gradient that drives droplet motion. By sequentially activating electrodes under software control, droplets are dispensed from on-chip reservoirs, transported across the array, merged, mixed by bidirectional oscillation, split, and positioned at designated locations — the complete liquid-handling repertoire — without any moving mechanical parts.

The integration with MS is direct: a dedicated electrode on the chip periphery aligns the processed droplet with a nanoESI emitter or a liquid junction that feeds an ESI source. A small orifice in the chip cover plate or an open-edge geometry allows the droplet to contact the emitter capillary, and the electrospray potential (1.5–3 kV) is applied either through the emitter itself or through a dedicated electrode beneath the droplet. The droplet contents are sprayed directly into the mass spectrometer, yielding spectra within seconds of the final sample-preparation step. This closed-loop, software-driven architecture replaces an entire bench-top workflow — pipetting, incubation, centrifugation, transfer, and LC injection — with a single programmable chip that consumes 500–1,000 times less sample than conventional protocols. For discovery-stage drug research programs, this sample-conserving capability is especially valuable for treatment-versus-control experimental designs where biological material from sorted cell populations or microdissected tissue is inherently limited and conventional preparation workflows consume the entire sample.

Key Advantages of Digital Microfluidics MS

Programmable Automation Without Fluidic Hardware

Every liquid-handling step — dispensing, transport, merging, mixing, splitting — is executed by software-controlled electrode activation. No syringe pumps, no rotary valves, no tubing connections to leak or fail. Workflows are defined as electrode sequences in a script, enabling reproducible, unattended operation across hundreds of samples with the exact same timing for each droplet.

500–1,000× Reduction in Sample and Reagent Consumption

DMF operates on 100 nL–5 μL droplet volumes per step. A full reduction-alkylation-digestion-desalting proteomics workflow that consumes 50–100 μL in a tube consumes under 200 nL on-chip — an enzyme and reagent cost saving that compounds across large screening campaigns. Precious samples — laser-microdissected tissue, sorted cell populations, low-abundance protein isolates from co-immunoprecipitation — are conserved for downstream orthogonal analysis rather than consumed in preparation.

Multi-Step Sample Preparation With Online MS Readout

Because each droplet is individually tracked by capacitive position sensing, multi-step protocols execute sequentially with the final droplet delivered directly to the ESI emitter within a single chip layout. There is no off-line transfer step between sample preparation and MS analysis — eliminating sample loss to tube walls and pipette tips, airborne keratin contamination, and oxidation artifacts that compromise labile post-translational modifications such as methionine oxidation or cysteine sulfenylation.

Magnetic Bead Integration for On-Chip Solid-Phase Extraction

DMF chips integrate magnetic bead manipulation as a native operation: beads are suspended in a droplet, captured by an external neodymium magnet positioned beneath the chip, and the supernatant is moved away electronically by activating adjacent electrodes. This enables on-chip desalting, enrichment (e.g., phosphopeptide TiO₂ beads, glycan HILIC beads), protein purification (Ni-NTA, streptavidin), and buffer exchange — all within the same platform that delivers the purified analyte directly to the MS. The magnetic capture is fully reversible, enabling serial elution and re-capture steps that are difficult to automate off-chip.

Service Overview

MODE 1

Automated Bottom-Up Proteomics Sample Preparation

All steps performed on-chip in nanoliter droplets: protein reduction (DTT, 56 °C, 10 min), alkylation (IAA, dark, 20 min), tryptic/LysC digestion (37 °C, 30–45 min), and C18 desalting via magnetic beads. The purified peptide droplet is delivered directly to nanoESI-MS for shotgun proteomics. We routinely achieve >1,500 protein identifications from 100 ng of total protein input — comparable to conventional overnight tube-based protocols that consume 50–100× more sample. The entire process from sample loading to first MS spectrum is completed in under 45 minutes, eliminating manual pipetting variability and enabling cohort-scale studies with uniform preparation. This workflow integrates with our broader shotgun proteomics drug effect analysis service for treatment-response profiling.

MODE 2

On-Chip Chemical Derivatization & Labeling

Execute chemical labeling reactions — TMTpro 16/18-plex, iTRAQ 8-plex, reductive dimethylation, or custom derivatization chemistries — inside individually addressed droplets. Reagent addition, mixing by electrode oscillation, incubation under temperature control, and quenching are all programmed as electrode sequences. Direct MS infusion after on-chip derivatization avoids sample losses inherent to off-line SPE cartridge cleanup, enabling detection of low-stoichiometry labeled species that would otherwise fall below the MS detection limit after sample handling losses. Label incorporation efficiency is quantified for every droplet, providing per-sample QC that is impractical in batch-labeling workflows.

MODE 3

Magnetic Bead-Based On-Chip SPE & Enrichment

Functionalized magnetic beads (C18, TiO₂, HILIC, Ni-NTA, streptavidin) are co-encapsulated with sample droplets. After binding, beads are immobilized by a magnet beneath the chip while the supernatant is moved away. Wash and elution droplets are delivered sequentially, with the final eluate routed to the MS emitter. Applied to phosphopeptide enrichment for kinase signaling studies, glycopeptide capture for biotherapeutic characterization, His-tagged protein purification, and detergent removal for membrane protein digests. For targeted phosphorylation analysis, this on-chip phosphopeptide enrichment couples directly with our phosphoproteomics activation mapping service to trace signaling network responses to drug treatment.

MODE 4

Multi-Step Reaction Monitoring & Kinetic Profiling

Program sequential reagent additions to a single droplet or droplet network and sample aliquots at defined time points for direct MS analysis. Monitor reaction progress, intermediate accumulation, and product formation in real time without quenching the entire reaction. Suitable for enzyme kinetics (K_m, k_cat determination), chemical reaction condition optimization, and compound stability studies where multiple time points are required from a single reaction mixture. The software-defined nature of DMF means that time-point sampling intervals can be tuned to the reaction kinetics — from seconds to hours — without changing any hardware configuration.

Workflow

Sample Loading & Droplet Dispensing

Sample, reagent, and buffer reservoirs (5–10 μL each) are loaded onto the DMF chip via pipette-accessible ports. Electrode activation sequences dispense precisely metered droplets (100 nL–5 μL) from each reservoir, with real-time capacitive sensing to verify droplet volume (CV<5%) and XY position on the electrode grid.

On-Chip Sample Preparation Protocol

Droplets are merged, mixed by bidirectional electrode oscillation (5–20 Hz), incubated under Peltier temperature control (4–95 °C), and subjected to magnetic bead-based extraction steps according to the protocol script. Every electrode activation event is timestamped in the execution log for full traceability. The chip can process multiple samples in parallel, with independent droplet paths that never cross-contaminate.

Droplet Delivery to ESI-MS

The processed droplet is routed to the designated emitter electrode, where it contacts a nanoESI high-throughput MS capillary or a liquid-junction ESI source. Ionization proceeds directly from the droplet without intervening LC separation, yielding survey MS spectra within 2–5 seconds of delivery. For samples requiring chromatographic separation, the droplet can alternatively be injected into a nanoLC column via a switching valve.

Data Acquisition, Analysis & Reporting

High-resolution MS and MS/MS spectra are acquired in data-dependent acquisition (DDA), data-independent acquisition (DIA), or parallel reaction monitoring (PRM) mode. Data are processed for peptide/protein identification (database search with FDR control), label incorporation efficiency, or kinetic parameters. The final report includes annotated spectra, the complete DMF protocol execution log, and QC metrics for each on-chip step.

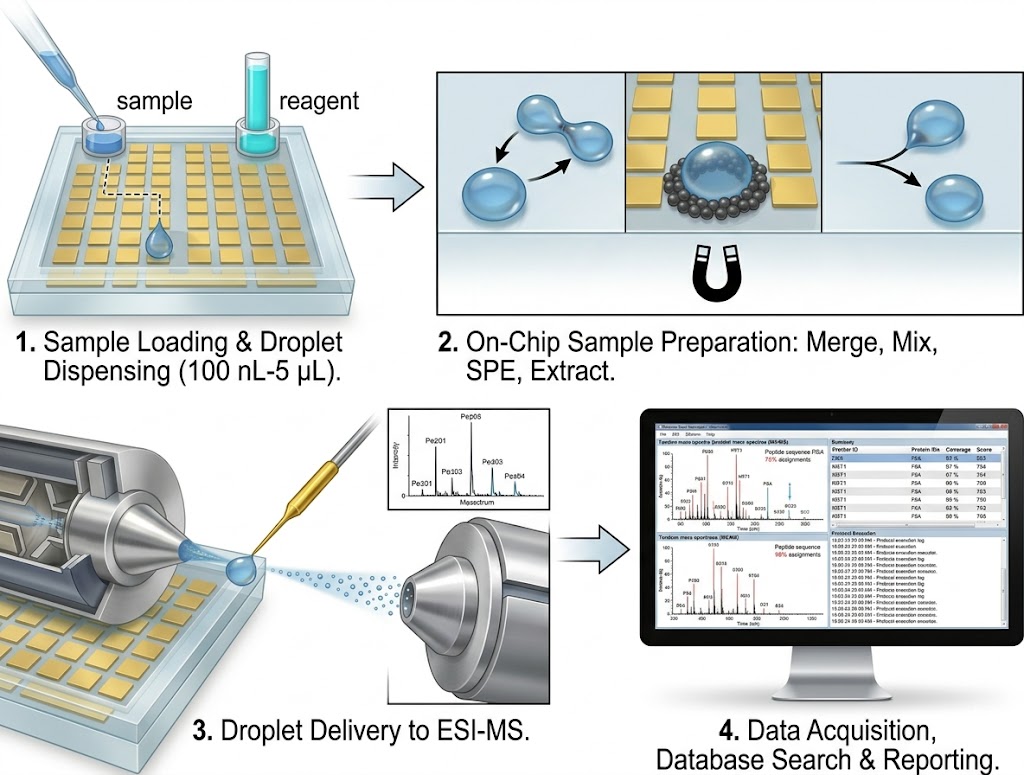

Digital microfluidics MS workflow from sample loading to ESI-MS analysis

Platform Instrumentation

Module	Instrument / System	Core Capability
DMF Chip & Controller	Custom-fabricated EWOD chips (glass substrate, Cr/Au electrodes, Parylene-C dielectric, Teflon-AF hydrophobic layer); FPGA-based multi-channel voltage controller	100–120 individually addressable electrodes; 100 nL–5 μL droplet range; 0.1–10 mm/s transport velocity; capacitive droplet position sensing
Magnetic Bead Module	Neodymium magnet array with programmable vertical positioning beneath chip	Bead capture, wash, and release in nanoliter droplets; compatible with commercial magnetic bead chemistries (C18, TiO₂, HILIC, Ni-NTA, streptavidin)
Temperature Control	Integrated Peltier element with Pt100 sensor feedback; 4–95 °C range, ±0.5 °C accuracy	On-chip incubation for enzymatic digestion, chemical derivatization, and binding reactions at controlled temperature
Ionization Interface	NanoESI capillary emitter (1–10 μm tip ID) with DMF-to-ESI liquid junction; optional sheath-flow ESI for higher flow rates	Direct droplet-to-MS ionization; no LC column or switching valve between chip and MS for rapid survey analysis
Mass Spectrometry	Orbitrap Exploris 480, Q Exactive HF-X, timsTOF Pro 2	High-resolution MS and MS/MS; DDA, DIA, PRM acquisition modes; intact mass analysis under native conditions; ion mobility separation (timsTOF)

Technology Comparison

Feature	Digital Microfluidics MS (EWOD)	Channel-Based Microfluidics MS	Conventional Bench-Top Prep + LC-MS
Fluid Manipulation	Electrode-actuated discrete droplets; software-reconfigurable paths	Pressure-driven continuous flow in fixed channels	Manual pipetting, centrifugation, vacuum manifold
Sample Volume Range	100 nL–5 μL per droplet	1–100 μL/min continuous flow	10–500 μL per preparation
Protocol Flexibility	Fully programmable; any droplet can follow any electrode path; new protocol = new script, no hardware change	Fixed channel layout; protocol changes require new chip fabrication	Manual or limited liquid-handler automation; protocol changes require re-programming and re-plumbing
Multi-Step Prep Integration	All steps on single chip including magnetic bead SPE	Requires multi-chip or multi-module integration with interconnects	Multiple instruments and manual transfers between tube, plate, and cartridge formats
Online MS Coupling	Direct droplet-to-ESI from chip emitter; optional nanoLC injection	Direct ESI from channel outlet; or post-column	LC column between prep and MS; 5–60 min per sample gradient
Sample Loss	Minimal (closed droplet, single surface, no transfers)	Low–moderate (channel wall adsorption, interconnection dead volume)	Moderate–high (tube/plate transfers, pipette tip retention, SPE cartridge breakthrough, vial adsorption)
Sample Throughput	5–15 min per complete prep+MS cycle; parallel droplet processing	Continuous; 1–10 samples/h depending on protocol complexity	Hours to overnight per batch of 12–96 samples
Traceability	Complete electrode actuation log with ms timestamps	Flow rate and pressure sensor logs	Manual lab notebook entries; limited liquid-handler logs

Sample Requirements

Sample Type	Required Amount	Compatible Conditions
Protein / Proteomics Sample	1–20 μg total protein; 100–500 ng per on-chip preparation	MS-compatible buffer (ammonium bicarbonate, triethylammonium bicarbonate); avoid PEG-based surfactants, glycerol (>1%), and high concentrations of non-volatile salts (>50 mM NaCl)
Small-Molecule / Metabolite Extract	100 ng–10 μg total; 0.1–1 μg per DMF preparation	Dried extract reconstituted in aqueous buffer; organic solvent ≤50% (v/v) compatible with EWOD actuation on Teflon-AF surface
Peptide / PTM Enrichment Sample	100 ng–5 μg digested peptides	Low-salt loading buffer for magnetic bead binding; TFA-free for optimal EWOD droplet movement (TFA reduces surface hydrophobicity and impairs actuation)
Single-Cell / Low-Input Sample	1–1,000 cells; 10 ng–1 μg total protein	Cell lysis buffer compatible with downstream proteolysis and MS; surfactant (e.g., RapiGest SF, n-dodecyl-β-D-maltoside) preferred for membrane protein solubilization

Deliverables

Complete data package: raw MS and MS/MS files (.raw, .d, or .mzML format), processed peak lists, and database search results with FDR-controlled protein/peptide identifications
DMF protocol execution log: timestamped record of every droplet movement, merge, split, and magnetic bead operation with electrode activation trace — equivalent to an electronic lab notebook for the entire sample preparation sequence
QC metrics report: droplet volume consistency (CV%), magnetic bead capture efficiency, on-chip digestion/derivatization efficiency, carryover assessment between sequential droplets, and MS system suitability tests
For proteomics: protein/peptide identifications with FDR, sequence coverage, label incorporation efficiency (for TMT/iTRAQ workflows), and PTM site localization scores with annotated MS/MS spectra
For reaction monitoring: kinetic curves with extracted ion chromatograms at each sampled time point, fitted rate constants (k_obs, k_cat, K_m) where applicable, and intermediate species identification
Written interpretation of results with recommendations for protocol optimization on subsequent runs, including suggested adjustments to incubation time, reagent stoichiometry, or bead-to-sample ratio

Representative Demo Data

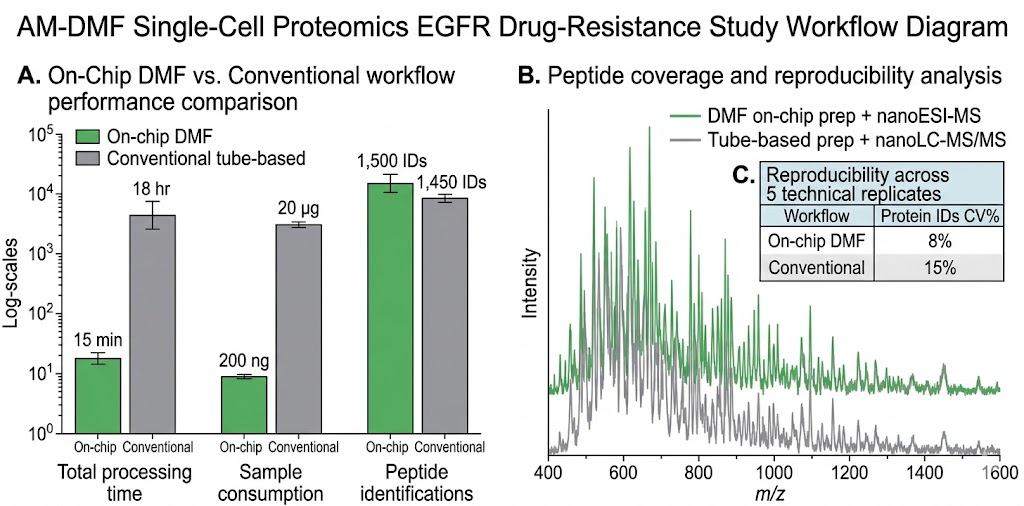

On-chip proteomics sample preparation compared to conventional tube-based protocol MS spectra

Case Study

Active-Matrix DMF Single-Cell Proteomics Identifies Drug-Resistance Signature in EGFR-Mutant NSCLC Cells

Yang et al. (2024) developed an active-matrix digital microfluidic single-cell proteomics (AM-DMF-SCP) platform and applied it to characterize the proteomic landscape of EGFR inhibitor resistance at single-cell resolution. The study was published in JACS Au (DOI: 10.1021/jacsau.4c00027).

Study design: An active-matrix DMF chip — where each electrode is individually addressable via thin-film transistor (TFT) switching, analogous to an LCD display — integrated all sample preparation steps (cell lysis, protein reduction, alkylation, digestion, and peptide cleanup) within nanoliter-volume droplets. The processed peptides were analyzed by data-independent acquisition (DIA) mass spectrometry using a 15-minute LC gradient. Single HeLa cells yielded an average of 2,258 protein groups identified per cell. The platform was then applied to compare three human tumor cell lines — HeLa (cervical adenocarcinoma), A549 (lung adenocarcinoma), and HepG2 (hepatocellular carcinoma) — with machine learning classification identifying cell-line-specific proteomic features that distinguished each lineage at the single-cell level.

Drug-resistance application: To demonstrate translational utility, the AM-DMF-SCP platform profiled NCI-H1975 non-small cell lung cancer cells harboring the EGFR L858R/T790M double mutation, comparing parental cells against a derived line resistant to the third-generation EGFR inhibitor ASK120067 (67R cells). Single-cell proteomic analysis revealed elevated vimentin (VIM) expression in the resistant 67R population — a mesenchymal marker consistent with epithelial-to-mesenchymal transition (EMT)-associated drug resistance — alongside alterations in metabolic enzymes and cytoskeletal proteins. These single-cell-resolved proteomic signatures were concordant with bulk-sample analyses, validating the platform's quantitative fidelity while additionally resolving cell-to-cell heterogeneity masked in bulk measurements.

Relevance to DMF-MS services: This study demonstrates that active-matrix DMF platforms achieve single-cell proteomic depth and quantitative accuracy comparable to established microfluidic systems, while offering greater programmability through TFT-based electrode addressing. For drug discovery programs seeking to characterize resistance mechanisms, assess target engagement heterogeneity, or profile precious clinical specimens at the single-cell level, our DMF-MS platform provides the same core architecture — programmable nanoliter sample preparation with direct MS readout — adapted to your specific experimental design and throughput requirements.

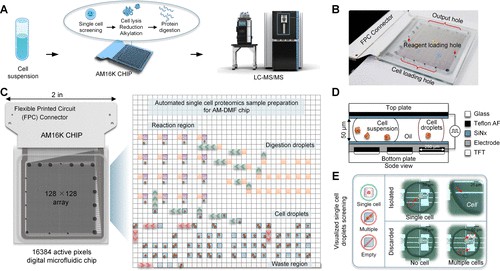

AM-DMF single-cell proteomics EGFR drug-resistance study workflow diagram
