Secondary Ion Mass Spectrometry (SIMS) High-Resolution Imaging Service
At Creative Proteomics, we provide SIMS High-Resolution Imaging services for precise chemical mapping at the nanoscale. Our technology enables researchers to explore the surface and near-surface regions of a wide range of materials, producing high-resolution spatial maps of elemental, isotopic, and molecular distributions. With fully processed, interpretable data delivered in publication-ready formats, you can gain detailed chemical insights without handling raw data. For tailored guidance or project planning, our team is ready to consult with you.
Submit Your Request Now
×
- What is
- Workflow
- Technical questions
- Deliverables
- Applications
- Why choose
- FAQs
What is SIMS High-Resolution Imaging?

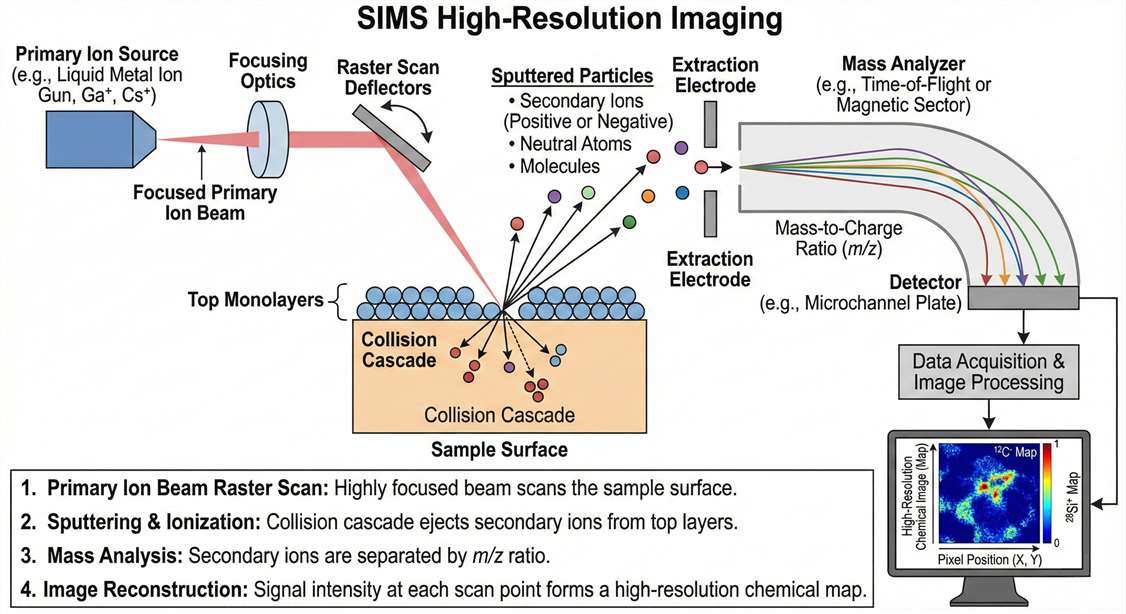

SIMS High-Resolution Imaging is a surface-sensitive mass spectrometry technique that provides chemical imaging at nanometer-scale resolution. A focused ion beam induces the emission of secondary ions from the sample surface, which are analyzed to generate highly detailed 2D or 3D maps of elemental, isotopic, and molecular distributions. Its unparalleled spatial resolution and surface specificity make it ideal for studying interfaces, thin films, and surface heterogeneity. This technique delivers rich chemical information with exceptional precision, enabling insights that are difficult to achieve with other imaging modalities.

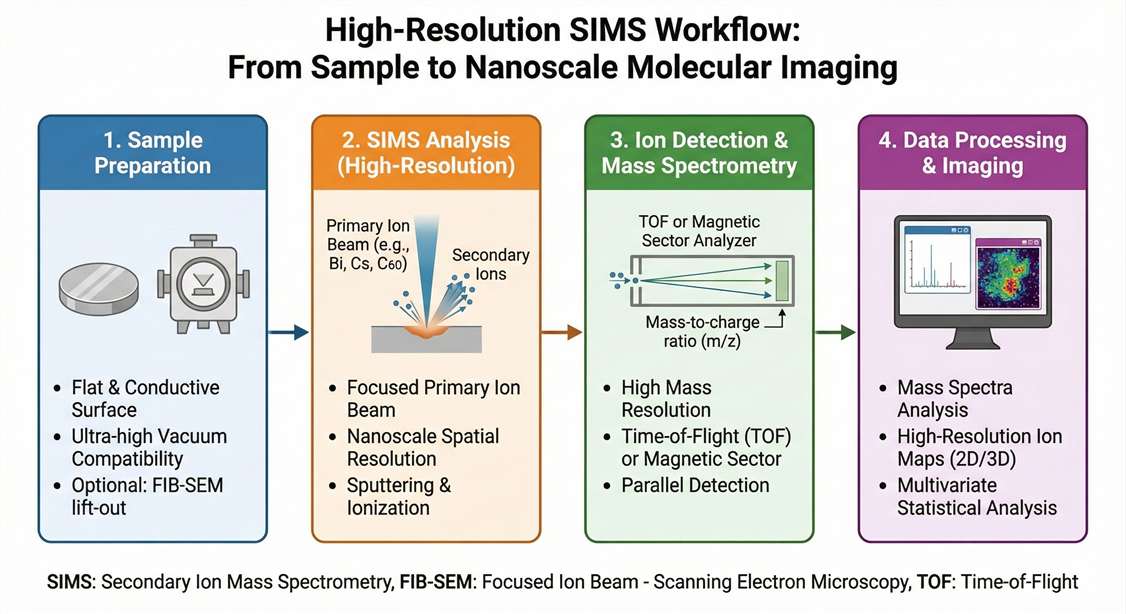

Workflow of SIMS
Technical Specifications
| Feature | Specification |
|---|---|
| Spatial Resolution | Down to 50 nm (instrument dependent) |
| Detection Limits | 1013 to 1016 atoms/cm3 (element dependent) |
| Mass Range | 1 to >10,000 amu (enabling macromolecule detection) |
| Depth Resolution | < 2 nm |
| Elements Detected | Hydrogen (H) through Uranium (U), including all isotopes |
Deliverables
Our SIMS High-Resolution Imaging service provides a comprehensive set of deliverables to support your research. You will receive:
- Raw Mass Spectrometry Data: Complete acquisition files for your records.
- 2D & 3D Spatial Maps: Processed images illustrating ion distribution across tissue or sample surfaces.
- Multivariate Statistical Analysis Results: Patterns, group separations, and data insights highlighted.
- Publication-Ready Outputs: All figures and processed data are formatted for easy interpretation and inclusion in research publications.
Applications
- Material Science: Explore the composition of materials, coatings, and thin films with high spatial precision. Perfect for studying surface treatments, corrosion, and material degradation.
- Semiconductor Industry: Examine the elemental distribution in microelectronics, integrated circuits, and semiconductor wafers at the nanoscale.
- Biomedical Research: Investigate tissue samples, biomolecules, and lipid distributions in biological studies, enabling insights into disease mechanisms, drug delivery, and other biomedical applications.
- Environmental Science: Analyze pollutants and trace elements in environmental samples, including soils, sediments, and water samples, with high sensitivity.
- Nanotechnology and Nanomaterials: Study the surface structure and composition of nanoparticles, nanostructures, and nanocomposites, enabling advancements in nanomaterial development.
Why Choose Our SIMS High-Resolution Imaging Service?
- State-of-the-Art Equipment: We utilize the latest SIMS technology, capable of providing unparalleled spatial resolution and sensitivity.
- Expert Team: Our team of experienced scientists and technicians ensures that each analysis is performed with precision and accuracy, tailored to your specific research needs.
- Comprehensive Data Analysis: We offer detailed data analysis, including high-resolution elemental and molecular maps, enabling you to draw meaningful conclusions from your research.
- Confidentiality and Quality Assurance: We are committed to maintaining the highest standards of confidentiality and data integrity, ensuring that your research is handled with the utmost professionalism.
FAQs
What types of samples are suitable for SIMS High-Resolution Imaging?
SIMS is best suited for solid samples, including biological tissues, cells, polymers, thin films, coatings, semiconductors, and other inorganic or hybrid materials. Samples must be compatible with high-vacuum conditions and have a relatively flat, clean surface to ensure optimal data quality.
What spatial resolution can SIMS High-Resolution Imaging achieve?
Depending on the instrument configuration and sample type, SIMS can achieve spatial resolutions down to the nanometer scale. This makes it one of the highest-resolution mass spectrometry imaging techniques available for surface chemical analysis.
What types of molecules or elements can be detected by SIMS?
SIMS is highly versatile and can detect elemental ions, isotopes, and low-mass molecular fragments. It is particularly powerful for elemental and isotopic mapping, while larger intact biomolecules may fragment during ionization.
What sample preparation is required for SIMS analysis?
Samples should be clean, dry, and securely mounted on a conductive substrate. Biological samples often require cryo-sectioning or freeze-drying to preserve spatial integrity and vacuum compatibility. Please contact us before starting the project, we will provide detailed instructions on sample preparation.
What is the typical turnaround time for SIMS High-Resolution Imaging, and can I discuss my experimental design?
Our standard turnaround time is 4–6 weeks from sample receipt to delivery of processed results. We also support remote, real-time consultations to discuss your experimental design, sample preparation, and project requirements, ensuring your workflow is tailored to your research needs.
Learn about other Q&A about other technologies.
Sample Preparation Guidelines
SIMS analysis takes place in an Ultra-High Vacuum (UHV). Samples must be perfectly dry, flat, and vacuum-compatible.
| Parameter | Requirement | Technical Reason |
|---|---|---|
| Surface Topography | Ultra-Flat / Polished | Rough surfaces deflect the primary ion beam, causing shadowing and signal distortion. Samples should be polished to a mirror finish if possible. |
| Vacuum Compatibility | Zero Outgassing | Samples must be fully dry. No wet tissues, volatile solvents, or porous materials that outgas (which ruins the high vacuum). |
| Conductivity | Conductive Surface | Insulating samples (e.g., glass, biological tissue) will accumulate charge. We may apply a thin Gold or Carbon coating to ensure stability. |
| Fixation (Bio) | High-Pressure Freezing / Freeze-Fracture | Chemical fixatives can redistribute ions. Cryo-fixation is preferred for accurate electrolyte mapping. |
| Size Constraints | Small (<10 mm diameter) | SIMS sample holders are typically very restricted in size compared to MALDI or SEM. |
Before starting sample preparation, please consult with our team to discuss your sample type and experimental goals, ensuring optimal preparation and smooth workflow.
