Glycan microarrays have become one of the most useful discovery-stage platforms for mapping protein–glycan recognition at scale. In a single experiment, they can compare hundreds of immobilized glycan structures against lectins, antibodies, viral attachment factors, bacterial adhesins, or glycan-modifying enzymes. That makes them especially attractive for early-stage mechanism studies, pilot screens, and assay-planning work in RUO research programs. Recent reviews consistently describe glycan microarrays as a high-throughput route to defining glycan-recognition patterns, narrowing candidate motifs, and generating testable follow-up hypotheses rather than serving as a standalone end point.
For biotech teams, the appeal is practical. A glycan microarray can answer a first-order question quickly: which glycan classes appear relevant enough to justify the next experiment? Instead of jumping directly into deeper structural glycobiology, cell-based presentation models, or multiple orthogonal assays, teams can begin with a controlled array format that helps rank binding preferences and expose meaningful structure–interaction patterns. That is often exactly the kind of evidence needed to improve study design, de-risk a pilot budget, or support a stronger methods rationale in a grant or internal project proposal.
Figure 1. Concept map of four RUO use cases for glycan microarrays, showing the question each use case answers and the typical next-step validation layer.
Uncovering Specificity of Glycan-Binding Proteins (GBPs)
One of the most established uses of glycan microarrays is profiling glycan-binding proteins. This includes plant lectins, animal lectins such as galectins and siglecs, antibodies that recognize glyco-epitopes, and newly studied proteins whose glycan preferences remain unknown. Recent reviews emphasize that glycan microarrays are especially useful because each GBP often responds not to one sugar alone, but to a combination of terminal monosaccharides, linkage types, branching features, sulfation states, and local glycan context. Side-by-side comparison across a well-chosen panel often reveals a motif family that would be difficult to infer from domain annotation alone.
For exploratory teams, the practical value is not simply to answer “does this protein bind glycans?” but to answer “what glycan space should we investigate next?” A well-designed screen can distinguish broad preference classes such as high-mannose-like motifs, LacNAc-related structures, terminal sialylation, sulfated glycans, or fucosylated branches. That kind of output is often enough to redirect downstream reagent choice, focused validation panels, or follow-up model systems.
Readers who want the technical foundation behind surface chemistry, glycan libraries, spotting strategy, and detection logic can first review the principles of glycan microarray construction. Projects that are ready to move directly into screening can use a dedicated glycan microarray assay workflow to generate a ranked binding profile from purified proteins, tagged binders, or compatible detection formats.
Lectins, Galectins, and Siglecs
Plant lectins remain useful benchmark binders because many produce recognizable motif-preference patterns. Animal lectins such as galectins and siglecs are often more context-sensitive, which makes the breadth of an array panel especially important. Immune-focused glycan-array reviews note that these proteins often display nuanced recognition shaped by local architecture rather than by a single isolated residue. In practice, that means the most informative result is usually not one bright feature, but a chemically coherent family of positives.
For a PI working on a suspected lectin-domain protein, the array can quickly answer whether the binder appears broad, narrow, sialylation-sensitive, sulfation-sensitive, or branch-sensitive. That is often the key decision point for the next phase of work.
Antibody Cross-Reactivity Against Glyco-Epitopes
Antibody cross-reactivity is another high-value application. A reagent that appears selective in a narrow screening setup can behave very differently across a broader glycan landscape. Glycan microarrays are especially useful here because they expose whether an antibody is recognizing one tight glyco-epitope, a wider motif family, or multiple partially overlapping structures. Immune-protein reviews have highlighted this as one of the platform’s most practical applications.
When the next question shifts from motif recognition toward carrier context or site-specific glycosylation interpretation, it is natural to extend the workflow with glycopeptides analysis or glycosylation analysis of protein. These are good follow-up paths when the array has already narrowed the glycan hypothesis and the team now needs higher-resolution structural context.
Discovering Novel GBPs
A less obvious but very useful application is novel GBP discovery. If a newly studied protein contains a candidate lectin-like domain, unexplained surface binding behavior, or sequence hints of glycan interaction, an array can provide the first reproducible clue about preference space. Even modest signals can be meaningful when they cluster around a chemically interpretable motif family instead of appearing as isolated outliers.
For these discovery-stage projects, bioinformatics becomes more valuable after the screen, not before it. Once a binder profile has emerged, teams can connect the protein back to pathways, domain families, or interaction context using bioinformatics for proteomics. When the next task is to summarize motif-linked biology rather than only report raw signals, a supporting functional annotation and enrichment analysis service can help organize downstream interpretation.
Viral Receptor Identification and Host-Surface Interaction Research
Viral attachment research is one of the most intuitive glycan microarray use cases because the platform can make receptor preference visible. A viral glycoprotein, purified attachment factor, or compatible particle-like system can be screened against a defined glycan panel to identify which terminal motifs, linkage classes, or scaffold features are preferred in that array format. Influenza remains the best-known example, where glycan arrays have long been used to compare binding preferences across α2,3- and α2,6-linked sialylated receptors. (ScienceDirect)
The key value here is not simply that a viral factor “binds sialic acid.” A strong array design can show whether one linkage class is favored over another, whether glycan extension matters, whether branching changes recognition, and whether the binder tolerates a wide or narrow receptor family. That makes the technology highly effective for receptor-preference mapping in RUO virology and glycan-recognition studies. At the same time, recent reviews also emphasize that array data must be interpreted with methodologic restraint because native presentation, glycocalyx architecture, and surface density can all alter the way those same glycans are experienced in a richer research model. (MDPI)

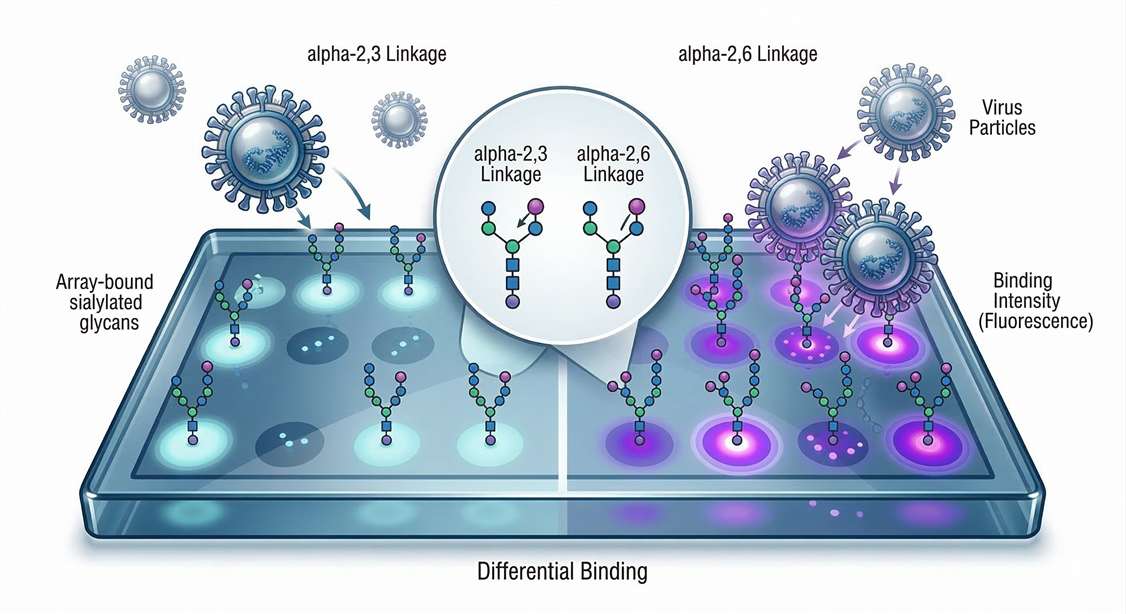

Figure 2. Side-by-side comparison of viral binding preference across α2,3- and α2,6-sialylated glycans under a glycan-array format, illustrating linkage-preference comparison rather than a native-context conclusion.
Influenza as the Best-Established Example
Influenza remains the clearest entry point for non-specialist readers because it demonstrates both the power and the limits of glycan arrays. Earlier work established the conceptual value of comparing α2,3- and α2,6-linked receptor classes, while later reviews stressed that receptor specificity must be interpreted carefully and in context. The array is excellent for comparing defined receptor candidates, but it should not be mistaken for a complete reconstruction of surface behavior in more native systems.
For B2B readers, the decision implication is simple: a glycan array is often the right first assay when the question is receptor preference, but it is rarely the only assay needed when the question becomes more presentation-dependent.
Beyond Influenza
The same logic extends to other virus–glycan systems. Reviews on viral attachment methods note that glycan arrays can be used to compare candidate receptor classes across multiple viruses, including those that engage the glycocalyx before more specific downstream interactions occur. Again, the most useful output is a ranked, assay-format comparison that narrows follow-up experiments.
Readers trying to choose between platform types may find it helpful to compare glycan arrays with lectin-based sample-profiling workflows. The dedicated guide on glycan microarray vs. lectin microarray explains that difference in a more decision-oriented format, while lectin microarray assay workflows are often more appropriate when the unknown is the glycosylation pattern of a complex sample rather than the ligand preference of a binder.
Bacterial Adhesins and Host Glycan Recognition
Bacterial adhesion studies are another strong fit. Reviews of bacterial-surface glycan microarray strategies describe how array-based approaches can be used to study bacterial glycans, bacterial recognition by host proteins, and adhesin-mediated interaction with host-associated glycan motifs. In a research setting, that makes glycan microarrays useful for asking which host-like glycans are likely targets of an adhesin candidate, how broad that ligand space is, and whether branching or terminal modifications change recognition.
For teams focused on microorganism-associated glycan diversity rather than only generic host glycans, a microbial glycan microarray assay can be a better fit than a standard panel because it aligns the display library more closely with the biological question being asked.
Studying Glycan-Modifying Enzymes
Glycan microarrays are often introduced as binding assays, but they can also function as substrate-display platforms for glycan-modifying enzymes. The logic is slightly different: instead of asking which glycans a protein binds, the assay asks which immobilized glycans are accepted, remodeled, or discriminated by a glycosyltransferase, glycosidase, or related enzyme system. Reviews and protocols describe this as a useful extension of glycan microarray technology, especially for substrate-specificity screening and comparative enzyme characterization.
This matters because many enzyme questions are really specificity questions in disguise. A team may want to know whether an enzyme accepts one terminal scaffold but not another, whether branching limits turnover, or whether extension of a precursor changes catalytic compatibility. A panel-based array can answer that much faster than a one-substrate-at-a-time workflow.
Downstream follow-up should match the question. If the next step is structural confirmation of the glycans involved, glycan sequencing and structural characterization of glycans are logical extensions. If the project is moving toward broader glycan profiling instead of one reaction mechanism, a more general glycomics service may be the better route.

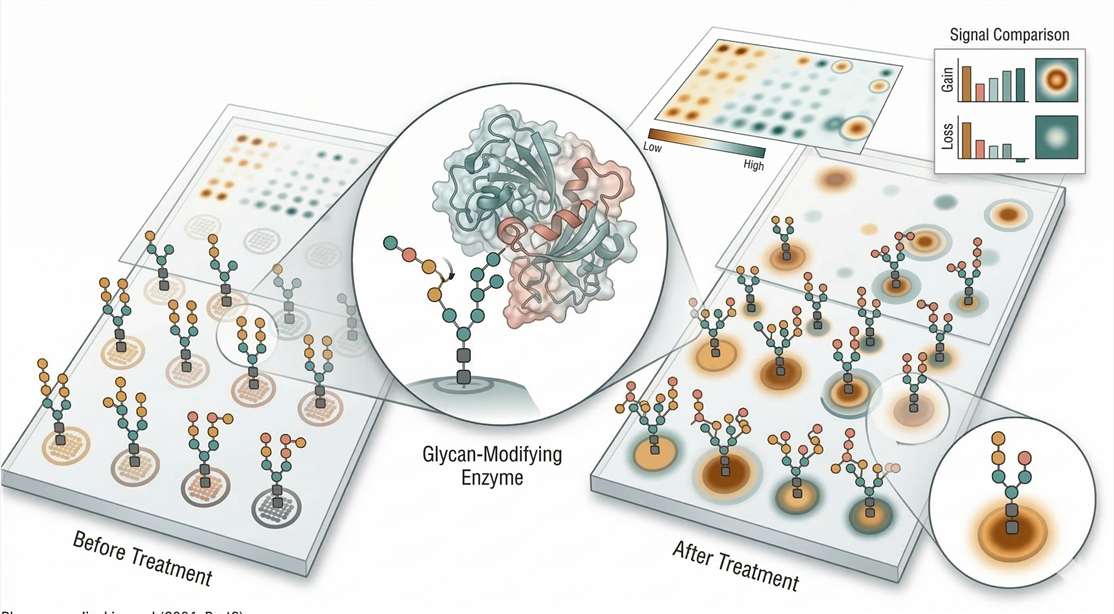

Figure 3. Before-and-after signal-shift model for enzyme studies on a glycan microarray, showing substrate-bias interpretation under controlled assay conditions rather than a standalone mechanistic conclusion.
Sample and Study Design Considerations
The biggest avoidable mistake in glycan microarray projects is beginning with a vague question. “We want to see what it binds” is usually too broad to design well. A stronger version is: “We want to know whether this GBP prefers sulfated LacNAc-like structures over non-sulfated analogs,” or “We want to compare whether this viral factor ranks α2,3- and α2,6-linked receptor candidates differently under one array format.” Specific hypotheses improve panel selection, controls, and interpretation.
Input quality matters just as much as panel design. For protein-centered studies, folding state, purity, aggregation tendency, tag choice, and compatible detection chemistry can all reshape the apparent pattern. For virus-oriented work, the practical question becomes whether purified glycoprotein, a compatible particle model, or another attachment-focused format produces the cleanest first-pass readout. For enzyme work, control reactions and donor-substrate compatibility are often as important as the glycan panel itself.
When the goal is to turn an exploratory question into a well-scoped assay plan, teams often benefit from a dedicated glycan-related microarray assay workflow that aligns study question, input requirements, controls, and expected deliverables before the first experiment is run.
What Good Deliverables Look Like in a B2B RUO Project
A good glycan microarray deliverable should do more than present attractive figures. At minimum, it should include spot-level or feature-level signal tables, replicate-aware summaries, image outputs, glycan annotation, ranked hits, and a short interpretation note that explains what the major motif families appear to be. For most outsourced RUO projects, the most valuable part of the package is the translation from raw signal to actionable next-step logic.
That next-step logic should answer questions such as: Did the positives cluster into a coherent glycan family? Was the result broad or narrow? Were the differences large enough to justify focused follow-up? Did the array reveal an interpretable preference or only a weak trend? For multi-condition comparisons, teams may also add downstream statistical analysis service support to improve normalization, comparison logic, and result interpretation.
Teams evaluating providers may also find it useful to review the more procurement-oriented checklist in selecting a high-performance glycan microarray service vendor, particularly when deliverables, QC expectations, and communication workflow matter as much as the assay itself.
Troubleshooting: Interpreting Weak, Noisy, or Confusing Array Results
The troubleshooting notes below are more useful when converted into a quick diagnostic framework. For B2B readers evaluating outsourcing options, the practical question is not only what may have gone wrong, but what should be checked first before the next run is designed.
Very weak global signal
A weak overall signal does not always mean the protein or enzyme lacks glycan engagement. It can reflect low activity, missing motif coverage in the panel, or a detection geometry that simply does not fit the input reagent. In practice, this is why reagent QC and panel selection should be aligned before the screen rather than after a disappointing image.
High background
If many spots look positive at once, the dataset may be less informative than it appears. High background commonly reflects nonspecific adhesion, aggregation, detection mismatch, or input overloading. These datasets should be interpreted conservatively.
Bright outliers without a clear motif family
True narrow specificity is possible, but isolated positives without chemical coherence can also be artifacts. A stronger signal pattern usually shows some structural logic. If the positives do not cluster by any motif principle, the safest interpretation is preliminary rather than definitive.
Weak transferability to a more context-rich model
This is not unusual. Array presentation is controlled and simplified by design. That is a strength for screening, but it also means the top-performing glycan feature within the tested array format may not behave identically in a more native presentation model. Reviews on viral and cell-based glycan assays make this limitation explicit. (MDPI)
Common Misconceptions
One common misconception is that glycan microarrays are only for lectins. In reality, recent reviews show broad use across antibodies, viral attachment factors, bacterial interaction studies, and glycan-modifying enzymes.
Another misconception is that the brightest spot identifies the “real” receptor. A safer statement is that the brightest spot identifies the top-performing glycan feature within the tested array format. That is a highly useful result, but it remains an assay-format result.
A third misconception is that glycan microarrays and lectin microarrays are interchangeable. They are not. They invert what is fixed and what is variable, so they answer different classes of questions.
FAQ
1) What kinds of projects are best suited to a glycan microarray?
Projects focused on glycan-recognition specificity are the best fit: GBP motif discovery, antibody cross-reactivity, viral receptor-preference comparison, bacterial adhesin mapping, and enzyme substrate screening.
2) Can glycan microarrays be used for proteins with unknown glycan preference?
Yes. They are often one of the fastest ways to determine whether a newly studied protein has a reproducible glycan-recognition pattern and whether that pattern clusters around an interpretable motif family.
3) Are glycan microarray results quantitative?
They are best treated as comparative or semi-quantitative. They are excellent for ranking and pattern recognition, but they do not automatically substitute for affinity measurements or more context-rich validation systems.
4) How is a glycan microarray different from a lectin microarray?
A glycan microarray arrays defined glycans and tests what binds them. A lectin microarray arrays glycan-binding probes and tests glycosylation-pattern differences across samples.
5) Are glycan microarrays useful for virus-related studies?
Yes. They are especially useful for comparing receptor candidates under one assay format and narrowing which glycan families deserve follow-up testing. Influenza is the classic example. (ScienceDirect)
6) What is the most common interpretation mistake?
Treating one strong hit as a complete answer. In most cases, the better use of the array is to prioritize next experiments and refine the study question.
7) Can glycan microarrays support enzyme studies as well as binding studies?
Yes. They can be used as substrate-display systems to compare how glycan-modifying enzymes act across a defined glycan panel.
8) What should a service provider deliver besides images?
Ideally: raw or semi-raw image outputs, signal tables, normalized summaries, glycan annotation, ranked hits, and a concise interpretation note with follow-up recommendations.
References:
- Heimburg-Molinaro J, Mehta AY, Tilton CA, Cummings RD. Insights Into Glycobiology and the Protein-Glycan Interactome Using Glycan Microarray Technologies. Molecular & Cellular Proteomics. 2024;23(11):100844. DOI:10.1016/j.mcpro.2024.100844.
- Kim Y, Hyun JY, Shin I. Glycan Microarrays from Construction to Applications. Chemical Society Reviews. 2022;51:8276–8299. DOI:10.1039/D2CS00452F.
- Gao C, Wei M, McKitrick TR, McQuillan AM, Heimburg-Molinaro J, Cummings RD. Glycan Microarrays as Chemical Tools for Identifying Glycan Recognition by Immune Proteins. Frontiers in Chemistry. 2019;7:833. DOI:10.3389/fchem.2019.00833.
- Stevens J, Blixt O, Glaser L, Taubenberger JK, Palese P, Paulson JC, Wilson IA. Glycan Microarray Analysis of the Hemagglutinins from Modern and Pandemic Influenza Viruses Reveals Different Receptor Specificities. Journal of Molecular Biology. 2006;355(5):1143–1155. DOI:10.1016/j.jmb.2005.11.002.
- Raman R, Tharakaraman K, Shriver Z, Jayaraman A, Sasisekharan V, Sasisekharan R. Glycan-Receptor Specificity as a Useful Tool for Characterization and Surveillance of Influenza A Virus. Trends in Microbiology. 2014;22(11):632–641. DOI:10.1016/j.tim.2014.07.002.
- Mathez G, Cagno V. Viruses Like Sugars: How to Assess Glycan Involvement in Viral Attachment. Microorganisms. 2021;9(6):1238. DOI:10.3390/microorganisms9061238.
- Campanero-Rhodes MA, Palma AS, Menéndez M, Solís D. Microarray Strategies for Exploring Bacterial Surface Glycans and Their Interactions With Glycan-Binding Proteins. Frontiers in Microbiology. 2020;10:2909. DOI:10.3389/fmicb.2019.02909.
- Nycholat CM, Rademacher C, Kawasaki N, Paulson JC. Glycan Microarray Screening Assay for Glycosyltransferase Specificities. In: Glycosyltransferases: Methods and Protocols. Methods in Molecular Biology. 2013;1022:125–142. DOI:10.1007/978-1-62703-465-4_1.
- Büll C, Joshi HJ, Clausen H, Narimatsu Y. Cell-Based Glycan Arrays—A Practical Guide to Dissect the Human Glycome. STAR Protocols. 2020;1:100017. DOI:10.1016/j.xpro.2020.100017.
- Blixt O, Scanlan CN, Zopf D, et al. Printed Covalent Glycan Array for Ligand Profiling of Diverse Glycan Binding Proteins. Proceedings of the National Academy of Sciences of the United States of America. 2004;101(49):17033–17038. DOI:10.1073/pnas.0407902101.
