Glycan microarrays can generate information-dense binding datasets, but the main analytical bottleneck often starts after scanning. For teams comparing workflows or evaluating external analytical depth, the key question is not whether an image can be generated. It is whether that image can be converted into a reproducible, review-ready interpretation that remains credible after QC review, threshold review, and structure-level standardization. In practice, that requires a connected workflow spanning spot extraction, normalization, hit calling, motif interpretation, visualization, and public-resource mapping. Public resources and analysis tools such as GlyMDB, GLAD, CarbArrayART, GlyTouCan, GlyGen, and CarboGrove all reflect the same principle: glycan array analysis becomes more useful when it is transparent, metadata-aware, and interoperable across research teams and platforms.
This planning step often benefits from aligning assay scope with a broader Glycomics Service and, where appropriate, a focused Glycan Microarray Assay. A credible workflow should document how raw images are processed, how replicate stability is checked, how normalization is selected, how borderline hits are reviewed, and how glycan identities are standardized before external comparison.
Why This Workflow Matters Before You Interpret Binding Patterns
A glycan microarray result table is highly sensitive to array composition, glycan presentation, surface chemistry, detection chemistry, and platform-specific thresholding. Cross-platform comparison work has shown that strong binders are often reproducible across formats, while weaker or borderline binders are more affected by presentation effects, platform design, and thresholding rules. That is why an apparently simple ranked list of RFU values is not yet a stable analytical conclusion.
The downstream consequence is practical. If spot finding is unstable, if replicate spread is poorly characterized, or if normalization is chosen for convenience rather than for technical fit, the workflow may compress or exaggerate meaningful assay-level differences. By the time a heatmap is generated, the main analytical risks may already be locked in. Teams assessing analytical depth therefore benefit from treating the workflow as a chain of evidence rather than a sequence of graphics.
Image Processing and Raw Data Extraction
The first analytical checkpoint is gridding and spot finding. Even with a predefined array layout, spot centroids can drift, signal can bleed into neighboring features, and local background can vary across the slide. CarbArrayART was developed around this reality and treats quantified array data, scan data, geometry, metadata, and protocols as connected objects rather than separate files. That is a useful model for project design because it reminds teams that image interpretation is inseparable from array metadata.
For signal extraction, median foreground intensity is often a more robust operational choice than mean intensity when hot pixels or irregular spot edges are present. Local background subtraction is usually preferable when the slide shows nonuniform background patterns. At this stage, the goal is not to maximize apparent signal, but to produce a defensible net intensity estimate for each printed glycan.
Three QC views should be reviewed before normalization:
- grid alignment and spot overlay quality,
- raw versus background-subtracted intensity distributions,
- replicate consistency for each glycan feature.
For replicate review, CV can be used as an operational screening rule rather than a universal field-wide standard. A practical convention is to treat CV < 20% as comfortable, 20–30% as review-needed, and >30% as a flag for weak-signal instability, gridding errors, or spot-level inconsistency. These are workflow examples, not fixed community thresholds, and they should be documented in advance for the specific assay design.
When upstream material quality is still variable, it helps to define sample-handling expectations early through Customized Experiments.
Normalization and Statistical Interpretation
Figure 1. QC-Oriented Signal Normalization Workflow for Glycan Microarray Data.
This figure corresponds to the normalization/QC image with raw signal irregularity on the left and improved replicate consistency after processing on the right. It is most useful when a team needs to decide whether differences between arrays are technical enough to justify normalization or severe enough to pause interpretation.
Normalization should be selected based on what is varying technically. If most features shift together because of scanner gain, labeling yield, or global detection efficiency, a global normalization rule can be appropriate. If the array contains reliable internal references that behave consistently across batches, control-based normalization is often a stronger choice because it anchors correction to known features rather than to the overall signal distribution. GLAD and GlyMDB both reinforce the importance of making normalization and downstream comparison explicit rather than implicit.
Hit calling should also be documented before review begins. A common operational rule is to define positives relative to background-adjusted signal and the spread of a low-signal or negative population, for example with a mean-plus-multiple-standard-deviation framework. But the exact rule should match the array design and be applied consistently. GlyMDB is particularly relevant here because it supports configurable binder versus non-binder classification and motif discovery from uploaded or archived array data.
For teams prioritizing downstream comparison and reporting rigor, this stage may also connect to Statistical Analysis Service and our guide to glycan microarray principles and construction.
A Practical Decision Framework
Before moving from scanner output to public-resource mapping, teams usually benefit from a simple go/no-go framework. First, confirm spot extraction quality and replicate stability. Second, choose a normalization strategy based on what is varying technically, not what is visually convenient. Third, define positive-binding rules before reviewing ranked hits, and document how borderline calls will be handled. Finally, require standardized structure notation before assigning external accessions. This sequence prevents a common failure mode in glycan microarray projects: attempting motif interpretation or database integration before the underlying signal table is stable enough to support reproducible structure-level conclusions.
| Decision point | Use when | Avoid when | Minimum evidence required |
|---|---|---|---|
| Global normalization | Broad technical shift across slides | Sparse or strongly skewed distributions | Similar distribution shape across slides |
| Control-based normalization | Stable internal references exist | Controls are weak or poorly annotated | Verified control behavior across batches |
| Borderline hit review | Moderate RFU with good consistency | Replicate instability dominates | Replicate CV plus threshold context |
| Database mapping readiness | Cleaned names and stable hit table | Structure labels remain ambiguous | Standardized notation plus accession check |
Integration with Public Glycomics Databases
Once the normalized hit table is stable, the next task is structure standardization. This is where many workflows lose interoperability. Local feature names, legacy array labels, and shorthand motif descriptions are often not portable across tools or repositories. GlyTouCan addresses this by assigning globally unique accession numbers to glycan structures, including partially ambiguous structures, making it a practical accession anchor for downstream mapping.
GlyGen adds another layer by integrating and harmonizing glycobiology data from multiple sources, including GlyTouCan. That makes it useful when teams want to move beyond a local signal table toward structured annotations that can be compared, documented, and reused across internal research workflows.
For readers who need a refresher on assay design and readout context, see our guide to glycan microarray principles and construction.

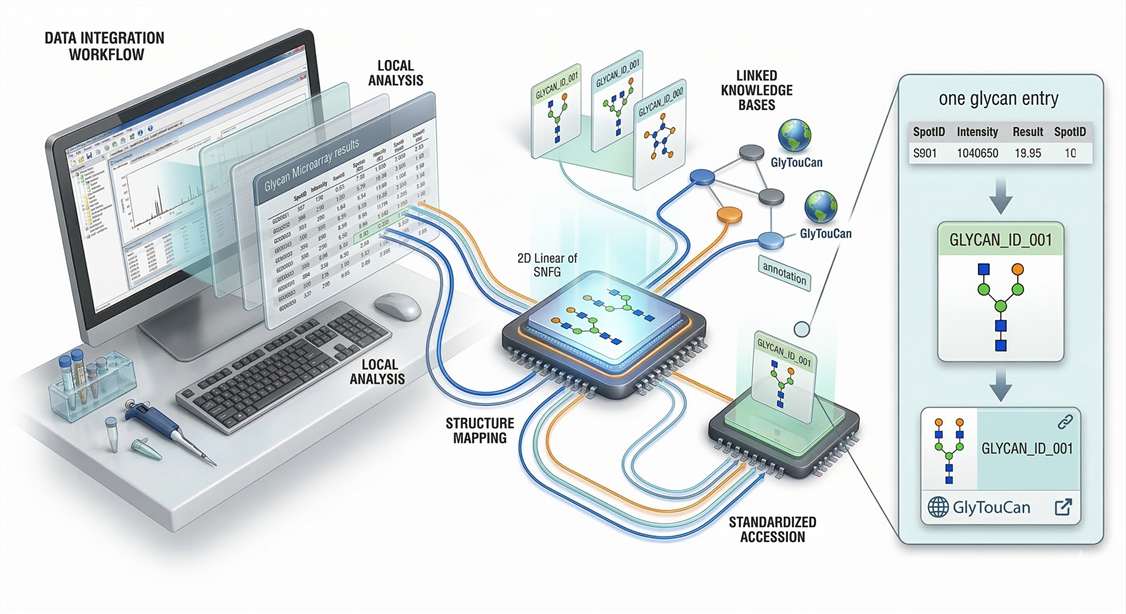

Figure 2. Standardizing Local Glycan Array Results for Public Database Integration.
This figure corresponds to the data integration workflow image showing local analysis, structure mapping, standardized accession assignment, and linked knowledge bases. It clarifies a common failure point: a local hit table is not automatically interoperable until naming, structure representation, and accession mapping are standardized.
A practical mapping sequence is straightforward:
- export the cleaned, normalized hit table;
- normalize local glycan naming to a consistent structure notation;
- assign or verify GlyTouCan accessions where possible;
- compare against archived glycan-array resources such as CFG/NCFG and analysis resources such as GlyMDB;
- add integrated annotation context through GlyGen or related glycoscience resources.
Projects that need structural follow-up after array interpretation may extend into Structural Characterization of Glycans or Glycan Sequencing.
Advanced Visualization: Heatmaps and Motif Trees
Heatmaps are useful for compressing a large binding matrix into visible patterns, but they are not interpretive on their own. GLAD was developed specifically to improve visualization, comparison, and mining of glycan microarray datasets, while CarboGrove was created to analyze and integrate glycan-binding specificities across array types, glycan families, methods, and laboratories. Together, these resources show the field’s shift from static plots toward reusable specificity analysis.
Motif-level interpretation is what turns a ranked table into a specificity model. The classic motif-based glycan array paper demonstrated how component substructures can be used to identify recurring binding features rather than treating each glycan as an isolated endpoint. That matters operationally because a moderate but internally consistent motif pattern can be more informative than a single extreme signal value. Borderline glycans should therefore be reviewed not only for intensity but also for how strongly they influence motif confidence.
Teams comparing external support can also review what distinguishes a glycan microarray assay partner with stronger analytical depth. For broader downstream interpretation, this stage may also connect to Bioinformatics for Proteomics.
QC and Troubleshooting: Symptoms, Causes, and Corrective Actions
A publishable heatmap does not guarantee a stable workflow. A better question is whether another team could understand the QC decisions without reopening the raw scanner process.
| Symptom | Likely cause | Corrective action |
|---|---|---|
| Replicate spots vary widely | Spot morphology issues, weak signal, local background gradients, gridding drift | Recheck overlays, review median vs mean extraction, exclude unstable spots before normalization |
| Whole-slide intensity shifts | Scanner settings, labeling yield, detection variability | Compare raw distributions first, then apply normalization only if the shift is technical |
| Too many weak positives | Permissive thresholding, poor background modeling, nonspecific signal | Tighten hit-calling rule and re-evaluate low-signal population |
| Heatmap looks convincing but motifs are unstable | Outlier-driven clusters or borderline glycans | Re-run motif analysis after removing borderline features |
| Database mapping fails | Inconsistent local names or ambiguous structures | Standardize notation before accession assignment |
If the main bottleneck is quantitative consistency rather than structure mapping, a focused Glycan Quantification workflow may be the better next step.
What a Strong Deliverable Package Should Include
At minimum, a reusable analysis package should let another team review signal quality, reproduce threshold logic, and trace structure-mapping decisions without reopening the raw scanner workflow.
Data tables
- raw signal matrix,
- background-corrected matrix,
- normalized hit table,
- replicate summary table.
QC and methods
- array layout and metadata summary,
- spot exclusion log,
- replicate CV summary,
- normalization rationale,
- positive-binding rule.
Interpretation and mapping
- ranked hit list,
- heatmap and clustering outputs,
- motif interpretation summary,
- standardized structure identifiers,
- public-resource mapping notes.
This is where deliverable quality becomes a selection criterion. If a partner can only provide a heatmap and a short ranked list, the downstream burden often remains with the client team. If the output instead supports threshold traceability, structure standardization, and reuse across internal workflows, the data package is much more likely to survive technical handoff. Related assay context can also be complemented by Lectin Microarray Assay or feature-level follow-up through Glycopeptides Analysis.
FAQ
1. What is the most common mistake in glycan microarray data analysis?
Treating raw or lightly processed RFU values as final evidence. Without QC, normalization, and structure-aware interpretation, apparently strong signals can still be misleading.
2. Is median intensity better than mean intensity?
Often yes, when hot pixels or irregular spot edges are present. The safer rule is to choose one method deliberately and document why.
3. Is there a universal positive-binding cutoff?
No. Thresholds should be defined as workflow conventions for the specific array design and low-signal reference population rather than copied across projects. GlyMDB’s configurable classification model illustrates this well.
4. Why is motif analysis better than a simple ranked list?
Because many useful conclusions depend on recurring glycan substructures, not only on one exact glycan identity. Motif analysis makes specificity more portable.
5. When should I map hits to GlyTouCan?
After the signal table is cleaned, normalized, and converted into standardized structure notation. Accession assignment should not happen before naming is stable.
6. Can I compare my data directly with historical CFG/NCFG data?
Often at a qualitative or motif level, yes, but direct intensity comparison can be complicated by differences in array composition, glycan presentation, and thresholding practice.
7. What signals that an external partner has real analytical depth?
They should be able to explain spot finding, background treatment, replicate QC, normalization choice, hit-calling logic, motif analysis, and structure-ID mapping before the project starts.
8. What is the minimum acceptable deliverable for internal review?
At least a cleaned hit table, a QC summary, the normalization rule used, and a traceable explanation of how structure identities were standardized.
References:
- Cao Y, Park SJ, Mehta AY, Cummings RD, Im W. GlyMDB: Glycan Microarray Database and analysis toolset. Bioinformatics. 2020;36(8):2438-2442. DOI: 10.1093/bioinformatics/btz934. https://doi.org/10.1093/bioinformatics/btz934
- Fujita A, Aoki-Kinoshita KF, Sawaki H, et al. The international glycan repository GlyTouCan version 3.0. Nucleic Acids Research. 2021;49(D1):D1529-D1533. DOI: 10.1093/nar/gkaa947. https://doi.org/10.1093/nar/gkaa947
- Kahsay R, Vora J, Navelkar R, et al. GlyGen data model and processing workflow. Bioinformatics. 2020;36(12):3941-3943. DOI: 10.1093/bioinformatics/btaa238. https://doi.org/10.1093/bioinformatics/btaa238
- Chong YT, Parma B, Ho MK, Kazim L, Marcheselli V, Neves AA, Wormald MR, Carsetti R, Ambrosino E, Taylor ME, Drickamer K, Feizi T. Motif-based analysis of glycan array data to determine the specificities of glycan-binding proteins. Glycobiology. 2010;20(3):369-380. DOI: 10.1093/glycob/cwp187. https://doi.org/10.1093/glycob/cwp187
- Mehta AY, Cummings RD. GLAD: GLycan Array Dashboard, a visual analytics tool for glycan microarrays. Bioinformatics. 2019;35(18):3536-3537. DOI: 10.1093/bioinformatics/btz075. https://doi.org/10.1093/bioinformatics/btz075
- Akune Y, Kletter D, Vergnes A, et al. CarbArrayART: a new software tool for carbohydrate microarray data storage, processing, presentation, and reporting. Glycobiology. 2022;32(7):552-555. DOI: 10.1093/glycob/cwac018. https://doi.org/10.1093/glycob/cwac018
- Mehta AY, Heimburg-Molinaro J, Cummings RD. Tools for generating and analyzing glycan microarray data. Beilstein Journal of Organic Chemistry. 2020;16:2260-2271. DOI: 10.3762/bjoc.16.187. https://doi.org/10.3762/bjoc.16.187
- Li Y, Orlando R, Gildersleeve JC. Glycan microarrays: from construction to applications. Chemical Society Reviews. 2022;51(19):8274-8300. DOI: 10.1039/D2CS00452F. https://doi.org/10.1039/D2CS00452F
- Mariño K, Bones J, Kattla JJ, Rudd PM. A systematic approach to protein glycosylation analysis: a path through the maze. Nature Chemical Biology. 2010;6(10):713-723. DOI: 10.1038/nchembio.437. https://doi.org/10.1038/nchembio.437
- Burkholz R, Bojar D. CarboGrove: a resource of glycan-binding specificities. Glycobiology. 2022;32(8):679-684. DOI: 10.1093/glycob/cwac021. https://doi.org/10.1093/glycob/cwac021
