Serine- and glycine-linked one-carbon metabolism is one of the most useful pathway frameworks for explaining how proliferative cell systems reallocate carbon under biosynthetic and oxidative pressure. In research models, this network connects glycolysis-derived serine synthesis, reversible serine-glycine interconversion, folate-mediated one-carbon transfer, nucleotide precursor production, and redox-associated metabolism. That breadth is exactly why the pathway is attractive for mechanism-oriented projects: it can explain not just "what changed," but why carbon-routing logic changed. (ScienceDirect)
A recurring interpretation problem is that serine abundance, pathway-enzyme expression, and carbon flux are often discussed as if they were interchangeable. They are not. A higher serine pool can reflect uptake, synthesis, reduced consumption, or downstream bottlenecks. Likewise, elevated PHGDH, SHMT2, or MTHFD2 expression can support a pathway hypothesis, but it does not by itself prove that one-carbon units are reaching purine, thymidylate, or redox-linked outputs at a functionally meaningful rate. Strong RUO projects therefore separate pool-size evidence, enzyme-level evidence, and flux evidence instead of collapsing them into one conclusion. (ScienceDirect)
This article discusses serine- and glycine-linked one-carbon metabolism strictly in a research-use-only context. The focus is on pathway interpretation, experimental design, metabolomics readouts, isotope tracing logic, and multi-omics integration in cell and model-system studies. It is not intended to support clinical decision-making, patient stratification, diagnosis, treatment selection, or outcome prediction. Any mention of cancer types, stress states, or pathway-associated phenotypes should be read as model-specific research framing rather than medical guidance. For project planning, the practical goal is to distinguish substrate sourcing, one-carbon transfer, nucleotide support, and redox adaptation using fit-for-purpose analytical workflows and evidence standards appropriate for exploratory or mechanism-oriented studies.
For study teams at the exploration or pilot stage, a broad metabolomics workflow is often the fastest way to see whether amino-acid, folate-linked, and nucleotide-associated changes move together, while metabolomics bioinformatics support helps determine whether the pattern is more consistent with altered substrate sourcing, redox adaptation, or nucleotide demand. That distinction matters because one-carbon metabolism is rarely a single-pathway story; it is usually part of a larger metabolic rewiring program. (ScienceDirect)
The Role of Serine and Glycine as Carbon Sources
Serine is usually the dominant entry point into this network. In many research models, cells can import serine from the medium, but they may also engage the de novo serine synthesis pathway (SSP), which diverts 3-phosphoglycerate from glycolysis through PHGDH, PSAT1, and PSPH. That shift is important because SSP activation is not just an amino-acid supply mechanism. It can also function as a context-dependent metabolic rewiring program that redirects glycolytic carbon toward biomass support, folate-linked one-carbon transfer, and downstream pathway flexibility. (ScienceDirect)
Two early studies made this point especially clear. Locasale and colleagues used isotope labeling and metabolomics to show that, in some cancer cell models, a substantial fraction of glycolytic carbon can be diverted into serine and glycine biosynthesis through PHGDH. That case established that SSP activity can represent active carbon rerouting rather than background amino-acid housekeeping. Possemato and colleagues then showed that breast cancer models with elevated PHGDH expression could become functionally dependent on serine-pathway flux, using RNAi-based functional screening to connect pathway activation to growth-related fitness in a model-specific way. Together, these studies are still useful because they illustrate a practical rule for study design: SSP activation should be tested as a conditional dependency, not assumed as a universal feature. (Nature)
Glycine enters the pathway through two main routes. It can be generated from serine by serine hydroxymethyltransferases while donating a one-carbon unit to the folate pool, and it can also contribute to one-carbon metabolism through glycine cleavage in appropriate contexts. This means glycine should not be treated as merely a passive downstream product. Changes in glycine abundance can reflect altered serine-to-glycine conversion, altered glycine clearance, altered one-carbon demand, or altered compartment-specific metabolism. In project terms, serine uptake, endogenous serine synthesis, and glycine handling are different variables and should be framed separately in experimental plans. (ScienceDirect)
A good case example is the NRF2 study in non-small cell lung cancer models. DeNicola and colleagues integrated metabolic tracing with transcriptional profiling and showed that NRF2 regulates a serine biosynthesis program through ATF4, including PHGDH, PSAT1, and SHMT2, to support glutathione- and nucleotide-related metabolic demands. The value of this paper is methodological as much as biological: it did not rely on gene expression alone. It linked transcriptional regulation to isotope-based metabolic behavior, which is a stronger template for pathway interpretation than expression analysis by itself. (Nature)
For exploratory projects, untargeted metabolomics profiling is often the right first step when the question is broad and the pathway status is still uncertain. Once the hypothesis narrows to folate-linked intermediates, nucleotide precursors, or predefined serine/glycine nodes, targeted metabolomics assays usually provide more interpretable readouts.
Figure 1. Schematic separating extracellular serine uptake, de novo serine synthesis, glycine interconversion, and folate-linked one-carbon transfer. The goal is to distinguish substrate availability from downstream carbon routing into nucleotide-supporting and redox-associated outputs.
The main study-design takeaway from this section is simple: not every serine-high phenotype is an SSP phenotype, and not every glycine shift means the same thing. A workable design asks three separate questions: where is serine coming from, where are one-carbon units being transferred, and which downstream output appears most constrained. Keeping those questions separate greatly improves method choice later in the workflow. (ScienceDirect)
Metabolic Flux: Diverting Carbons to Nucleotide Synthesis and Redox Balance
The reason this pathway draws so much attention is that one-carbon units are central to de novo purine synthesis and thymidylate synthesis. When a cell system is under sustained proliferative pressure, serine-derived one-carbon metabolism can become a major support axis for nucleotide production. At the same time, folate-cycle reactions connect the pathway to redox-associated metabolism, which means the same carbon source can support both biosynthetic output and oxidative-stress adaptation. That dual role is why one-carbon metabolism often sits at the center of broader metabolic rewiring models. (ScienceDirect)
A useful way to interpret pathway activation is to ask which downstream demand is most plausible in the model you are studying. In one system, the dominant readout may be purine support. In another, thymidylate synthesis may be the more relevant sink. In another, the most visible phenotype may be improved redox handling under nutrient or respiratory stress. The key is that one-carbon metabolism should be understood as a routing network, not a single-output pathway. (ScienceDirect)
A strong literature example is the work by Maddocks and colleagues, who showed in colorectal cancer models that serine supported the methionine cycle and DNA/RNA methylation partly through de novo ATP synthesis rather than by one-carbon donation alone. This matters because it expanded the field's interpretation beyond a narrow "serine feeds methylation" story. The study used stable isotope tracing and mass spectrometry to show that serine availability shaped nucleotide and energy metabolism in ways that then affected methylation-related outputs. For research planning, the lesson is that downstream phenotypes can be indirect, and a carbon-routing question may require both targeted metabolite readouts and flux logic. (Cell)
Another informative case is the 2020 Cell Metabolism paper by Yang and colleagues, which showed that serine catabolism can feed NADH when respiration is impaired. This is important because it broadens the pathway's interpretation from "nucleotide feeder" to "metabolic adaptation module." In projects involving mitochondrial stress, respiratory limitation, or altered redox state, one-carbon metabolism may therefore deserve attention even when nucleotide measurements alone are not especially dramatic. (ScienceDirect)
A practical marker checklist for research models
Useful first-pass readouts include serine and glycine pool sizes, PHGDH-PSAT1-PSPH expression, SHMT1/SHMT2 balance, MTHFD2 abundance, purine-associated intermediates, thymidylate-related features, and redox-linked measurements such as glutathione status or related stress markers. None of these alone proves pathway dominance, but together they can indicate whether the next experiment should stay at the steady-state level or move toward targeted confirmation or isotope tracing. (ScienceDirect)
For this stage, statistical analysis support and data preprocessing and normalization workflows are especially important because growth-rate effects, medium effects, and batch effects can all make pathway signals look stronger or weaker than they really are.
The most useful practical question is not "Is one-carbon metabolism active?" but "What is the best-supported downstream use of one-carbon units in this model?" That shift in wording usually leads to better experiment design, because it encourages researchers to align readouts with biological demand instead of treating the entire pathway as an undivided block.
Compartmentalized Logic: Cytosolic vs. Mitochondrial Pathways
One-carbon metabolism is best understood as a compartmentalized network rather than a single intracellular pool. SHMT1 is mainly cytosolic, whereas SHMT2 is mitochondrial. Mitochondrial reactions often generate one-carbon units that can be exported as formate, while cytosolic reactions make use of one-carbon units for biosynthetic processes such as nucleotide production. That division of labor is one of the most important reasons that pool-size data alone can be misleading. The same serine or glycine signal can sit on top of very different subcellular flux patterns. (ScienceDirect)
Nilsson and colleagues helped formalize this idea by highlighting MTHFD2 and the mitochondrial folate pathway as a recurring feature across many cancer datasets. Their work was influential because it pushed the field away from treating folate-linked metabolism as mainly a cytosolic phenomenon. Instead, it emphasized mitochondrial one-carbon generation as a distinctive and recurrent part of proliferative metabolism. For research teams, this means that high mitochondrial folate-pathway signal should change how a pathway map is interpreted and how follow-up experiments are prioritized. (Nature)
The SHMT2 glioma paper is another key example. Kim and colleagues showed that SHMT2 supported glioma cell stress tolerance under ischemia-like conditions and created a linked dependence on glycine handling. This is a useful case because it shows how compartment-specific serine catabolism can influence stress adaptation, oxygen use, and glycine-related liabilities at the same time. Methodologically, the paper is valuable because it tied pathway behavior to a defined environmental context instead of treating one-carbon metabolism as static. (Nature)
For a broader subcellular view, see compartmentalization of one-carbon metabolism between mitochondria and cytosol, which is a useful companion resource when the main question is how enzyme localization changes pathway interpretation.

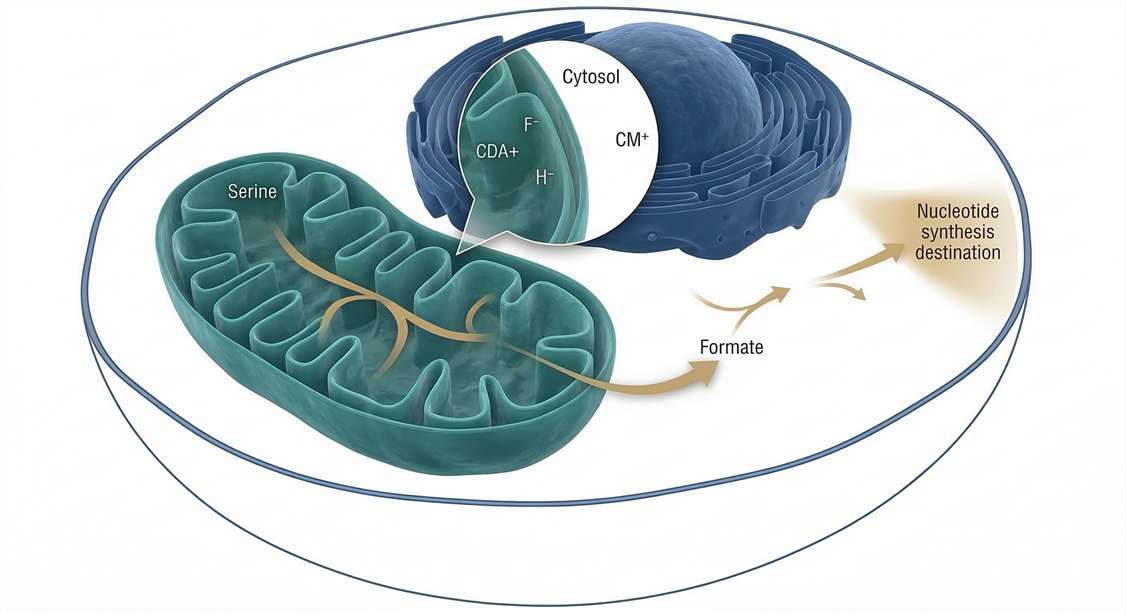

Figure 2. Compartment-aware schematic comparing mitochondrial one-carbon generation with cytosolic biosynthetic utilization, highlighting SHMT2/MTHFD2-linked formate output and SHMT1-associated cytosolic use.
Compartment-aware design becomes especially important when SHMT2 or MTHFD2 appears dominant, when respiration is constrained, or when glycine behavior does not match the simplest uptake-versus-synthesis explanation. In those cases, metabolic flux analysis can be more informative than steady-state profiling alone, and integrated proteomics-metabolomics analysis can help reconcile whether enzyme abundance and metabolite behavior are pointing in the same direction. (Nature)
The practical implication is that compartmentalization is not just a pathway-detail section for specialists. It changes what counts as convincing evidence. If the hypothesis depends on mitochondrial production and cytosolic use of one-carbon units, then enzyme localization, transport logic, and isotopologue interpretation all matter more than a simple metabolite list.
Analytical Solutions for Mapping Cancer Metabolism
Analytical method choice should follow the biological question rather than default platform preference. If the question is simply whether serine or glycine pools differ between conditions, broad steady-state metabolomics is often sufficient for the first screen. If the question is whether one-carbon transfer is supporting nucleotide-related output, targeted panels become more useful. If the question is whether carbon from labeled serine is actually reaching glycine, formate-linked intermediates, or nucleotide precursors, stable isotope tracing is the more appropriate design. (ScienceDirect)
This distinction matters because steady-state abundance and flux are related but not equivalent. A metabolite pool may stay relatively stable while flux through that metabolite changes sharply, and the reverse can also happen. Stable isotope tracing solves a different problem from untargeted or targeted metabolomics: it provides evidence of routing, incorporation, and turnover rather than only abundance differences. In one-carbon metabolism, that difference is often decisive. (ScienceDirect)
Decision framework for method selection
Method choice should follow the biological question rather than default platform preference. If the question is whether serine or glycine pools are changing, broad steady-state metabolomics is usually sufficient for initial screening. If the question is whether one-carbon transfer is supporting purine or thymidylate output, targeted panels are a stronger next step. If the question is whether labeled carbon from serine is reaching glycine, formate-linked intermediates, or nucleotide precursors, stable isotope tracing is the more appropriate design. In practice, many RUO projects move from discovery to targeted confirmation to flux testing, with each stage narrowing uncertainty rather than trying to answer every pathway question in a single experiment.
| Research question | Recommended approach | Most informative readout | Main pitfall | Escalate when… |
|---|---|---|---|---|
| Pool-size shift only | Untargeted metabolomics | Serine/glycine abundance | Uptake vs synthesis conflation | pools change but mechanism remains unclear |
| Nucleotide-support hypothesis | Targeted metabolomics | purine/thymidylate intermediates | pool size does not equal flux | targeted signals support the pathway model but routing is still unproven |
| Carbon-routing proof | Stable isotope tracing | isotopologue enrichment | timing and medium confounding | causal routing must be shown |
For method-comparison context, see comparison of LC-MS/MS and related analytical techniques for one-carbon metabolism research, which fits naturally at the point where teams need to move from conceptual pathway interest to a measurement strategy.

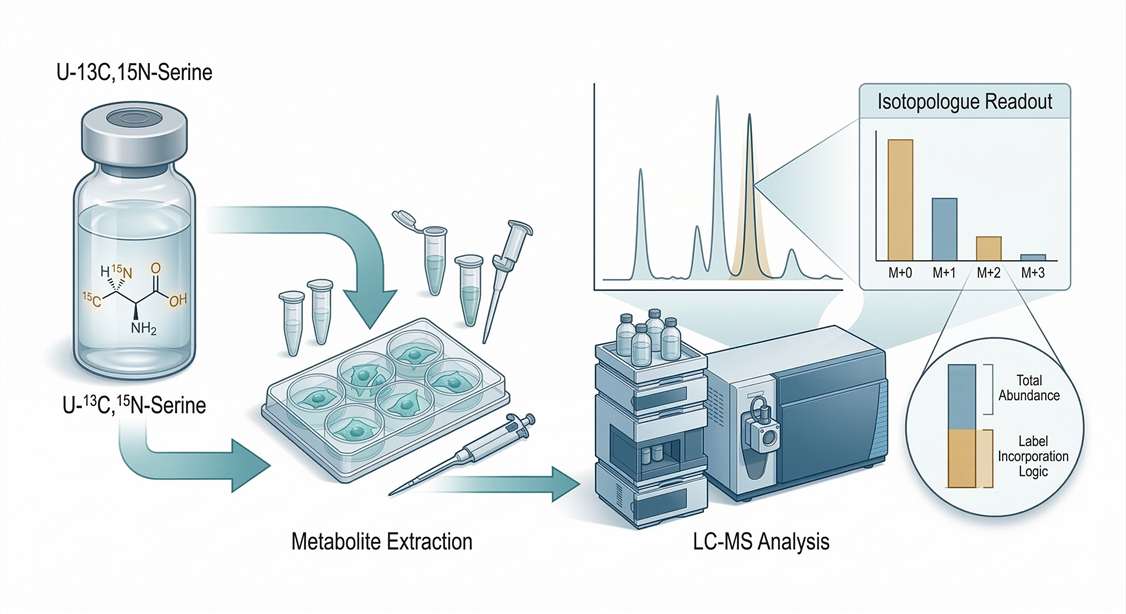

Figure 3. RUO analytical workflow from labeled serine input to extraction, LC-MS readout, isotopologue analysis, and pathway-level interpretation, emphasizing that flux evidence and pool-size changes should be interpreted separately.
A practical research workflow often begins with screening, then narrows to confirmation, then moves to flux testing only if the narrower question justifies it. In mixed-omics projects, functional annotation and enrichment analysis and integrated transcriptomic-proteomic-metabolomic analysis are often more helpful than adding many separate assay layers without a clear integrative question.
When to Use This Strategy — and When Not to
In RUO mechanism studies, this pathway framework is particularly useful when the goal is to explain how carbon is being rerouted rather than simply list altered metabolites. It is a good fit when the model shows sustained proliferative pressure, elevated nucleotide demand, SSP activation, mitochondrial folate-pathway signal, or an unresolved connection between amino-acid changes and downstream biosynthetic interpretation. (ScienceDirect)
It is less useful as the first explanatory model when the data mainly show poor sample quality, weak replication, broad stress signatures without pathway coherence, or no meaningful alignment between amino-acid, folate-linked, and nucleotide-associated features. In those cases, broad discovery work is often more efficient than forcing an early one-carbon story. A sensible escalation path is to start with LC-MS/MS untargeted metabolomics, refine the hypothesis with a smaller targeted panel or TCA cycle pathway analysis where relevant, and then add proteomics bioinformatics interpretation if enzyme-level support is needed.
The broader lesson is that one-carbon metabolism is most convincing when it helps answer a specific biological question. It is less convincing when it is used as a catch-all label for any serine or glycine difference. Projects improve substantially when they define the intended inference in advance: source, transfer, output, or adaptation.
Troubleshooting: Symptom → Likely Cause → Better Next Step
If you see large serine/glycine shifts but weak mechanistic clarity, the likely cause is that uptake, synthesis, and consumption are being measured together. The better next step is to separate medium dependence from endogenous synthesis and, if needed, move to isotope tracing. (ScienceDirect)
If you see strong PHGDH or SHMT2 signal without clear downstream metabolite support, the likely cause may be that pathway activation is real but buffered by turnover or distributed across multiple outputs. The better next step is targeted measurement of nucleotide-associated intermediates and, where the question is causal, isotopologue analysis. (Nature)
If you see unexpected glycine accumulation, the likely cause may be altered glycine clearance or compartment-specific pathway behavior rather than increased productivity of the entire network. The better next step is to examine compartment-aware hypotheses and environmental context before assigning a simple "more one-carbon metabolism" interpretation. (Nature)
If you see redox-associated adaptation without a strong glutathione-only explanation, the likely cause may be that folate-linked one-carbon metabolism is contributing through broader reducing-equivalent logic or mitochondrial stress adaptation. The better next step is a combined interpretation strategy that integrates metabolite data with multivariate analysis rather than relying on isolated markers.
FAQ
1) Is serine uptake always more important than de novo serine synthesis?
No. Some models rely mostly on extracellular serine, while others show stronger SSP engagement. Medium composition, genotype, and stress context all influence the balance.
2) Does high PHGDH expression prove active one-carbon flux?
No. It supports the hypothesis but does not prove downstream carbon routing. Expression, pool-size behavior, and isotopologue evidence answer different questions.
3) When is stable isotope tracing worth the extra complexity?
When the project needs to prove where carbon is going, especially for nucleotide-support claims, compartment-aware questions, or causal pathway interpretation.
4) Why do SHMT1 and SHMT2 matter so much?
Because they represent different subcellular branches of the pathway. Their balance changes how serine-derived one-carbon units are generated, transferred, and used.
5) Can one-carbon metabolism matter even when nucleotide changes are modest?
Yes. In some systems the pathway's stronger role may be redox-associated adaptation or mitochondrial stress handling rather than maximal nucleotide accumulation.
6) What is the best first experiment for an exploratory PI-led project?
Usually a well-controlled steady-state metabolomics screen with clear medium documentation and biological replication. Escalate only after the first-pass pathway picture becomes interpretable.
7) Can proteomics strengthen this type of study?
Yes. Proteomics is especially useful when the project needs enzyme-level support, pathway-module comparison, or integration with signaling or stress-response programs.
8) What kind of deliverable is most useful for study design decisions?
A package that combines pathway-level differential results, prioritized one-carbon nodes, QC-aware interpretation, and a recommendation on whether targeted confirmation or tracing is justified next.
References:
- Ducker GS, Rabinowitz JD. One-Carbon Metabolism in Health and Disease. Cell Metabolism. 2017;25(1):27-42. doi:10.1016/j.cmet.2016.08.009.
- Geeraerts SL, Heylen E, De Keersmaecker K, Kampen KR. The ins and outs of serine and glycine metabolism in cancer. Nature Metabolism. 2021;3(2):131-141. doi:10.1038/s42255-020-00329-9.
- Reina-Campos M, Diaz-Meco MT, Moscat J. The complexity of the serine glycine one-carbon pathway in cancer. Journal of Cell Biology. 2020;219(1):e201907022. doi:10.1083/jcb.201907022.
- Li AM, Ye J. Reprogramming of serine, glycine and one-carbon metabolism in cancer. Biochimica et Biophysica Acta - Molecular Basis of Disease. 2020;1866(10):165841. doi:10.1016/j.bbadis.2020.165841.
- Locasale JW, Grassian AR, Melman T, et al. Phosphoglycerate dehydrogenase diverts glycolytic flux and contributes to oncogenesis. Nature Genetics. 2011;43(9):869-874. doi:10.1038/ng.890.
- Possemato R, Marks KM, Shaul YD, et al. Functional genomics reveal that the serine synthesis pathway is essential in breast cancer. Nature. 2011;476(7360):346-350. doi:10.1038/nature10350.
- DeNicola GM, Chen PH, Mullarky E, et al. NRF2 regulates serine biosynthesis in non-small cell lung cancer. Nature Genetics. 2015;47(12):1475-1481. doi:10.1038/ng.3421.
- Kim D, Fiske BP, Birsoy K, et al. SHMT2 drives glioma cell survival in ischaemia but imposes a dependence on glycine clearance. Nature. 2015;520(7547):363-367. doi:10.1038/nature14363.
- Maddocks ODK, Labuschagne CF, Adams PD, Vousden KH. Serine Metabolism Supports the Methionine Cycle and DNA/RNA Methylation through De Novo ATP Synthesis in Cancer Cells. Molecular Cell. 2016;61(2):210-221. doi:10.1016/j.molcel.2015.12.017.
- Yang L, Garcia Canaveras JC, Chen Z, et al. Serine Catabolism Feeds NADH when Respiration Is Impaired. Cell Metabolism. 2020;31(4):809-821.e6. doi:10.1016/j.cmet.2020.02.017.
- Nilsson R, Jain M, Madhusudhan N, et al. Metabolic enzyme expression highlights a key role for MTHFD2 and the mitochondrial folate pathway in cancer. Nature Communications. 2014;5:3128. doi:10.1038/ncomms4128.
- Jang C, Chen L, Rabinowitz JD. Metabolomics and Isotope Tracing. Cell. 2018;173(4):822-837. doi:10.1016/j.cell.2018.03.055.
