When total protein looks unchanged, but your assay still misses biology, it's often the glycan signatures doing the talking. Site-specific N-glycan microheterogeneity—different glycoforms at the same sequon—and macroheterogeneity—variable site occupancy—can alter folding, stability, binding, trafficking, and immune recognition without moving the needle on protein quantity. In other words, protein levels alone tell only half the story, and in translational studies that gap can sink a promising biomarker.
According to 2024 reviews synthesizing clinical contexts and mechanistic data, structure- and site-resolved N-glycans increasingly determine biomarker performance and interpretability, urging researchers to move beyond abundance-only assays and toward intact glycopeptide analytics. See the overview by Wang (2024) in Recent advances in N-glycan biomarkers and mechanistic guidance in Pasala (2024) on N-glycosylation and protein conformation.
Why Protein Levels Only Tell Half the Story: The Power of Site-Specific Glycosylation
Protein abundance can remain steady while glycan structures shift. Microheterogeneity (multiple glycoforms at one site) modulates stability and interactions; macroheterogeneity (site occupancy) affects whether a site is glycosylated at all. Both change function and downstream readouts. Reviews and tutorials in 2024 emphasize the importance of site-resolved measurements, including frequent co-occupancy of glycosylation sites that complicates interpretation in abundance-only workflows, as described by Chongsaritsinsuk (2024) in co-occupied N- and O-glycosylation analysis.
Practically, site-specific N-glycoproteomics biomarker discovery means measuring intact glycopeptides and localizing glycosylation sites with appropriate fragmentation (often EThcD or ETD for challenging peptides), then quantifying glycoform ratios and occupancy. Done well, this reveals functional changes that abundance-only protein assays miss.

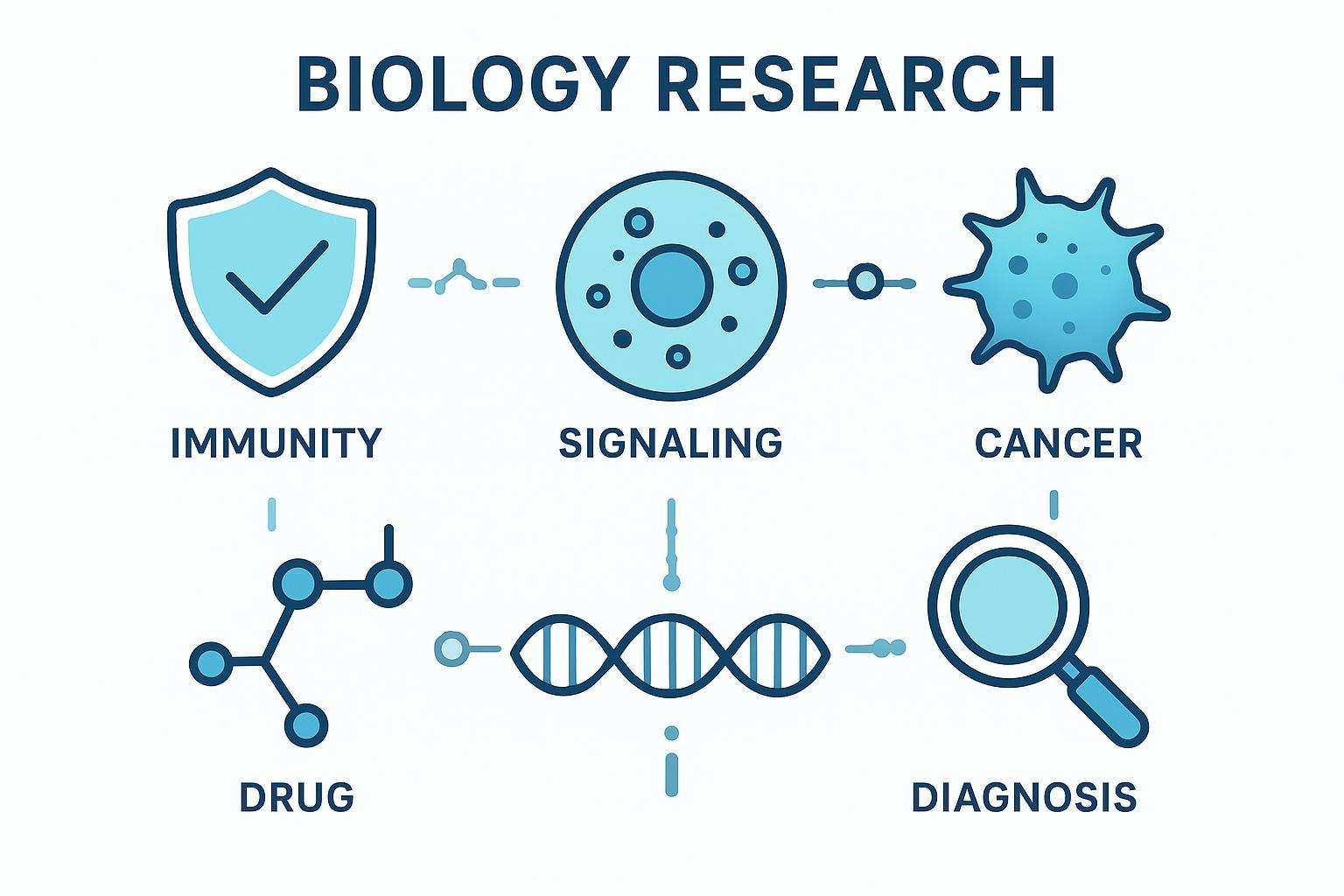

5 Strategic Reasons Why Glycoproteomics is the Next Research Frontier
Functional Diversity & Protein Stability
Glycans tune folding, trafficking, and proteostasis, influencing half-life and interaction networks. Structure-aware assays can connect glycan branching and sialylation with stability changes—mechanisms that matter for biomarker robustness and therapy response. Mechanistic context appears in Pasala (2024) on conformation and N-glycans.
Deciphering Cell Signaling & Immune Evasion
Site-specific glycans modulate receptor-ligand binding and immune checkpoint interactions. Frequent co-occupancy and labile glycan features demand careful fragmentation and analysis to avoid misattribution. See 2024 tutorials on co-occupancy and site localization such as Chongsaritsinsuk (2024) tutorial and research synthesis.
Mapping the Human Glycome in Cancer Research
Oncology studies increasingly link branched N-glycans (e.g., MGAT5-driven β1,6-GlcNAc branching) to invasion, adhesion, and therapy resistance. These features are often invisible in total protein metrics yet emerge clearly in intact glycopeptide data. For evidence, Hollander et al. (2024) reported that MGAT5 limits anti-tumor immunity in PDAC—see JCI Insight 2024 MGAT5 study—and Nie et al. (2024) described branched N-glycans promoting anti–PD-L1 resistance in ovarian cancer, documented in a 2024 study on PD-L1 resistance.
Enhancing Therapeutic Target Identification (ADC & Antibodies)
Therapeutic antibodies and ADCs often rely on glycosylation context for efficacy and safety. Site-specific profiling highlights glycoform-dependent binding and clearance, guiding target selection and engineering.
High-Precision Diagnostic Signatures
Intact N-glycopeptide signatures can differentiate disease states and stratify patient subgroups, sometimes with greater sensitivity to pathway-level shifts than protein abundance alone. Wang (2024) review on N-glycan biomarkers outlines diagnostic potential across tissues and biofluids.
The Role of N-Glycosylation in Disease Progression: From Oncology to Immunology
Cancer Metastasis: Branched N-Glycans, MGAT5, and Immune Evasion
Branched N-glycans reshape the tumor–immune interface and adhesion dynamics. PDAC models showed that Mgat5 knockout improved survival and enabled immune control involving T cells, cDC1, and NK cells (Hollander et al., 2024) in JCI Insight. In ovarian systems, branched and fucosylated N-glycans promoted resistance to anti–PD-L1, and inhibition sensitized HR-proficient tumors (Nie et al., 2024) in a 2024 ovarian cancer study. For biomarker discovery, focusing on site-specific branching patterns may reveal metastatic propensity even when total glycoprotein levels are similar.
IgG Glycosylation: Immune Activation vs Resolution
IgG Fc glycosylation governs effector functions (ADCC, complement activation) and inflammatory tone. While earlier literature supports associations between Fc glyco-signatures and patient stratification, robust 2024–2026 head-to-head performance claims vs routine markers (e.g., CRP) remain limited in the sources retrieved here. Use cautious language and prioritize site-specific signatures and context. Chongsaritsinsuk (2024) provides site-resolution considerations that are relevant when interpreting IgG.

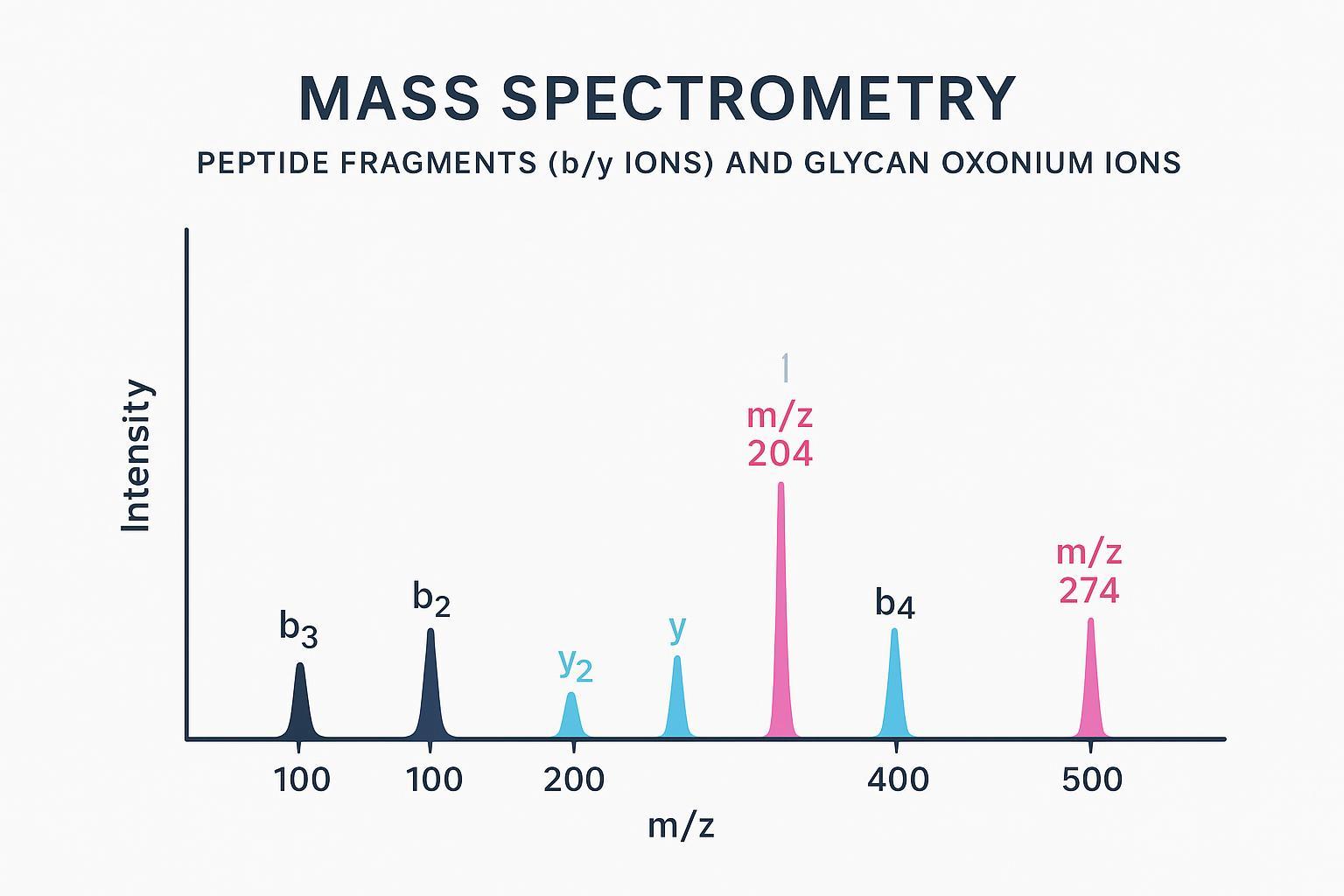

For intact glycopeptide localization, electron-based fragmentation (ETD/EThcD) often retains labile glycans and yields c/z-ion evidence, improving site attribution compared to HCD, which frequently produces dominant neutral losses. See Li (2024) on fragmentation strategy for intact glycopeptides.
Clinical Reality in 2026: Label-free Analysis for N-glycoproteomics Biomarker Discovery

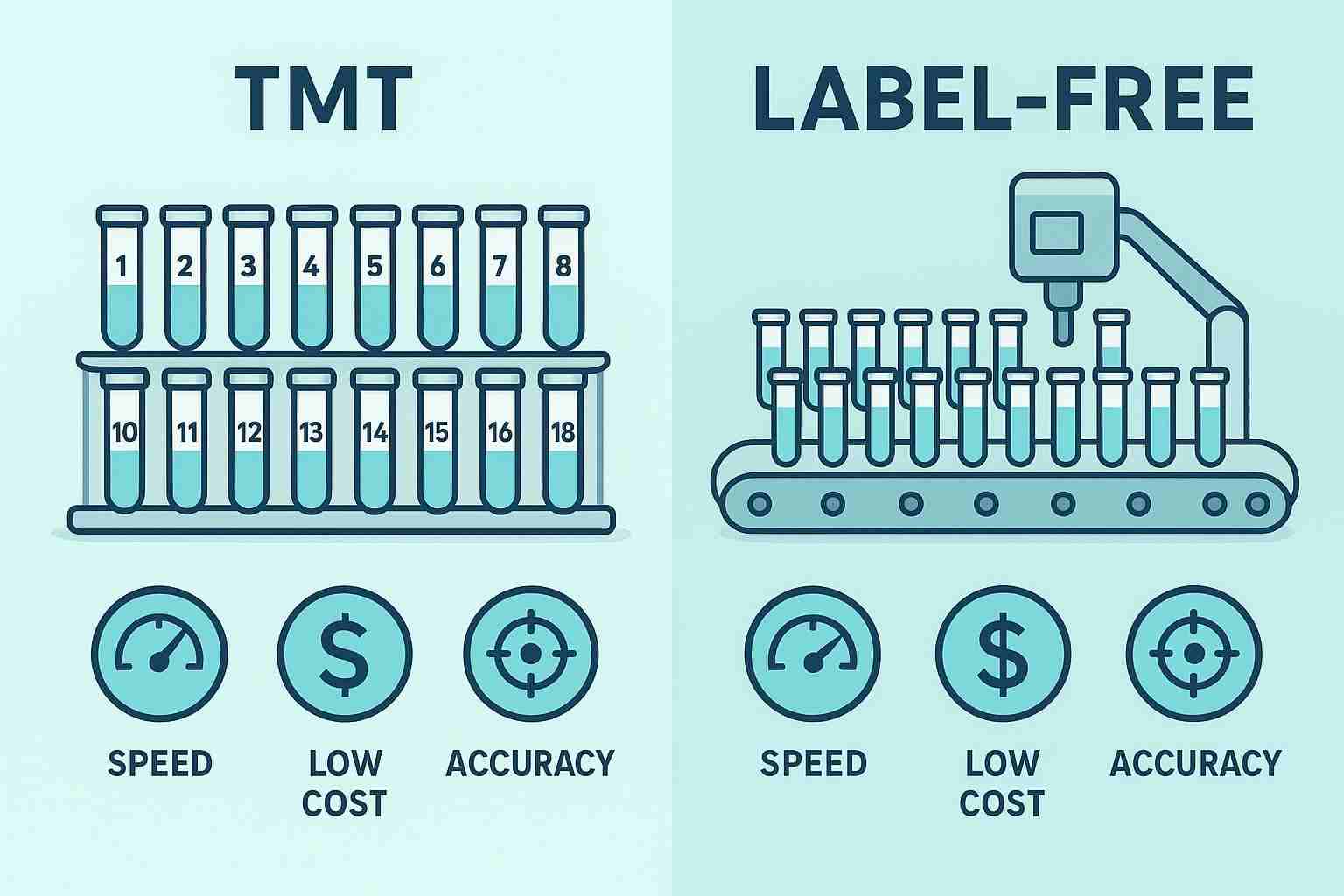

Label-free, DIA-based intact glycopeptide workflows have matured into practical options for large cohorts when paired with disciplined QC and automation. Studies report deeper coverage and improved reproducibility compared to DDA in clinical contexts. For example, Pradita (2024) used single-shot DIA to quantify serum glycopeptides with robust between-group contrasts in Journal of Proteome Research (2024), and Jager (2025) optimized narrow-window DIA ("nGlycoDIA") for plasma to surpass 3,000 N-glycopeptides in a 2025 methods paper.
High-Throughput Screening for Large Clinical Cohorts
As cohorts scale to hundreds or thousands of samples, DIA-based label-free pipelines can leverage short gradients, standardized iRTs, and automation. A typical QC dashboard should track FDR, glycopeptide ID depth, MS1 intensity distributions, oxonium ion ratios, missing value rates, and replicate CVs. Reviews of intact glycopeptide enrichment and automation considerations (Onigbinde, 2024) provide practical guidance in a 2024 enrichment overview.
"Site-resolved N‑glycoproteomics revealed clinically meaningful glycoform shifts that total‑protein assays missed, enabling clearer stratification in our translational cohort." — Senior Investigator, Memorial Sloan Kettering Cancer Center (https://www.mskcc.org)
External validation (published service case): In a glycomics profiling study published in 2023, an academic partner worked with our service team on a serum cohort (n=120) using lectin/HILIC enrichment and LC–MS/MS on Orbitrap-class instruments with DIA-style acquisition. Reported deliverables included site-resolved glycoform maps and study‑level QC dashboards; typical DIA label‑free QC observed were median technical CVs in the ~15–20% range, ID depth of several thousand glycopeptides, and low missingness after MS2‑based extraction (see DOI: https://doi.org/10.3390/ijms24119575).
Disclosure: For an example of a DIA-based label-free N-glycoproteomics service and workflow components (enrichment, acquisition, analysis), see Creative Proteomics' Glycoproteomics Services.
Site Occupancy Analysis: Quantifying the Unquantifiable
Occupancy estimation typically compares deglycosylated and intact states. PNGase F-based deamidation introduces an asparagine→aspartic acid "scar" that can be quantified, but controls for spontaneous deamidation and incomplete reactions are essential. Endo H/F2 strategies reduce ambiguity but limit glycan classes. Electron-based fragmentation helps localize sites in co-occupied peptides.
A minimal decision guide:
- If glycan class permits and you need reduced deamidation ambiguity: consider Endo H/F2, then quantify "scar"-bearing peptides.
- If co-occupancy or sialylated/branched glycans complicate localization: schedule ETD/EThcD scans.
- Always include controls: non-enzymatic deamidation blanks, spike-in standards, and replicate pass/warn/fail thresholds.
Worked example (simplified): Suppose an intact glycopeptide (site NXS) shows 60,000 MS1 intensity for glycoforms combined. After PNGase F, the deglycosylated peptide with the N→D scar measures 40,000. Accounting for 5,000 background deamidation in blanks, occupancy ≈ (40,000 − 5,000) / 60,000 = 58%. Interpret alongside glycoform ratios and QC metrics. For methodological context, see Pavan (2024) on occupancy quant via PNGase F and Chongsaritsinsuk (2024) tutorial on co-occupancy and localization.
Conclusion: Starting Your N-Glycoproteomics Journey (For Research Use)
If total protein looks steady but biology keeps surprising you, it's time to measure the "hidden dimension." Site-specific N-glycoproteomics biomarker discovery surfaces functional changes—branching, sialylation, occupancy—that abundance-only assays miss. Here's the deal: pair DIA-based label-free acquisition with disciplined enrichment, electron-based fragmentation where needed, and transparent QC/occupancy calculations, and you'll generate evidence that translates.
Ready to plan a study? You can explore DIA-based label-free N-glycoproteomics workflows and discuss cohort design with Creative Proteomics—a neutral, method-focused reference for researchers.
