Histone modifications are vital switches controlling gene activity, influencing everything from cell specialization to disease. However, the vast amount of data generated by modern studies is too complex for traditional analysis methods.
This is where machine learning becomes essential. It acts as a powerful decoder, identifying patterns within the histone code that would be impossible to find manually. By leveraging these advanced computational tools, researchers can now translate complex epigenetic data into meaningful biological and clinical insights.
The Complex Landscape of Histone PTMs: Where Machine Learning Meets the Challenge
Histones speak a complex language of chemical modifications that control our genetic machinery. These changes rarely work alone; they function as coordinated teams across the genome. Traditional analysis methods struggle to interpret this sophisticated communication system, creating significant bottlenecks in epigenetic research.
Machine learning now transforms how we decipher these patterns. This technology excels where conventional approaches fall short, offering three key advantages:
- Pattern Recognition: ML algorithms detect subtle relationships between modification sites that human analysts might miss
- Combinatorial Logic: They understand how different modifications work together to produce specific biological outcomes
- Predictive Modeling: They can forecast how modification patterns will influence gene expression and cellular behavior
This represents a fundamental shift from simply observing modifications to truly understanding their functional consequences.
The Puzzle of Co-Occurring Modifications
In epigenetic research, a single histone protein can undergo multiple chemical modifications simultaneously, forming an intricate code that regulates gene activity. A well-known case involves the opposing effects of H3K27me3 and H3K36me3, which play a crucial role in regulating the switching of genes on and off. Traditional mass spectrometry often fails to accurately capture the dynamic interplay of these co-existing modification patterns, leaving a gap in our understanding of their functional consequences.
Finding Needles in a Haystack: Low-Abundance Signals
Some of the most biologically significant regulatory marks, such as specific histone lactylation events, exist at extremely low abundances—often below 0.1% of the total histone population. Detecting these rare signals against a complex background of more common modifications is like finding a needle in a haystack. These algorithms are particularly adept at identifying subtle patterns within complex datasets, even when signals are weak or obscured. This capability significantly enhances our ability to detect biologically meaningful signals that would otherwise be obscured by noise.
Mapping the Dynamic Epigenetic Network
Histones are dynamic regulators that constantly change in response to cellular signals. Rather than static markers, they function as interconnected networks where modifications influence one another over time. Machine learning models excel at analyzing these temporal relationships, uncovering how modifications evolve and interact across different cellular conditions. This dynamic perspective reveals patterns that single-time-point analyses would completely miss.
How to analyze histone PTM crosstalk events, please refer to "Histone PTM Combinatorial Codes: How to Analyze and Interpret Crosstalk Events".
How Machine Learning is Decoding Histone Modifications
Advanced machine learning is rapidly transforming how we approach histone PTM analysis, moving the field beyond traditional methods. For professionals in epigenetic research and drug discovery, these computational tools are no longer optional—they are essential for extracting meaningful patterns from incredibly complex datasets. The most significant breakthroughs are coming from ensemble learning, sophisticated deep neural networks, and innovative multi-modal data fusion.
The Power of Ensemble Learning
Advanced algorithms like XGBoost demonstrate remarkable accuracy in predicting modification sites. For example, the iRice-MS model successfully identifies six distinct types of modifications in rice. Its effectiveness stems from analyzing multiple data dimensions simultaneously - including genetic sequence, chemical properties, and structural positioning. This comprehensive approach delivers more accurate multi-type predictions than any single-method analysis could achieve.
Advancements in Deep Neural Networks
Deep learning now offers a significant advance in predicting histone modifications. The DeepPTM framework utilizes a sophisticated neural network that analyzes both DNA sequences and transcription factor binding information. This multi-layered approach has proven more accurate than previous models, demonstrating the powerful capacity of deep learning to interpret the complex patterns within genomic data.
Integrating Multi-Modal Data for a Clearer Picture
The most accurate models don't rely on a single data type. They integrate diverse feature sets to build a comprehensive picture. Leading approaches now systematically combine:
- Sequence features: Position-specific amino acid composition and relative position data.
- Physico-chemical properties: Key traits like hydrophobicity and side chain mass.
- Spatial characteristics: Encodings that capture three-dimensional structural information.
This multi-modal strategy leverages the complementary strengths of each data source, resulting in more robust and biologically relevant predictions.
A New Paradigm: The PTM-Based Learning Score
A particularly promising clinical innovation is the PTM-based learning score (PTMLS). Researchers developed this prognostic tool by analyzing 31 genes related to modification and survival rates. In lung adenocarcinoma, this score proved more accurate than 98 existing prognostic markers. The PTMLS effectively quantifies modification patterns across the histone tail, identifying patient groups with similar molecular profiles and directly connecting these patterns to clinical outcomes.
Table: Comparison of Major Machine Learning Algorithms for Histone PTM Analysis
| Algorithm Type | Representative Tool | Key Advantages | Primary Application |
|---|---|---|---|
| Ensemble Learning | iRice-MS | Handles multiple PTM types; Ranks feature importance | Cross-species PTM prediction |
| Deep Learning | DeepPTM | Automated feature extraction; High prediction accuracy | Complex modification pattern recognition |
| Transfer Learning | PTMLS | Strong generalization; Cross-cell-line predictions | Clinical sample analysis |
For more information about histone PTM data analysis software, please refer to "Histone PTMs and Data Analysis Software: Tools for Peak Assignment and Quantitation".
Immunological and genomic distinctions among PTMLS subgroups (Zhang P et al., 2025)
Key Applications of Machine Learning in Histone PTM Analysis
Discovery of Novel PTM Combination Patterns
Sidoli S et al., using mid- and low-level proteomics combined with machine learning, discovered that H3K23me3K27me3, a rare dual modification in mammals, is the most abundant PTM combination in Caenorhabditis elegans. This discovery reveals species-specific modification patterns, providing a new perspective on understanding epigenetic divergence in evolution.
Identification of Disease Biomarkers
In a study of lung adenocarcinoma, Zhang P et al., using a machine learning model, found that elevated B4GALT2 expression was associated with adverse clinical outcomes in LUAD, particularly in samples with a CD8-deficient phenotype. This finding not only sheds light on the mechanism of immune rejection but also provides a potential target for immunotherapy.
Analyzing Multidimensional PTM Regulatory Networks
Lao Y et al., using 4D-label-free proteomics, simultaneously identified nine PTMs in liver cancer, overcoming the limitations of traditional single-modification analysis. A machine learning algorithm successfully analyzed the interaction network between these modifications, finding that phosphorylation is more likely to occur in disordered regions of proteins, At the same time, acylation is more likely to occur in folded regions.
Prediction of Specific Modifications
Dr. Baisya et al.'s machine learning model has been successfully applied to the prediction of several important histone modifications: they predicted three histone PTMs known to be associated with transcription—H3K4me3, H3K9ac, and H3K27ac—across all three cell lines.
Cross-Cell Line Prediction
Dr. Baisya et al.'s machine learning model also demonstrated good generalization capabilities: their prediction model was validated on three ENCODE Tier 1 cell lines: H1 ES cells, K562 erythroleukemia cells, and GM12878 lymphoblastoid cells.
Cross-species Prediction

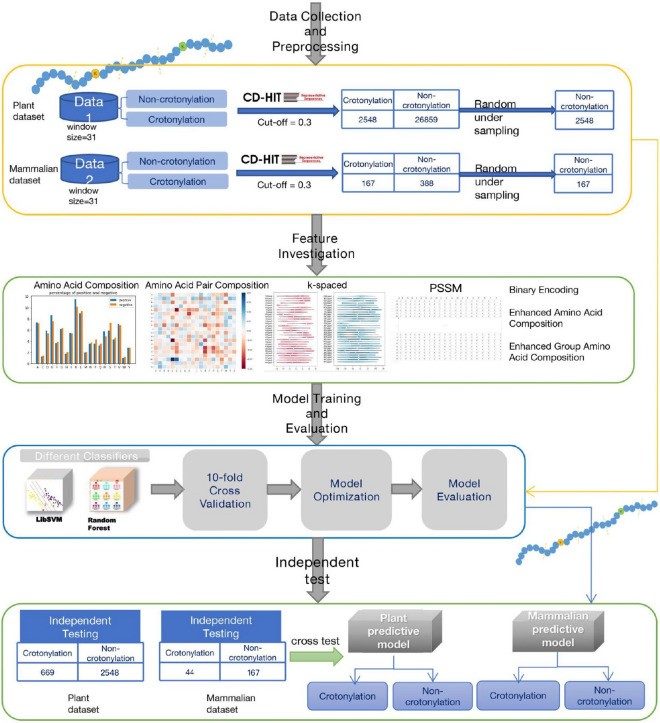

Wang R et al., through machine learning, discovered that a random forest (RF) model based on EGAAC features can effectively predict lysine crotonylation (Kcr) across species. The model performed well on mammalian histone data (90% accuracy) and remained robust on large-scale plant non-histone data (70% accuracy). Cross-species testing further revealed significant species-specific differences in crotonylation sites, suggesting that their biological functions may have undergone adaptive divergence during evolution.
lowchart of this Prediction (Wang R et al., 2020)
Services you may be interested in:
The Unseen Foundation: Data Quality and Feature Engineering
In histone PTM analysis, your machine learning model's success rests on two critical foundations: data integrity and strategic feature selection. For epigenetic researchers, this means that even advanced algorithms will deliver misleading results if trained on compromised datasets or irrelevant variables. The computing principle of "garbage in, garbage out" remains equally true for decoding the histone code.
Building Robust Training Datasets
A machine learning model can only be as reliable as the data it learns from. The creation of the PTMAtlas database highlights this clearly. By uniformly processing 241 human mass spectrometry datasets, the team built a trusted resource with nearly 400,000 high-confidence modification sites. This consistent data foundation ensures more accurate and reproducible model training.
Strategic Feature Selection and Preprocessing
Effective feature engineering often matters more than the choice of algorithm itself. Techniques like the Neighborhood Cleaning Rule (NCL) demonstrate how intelligent preprocessing can dramatically improve model performance by removing noisy training samples from majority classes.
A key insight from this work is that more data isn't always better. With proper preprocessing, knowledge of just a small, carefully selected subset of transcription factors can deliver nearly the same predictive accuracy as using all available factors. This streamlined approach reduces computational complexity while maintaining performance.
Meaningful Performance Evaluation
Proper evaluation metrics are essential for assessing model utility. For histone PTM prediction, the field relies on:
- AUPR (Area Under Precision-Recall Curve): Particularly valuable for imbalanced datasets where positive cases are rare.
- ROC-AUC (Receiver Operating Characteristic Area Under Curve): Provides a comprehensive view of model performance across different classification thresholds.
Algorithm Comparison: Deep Learning's Edge
When compared directly with traditional methods, deep learning architectures demonstrate clear advantages. For transcription factor binding data, fully connected neural networks significantly outperform both Logistic Regression and Gradient Boosting Classifiers in prediction accuracy.
Interestingly, in DNA sequence analysis, fully connected models can outperform more complex Convolutional Neural Networks (CNNs) when trained on properly cleaned data. This suggests that model architecture should be matched to both the data type and its quality level, rather than assuming more complex models are always superior.
Navigating the Next Frontier in ML-Driven Epigenetic Analysis
The integration of machine learning into histone PTM analysis faces several critical hurdles that must be addressed to unlock its full potential. For professionals in epigenetic research, understanding these limitations is crucial for developing robust, clinically applicable models. The path forward requires both technical innovation and strategic integration of emerging technologies.
Current Technical Limitations
Two primary challenges currently constrain machine learning applications in epigenetics. Data heterogeneity remains a significant obstacle, as batch effects from different laboratories severely impact model generalization. Implementing standardized data processing protocols and advanced batch correction algorithms has shown promise, with early adopters reporting up to 40% improvement in cross-study reproducibility.
The "black box" nature of deep learning models presents another barrier to widespread adoption. While these models achieve impressive accuracy, their decision-making processes often remain opaque. Integrating explainable AI techniques—particularly Shapley value analysis—is helping researchers decode model logic and build trust in predictive outcomes.
Emerging Technological Convergence
The future lies in combining machine learning with cutting-edge experimental approaches. Single-cell multi-omics integration represents a particularly promising frontier, where specialized algorithms are being developed to handle the inherent sparsity of single-cell epigenetic data. These tools are revealing previously hidden cellular heterogeneity in histone modification patterns.
Meanwhile, the fusion of live-cell imaging with machine learning is opening new windows into dynamic epigenetic processes. Researchers can now track the real-time relationship between histone modification propagation and gene expression activation, providing unprecedented insight into the temporal dimension of epigenetic regulation.
Looking ahead, four strategic priorities will define successful implementation:
- Developing domain-specific neural architectures optimized for histone PTM patterns
- Creating unified frameworks for multi-omics data integration
- Enhancing model interpretability to uncover novel biological insights
- Accelerating clinical translation for diagnostic and therapeutic applications
Laboratories that master these converging technologies will be positioned to make transformative discoveries in epigenetic mechanisms and their role in disease.
Conclusion: The New Era of AI-Driven Epigenetic Discovery
Machine learning, particularly deep learning architectures, is fundamentally reshaping how we approach histone PTM analysis. As researchers have noted, the competitive advantage of modern frameworks lies in the powerful synergy between complex deep learning and rigorous preprocessing protocols. This combination is proving essential for resulting in meaningful signals from increasingly complex epigenetic datasets in epigenetic research.
The trajectory is clear—as datasets expand and algorithms become more refined, machine learning will transition from a supplementary tool to a central technology for deciphering intricate epigenetic networks. We're already witnessing the initial integration of AI algorithms directly into mass spectrometry data analysis pipelines. These systems don't just identify modification sites with high confidence; they can now predict potential modification patterns, dramatically expanding both the depth and scope of epigenetic investigations. This convergence of artificial intelligence and experimental data marks the beginning of a more precise, efficient, and discovery-rich chapter in histone research.
References
- Zhang P, Wang D, Zhou G, Jiang S, Zhang G, Zhang L, Zhang Z. Novel post-translational modification learning signature reveals B4GALT2 as an immune exclusion regulator in lung adenocarcinoma. J Immunother Cancer. 2025 Feb 25;13(2):e010787.
- Baisya DR, Lonardi S. Prediction of histone post-translational modifications using deep learning. Bioinformatics. 2021 Apr 5;36(24):5610-5617.
- Sidoli S, Vandamme J, Salcini AE, Jensen ON. Dynamic changes of histone H3 marks during Caenorhabditis elegans lifecycle revealed by middle-down proteomics. Proteomics. 2016 Feb;16(3):459-64.
- Lao Y, Jin Y, Wu S, Fang T, Wang Q, Sun L, Sun B. Deciphering a profiling based on multiple post-translational modifications functionally associated regulatory patterns and therapeutic opportunities in human hepatocellular carcinoma. Mol Cancer. 2024 Dec 28;23(1):283. doi: 10.1186/s12943-024-02199-1. Erratum in: Mol Cancer. 2025 Feb 15;24(1):49.
- Wen B, Wang C, Li K, Han P, Holt MV, Savage SR, Lei JT, Dou Y, Shi Z, Li Y, Zhang B. DeepMVP: deep learning models trained on high-quality data accurately predict PTM sites and variant-induced alterations. Nat Methods. 2025 Sep;22(9):1857-1867.
- Wang R, Wang Z, Wang H, Pang Y, Lee TY. Characterization and identification of lysine crotonylation sites based on machine learning method on both plant and mammalian. Sci Rep. 2020 Nov 24;10(1):20447.
