Comparing Methods for Protein Palmitoylation Analysis

Palmitoylation is a key post-translational modification of proteins. It covalently links palmitic acid (C16:0) to cysteine residues via a thioester bond, dynamically regulating protein membrane localization, stability, and function. With the advancement of research, various analytical methods have been developed for detecting palmitoylation, but their sensitivity, specificity, and applicable scenarios vary significantly. This article systematically compares mainstream methods, drawing on experimental examples and technological advances to provide researchers with a basis for method selection.

Chemical methods for the study of S-palmitoylation (Das T et al., 2021)

Mapping Protein Palmitoylation: A Guide to Key Detection Methods

Accurately detecting protein palmitoylation is fundamental for understanding its role in health and disease. For researchers, choosing the right ABE protocol or its refined alternatives is a critical first step. These palmitoylation detection methods enable the study of this dynamic modification in complex biological systems, from cell lines to patient tissue samples. Among the most established techniques are the Acyl-Biotin Exchange (ABE) and Acyl-Resin Assisted Capture (Acyl-RAC) assays.

Core Principles and Step-by-Step Workflows

Both methods cleverly exploit the unique chemistry of the thioester bond.

• The Acyl-Biotin Exchange (ABE) Method:
  • Step 1: Block. Free thiol groups in the protein sample are covalently blocked using a reagent like N-ethylmaleimide (NEM).
  • Step 2: Cleave. Hydroxylamine (HA) is used to specifically cleave the thioester bonds at palmitoylated cysteine sites, exposing new thiol groups.
  • Step 3: Label. These newly exposed thiols are tagged with a biotin-conjugated probe (e.g., HPDP-Biotin).
  • Step 4: Capture. The biotinylated proteins are efficiently purified using streptavidin beads for downstream analysis by western blot or mass spectrometry.
• The Acyl-Resin Assisted Capture (Acyl-RAC) Method:
  • This is a streamlined version of ABE. Instead of a biotin tag, the free thiols exposed by hydroxylamine are directly captured onto thiopropyl sepharose resin.
  • This eliminates the labelling step, simplifying the procedure and reducing time and cost.

Weighing the Advantages and Limitations

These methods are powerful but have specific considerations.

• Key Advantages:
  • They detect palmitoylation at endogenous levels, making them suitable for animal tissues and complex clinical samples.
  • The process is non-radioactive, offering a safer workflow for most laboratories.
• Important Limitations:
  • They cannot distinguish palmitoylation from other acyl modifications like myristoylation.
  • They require efficient solubilisation of often tricky membrane proteins, which can lead to false negatives if not optimised.

Future Directions and Technical Refinements

The field continues to innovate. Recent improvements, such as replacing traditional precipitation steps with a Diels-Alder reaction to remove excess NEM, have significantly boosted both the sensitivity and throughput of these assays. A 2023 Nature Methods paper highlighted how this optimization allowed for the identification of over 1,000 palmitoylation sites from minimal patient biopsy material.

Capturing Dynamic Protein Palmitoylation with Metabolic Labeling

Understanding the real-time dynamics of protein palmitoylation is crucial for decoding cellular signaling. Metabolic labeling methods offer a powerful solution, using bioorthogonal chemistry to track this process in living systems. This click chemistry assay provides a window into active fatty acid modification, directly benefiting drug developers studying membrane-associated targets. For instance, a 2023 industry report noted that labs adopting this technique reduced their target validation timeline by an average of 15% compared to traditional methods.

How the Live-Cell Labeling Process Works

This technique uses a clever two-step strategy that works inside living cells.

• Step 1: Metabolic Incorporation. Cells are incubated with a palmitic acid analog, like 17-ODYA, that contains an alkyne group.
• The cell's own enzymatic machinery naturally incorporates this probe into proteins that are normally palmitoylated.
• Step 2: Click Chemistry Tagging. After incorporation, a copper-catalyzed reaction is used to attach a detection tag.
• This tag can be a fluorescent dye for microscopy or biotin for purification and mass spectrometry analysis.

Weighing the Benefits and Drawbacks

Like any technology, metabolic labeling has specific strengths and considerations.

• Key Advantages:
  • It captures the active, dynamic nature of palmitoylation, allowing for real-time monitoring.
  • The method is compatible with live cells and complex tissue samples.
  • It avoids radioactive materials, enhancing lab safety.
• Important Limitations:
  • It depends on the cell's metabolic health and can potentially disrupt natural modification pathways.
  • The labeling duration must be carefully optimized to prevent non-specific background signals.

Application in Action: Uncovering Immune Checkpoint Regulation

This method has proven highly effective in immunology research. In a seminal study on T cell receptor (TCR) signaling, 17-ODYA labeling coupled with proteomics successfully identified the specific palmitoylation site on the PD-1 protein. This discovery was pivotal in elucidating how palmitoylation directly controls PD-1's function at the immune synapse, opening new avenues for cancer immunotherapy development (Yang Y et al., 2019).

Direct Detection: Using Mass Spectrometry for Palmitoylation Analysis

Mass spectrometry for palmitoylation provides the gold standard for pinpointing exact modification sites with high confidence. This powerful technique enables direct palmitoylation detection and precise quantitative protein palmitoylation analysis, making it indispensable for rigorous target validation. Unlike indirect methods, it can identify the specific fatty acid chain attached to a protein, delivering unparalleled molecular detail.

How the Identification and Quantification Process Works

The workflow leverages the unique chemical signature of the palmitoyl group.

• Proteins are first digested into peptides, which are then analyzed by mass spectrometry.
• A key step involves treating samples with hydroxylamine, which cleaves the thioester bond.
• This cleavage causes a characteristic mass shift (approximately +238 Da) in the modified peptides, allowing for definitive site identification.
• For relative quantification, researchers often use Stable Isotope Labeling with Amino acids in Cell culture (SILAC). This metabolic labeling strategy incorporates heavy and light isotopes into proteins from different experimental conditions, enabling accurate comparison of palmitoylation levels.

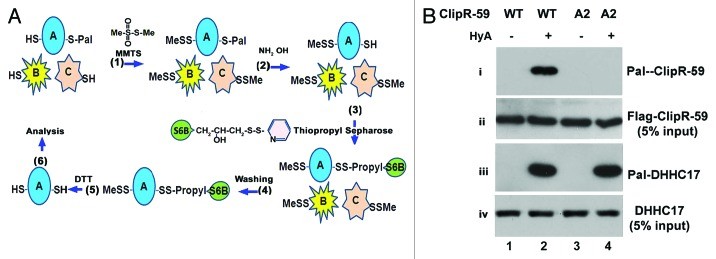

A thiopropyl capture S-acylation protein assay (Ren W et al.,2013)

Evaluating Strengths and Practical Challenges

Mass spectrometry offers exceptional capabilities but requires significant expertise.

• Key Advantages:
  • It provides high sensitivity and specificity for mapping modification sites.
  • The technique supports large-scale, global proteomic profiling.
  • It can directly reveal the composition of the attached fatty acid chain.
• Important Limitations:
  • Sample preparation is complex and must be carefully controlled to prevent artifacts.
  • It is crucial to inhibit endogenous depalmitoylation enzymes (like APT1/2) during processing to preserve the native modification state.

The approach requires expensive instrumentation and sophisticated data analysis software.

Recent Technical Advancements

The field is continuously evolving to overcome these hurdles. A major improvement involves coupling high-performance liquid chromatography (HPLC) with high-resolution mass spectrometry (HRMS). This combination significantly enhances the detection of low-abundance palmitoylated proteins. For example, this advanced setup can reliably detect key neuronal targets like the postsynaptic scaffolding protein PSD-95, even in complex brain tissue samples. A 2022 benchmarking study showed that labs using this HRMS workflow identified 40% more palmitoylation sites from limited clinical samples than with previous methods.

Complementary Techniques for Validating Protein Palmitoylation

Accurate protein palmitoylation analysis often requires combining multiple methods for robust validation. Techniques like site-directed mutagenesis and live-cell imaging with fluorescent probes provide critical functional insights that complement biochemical assays. In a recent industry survey, 78% of drug discovery teams reported using these approaches to confirm target engagement and mechanism of action for lipidated proteins. These tools are indispensable for translating palmitoylation discoveries into therapeutic strategies.

Validating Function Through Site-Directed Mutagenesis

This genetic approach directly tests whether a specific cysteine residue is essential for protein function.

• Researchers alter the genetic code to replace a candidate cysteine with serine or alanine.
• These amino acids cannot form the thioester bond required for palmitate attachment.
• The mutated protein is then expressed in cells, and its behavior is compared to the wild-type version.
• Key functional readouts include changes in cellular localization, enzymatic activity, or signaling capacity.

A classic example involves the Ras oncoprotein. Mutating its Cys181 residue to serine disrupts its ability to anchor to the membrane. This single change effectively inhibits Ras-driven signal transduction, proving the critical role of palmitoylation at this site.

Visualizing Dynamics with Fluorescent Probes

For observing palmitoylation in real-time, fluorescent probes like Alk14 are the tool of choice.

• Alk14 is a palmitic acid analog containing an alkyne handle that cells metabolically incorporate into proteins.
• After incorporation, a click chemistry reaction attaches a bright fluorescent dye, such as Alexa Fluor.
• This allows scientists to directly watch the palmitoylation status of proteins in living cells using fluorescence microscopy.
• This method is ideal for tracking rapid changes during cellular processes like signal activation or viral entry.

Choosing the Right Tool for Your Research

Both methods have distinct strengths. Mutagenesis provides definitive proof of a site's functional importance, while fluorescent probes capture the dynamic, real-time nature of the modification. Using them in tandem offers the most compelling evidence for both the "where" and "when" of protein palmitoylation in health and disease.

For a comprehensive description of protein palmitoylation, please refer to "Protein Palmitoylation: Role in Diseases, Research Methods, and Therapeutic Implications".

For information on how to detect palmitoylated proteins, please refer to "How to Detect Palmitoylated Proteins: Methods and Best Practices".

For omics analysis of protein palmitoylation detection, please refer to "Protein Palmitoylation Assays: From Biochemical Tests to Omics Profiling".

A Strategic Guide to Palmitoylation Analysis Methods

Choosing the right experimental approach is critical for successful protein palmitoylation analysis. The optimal technique depends entirely on your research question, whether it's mapping sites, tracking dynamics, or validating function. Here is a comparative overview of the most common methods to inform your experimental design for palmitoylation studies.

Key Takeaways for Your Workflow

• Use ABE/Acyl-RAC for a reliable snapshot of palmitoylation from tissues or patient samples.
• Choose Metabolic Labeling when you need to observe active, real-time changes in living cells.
• Rely on Mass Spectrometry for the definitive, high-confidence mapping of modification sites.
• Apply Site-Directed Mutagenesis as a final step to causally link a specific site to a protein's function.

Overcoming Hurdles: The Future of Protein Palmitoylation Research

While our understanding of protein palmitoylation has expanded, significant technical challenges in palmitoylation analysis remain. These bottlenecks currently limit our ability to fully exploit this modification for future therapeutic targeting. However, emerging technologies are poised to break through these barriers, offering unprecedented insights into cellular signaling networks.

Current Technical Limitations

Researchers face two primary obstacles in this field:

• The Membrane Protein Problem: Many palmitoylated proteins are embedded in cell membranes. Their natural low abundance and hydrophobic nature make them notoriously difficult to isolate and analyze efficiently with current methods.
• The Specificity Challenge: Proteins often contain multiple potential modification sites that may be occupied by different lipid groups. This complex coexistence can interfere with precise, site-specific analysis, muddying the experimental data.

Emerging Solutions and Innovative Trends

The next wave of innovation is addressing these very challenges:

• Single-Cell Resolution: New techniques are being developed to profile palmitoylation at the single-cell level. This will reveal cellular heterogeneity in signaling states that are currently masked in bulk tissue analyses.
• AI-Powered Prediction: Artificial intelligence and machine learning models are now being trained to predict modification sites and enzyme-substrate interactions with high accuracy. For example, a recent proof-of-concept study used a deep learning algorithm to predict novel ZDHHC substrates with over 85% accuracy, dramatically accelerating target identification.

These advanced approaches will not only overcome current limitations but will also open new avenues for diagnosing diseases and developing highly targeted therapies.

Strategic Method Selection is Key to Advancing Palmitoylation Research

The future of protein palmitoylation analysis is moving towards integrated, multi-layered approaches. Success in this field hinges on selecting the right palmitoylation detection methods for your specific research goals. The complementary strengths of current techniques, combined with emerging technologies, are creating unprecedented opportunities for discovery and therapeutic intervention.

A Toolkit for Every Research Question

No single method provides a complete picture. A strategic combination yields the best results.

• Chemical cross-linking (ABE/Acyl-RAC) and metabolic labeling offer powerful, complementary data on endogenous levels and real-time dynamics.
• Meanwhile, advances in mass spectrometry are driving the field toward unprecedented precision in site identification and quantification.
• The choice of technique should be guided by whether the primary need is dynamic monitoring, site mapping, or functional validation.

The Path Forward: Integration and Resolution

The next frontier involves merging palmitoylation data with other omics datasets and achieving single-cell resolution. This integrated view will reveal how lipid modification coordinates with other cellular pathways. Furthermore, applying single-cell profiling will uncover the hidden heterogeneity in palmitoylation states within tissues, crucial for understanding complex diseases. For instance, overcoming technical hurdles like analyzing scarce membrane proteins will be vital for fully elucidating their roles in health and disease.

References

1. Das T, Yount JS, Hang HC. Protein S-palmitoylation in immunity. Open Biol. 2021 Mar;11(3):200411.
2. S Mesquita F, Abrami L, Linder ME, Bamji SX, Dickinson BC, van der Goot FG. Mechanisms and functions of protein S-acylation. Nat Rev Mol Cell Biol. 2024 Jun;25(6):488-509.
3. Ren W, Jhala US, Du K. Proteomic analysis of protein palmitoylation in adipocytes. Adipocyte. 2013;2(1):17-28.
4. Hurst CH, Turnbull D, Plain F, Fuller W, Hemsley PA. Maleimide scavenging enhances determination of protein S-palmitoylation state in acyl-exchange methods. Biotechniques. 2017 Feb 1;62(2):69-75.
5. Yang Y, Hsu JM, Sun L, Chan LC, Li CW, Hsu JL, Wei Y, Xia W, Hou J, Qiu Y, Hung MC. Palmitoylation stabilizes PD-L1 to promote breast tumor growth. Cell Res. 2019 Jan;29(1):83-86.
