Label-free vs TMT Glycoproteomics 2026: Cohort Guide

Introduction

Choosing between label-free quantification and TMT multiplexing for site-specific glycoproteomics isn't a matter of brand loyalty—it's a matter of cohort size, study goals, and risk tolerance around precision and scaling. This article compares label-free (DDA/DIA, with emphasis on DIA-PASEF) and TMT with SPS-MS3 for intact glycopeptide quantification. It's written for PIs, core facility managers, and R&D leaders in US/EU labs who need a defensible, evidence-led plan.

We evaluate along six axes: sensitivity, dynamic range, precision and missingness, ratio compression/interference, throughput, and batch effects/scaling. Where numeric thresholds are included, treat them as industry reference values anchored to literature, not universal promises. Example configurations are provided neutrally: Orbitrap Eclipse/Lumos for SPS-MS3 and timsTOF Pro 2 for DIA-PASEF.

For quick context on approaches, see the neutral explainer on differences among DIA, TMT, and label-free on Creative Proteomics' resource hub: DIA vs TMT vs label-free: key differences.

Key takeaways

• If your cohort is fewer than 12 samples and you want maximum site coverage for discovery, choose label-free DIA/DIA-PASEF. It typically offers broader breadth and avoids ratio compression; anchor QC with iRT linearity (target bands often ≥0.98 as a reference) and 1% glyco-PSM FDR. See DIA breadth and reproducibility summaries in recent evaluations of DIA and TIMS-DIA workflows such as the review by Fröhlich and colleagues (2024).
• For cohorts of 12–32 samples where precision and controlled missingness matter, choose TMT SPS-MS3 (FAIMS recommended). Multiplexing minimizes between-run variance, while SPS-MS3 mitigates interference and reduces ratio compression compared to TMT-MS2—shown in controlled benchmarks that report substantially improved extreme-ratio recovery with MS3 and gains with FAIMS in complex matrices in 2021–2025 studies.[Johnson 2021; Ferretti 2025]
• For cohorts of 32–96+ spanning multiple batches, label-free DIA scales well across runs with robust alignment and pooled QC injections; an alternative is TMT across sets with a pooled bridge channel and Internal Reference Scaling (IRS) normalization, a well-established practice in large multiplex programs.[Huang 2020; Nusinow 2020]
• Reference QC anchors to track: TMT labeling efficiency typically ≥98% under optimized protocols; DIA iRT linearity bands ≥0.98 preferred; global median CV targets around 15–20% intra-run and ≤20–25% cross-run; 1% PSM and glycan-level FDR.[Zecha 2019; Ctortecka 2021; Polasky 2022]
• Use bridge/control channels and IRS for TMT when merging sets. For DIA, rely on iRT alignment, feature matching, and consistent library strategies.[Pappireddi 2019; Fröhlich 2024]

Approaches at a glance: Label-free vs TMT glycoproteomics

Notes: For bridge/IRS practice see Huang 2020 and Nusinow 2020.

Label-free (DDA/DIA)

Label-free quantification measures peptide or glycopeptide intensities without chemical tags. DIA (data-independent acquisition) systematically fragments across the m/z range, improving consistency and reducing missing values relative to DDA; DIA-PASEF pairs DIA with trapped ion mobility (TIMS) to add an orthogonal separation and speed. Expected strengths include site coverage, sensitivity to low-abundance species, and broad dynamic range. Scaling is achieved through reproducible alignment across runs using iRT anchors and hybrid libraries (DDA-built plus predicted). Reviews document DIA's breadth and improved reproducibility vs DDA in complex proteomes, and intact glycopeptide DIA frameworks (e.g., GproDIA) provide dual FDR control that supports practical quantification.[Fröhlich 2024; Yang 2024]

For workflow context on DIA-based glycoproteomics, see this method overview: DIA-based glycoproteomics workflow.

TMT with SPS-MS3

Tandem Mass Tags (TMT/TMTpro) enable multiplexed relative quantification by encoding reporter ions at MS2/MS3. In SPS-MS3, synchronous precursor selection isolates multiple MS2 fragment ions, then performs an additional MS3 scan to reduce co-isolation interference and ratio compression compared with TMT-MS2. FAIMS can further reduce spectral complexity. Strengths include per-run precision, controlled missingness within a plex, and throughput gains per instrument day.[Johnson 2021] Caveats include reporter ratio compression (reduced but not eliminated) and the need to monitor labeling efficiency and interference metrics.

For a neutral primer on TMT chemistry and multiplexing, see: Tandem mass tag technology in proteomics.

Data-analysis ecosystem

• Label-free DIA/DIA-PASEF: DIA-NN, Spectronaut, FragPipe (MSFragger-Glyco + PTM-Shepherd) support intact glycopeptide analysis, using predicted or DDA-built libraries. Dual FDR control at PSM and glycan levels (1%) is standard in modern glyco workflows.[Yang 2024; Polasky 2022]
• TMT SPS-MS3: Byonic/Byos, pGlyco, FragPipe pipelines and vendor ecosystems support reporter-based quantification. Ratio compression monitoring uses interference metrics (IFI) and purity indicators (PIF), with FAIMS and SPS settings as main levers.[Wu 2023]

Performance comparison

Sensitivity and dynamic range

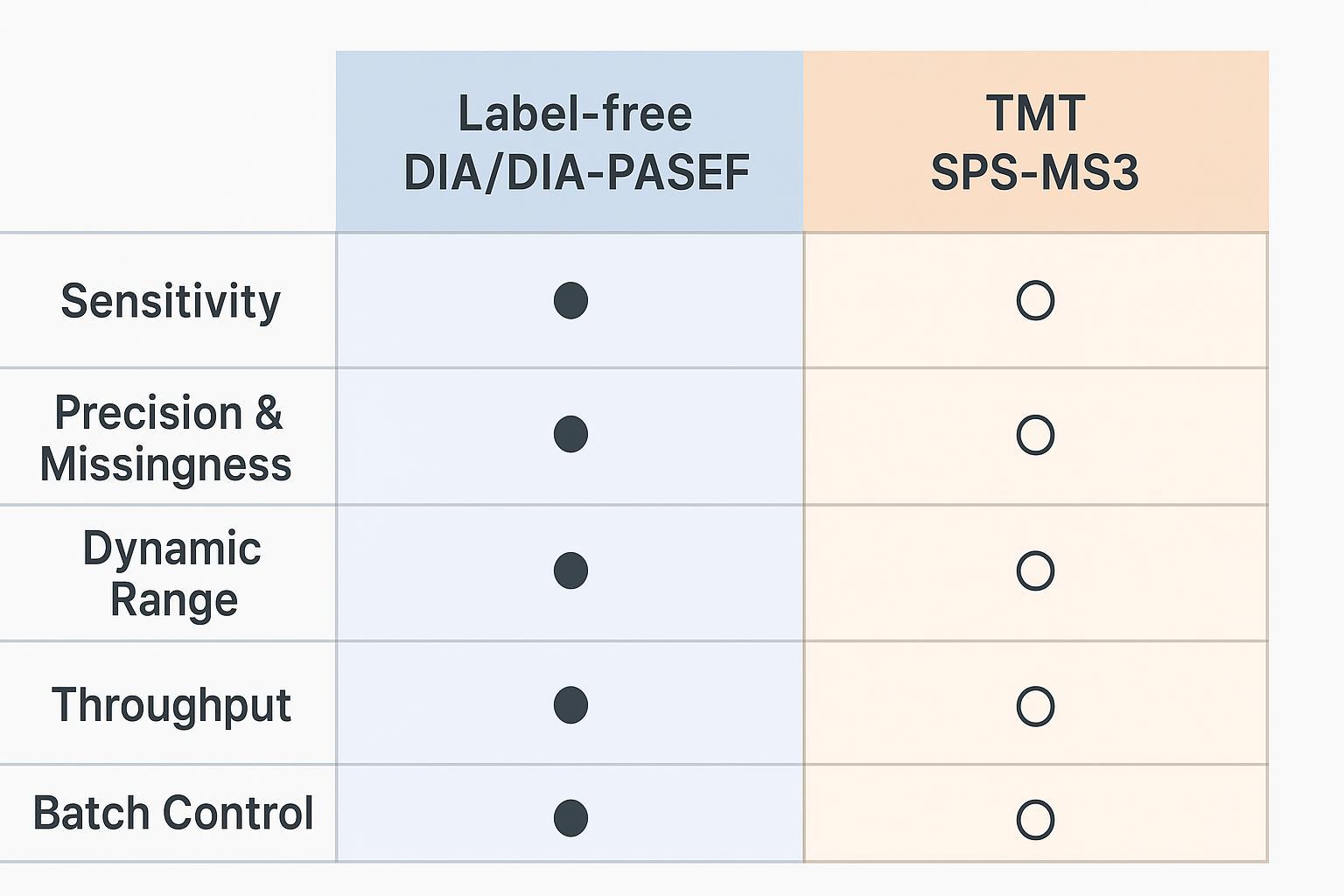

Performance matrix—Label-free vs TMT glycoproteomics trade-offs across sensitivity, precision, dynamic range, throughput, and batch control (2026).

Label-free DIA/DIA-PASEF typically excels at recovering low-abundance intact glycopeptides, aided by comprehensive sampling and orthogonal ion mobility separation in PASEF. It also generally affords a broader dynamic range, especially in complex matrices. While head-to-head DIA-PASEF vs TMT intact glycopeptide sensitivity studies are limited, multiple reviews indicate DIA's advantages over DDA in breadth and reproducibility, and practical experience suggests these benefits translate to glyco workflows.[Fröhlich 2024; Jäger 2025]

For TMT with SPS-MS3, sensitivity at the peptide identification level is strong, and precision in quantification is a hallmark; however, dynamic range in reporter ion space may be constrained by co-isolation and ion statistics. FAIMS and narrower isolation windows help, but they trade off sampling density. In practice, choose DIA/DIA-PASEF when discovery breadth and quantifying low-abundance sites are the priority.

Precision, missingness, and ratio compression

TMT SPS-MS3 is particularly strong in within-run precision and controlled missingness because all multiplexed samples share the same chromatographic and MS conditions. Head‑to‑head studies in complex proteomes (not strictly glyco-only) reported slightly better precision for SPS‑MS3 compared with DIA under matched instrument time, with both modalities achieving low missingness at the protein level.[Muntel 2019; Tannous 2020] In intact glycopeptide work, this pattern often holds qualitatively: SPS‑MS3 reduces variance across samples within a plex.

Ratio compression is the major caveat for TMT, caused by co-isolation interference. SPS‑MS3 mitigates compression by isolating multiple MS2 fragment ions for an additional MS3 scan, and FAIMS further reduces spectral complexity. Benchmarks show substantially improved accuracy for TMTpro‑MS3 compared with MS2, though compression is not abolished.[Johnson 2021; Ferretti 2025] Monitoring interference metrics—e.g., IFI and PIF—and tuning FAIMS CVs and isolation widths are practical controls.[Wu 2023]

Label-free DIA shows strong quantitative accuracy and avoids reporter-ion compression entirely. Missingness is higher than TMT within a single run set but is manageable with robust alignment, consistent chromatography, and modern matching strategies.

Throughput and batch effects

Per-run throughput: TMT multiplexing (16–18‑plex common; higher in specialized designs) boosts per‑day sample throughput, especially attractive for 12–32 sample precision cohorts.[Li 2021; Sun 2022] Across-run scalability: label-free DIA scales well to large cohorts by adding runs, relying on iRT alignment and reproducible LC to control drift. For 96+ samples spanning multiple batches, DIA often offers simpler logistics, while TMT requires bridge/control channels and IRS normalization to maintain consistency across sets.[Huang 2020; Nusinow 2020]

Batch effects: With TMT, within-plex variance is minimized, but cross-plex merging requires careful design—typically a pooled master reference (bridge channel) in every plex and IRS to compute per-protein scaling factors. For DIA, pooled QC injections and stable iRT regressions are anchors to correct drift; global CV dashboards help decide run acceptance.[Pappireddi 2019; Ctortecka 2021]

Workflows and QC best practices

Sample prep and enrichment

• Enrichment: Intact glycopeptide analysis commonly uses HILIC and/or lectin-based enrichment. Consistency in digestion and desalting steps is critical; glycan heterogeneity and site occupancy variation demand conservative cleanup and replicate design. For foundations on sample handling, see the primer on glycoprotein separation and purification techniques.
• Controls: Include blank and pooled QC injections. For TMT, create a masterpool from representative aliquots across your cohort; for DIA, inject pooled QC at regular intervals to monitor stability and feature counts.

LC–MS acquisition settings

Below are example configurations aligned with published practices—presented as illustrative ranges, not universal promises.

• SPS‑MS3 (example configuration on Orbitrap Eclipse/Lumos; FAIMS optional): Isolation width typically falls in the 0.5–0.7 m/z range, with FAIMS CVs such as −45/−65/−75 serving as a starting set to be optimized by matrix. Many groups select 6–10 SPS ions; higher counts can improve accuracy but may affect duty cycle. Real‑time search (RTS) can trigger MS3 intelligently when used with conservative score thresholds. Finally, monitor IFI/PIF distributions routinely and evaluate known‑ratio standards periodically to quantify residual interference.[Johnson 2021; Ferretti 2025; Wu 2023]
• DIA‑PASEF (example configuration on timsTOF Pro 2): Use variable windows matched to 1/k0–m/z density while keeping cycle time at or below roughly 2.5 seconds. Adopt hybrid libraries (DDA-built plus predicted) or library‑free modes depending on software maturity. Anchor runs with iRT regressions that yield preferred linearity bands around R² ≥0.98 as a reference, and watch feature counts and CVs per run to flag outliers early.[Fröhlich 2024; Ctortecka 2021]

Neutral implementation notes (Creative Proteomics, as example practices):

• Labeling efficiency verification: Calculate % fully labeled PSMs (N-terminus and Lys) before committing to production. As a reference, optimized protocols typically report ≥98% labeling efficiency in the literature; runs below this level trigger troubleshooting (reagent quality, pH, and reaction stoichiometry). Representative reports show 98–99% under optimized conditions.[Zecha 2019]
• Bridge channel design: When combining multiple TMT sets, allocate one reporter channel as a pooled master reference consisting of small aliquots from all biological conditions; keep the pooled amount to ~5–10% of total protein per channel to avoid saturation. Use IRS to compute per‑protein scaling factors across sets. Inject the pooled QC at regular intervals (e.g., every 4–8 injections) to track instrument stability. These are well‑established practices reported across large‑scale TMT studies.[Huang 2020; Nusinow 2020; Pappireddi 2019]
• DIA-PASEF QC anchors: Maintain stable iRT regressions (reference bands near R² ≥0.98 preferred; ≥0.8 often considered minimal QA in targeted/DIA contexts), track global median CVs (aim ~15–20% intra‑run; ≤20–25% cross‑run as reference), and review feature count trends. Outlier runs are flagged for re‑injection.[Sánchez 2021; Ctortecka 2021]

Data processing and FDR control

• Glyco‑PSM/PSM FDR: Control at 1% at both PSM and glycan (or site‑level) using target‑decoy and multi‑attribute scoring; report separate q‑values. Modern pipelines (e.g., FragPipe MSFragger‑Glyco + PTM‑Shepherd, pGlyco, Byonic) support this rigor.[Polasky 2022; FragPipe Docs]
• Ratio compression checks (TMT): Plot observed vs expected ratios on mixed‑ratio standards; inspect IFI/PIF distributions; compare FAIMS ON vs OFF and isolation window sizes.[Johnson 2021; Wu 2023]
• DIA data standards: Decide on library strategy (DDA-built, predicted, or hybrid); use software capable of robust MBR/feature propagation. Export QC logs (iRT slopes, R², feature counts) for auditability.[Fröhlich 2024]
• Governance: Maintain SOPs and parameter versioning; archive raw data, search parameters, and QC dashboards per FAIR data principles. For a general explainer of label-free vs label-based trade-offs, see this neutral overview: Label-free vs label-based proteomics.

Study design by scenario

Decision at a glance (brief decision tree):

• <12 samples → choose DIA / DIA‑PASEF; key QC anchor: iRT linearity R² ≥ 0.98 (reference).
• 12–32 samples → choose TMT SPS‑MS3 + FAIMS; key QC anchor: TMT labeling efficiency ≥ 98% (reference).
• 32–96+ samples → prefer cross‑run DIA alignment, or TMT + IRS (bridge channel); key QC anchor: regular pooled QC/bridge injections (every 4–8 runs).

<12 samples: exploratory breadth

If you have fewer than 12 samples, discovery breadth usually trumps per‑run multiplexing. Choose label-free DIA/DIA‑PASEF to maximize site coverage and to avoid reporter‑ion compression. Decision signals:

• QC anchors: iRT linearity in preferred bands (e.g., R² ≥0.98 as a reference); 1% PSM and glycan-level FDR.
• Throughput: Single‑sample runs keep setup flexible; add runs as needed for deeper fractionation only when warranted.
• Missingness: Expect manageable missing values with modern alignment; design with technical replicates if the matrix is especially complex (e.g., plasma). For background on DIA breadth and TIMS advantages, see recent method reviews.[Fröhlich 2024]
• Data analysis: Use DIA‑NN, Spectronaut, or FragPipe with hybrid libraries; monitor feature counts and CV distributions. When in doubt, run a short pilot to confirm LOD/LOQ for representative glycopeptides.

Mini case: A plasma pilot (n=8) targeting N‑glycopeptides benefits from DIA‑PASEF windowing tailored to density, with pooled QC every 6–8 injections. Decisions hinge on iRT R² stability, feature counts, and global CVs.

12–32 samples: precision focus

For 12–32 samples, precision and controlled missingness are paramount. Choose TMT SPS‑MS3 with FAIMS and a carefully designed bridge/control channel. Decision signals:

• Labeling efficiency: Verify ≥98% labeling efficiency (reference) before committing to production; re‑optimize if lower. Automated prep reports and optimization studies commonly show values in the high‑98–99% range.[Zecha 2019]
• Interference control: Favor SPS‑MS3 over MS2; monitor IFI/PIF; optimize FAIMS CVs and isolation widths. Expect improved extreme‑ratio recovery with MS3 and additional gains with FAIMS in challenging matrices.[Johnson 2021; Ferretti 2025]
• Bridge/IRS: Use a pooled master reference channel across sets; apply IRS to compute per‑protein scaling for cross‑plex normalization.[Huang 2020; Nusinow 2020]
• CV targets: Plan for intra-run medians around 15–20% and cross-run ≤20–25% (reference ranges, cohort‑dependent). Head‑to‑head proteome‑level studies under matched instrument time support this precision edge for SPS‑MS3 vs DIA.[Muntel 2019]

Brief example: A tumor cohort (n=24) split into two 12‑plex sets uses a shared bridge channel and IRS normalization. FAIMS at −45/−65/−75 CVs, isolation width 0.6 m/z, SPS ions = 8, RTS enabled for MS3 triggering; IFI/PIF monitored via QC reports and mixed‑ratio standard.

32–96+ samples: multi-batch scaling

For large studies spanning multiple batches, label-free DIA is often the simpler scaling strategy. Decision signals:

• Alignment stability: iRT R² in preferred bands, consistent retention times, and stable feature counts across weeks. Outliers prompt re‑injection.
• Pooled QC cadence: Inject pooled QC on a fixed schedule (e.g., every 4–8 runs) to monitor drift and instrument health.[Ctortecka 2021]
• Global CV management: Watch cross-run CVs; re‑inject or exclude outliers. Aim for ≤20–25% as a reference for large cohorts.
• Alternative path: If per‑run multiplexing is essential (e.g., limited instrument days), TMT across sets can work when bridge channels and IRS are rigorously applied; plan for extra QC overhead and careful scheduling.[Huang 2020]

Mini‑case: A clinical‑scale glycoproteomics program (n=96) uses DIA‑PASEF with hybrid libraries and stringent run acceptance based on iRT and CV dashboards. An alternative TMT design uses four 24‑plex groups with a shared masterpool bridge and IRS, scheduled to minimize drift between sets and to keep the bridge channel fresh.

Caveats and limitations

Evidence gaps and assumptions

Direct head‑to‑head DIA‑PASEF vs TMT comparisons for intact glycopeptides remain sparse. We project trends from proteome‑wide benchmarks and intact glycopeptide DIA frameworks; treat these as informed guidance rather than universal truths.[Yang 2024; Jäger 2025] Software and parameter updates (DIA‑NN/Spectronaut/FragPipe; SPS‑MS3/FAIMS settings) can move the goalposts—document versions and dates in SOPs.

Matrix effects and glycan heterogeneity

Glycan heterogeneity changes ionization, fragmentation pathways, and enrichment efficiency. Matrix effects (e.g., plasma lipids) complicate low‑abundance detection. Use orthogonal enrichments where feasible and pilot fractions to validate recovery. Consider sceHCD/ETD variants for labile glycoforms in TMT designs and adjust DIA windows to coverage density for matrices with extreme complexity. Think of FAIMS CVs and isolation widths as dials: more selectivity can clean up spectra, but overtight settings may reduce sampling and dynamic range.

Data governance and reproducibility

Adopt SOPs aligned to research‑only best practices, retain parameter version histories, and log QC metrics per run (labeling efficiency, iRT R², CVs, feature counts, IFI/PIF where applicable). Provide 1% FDR at both PSM and glycan levels with separate q‑values. Share raw data and analysis configs to support FAIR principles. Where possible, include anonymized QC dashboards in supplementary materials so others can reproduce decisions.[Polasky 2022]

Frequently asked questions (short answers)

Conclusion

There isn't a single winner. Choose by cohort size and objective:

For reproducibility we recommend referring to canonical glyco repositories and available benchmark studies. Raw glycoproteomics data are commonly deposited in GlycoPOST; see GlycoPOST repository (Glycosmos) for submission and accession guidance. Representative intact‑glycopeptide re‑analysis examples (e.g., Polasky et al., MSFragger‑Glyco) are available in the literature and often link to underlying files—consult the original articles for PRIDE/MassIVE/GlycoPOST accession IDs.

• <12 samples and discovery breadth: label-free DIA/DIA-PASEF for site coverage, sensitivity to low-abundance glycopeptides, and compression-free quantification.[Fröhlich 2024]
• 12–32 samples and precision: TMT with SPS‑MS3 (FAIMS recommended) for tighter CVs and reduced missingness; verify ≥98% labeling efficiency (reference), monitor IFI/PIF, and design a robust bridge channel with IRS.[Zecha 2019; Johnson 2021; Huang 2020]
• 32–96+ samples and scaling: Label-free DIA across runs with strong iRT alignment and pooled QC injections; or TMT across sets when per‑run multiplexing is required and IRS/bridge practices are in place.[Nusinow 2020; Ctortecka 2021]

Across all scenarios, uphold reference QC thresholds and decision signals: iRT R² bands (≥0.98 preferred), global CVs (~15–20% intra-run; ≤20–25% cross-run), 1% glyco‑PSM/PSM FDR, and, for TMT, ≥98% labeling efficiency. Use bridge channels and IRS for TMT multi‑plex merging; use pooled QC, iRT anchors, and stable libraries for DIA. That way, your method choice aligns to cohort size, not dogma.

Next steps

If this comparison helped you narrow options for your study, consider a short technical consultation to translate the decision signals above into a study-ready plan. Creative Proteomics offers research-only quantitative glycoproteomics services—including DIA‑PASEF and TMT SPS‑MS3 workflows—and can help scope pilot experiments, confirm QC anchors (labeling efficiency, iRT regressions, glyco‑PSM FDR), and provide a project estimate.

To request a consultation or quote, please share a brief project summary (recommended items: cohort size, sample matrix and input amount, primary objective such as discovery or precise relative quantification, and any critical QC targets). Contact Creative Proteomics via our service contact page: /contact_us.html. We will respond with a suggested next‑step plan and an outline of deliverables and timelines.

Note: Services are offered for research purposes only and are not intended for clinical diagnosis or treatment. This article remains evidence‑led and neutral; the examples and reference thresholds above are provided as industry reference values, not guaranteed outcomes.

Author: Caimei Li, Senior Scientist at Creative Proteomics. LinkedIn

Affiliation: Creative Proteomics, R&D — proteomics services and method development. Conflict of interest: Creative Proteomics offers proteomics and glycoproteomics services; this article is evidence‑led and written in a neutral, non‑promotional tone. No other personal or financial conflicts were declared for the purposes of this article.

References

1. DIA breadth and reproducibility; iRT alignment/QC bands: Fröhlich K. et al., 2024; Ctortecka C. et al., 2021. DIA reproducibility and QC alignment
2. Intact glycopeptide DIA frameworks: Yang Y. et al., 2024; Jäger S. et al., 2025. GproDIA and plasma DIA glycoproteome
3. TMT ratio accuracy improvements and FAIMS effects: Johnson A. et al., 2021; Ferretti D. et al., 2025. TMTpro‑MS3 and FAIMS accuracy
4. Precision and missingness patterns: Muntel J. et al., 2019; Tannous A. et al., 2020. SPS‑MS3 vs DIA precision
5. Interference metrics (IFI/PIF): Wu C. et al., 2023. Interference definitions and practice
6. TMT multiplexing and high‑plex designs: Li J. et al., 2021; Sun H. et al., 2022. TMT multiplex scalability
7. IRS/bridge normalization practice: Huang T. et al., 2020; Nusinow D. et al., 2020; Pappireddi N. et al., 2019. IRS and bridge-channel practice
8. Labeling efficiency ≥98% (reference): Zecha J. et al., 2019. Labeling efficiency benchmarks
9. iRT QA bands in targeted/DIA: Sánchez Brotons A. et al., 2021. iRT R² QA reference bands
10. Glyco‑PSM FDR practice and tooling: Polasky D. et al., 2022; FragPipe documentation. Glyco‑FDR and pipeline guidance
