How to Separate GluCer vs GalCer: HILIC + TIMS LC–MS/MS

Introduction

Document version: v1.0.1

Last reviewed: 2026-01-29

Key updates:

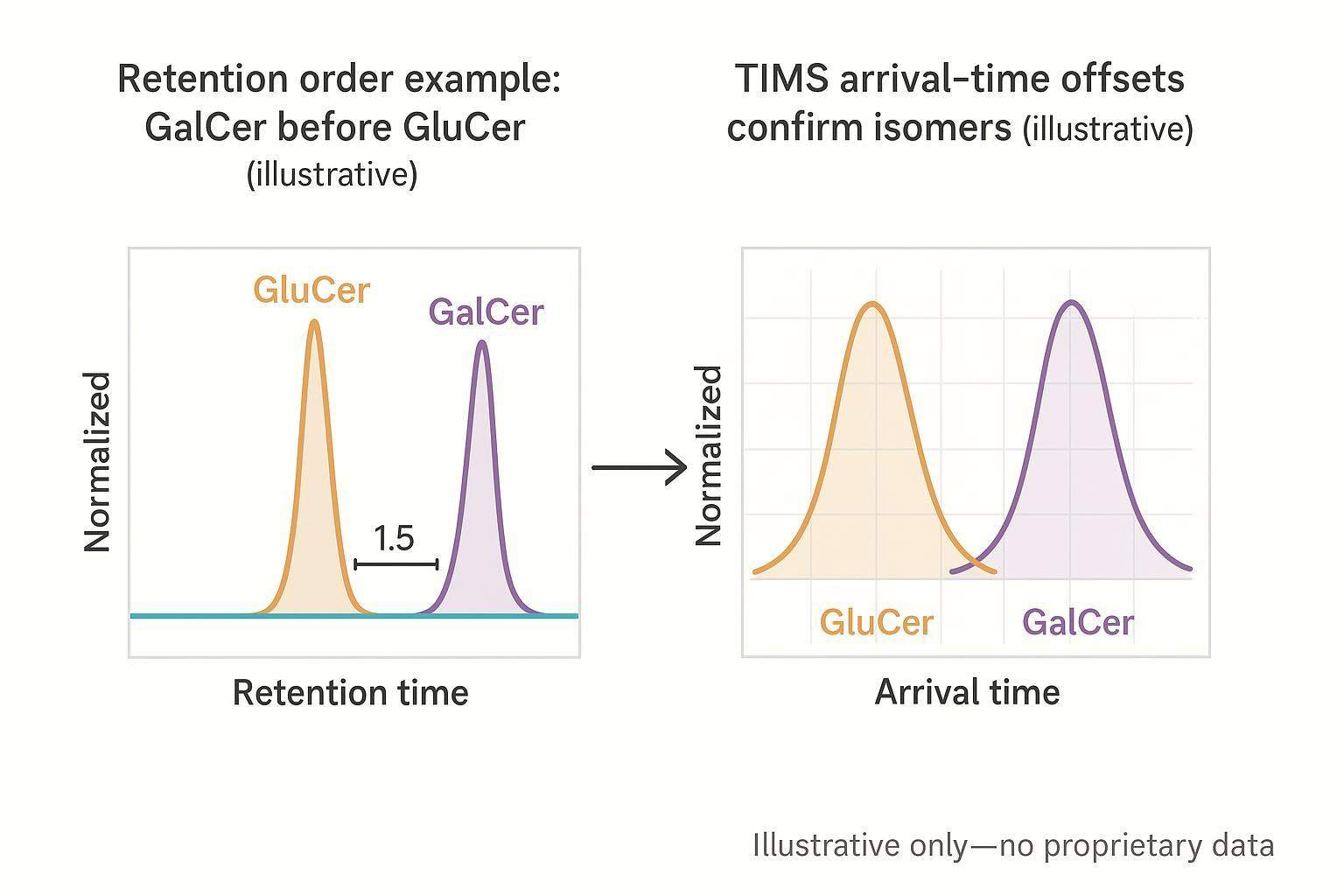

• Added illustrative cover and chromatogram/mobilogram images;
• Clarified TIMS role and tightened CCS tolerances (±0.5–1.0%);
• Included a copy‑paste ZIC‑HILIC method snippet and re‑equilibration guidance.

Next review: scheduled every 6–12 months to maintain traceability and methods currency.

This tutorial provides practical, step‑by‑step guidance to achieve reliable GluCer vs GalCer separation using ZIC‑HILIC (sulfobetaine) chromatography coupled with TIMS (trapped ion mobility spectrometry) on a Q‑ToF platform. It is written for pharma/biotech and academic/CRO lipidomics teams working with plasma, serum, cerebrospinal fluid (CSF), and tissues. Success is defined by achieving baseline separation or resolution (Rs) ≥ 1.5 where feasible, stabilizing retention‑time (RT) and collision cross section (CCS) windows, attaining ≤ 15% precision (≤ 20% at LLOQ), and delivering robust, defensible identifications.

Gist first: let HILIC do the heavy lifting for chromatographic separation; use TIMS‑derived CCS as an orthogonal confirmation layer and as a rescue when LC resolution is partial (Rs ≈ 1.0–1.5). Published high‑resolution IMS baselines for GluCer/GalCer are strongest with multi‑pass cyclic IMS; with TIMS, position CCS as confirmatory evidence rather than a guaranteed baseline separator.

Key takeaways

• Prioritize ZIC‑HILIC selectivity to drive the primary GluCer vs GalCer separation; then apply TIMS CCS as orthogonal confirmation.
• Work within proven buffer ranges (ammonium formate/acetate 5–20 mM), start organic 90–95% ACN, and enforce 10–20 column‑volume re‑equilibration.
• Target CCS tolerances of ±0.5–1.0% (post‑calibration) and RT windows of ±2–3% after stabilization; demand concordant RT order + CCS offset when Rs ~ 1.0–1.5.
• Standardize adducts ([M+H]+ or [M+NH4]+), apply stepped energies, and quantify with matrix‑matched curves and class‑matched internal standards.
• Validate per FDA/ICH M10: ≤ 15% CV and ± 15% bias (≤ 20% at LLOQ), run‑level QC rules, carryover controls, and documented system suitability.

HILIC columns and retention behavior

Column selection and selectivity

For GluCer vs GalCer, zwitterionic sulfobetaine phases (ZIC‑HILIC/ZIC‑pHILIC) offer strong headgroup‑driven interactions while preserving HILIC‑mode partitioning in high‑organic mobile phases. Start with a 2.1 × 100–150 mm column, 1.7–3 µm particles, at 30–40 °C. ZIC‑HILIC is generally operated with LC–MS‑compatible ammonium acetate or formate buffers (5–20 mM total), where retention is dominated by the water layer and zwitterionic interactions more than fine pH changes. Vendor guidance for SeQuant/Merck/Sigma and Agilent supports these operating windows.

Selectivity tip: stereochemical differences between glucosyl and galactosyl headgroups subtly alter hydrogen bonding and electrostatic environments, often yielding a consistent retention order under stable conditions. Literature HILIC methods demonstrate effective separation and quantification of multiple GluCer/GalCer species in biological matrices, reinforcing the feasibility of this approach, as shown in a validated CSF study by Castillo‑Ribelles and colleagues in 2024 (HILIC–MS/MS with full bioanalytical validation) according to the open‑access report in the Castillo‑Ribelles 2024 CSF HILIC method.

Expected retention order and modifiers

In many ZIC‑HILIC setups, GalCer tends to elute slightly before GluCer for matched backbones, though the order can invert if buffer strength, water fraction, or column chemistry shifts. Keep modifiers simple and volatile; ammonium formate or acetate at 5–20 mM is typical. Avoid non‑volatile salts and phosphates. Maintain at least ~3–5% water at the starting composition to stabilize the HILIC water layer. Validate the retention order with standards and lock it with consistent re‑equilibration and temperature control.

Conditioning and re‑equilibration stability

HILIC systems require disciplined re‑equilibration to achieve stable RT windows. As a rule of thumb, re‑equilibrate at initial organic composition for 10–20 column volumes; empirically, this often means ≥ 5–10 minutes for a 2.1 × 100–150 mm column at 0.2–0.5 mL/min. Flow‑boosted re‑equilibration at the starting composition can shorten stabilization, per vendor notes (e.g., Agilent HILIC‑Z). Track RT RSD over 3–5 injections of standards/pooled QC and proceed only after RSD ≤ 2%.

Mobile phases and gradients

Volatile salts and modifiers

Use LC–MS‑clean ammonium formate or acetate (5–20 mM) with ACN/water; stay within the column's recommended pH range (near‑neutral is common for silica‑based ZIC‑HILIC). Optional 0.05–0.1% formic acid can improve robustness if the column supports it. Filter and degas all solvents; keep buffer concentrations modest to avoid precipitation in high organic.

Isocratic windows vs short gradients

Two efficient modes work well once RT windows are known:

• Narrow isocratic windows (e.g., ~85–90% ACN) maximize subtle headgroup selectivity and simplify scheduling.
• Short gradients (3–6 min active segment) provide a bit of flexibility across chain lengths while retaining throughput.

Decision cues:

• If you require maximum reproducibility for a small set of targets, prefer isocratic windows once RT is locked.
• If your panel spans chain lengths/unsaturation more broadly, a short gradient adds robustness with marginal time cost.

Re‑equilibration time and carryover control

Always re‑equilibrate at the initial composition for ≥ 10–20 column volumes. Insert a post‑upper‑calibrator blank to monitor carryover, and enforce a threshold such as < 20% of LLOQ response. Needle and port rinses should include a strong organic wash and, if needed, an isopropanol‑rich rinse compatible with HILIC.

Copy‑paste starting method (tune to your system):

Column: ZIC‑HILIC, 2.1 × 100 mm, 1.7–3 µm; 35 °C; Flow 0.30 mL/min; Inj 2–5 µL. Mobile A: ACN:Water 95:5 with 10 mM ammonium formate (or acetate). Mobile B: ACN:Water 60:40 with 10 mM ammonium formate (or acetate). Program: 0.00–1.50 min 90% A (isocratic) → 1.50–4.00 min 90%→60% A 4.00–5.00 min hold 60% A → 5.00–5.50 min back to 90% A 5.50–13.00 min re‑equilibrate at 90% A. Re‑equilibration: ≥ 10–20 column volumes total at initial composition. Expected: GalCer slightly before GluCer for matched backbones (verify with standards).

For additional context on HILIC operation ranges and re‑equilibration practice, see vendor guidance such as the Agilent HILIC‑Z method development note (5994‑5949EN) and SeQuant/Merck/Sigma overviews summarized in their ZIC‑HILIC technical pages.

IMS confirmation for GluCer vs GalCer separation and CCS libraries

Modalities and resolving power

TIMS adds a gas‑phase dimension that can separate or at least offset arrival times of isomeric lipids. On timsTOF platforms, resolving power > 250 is common under optimized conditions, and CCS can be calibrated run‑to‑run with external and internal standards. While multi‑pass cyclic IMS has demonstrated baseline separation of specific GalCer/GluCer pairs (e.g., d18:1/18:0) with clear arrival‑time differences, TIMS should be treated as confirmatory for most labs. For high‑resolution IMS evidence, see Waters' report showing baseline separation after multiple passes in the Waters cyclic IMS application note (2022).

Building RT/CCS libraries and tolerances

Build a modest library for common hexosylceramides (C16:0 to C24:1) that records: precursor/adduct, RT window (± 2–3% after stabilization), TIMSCCS(N2) with calibration metadata, and MS/MS diagnostic ions. With proper external calibration and internal correction (see the TIMS standardization approaches summarized by Bruker and tools like MobiLipid), set CCS matching windows to ± 0.5–1.0% for confident matches. Document acceptable mass accuracy (e.g., ≤ 5 ppm) and ion ratio tolerances for diagnostic fragments. A practical reference for CCS workflows is Bruker's timsTOF lipidomics pages and the methodology advances described in MobiLipid (Anal Chem, 2024).

When IMS rescues partial LC separation

When chromatographic Rs falls between ~1.0 and 1.5, combine three evidences before calling an isomer:

1. Expected RT order on ZIC‑HILIC for the matched backbone,
2. A consistent CCS offset within your library tolerance,
3. Diagnostic fragment ion ratios consistent with class standards.

If any element disagrees, flag for manual review or targeted re‑analysis.

MS/MS strategy and quantification

Diagnostic fragments and stepped energies

Glycosphingolipids produce characteristic oxonium ions (e.g., m/z 163, 204, 366) and ceramide‑backbone fragments (e.g., dehydrated sphingosine near m/z 264) in positive mode. Because universal stepped collision energies do not exist across instruments, start with a three‑band stepped CE (for example, ~15/25/35 eV on a Q‑ToF) and tune on class‑representative standards. Reviews covering these motifs include Farwanah (2012) and Barrientos (2020), which summarize glycosphingolipid fragmentation behavior; see the accessible overviews in Farwanah's glycosphingolipid MS review and Barrientos' 2020 tutorial.

Adduct control and ionization mode

For quantification consistency, bias toward [M+H]+ or [M+NH4]+ adducts. Reduce sodium/potassium contamination to minimize adduct heterogeneity. Operate in positive ESI for these neutral glycosphingolipids; monitor in‑source decay at high cone/capillary voltage and reduce if headgroup losses appear.

Calibration and matrix‑matched curves

Use matrix‑matched calibration with class‑matched isotopologues whenever possible. Acceptance criteria should follow FDA and ICH M10 guidance: accuracy within ± 15% (± 20% at LLOQ) and precision ≤ 15% CV (≤ 20% at LLOQ). Include at least six non‑zero calibrators and 4 QC levels across three independent runs; apply run‑acceptance rules per bioanalytical guidance (see FDA Bioanalytical Method Validation (2018) and ICH M10 Step 5).

Validation, QC, and troubleshooting

System suitability and identification criteria

Before each batch, verify:

• Mass accuracy ≤ 5 ppm on calibrant checks.
• RT stability with standards/pooled QC (target RSD ≤ 1–2% after stabilization).
• CCS stability (RSD ≤ 0.5–1.0%) with proper TIMS calibration.
• Dominant adduct pattern is consistent across calibrators and QCs.

Identification criteria for isomers should require concordance across RT order, CCS window, and key fragment ion ratios. According to EMA/ICH M10 and FDA guidance, batch acceptance depends on QC performance and calibration integrity (limits cited above).

Disclosure: Creative Proteomics may assist laboratories with HILIC–IMS method setup and validation tasks—such as developing RT/CCS libraries, advising on system‑suitability criteria, and assembling regulatory‑style deliverables; see the lipidomics profiling service description for scope. For projects focused on hexosylceramides, see the Glucosylceramide Analysis Service for service details and contact options. The language is informational and non‑promotional.

Precision/accuracy, LOD/LOQ, normalization

• Precision/accuracy: ≤ 15% CV and ± 15% bias (≤ 20% at LLOQ). Use at least 4 QC levels (LLOQ, low, mid, high) with 5 replicates per level across ≥ 3 runs; run acceptance typically requires ≥ 67% of QCs in‑limits and ≥ 50% per level.
• LOD/LOQ: Use precision‑based or S/N‑based definitions consistent with guidance; document matrix effects via post‑extraction spiking or infusion experiments.
• Normalization: Apply internal‑standard normalization; when isotopologues are limited, use class‑representative surrogates and document assumptions.

Common pitfalls and mitigations

Table: quick troubleshooting for GluCer vs GalCer workflows

Applications and throughput

Biofluid and tissue use cases

HILIC‑TIMS‑QTOF workflows have been validated in CSF for hexosylceramides and applied across tissues such as myelin‑rich brain and liver, supporting studies in neurology, metabolism, and lipid signaling. The CSF‑focused HILIC validation by Castillo‑Ribelles (2024) demonstrates the clinical‑research relevance of class‑level pre‑separation prior to MS/MS confirmation. For spatial follow‑ups in tissues, consider MALDI imaging after targeted LC–IMS discovery, as shown in our MALDI imaging lipidomics overview.

Cohort scale and scheduling

Throughput hinges on re‑equilibration. Once RT windows are locked, isocratic windows or short gradients with flow‑boosted re‑eq can bring cycle times into the ~8–13 min range per injection, enabling hundreds of injections per week on a single channel. Schedule pooled QC injections every 10–20 samples to track RT/CCS stability and adduct patterns over time.

Reporting and data packages

For targeted quantification claims, compile a report that includes: method description, column/mobile phase/gradient, system suitability results, calibration and QC statistics, RT and CCS libraries with tolerances, annotated chromatograms and mobilograms, and raw data files. Internal stakeholders often expect templates aligned to FDA/ICH language; agreed‑upon pass/fail rules reduce review friction.

Conclusion

GluCer vs GalCer separation benefits from a simple principle: use ZIC‑HILIC selectivity to achieve primary resolution and apply TIMS CCS for orthogonal confirmation—especially when LC Rs lands near 1.0–1.5. Keep buffers in the 5–20 mM range, start at ~90–95% ACN, enforce 10–20 column‑volume re‑equilibration, and standardize adducts and stepped energies on Q‑ToF. For CCS, calibrate every run and work within ± 0.5–1.0% windows; require concordant RT order and diagnostic fragments for confident calls.

Recommended defaults: the copy‑paste method provided here, CCS and RT tolerances as stated, FDA/ICH validation thresholds, and a sequencing plan with blanks and pooled QCs. If you need to scale to larger cohorts or extend to additional matrices, lock down RT/CCS libraries first, then optimize re‑equilibration and scheduling. If you already have chain‑length‑rich panels, consider short gradients; if your panel is narrow, move to isocratic windows.

Next steps: pilot on standards and pooled matrix to verify RT order and CCS offsets; finalize the RT/CCS library; run a small validation set to confirm precision/accuracy; then proceed to your full study with routine QC tracking.
