End-to-end plasma N-glycoproteomics workflow for low-abundance N-glycoprotein identification using enrichment and DIA-MS.
Introduction
This practical guide focuses on plasma and other complex matrices to help PIs and R&D scientists execute reproducible, cohort-ready workflows for low-abundance N-glycoprotein identification. It balances depth, throughput, and compliance by laying out tiered screen-to-deep paths, concrete enrichment choices, DIA parameter templates, and auditable QC/FDR practices. If you operate Orbitrap platforms—often with FAIMS—and need site-specific quantification that scales from 30–80 samples to ≥200 plasma samples, you'll find actionable, scientifically grounded steps here.
Key readers: method developers and study owners who must defend data quality and traceability, maintain batch-to-batch consistency, and produce reports fit for publications and milestone decisions.
Key takeaways
- Enrichment selection matters: understand bias and sensitivity trade-offs across HILIC, ERLIC, and SAX-ERLIC; choose hybrid tiers when matrix complexity and low input demand both specificity and coverage.
- DIA optimization drives identifications: use narrow-window schemes, gradients aligned to throughput goals, pragmatic FAIMS CV starting points, and fragmentation settings that balance speed with localization.
- QC/FDR must be explicit: implement interference-aware scoring and multi-level FDR control; define acceptance metrics for spike-ins, blanks, duplicates, and drift.
- Cohort pipelines and governance: version raw and processed data, scripts, and reports; secure audit trails and batch control to enable consistent, compliant delivery.
Enrichment design
Matrix and dynamic range considerations
Plasma carries an extreme dynamic range, with highly abundant proteins masking low-abundance N-glycopeptides. Even after depletion or fractionation, enrichment must overcome co-capture of non-glycosylated peptides and preserve sialylated species common in plasma. Reviews highlight that intact glycopeptide enrichment chemistry determines which classes you recover and what interference remains. For context on common approaches, see the enrichment primer for MS-based peptide analysis.
Choosing HILIC, ERLIC, or SAX-ERLIC
- HILIC (amide/ZIC-HILIC) often yields broad capture and high recovery but can co-enrich non-glycosylated peptides; recovery for strongly acidic, sialylated forms may be relatively lower in plasma-heavy contexts. Yin et al. summarized these trade-offs in a 2022 review of intact glycopeptide enrichment.
- ERLIC adds electrostatic repulsion, improving retention of acidic glycoforms and reducing peptide carryover compared with HILIC. This typically improves specificity with some loss of neutral/asialo forms; see findings discussed in the Yin 2022 review.
- SAX-ERLIC strengthens charge selectivity and is repeatedly reported as advantageous for sialylated N-glycans prevalent in plasma. Recent analytical comparisons (Čaval et al., 2024) discuss performance gains and parameter tuning in Analytical Chemistry.
In practice, begin with the matrix's expected glycan profile and input limits. For low-input plasma (≈5–10 µL equivalents), SAX-ERLIC often improves specificity for acidic glycoforms, while HILIC offers high throughput and broader coverage when carryover can be tolerated. ERLIC provides a middle ground by mitigating co-capture while maintaining reasonable recovery.
Example pilot data (illustrative): pooled human plasma (5 donors pooled; 10 µL equivalent input per enrichment), Orbitrap Exploris 480, DIA/HCD 60‑min gradient, library‑assisted search. At 1% glycopeptide‑level FDR (illustrative): HILIC — Unique IDs 920; sites 170; median technical %CV 19%; pass rate ~90%. ERLIC — Unique IDs 1,420; sites 280; median %CV 15%; pass rate ~94%. SAX‑ERLIC — Unique IDs 1,740; sites 335; median %CV 12%; pass rate ~97% (trend supported by method comparisons for plasma enrichment; see Čaval et al., Anal Chem 2024). Note: this block is an illustrative small‑pilot summary (n=5 pooled tech reps); validate thresholds on your instrument and cohort before adoption.
Hybrid and tiered enrichment strategies
Hybrid workflows can reconcile specificity and coverage. For sialylation-rich plasma, consider a SAX-ERLIC primary pass for specificity, followed by a complementary HILIC pass to broaden coverage of neutral/high-mannose forms. Alternatively, ERLIC→HILIC sequencing can moderate carryover while maintaining breadth. Choose layouts that fit your cohort's input volume, desired depth, and turnaround constraints.

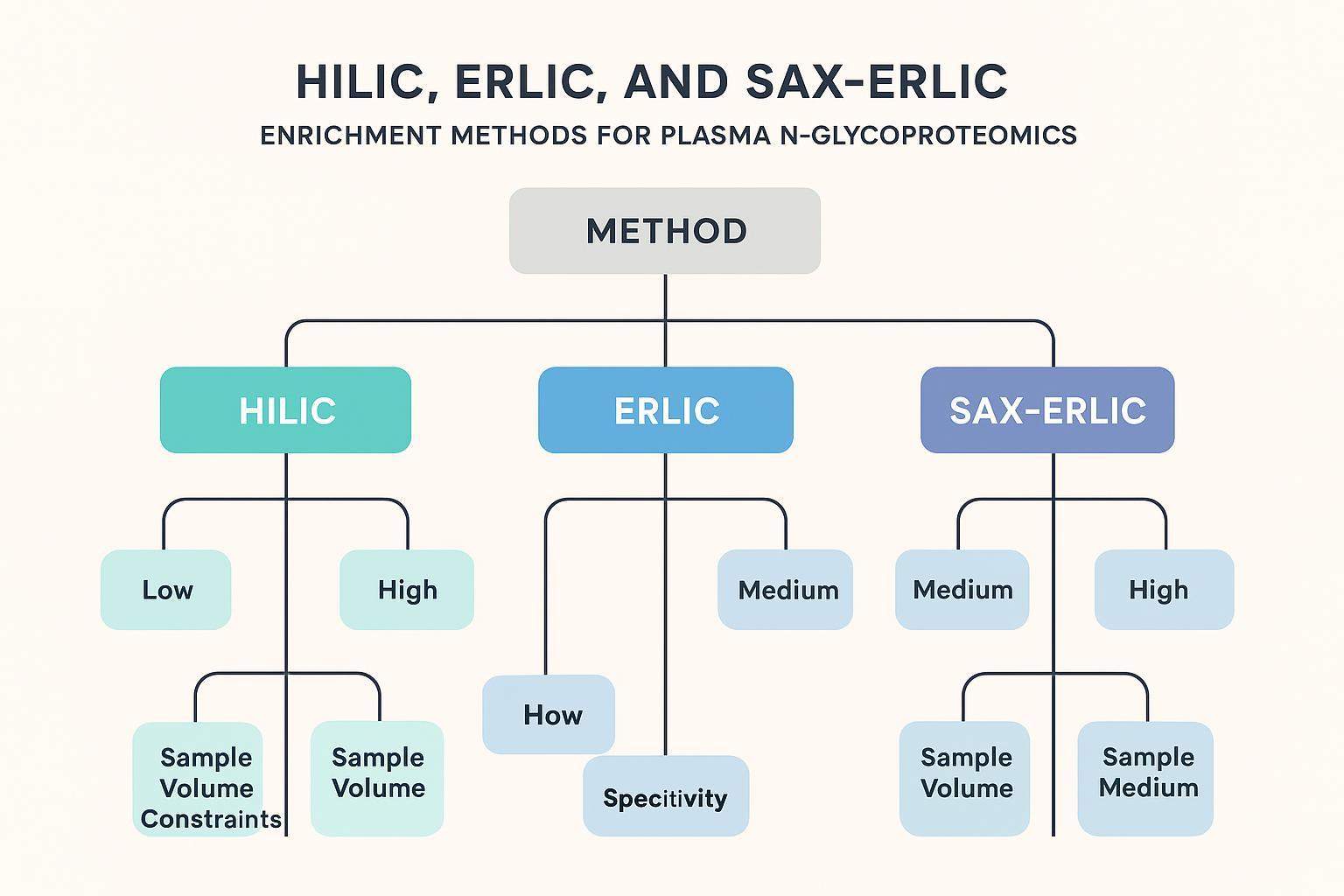

Decision tree — HILIC vs ERLIC vs SAX-ERLIC for plasma N-glycopeptide enrichment.
DIA acquisition optimization for low-abundance N-glycoprotein identification
Windowing, gradients, and FAIMS choices
For plasma N-glycoproteomics DIA workflows, narrow isolation windows increase specificity and reduce interference. An Orbitrap-based "screen" tier can use ~3–4 Th windows across glycopeptide-rich m/z with 20–30 min gradients for throughput; a "deep" tier keeps ~3 Th windows but extends gradients (60–120 min), possibly with variable windows narrowed where glycopeptides cluster at higher m/z. The nGlycoDIA study on plasma demonstrated robust performance with many narrow windows and short cycle times; see Jäger et al. (2025) in their narrow-window DIA plasma profiling report.
FAIMS can improve identifications, but CV choice should be conservative. A single CV around −45 to −50 V is a pragmatic starting point, with verification via oxonium-ion patterns and retention alignment; multi-CV modes can increase IDs but complicate library handling. For proteomics FAIMS optimization and caveats, review Fang et al. (2021) in Analytical Chemistry and tutorial notes summarized by Wang et al. (2024) in a review of practical caveats.
Fragmentation and localization (HCD/EThcD/stepped-HCD)
For high-throughput DIA, HCD or stepped-HCD typically balances speed and informative oxonium-ion production. When site localization confidence is paramount, EThcD can enhance interpretability, albeit at a cycle-time cost. Comparative work from Riley et al. (2020) demonstrates how dissociation choices affect N- versus O-glycopeptides; see the 2020 J Proteome Research study.
Throughput vs depth: tiered screen-to-deep designs
Adopt a screen→deep tiering:
- Screen tier: short gradients (20–30 min), narrow windows (~3–4 Th), conservative FAIMS single CV; aim to triage cohorts, verify QC stability, and pre-select deep targets.
- Deep tier: extended gradients (60–120 min), maintain ~3 Th windows with variable narrowing at high m/z, optional multi-CV FAIMS if libraries support it, and consider EThcD where localization is critical.
Optimizing DIA parameters for low-abundance N-glycoprotein identification — windows, gradients, FAIMS, fragmentation.
QC, FDR, and compliance
Spike-ins, blanks, duplicates, and acceptance metrics
Minimum Viable QC (cohort-friendly):
- Spike-ins: use stable-isotope glycopeptide or synthetic glycan-peptide standards; target technical %CV ≤20% across the panel.
- Blanks: include process and LC blanks per batch; carryover<5% of median target intensity.
- Duplicates: ≥1 technical duplicate per 24 injections; %CV ≤20% for key targets.
- Bridge samples: every 24–32 runs; flag drift if Δmedian intensity exceeds ~10–15% before normalization.
Enhanced Compliance Module:
- System suitability logs and periodic IQ/OQ/PQ documentation.
- Locked, versioned reports and datasets; e-signature approvals; deviation forms with corrective actions.
- Batch design records (randomization maps, bridge samples), and audit trail reviews.
These acceptance ranges follow common large-scale proteomics norms and should be validated within your instrument and matrix context.
Interference-aware scoring and multi-level FDR control
Low-abundance N-glycoprotein identification benefits from decoupling peptide and glycan evidence and controlling errors at multiple levels. The GproDIA framework (Yang et al., 2021) models peptide and glycan components and motivates reporting FDR at the glycopeptide (peptide+glycan) level as well as at localized site levels; see the 2021 Nature Communications paper. Multiattribute scoring methods further reduce ambiguous assignments; Polasky et al. (2022) discuss combined evidence and FDR strategies in their 2022 report.
Practical targets:
- Report 1% FDR at glycopeptide (peptide+glycan) level.
- Report 1% FDR at localized site level where evidence supports it.
- Include diagnostic ions, retention alignment, and localization scores in evidence tables.
Data governance: versioning, audit trails, and cohort batch control
Governance keeps complex cohort studies defensible. Align with ALCOA++ principles—data must be attributable, legible, contemporaneous, original, and accurate—with extended requirements for completeness and consistency. In mass spectrometry ecosystems, Part 11-style capabilities include audit trails, role-based access, e-signatures, and versioning of raw data, processed outputs, and scripts. For overviews, see vendor/regulatory summaries such as Agilent's MassHunter compliance white paper (2023).
Neutral real‑world example — Disclosure: Creative Proteomics is referenced here as an example, not an endorsement or performance claim. In practice, standardized QC documentation and compliant data workflows may include versioned SOPs, locked reports with audit trails, bridge-sample batch maps, and controlled access to raw and processed datasets. See Creative Proteomics for background on glycosylation analysis and PTM reporting expectations; for site-mapping basics, refer to PNGase F and N‑glycosylation site mapping guidance.
Bioinformatics and cohort strategy
Library strategies and software (GlycanDIA, DIA-NN, Spectronaut, FragPipe)
Three practical paths:
Public benchmarks & adoption
Public datasets and parameter bundles increase confidence and reproducibility. The nGlycoDIA plasma deposit (PRIDE PXD045678) and its DDA library companion (PRIDE PXD045679) provide raw runs, processed matrices, and library files. Method parameter packages and spectral libraries are available in the supplementary Zenodo bundle (see nGlycoDIA parameter & library package). Published analyses citing reuse of these resources (publication methods or benchmarking preprints) confirm external adoption; check each record for explicit file‑version mappings (raw → library → parameters).
- DirectDIA or library-free approaches: fastest start; rely on predicted spectra and in-run calibration. Suitable for screen-tier and small cohorts.
- Predicted/GPF-refined libraries: moderate effort; improves match quality and quant precision; ideal for mid-size cohorts.
- Hybrid DDA+DIA libraries: highest depth and robustness, especially for site-specific quantification; recommended for deep-tier studies.
Each path is supported by modern tools: DIA-NN, Spectronaut, and FragPipe workflows can ingest predicted or empirical libraries and support glycan-aware analysis to varying degrees. For DIA-enhanced glycoproteomics comparisons and strategies, see Pradita et al., 2024, and for repository/sample-specific library concepts, see Yang et al., 2021 (GproDIA).
Site-specific assignment, quantification, and reporting
For each N-glycosylation site, report peptide sequence, glycoform composition, localization probability, and quantitative statistics (e.g., %CV across replicates). Include diagnostic ion evidence (oxonium) and retention alignment. Define acceptance criteria for localization confidence to avoid ambiguous site calls.
For expectations on PTM pipelines and deliverables, see a general primer on post-translational modification analysis services; adapt reporting structures to intact glycopeptides with DIA.
Cohort-scale SOPs, automation, and data sharing
- SOPs: version sample prep and enrichment procedures; document LC-MS gradients, window schemes, FAIMS CVs, and fragmentation settings for screen→deep tiers.
- Automation: use reproducible pipelines (scripts/notebooks) with pinned versions; capture parameters and hashes in a run manifest.
- Batch design: randomize sample order; insert bridge samples every 24–32 injections; monitor drift and apply normalization only after QC review.
- Data sharing: deposit raw data, libraries, and processing notes to PRIDE/ProteomeXchange with a readme that lists software versions, parameter files, and commit IDs.
Conclusion
Actionable checklist for low-abundance N-glycoprotein identification:
- Pick enrichment based on matrix and input: SAX-ERLIC for sialylation-rich plasma; add HILIC or ERLIC passes to broaden coverage.
- Configure DIA by tier: narrow windows (~3 Th), short gradients for screen; extended gradients and optional multi-CV for deep, if libraries support it.
- Choose fragmentation pragmatically: stepped-HCD for throughput; EThcD where localization is non-negotiable.
- Make QC explicit: %CV ≤20% targets, blanks, duplicates, bridge samples, drift thresholds, and interference-aware scoring.
- Control FDR at multiple levels (glycopeptide and site) and report diagnostic evidence.
- Govern the data: version files and scripts, secure audit trails, lock reports, and document batch designs.
Common pitfalls and how to avoid them
- Overreliance on a single enrichment chemistry: use hybrid tiers when carryover or under-recovery is evident.
- Aggressive FAIMS multi-CV without library readiness: start with a single CV and validate with diagnostic ions.
- Ambiguous site calls: require localization scores and evidence tables before downstream interpretation.
Next steps for scaling to clinical cohorts
- Validate acceptance metrics on pilot batches; adjust thresholds based on your platform's observed variation.
- Build or refine libraries as cohorts expand; lock software versions and parameters.
- Formalize governance: audit trail reviews, deviation handling, and e-signature workflows to keep studies defensible.
