Serum N-glycans carry critical quality signals for biologics and translational studies, yet many teams struggle to make LOD and LOQ for serum N-glycans defensible under FDA/EMA expectations. This guide translates regulatory language into lab-ready decisions: how to set and justify practical thresholds, what precision CVs mean for robustness, and how HILIC-FLR and LC–MS differ in feasibility and risk. The goal is simple: help you design, validate, and report methods that stand up to scrutiny without slowing your program.
Introduction
LOD and LOQ for serum N-glycans matter because glycosylation attributes shape CQA narratives and comparability—what you can detect and reliably quantify determines whether changes are visible and actionable. In day-to-day practice, precision CVs are the heartbeat of robustness: tight CVs communicate control, while wider CVs at the lower limit require extra justification. Platform choice sets your feasibility envelope. HILIC-FLR offers consistent precision with standardized GU alignment; LC–MS can deliver sensitivity and structure but is more prone to matrix effects. Understanding these boundaries helps you pick defensible acceptance criteria and reportability rules.
Key takeaways
- Anchor acceptance and reportability to ICH M10; use ICH Q2(R2) for initial LOD/LOQ calculation logic; keep ICH Q6B in view for biologics specifications context.
- Treat LLOQ as your practical reporting threshold (LRL); below it, report "
- Recommended precision tiers: major glycans ≤15–20% CV; trace glycans may be justified at ≤25–30% CV if selectivity and total error remain defensible.
- HILIC-FLR excels in precision and GU-based reproducibility; LC–MS adds structural confirmation and sensitivity but demands stronger matrix-mitigation and qualifier strategies.
- Build validation around multi-lot matrix evaluations, robust system suitability, and explicit run acceptance logic; document everything.
Regulatory alignment
Defining LOD, LOQ, and LRL
Practically, LOD is "detectable above background" and LOQ is "quantifiable with acceptable accuracy/precision." ICH Q2(R2) describes common approaches—S/N heuristics (≈3:1 for LOD; ≈10:1 for LOQ) and statistical formulations (LOD ≈ 3.3σ/S; LOQ ≈ 10σ/S). Those calculations seed your feasibility, but your reportable floor is set by bioanalytical validation under ICH M10: the lowest level that meets accuracy/precision is your LLOQ, which we treat as the lower reporting limit (LRL). For biologics, ICH Q6B frames glycosylation as a key structural attribute tied to specifications, reinforcing why sensitivity must align with product-quality needs.
- Reference: ICH training materials summarize Q2(R2) calculation approaches in Module 2/3 (2025)Q14_TrainingMat_Module%20_2_2025_0620.pdf) and Module 3 (2025)Q14_TrainingMat_Module_3_2025_0620.pdf). Bioanalytical acceptance and reportability map to ICH M10 Step-5 guideline (EMA, 2022). Biologics specifications context is described by ICH Q6B concept materials (e.g., ICH Q6(R1) concept paper (2024)_Final_ConceptPaper_2024_0625.pdf)).
Acceptance at the lower limit
Under ICH M10 for chromatographic methods, accuracy at LLOQ is typically within ±20%, and at other levels within ±15%. Precision (CV) follows the same pattern: ≤20% at LLOQ and ≤15% above. Calibration acceptance requires that at least 75% of standards meet criteria; QC acceptance requires at least two-thirds of QCs overall and at least half at each level be within ±15% (±20% at LLOQ). Concentrations below LLOQ are reported as " Regulators expect clear study sample analysis records, calibration/QC summaries, run acceptance rationale, ISR results, dilution-integrity data, and selectivity/matrix-effect documentation. When LOD/LOQ calculations differ across platforms, provide the rationale and show that the chosen LLOQ yields compliant accuracy/precision. Connect glycan-specific choices to Q6B's quality story when relevant. Serum contains endogenous glycans that can complicate selectivity and quantitation. Consider cleanup and enrichment prior to labeling/MS, and verify that blank matrices and QCs show no interference at the LLOQ. Evaluate potential ion suppression for LC–MS workflows and track RSDs as an early warning signal. When background challenges persist, use orthogonal separation (e.g., PGC) or MS/MS qualifiers to maintain specificity. Surrogate or charcoal-stripped serum can be justified when authentic matrix prevents clean calibration/QCs. Document the scientific rationale, then bridge to native serum with recovery and selectivity experiments. Validate dilution integrity for any matrix strategy you adopt. Assess matrix effects across multiple serum lots—commonly at least six sources with low and high QC replicates. Per-lot acceptance typically mirrors accuracy within ±15% and precision ≤15% CV (±20% at LLOQ). For rare or specialized matrices, fewer lots may be acceptable if justified. Released-glycan labeling chemistries such as 2‑AB, procainamide (ProA), and InstantPC are widely used. InstantPC offers strong FLR and MS response with fast prep; ProA balances FLR sensitivity and MS ionization; 2‑AB is a robust legacy choice. GU alignment anchored by glucose homopolymer (dextran) ladders standardizes retention and supports cross-run peak identification. HILIC-FLR commonly delivers excellent precision for minor glycans. Literature examples show practical LOQs around relative abundance of ~0.1–0.2% for well-optimized workflows, though values are method-specific and must be validated. Maintain cautious language and demonstrate selectivity at the LLOQ. Establish GU vs retention calibration with a dextran ladder and confirm performance standards within tight GU deltas; monitor RT stability, peak symmetry, and low carryover. While numeric thresholds vary by lab, practices often target GU delta windows on the order of ~0.05–0.1 GU for performance standards. LC–MS sensitivity and structural resolution are powerful, but matrix effects (co-elution, adducts, charge-state shifts) can destabilize precision at the lower limit. Mitigate with improved cleanup, optimized chromatographic separation (HILIC or PGC), derivatization (e.g., stabilizing sialic acids), and acquisition strategies that reduce background ion competition. Define accurate-mass tolerances (e.g., ≤10 ppm), preferred adducts, and retention criteria. Use MS/MS diagnostics (B/Y ions, cross-ring cleavages) to confirm linkages/isomers and set qualifier rules before validation. For isomer resolution, PGC-LC often complements HILIC. When true isotopically labeled glycans are unavailable, adopt internal calibrants for GU alignment and relative quantitation (dextran ladders) and normalize to total area or calibrant area. Validate spike recovery and monitor calibrant stability to keep CVs in check. To keep LOD and LOQ for serum N-glycans defensible, apply tiered expectations. For major glycans with strong selectivity, target ≤15–20% CV across runs and accuracy within ±15%. At LLOQ, ≤20% CV and ±20% accuracy typically apply under M10. For trace glycans—where selectivity, matrix effects, or isomeric overlap challenge precision—document justification if CVs widen to ≤25–30%. Maintain orthogonal confirmations if trace species are decision-critical. Examples in peer‑reviewed validation include Nature Communications 2023 label‑free CE–MS serum IgG profiling by Marie et al. reporting intra‑day peak‑area RSDs below 13% with sub‑nanoliter LOD equivalents, and Nature Communications 2024 native N‑glycome profiling of ng‑level blood isolates demonstrating ng‑scale detection with quantitative repeatability; specific thresholds remain method‑dependent and must be validated in each lab. Design validation with ≥3 runs over ≥2 days, including ≥5 replicates per QC level per run. Include LLOQ/low, mid, and high QCs and a blank/zero as applicable. Plan ISR for a proportion of study samples (e.g., 10% early, 5% later) near Cmax and elimination phases. Validate dilution integrity with multiple factors; use only validated factors during study. Define explicit run acceptance logic: calibration criteria (≥75% standards passing), QC criteria (≥2/3 overall and ≥50% at each level within acceptance), handling of failed calibrants, and decision trees for " For a reusable audit aid, download the ICH EWG 2024 M10 training material—validation checklist and study sample analysis examples, which consolidates run acceptance criteria, QC layouts, and documentation expectations in checklist-style slides. Isomeric glycans can co-elute and distort quantitation at the lower limit. Combine GU alignment with orthogonal separations (PGC-LC, CE) and targeted MS/MS. Use exoglycosidase sequencing when structural certainty is required for decision-making. Setting an ultra-low LOQ is tempting, but precision may collapse. Balance LOQ selection with achievable accuracy/precision at LLOQ and document the risk assessment. If trace glycans drive decisions, plan qualifiers and orthogonal confirmations to protect specificity. For critical attributes or borderline selectivity, confirm with targeted MS/MS fragments, exoglycosidases, or alternative columns. Predefine acceptance criteria and report outcomes in the validation package. For labs seeking additional capacity or orthogonal confirmation, the Creative Proteomics glycoproteomics service provides site-level glycopeptide profiling, glycoform ratio determination, and N-/O-glycan characterization using HILIC-LC–MS and LC–MS/MS. This section is informational and non-promotional; teams can use it to complement in-house validation with independent data or specialized workflows when needed. Creative Proteomics advances scientific discovery by offering high‑precision omics analyses for research use only; our mission focuses on enabling rigorous, reproducible data to support drug development and life‑science research. Making LOD and LOQ for serum N-glycans work in real labs starts with the right anchors: calculate feasibility via Q2(R2), validate reportability via M10, and keep Q6B's biologics quality story in view. In practice, treat LLOQ as your LRL; adopt tiered CV expectations—≤15–20% for major glycans, ≤20% at LLOQ, and cautiously ≤25–30% for trace species where justified. Choose platform tactics that fit your risk profile: HILIC-FLR for precision and GU stability; LC–MS for sensitivity and structural qualifiers with stronger matrix mitigation. Plan multi-lot matrix studies, system suitability, ISR, dilution integrity, and run acceptance logic; document decisions and report " CAIMEI LI — Senior Scientist at Creative Proteomics. Professional profile.Documentation expectations
Matrix feasibility
Endogenous background handling
Surrogate or stripped matrices
Multi-lot matrix effects
HILIC-FLR feasibility
Labeling and GU alignment
Practical LOQ and precision
System suitability checks
LC-MS feasibility
Cleanup and ion suppression
Calibrations and qualifiers
Internal standard strategy

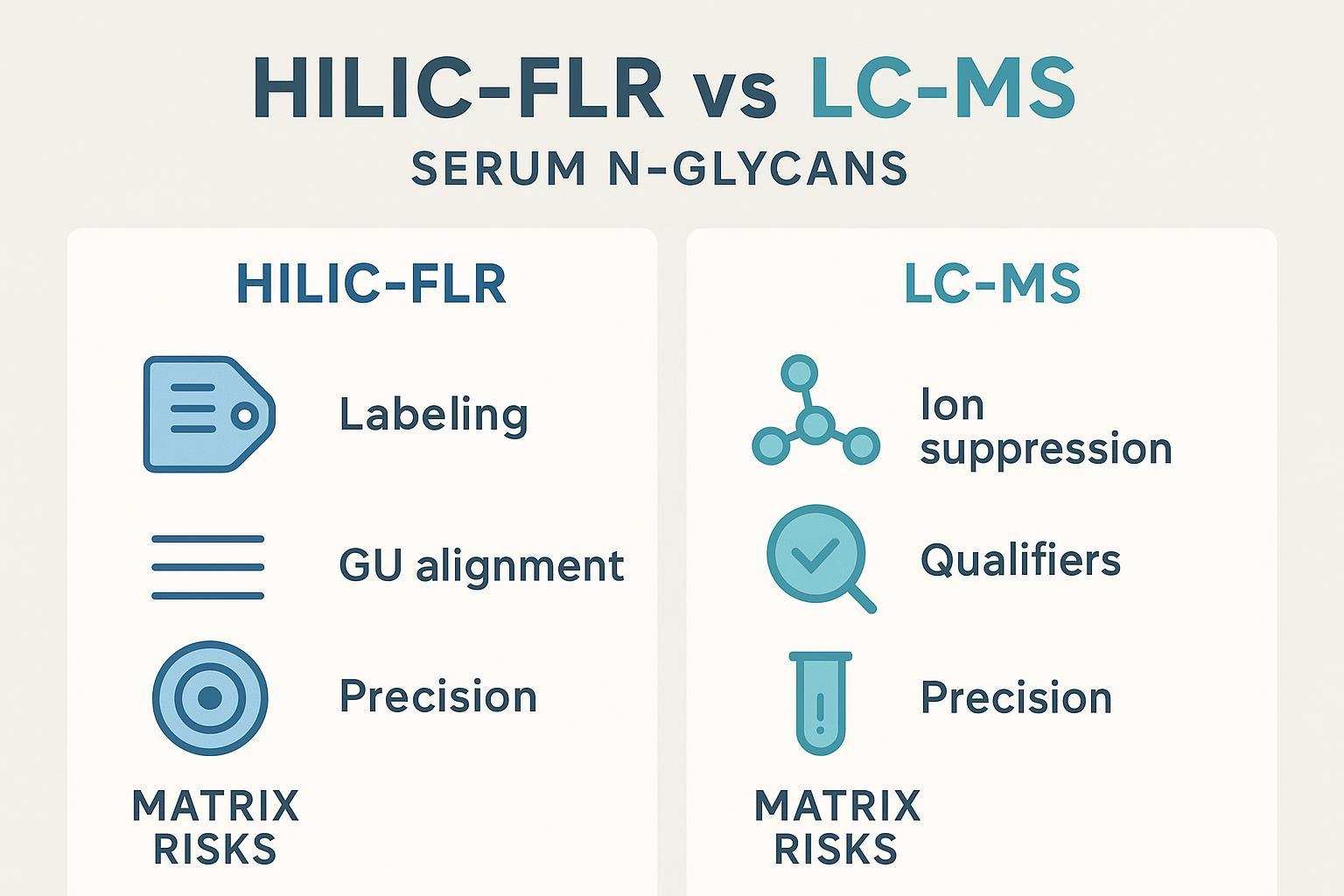

HILIC‑FLR vs LC–MS: LOD/LOQ, precision, and risk trade-offs for serum N‑glycan assays.Validation design for LOD and LOQ for serum N-glycans
Precision and accuracy tiers
Study replicates and days
Reportability rules

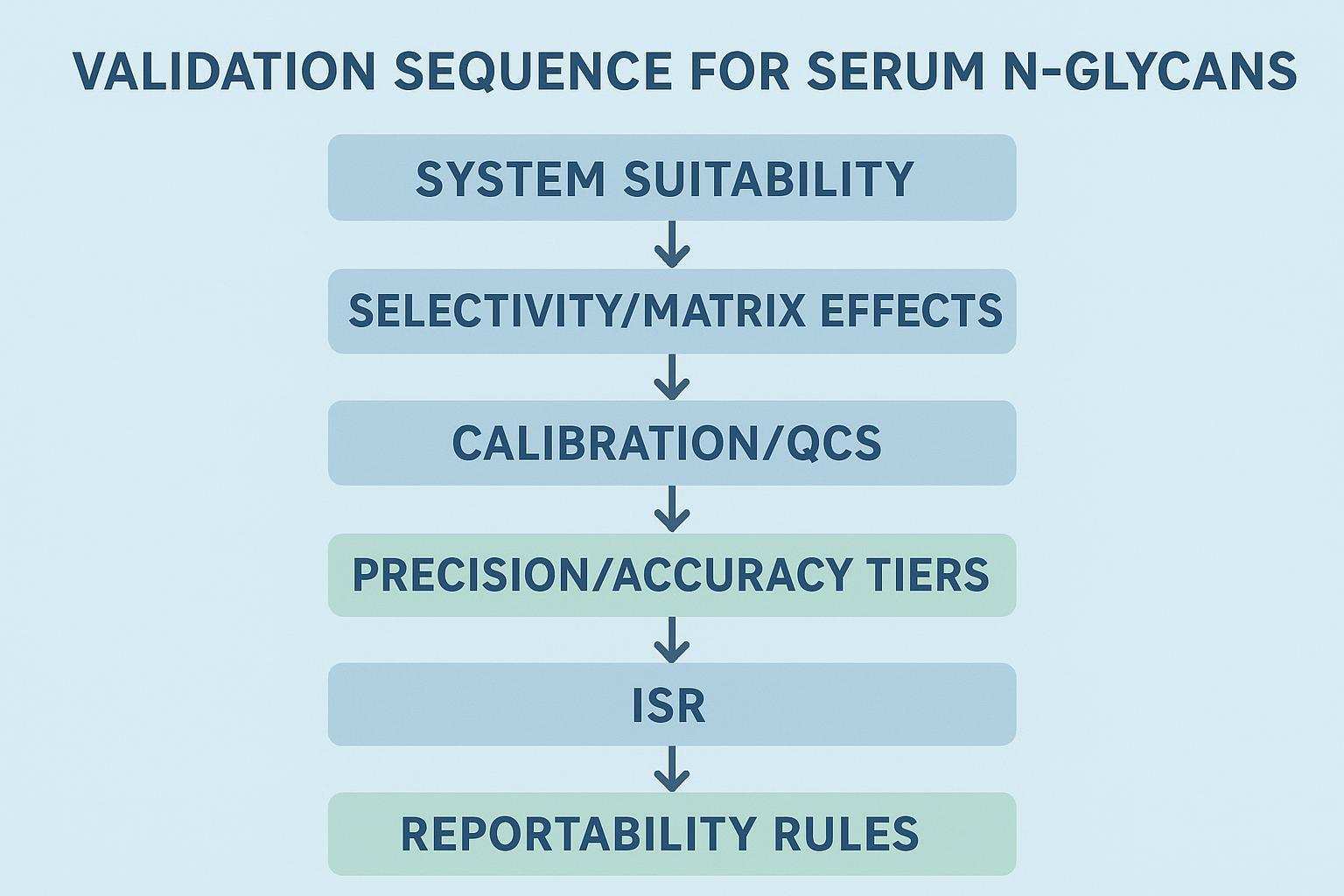

Validation flow for serum N‑glycan LOD/LOQ under ICH M10: from system suitability to reportability.Risks and mitigations
Co-elution and isomers
Aggressive LOQ targets
Orthogonal confirmations
Glycoproteomics service
Conclusion
