Integrating Lipidomics with Metabolomics for Pathway Insights: When to Add, What You Gain, How to Analyse

By Caimei Li, Senior Scientist at Creative Proteomics (LinkedIn). RUO. Last updated: January 2026

About the team

The Multi‑Omics Team provides integrated expertise in metabolomics, lipidomics, and QC-driven pathway analysis. We support academic and industry projects with audit-ready workflows, reproducible reporting, and contributions to community reporting standards and integration best practices. Team members collaborate on client-led publications and methodological initiatives. Disclosure: the team operates within Creative Proteomics ().

Metabolomics alone often leaves blind spots in membrane biology and signaling. Adding lipidomics—done with discipline—turns mechanistic sketches into fuller pathway narratives. This guide shows when to bring in lipidomics, what you gain, and exactly how to analyse joint datasets. Within the first steps, we'll frame how integrated metabolomics and lipidomics improve interpretation, where metabolomics and lipidomics services are most useful, and how lipidomics pathway analysis supports multi-omics pathway insights without locking you into rigid thresholds.

Key takeaways

• Lipidomics complements central carbon and amino-acid metabolism with membrane and signaling context, sharpening mechanism stories.
• Add lipidomics when hypotheses touch inflammation, mitochondrial stress, lipid signaling, membrane remodeling, drug-induced lipid effects, or tissue-specific biology; delay if pilot design is underpowered or QC is not feasible.
• Design for comparability: randomized plates, pooled QC and blanks, class-specific internal standards, and a batch bridging strategy with bridge samples.
• Analyse with a practical workflow: preprocessing → ID confidence/evidence → normalization and diagnostics → pathway-level or joint modeling → transparent, versioned outputs.
• Report reproducibly: deliver mapping tables, parameters, database versions, hit lists, figures, and limitation notes (putative IDs, isomers) ready for FAIR deposition.

Why pathways look incomplete with metabolomics alone

Polar metabolomics excels at glycolysis, TCA, pentose phosphate, amino acids, and nucleotides. Yet many biological switches live in membranes and signaling lipids: phospholipids shape curvature and trafficking; sphingolipids modulate apoptosis and immune tone; eicosanoids steer inflammation. Omitting these layers risks telling half the mechanism.

Community updates reinforce two realities. First, lipid identification and reporting must expose evidence trails—adducts, diagnostic fragments, retention behavior, blanks, and limits of detection—especially given isomeric complexity. The 2024 lipidomics reporting checklist formalizes this expectation and encourages transparent uncertainty notes in every dataset, improving comparability and trust according to the lipidomics reporting checklist in Journal of Lipid Research (2024).

Second, infrastructure for lipid knowledge keeps expanding. The LIPID MAPS 2024 update in Nucleic Acids Research describes database growth and tooling that helps labs translate class-level shifts into pathway maps.

Integrating lipidomics with metabolomics can close pathway coverage gaps and improve mechanism interpretation.

When to add lipidomics (a decision checklist)

You don't need lipidomics for every project. Add it when biology points to membrane or signaling layers you can't see with polar metabolites. Common triggers include inflammation (eicosanoids/oxylipins), mitochondrial stress (ceramides; cardiolipin context), membrane remodeling (PC/PE/PI/PS shifts), drug-induced lipid effects (phospholipidosis), and tissue-specific questions (brain sphingolipids; heart cardiolipin). For pharmacological lipid effects, see the Medsafe 2024 overview of drug-induced phospholipidosis and mechanistic details such as lysoglycerophospholipid accumulation in Molecular Biology of the Cell (2024).

If the pilot is underpowered, preanalytics can't ensure oxidation control, class internal standards aren't available, or the hypothesis is vague, tighten design/QC first—then add lipidomics so budget converts to interpretable signal.

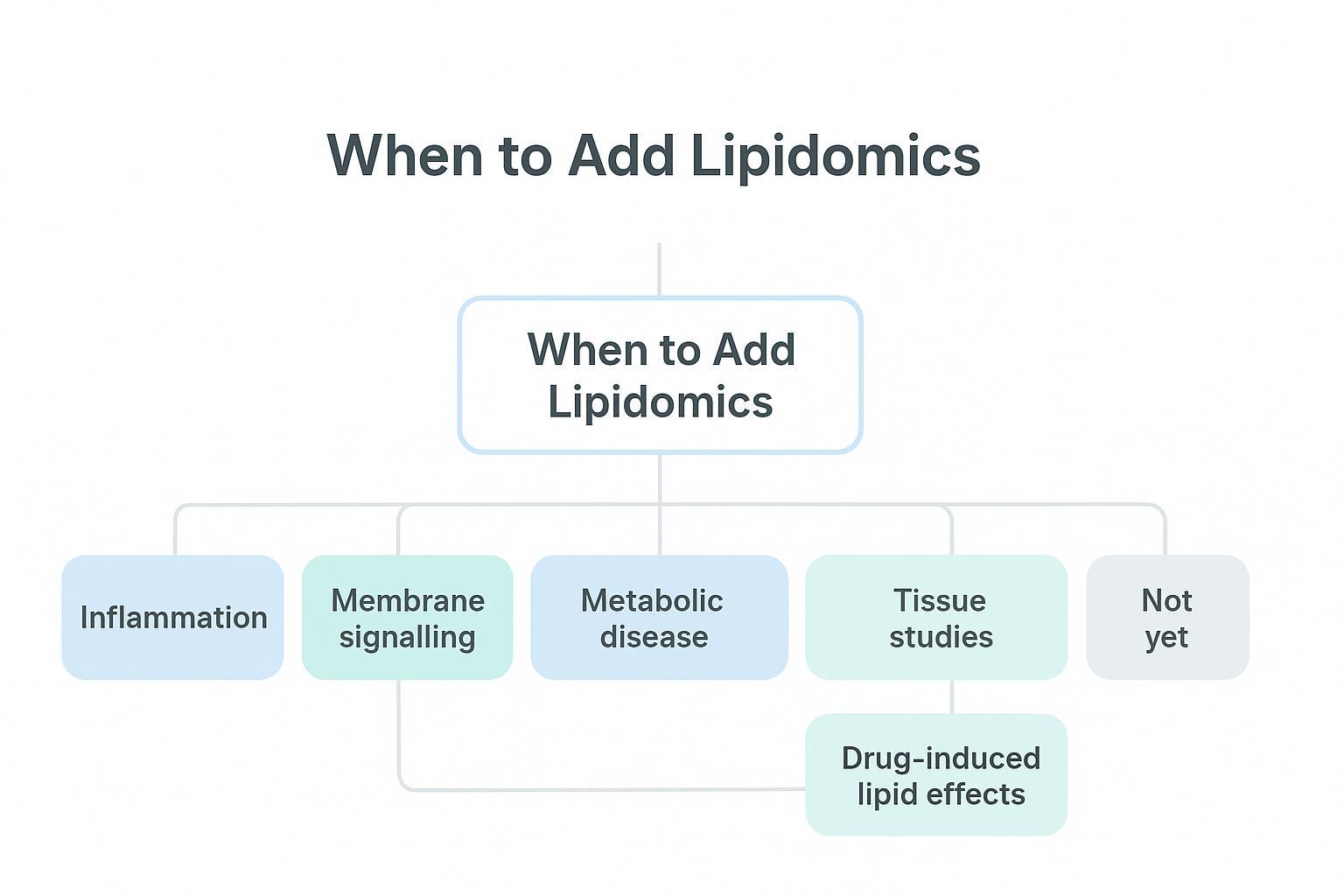

A practical checklist to decide when lipidomics adds value beyond metabolomics.

What you gain: complementary coverage and stronger biological specificity

A polar-only profile might show elevated lactate, altered TCA intermediates, and glutathione shifts. But without lipid classes, you may miss whether the cell is remodeling membranes (PC↔PE), accumulating ceramides that stiffen membranes and promote apoptosis, or generating eicosanoids that explain inflammatory phenotypes.

Glycerophospholipids (PC, PE, PI, PS) inform membrane curvature, trafficking, and organelle identity; PC:PE balance intersects with curvature-sensitive processes. Mitochondrial cardiolipin status connects to respiratory supercomplex stability and mitophagy per Ren et al., J Cell Biol (2023) and related work. Sphingolipids (ceramides, sphingomyelin) influence mitochondrial dynamics and apoptosis; see Thakkar et al., Frontiers in Immunology (2025) for ceramide–mitochondrial cross-talk. Neutral lipids (TG, DG) reflect storage/mobilization, providing context for energy stress and lipotoxicity. Eicosanoids/oxylipins capture inflammatory tone that polar metabolites alone can't reveal.

Metabolomics captures polar intermediates; lipidomics adds membrane and signaling lipid biology for sharper pathway insights.

Study design essentials for integrated metabolomics + lipidomics

Study credibility is won or lost before the first injection. Focus on matrix control, randomization, and disciplined QC placement.

Matrix and preanalytics: Choose plasma vs. serum intentionally; for tissues, control perfusion/quenching and homogenization; for cells, ensure extraction solvent compatibility across polar and lipid layers. Control whole-blood delays to avoid ex vivo lipid changes, consistent with preanalytical lipid stability in whole blood (Clin Chim Acta, 2023).

Randomization and blocking: Interleave groups within plates; stagger injections to avoid group–batch confounding; define blanks and pooled QC cadence upfront. Batch sizing: Plan around instrument stability windows and expected throughput; lock plate discipline early.

Documentation: Capture sample-level metadata (collection time, freeze–thaw counts, anticoagulants, storage) aligned with ISA-Tab or mwTab for later FAIR deposition.

For scoping language and typical matrix considerations in metabolomics planning, see our Metabolomics Services.

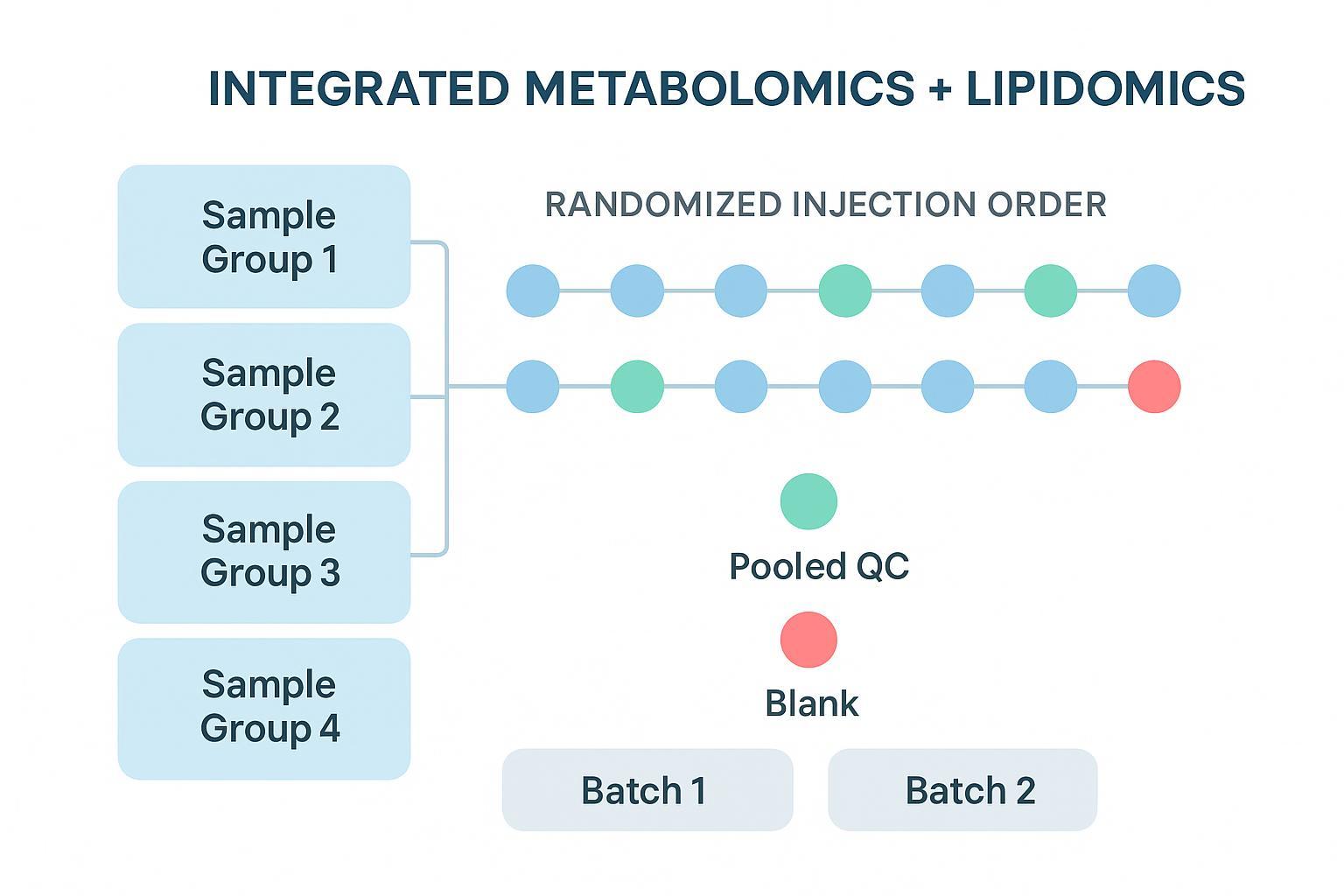

Integrated study design reduces confounding and makes combined omics analysis easier to reproduce.

Extra QC you must plan for lipidomics

Lipidomics adds sensitivity to oxidation, carryover, and isomeric ambiguity. Build a compact "QC pack" and document it.

Lipid class internal standards: Use isotope-labeled or biologically derived standards spanning PC, PE, PI, PS, TG, DG, Cer, SM, and others; normalize within class to stabilize CVs. The lipidomics reporting checklist (JLR, 2024) recommends clear evidence trails and disclosure of limits; class IS help make that evidence quantitative. Consider IM–MS CCS evidence to support annotations, following MobiLipid standardization concepts (Analytical Chemistry, 2024).

Pooled QC and extraction controls: Place pooled QC on a regular cadence; include extraction controls to separate prep variance from acquisition drift. See QC-informed filtering concepts in LipiDex 2 overview (2024, PMC).

Blanks and carryover checks: Include procedural and solvent blanks to identify background; evaluate carryover at high-abundance lipids.

Oxidation sensitivity: Use BHT/EDTA as appropriate; minimize light/heat; store under inert conditions; document handling.

Annotation limits and CCS: Disclose isomer ambiguity and any orthogonal evidence (ion mobility CCS) per MobiLipid (Analytical Chemistry, 2024).

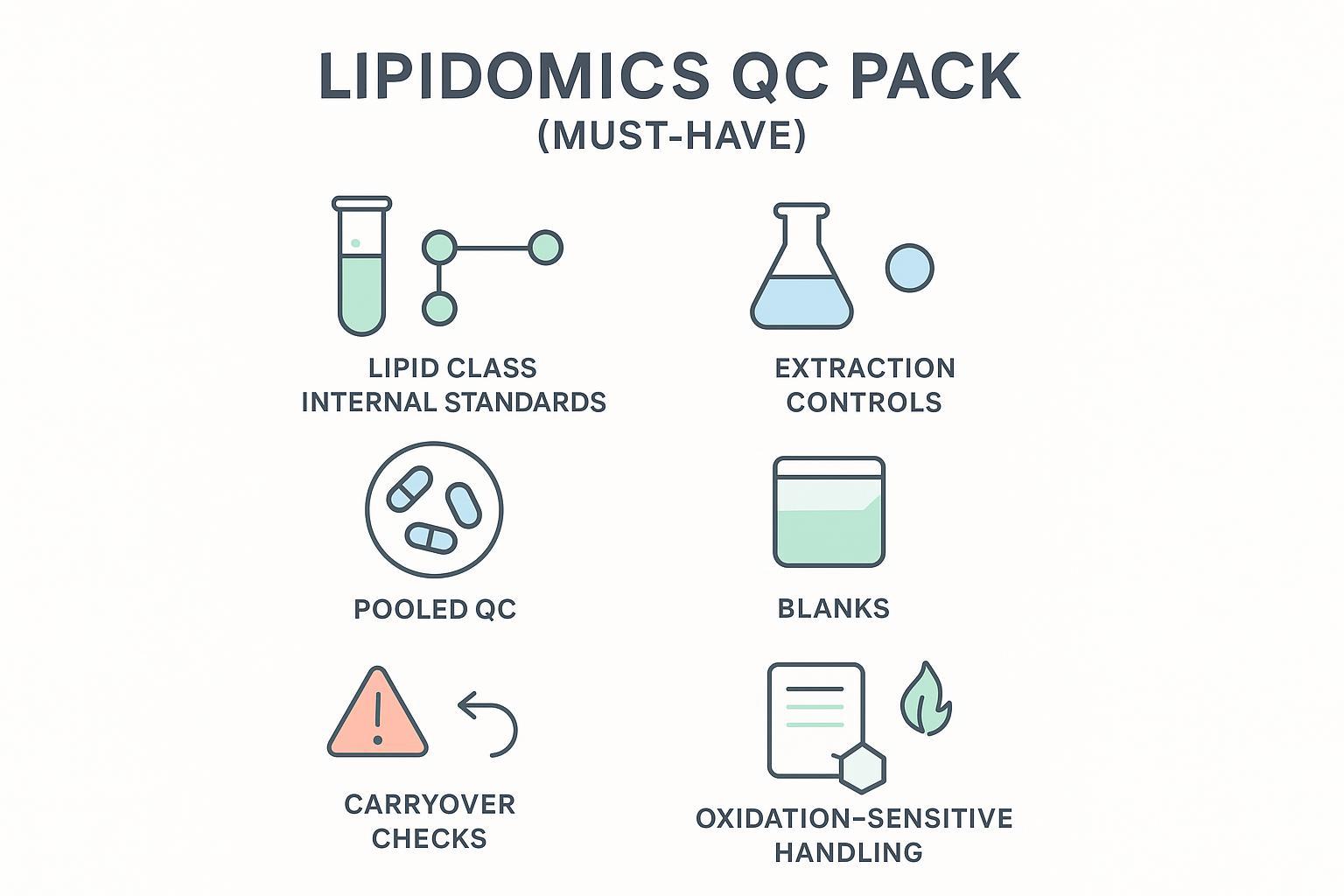

Lipidomics needs extra QC—especially class-specific internal standards and carryover controls.

Batch bridging and comparability across runs (how to keep signals aligned)

Comparability doesn't happen by accident. Build it in with a disciplined batch-bridging strategy and diagnostics.

Bridge samples: Repeat representative biological samples across batches to anchor between-run alignment. Pooled QC discipline: Keep cadence consistent across plates and batches to enable drift modeling.

Diagnostics to include in QC reports: PCA before/after correction, retention-time stability, feature-level CV distributions, and drift plots by class.

Post-hoc normalization/correction (context-dependent): LOESS or other QC-based smoothers for drift; PQN for scale issues; SERRF (QC-based machine learning) for complex non-linear drift; ComBat to adjust discrete batch effects. Present the "why" for chosen methods and show diagnostics rather than claiming universal thresholds, consistent with overview guidance in Strategies for comprehensive multi-omics integration (Bioinformatics Advances, 2024).

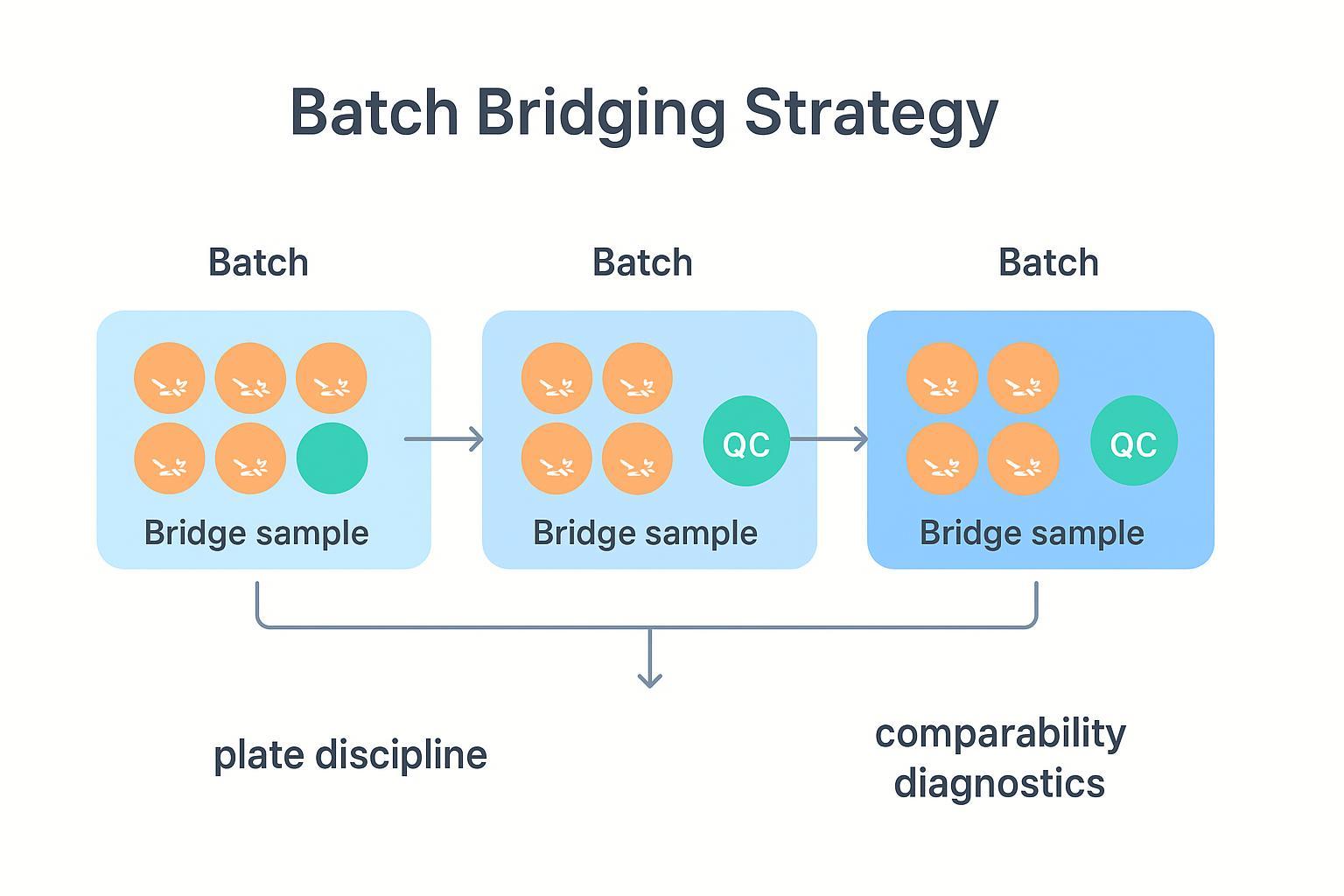

Bridge samples and pooled QCs help keep lipidomics and metabolomics signals comparable across runs.

The integration workflow: from raw data to joint pathway insights (for integrated metabolomics and lipidomics)

Here's a tool-agnostic path you can slot into an RFP/SOW or CRO kickoff.

1. Raw data and QC intake: Verify instrument logs; confirm pooled QC/blank cadence; track batch structure.
2. Feature tables: Extract metabolite and lipid features with harmonized sample IDs; record acquisition modes and adduct priorities.
3. Identification and confidence: Apply MSI-like tiers; for lipids, include evidence trails (adducts, fragments, RT behavior, blanks, LOD/SNR) and any CCS corroboration. The lipidomics reporting checklist (JLR, 2024) provides a transparent framework for this documentation.
4. Normalization and batch diagnostics: Select methods based on batch structure and QC density; show PCA and CV distributions before/after.
5. Joint statistics: Choose late integration, joint multivariate, or network-based approaches depending on goals, sample size, and ID coverage; see the Bioinformatics Advances 2024 integration review and Briefings in Bioinformatics (2024) comparative analysis for method classes and trade-offs.
6. Pathway mapping: Map both tables to KEGG/Reactome/LIPID MAPS; produce a versioned mapping table for reproducibility.
7. Reproducible outputs: Deliver parameters, software versions, hit lists, figures, and network files; prepare a FAIR-ready package for MetaboLights (2024 update + guides) or Metabolomics Workbench (tutorials, 2022–2024).

Disclosure: Creative Proteomics is our product. As one neutral example, a combined workflow can be executed to these standards by qualified CROs and academic cores, including Creative Proteomics, provided evidence trails, pooled QC discipline, and bridge-sample diagnostics are explicitly contracted and delivered.

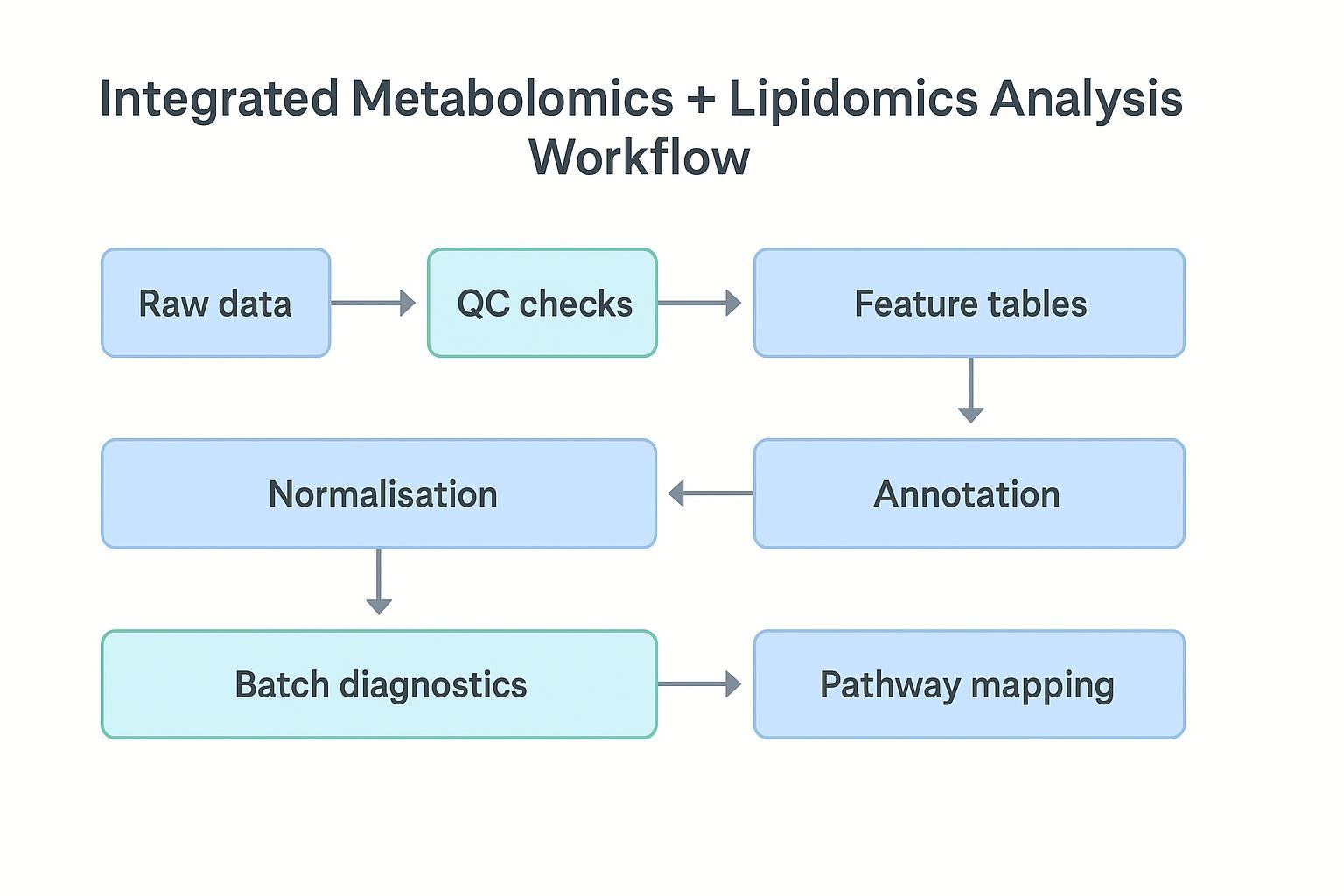

A practical workflow for analysing combined datasets and generating reproducible pathway outputs.

How to analyse joint datasets (practical methods, not buzzwords)

Pick the integration strategy that fits your objective and data reality.

Separate models + late integration (pathway-level): Analyse metabolomics and lipidomics independently with appropriate QC and batch correction, then integrate via pathway scores or enrichment. Best when identification coverage differs across layers, batches are complex, or sample size limits joint modeling. This approach aligns with objective-driven integration taxonomies outlined in Strategies for comprehensive multi-omics integration (Bioinformatics Advances, 2024).

Joint multivariate models: Supervised DIABLO (sPLS-DA) when you have labeled outcomes and sufficient n; unsupervised MOFA when exploring latent factors. Requires balanced coverage and careful cross-validation. For model families and comparison considerations, see Comparative analysis of integrative classification methods (Briefings in Bioinformatics, 2024).

Network-based integration: Correlation networks or similarity network fusion to find cross-omic communities; helpful for interaction-rich hypotheses and exploratory mapping; interpretability improves when edges are filtered by ID confidence and stability.

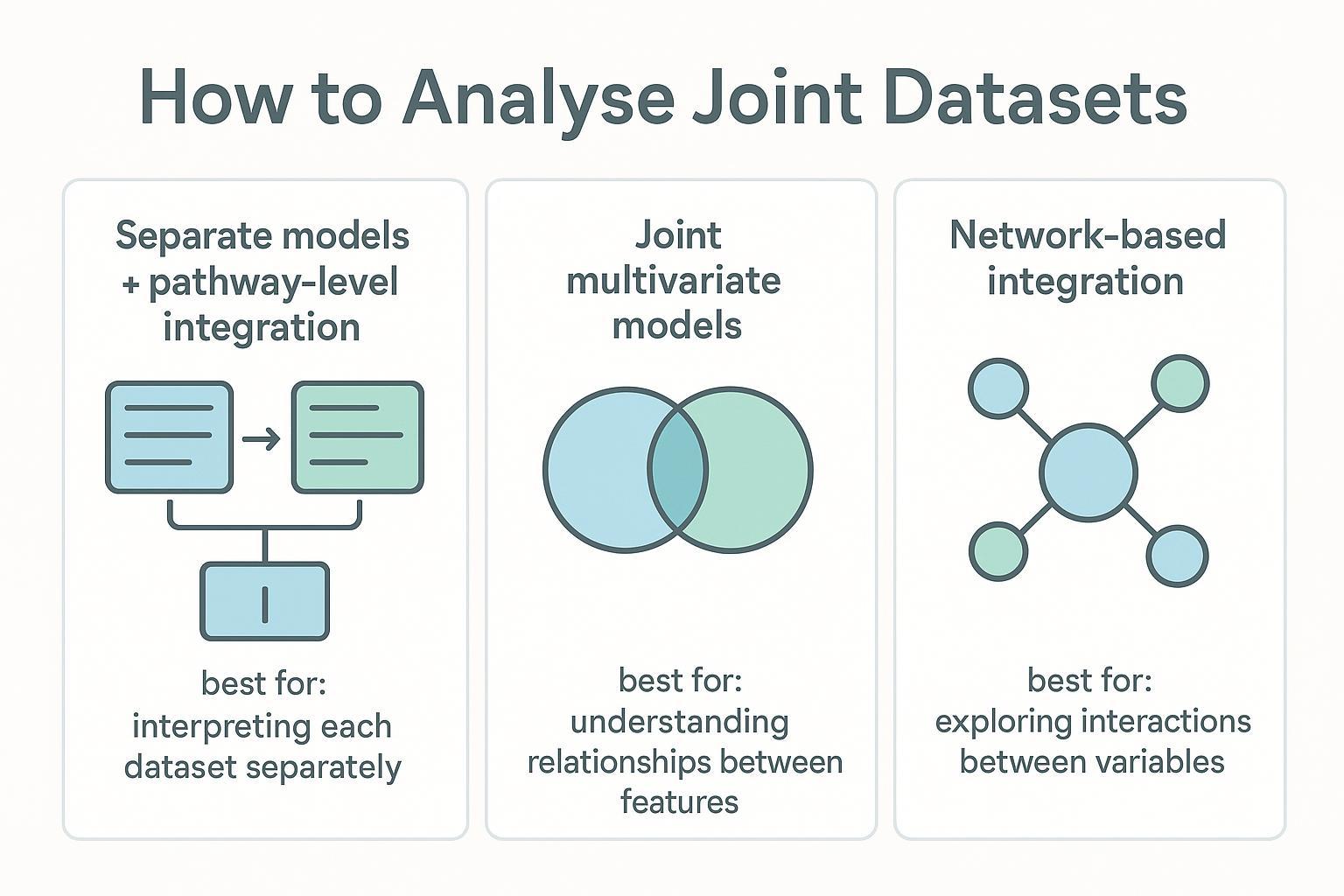

Choose an integration method based on your study goal, sample size, and identification coverage.

Pathway reporting: what to deliver so results are reproducible

Reproducibility lives in the handover package. At a minimum, deliver:

Input feature/ID lists for both omes with ID confidence tiers. ID mapping tables to pathways with database names and versions (KEGG/Reactome/LIPID MAPS) and software versions. Parameter files and method notes for preprocessing, normalization, and correction steps, plus QC report figures (PCA before/after, CV distributions, RT stability, drift plots). Hit lists and figures (volcano plots, loadings, pathway maps) and any network files used for visualization. Limitations and evidence notes: putative IDs, isomer ambiguity, adduct/fragment evidence, blanks, LOD/SNR; include any CCS support if used. These align with expectations in the lipidomics reporting checklist (JLR, 2024) and repository practices in the MetaboLights repository update and guides (2024, NAR + EBI guides).

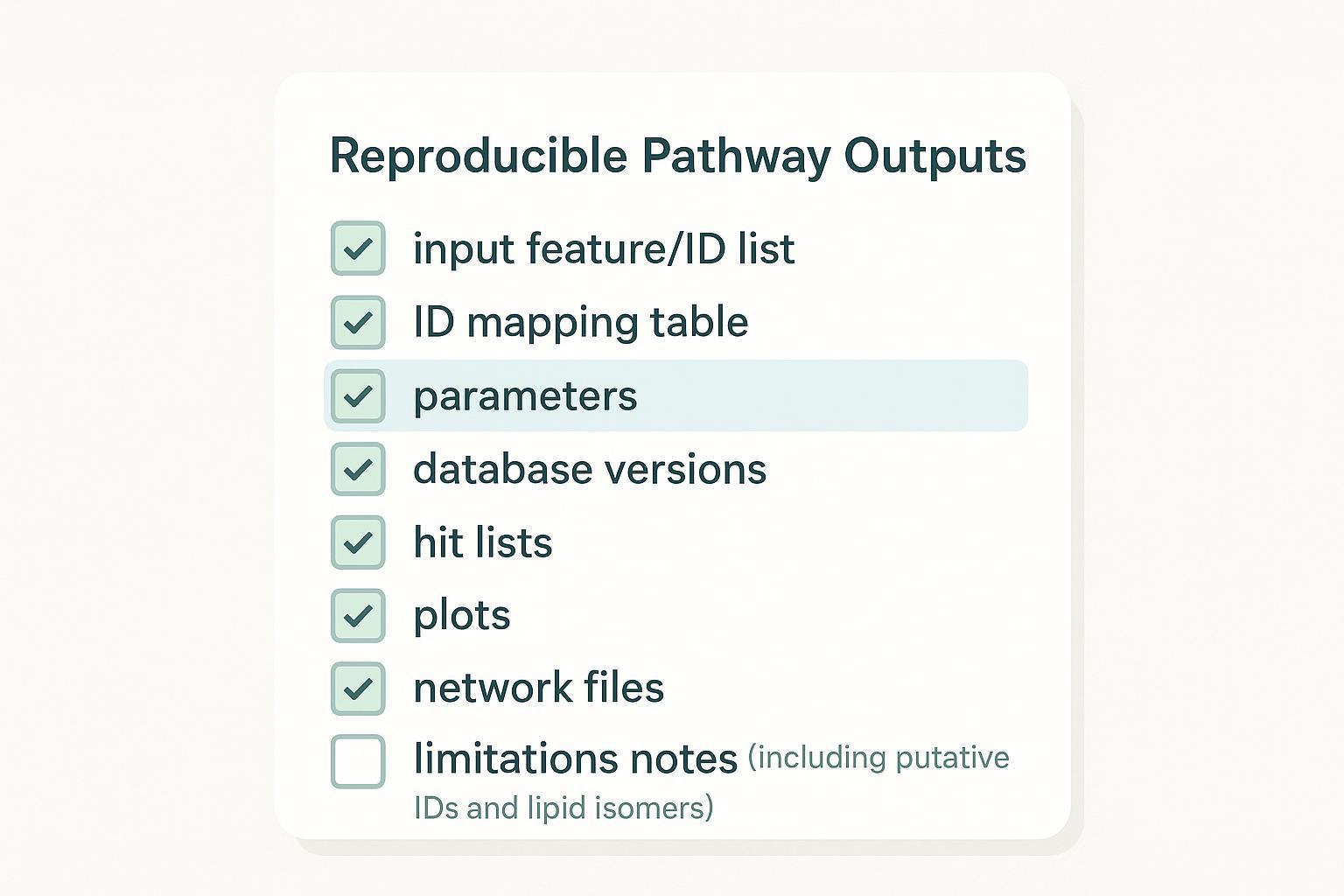

Pathway results are only reusable when mapping tables, parameters, and database versions are delivered.

A worked example (template): linking polar metabolism to lipid remodeling

Scenario: a mitochondrial stress model. Polar metabolomics shows glutathione oxidation (GSH↓/GSSG↑), TCA imbalance, and elevated acylcarnitines. Lipidomics reveals increased ceramides (long-chain Cer), shifts in PC/PE patterns consistent with remodeling, and altered cardiolipin species abundance.

How the story fits together: Oxidative stress nudges sphingolipid pathways; ceramide accumulation stiffens membranes and can promote mitochondrial fission, consistent with ceramide–mitochondrial cross-talk (Frontiers in Immunology, 2025). Cardiolipin remodeling correlates with respiratory supercomplex stability and mitophagy propensity, as summarized in Ren et al., J Cell Biol (2023) and Reynolds et al., Science Advances (2023).

Interpretation: Joining polar redox shifts (glutathione, TCA) with ceramide increases and PE remodeling produces a coherent pathway narrative: stress → redox and energy disruption → membrane remodeling → signaling conducive to apoptosis or adaptive fission.

QC and analysis choices (condition-based): Include class internal standards for PC, PE, Cer, and SM; pool QCs every 5–10 injections; set blanks each plate; track RT drift for ceramide classes. If sample size is modest or ID coverage differs (lipids fewer Tier-1 IDs than polar metabolites), use separate models with pathway-level late integration and report concordant pathways (e.g., oxidative stress and sphingolipid metabolism). If n is higher and coverage balanced, test DIABLO linking acylcarnitine/ceramide signatures to phenotype. Report limits: many PC/PE species are putative at acyl-chain level without MS/MS positional evidence; document this and any CCS corroboration used.

Outputs: A pathway map highlighting glutathione metabolism, TCA stress, ceramide synthesis, and phospholipid remodeling, with a versioned mapping table and a QC appendix showing before/after normalization diagnostics.

Case example — Barth syndrome cardiac tissue (multi‑omics, cardiolipin remodeling)

A patient tissue study compared heart samples from five pediatric Barth syndrome (BTHS) cases against 24 non‑failing controls using matched semi‑targeted metabolomics, complex‑lipid lipidomics, and proteomics. The workflow emphasized evidence trails for cardiolipin (CL) and monolysocardiolipin (MLCL) species and QC reporting. Key findings showed Tafazzin‑linked CL/MLCL remodeling, acylcarnitine and TCA perturbations, and stress‑related protein changes that directly tied membrane lipid remodeling to mitochondrial dysfunction (see Integrated multi‑omics mapping of mitochondrial dysfunction (PMC)).

Case example — systematic mitochondrial stressors in primary human fibroblasts

A controlled perturbation study exposed primary human fibroblasts to multiple mitochondrial inhibitors and combined metabolomics with transcriptomics to derive reproducible stress signatures. The protocol used standardized QC (pooled QCs, blanks) and comparative analyses across stressor classes; main outputs were distinct metabolic–transcriptional signatures that map to mitochondrial import, redox, and bioenergetic pathways and a published tool for signature deconvolution (see Integrated transcriptional–metabolic mitochondrial stress study, DOI 10.1016/j.crmeth.2025.101027).

Common pitfalls (and how to avoid them before you start)

Mismatched matrices or preanalytics (serum vs. plasma swaps; whole-blood delays causing ex vivo lipid changes), missing class internal standards or inadequate blanks (quantitation drifts/background artifacts), untracked freeze–thaw and oxidation (peroxidation artifacts), inconsistent annotations (missing adduct/fragment evidence, RT logic, LOD/SNR checks; CCS not reconciled), and under-diagnosed batch effects. Prevent these by agreeing on preanalytics, IS usage, QC cadence, evidence trails, and diagnostics at kickoff.

Pre-kickoff questions for your CRO/partner:

What class internal standards will be used and how are they allocated per sample?

What pooled QC cadence and bridge-sample placement are planned?

Which diagnostics will appear in the QC report?

How will putative IDs and lipid isomers be labeled in deliverables?

What repository-ready metadata format will be used (ISA-Tab/mwTab)?

Consult a combined omics plan (CTA)

If you're weighing scope, timelines, and QC requirements, we can help align lipidomics and metabolomics with your pathway questions and reporting needs. Metabolomics Services. Consult a combined omics plan.

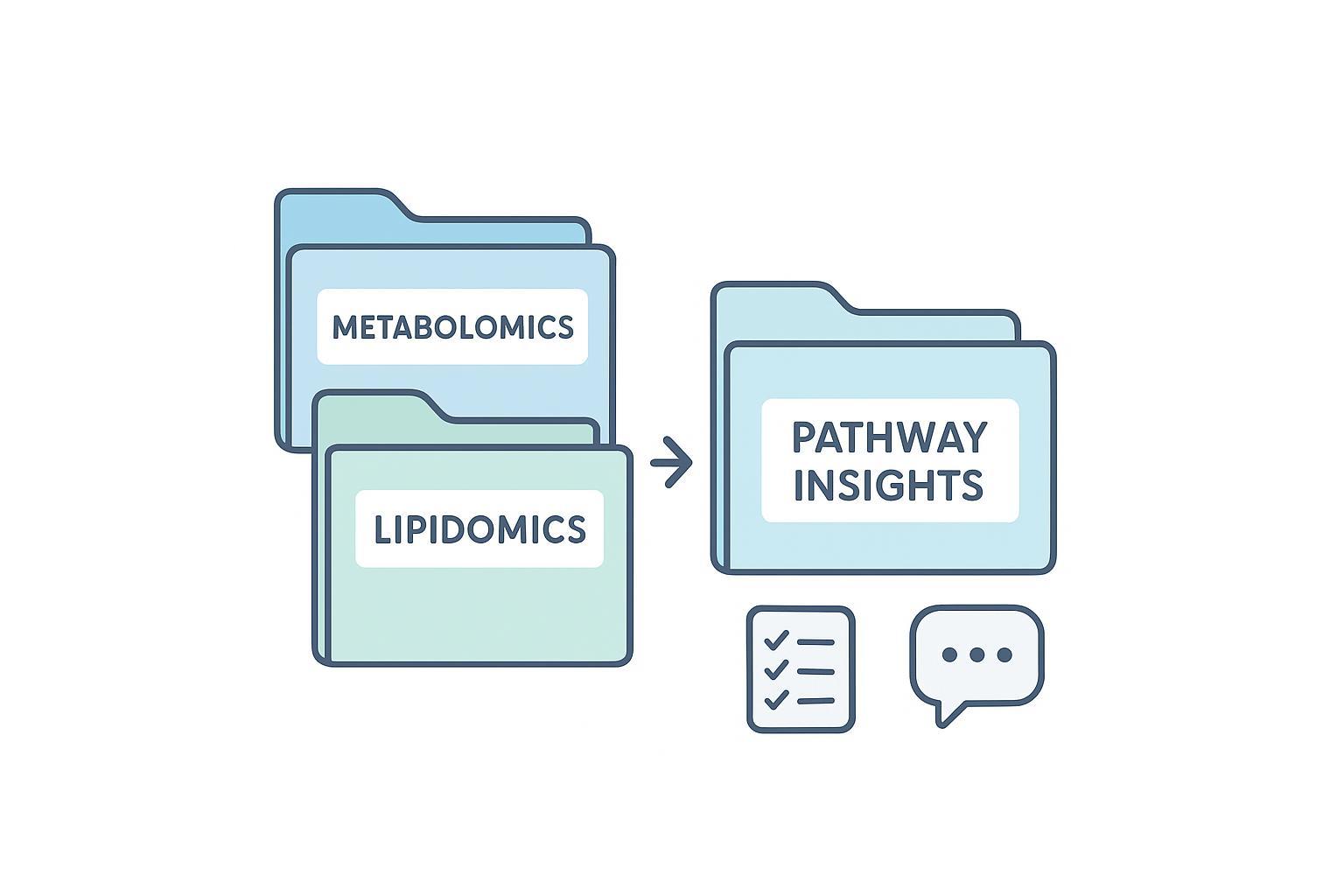

Consult a combined omics plan to align lipidomics and metabolomics services with your pathway questions.

Inline references (selected):

• The lipidomics reporting checklist (Journal of Lipid Research, 2024) — evidence trails and limitations.
• LIPID MAPS 2024 update (Nucleic Acids Research) — database/tooling updates aiding lipid ID and mapping.
• Strategies for comprehensive multi-omics integration (Bioinformatics Advances, 2024) — method classes for late, joint, and network integration.
• Comparative analysis of integrative classification methods (Briefings in Bioinformatics, 2024) — supervised/unsupervised options and trade-offs.
• Preanalytical lipid stability in whole blood (Clin Chim Acta, 2023) — handling cautions to prevent ex vivo artifacts.
• MobiLipid (Analytical Chemistry, 2024) and open-access summary (PMC) — IM–MS CCS standardization concepts for lipid QC.
• Drug-induced phospholipidosis overview (Medsafe, 2024) — when to suspect pharmacological lipid effects.
• Cardiolipin prolongs lifetimes of respiratory proteins (J Cell Biol, 2023) and Science Advances 2023 — mitochondrial membrane context for stress models.
