MS Stepwise Workflow for N-Glycan Site Occupancy

Introduction

Site-specific N-glycosylation is a critical quality attribute (CQA) for biologics such as monoclonal antibodies and fusion proteins because it influences potency, stability, pharmacokinetics, and even immunogenicity. This tutorial provides practical, step-by-step guidance to quantify N-glycan site occupancy and resolve microheterogeneity using mass spectrometry. We focus on recent advances (roughly 2022–2026) that make methods more transferable and robust across labs: a three-tier acquisition strategy—DDA for library building, DIA for breadth quantitation, and PRM for critical glycosites—optionally paired with FAIMS or TIMS to reduce complexity. Along the way, you'll find concrete parameter windows, formulas, validation checkpoints, and reporting tips aligned with regulatory expectations.

Key takeaways

• Use a DDA→DIA→PRM pipeline to balance discovery depth, quantitative breadth, and CQA verification at critical sites.
• Validate site identity with 18O-PNGase F when feasible, then compute N-glycan site occupancy with an explicitly defined denominator and artifact checks.
• Choose fragmentation by goal: sceHCD for throughput and IDs; EThcD or hybrid triggers to strengthen localization, especially for ambiguous sites.
• Reduce chemical noise with FAIMS/TIMS only when complexity demands it; re-verify identifications to avoid mobility-induced artifacts.
• Lock down FDR, localization thresholds, internal standards, and acceptance criteria so results are audit-ready and method-transferable.

Key concepts and CQAs

Macro- vs microheterogeneity

Macroheterogeneity refers to whether a canonical N-X-S/T sequon is occupied by an N-glycan (site occupancy). Microheterogeneity describes the distribution of glycoforms present at that occupied site. For biologics, both layers matter: occupancy can modulate functional epitopes or structural stability, while microheterogeneity can shift receptor binding or clearance. A concise foundation for intact glycopeptide and released-glycan strategies is outlined in the Nature Reviews Methods Primers on glycoproteomics, which summarizes strengths and limitations of each approach while highlighting intact glycopeptides for site-resolved answers (Nature Rev Methods Primers, 2022: see the high-level overview in the glycoproteomics methods primer).

Site occupancy implications

Occupancy is often treated as a CQA when it influences efficacy (e.g., Fc-mediated effector function), stability, or safety risk. Process changes (cell line, media, purification) can shift occupancy and therefore must be monitored with well-defined acceptance criteria and change-control plans.

Regulatory-friendly reporting

Regulators expect clear denominator definitions for N-glycan site occupancy calculations, traceable acceptance criteria, and validation evidence (precision, accuracy, robustness). Guidance documents such as the EMA monoclonal antibody guideline and FDA's methods validation guide emphasize lifecycle management and documentation discipline. See the EMA expectation summary in the guideline for mAbs and related products and FDA's perspective in the analytical procedures and methods validation guidance.

Sample prep and enrichment

Proteolysis and peptide design

Goal: generate glycopeptides that ionize well, fragment informatively, and retain site-resolving capability. A common starting point is trypsin digestion; add GluC or chymotrypsin if tryptic peptides are too long or too hydrophobic. Favor sequences with charge ≥3+ at typical LC–MS conditions to support ETD/EThcD when needed. Avoid excessive missed cleavages that broaden chromatographic peaks and complicate DIA deconvolution. Quick check: monitor a handful of known glycopeptides (from prior DDA) to confirm retention and charge-state distributions before scaling.

Pitfalls and fixes:

• Over-alkylation or residual detergents can suppress glycopeptide recovery—use MS-compatible surfactants and thorough cleanup.
• Under-digestion yields heterogeneous charge states—optimize enzyme ratio and time (e.g., 1:50–1:100 w/w, 8–16 h) and verify on a non-glycosylated peptide panel.

18O-PNGase F validation

Using PNGase F in H2^18O converts formerly glycosylated Asn to Asp carrying an ~+2.98 Da mass shift, distinguishing true enzymatic deamidation from spontaneous (+0.984 Da). This provides an orthogonal confirmation of site identity and supports occupancy math. Practical notes:

• Perform proteolysis first, then PNGase F in H2^18O to minimize back-exchange. Include an H2^16O control.
• Calibrate mass accuracy and require tight ppm windows when searching for +2.98 Da features.
• Use inclusion lists for low-abundance deglycopeptides.
• Parameterization and procedural details are consistent with community protocols; include stepwise reagent lists, reaction conditions, and handling notes in your SOP or reference a published protocol, and ensure controls (H2^16O vs H2^18O), order-of-operations, and mass-accuracy checks are explicitly documented.

HILIC, ZIC-HILIC, lectins

HILIC broadly enriches intact N-glycopeptides and is widely compatible with LC–MS. ZIC-HILIC/ZIC-cHILIC can improve recovery of sialylated species and often enhances selectivity. Lectin capture is excellent for motif-specific targeting but can bias coverage; it is best used as an orthogonal confirmation or for focused panels. In practice, start with HILIC for library building, test ZIC variants if sialoglycopeptide coverage is insufficient, and reserve lectins for targeted questions.

Fragmentation strategies

Stepped-HCD vs ETD/EThcD

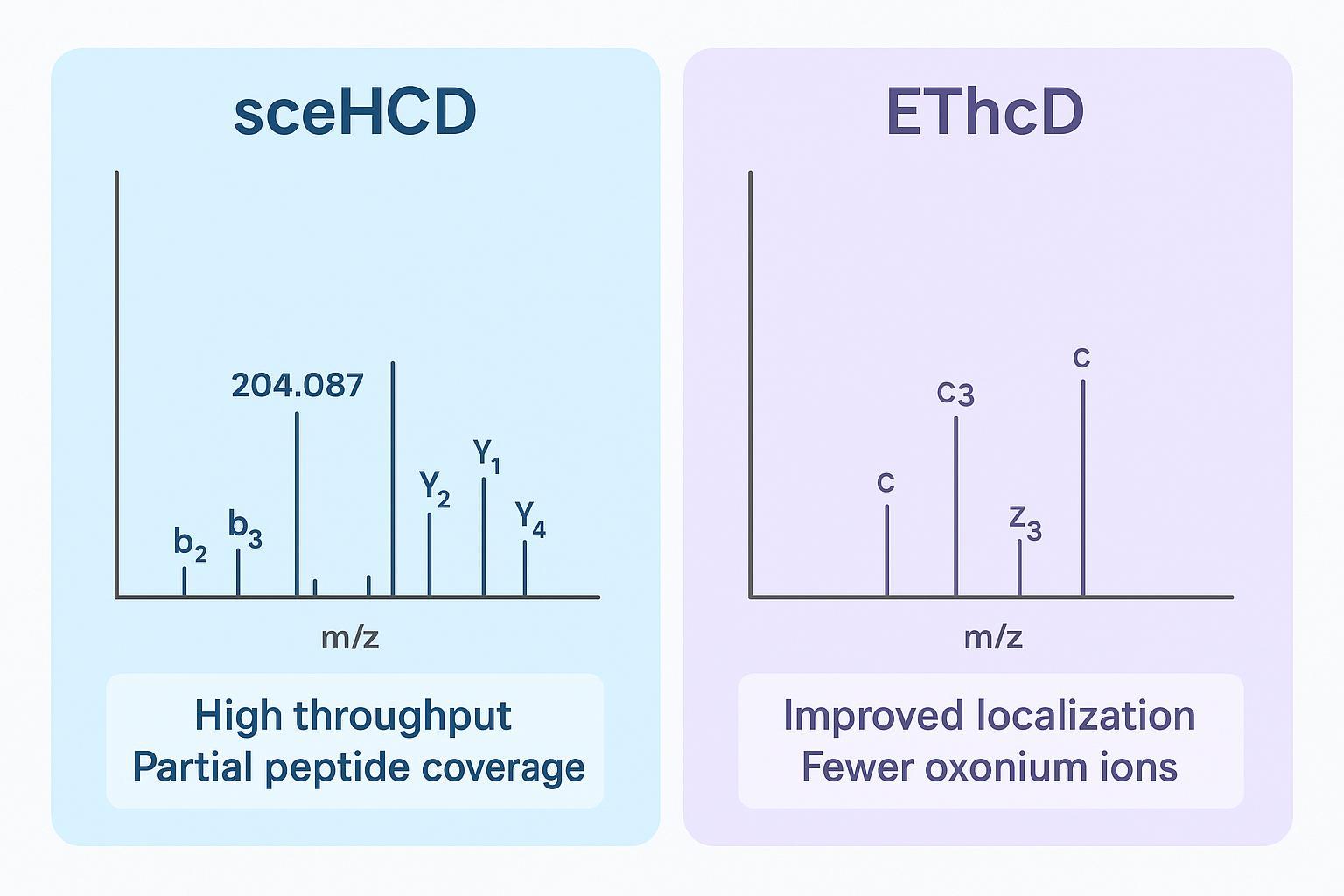

Stepped-HCD (sceHCD) applies multiple normalized collision energies (for example, 20/30/40%) within a single MS2 to co-generate oxonium ions, Y-ions, and useful b/y ladders. It is fast and typically yields many IDs on Orbitrap-class instruments. ETD/EThcD excels when unambiguous site localization is needed because c/z ions retain glycans, anchoring the glycan to the correct Asn. A pragmatic approach: default to sceHCD for discovery and depth, and escalate to EThcD for difficult or high-impact localizations. Comparative evaluations consistently show this trade-off, with EThcD improving localization where HCD alone is ambiguous (see the fragmentation comparison discussion in Riley et al., JPR 2020).

Hybrid triggering approaches

Hybrid methods (e.g., HCD product-ion triggered EThcD) first collect a quick HCD spectrum, detect diagnostic oxonium ions (m/z 204.087, 366.139), and then trigger EThcD on flagged precursors. This boosts localization confidence with limited duty-cycle penalty, preserving throughput in discovery runs.

Exoglycosidase confirmations

Sequential exoglycosidase treatments (e.g., neuraminidase, β-galactosidase, α-mannosidase) can confirm terminal residues and reduce structural ambiguity. Track predictable mass deltas (e.g., −292 Da for Neu5Ac; −162 Da per hexose) and verify the expected shifts in PRM or DIA fragment traces. Use this selectively for contentious or CQA-relevant assignments.

Acquisition and ion mobility

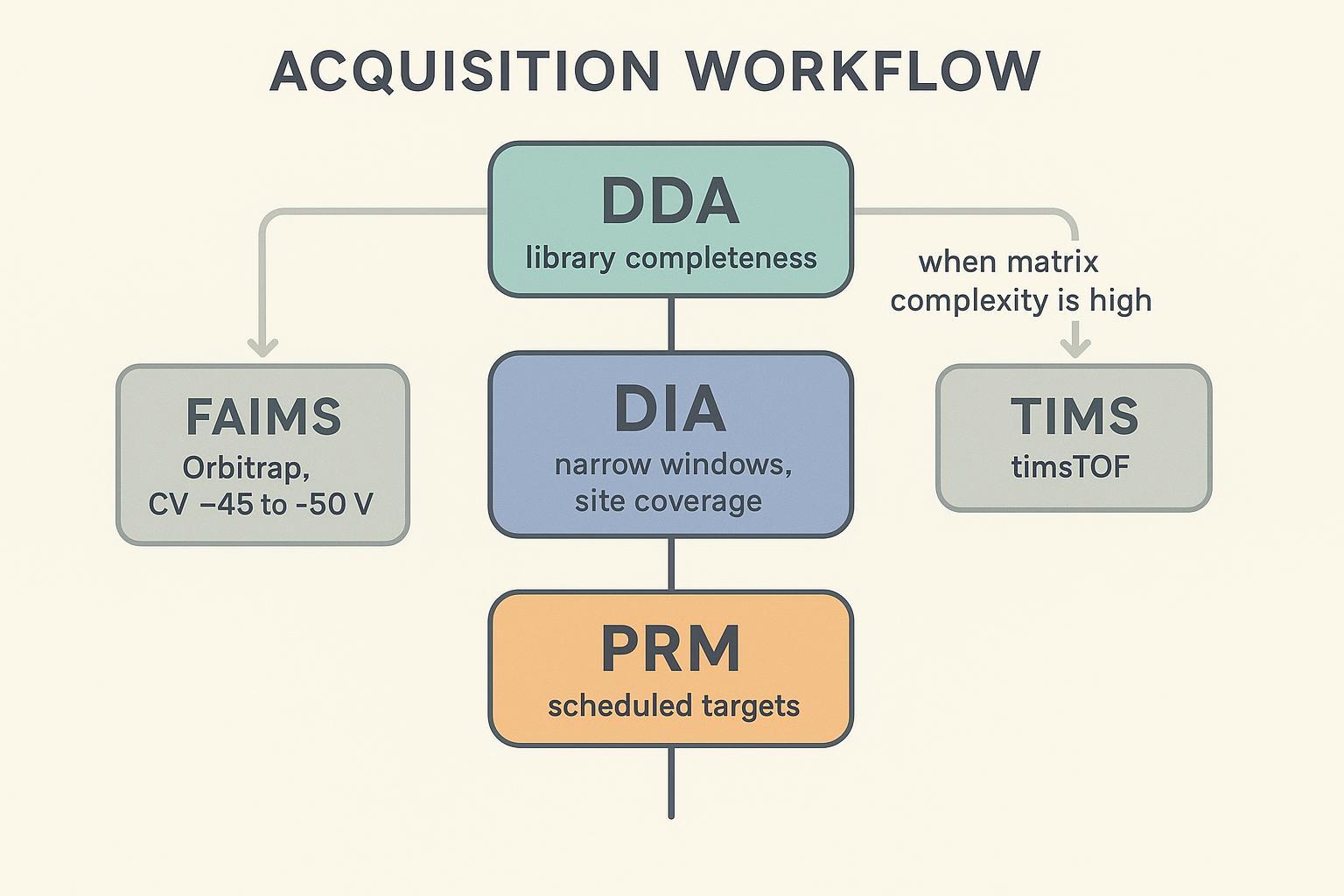

DDA discovery to DIA quant

Start with DDA on enriched, pooled samples to build a glycopeptide library. Use sceHCD by default; add HCD-pd-EThcD on pilot runs if you anticipate localization challenges. Then shift to DIA for routine quantitation with windows tailored to glycopeptide m/z density (for example, 8–20 Th on Orbitrap platforms; narrower if instrument speed allows). Recent narrow-window glyco-DIA studies report superior depth and quantitation breadth versus DDA-only approaches; for an example of tailored windows and benefits, see the narrow-window DIA study of the N-glycoproteome.

PRM for critical sites

For CQAs or low-occupancy sites, use PRM to confirm identity and quantify with high selectivity. Practical settings on Orbitraps: 0.4–1.0 Da isolation windows; 60k–120k MS2 resolution; scheduled RT windows; NCE optimized by glycopeptide class (often 20–30% for HCD fragments; supplement with ETD on selected targets if localization remains uncertain). Verify with fragment ion ratio checks and retention alignment.

FAIMS/TIMS to reduce complexity

Add FAIMS (Orbitrap) or TIMS (timsTOF) when matrices are complex or when DIA interferences obscure low-level glycopeptides. Typical FAIMS compensation voltages for peptide-level work cluster near −45 to −50 V; verify identifications without FAIMS or via orthogonal evidence to mitigate mobility-induced artifacts noted by some groups. Apply sparingly and document settings for method transfer.

Quantification and data analysis

Occupancy formulas and denominators

Define your denominator first and keep it consistent across studies. A commonly used peptide-level definition is:

Occupancy (%) = I(Asp form) / [I(Asp form) + I(Asn form)] × 100

When using 18O-PNGase F, replace I(Asp form) with I(Asp18O form) and verify the +2.98 Da mass shift to avoid conflating spontaneous deamidation. Alternative approaches sum all detected intact glycoforms at the site and divide by the total peptide pool (glycosylated + unglycosylated), which can be advantageous when deglycopeptide signals are weak.

Worked example 1 (peptide-based, 18O used):

• I(Asp18O) = 1.2e6; I(Asn) = 0.3e6 → Occupancy = 1.2 / (1.2 + 0.3) × 100 = 80%.

Worked example 2 (intact-glycoform denominator):

• Sum(glycoforms) = 2.5e6; I(Asn) = 0.5e6 → Occupancy = 2.5 / (2.5 + 0.5) × 100 = 83%.

Document which denominator you used and why. If switching denominators (e.g., during method transfer), run a bridging study and report biases.

Internal standards and precision

Use heavy synthetic peptides corresponding to the unglycosylated form to monitor digestion efficiency and LC stability. Spike retention time standards for alignment. For robust assays, target technical replicate CVs of ≤15–20% for occupancy estimates; confirm lower-occupancy sites with PRM where the signal-to-interference ratio improves. Record LLOQ and establish acceptance criteria ahead of validation.

FDR and site localization

Enforce 1% FDR at PSM/peptide levels and apply glyco-aware scoring with oxonium-ion gating in discovery searches. For localization, prefer EThcD or hybrid spectra that provide glycan-retaining c/z ions to anchor the site; flag HCD-only localizations as lower confidence. In DIA, rely on target–decoy models, fragment co-elution, and mass accuracy to maintain 1% FDR. When a CQA depends on localization, verify with PRM ± exoglycosidase.

Bioinformatics and QC deliverables (neutral brand note): For teams that prefer an external pipeline, Creative Proteomics provides a comprehensive glycoproteomics service that integrates intact glycopeptide identification, quantitative workflows (DDA, DIA, PRM, label‑free or labeled options), and dedicated data pipelines. Typical deliverables include an experimental report, raw MS files, processed datasets and spectral libraries, visualized glycan maps, and site‑level occupancy tables that state the denominator and localization confidence metrics, plus replicate‑precision summaries suitable for audit trails. These outputs—together with curated annotations from glycoproteomics software and reference databases—support occupancy calculations and CQA reporting. See the company's glycoproteomics service page for scope and sample requirements: glycoproteomics service. For project inquiries or sample submission details, consult the linked service page.

Validation checklist:

• Denominato
  Case study (cross‑lab reproducibility, public data): A blinded cross‑lab comparison analyzed a recombinant monoclonal IgG1 Fc glycosite (N297) using Orbitrap DDA for library building, narrow‑window DIA (m/z 400–1,000 Th; 6–10 Th windows) for quantitation, and PRM confirmation (0.8 Da isolation, 60k MS2) on key precursors. Reported occupancy at N297 was 81% (mean of three labs), inter‑lab CV = 12% (acceptance ≤20%). Occupancy used the Asp18O denominator (I[Asp18O]/[I(Asp18O)+I(Asn)]) with PRM fragment‑ratio checks for identity. Raw files and library metadata are available on ProteomeXchange (example landing page: PXD050331).
  r defined and justified; artifact checks for 18O labeling documented.
• 1% FDR enforced; localization confidence thresholds stated; ambiguous cases flagged.
• Internal standards, LLOQ, and precision targets recorded; acceptance criteria met on a representative matrix.

Troubleshooting snapshot (common failure modes)

Conclusion

A transferable workflow to quantify N-glycan site occupancy pairs a DDA-built library with DIA breadth and PRM at critical sites, escalating to EThcD or exoglycosidases when localization drives decisions. Keep the math explicit—state the denominator, show 18O checks when used, and define precision and acceptance criteria. For regulatory-friendly reporting, mirror expectations from EMA/FDA documents with traceable FDR/localization thresholds, instrument-class parameters, and a clear change-control plan.

Decision framework in one line: discover with DDA, quantify broadly with DIA, confirm with PRM—add FAIMS/TIMS only when complexity requires it. With that scaffold, method transfer becomes straightforward: document SOPs, lock versioned parameter sets, and include a short bridging study when switching hardware or enrichment chemistry. The result is a robust, auditable path to confident site occupancy values and defensible glycoform assessments that stand up to cross-team reviews and inspections.

Author: Caimei Li — Senior Scientist, Creative Proteomics. Caimei Li is a mass‑spectrometry scientist specializing in glycoproteomics and biologics characterization with extensive experience in LC–MS/MS method development and QC reporting. Affiliation: Creative Proteomics. Contact: LinkedIn profile: https://www.linkedin.com/in/caimei-li-42843b88/. Funding and COI: This work was prepared with institutional support from Creative Proteomics. COI: Caimei Li is employed by Creative Proteomics.
