Choosing the Right LC-MS Platform for Fatty Acid Analysis

Fatty acids serve as essential cellular metabolites with diverse physiological functions—including energy storage, membrane architecture, and signaling pathways. Precise analytical characterization of these compounds proves critical for understanding metabolic disorders, oncogenesis, and cardiovascular pathologies. Liquid chromatography-mass spectrometry (LC-MS) has emerged as the premier analytical methodology due to its exceptional sensitivity, resolution, and selectivity. However, platform optimization remains paramount for accurate fatty acid profiling.

This review provides a comprehensive framework for LC-MS platform selection, evaluating comparative advantages, technical criteria, and practical implementation scenarios.

1. LC-MS Analytical Foundations

LC-MS integrates liquid chromatographic separation with mass spectrometric detection. The chromatographic component resolves sample constituents, while mass spectrometry identifies compounds via mass-to-charge ratio (m/z) determination. This tandem system comprises two core modules: separation chemistry and mass analysis.

For fatty acid characterization, LC-MS offers superior flexibility versus gas chromatography-mass spectrometry (GC-MS), particularly for complex biological matrices requiring enhanced separation efficiency.

2. Platform Selection Criteria

2.1 Fatty Acid Structural Diversity

Considerations:

• Saturated/unsaturated, short-chain/long-chain distinctions
• Analytical requirements:
  • Long-chain FAs: Extended chromatography columns + high-resolution MS
  • Short-chain FAs: Elevated detection sensitivity

2.2 Sample Matrix Complexity

• Clinical specimens (serum, tissue, urine) present challenges:
  • Low endogenous FA concentrations
  • Co-eluting metabolite interference
  • Resolution strategy: Advanced stationary phases (e.g., C30 columns) for matrix deconvolution

2.3 Sensitivity and Resolution Requirements

• Platform capabilities must address:
  • Trace-level detection (pg/mL range)
  • Isomer differentiation (e.g., ω-3 vs. ω-6)
  • Solution tier:
    • High-sensitivity: Triple quadrupole systems
    • High-resolution: Q-TOF or Orbitrap platforms

ISF-(in-source fragmentation)-MALDI/TOF spectra of PUFA-containing PCs (Leopold J et al., 2023)

2.4 Data Processing Capabilities

• Critical evaluation parameters:
  • Integrated software for automated quantification (e.g., Skyline, Compound Discoverer)
  • Batch processing functionality
  • QC metrics: Intra-run precision (CV < 15%), calibration curve linearity (R² > 0.99)

3. Technical Features and Selection Guidelines for Common LC-MS Platforms

The choice of LC-MS instrumentation profoundly influences both data quality and research efficiency in fatty acid (FA) analysis. This section details four major platforms and offers a structured selection framework:

3.1 Quadrupole Mass Spectrometry (Q-MS)

Principle: Utilizes four parallel electrodes applying RF/DC voltages to selectively transmit ions of specific mass-to-charge (m/z) ratios.

Performance Specifications:

• Mass Range: Standard Q-MS: 50-2000 m/z; Advanced models (e.g., Agilent 6470): 15-3200 m/z
• Resolution: Unit resolution; Enhanced versions: 0.1-0.2 Da
• Scan Rate: Standard: 10,000 Da/sec; Enhanced: 20,000 Da/sec

FA Analysis Capabilities:

• Strengths:
  • Cost-effective (~$150k USD)
  • High quantitative precision in MRM mode (CV < 5%)
  • Ideal for routine assays in clinical labs (e.g., quantifying 10-20 common FAs like C16:0, C18:1)
• Limitations:
  • Cannot resolve isomers with near-identical m/z (e.g., C18:1n9 vs. C18:1n7)
  • Restricted dynamic range (typically 10³-10⁴)

Typical Uses:

• Rapid screening of trans fats in foods (GB 5009.257-2016)
• Clinical measurement of serum ω-3 index (EPA + DHA)

3.2 Ion Trap Mass Spectrometry (IT-MS)

Key Innovation: Enables sequential fragmentation (MSⁿ, n≤5), critical for elucidating metabolite structures.

• MS1 Scan: Initial mass analysis detects all ions present in the sample.
• Parent Ion Isolation: A specific ion of interest (precursor ion) is selected from the MS1 spectrum.
• MS2 Fragmentation: The isolated parent ion is fragmented (e.g., via collision-induced dissociation, CID).
• Product Ion Selection: A specific fragment ion from the MS2 spectrum is isolated.
• MS3 Fragmentation: The selected product ion undergoes further fragmentation to generate tertiary fragments.
• (Iterative Capability): This process can continue sequentially for up to MS⁵ (n≤5), enabling deep structural interrogation.

Critical Parameter Comparison:

• Model - Mass Accuracy (ppm) - Scan Speed - Ion Capacity:
  • Thermo LTQ XL: 500 - Medium - 3×10⁴
  • Bruker amaZon X: 200 - Fast - 5×10⁴

Advantages for FA Studies:

• Identifies modified FAs (e.g., hydroxylated 9-HODE, epoxidized 5,6-EET)
• Achieves lower detection limits (down to 0.1 pg, ~10x better than Q-MS)

Representative Applications:

• Brain tissue sphingolipid metabolic network analysis (requires MS³)
• Investigating drug-induced FA β-oxidation abnormalities

3.3 High-Resolution Mass Spectrometry (HRMS)

Technology Variants:

• Type - Representative Instrument - Resolution (@m/z 400) - Mass Accuracy (ppm):*
  • Orbitrap: Q Exactive HF-X - 240,000 - <1
  • TOF: SCIEX X500B - 60,000 - <2
  • FT-ICR: Bruker solariX - 10,000,000 - <0.1

FA Analysis Performance:

• Orbitrap Capabilities:
  • Resolves isotopologues differing by Δm/z=0.001 (e.g., C18:0 vs. C18:1)
  • Simultaneous quantification of >200 FAs via DDA mode

Primary Use Cases:

• Discovery of unusual marine ω-3 FAs (e.g., C32:8n3)
• Structural identification of unknown FAs in untargeted metabolomics

Cost Considerations:

• Instrument investment: $400k-$800k USD
• Per-sample consumables: $50-$100 (~3-5x Q-MS cost)

3.4 Quadrupole Time-of-Flight Mass Spectrometry (LC-QTOF-MS)

Integrated Advantages:

• Quadrupole pre-filtering boosts target ion transmission
• TOF detection delivers high resolution (up to 60,000 FWHM)

Operational Modes:

• Mode - Acquisition Rate - Suitable Applications:
  • Full Scan: 20 Hz - Untargeted screening
  • Targeted MS/MS: 10 Hz - Quantifying specific FAs
  • SWATH/DIA: 40 Hz - High-throughput metabolite profiling

Application Data:

• Detected 428 lipids (including 58 FAs) in plasma
• Resolved sn-1/sn-2 positional isomers in breast milk (e.g., sn-2 C18:2)

Maintenance Protocols:

• Daily calibration ensures mass error < 2 ppm
• Weekly ion source cleaning: 15 min ultrasonic bath in 50% isopropanol

Technology Selection Decision Framework

Step 1: Determine Analysis Goal

→ Targeted Analysis (<50 analytes):

• Select Q-MS

- Ideal for: Clinical routine testing (e.g., serum ω-3 index)

- Key reasons: Cost-effective, high precision in MRM mode

→ Untargeted Analysis:

• Proceed to Step 2

Step 2: Evaluate Structural Complexity

→ MSⁿ capability required (n>2):

• Choose Ion Trap MS

- Ideal for: Structural characterization (e.g., modified FAs, lipid isomers)

- Key reasons: Multi-stage fragmentation (MS³-MS⁵)

→ MSⁿ not required:

• Proceed to Step 3

Step 3: Assess Budget Constraints

→ Budget > $300,000 USD:

• Select Orbitrap or QTOF

- Ideal for: Discovery research (e.g., novel FA identification)

- Key reasons: High resolution (<1-2 ppm), wide dynamic range

→ Budget ≤ $300,000 USD:

• Select TOF MS

- Ideal for: Screening studies

- Key reasons: Moderate resolution (60,000), faster scan speeds

Decision Logic Summary Table

4. Application scenario solutions

Clinical Biomarker Research

Advanced Mass Spectrometry Platform

Utilizing the Orbitrap Fusion Lumos system (240,000 resolution) with sub-1ppm mass accuracy, we implemented rapid positive/negative ion mode switching (0.1s transition).

Ultra-Sensitive Microsample Analysis

• Detection threshold: 0.1pg OAHFAs
• Sample volume: <0.5μL natural tears per eye
• Throughput: 35 minutes per sample

Novel Biomarker Discovery

Identified two previously uncharacterized OAHFA subtypes (C32:1 and C34:1), constituting 0.7-0.8% of total tear lipids. Structural characterization employed MS³ fragmentation cascades to precisely localize ω-hydroxyl groups at C18 and C24 positions.

Clinical Diagnostic Utility

Developed a dry eye disease biomarker panel featuring:

• OAHFAs/PC ratio (AUC=0.89)
• Cost-efficient detection: <$10/sample (Chen J et al., 2019)

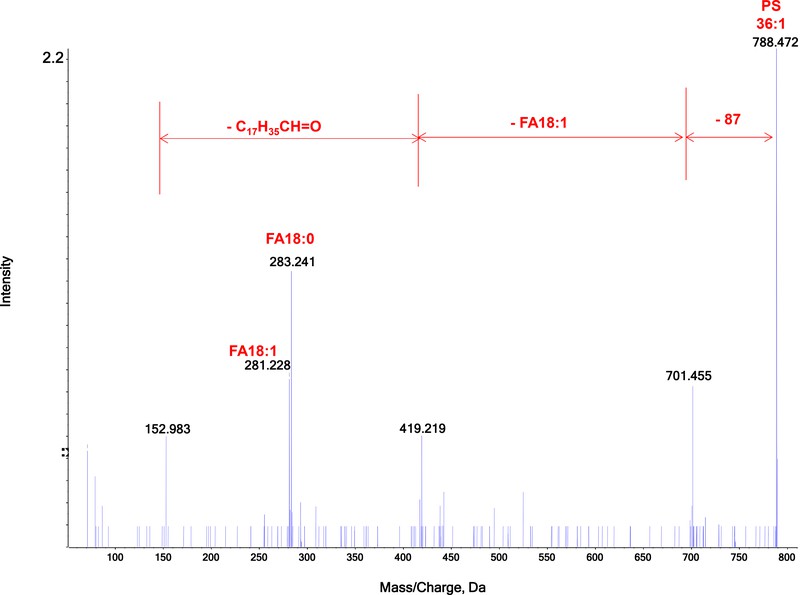

Representative MS/MS spectra of phosphatidylserine 36:1 (PS36:1) (Chen J et al., 2019)

Lipid Identification of Saury

1. Analytical Platform Selection

• Instrumentation Configuration:
  • Liquid Chromatography: Shimadzu UHPLC Nexera LC-30A system
  • Mass Spectrometry: Thermo Scientific™ Q-Exactive™ Plus Orbitrap HRMS

2. Rationale for Platform Selection

• Technical Capabilities for Complex Lipidomics
  Saury's intricate lipidome (phospholipids, glycerides, etc.) demands both high-resolution separation and accurate structural characterization.
  • UHPLC: Delivers ultrahigh-pressure separation (columns ≤1.7μm), enhancing peak capacity and minimizing co-elution interference
  • Q-Exactive™ Plus: Achieves high sensitivity with resolution settings (MS1: 70,000; MS2: 17,500) for precise identification of trace-level lipids and isomers
• Methodological Advantages
  Lipid-Specific Optimization:
  • ESI ionization enables broad lipid coverage (positive/negative ion modes)
  • HCD fragmentation yields comprehensive structural data for confident annotation
  • Operational Reliability:
    • Temperature-controlled autosampler (10°C) with randomized injection sequences prevents systematic bias
    • Dual-gradient elution (mobile phases A/B) enhances polar lipid separation efficiency

3. Principal Research Outcomes

• Lipidomic Profile Characteristics
  • Dominant class: Glycerophospholipids (45.58% total lipids), with phosphatidylcholines (PC) as key differentiating subspecies
  • Notable PUFA signature: Low cephalic lipid yield but significant EPA/DHA (ω-3 PUFA) enrichment
• Tissue-Specific Lipid Markers

OPLS-DA multivariate analysis identified characteristic phosphatidylcholines:

Key Conclusion: Cephalic tissue demonstrated maximal abundance of DHA/EPA-containing phosphatidylcholines. These species showed significant correlation with lipid acid value (AV) (P<0.05), indicating oxidative stability implications (Tao X et al., 2024).

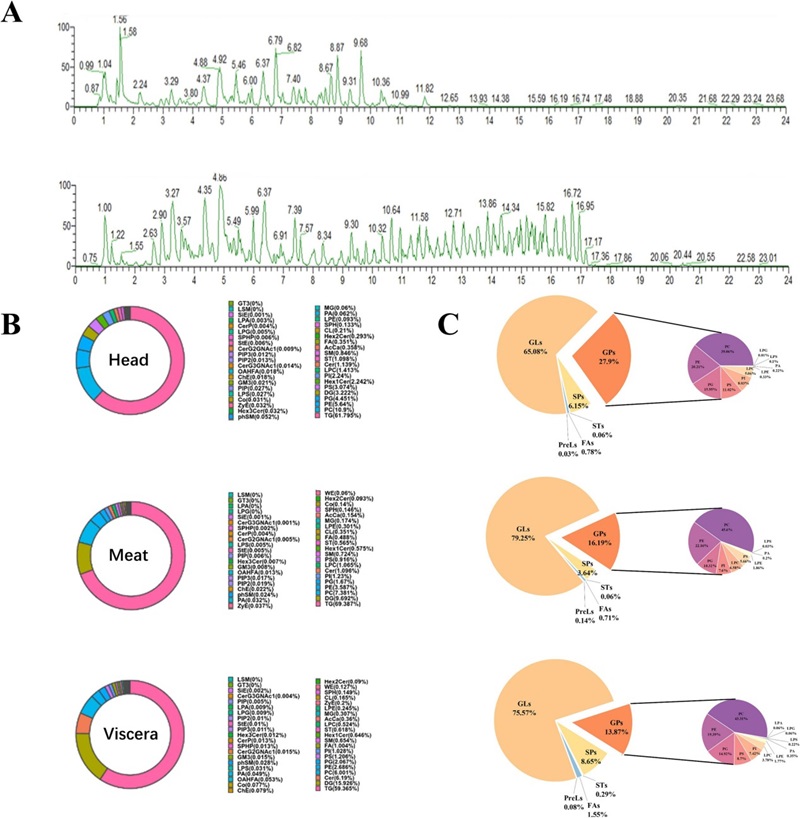

Lipidomic profile of fish oil (Tao X et al., 2024)

Determination of fatty acid content in seeds

1. Key Analytical Findings

High-performance liquid chromatography-mass spectrometry (LC-MS) characterization of Lunaria annua seed glucosinolates (GSLs) yielded these principal outcomes:

• Comprehensive GSL Identification:
  Five structurally distinct GSLs were characterized (Table 1):
  • Branched alkyl types: 1-Methylethyl GSL (1, valine-derived); (S)-1-Methylpropyl GSL (2, isoleucine-derived)
  • Thiofunctionalized forms: (RS)-5-(Methylsulfinyl)pentyl GSL (3); (RS)-6-(Methylsulfinyl)hexyl GSL (4, both methionine-derived)
  • Alkenyl type: (2S)-2-Hydroxy-4-pentenyl GSL (5, methionine-derived)
  • Compounds 1, 3, and 5 exhibited spectral congruence with literature reports, while 2 and 4 represent novel structures confirmed through similarity modeling.
• Quantitative Profiling:
  Total GSL content reached 2.7% (w/w), predominantly comprising compound 1 (65%) and 4 (33%), indicating significant potential as a GSL source. Primary constituents (d1-d4) were further verified via HPLC-PDA analysis of desulfated derivatives (DGSLs).
• Fatty Acid Composition:
  Monounsaturated fatty acids (MUFAs) constituted 90% of total FAs, featuring:
  • Erucic acid (C22:1, 45%) at levels exceeding typical Brassicaceae species (28-56%)
  • Nervonic acid (C24:1, 23%) with therapeutic relevance (e.g., myelin regeneration)

3. Methodological Advancements

vs. HPLC-UV: LC-MS circumvented co-elution interference (e.g., peaks D3/D4) through mass spectral fingerprinting, substantially enhancing identification reliability.

vs. GC-MS: Thermally labile GSLs (e.g., vinyl-type 5) were directly analyzed without derivatization, eliminating degradation risks (De Nicola GR et al., 2024).

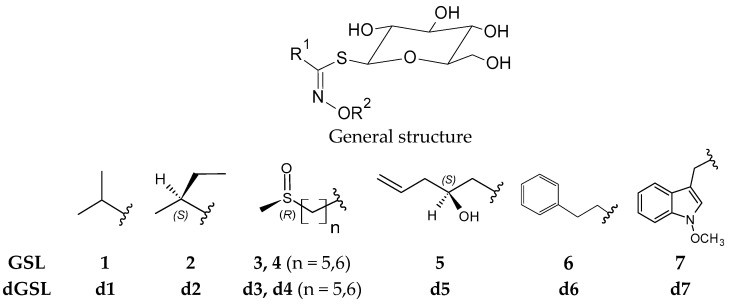

Structures of GSLs (R2 = SO3−) (1–5) and dGSLs (R2 = H) (d1–d7) identified and quantified in cultivated Lunaria annua seed and presscake by LC-MS and HPLC-PDA analysis (De Nicola GR et al., 2024)

Conclusion

• Selecting an appropriate LC-MS platform requires comprehensive consideration of:
  • Analysis objectives (targeted vs. untargeted)
  • Sample characteristics (volume/complexity)
  • Data quality requirements (resolution/accuracy)
  • Budget and throughput

Current technological trends indicate that ion mobility-Orbitrap hybrid systems are emerging as the gold standard for multidimensional fatty acid analysis, while microfluidic-nanoESI technology drives breakthroughs in single-cell studies. Laboratories are advised to establish a three-tiered technical framework based on actual needs:

• Screening-level: Q-TOF for rapid preliminary screening
• Verification-level: QqQ for precise quantification
• Research-level: Orbitrap for in-depth structural characterization

More detailed analysis strategies for long chain fatty acids can be read "Analytical Strategies for Long-Chain Fatty Acids Profiling".

Want to understand the structure of long-chain fatty acids on the impact of function can refer to "Long-Chain Fatty Acids Structure Explained: Impacts on Function".

To understand how metabolomics translates fatty acids into therapeutic targets, see "From Lipids to Leads: How Metabolomics Turns Fatty Acids into Therapeutic Targets".
