Comprehensive Insights into N-Glycans

N-glycan is an important form of protein's post-translational modifications, which is linked to protein through asparagine (Asn) residues, and is widely involved in cell signal transmission, immune regulation and disease occurrence. Its structural complexity, dynamic modification characteristics and functional diversity make it the core object of sugar biology research. In this paper, the structural characteristics, biosynthesis mechanism, calculation and prediction methods and analysis techniques of N- glycan are systematically expounded, and its application prospect in biomedicine and industry is discussed.

Structural Classification, Modifications, and Heterogeneity of N-Glycans

1. Core Architecture and Classification

N-Glycans are oligosaccharide chains covalently attached to asparagine (Asn) residues in proteins via a conserved pentasaccharide core (Man₃GlcNAc₂). This core comprises:

• Mannose (Man): β-1,4- and β-1,2-glycosidic linkages connect mannose units.
• N-Acetylglucosamine (GlcNAc): β-1,4-linked to the central mannose.

Based on peripheral sugar additions, N-glycans are categorized into three classes:

• Mannose-Rich Type:
  • Structure: Retains the core with extended mannose residues (Man₅–₉GlcNAc₂).
  • Occurrence: Found on endoplasmic reticulum-resident or incompletely processed glycoproteins, reflecting early biosynthetic stages.
• Complex Type:
  • Structure: Man residues are enzymatically trimmed, and branches (e.g., bi-/tri-antennary) are formed by adding GlcNAc, galactose (Gal), and sialic acid (Sia).
  • Occurrence: Predominates in mature secreted/membrane proteins, mediating cell-cell interactions and functional specificity.
• Hybrid Type:
  • Structure: Combines one mannose-rich branch with a complex-type branch.
  • Occurrence: Associated with specialized glycoproteins in immune cells or pathological contexts (e.g., cancer).

Structures of N-glycans (Shirakawa A et al., 2021).

2. Structural Elaboration and Diversity

N-Glycan diversity arises from enzymatic modifications:

• Branch Elaboration:
  • GlcNAc: Added via β-1,2/4/6 linkages to form antennae.
  • Gal: β-1,4-linked to GlcNAc in complex glycans.
  • Fucose (Fuc): α-1,6-linked to the core (core fucosylation) or α-1,3/4-linked to branches, modulating immune recognition.
  • Sia: α-2,3/6-linked terminal residues influence viral adhesion (e.g., influenza) and cell signaling.
• Atypical Modifications:
  • Sulfation: Enhances negative charge on GalNAc, altering cell-matrix interactions.
  • Phosphorylation: Directs lysosomal enzyme trafficking via mannose-6-phosphate tags.

3. Sources of Structural Heterogeneity

• Site-Specific Variability: Identical glycosylation sites may host distinct glycoforms due to differential glycosyltransferase activity or substrate availability.
• Tissue-Specific Patterns:
  • Cancer Cells: Hypersialylation promotes immune evasion.
  • Immune Cells: Unique glyco-profiles regulate antigen presentation and intercellular communication.

Biosynthesis and Regulatory Mechanisms of N-Glycans

N-Glycans, critical post-translational modifications in eukaryotic proteins, are essential for protein stability, folding, cellular communication, and immune responses. Their synthesis occurs sequentially across the endoplasmic reticulum (ER) and Golgi apparatus, orchestrated by enzymatic cascades and influenced by cellular and environmental cues.

1. Biosynthetic Pathway

Endoplasmic Reticulum (ER) Phase

• Precursor Assembly:
  • Oligosaccharide precursors (Glc₃Man₉GlcNAc₂) are assembled via stepwise acylation on dolichol carriers within the ER membrane.
  • Nucleotide sugars (UDP-Glc, GDP-Man) donate glucose and mannose units, building the lipid-linked precursor.
• Translocation to Protein: The oligosaccharyltransferase (OST) complex transfers the precursor to asparagine residues within the consensus sequence Asn-X-Ser/Thr (X ≠ Pro) on nascent polypeptides.
• Initial Processing: ER-resident glucosidases (I/II) trim terminal glucose residues, initiating calnexin/calreticulin-mediated folding quality control. Properly folded glycoproteins proceed to the Golgi.

Golgi Phase

• Mannose Trimming: Golgi α-mannosidases I/II remove specific mannose residues, generating the Man₅GlcNAc₂ core structure.
• Branch Elaboration: Glycosyltransferases (GnTs, GalT, STs) sequentially append N-acetylglucosamine (GlcNAc), galactose (Gal), and sialic acid (Sia) to form complex (bi-/tri-antennary) or hybrid structures.
• Terminal Modifications: Fucosyltransferases (e.g., FUT8, FUT3/6) add fucose (Fuc) to core or branch positions, enhancing glycan-receptor interactions.

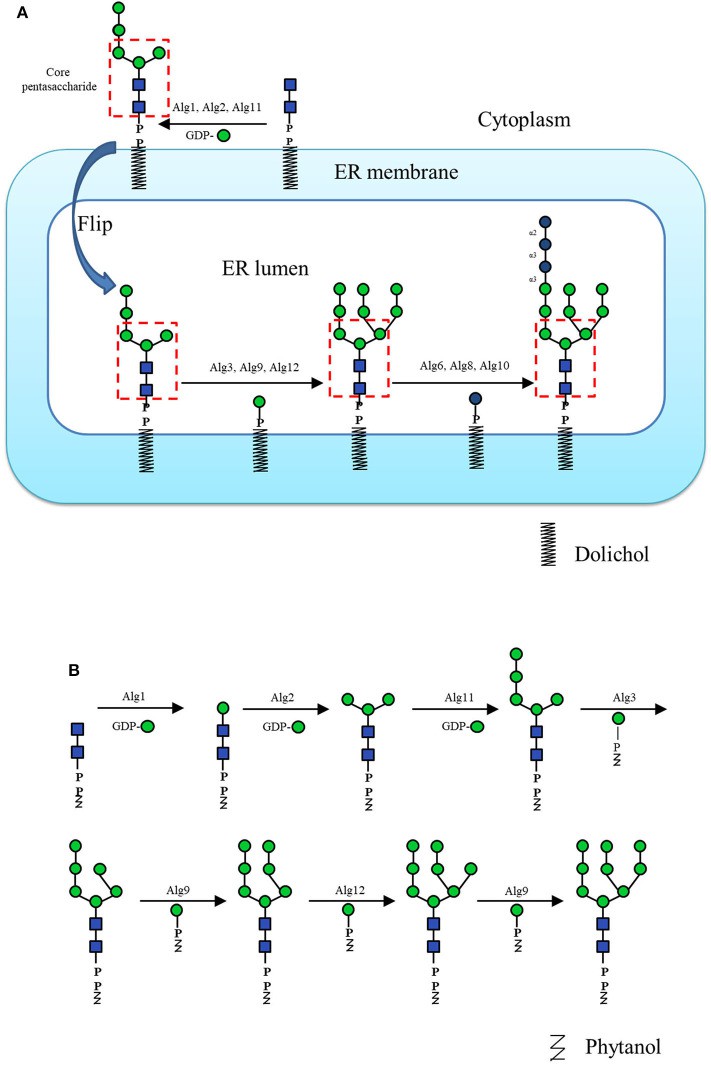

Oligosaccharide synthesis pathway and enzyme synthesis pathway (Chao Q et al., 2020).

2. Key Regulatory Factors

Glycosyltransferases

• GnT-I (MGAT1): Catalyzes the addition of GlcNAc to α1-3 mannose branches, enabling subsequent glycan diversification.
• GnT-V (MGAT5): Introduces β1-6-linked GlcNAc branches, forming tri-antennary structures implicated in tumor metastasis.

Environmental Modulation

• Hypoxia: HIF-1α activation upregulates sialyltransferases (e.g., ST6Gal1), increasing sialylation to modulate cell adhesion and immune evasion.
• Inflammation: Pro-inflammatory cytokines (e.g., TNF-α) induce FUT4/7 expression, boosting selectin ligand synthesis for leukocyte-endothelial adhesion.

Computational Prediction of N-Glycan Structures: Tools and Methodologies

Understanding N-glycan structural features, including glycosylation sites and glycan architectures, is pivotal for advancing glycobiology, systems biology, and therapeutic development. Accurate predictions of these elements enhance insights into glycan-mediated cellular functions, disease mechanisms, and drug design. Below, we detail computational strategies for glycosylation site and glycan structure prediction, alongside emerging solutions to key challenges.

1. Glycosylation Site Prediction

Sequence-Based Rules

N-glycosylation primarily targets asparagine (Asn) within the consensus motif Asn-X-Ser/Thr (X ≠ Pro). This tripeptide sequence serves as the foundation for identifying potential glycosylation sites.

Computational Algorithms

• NetNGlyc: Utilizes sequence motifs and contextual amino acid data to predict Asn glycosylation sites, though lacks structural context.
• NGlycPred: Employs support vector machines (SVMs) trained on sequence features, neighboring residues, and secondary structure data, improving reliability.
• DeepNGly: Leverages convolutional neural networks (CNNs) to analyze membrane protein-specific patterns, enhancing site prediction accuracy via automated feature extraction.

2. Glycan Structure Prediction

Pathway-Based Reasoning Approaches

• GlycoNAVI: Simulates glycan biosynthesis using enzyme reaction databases and cell-specific glycosyltransferase expression profiles to predict plausible structures.
• RINGS: Integrates experimental mass spectrometry (MS) data with synthetic pathway analysis to reconstruct glycan assembly steps.

Mass Spectrometry-Driven Tools

• GlycoWorkbench: Facilitates manual or automated matching of MS peaks to theoretical glycan structures, aiding experimental validation.
• GP Finder: Applies deep learning to MS/MS spectra, autonomously identifying glycan building blocks and predicting structures with reduced manual bias.

3. Key Challenges and Innovations

Isomer Resolution

• Structural isomers with identical masses but distinct branching or linkages pose identification hurdles. Solutions include:
• Ion Mobility Spectrometry (IMS): Differentiates isomers by measuring their drift times in an electric field, combined with MS for enhanced resolution.

Dynamic Modification Integration

• Glycan synthesis intersects with other post-translational modifications (PTMs), such as phosphorylation, which influence enzyme activity. Emerging strategies involve:
• Multi-Omics Data Fusion: Combining glycomics with phosphoproteomics or acetylomics to refine predictive models, accounting for PTM-driven regulatory effects.

Future Directions

• AI-Driven Multi-Omics Platforms: Merging glycan data with genomic and proteomic datasets for holistic cellular models.
• Enhanced Spectral Libraries: Expanding annotated MS databases to improve machine learning accuracy.

Phenotypic Profiling of N-Glycans: Techniques and Applications

N-Glycan phenotypic analysis offers critical insights into glycosylation roles in health and disease, leveraging advanced methodologies to decode structural and functional attributes. Below, we outline key techniques, their applications, and emerging innovations.

1. Mass Spectrometry-Based Approaches

Released Glycan Analysis

• Enzymatic Release: N-Glycans are liberated from glycoproteins using PNGase F, which cleaves the GlcNAc-Asn bond. Released glycans are often labeled (e.g., 2-aminobenzoic acid) to enhance detection sensitivity in MALDI-TOF MS or LC-MS workflows.
• Applications: Comparative profiling of hepatocellular carcinoma versus normal liver tissues reveals elevated core fucosylation, a potential diagnostic biomarker linked to tumor progression.

Intact Glycopeptide Analysis

• LC-MS/MS with ETD: Preserves glycan integrity during fragmentation, enabling precise mapping of glycosylation sites and glycoforms. Tools like Byonic facilitate annotation of branched structures and site-specific modifications.
• Applications: ETD-based workflows identify how glycan motifs modulate protein-receptor interactions, such as immune checkpoint regulation in cancer.

2. Lectin Microarray Technology

• Principle: Utilizes carbohydrate-binding proteins (lectins) immobilized on chips to detect specific glycan epitopes (e.g., ConA for mannose, SNA for α2-6 sialylation).
• Applications: Rapid screening of serum samples identifies prostate cancer-associated α2-3 sialic acid elevations, underscoring lectin arrays' utility in biomarker discovery.
• Advantages: High-throughput, cost-effective, and adaptable for clinical diagnostics.

3. Integrated Multi-Omics Strategies

Glycosyltransferase-Glycan Correlation

• RNA-Seq Integration: Links glycosyltransferase expression (e.g., MGAT5) to glycan structural shifts, such as β1-6 branching in metastatic cancers.
• Proteomic Synergy: Combines glycomics with phosphoproteomics to unravel PTM crosstalk influencing glycan biosynthesis.

Functional Validation

• CRISPR-Cas9 Knockouts: Targeting FUT8 abolishes core fucosylation, impairing antibody-dependent cellular cytotoxicity (ADCC) in therapeutic antibodies, highlighting glycosylation's role in immunotherapy efficacy.

Challenges and Future Directions

• Structural Complexity: Glycan heterogeneity and isomerism complicate data interpretation. Solutions include ion mobility-MS for enhanced resolution and AI-driven spectral matching.
• Dynamic Contexts: Tissue- and disease-specific glycoforms necessitate multi-omics frameworks to correlate structure with function.
• Prospects: Advances in spatial metabolomics and single-cell glycomics promise to unravel glycan heterogeneity at subcellular resolution, while machine learning models refine biomarker prediction for personalized therapeutics.

If you want to learn more about N-Glycan Profiling, please click "N-Glycan Profiling: Methodological Frameworks and Analytical Perspectives".

Biological Roles of N-Glycans

N-Glycans are critical for numerous cellular and organismal processes. Below are their principal functional roles:

• Protein Conformation and Integrity:
  • Facilitate proper protein folding and structural stability by guiding three-dimensional conformation during biosynthesis.
  • Minimize aggregation risks by shielding hydrophobic regions, ensuring functional maturation in the endoplasmic reticulum.
• Cellular Communication and Signaling:
  • Serve as integral elements of cell surface receptors, mediating interactions with extracellular ligands (e.g., growth factors, hormones).
  • Enable cell-cell and cell-matrix recognition through glycan-lectin binding, orchestrating processes like immune activation and tissue morphogenesis.
• Pathogen Immune Evasion:
  • Viruses and bacteria exploit host glycosylation machinery to cloak surface antigens. For instance, influenza viruses modify hemagglutinin glycans to hinder antibody recognition, enhancing viral persistence.
• Oncogenesis and Metastasis:
  • Aberrant N-glycosylation patterns are hallmarks of malignancy, influencing tumor cell adhesion, motility, and immune evasion.
  • Altered glycan structures on tumor glycoproteins (e.g., E-cadherin, integrins) disrupt cell-cell cohesion and promote metastatic dissemination.

Applications and Innovations

1. Core Fucose Removal to Enhance ADCC Efficacy

Targeted elimination of core fucose from the N-glycan at the Asn297 site in the antibody Fc region (e.g., glycoengineered mogamulizumab) significantly enhances antibody-dependent cellular cytotoxicity (ADCC). The steric hindrance caused by core fucose reduces the binding affinity between the Fc region and FcγRIIIa receptors on immune effector cells (e.g., NK cells). Its removal improves receptor binding efficiency by over 20-fold, amplifying tumor cell targeting. This approach has been successfully applied to anticancer monoclonal antibodies, with clinical data demonstrating a strong correlation between enhanced ADCC activity and improved patient survival rates (Shields RL et al., 2002).

2. Glycoengineered ADCs for Site-Specific Drug Conjugation

Leveraging glycoengineering strategies, endo-β-N-acetylglucosaminidase (ENGase) remodels antibody N-glycans to introduce bioorthogonal handles (e.g., azide groups), enabling precise payload conjugation to the Fc region via copper-free click chemistry. This method preserves antigen-binding fragment (Fab) integrity while ensuring uniform drug loading, which enhances plasma stability (half-life extended by 50%) and therapeutic consistency. For example, HER2-targeted ADCs developed using this technology exhibit a 3.2-fold higher therapeutic index in breast cancer models compared to conventional randomly conjugated ADCs, highlighting its potential for clinical translation (Parsons TB et al., 2016).

3. Glycosylation Engineering in Vaccine Development

Glycosylation plays a pivotal role in optimizing vaccine efficacy across viral targets. For HIV, engineered antigens with tailored N-glycans (e.g., high-mannose or complex-type glycans) can modulate antibody neutralization; studies reveal that selective glycan removal exposes conserved epitopes, enabling induction of broadly neutralizing antibodies (bNAbs) (Wang et al.). In influenza, modulating HA glycosylation (e.g., Asn165) alters viral fusion dynamics and antibody accessibility, with glycan trimming enhancing cross-protective immunity—a strategy advancing universal flu vaccine design. Similarly, SARS-CoV-2's spike protein employs a dense glycan shield (22 N-sites) to occlude neutralizing epitopes, yet strategic deletion of specific glycans (e.g., Asn343/616) exposes conserved regions like the RBD while mitigating autoimmune risks. These approaches, combined with structural epitope mapping, underscore glycosylation engineering as a critical tool to balance antigenicity and immune evasion in next-generation vaccines (Shirakawa A et al., 2021).

4. Biomarker

This investigation employed porous graphitized carbon chromatography coupled with high-resolution mass spectrometry (PGC-FTMS) to profile serum N-glycan alterations in individuals with gastric disorders compared to healthy controls. The analysis revealed marked dynamic shifts in N-glycan composition during disease progression: sialylation-rich structures (e.g., biantennary glycans) exhibited progressive upregulation from gastritis to gastric carcinoma, whereas core fucosylation levels declined correspondingly. A panel of nine N-glycan biomarkers was identified, demonstrating robust diagnostic utility in stratifying disease stages (e.g., gastric cancer vs. controls: AUC >0.9) and distinguishing gastritis from healthy cohorts via multivariate models. These findings underscore the potential of serum N-glycan profiling as a noninvasive clinical tool, leveraging its sensitivity to structural variations (e.g., sialic acid/fucose modifications) and abundance dynamics for early detection, disease monitoring, and personalized therapeutic strategies in gastric pathologies (Jin X et al., 2024).

5. The Core Mediator of the Relationship between Biological Function Regulation and Disease

This investigation employed sequential purification techniques coupled with MS-based glycomic profiling to elucidate the distinctive N-glycosylation signature of Holothuria atra. The analysis revealed protein-linked glycans exhibiting a complex array of post-translational modifications—including extensive fucosylation, phosphorylation, sialylation, and polysulfation—present across oligomannose, hybrid, and complex-type N-glycan structures. Notably, these modifications shared structural parallels with glycosaminoglycans (e.g., fucoidan), displaying vertebrate-like motifs (e.g., sulfo-Lewis A epitopes and sialylated residues) alongside hallmark invertebrate polysulfation patterns. This dual modification profile not only highlights the unique evolutionary trajectory of echinoderm N-glycosylation (blending ancestral and vertebrate-like features) but also offers novel insights into the biosynthetic logic and functional versatility (e.g., anti-inflammatory, immunoregulatory roles) of marine glycoconjugates, advancing our understanding of their ecological and pharmacological relevance (Vanbeselaere J et al., 2020).

6. Anti-virus strategy of glycosylation

This study systematically investigated the diversity of acidic N-glycans (sulfated and phosphorylated) in the egg whites of 72 waterfowl species (Anseriformes) and their role in avian influenza A virus (IAV) transmission through sulfoglycomics and glycan blotting techniques. Key findings revealed family-specific glycan signatures: sulfated N-glycans exhibited distinct expression of "trans-Gal(+)" and "trans-Gal(−)" motifs across taxonomic groups, while phosphorylated N-glycans displayed species-specific distributions. Notably, IAV-susceptible species showed significant enrichment of phosphorylated hybrid- and high-mannose-type N-glycans, suggesting these glycans may enhance viral replication by facilitating virion binding or evading immune recognition. Furthermore, the structural diversity of sulfated/phosphorylated glycans likely constitutes an innate antiviral defense mechanism in egg whites, inhibiting embryonic IAV invasion via steric hindrance or competitive binding (Montalban BM et al., 2024).

People Also Ask

What is the role of N-glycosylation in cancer?

N-glycosylation modifications mediate multiple biological functions such as cell recognition, signal transduction, and immune response. The glycosylation pattern of tumor cells is often altered to facilitate cancer progression.

What is the purpose of the N-linked glycosylation?

N-linked glycosylation achieves three core functions by adding oligosaccharides to asparagine residue of Asn-X-Ser/Thr motif: protein folding and stability: ensuring the correct folding and thermal stability of new proteins in endoplasmic reticulum and inhibiting wrong aggregation; Cell communication and signaling: mediating immune recognition, pathogen interaction and receptor signaling pathway; Medical application: abnormal sugar type is a diagnostic marker, and sugar engineering can optimize the curative effect.

Where is N-linked glycosylation modified?

In later phases, the oligosaccharide moiety is required for intracellular transport and targeting of the glycoprotein in the endoplasmatic reticulum, Golgi complex, and trans-Golgi network. In the final phase, the N-linked glycan undergoes extensive modification in the Golgi complex, resulting in a mature glycoprotein.

Why are proteins N-glycosylated?

Protein N-glycosylation is a metabolic process that has been highly conserved in evolution. In all eukaryotes, N-glycosylation is obligatory for viability. It functions by modifying appropriate asparagine residues of proteins with oligosaccharide structures, thus influencing their properties and bioactivities.

References

1. Shirakawa A, Manabe Y, Fukase K. "Recent Advances in the Chemical Biology of N-Glycans." Molecules. 2021 Feb 16;26(4):1040. doi: 10.3390/molecules26041040
2. Shields RL, Lai J, Keck R, O'Connell LY, Hong K, Meng YG, Weikert SH, Presta LG. "Lack of fucose on human IgG1 N-linked oligosaccharide improves binding to human Fcgamma RIII and antibody-dependent cellular toxicity." J Biol Chem. 2002 Jul 26;277(30):26733-40. doi: 10.1074/jbc.M202069200
3. Parsons TB, Struwe WB, Gault J, Yamamoto K, Taylor TA, Raj R, Wals K, Mohammed S, Robinson CV, Benesch JL, Davis BG. "Optimal Synthetic Glycosylation of a Therapeutic Antibody." Angew Chem Int Ed Engl. 2016 Feb 12;55(7):2361-7. doi: 10.1002/anie.201508723
4. Jin X, Zhang W, Han Q, Li Q, Zong J, Li X, Wang C, Jiang H, Yu G, Li G. "Serum-based Comprehensive N-Glycans Profiling Analysis in Different Gastric Disease Stages by Porous Graphitic Carbon Liquid Chromatography-Mass Spectrometry Associated With Potential Marker Discovery." In Vivo. 2024 Jan-Feb;38(1):147-159. doi: 10.21873/invivo.13421
5. Vanbeselaere J, Jin C, Eckmair B, Wilson IBH, Paschinger K. "Sulfated and sialylated N-glycans in the echinoderm Holothuria atra reflect its marine habitat and phylogeny." J Biol Chem. 2020 Mar 6;295(10):3159-3172. doi: 10.1074/jbc.RA119.011701
6. Montalban BM, Hinou H. "Glycoblotting-Based Ovo-Sulphoglycomics Reveals Phosphorylated N-Glycans as a Possible Host Factor of AIV Prevalence in Waterfowls." ACS Infect Dis. 2024 Feb 9;10(2):650-661. doi: 10.1021/acsinfecdis.3c00520
7. Chao Q, Ding Y, Chen ZH, Xiang MH, Wang N, Gao XD. "Recent Progress in Chemo-Enzymatic Methods for the Synthesis of N-Glycans." Front Chem. 2020 Jun 16;8:513. doi: 10.3389/fchem.2020.00513
