N-Glycan Profiling: Methodological Frameworks and Analytical Perspectives

N-linked glycans, critical post-translational modifications, profoundly influence protein functionality, cellular interactions, and pathological processes. Profiling these glycans involves decoding their structural diversity, quantitative dynamics, and functional roles to advance biomarker discovery, therapeutic development, and mechanistic insights into disease etiology. This review examines analytical frameworks, established methodologies with their strengths and limitations, and emerging technological developments in N-glycan research. By evaluating techniques spanning compositional analysis, structural elucidation, and functional correlation studies, the discussion highlights innovations driving precision in glycoscience and their implications for biomedical applications.

Core Dimensions of N-Glycan Profiling

1. Structural Architecture

N-glycan diversity arises from monosaccharide composition, linkage patterns, and branching topologies. Key components include:

• Monosaccharide Roles:
  • GlcNAc: Serves as the core attachment site for proteins.
  • Mannose: Forms the pentasaccharide backbone, prevalent in underprocessed glycoproteins.
  • Galactose: Extends branches via β1-4 linkages (e.g., LacNAc units).
  • Sialic Acid: Terminates structures with α2-3/6 bonds, modulating cellular charge interactions.
  • Fucose: α1-6 linkages mediate inflammatory signaling (e.g., core fucosylation or Lewis antigens).
• Linkage Specificity: α/β configurations (e.g., β1-4 vs. β1-6) dictate functional properties (e.g., β1-6 branching linked to pathological processes).

• Branching Complexity: Classified as high-mannose forms (associated with immature proteins), complex structures (featuring multiple antennae), and hybrid configurations (exhibiting mixed features).

2. Glycosylation Site Analysis

Site-specific modifications critically influence protein behavior:

• Localization:
  • Sequence Motifs: Classical Asn-X-Ser/Thr (X≠Pro) patterns and atypical sites (e.g., viral Asn-Cys).
  • Mass Spectrometry: Electron transfer dissociation (ETD) preserves glycan-peptide bonds for precise site mapping (e.g., IgG Fc Asn297).
• Functional Impact: Protein stability (e.g., antibody folding) and immune evasion mechanisms (e.g., HIV envelope glycan shielding).

3. Microheterogeneity Profiling

Structural variations at single sites drive functional diversity:

• Variation Types:
  • Sialylation patterns (α2-3 vs. α2-6), fucosylation (core vs. branch), and sulfation/phosphorylation (e.g., Man-6-P lysosomal targeting).
• Analytical Approaches:
  • High-resolution mass spectrometry with ion mobility (IMS) resolves isomeric structures.
  • Enzymatic validation (e.g., sialidase specificity for α2-3/6 cleavage).
• Clinical Relevance:
  • Elevated core fucose in AFP-L3 (hepatocellular carcinoma biomarker).
  • IgG galactose deficiency (G0F) correlating with rheumatoid arthritis progression.

4. Abundance Quantification

Precise measurement of glycoforms is essential for applications:

• Relative Quantitation: Fluorescence-based tagging (2-AB) or label-free MS peak normalization.

• Absolute Quantitation: Synthetic glycan standards or stable isotope-labeled internal references (e.g., ¹³C-GlcNAc).
• Applications:
  • Biotherapeutic QC (e.g., non-fucosylated antibody optimization for enhanced cytotoxicity).
  • Diagnostic thresholds (e.g., IgG G0F/G2F ratio >1.5 indicating autoimmune activity).

5. Dynamic Remodeling Mechanisms

N-glycan structures adapt to environmental or pathological stimuli:

• Regulatory Drivers: Hypoxia-induced ST6GAL1 overexpression (enhanced sialylation) and UDP-GlcNAc metabolic flux (branching modulation).
• Tracking Strategies:
  • Metabolic labeling (e.g., Ac4ManNAz with click chemistry for live-cell imaging).
  • Temporal MS profiling to capture inflammatory cytokine-driven changes (e.g., TNF-α-induced FUT7 activity).
• Pathophysiological Models:
  • Tumor hypoxia-driven sialylation suppressing immune effector functions.
  • Pathogenic invasion inducing host glycan restructuring (e.g., viral sialidase expression).

N-Glycan Analytical Methodologies

Mass Spectrometry (MS)

Mass spectrometry stands as the primary method for N-glycan structural analysis, offering high resolution and sensitivity to elucidate glycan details. By employing ionization, separation, and fragmentation processes, MS precisely determines molecular weights and monosaccharide linkage patterns.

Key Techniques

MALDI-TOF MS

• Workflow Optimization:
  • Glycan Release: PNGase F enzymatically cleaves N-glycans while preserving structural integrity.
  • Chemical Derivatization: 2-Aminobenzamide (2-AB) or ProA labels enhance ionization efficiency and signal clarity.
  • Detection: Soft ionization in MALDI sources, followed by TOF analysis, identifies glycan masses via time-of-flight measurements.
• Innovative Uses:
  • High-throughput clinical screening (e.g., G0F glycoforms in rheumatoid arthritis progression).
  • MALDI imaging mass spectrometry (IMS) paired with glycan arrays for spatial mapping in tissues.
  • Periodate oxidation strategies to resolve sialic acid linkage ambiguities in complex glycans.

LC-MS/MS

• Technical Enhancements: Chromatographic separation via HILIC or PGC columns improves polar glycan retention.
• Fragmentation modes:
  • CID generates B/Y ions for glycosidic bond analysis.
  • ETD/ECD preserves glycan structures for site-specific profiling (e.g., antibody Asn297 glycosylation).
• Advanced Applications:
  • Studying HIV gp120 glycan dynamics in immune evasion.
  • SILAC-based absolute quantification of glycosylation efficiency across cellular conditions.

Ion Mobility Spectrometry (IMS)

• Principles: IMS distinguishes ions by their collision cross sections (CCS), influenced by shape and size, to infer structural details.
• Applications:
  • Differentiating α2-3- and α2-6-linked sialic acid isomers.
  • Detecting tumor-specific glycans (e.g., β1-6-branched GlcNAc in ovarian cancer).
• Integration: Machine learning tools like CCSPredict accelerate CCS-based structural predictions.

Integrated Analytical Strategies

Emerging approaches expand MS applications beyond basic structural analysis:

• AI-Driven Innovations: Machine learning algorithms process MS datasets to predict unknown glycan structures and resolve complex mixtures.
• High-Throughput Platforms: Automated MS systems enable large-scale clinical glycomics, facilitating biomarker discovery and population-level studies.

The workflow for the on-tissue labeling of sialylated N-glycans using aniline for MALDI-MS imaging (Zhang H et al., 2022).

Lectin Chip Technology: Principles and Advancements

1. Core Technological Principles

Lectin Array Design

Modern lectin arrays typically incorporate over 50 distinct lectin types, each exhibiting specificity for unique carbohydrate motifs. For instance, Aleuria aurantia lectin (AAL) selectively binds α1-6-linked fucose residues, while Maackia amurensis lectin II (MAL-II) targets α2-3-sialylated glycans. This curated collection enables broad-spectrum glycan profiling, capturing monosaccharides (e.g., mannose, galactose), oligosaccharides, and complex branched structures in a single assay.

Surface Functionalization

• Immobilization Strategies: Glass slides are chemically modified with amine or epoxy groups to enhance lectin adhesion while preserving binding activity. These functionalized surfaces maximize lectin density and orientation, critical for maintaining affinity and specificity.
• Quality Control: Uniform lectin distribution and optimized surface density balance signal intensity and prevent oversaturation, ensuring reproducibility and high signal-to-noise ratios.

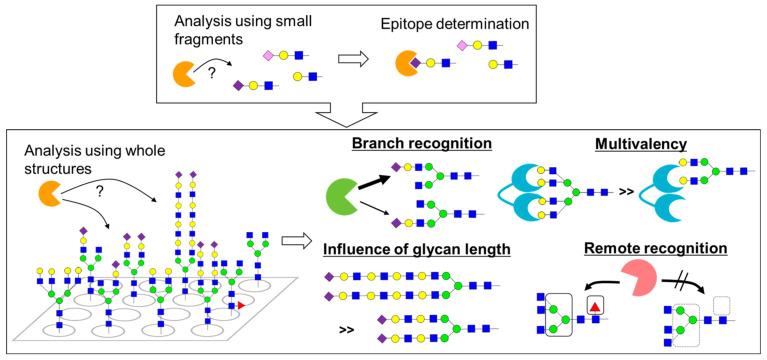

Analysis of glycan‒lectin interaction using glycan arrays (Shirakawa A et al., 2021).

2. Enhanced Detection Workflows

Fluorescent Labeling

Glycans in biological samples (e.g., serum, cell lysates) are tagged with fluorophores such as Cy3 or Cy5, leveraging their distinct spectral properties to enable multiplexed detection. This approach enhances sensitivity and minimizes cross-channel interference during simultaneous analysis.

Binding and Signal Optimization

• Hybridization: Controlled incubation parameters (time, temperature) maximize glycan-lectin interactions while minimizing nonspecific binding.
• Stringent Washing: Rigorous post-binding elution removes unbound glycans, reducing background noise and improving specificity.

Data Acquisition and Interpretation

• Imaging: Fluorescence scanners quantify signal intensities, correlating them with glycan abundance.
• Bioinformatics: Heatmaps visualize binding patterns, highlighting disease-specific glycan alterations (e.g., upregulated β1-6-mannose in cancer).

3. Cutting-Edge Applications

Oncology research

• Biomarker Discovery: Lectin arrays detect cancer-associated glycoforms, such as PHA-L's affinity for β1-6-branched glycans in hepatocellular carcinoma, distinguishing malignant from cirrhotic states.
• Subtype Stratification: Tumors exhibit unique glycan signatures, enabling precise classification (e.g., pancreatic vs. breast cancer) for tailored therapies.

Infectious Disease Research

• Pathogen-Host Interactions: Arrays decode viral tropism by profiling host glycan preferences (e.g., avian influenza binding α2-3-sialic acid vs. human strains favoring α2-6 linkages), informing vaccine design.

4. Challenges and Future Prospects

Multiplexed Detection Platforms

• Microfluidics Integration: Combining lectins with antibody panels on microfluidic chips enables concurrent glycan and protein biomarker analysis, streamlining multi-omics studies.
• Multi-Omics Fusion: Correlating glycomics data with proteomic/metabolomic datasets enhances diagnostic precision.

Quantitative Standardization

• Internal Calibration: Spiking reference standards (e.g., asialofetuin) normalizes signal variability across experiments.
• Automation: High-throughput robotics and AI-driven data pipelines minimize manual errors and accelerate large-scale clinical screening.

HILIC-HPLC

HILIC-HPLC serves as a foundational technique for the standardization and quantification of carbohydrates, leveraging polarity-driven separation mechanisms to resolve glycan structures.

Methodological Refinements

Chromatographic Parameters

• Mobile Phase: A gradient elution system (e.g., 80% → 50% acetonitrile in water) supplemented with 0.1% formic acid enhances peak symmetry and ionization performance.
• Stationary Phase:
  • Waters XBridge Amide: Amide-functionalized columns optimize resolution of high-mannose and complex glycans.
  • TSKgel Amide-80: Densely cross-linked resin accommodates high-salinity samples (e.g., cellular lysates).

Detection Enhancements

• Fluorophore Tagging:
  • 2-Aminobenzamide (2-AB): Labels reducing termini (λ_ex 330 nm, λ_em 420 nm) for trace-level sensitivity.
  • Procainamide (ProA): Superior quantum yield enables detection limits as low as 10 fmol.
• Hybrid Systems: Coupling HILIC with mass spectrometry (HILIC-MS) integrates separation with structural elucidation.

Strengths and Challenges

Advantages

• Precision: Relative standard deviation (RSD)<5%, compliant with regulatory batch testing requirements.

• High-Throughput: Automated 96-well plate processing supports analysis of >100 samples per run.

Limitations

• Isomeric Resolution: Unable to differentiate α2-3- and α2-6-linked sialic acids; orthogonal methods (e.g., lectin arrays, MS/MS) are required.

• Workflow Complexity: Extensive preprocessing steps (digestion, labeling, purification) demand 4–6 hours.

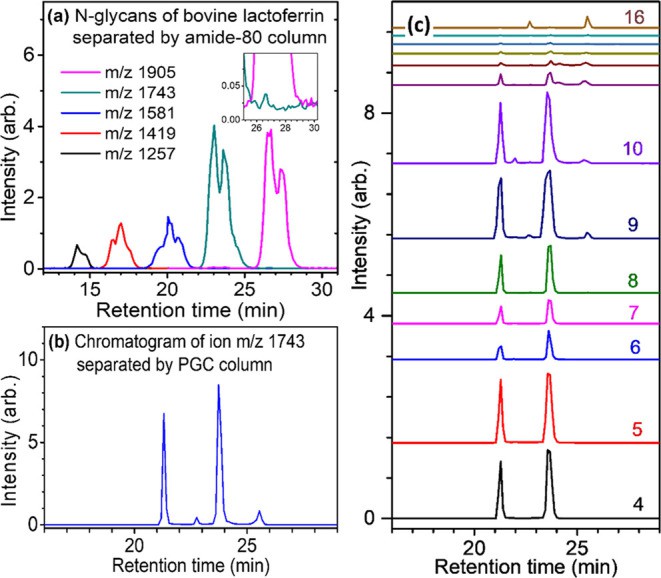

Chromatograms of N-glycans extracted from bovine lactoferrin (Liew CY et al., 2024).

CE-LIF

CE-LIF leverages electrophoretic mobility differentials under an applied electric field to achieve exceptional separation resolution, excelling in the analysis of minute sample volumes.

Methodological Specifications and Applications

Electrophoretic Parameters

• Buffer System:
  • Operates under alkaline conditions (pH 12.1) using a 50 mM sodium borate buffer to optimize glycan deprotonation.
  • Dynamic Coating: Polyethylenimine (PEI) minimizes capillary wall interactions, enhancing run-to-run reproducibility.
• Operational Settings: 30 kV voltage applied across a 25 μm × 60 cm capillary, achieving separations within 10–20 minutes.

Fluorescent Tagging

• APTS (8-Aminopyrene-1,3,6-Trisulfonic Acid): λ_ex 488 nm (argon laser), λ_em 520 nm, enabling attomolar (10⁻¹⁸ mol) sensitivity.

• Multiplex Labeling: Co-utilizing APTS and 2-AB permits concurrent analysis of neutral (e.g., high-mannose) and acidic (e.g., sialylated) glycans.

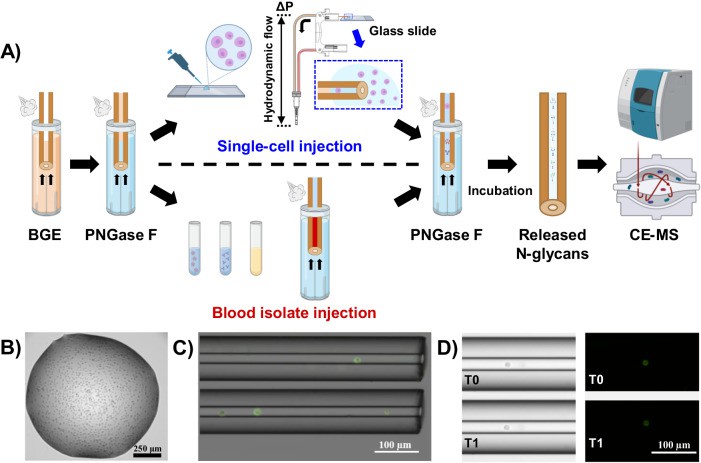

Schematic diagram of analysis platform developed for sample processing and CE-MS analysis in capillary (Marie AL et al., 2024).

Strengths and Operational Considerations

Advantages

• Resolution: Resolution values (R_s) >2.0 enable discrimination of monosaccharide variants (e.g., Man5 vs. Man6).
• Minimal Sample Consumption: Compatible with 1 μL serum or single-cell lysates (e.g., circulating tumor cell profiling).

Challenges

• Precision-Dependent Protocol: Requires stringent control of temperature (±0.1°C) and injection parameters (0.5 psi, 5 sec).
• Data Complexity: Migration time variability due to ionic strength or capillary batch differences necessitates internal standards (e.g., APTS-labeled dextran ladders) for normalization.

Future Directions in Glycoanalytical Technologies

1. Integrated Automation

• End-to-End Workflows: Microfluidic systems coupled with HILIC/CE platforms enable fully automated "sample-to-result" pipelines, incorporating on-line enzymatic digestion and labeling.
• AI-Driven Optimization: Machine learning algorithms predict optimal separation parameters (e.g., gradient profiles, voltage settings) to enhance analytical efficiency and reproducibility.

2. Advanced Hybrid Methodologies

• CE-MS Synergy: Sheath-flow interfaces mitigate buffer interference, enabling simultaneous acquisition of electrophoretic mobility data and mass spectral information.
• Multidimensional Separation: Coupling HILIC with CE in two-dimensional systems resolves ultra-complex glycoforms (e.g., microheterogeneity in IgG Fc glycans).

Synergistic Analytical Frameworks

HILIC-HPLC and CE-LIF exhibit complementary strengths in N-glycan profiling:

• HILIC-HPLC: A benchmark methodology for biopharmaceutical QA and glycan library construction due to its high-throughput precision.
• CE-LIF: Unparalleled in clinical low-abundance sample analysis (e.g., stem cell glycomics) and resolving subtle structural variations.

Nuclear Magnetic Resonance (NMR)

NMR spectroscopy stands as a definitive methodology for resolving the three-dimensional architecture and dynamic properties of glycans, excelling in isomer discrimination, linkage determination, and ligand interaction studies. Despite historical constraints in sensitivity and sample requirements, advancements in instrumentation and methodologies have broadened its applicability.

Methodological Advancements

1. High-Field Superconducting Magnets (≥900 MHz)

• Enhanced Resolution:
  • ¹H NMR: 900 MHz systems achieve chemical shift resolution ≤0.001 ppm, enabling discrimination of α/β anomers (e.g., GlcNAcβ1-4Man vs. GlcNAcβ1-6Man).
  • ¹³C NMR: Non-uniform sampling (NUS) accelerates acquisition of heteronuclear correlation spectra (HSQC), identifying substituents like sulfate groups.
• Cryogenic Probes (CryoProbe):
  • Liquid helium-cooled radiofrequency coils reduce thermal noise, quadrupling signal-to-noise ratios (SNR) and lowering sample demands to 0.1 mg.
  • Application: Mapping conformational dynamics of HIV gp120 high-mannose glycans for vaccine development.

2. Dynamic Nuclear Polarization (DNP)

• Mechanism: Microwave excitation transfers electron spin polarization (via radicals like TOTAPOL) to nuclei (¹H/¹³C) at ~1.4 K, amplifying signals 100-fold (nmol-level sensitivity).
• Workflow:
  • Sample Preparation: Co-crystallize glycans with radicals or suspend in a glassy matrix.
  • Detection: Rapid thermalization post-polarization enables room-temperature analysis.

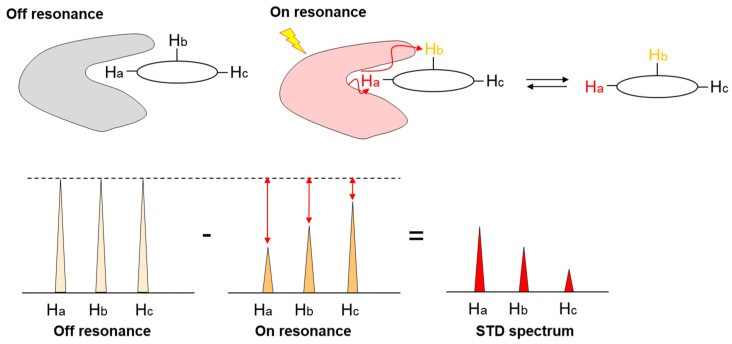

Mechanism of Saturation transfer difference nuclear magnetic resonance (STD-NMR) (Shirakawa A et al., 2021).

Distinctive Analytical Capabilities

1. Absolute Structural Characterization

• Linkage Stereochemistry:
  • NOESY: Nuclear Overhauser effects reveal spatial proximities (e.g., Man α1-3 vs. α1-6 linkages).
  • ³JHH Coupling: Values (~8 Hz for β1-4 bonds) differentiate linkage positions.

2. Glycan Dynamics and Interactions

• Flexibility Profiling:
  • Relaxation times (T₁/T₂) quantify segmental mobility (e.g., rigid core Man₃GlcNAc₂ vs. flexible terminal residues).
  • CEST (Chemical Exchange Saturation Transfer) detects hydrogen-bonding dynamics with solvent.
• Lectin Binding:
  • Saturation Transfer Difference (STD-NMR) identifies interaction epitopes (e.g., terminal Man binding to DC-SIGN).
  • Paramagnetic probes (e.g., Gd³+) measure binding interface distances (<40 Å).

3. Non-Destructive Profiling

• In Situ Applications:
  • Track cell-surface glycan dynamics using ¹³C-GlcNAc labeling without lysis.
  • Analyze glycoprotein therapeutics in native formulations, bypassing enzymatic digestion.

Challenges and Innovations

1. Sensitivity Constraints

• Hyperpolarization Advances:
  • Photoinduced DNP (e.g., BDPA radicals) enables room-temperature polarization, preserving biomolecular integrity.
  • Hyperpolarized [1-¹³C]pyruvate traces glycan metabolism in vivo.

2. Spectral Complexity

• AI Integration:
  • Deep learning models (e.g., NMRNet) match experimental spectra to databases (GlycoNMR).
  • Quantum computing (IBM Q) simulates complex glycan NMR signatures.

3. Sample Homogeneity

• Integrated Purification:
  • Online LC-NMR interfaces HPLC with detection, minimizing manual handling.
  • Microcoil probes accommodate μL-scale purified fractions.

Bioinformatics and Database Systems

Bioinformatics and specialized databases are pivotal in deciphering the complexity of N-glycans, integrating experimental data, predictive algorithms, and multi-omics correlations to advance structural annotation, functional insights, and clinical translation.

Core Tools and Resources

1. GlycoWorkbench

This software streamlines glycomics workflows by linking mass spectrometry data to glycan structural elucidation.

• Key Innovations:
  • Collision Cross-Section (CCS) Prediction: Machine learning models (e.g., GlycoCCS) predict ion mobility to resolve isomers (e.g., α2-3 vs. α2-6 sialylation) using experimental CCS values from ion mobility spectrometry (IMS).
  • Fragment Ion Matching: Simulates glycan fragmentation pathways (B/Y/C ions) to interpret MS²/MS³ data, resolving branching patterns (e.g., tri-antennary GlcNAc).
  • Cloud-Based Integration: Enables real-time queries of UniCarb-DB and direct comparison of experimental spectra with reference libraries.

2. UniCarb-DB

A comprehensive repository advancing glycan structure-function studies through curated datasets.

• Data Features:
  • Spectral Libraries: Over 10,000 annotated N-glycan MS/MS datasets from MALDI-TOF, LC-MS/MS, and other platforms, searchable by *m/z*, CCS, and retention time.
  • Glycoprotein Context: Links glycans to parent proteins (e.g., IgG1 Fc Asn297), species, and tissue specificity (e.g., human liver vs. murine brain).

Advanced Computational Models

1. DeepGlycan

A deep learning framework overcoming rule-based limitations in glycomics data analysis.

• Algorithmic Advances:
  • CNN Architecture: Processes MS/MS spectral matrices (m/z vs. intensity) to predict glycan topology (sequence, linkages, branching).
  • Transfer Learning: Pre-trains on synthetic glycan datasets (100,000+ virtual spectra) before fine-tuning with biological samples (e.g., serum, cell lysates).

2. GlycoNAVI 2.0

A multi-omics platform modeling cell-specific glycosylation networks.

• Functional Enhancements:
  • Single-Cell Integration: Predicts glycosyltransferase activity in specific cell populations (e.g., CD8+ T-cell subsets) using scRNA-seq data.
  • Dynamic Flux Simulation: Incorporates enzyme kinetics (Km, Vmax) and metabolite levels (e.g., UDP-GlcNAc) to model glycan remodeling under hypoxia or inflammation.

Challenges and Emerging Frontiers

1. Data Harmonization

• Standardization: Develop unified frameworks (e.g., GlycoRDF) for integrating multimodal data (MS, NMR, lectin arrays).
• Automation: AI-driven tools (e.g., GlycoAutoAnnotate) automate structural and functional annotations from raw data.

2. AI Model Refinement

• Few-Shot Learning: Generative adversarial networks (GANs) augment rare glycoform datasets (e.g., phosphorylated glycans).
• Interpretability: Attention mechanisms visualize CNN decision-making, linking spectral features to structural attributes.

3. Clinical Translation

• Point-of-Care Tools: Portable MS systems (e.g., compact MALDI-TOF) paired with cloud-based AI enable intraoperative glycan profiling.
• Biomarker Validation: Multicenter studies assess clinical utility (e.g., IgG galactose deficiency in autoimmune disorders).

Methodological Comparison and Selection Guidelines

Method Selection Guidelines

The choice of analytical strategies for glycan studies should align with research objectives and sample characteristics, as outlined below:

Research Objective-Driven Selection

• Structural Elucidation of Unknown Glycans:
  • Primary Methods: LC-MS/MS coupled with ion mobility spectrometry (IMS) for isomer resolution.
  • Validation: NMR for absolute configuration determination of purified glycans.
• High-Throughput Screening:
  • Initial Profiling: Lectin arrays for rapid glycan pattern recognition.
  • Verification: MALDI-TOF MS for high-throughput validation of candidate markers.
• Quantitative Profiling:
  • Targeted Analysis: HILIC-HPLC with standardized glycan libraries.
  • Precision Quantitation: Isotope-coded LC-MS/MS (e.g., SILAC, TMT) for comparative studies.

Sample-Driven Selection

• Complex Biological Matrices (e.g., serum, tissue lysates): Prioritize: Mass spectrometry (LC-MS/MS, MALDI-TOF) or lectin microarrays for robustness against matrix interference.
• Purified Glycoproteins:
  • High-Resolution Analysis: NMR for 3D structural insights.
  • Detailed Characterization: High-resolution MS (Orbitrap, FT-ICR) for glycoform heterogeneity.

People Also Ask

What is the N-glycan profile analysis?

N-glycan profiling involves the comprehensive characterization of protein-attached carbohydrate structures—including their architecture, molecular makeup, and abundance ratios—in biological specimens using analytical methods such as mass spectrometry, chromatographic separation, or electrophoretic techniques.

What is 2 ab labeled glycan standards?

2-aminobenzamide, 2-AB labeled glycans are one of the most referenced glycan standards for biopharmaceutical analysis. Labeled glycans may be analyzed by high-sensitivity fluorescence detection or monitoring of UV-absorbance during various chromatographic and structure sequence analyses, as well as mass spectrometry.

What is the difference between N glycan and O glycan?

Many O-glycans are extended into long chains with variable termini that may be similar to the termini of N-glycans (see Chapter 16). However, O-glycans are less branched than most N-glycans and are commonly biantennary structures. O-glycosylation can result in the formation of mucin-type molecules.

What is the core structure of the N-glycan?

N-linked glycosylation: The core glycan structure is essentially made up of two N-acetyl glucosamine and three mannose residues. This core glycan is then elaborated and modified further, resulting in a diverse range of N-glycan structures.

References

1. Zhang H, Shi X, Liu Y, Wang B, Xu M, Welham NV, Li L. "On-tissue amidation of sialic acid with aniline for sensitive imaging of sialylated N-glycans from FFPE tissue sections via MALDI mass spectrometry." Anal Bioanal Chem. 2022 Jul;414(18):5263-5274. doi: 10.1007/s00216-022-03894-y
2. Jin X, Zhang W, Han Q, Li Q, Zong J, Li X, Wang C, Jiang H, Yu G, Li G. "Serum-based Comprehensive N-Glycans Profiling Analysis in Different Gastric Disease Stages by Porous Graphitic Carbon Liquid Chromatography-Mass Spectrometry Associated With Potential Marker Discovery." In Vivo. 2024 Jan-Feb;38(1):147-159. doi: 10.21873/invivo.13421
3. Marie AL, Gao Y, Ivanov AR. "Native N-glycome profiling of single cells and ng-level blood isolates using label-free capillary electrophoresis-mass spectrometry." Nat Commun. 2024 May 8;15(1):3847. doi: 10.1038/s41467-024-47772-w
4. Liew CY, Chen JL, Lin YT, Luo HS, Hung AT, Magoling BJA, Nguan HS, Lai CP, Ni CK. "Chromatograms and Mass Spectra of High-Mannose and Paucimannose N-Glycans for Rapid Isomeric Identifications." J Proteome Res. 2024 Mar 1;23(3):939-955. doi: 10.1021/acs.jproteome.3c00640
