Analytical Methodologies for Fat-Soluble Vitamin Determination

Fat-soluble vitamins (A, D, E, and K) serve as vital micronutrients in human physiology, yet their typically low abundance in biological matrices (e.g., blood, foodstuffs, and tissues) coupled with high susceptibility to degradation from light, thermal exposure, and oxidative processes necessitates stringent analytical protocols. To ensure precise and reliable quantification, analytical methodologies must be judiciously selected based on the fundamental properties of target analytes, sample complexity, and specific analytical objectives.

This review systematically examines prevalent analytical approaches for fat-soluble vitamin determination, highlighting their operational principles and practical implementation scenarios.

HPLC

HPLC separates analytes based on differential partitioning between a hydrophobic stationary phase (e.g., C18/C8 columns) and a polar mobile phase (organic solvent-water mixtures). Fat-soluble vitamins, owing to their strong hydrophobic interactions, exhibit extended retention times in reversed-phase systems. Gradient elution enables baseline resolution of complex mixtures.

Detection Strategies and Optimization

Ultraviolet/Visible (UV-Vis) Detection

• Applications: Ideal for vitamins with distinct UV absorption profiles (e.g., A, D, E).
• Wavelength Optimization:
  • Vitamin A: 325 nm
  • Vitamin D: 265 nm
  • Vitamin E: 292 nm
• Sensitivity: Typical limit of detection (LOD) ranges from 0.1–1 μg/mL.

Fluorescence Detection (FLD)

• Derivatization Protocol: Vitamin K₁ requires reduction to hydroquinone via zinc powder, achieving an LOD of 0.01 μg/mL (λ_ex 243 nm; λ_em 430 nm).

HPLC analysis of vitamin content of ARGE (Oyaluna ZE et al., 2024).

Method Development and Workflow

Sample Preparation

• Food Matrices (e.g., Vegetable Oil):
  • Saponification: Hydrolyze triglycerides with 10% KOH-ethanol (70°C, 30 min).
  • Extraction: Isolate unsaponifiable fractions using n-hexane, followed by centrifugation and nitrogen evaporation.
• Serum Samples:
  • Protein Precipitation: Mix 200 μL serum with 400 μL acetonitrile, vortex, and centrifuge (10,000×g, 10 min).
  • SPE Purification: Activate C18 columns with methanol/water, load samples, and elute with 5% methanol, then methanol-acetonitrile (80:20).

Chromatographic Parameters

• Column: C18 reversed-phase (250 × 4.6 mm, 5 μm).
• Mobile Phase: Methanol-water gradient (80%→95% methanol over 10 min).
• Conditions: Flow rate 1.0 mL/min, column temperature 30°C, injection volume 20 μL.

Overcoming Limitations

• Low Sensitivity: Mitigated via large-volume injection (50–100 μL) or post-column derivatization (e.g., vitamin D with 4-phenyl-1,2,4-triazoline-3,5-dione).
• Isomer Discrimination: Diode array detection (DAD) aids in distinguishing vitamin D2/D3 through spectral analysis.

Comparative Evaluation

LC-MS

LC-MS integrates the separation capabilities of liquid chromatography (LC) with the precise identification and quantification power of mass spectrometry (MS). Renowned for its exceptional sensitivity and specificity, this technique is a cornerstone in analyzing fat-soluble vitamins (A, D, E, K) across diverse matrices.

Methodological Workflow

Sample Preparation

• Extraction: Organic solvents (e.g., hexane, methanol) isolate fat-soluble vitamins from complex matrices (food, serum, tissues).
• Purification: Solid-phase extraction (SPE) or saponification may refine extracts, particularly for lipid-rich samples.

Chromatographic Separation

• Column Selection: Reversed-phase (C18) or normal-phase columns are employed using HPLC or UHPLC systems to resolve vitamin isoforms.
• Mobile Phase: Gradient elution with organic-aqueous mixtures optimizes retention and peak resolution.

Mass Spectrometric Detection

• Ionization: Electrospray ionization (ESI) or atmospheric pressure chemical ionization (APCI) generates ions for analysis.
• Detection Modes:
  • Vitamin A: Molecular ion [M+H]⁺ at m/z 286 (retinol).
  • Vitamin D: Diagnostic fragment ions (e.g., m/z 383 → 365 for D3).
  • Vitamin E: Characteristic ions (e.g., m/z 430 for α-tocopherol).
• Quantification: Signal intensity relative to external/internal standards ensures precise measurement.

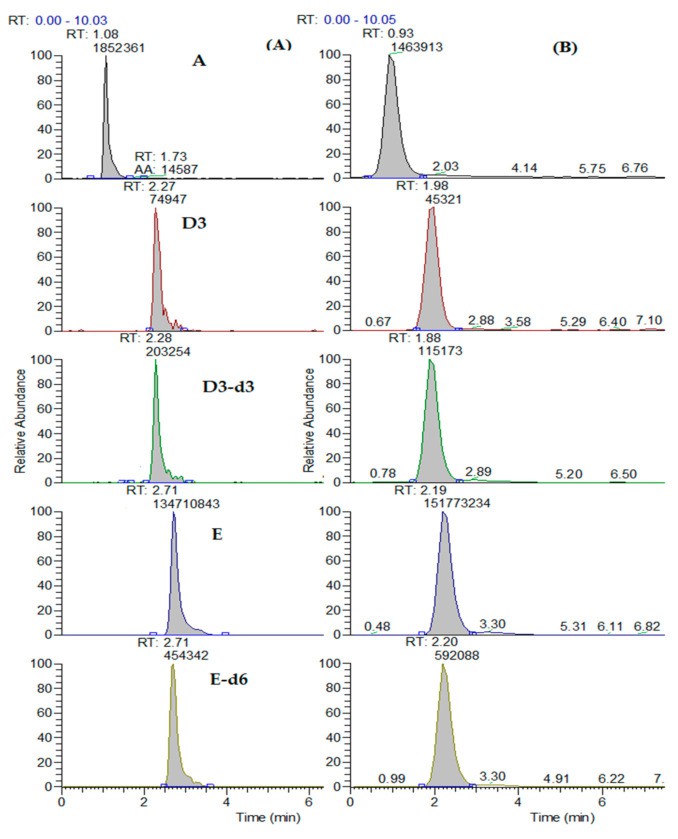

Chromatographic comparison was made by LC-APCI-MS/MS mixed standard solution (Katsa M ET AL., 2021).

Advantages

• Ultra-High Sensitivity: Detects trace analytes (e.g., pg/mL levels in serum).
• Structural Elucidation: MS/MS fragmentation distinguishes isoforms (e.g., retinol vs. retinoic acid; tocopherols vs. tocotrienols).
• Matrix Tolerance: Minimizes interference in complex biological/environmental samples.

Limitations

• Cost and Expertise: High instrument costs and demand for skilled operators.
• Matrix Effects: Co-eluting compounds may suppress/enhance ionization, necessitating rigorous method validation (e.g., standard addition, isotope dilution).

To learn more about LC-MS, please turn to "LC-MS for Fat-Soluble Vitamin Analysis: Methodological Insights".

GC

Gas chromatography (GC) serves as an alternative analytical technique for volatile or semi-volatile fat-soluble vitamins. While less prevalent than HPLC for such applications, its utility is amplified when coupled with mass spectrometry (GC-MS), offering unique advantages in specific scenarios.

Methodological Framework

Sample Preparation

• Extraction & Derivatization: Fat-soluble vitamins (e.g., vitamin A) are isolated via organic solvents, followed by chemical modification (e.g., silylation) to enhance volatility for GC compatibility.

Chromatographic Separation

• Column: Non-polar stationary phase columns facilitate separation based on analyte volatility.
• Carrier Gas: Helium ensures efficient transport through the column.

Detection Strategies

• Flame Ionization Detector (FID): Provides quantitative data based on hydrocarbon combustion.
• GC-MS: Enables structural characterization and quantification (e.g., vitamin A via *m/z* 286).

Quantification

• Calibration curves derived from standard peak areas ensure precise analyte measurement.

Advantages

• High Resolution: Exceptional separation of volatile compounds.
• Structural Insights: GC-MS delivers detailed fragmentation patterns for isomer differentiation.

Limitations

• Derivatization Dependency: Non-volatile vitamins require chemical modification, risking analyte degradation or incomplete recovery.
• Limited Scope: Poor sensitivity for inherently nonvolatile analytes (e.g., vitamin E).
• Operational Efficiency: Longer run times compared to LC-MS methodologies.

Fluorescence Spectroscopy

Principles and Methodological Scope

Fluorescence spectrometry measures emitted light intensity at specific excitation wavelengths, enabling quantification of intrinsically fluorescent fat-soluble vitamins:

• Vitamin A (Retinol): Exhibits fluorescence at 460 nm when excited at 325 nm due to its conjugated double-bond system.
• Vitamin E (α-Tocopherol): Emits 330 nm fluorescence under 295 nm excitation via its benzodihydropyran ring.
• Note: Non-fluorescent vitamins (e.g., D, K) require derivatization (e.g., dansyl chloride reaction) for detection.

Optimized Analytical Workflow

• Sample Preparation:
  • Extraction: A solvent blend of acetone and petroleum ether (1:3, v/v) efficiently isolates fat-soluble analytes under nitrogen protection to prevent oxidation.
  • Saponification: For lipid-rich matrices (e.g., animal liver), alkaline hydrolysis (60°C, 30 min) with ethanolic KOH reduces triglyceride interference.
• Detection Parameters:
  • Solvent Optimization: Non-polar solvents (e.g., n-hexane) minimize quenching effects.
  • pH Adjustment: Neutral conditions (pH 6–8) stabilize tocopherols, while acidic environments (pH 2–3) enhance retinol fluorescence.
• Calibration Strategy:
  • Standard Curves: Linear ranges (0.1–10 μg/mL) align with physiological/food matrices (R² > 0.99).
  • Internal Standardization: δ-Tocopherol (non-endogenous) corrects extraction variability.

Performance Metrics and Comparative Analysis
