LC-MS for Fat-Soluble Vitamin Analysis: Methodological Insights

Fat-soluble vitamins, encompassing retinol and its derivatives (A), cholecalciferol/ergocalciferol (D), tocopherol/tocotrienol isoforms (E), and phylloquinone/menaquinone variants (K), are essential micronutrients with critical roles in human health. Owing to their lipophilic properties, these compounds are prevalent in biological specimens, dietary sources, and pharmaceutical formulations, necessitating precise quantification for nutritional assessment, clinical diagnostics, and regulatory compliance. Liquid chromatography-mass spectrometry (LC-MS) has emerged as the premier methodology for their analysis, offering unparalleled sensitivity, exceptional selectivity, and robust separation capabilities to address the complexity of hydrophobic matrices.

This review provides a systematic exploration of LC-MS workflows for fat-soluble vitamin determination, structured across five focal domains:

• Sample Preparation: Strategies for lipid-rich matrix extraction and purification.
• Chromatographic Optimization: Column selection, mobile phase design, and gradient elution protocols.
• Mass Spectrometric Configuration: Ionization techniques, fragmentation parameters, and detection modes.
• Method Validation: Criteria for linearity, sensitivity, precision, and recovery.
• Practical Applications: Case studies in food fortification, clinical diagnostics, and pharmaceutical quality control.

By integrating theoretical principles with pragmatic protocols, this work aims to refine analytical accuracy and reproducibility in fat-soluble vitamin analysis.

Chromatograms of the fat-soluble vitamins generated by a standard solution using MS/MS analysis (Khaksari M et al., 2017).

Sample Pretreatment

1. Sample Types and Preservation

Fat-soluble vitamin analysis encompasses diverse matrices, including biological specimens (serum/plasma, hepatic/adipose tissues), food products (dairy, oils), and pharmaceutical formulations. Due to their susceptibility to degradation from light exposure, thermal stress, and oxidative processes, samples require stringent preservation protocols:

• Storage: Maintain at -80°C in light-protected containers.
• Handling: Minimize freeze-thaw cycles to preserve analyte integrity.

2. Extraction and Purification Strategies

Liquid-Liquid Extraction (LLE)

• Solvent Systems: Combine polar (methanol, acetonitrile) and nonpolar (n-hexane, methyl tert-butyl ether) phases.
• Protocol Example (Serum):
  • Precipitate proteins with 500 μL methanol (containing 0.1% BHT).
  • Vortex, centrifuge (10,000 ×g, 10 min), and collect supernatant.
  • Extract hydrophobic analytes with 1 mL *n*-hexane; isolate organic phase post-centrifugation.
  • Dry under nitrogen, reconstitute in methanol-water (80:20) for LC-MS.

Saponification (High-Fat Matrices)

• Procedure: Treat lipid-rich samples (e.g., dairy) with ethanolic KOH (60–80°C) to hydrolyze triglycerides and liberate bound vitamins (A, E).

Solid-Phase Extraction (SPE)

• Columns: C18 or HLB sorbents for phospholipid/pigment removal.
• Workflow: Activate with methanol/water, load extract, elute with organic-aqueous phases.

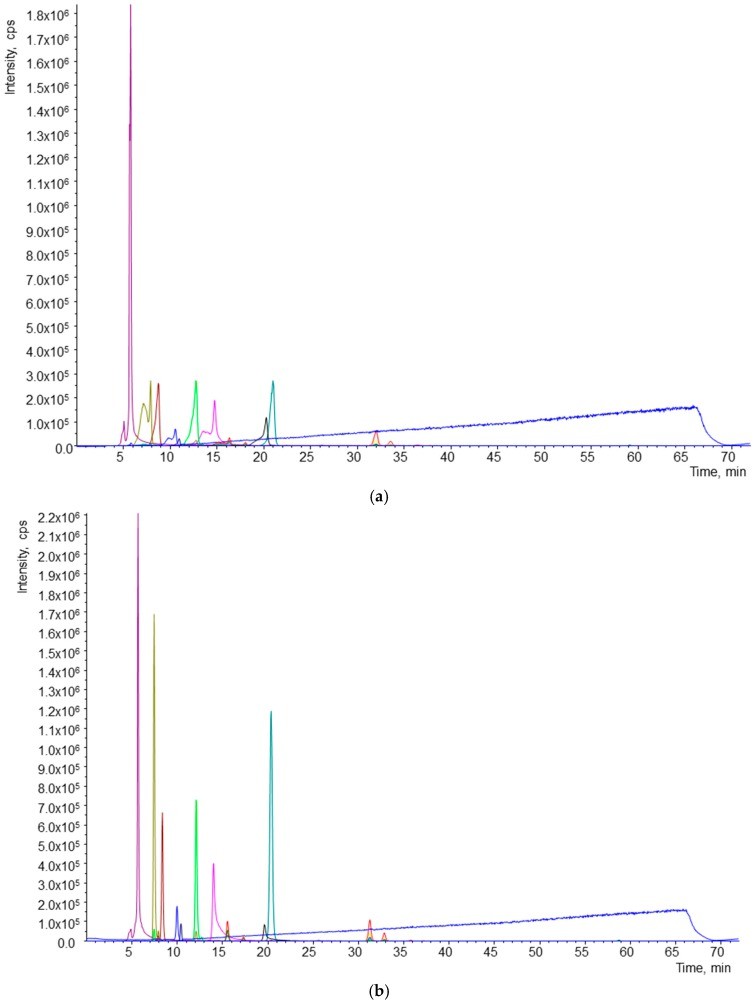

Effect of solvent used for reconstitution of samples (Hrvolová B et al., 2016).

Optimization of Liquid Chromatographic Conditions

1. Column Selection

Reversed-Phase Chromatography (RPC)

Reversed-phase columns are the cornerstone of chromatographic separation for hydrophobic analytes. Key options include:

• C18 Columns: Ideal for general hydrophobic compounds (e.g., vitamins A, D). Example: Waters Acquity UPLC BEH C18 (2.1 × 100 mm, 1.7 μm) for small-molecule resolution.
• C30 Columns: Specialized for resolving highly hydrophobic isomers (e.g., α- vs. γ-tocopherol), leveraging extended carbon chains for enhanced hydrophobic interactions.

Guard Columns

• Pre-columns (e.g., C18 Guard Cartridge) protect analytical columns from contaminants, extending longevity and ensuring consistent performance.

2. Mobile Phase Gradient Elution

Organic Phase Optimization

• Methanol: Polar solvent suitable for moderately hydrophobic analytes.
• Acetonitrile: Superior dissolving capacity for highly lipophilic compounds.

Additives

• Ionization Enhancers: 0.1% formic acid improves ionization efficiency.
• Buffering Agents: 5 mM ammonium formate stabilizes pH for sensitive analytes (e.g., peptides).

Aqueous Phase

• Ultrapure water with pH modifiers (e.g., formic acid, phosphate buffers) adjusts pH (2.5–7.0) to optimize solubility and separation.
• Gradient Program Example

3. Column Temperature and Flow Rate

Temperature Control

• Range: 40–50°C reduces retention variability and enhances separation by lowering mobile phase viscosity.
• Challenging Separations: Elevated temperatures (e.g., 55°C) improve resolution for co-eluting isomers.

Flow Rate Considerations

• HPLC: 0.3–0.5 mL/min balances resolution and runtime.
• UPLC: Up to 0.6 mL/min accelerates analysis without compromising efficiency.

4. Method Development and Validation

Sample Pretreatment

• Filtration/Centrifugation: Remove particulates to prevent column blockage.
• Solubilization: Hydrophobic analytes require organic solvents (e.g., methanol-hexane blends).

Detection Strategies

• UV-Vis: Broad applicability for vitamins A, D.
• Fluorescence (FLD): Enhanced sensitivity for vitamins E (λ_ex/λ_em: 295/330 nm) and A (325/460 nm).

Validation Criteria

• Linearity: Correlation coefficient (R²) ≥0.99 across the calibration range.
• Recovery & Precision: 85–115% recovery with intra-/inter-day RSD <10%.
• Selectivity: Baseline resolution from interferents (e.g., matrix pigments, phospholipids).

Mass Spectrometric Parameter Optimization

1. Ionization Mode Selection

The choice of ionization source critically impacts the detection efficiency of fat-soluble vitamins. Optimal selection enhances sensitivity and selectivity:

Atmospheric Pressure Chemical Ionization (APCI)

• Principle: Utilizes gas-phase proton transfer to ionize stable neutral molecules.
• Advantages: Superior for nonpolar/low-polarity compounds (e.g., vitamins D, E).
• Application: Ideal for analytes resistant to electrospray ionization (ESI).

Electrospray Ionization (ESI)

• Principle: Generates ions via charged droplet evaporation, enhanced by volatile additives (e.g., ammonium formate).
• Advantages: High efficiency for polar molecules (e.g., vitamins A, K).

2. Mass Spectrometry Scanning Modes

Multiple Reaction Monitoring (MRM)

MRM enhances selectivity by tracking specific precursor-to-product ion transitions, minimizing matrix interference:

• Rationale: Transitions are selected based on fragmentation patterns (e.g., m/z 93.0 for retinol reflects its dominant fragment).

3. Critical Mass Spectrometer Parameters

Optimization Criteria

4. Method Development Workflow

• Sample Preparation:
  • Extraction: Liquid-liquid or solid-phase extraction to isolate vitamins and remove interferents (e.g., phospholipids).
  • Cleanup: Centrifugation/filtration to eliminate particulates.
• Chromatographic Optimization:
  • Column chemistry, mobile phase gradients, and flow rates tailored to analyte hydrophobicity.
• Calibration & Validation:
  • Standard Curves: Prepared using certified reference materials.
  • Internal Standards: Isotope-labeled analogs (e.g., deuterated vitamin D3) correct for matrix effects and recovery variability.

Key Considerations

• Sensitivity: Parameter adjustments (e.g., collision energy) must balance signal intensity and noise reduction.
• Reproducibility: Rigorous validation of linearity (R² ≥ 0.99), precision (RSD < 10%), and recovery (85–115%) ensures reliability.

Quantitative Method Validation

1. Internal Standard Calibration

Internal standardization is a cornerstone of precise quantification in LC-MS/MS workflows, mitigating matrix effects, instrumental variability, and procedural inconsistencies. Isotope-labeled analogs (e.g., d₆-vitamin D₃, d₃-α-tocopherol) serve as ideal internal standards due to their structural similarity to target analytes while remaining distinguishable via mass differences.

Key Considerations

• Selection Criteria: Internal standards must mirror the physicochemical properties (e.g., solubility, ionization efficiency) of target vitamins without co-eluting interferents.
• Calibration Range: Span physiological or product-relevant concentrations (e.g., 1–100 ng/mL for vitamin D) to ensure coverage of expected analyte levels.
• Error Correction: Normalize analyte signals against internal standards to account for matrix suppression/enhancement and extraction inefficiencies.

2. Validation Metrics

Linearity

• Calibration Curve: Assess via correlation coefficient (R² ≥ 0.99) and residual analysis to confirm uniform variance.
• Dynamic Range: Validate across at least six concentration levels, ensuring linear response within the tested interval.

Sensitivity

Precision

• Intra-Day (Repeatability): RSD < 15% for replicate analyses under identical conditions.
• Inter-Day (Reproducibility): RSD < 15% across multiple operators, instruments, or days.

Accuracy

• Recovery Rates: 85–115% via spiked samples, reflecting minimal procedural losses.
• Standard Addition: Quantify recovery deviations to identify systematic biases (e.g., incomplete extraction).

3. Matrix Effect Mitigation

Matrix components (e.g., lipids, pigments) can alter ionization efficiency, necessitating corrective strategies:

• Isotope Dilution: Internal standards normalize signal suppression/enhancement.
• Matrix-Matched Calibration: Prepare standards in blank matrix extracts to mimic sample conditions.

4. Future Directions

Technological Advancements

• High-Throughput Multi-Analyte Panels: Simultaneous quantification of vitamins and metabolites (e.g., 25-OH-D₃, γ-tocopherol) in single runs.
• Miniaturized Systems: Portable mass spectrometers for field applications (e.g., food safety inspections, point-of-care diagnostics).
• Enhanced Sensitivity: Novel ion sources (e.g., ion mobility) and microsampling techniques to detect sub-ng/mL analytes.

Methodological Innovations

• AI-Driven Optimization: Machine learning for automated parameter tuning and interference prediction.
• Green Chemistry: Solvent reduction and sustainable extraction protocols.

Applications

• Elucidates Maternal-Fetal Liposoluble Vitamin Dynamics and Clinical Applications: The streamlined LC-MS/MS method developed in this study addresses key challenges in liposoluble vitamin (FSV) detection through enhanced efficiency and sensitivity. By employing direct protein precipitation with acetonitrile extraction, it eliminates traditional liquid-liquid/solid-phase extraction steps, reducing preprocessing time by ~50% while enabling simultaneous quantification of vitamins A (retinol), D [25(OH)D3], and E (α-tocopherol) in maternal plasma (MP) and amniotic fluid (AF) with ng/mL-level sensitivity. Method validation demonstrated excellent linearity (R² >0.99), precision (intra-/inter-day RSD <10%), accuracy (90-110% recovery), and certification via reference materials (SRM 972a/968f). Analysis of 50 mid-trimester samples revealed significantly lower FSV levels in AF versus MP (e.g., 25(OH)D3 in AF ≈20% of MP), indicating placental selectivity. Strong MP-AF correlations for vitamins D (r=0.667) and A (r=0.393) contrasted with no association for vitamin E, suggesting transporter-mediated transfer (e.g., vitamin D-binding protein) for D/A versus distinct regulatory pathways for E. This approach provides a robust tool to assess maternal FSV supplementation impacts on fetal development, particularly highlighting vitamin D as a fetal nutritional biomarker, and facilitates large-scale clinical monitoring to optimize prenatal vitamin strategies (Le J et al., 2018).
• Explore the metabolic balance of fat-soluble vitamins: In this study, tandem mass spectrometry (MS/MS) combined with HPLC technology revealed that BCO1 enzyme transformed β -carotene into vitamin A, and activated ISX transcription factor, which formed a negative feedback regulatory network by inhibiting SCARB1 gene (encoding a membrane protein that promotes the absorption of fat-soluble vitamins). MS analysis showed that the level of SCARB1 protein in ISX-deficient mice increased significantly, which led to the absorption and tissue accumulation of lutein carotenoids and tocopherols. It was confirmed that BCO1-ISX-SCARB1 pathway provided a molecular mechanism basis for individual nutritional differences and prevention and treatment of chronic diseases by regulating the metabolic balance of fat-soluble vitamins.
• Construction of Variety Nutrition Map: An effective analytical approach utilizing liquid chromatography coupled with quadrupole mass spectrometry (LC-QMS) was established for the concurrent measurement of lipophilic vitamins (e.g., cholecalciferol and δ-tocopherol) and carotenoids (e.g., lutein and β-carotene) in avocado matrices. The protocol involved a saponification process with 1 mmol/L ethanolic KOH at 80°C for 60 minutes, paired with chromatographic separation on a C30 column using a methanol-methyl tert-butyl ether gradient system, achieving complete analyte resolution within 40 minutes. Validation demonstrated robust recovery rates for vitamins (80.43–117.02%) and carotenoids (43.80–108.63%). Quantitative analysis identified cholecalciferol as the predominant nutrient (103.5–119.5 mg/100g dry weight), with the Simmonds cultivar exhibiting maximal concentrations across compounds, ranging from zeaxanthin (0.03 mg/100g) to vitamin D3 (119.5 mg/100g). These findings underscore marked interspecific variability in avocado phytochemical profiles, delivering precise metrics for nutritional benchmarking and targeted cultivar enhancement.
• Biomarker research: A robust analytical approach utilizing LC-MS/MS was established for the concurrent measurement of vitamin D and its metabolites—25(OH)D3, vitamin D3, 25(OH)D2, and vitamin D2—in human dried blood spots (DBS), aiming to investigate its implications in COVID-19 and broader disease contexts. Through optimization of chromatographic parameters—employing an ACE Excel C18 PFP column with a mobile phase comprising a 0.1% formic acid-enriched water/methanol mixture at 0.5 mL/min—the method achieved separation within an 11-minute runtime, demonstrating high sensitivity (quantification limit: 0.78 ng/mL), a broad linear range (0.5–200 ng/mL), and compliance with FDA guidelines for accuracy and precision. Validation across 909 DBS specimens revealed analyte concentrations spanning 25(OH)D3 (2–195.6 ng/mL), vitamin D3 (0.5–121.5 ng/mL), 25(OH)D2 (0.6–54.9 ng/mL), and vitamin D2 (0.5–0.5 ng/mL). This methodology offers a dependable platform for large-scale epidemiological studies, such as assessing vitamin D's association with COVID-19 severity, and facilitates further investigation into vitamin D's regulatory roles in diverse physiological and pathological conditions.

Analytical Challenges and Solutions

While liquid chromatography-tandem mass spectrometry (LC-MS/MS) excels in sensitivity and accuracy for fat-soluble vitamin analysis (e.g., vitamins D and E), critical challenges persist, including isomer discrimination, matrix effects, and photolability. Below, we detail these hurdles and evidence-based mitigation strategies.

1. Isomer Differentiation

• Challenge: Structural analogs such as vitamin D₂/D₃ and tocopherol isoforms (α, β, γ) exhibit near-identical chromatographic behavior, leading to co-elution and compromised quantification.
• Solutions:
• Chromatographic Refinement:
  • Stationary Phase Selection: Utilize C30 columns with extended alkyl chains to enhance hydrophobic interactions, improving resolution of polyunsaturated isomers.
  • Gradient Optimization: Adjust organic solvent gradients (e.g., acetonitrile vs. methanol) and column temperature to modulate retention times.
• Multidimensional Separation: Couple LC with complementary techniques (e.g., ion mobility spectrometry) for orthogonal resolution.

2. Matrix Interference

• Challenge: Co-extracted lipids, phospholipids, and sterols in biological matrices suppress ionization or co-elute with target analytes.
• Solutions:
• Enhanced Cleanup:
  • Solid-Phase Extraction (SPE): C18/C8 cartridges selectively retain vitamins while excluding phospholipids.
  • Online SPE-LC: Integrate purification with analysis for automated matrix removal.
• Internal Standardization: Isotope-labeled analogs (e.g., d₃-α-tocopherol) correct ionization variability.
• Dilution Strategies: Reduce matrix load in lipid-rich samples without sacrificing sensitivity.

3. Photodegradation Risks

• Challenge: Light-sensitive vitamins (e.g., D, E) degrade during handling, skewing results.
• Solutions:
  • Light-Restricted Workflows: Process samples under amber lighting or in foil-wrapped vessels.
  • Antioxidant Additives: Incorporate butylated hydroxytoluene (BHT, 0.01–0.1%) during extraction to inhibit oxidation.
  • Sub-Zero Storage: Preserve samples at -80°C to minimize thermal and photolytic degradation.

Validation & Quality Control

• Isomer-Specific Calibration: Develop separate curves for each isoform using certified reference materials.
• Stability Testing: Monitor analyte integrity under varying storage/processing conditions.

Future Directions

• Advanced Columns: Polar-embedded phases for isomer separation.
• AI-Driven Optimization: Predictive modeling for gradient and parameter tuning.

People Also Ask

What are the solvents in LC MS?

Commonly used solvents in LC-MS include methanol, acetonitrile and water, which are usually mixed in gradient as mobile phases (such as acetonitrile-water or methanol-water system), and modifiers such as formic acid/ammonium acetate (0.1%) are added to optimize the chromatographic separation and mass spectrometry ionization efficiency.

What is the difference between LC-MS and LC-MS MS?

LC-MS instruments are basically HPLC units with a mass spectrometry detector attached to it whereas LC-MS/MS is HPLC with two mass spectrometry detectors.

How do you test for fat-soluble vitamins?

In the detection of fat-soluble vitamins, organic solvent extraction (such as acetonitrile/hexane) combined with saponification is usually used to remove lipid interference, and then liquid chromatography-mass spectrometry (LC-MS) is used for high-sensitivity quantification.

What is the best test for vitamin D?

The gold standard for the detection of vitamin D is liquid chromatography-tandem mass spectrometry (LC-MS/MS). Because of its high sensitivity, specificity and the ability to distinguish metabolites such as 25(OH)D2/D3 at the same time, the status of vitamin D can be accurately evaluated.
