Sample Preparation Protocols for Histone PTM Analysis: Critical Steps for Reliable Data

The foundation of any successful experiment is established during the initial sample preparation phase. This is of paramount importance in the analysis of histone post-translational modifications (PTMs), which include methylation, acetylation, and phosphorylation.

These PTMs represent a crucial mechanism of epigenetic regulation, profoundly influencing critical cellular processes such as gene expression, DNA repair, and chromatin architecture. The acquisition of reliable, high-quality data on histone PTMs is entirely dependent on the integrity of the prepared samples. Inadequate handling can lead to both the loss of authentic modifications and the artifactual introduction of false signals, thereby compromising the validity of all subsequent analytical results. The following section details the essential procedural steps in a protocol designed for the preparation of samples destined for histone PTM analysis.

Importance and Challenges in Histone PTM Analysis

The analysis of histone PTMs presents several distinctive and complex challenges:

• Low Stoichiometry: Individual modified histone variants typically constitute a tiny proportion, often just 1–5%, of the total histone population.
• Dynamic Nature: PTMs are highly dynamic, often changing rapidly in response to transient cellular signals.
• Lability During Processing: The PTM profile is susceptible to sample handling. Enzymes such as deubiquitinases and isopeptidases, if not promptly inactivated, can rapidly erase specific modifications during preparation.
• Isobaric Interference: Different PTMs can result in peptides with identical molecular masses, creating isobaric species that are exceptionally difficult to distinguish analytically.
• Limited Antibody Specificity: Antibodies used in techniques like ChIP-seq or western blotting frequently exhibit cross-reactivity with similar PTMs, compromising the accuracy of results.
• Combinatorial Peptide Complexity: A single short peptide can harbor multiple possible modification sites, and the vast number of potential combinatorial states greatly complicates both identification and quantification.
• Detection of Low-Abundance Modifications: Rare PTMs are particularly challenging to detect, as their signals can be easily obscured by more abundant ions or missed entirely by data-dependent acquisition.
• Artifacts from Sample Handling: Deviations in extraction or digestion protocols can lead to the artificial loss of native modifications or even generate non-biological artifacts.
• Complex Data Analysis: The interpretation of mass spectrometry data for peptides with multiple modifications requires sophisticated algorithms and considerable expertise.

Sample Collection and Preservation: Ensuring Quality from the Source

1. Tissue Samples

• Rapid Processing: Samples should be collected using clean instruments and briefly rinsed with a pre-chilled, neutral pH buffer (e.g., PBS) to eliminate contaminants. Tissues must subsequently be flash-frozen in liquid nitrogen without delay to maintain native protein structures and PTM integrity.
• Long-Term Storage: For extended preservation, tissue samples require storage at a temperature of -80 °C. Storage at -20 °C is strongly discouraged, as it does not sufficiently prevent ongoing protein degradation.
• Recommended Sample Quantity: For mass spectrometry-based modified proteomic analysis, a typical starting amount is >500 mg of animal tissue or >2 g of plant tissue.

2. Cell Samples

• Suspension Cells: Culture cells to an optimal density (e.g., 2–5 × 10⁵ cells/mL). Pellet the cells by centrifugation, wash the pellet three times with PBS, obliterate the supernatant, then immediately freeze the cell pellet in liquid nitrogen. Store at -80 °C.
• Adherent Cells: Gently wash the cell monolayer three times with PBS. Detach cells using trypsin, collect them via centrifugation, resuspend the pellet in PBS for a final wash, and proceed to flash-freezing in liquid nitrogen.
• Recommended Sample Input: The required number of cells depends on the PTM of interest. Typically, analysis necessitates >5 × 10⁷ cells for phosphorylation studies and >1 × 10⁸ cells for investigating acetylation and ubiquitination.

Histone Extraction: Efficient Enrichment of Basic Nuclear Proteins

Histones are highly alkaline due to their abundance in arginine and lysine residues. This property allows for their selective enrichment using acid-based extraction protocols, which effectively solubilize histones while leaving most non-histone nuclear proteins and nucleic acids insoluble.

Protocol for Acid Extraction of Histones

• Cell Lysis: Wash harvested cells with PBS and resuspend in NETN lysis buffer (supplemented with fresh protease inhibitors). Perform lysis on ice for 15 minutes.
  • NETN Buffer Formulation: 20 mM Tris (pH 8.0), 500 mM NaCl, 0.5% NP-40, 1 mM EDTA. Protease inhibitors are added immediately before use.
• Nuclear Isolation: Centrifuge the lysate (e.g., 1,500 × g, 4 °C, 10 min). Discard the supernatant and wash the insoluble pellet (containing nuclei) 1-2 times with NETN buffer.
• Acid Extraction: Add 0.2 M HCl (prepared from concentrated stock) to the pellet. Lyse the nuclei by vigorous vortexing and incubate in an ice-water bath for 30 minutes. This step solubilizes histones into the acidic supernatant.
• Centrifugation and Neutralization: Clarify the extract by high-speed centrifugation (e.g., 12,000 rpm, 4 °C, 15 min). Transfer the supernatant to a new tube. Neutralize the acidity by adding 1 M Tris (pH 8.0); a typical ratio is 5 volumes of acid extract to 1 volume of Tris. If the solution appears yellow, continue adding Tris until it turns blue, indicating a neutral pH.
• Concentration Determination and Storage: Quantify the protein concentration using a Bradford (Coomassie Brilliant Blue) assay. Aliquot the histone extract and store at -80 °C.

Comparison of Histone Extraction Methods

Overview of protocols for the isolation and enrichment of histones from patient‐derived samples prior to MS analysis (Noberini R et al., 2022)

Additional Method Details

• High-Ionic-Strength Salt Extraction: Subsequent dialysis or use of a desalting column is mandatory to remove the high salt concentration, which would otherwise interfere with techniques like western blotting or mass spectrometry.
• Histone Extraction Kit Method: Kits from suppliers like Abcam or Millipore provide optimized buffers and protocols designed to maximize yield and maintain PTM integrity, offering greater convenience and reproducibility at a higher cost.
• RIPA Lysis Method: As this method isolates total cellular protein, the histone fraction is significantly diluted. For western blotting, signals from low-abundance histone modifications may be obscured by non-histone proteins.

For the enrichment scheme of low-abundance histone PTM, you can refer to "Enrichment Strategies for Low-Abundance Histone PTMs: Challenges and Solutions".

Factors for Selecting an Extraction Method

The choice of method should be guided by the following considerations:

• Research Objective: For investigations focused on PTMs (e.g., acetylation, methylation), the acid extraction method or a high-quality commercial kit is strongly recommended to ensure optimal preservation of the modification state.
• Sample Type and Amount: Tissue samples often require mechanical disruption (e.g., grinding under liquid nitrogen) prior to applying any of the lysis methods. Cell samples are generally more straightforward to process.
• Downstream Application:
  • Western Blotting: Requires moderate to high purity; acid extraction or a kit is preferred.
  • Mass Spectrometry: Demands very high purity with minimal contaminants (e.g., nucleic acids, detergents); acid extraction is the most common and robust choice.
  • Enzyme Activity Assays: The extraction components (e.g., strong acid, high salt, detergents) can be inhibitory; a compatible method must be chosen carefully.
• Time and Cost Constraints: If speed is paramount and purity is less critical, RIPA or salt extraction may suffice. If budget allows and the priority is high-quality, reproducible results for PTM studies, a commercial kit is an excellent choice. Acid extraction remains the benchmark for cost-effectiveness and superior PTM preservation, despite being more labor-intensive.

Prevention of Protein Degradation and PTM Loss

The lysis of cells liberates endogenous proteases and demodifying enzymes—such as deubiquitinating enzymes (DUBs) and SUMO isopeptidases—which can rapidly degrade proteins or remove post-translational modifications (PTMs). To maintain the native PTM state, the activity of these enzymes must be promptly and effectively inhibited.

• Protease Inhibition: A broad-spectrum protease inhibitor cocktail—commonly including PMSF, aprotinin, leupeptin, and pepstatin A—should be added to all lysis buffers immediately before use.
• Inhibition of Demodifying Enzymes:
  • For Deubiquitinating Enzymes (DUBs): Incorporate 5–10 mM N-ethylmaleimide (NEM) or iodoacetamide (IAA), along with EDTA/EGTA, into the buffer. Note that certain substrates (e.g., IRAK1) might necessitate higher inhibitor concentrations.
  • For SUMO Isopeptidases: Utilize a specific, commercially available isopeptidase inhibitor to prevent undesired deSUMOylation.
• Operational Conditions: All extraction steps must be performed on ice or at 4°C to minimize enzymatic activity.
• Gentle Manipulation: Avoid vigorous vortexing or repetitive pipetting, as aggressive mechanical force can cause DNA shearing and nonspecific histone proteolysis.
• Nuclear Integrity: Prior to acid extraction, ensure complete cytoplasmic lysis and thorough nuclear washing to eliminate contamination from cytoplasmic proteins.

Protein Concentration Determination

Due to the absence of tryptophan in histones, quantification using the Bradford (Coomassie Brilliant Blue) assay or the BCA method is strongly recommended. These colorimetric assays provide significantly more accurate measurements of histone concentration than ultraviolet (UV) absorption spectroscopy.

Strategies for Histone Digestion and Peptide Enrichment in Bottom-Up Proteomics

I. Enzymatic Digestion

In bottom-up proteomic workflows, enzymatic digestion is a critical step that breaks intact proteins into smaller peptides, which are more amenable to separation and analysis by mass spectrometry.

• Trypsin: This is the most widely employed protease. It specifically cleaves at the carboxyl terminus of arginine (Arg) and lysine (Lys) residues. Given that histones are highly enriched in these basic amino acids, they represent ideal substrates for trypsin. Prior to digestion, proteins are typically subjected to reduction and alkylation to disrupt and cap disulfide bonds, thereby denaturing the protein and improving enzymatic accessibility.
• Alternative Proteases: To achieve more comprehensive coverage of modification sites, other proteases are often used, either alone or in combination with trypsin.
  • Endoproteinase Glu-C: Cleaves at the C-terminal side of glutamic acid (Glu) residues.
  • Endoproteinase Lys-C: Specifically hydrolyzes peptide bonds at the C-terminal side of lysine (Lys). Its use, particularly in conjunction with trypsin, can enhance overall digestion efficiency and yield.

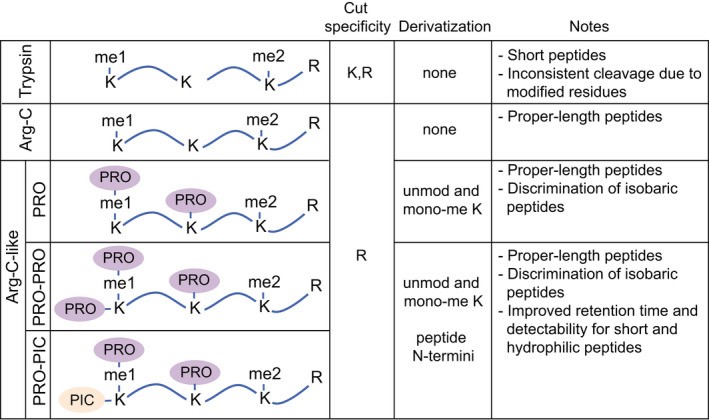

Digestion approaches for MS bottom‐up histone PTM analysis (Noberini R et al., 2022)

II. Peptide Enrichment

Histones carry a diverse array of post-translational modifications (PTMs) such as methylation, acetylation, and phosphorylation, which frequently occur at low stoichiometry. When a complex peptide mixture from a digest is analyzed directly, the signals from these low-abundance modified peptides are often masked by the intense signals of their unmodified counterparts. Consequently, specific enrichment of modified peptides based on their unique physicochemical properties is essential prior to MS analysis to dramatically improve detection sensitivity and coverage.

The following table outlines common enrichment strategies

Summary and Recommendations

The selection of an appropriate enrichment strategy is contingent upon research objectives (e.g., targeted analysis of a known modification versus exploratory discovery), sample type, and available quantity.

• For the investigation of specific, well-characterized histone marks (e.g., H3K27me3), immunoaffinity enrichment (IP) is the method of choice due to its exceptional specificity.
• For large-scale, discovery-phase phosphoproteomic studies, IMAC or MOAC are generally preferred, as they enable comprehensive profiling from limited material.
• Employing a combination of strategies—such as SCX fractionation followed by IMAC—or integrating them with separation techniques, can effectively reduce sample complexity. This multi-faceted approach significantly enhances the detection of low-abundance modified peptides, thereby enabling a more profound exploration of the histone code.

Quality Control and Verification

Implementing stringent quality control and validation is paramount for ensuring data reliability.

• Western Blot Validation:
  • Always include a positive control (a sample known to contain the target PTM) and a negative control (a sample lacking the PTM or treated with a demodification inhibitor) to confirm antibody specificity and signal authenticity.
• Protein Quantification and Standardization:
  • Precisely determine total protein concentration using assays like Bradford to guarantee consistent sample loading.
  • For Western blot normalization, prioritize total protein quantification methods (e.g., stain-free technology) over housekeeping proteins, as the latter often exhibit variable expression and a limited dynamic range.
• Preventing False Negatives:
  • Be aware that some PTMs (e.g., ubiquitination) can occlude antibody epitopes, potentially causing false negatives.
  • Corroborate critical results using multiple complementary methodologies to verify findings.

The quality control of histone PTM mass spectrometry can be referred "Quality Control Considerations in Histone PTM Mass Spectrometry Workflows".

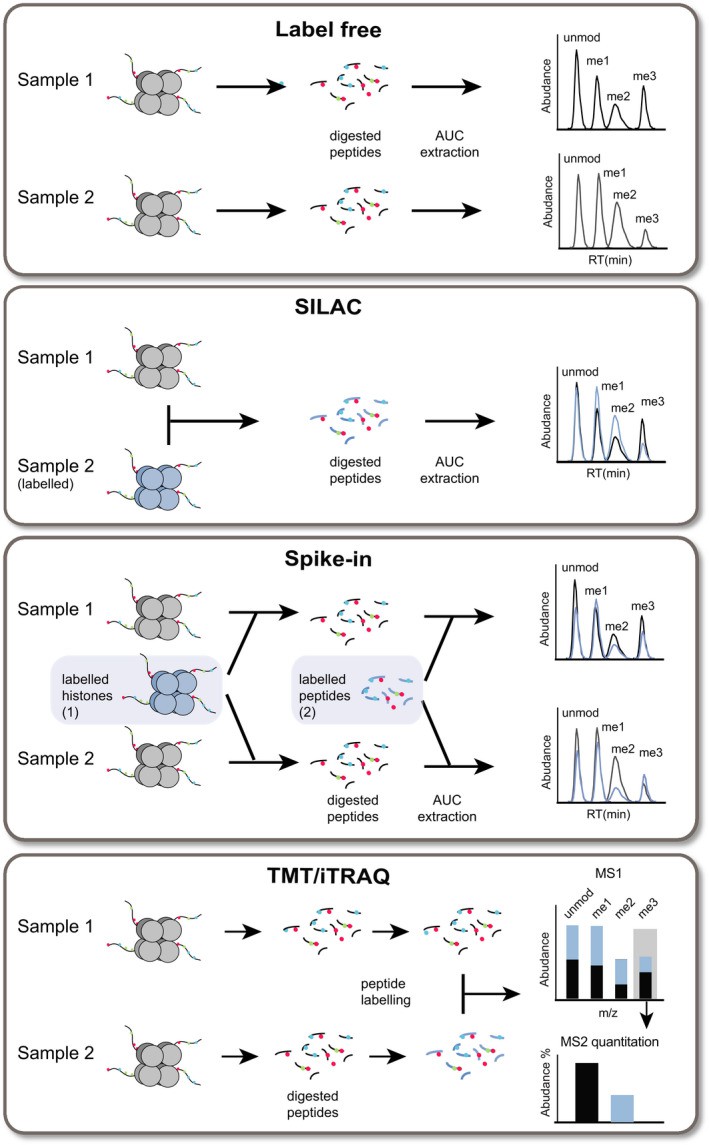

MS‐based histone PTM quantitation strategies (Noberini R et al., 2022)

Summary of Key Steps and Frequently Asked Questions

The following section outlines common challenges encountered during histone PTM sample preparation, along with their potential causes and recommended solutions.

The preparation of samples for histone PTM analysis is a meticulous and vital process. Each stage demands careful execution, representing a race against time to inhibit enzymatic activity and preserve the authentic cellular PTM state from the moment of sample collection.

Faithfully following the outlined protocols and rigorously controlling each step will establish a solid foundation for subsequent Western Blot or mass spectrometry experiments. This diligence is fundamental for acquiring authentic and reliable histone modification data, thereby providing a robust basis for further epigenetic investigation and supporting the advancement of your research.

References

1. Pagel O, Loroch S, Sickmann A, Zahedi RP. Current strategies and findings in clinically relevant post-translational modification-specific proteomics. Expert Rev Proteomics. 2015 Jun;12(3):235-53.
2. Noberini R, Robusti G, Bonaldi T. Mass spectrometry-based characterization of histones in clinical samples: applications, progress, and challenges. FEBS J. 2022 Mar;289(5):1191-1213.
3. Mojica EA, Kültz D. A Strategy to Characterize the Global Landscape of Histone Post-Translational Modifications Within Tissues of Nonmodel Organisms. J Proteome Res. 2024 Aug 2;23(8):2780-2794.
