Post-translational modifications (PTMs) of histones represent a central mechanism in epigenetic regulation, critically influencing essential biological processes including gene expression, DNA repair, and cellular differentiation. However, the study of low-abundance histone PTMs—such as methylation, acetylation, and phosphorylation—poses considerable technical challenges due to their transient nature, low stoichiometry, and site-specific heterogeneity. This review systematically examines these methodological obstacles and discusses corresponding analytical strategies, thereby providing a methodological foundation for future research in this field.
Overcoming the Key Hurdles in Low-Abundance Histone PTM Research
Analyzing rare histone modifications is a major bottleneck in epigenetic drug discovery. These low-abundance PTMs are critically important but pose significant technical challenges for researchers. Overcoming these hurdles is essential for unlocking new therapeutic targets and understanding disease mechanisms at the epigenetic level.
1. The Scarcity Problem: Finding a Needle in a Haystack
Many biologically crucial modifications, like certain monomethylations, constitute less than 1% of total histones. In clinical samples like tumor biopsies, this can drop to a mere 0.01%.
- The Challenge: Standard mass spectrometry lacks the dynamic range to detect these faint signals against the overwhelming background of unmodified peptides.
- The Result: Key disease-driving modifications are often missed entirely.
2. The Timing Problem: Capturing Fleeting Signals
The rapid activity of kinases/dec modifying enzymes results in extremely short half-lives for certain PTMs (e.g., phosphorylation lasting minutes), necessitating high temporal resolution technologies for accurate monitoring:
- Phosphorylation Dynamics: Histone H4S1ph peaks briefly during S/M cell cycle phases, with conventional pull-downs failing to capture transient binding partners (e.g., 14-3-3 proteins) due to inadequate affinity
- Enzyme Interference: Persistent deacetylase (HDAC) activity causes rapid acetylation loss (e.g., H4K77ac in senescent hematopoietic stem cells), requiring flash-enrichment strategies to preserve modification states
3. The Access Problem: Structural Barriers in the Nucleosome
The nucleosome's physical structure itself hides key modifications. Those buried within the core, like H3K79me, are difficult for detection tools to reach.
- Antibody Inefficiency: While surface marks like H3K4me3 are easily detected (>80% efficiency), core modifications often have antibody efficiency rates below 20%.
- MS Complications: The highly charged nature of histones also complicates mass spectrometry analysis, making fragmentation and precise localization difficult.
4. The Complexity Problem: Untangling the Crosstalk
Histones frequently exhibit "modification crosstalk," with 30% of promoters showing bivalent marks (e.g., H3K4me3+H3K27me3) that challenge single-enrichment strategies:
- Positive Crosstalk: H3S10ph promotes adjacent H3K14ac, amplifying gene activation
- Negative Crosstalk: H3K4me3 inhibits H3K9me3 deposition, preventing heterochromatin spread
- Technical Limitations:
- Antibody cross-reactivity may obscure adjacent sites
- Co-elution of isobaric peptides (e.g., H3K27me3/K36me3) during LC separation causes quantitative errors
Challenge Interdependence and Amplification Effects
These obstacles frequently coexist and exacerbate one another:
- Abundance + Dynamics: Low-abundance phosphorylation dynamics (e.g., H4S1ph) require photo-crosslinking probes for stabilization
- Steric Hindrance + Complexity: Core region co-modifications (e.g., H3K79me2-H4K16ac) resist tandem enrichment due to spatial constraints
- Breaking these barriers demands multimodal enrichment technologies (e.g., aryl-diazirine covalent probes with nanobodies) and advanced mass spectrometry platforms (e.g., Orbitrap Astral).
Breaking Through: Next-Gen Technologies for Epigenetic Analysis
Stalled by low-abundance histone marks? New technological advances are finally overcoming the historic bottlenecks in epigenetic analysis. For drug discovery teams, these breakthroughs provide the tools needed to validate novel therapeutic targets with unprecedented precision. This guide explores the cutting-edge enrichment and detection strategies reshaping proteomics research.
1. Smarter Enrichment: Beyond Traditional Antibodies
1.1 Advanced Antibody Technologies
Traditional monoclonal antibodies targeting specific modifications (e.g., H3K9me3, H4K16ac) remain widely used despite limited sensitivity for modifications below 1% abundance. Emerging nanobody (VHH) technologies demonstrate superior performance:
- Small molecular size (15 kDa) enables penetration into nucleosomal gaps
- Enhances capture efficiency for sterically hindered sites (e.g., 3-fold improvement for H3K79me)
- Engineered single-chain variable fragments (scFvs) achieve 0.01% detection limits through directed evolution
1.2 Novel Material Platforms
- Metal Oxide Materials: TiO₂ magnetic beads (MOAC strategy) improve phosphopeptide SNR >10-fold via bidentate titanium-phosphate coordination
- Covalent Organic Frameworks (COFs):
- Precisely tuned pores (0.5–2 nm) with boronic acid functionalization
- Achieve 92% and 88% enrichment efficiency for H3K9me2 and H4K16ac respectively
- Demonstrate excellent reproducibility (inter-batch CV <8%)
- Polymer-Modified Microspheres: Polydopamine-coated Fe₃O₄ particles enhance capture via π-π stacking/hydrogen bonding, particularly effective for aromatic modifications (e.g., tyrosine phosphorylation)
2. Precision Chemical Tagging: Covalent and Bioorthogonal Strategies
For ultimate specificity, chemoselective methods bypass antibody cross-reactivity.
2.1 Aryl Diazonium Covalent Labeling
- Forms stable azobenzene bonds via electrophilic attack on monomethyllysine
- Achieves amol-level sensitivity (10⁻¹⁸ mol)
- Identified >10,000 Kme1 sites from mouse brain tissue, including novel mitochondrial histone methylation sites
- Reveals SAM-independent methylation mechanisms
2.2 Bioorthogonal Reaction Systems
- Incorporates alkynyl-modified acetyl-CoA analogs (Ac-4-Pant) for metabolic labeling
- Copper-catalyzed azide-alkyne cycloaddition links biotin for specific enrichment
- Eliminates antibody cross-reactivity while achieving minute-scale temporal resolution
- Successfully tracks H4K16ac dynamics in living cells
3. Enhanced Separation: Resolving Complex Mixtures
Better separation is key to detecting rare peptides hidden in complex samples.
3.1 Chromatographic Coupling
- SCX-HILIC system combines charge-based and hydrophilic separation
- Increases detection probability for low-abundance peptides by 40%
- Successfully resolves H3.3K36me2 and similar rare modifications
3.2 Ion Mobility Spectrometry
- RPLC-IMS-MS differentiates isomers via collision cross-section (CCS) differences
- Resolves modifications with ≥3.5% CCS variation
- Identified 17 isomeric modification pairs in breast cancer cells
- Precisely distinguishes H3K27me3 from H3K36me3
4. Cutting-Edge Mass Spectrometry: Sensitivity Meets AI
Modern mass specs, powered by artificial intelligence, are setting new performance standards.
4.1 DIA with AI Integration
- Orbitrap Exploris/timsTOF Pro platforms provide >240,000 resolution
- Deep neural networks predict peptide retention times
- Achieves <1% false discovery rate with 0.001% modification quantification
- Successfully applied to colorectal cancer clinical samples
4.2 Targeted Quantification
- PRM/SRM with isotope-labeled internal standards achieves CV <5%
- SILAC-PRM enables absolute quantitation across samples
- Precisely measures H3S10ph abundance changes during G2/M phase
Choosing the Right Tool: A Quick Guide
| Technology | Sensitivity | Specificity | Throughput | Application Scope |
|---|---|---|---|---|
| Nanobody Enrichment | 0.1% modification | >90% | Medium | Nucleosomal core sites |
| COF Material Enrichment | Amol-level | Multi-PTM | High | Global screening |
| Aryl Diazonium Probes | 10⁻¹⁸ mol | Kme1-specific | Medium | Ultra-rare methylation |
| DIA + AI Analysis | 0.001% modification | <1% FDR | High | Clinical large-scale screening |
| PRM Quantification | CV <5% | Absolute quantification | Low-medium | Target verification |
- Current advancements address key challenges through:
- Material Science: COFs and nanobodies overcome steric hindrance limitations
- Chemical Biology: Covalent probes enable ultrasensitive detection
- Separation Science: Multidimensional chromatography expands coverage
- Analytical Technology: High-resolution MS with AI enhances accuracy
- Critical Needs for Standardization:
- Develop cleavable probes to reduce batch variation
- Establish automated data processing pipelines
- Promote multi-omics integration frameworks
- Expand clinical application protocols
The Future: Integration and Standardization
- Address batch-to-batch variability through cleavable probe designs
- Create standardized computational workflows for data processing
- Facilitate multi-omics data integration
- Expand clinical translation through optimized sample processing protocols
For differences between top-down and bottom-up approaches to histone PTM analysis, see "Comparing Top-Down vs Bottom-Up Approaches for Histone PTM Analysis".
Services you may be interested in:
Key Application Scenarios and Case Studies
In the competitive field of targeted drug discovery, understanding the epigenetic landscape is no longer a luxury—it's a necessity. For researchers and CROs, mastering low-input histone analysis techniques is crucial for translating limited clinical samples into viable therapeutic insights. This article explores three groundbreaking spatial epiproteomics studies, detailing their methodologies and their significant implications for oncology and immunology research.
Case Study 1: Mapping Tumor Microenvironments with Precision Epigenetics
Technical Breakthroughs and Methodological Advantages
- Micro-Sample Processing Capability
- Reduces required sample size by 500-fold: analysis feasible with only 1,000 cells
- Developed optimized in-gel PRO-PIC digestion protocol enabling quantification of 38 differentially acetylated/methylated histone peptides
- Automated analysis via EpiProfile software eliminates multiple steps from traditional Arg-C-like digestion and in-solution processing
- Sample Processing Innovations
- Simplified protein extraction using ultrasonic homogenization (Bioruptor system)
- Optimized dewaxing/rehydration steps and improved decrosslinking conditions (95°C/45 min + 65°C/4 h)
- Established ultra-low input histone enrichment protocol compatible with FFPE/OCT-embedded samples and laser microdissection (LMD) techniques
- Enhanced Analytical Sensitivity
- Implemented super-SILAC internal standards using heavy-labeled histones for quantitative precision
- Combined gel electrophoresis with liquid chromatography in multidimensional separation strategy
- Optimized propionylation (PIC) derivatization conditions for enhanced detection
Significant Research Findings
- Tumor Heterogeneity Characterization
- Identified significant H4 tetra-acetylation elevation in luminal A breast cancer
- Revealed epigenetic distinctions between tumor regions and adjacent normal tissues
- Discovered substantial epigenetic heterogeneity within individual tumors
- Immune Microenvironment Features
- Detected abnormal H4 hyperacetylation levels in tumor-infiltrating lymphocytes
- Provides novel biomarkers for immune cell activation status
- Correlation with improved prognosis in triple-negative breast cancer cases (Noberini R et al., 2021)
Performance of digestion methods for the analysis of histone PTMs from low-abundance samples (Noberini R et al., 2021)
Case Study 2: A Multi-Dimensional MS Approach for Primary Cell Analysis
Technical and Methodological Advantages
- Integrated Multidimensional MS Platform
This study pioneered the parallel implementation of two high-resolution mass spectrometry systems—the Orbitrap Elite and TripleTOF 5600 QTOF—significantly enhancing modification coverage and identification reliability through complementary collision-induced dissociation (CID) and electron transfer dissociation (ETD) techniques. - Innovative Sample Preparation
- Compared histone extraction efficiency between KIT-based and acid-based protocols
- Established a four-step propionylation derivatization process (two pre-digestion + two post-digestion rounds) to protect lysine residues and enhance modified peptide detection sensitivity
- Advanced Data Analysis Pipeline
- Implemented triple-algorithm validation (Peaks 6.0, Mascot, ProteinPilot 5.0) with 9 variable PTM parameters
- Maintained strict false discovery rate (FDR) control below 1% throughout analysis
Key Research Findings
- Novel Modification Discovery
- Identified previously unreported histone H4H75 methylation in primary macrophages
- Discovered multiple novel modification sites beyond canonical positions
- Primary vs. Transformed Cell Disparities
- Demonstrated globally reduced PTM levels in primary macrophages compared to transformed cell lines
- Identified 27 primary-cell-specific modification sites in resting state
- Detected citrullination at up to five arginine residues across histones H2B, H3, and H4
- Resource Development
- Established the first comprehensive histone PTM atlas for primary macrophages
- Achieved high-confidence identification of low-abundance modifications (FDR <1%)
- Delivered a standardized protocol for multidimensional MS platform implementation (Olszowy P et al., 2015)

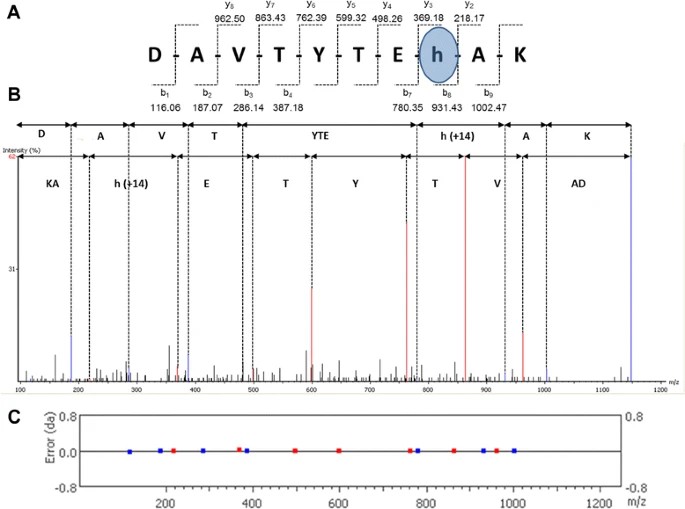

Identification of His monomethylation (Olszowy P et al., 2015)
Case Study 3: Capturing Dynamic Epigenetic Changes During Differentiation
Technical and Methodological Advantages
- Data-Independent Acquisition Mode
- SWATH-MS operates in a sequential window acquisition mode that systematically collects all theoretical ions, eliminating the pre-selection requirements of traditional data-dependent acquisition (DDA). This approach prevents stochastic missed detections and enables precise discrimination of co-eluting peptides such as H3K18ac and H3K23ac.
- Ultra-High Precision Quantification
- Achieves quantitative dynamic range spanning four orders of magnitude (10⁴)
- Maintains average coefficient of variation (CV) below 9%
- Detects very low-abundance modifications (e.g., H3K9me2S10ph) at relative abundances as low as 0.02%
- Exceptional Reproducibility and Reliability
- Demonstrates high retention time reproducibility (mean CV: 3.38%)
- Shows strong consistency across quantitative fragment ions (CV <15%)
- Supports cross-validation using multiple fragment ions
Key Research Findings
- Comprehensive Modification Combination Mapping
- Identified 17 distinct PTM combinations within histone H3 peptides (residues 27-40)
- Detected 1,097 differentially modified peptides spanning single to triple modifications
- Epigenetic Dynamics in Stem Cell Differentiation
- Revealed significant modification differences during differentiation of human embryonic stem cells (H9 line) and mouse trophoblast stem cells
- Established dynamic histone modification maps across developmental stages (Sidoli S et al., 2015)

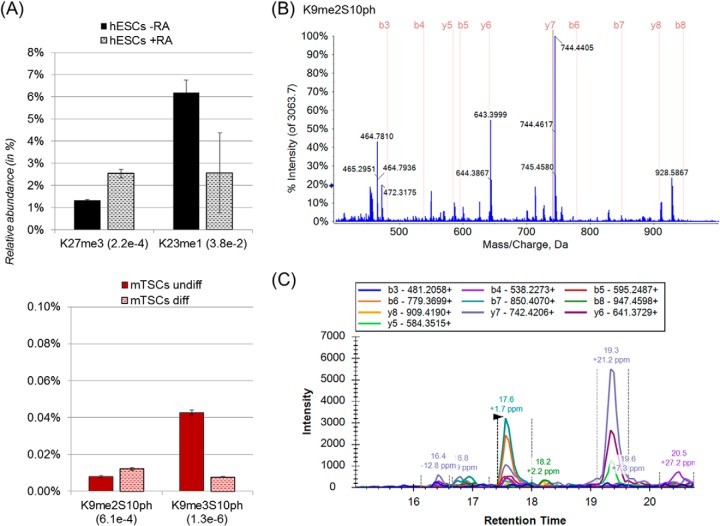

Precise quantification of remarkably low histone H3 peptides (Sidoli S et al., 2015)
Technological Limitations and Future Directions
Current Challenges and Innovative Pathways
- Antibody Batch Variability: Developing cleavable probes (e.g., photosensitizer-biotin conjugates) to address reproducibility issues
- Ultra-Low Abundance Modification Detection: Employing single-molecule mass spectrometry (SMRT-MS) to reduce quantitative noise
- Dynamic Modification Resolution: Implementing flash-enrichment strategies for capturing transient modifications
- Spatial Heterogeneity Gaps: Integrating spatial omics technologies (e.g., MALDI imaging mass spectrometry)
Conclusion and Strategic Outlook
Research on low-abundance histone PTMs necessitates multidisciplinary integration of material chemistry, probe design, and advanced instrumentation. Synergistic application of aryl diazo covalent enrichment, bio-orthogonal labeling, and high-resolution DIA mass spectrometry is advancing modification detection into deep-coverage eras. Future developments in single-cell histone analysis and in situ capture technologies will enable higher-dimensional epigenetic network mapping.
Technical Performance Comparison and Selection Guide
| Strategy | Sensitivity | Throughput | Applicable Scenarios | Limitations |
|---|---|---|---|---|
| Chemical Covalent Enrichment | Amol-level | Medium | Methylation dynamics studies | Requires customized probes |
| Non-Enrichment MS (Orbitrap Astral) | High | High | Clinical large samples, native-state analysis | Complex data interpretation |
| Antibody Optimization (CUT&Tag) | High | Medium | Single-cell/low-input samples | Batch-to-batch variability |
| Top-Down MS | Low-Medium | Low | Complex modification mapping | Demands extreme sample purity |
Future Perspectives: Technology Convergence and Precision Analytics
- Cleavable Probe Development: Acid-degradable materials (e.g., Rapigest) enable probe removal post-enrichment, eliminating antibody batch effects
- Single-Cell Multi-Omics Integration: Linear amplification techniques (e.g., TIP-seq) enhance scMTR-seq homogeneity while correlating transcriptomes with PTMs
- In Situ Dynamic Capture: Microfluidic chips integrated with photo-crosslinking probes enable real-time in vivo modification monitoring
- AI-Driven Mass Spectrometry: Deep neural networks decode DIA data to reduce false positive rates
Methodological Recommendations
- Multidisciplinary Framework Requirements:
- Chemical Enrichment (e.g., aryl diazo probes) for sensitivity breakthroughs
- Non-Enrichment MS (e.g., Orbitrap Astral) to prevent artificial bias
- Multidimensional Integration (DIA + Top-Down MS) for dynamic and compound modification analysis
- Scenario-Specific Selection:
- Clinical Diagnostics: Non-enriched DIA-MS (high throughput) + aryl diazo enrichment (high sensitivity)
- Mechanistic Studies: Chemical probe dynamic capture + CUT&Tag (single-cell resolution)
- Novel Modification Discovery: COF material enrichment + Top-Down MS validation
References
- Yan L, Zheng M, Fan M, Yao R, Zou K, Feng S, Wu M. A Chemoselective Enrichment Strategy for In-Depth Coverage of the Methyllysine Proteome. Angew Chem Int Ed Engl. 2024 Oct 7;63(41):e202408564.
- Noberini R, Savoia EO, Brandini S, Greco F, Marra F, Bertalot G, Pruneri G, McDonnell LA, Bonaldi T. Spatial epi-proteomics enabled by histone post-translational modification analysis from low-abundance clinical samples. Clin Epigenetics. 2021 Jul 28;13(1):145.
- Olszowy P, Donnelly MR, Lee C, Ciborowski P. Profiling post-translational modifications of histones in human monocyte-derived macrophages. Proteome Sci. 2015 Sep 24;13:24.
- Sidoli S, Lin S, Xiong L, Bhanu NV, Karch KR, Johansen E, Hunter C, Mollah S, Garcia BA. Sequential Window Acquisition of all Theoretical Mass Spectra (SWATH) Analysis for Characterization and Quantification of Histone Post-translational Modifications. Mol Cell Proteomics. 2015 Sep;14(9):2420-8.
