Comparing Top-Down vs Bottom-Up Approaches for Histone PTM Analysis

Histone post-translational modification (PTM) represents a fundamental epigenetic mechanism that critically influences gene expression, chromatin architecture, and cellular differentiation. In studying these multifaceted modifications, two primary methodologies in mass spectrometry emerge: Top-Down and Bottom-Up strategies. These approaches differ fundamentally in their technical execution, depth of information obtained, and suitability for specific research applications.

A. The Top-Down Mass Spectrometry Approach: Analysing Intact Histones

Analysing intact proteins delivers unparalleled insights into complex biological processes. A Top-Down Mass Spectrometry approach is transformative for researchers in monoclonal antibody production and epigenetic drug discovery. It allows us to see the complete picture of histone modifications, a critical factor in cellular regulation. This method is essential for characterising critical quality attributes in biologics development.

1. Core Principles

Unlike traditional protein digest methods, the Top-Down strategy analyses whole histone proteins. It uses high-resolution mass spectrometers, like the Orbitrap Fusion Lumos. This preserves the protein's natural state and all its existing modification patterns. We can simultaneously identify multiple modifications on a single histone molecule. For example, it can detect the co-occurrence of H3K27me3 and H4K16ac on the same protein, revealing intricate biological stories.

2. A Carefully Designed Workflow for Delicate Proteins

• Gentle Sample Preparation: The first step uses non-denaturing buffers with protease inhibitors for cell lysis. This careful extraction prevents histone degradation and maintains their native structure.
• High-Resolution Separation: Before analysis, histones must be purified.
  • Liquid Chromatography (LC): Techniques like HPLC effectively separate different histone variants (e.g., H3 from H4).
  • Size Exclusion Chromatography (SEC): This step removes contaminants and enriches the target histone complexes, ensuring a cleaner sample for analysis.
• Soft Ionisation and Mild Fragmentation: This is key to the technique's success.
  • Ionisation: Electrospray Ionisation (ESI) is commonly used as it interfaces well with liquid chromatography. Matrix-assisted laser desorption/ionisation (MALDI) offers an alternative for rapid screening of intact proteins.
  • Fragmentation: Instead of harsh methods, we use gentle techniques like Electron Transfer Dissociation (ETD). ETD excels at cleaving peptide bonds while leaving fragile modifications (like phosphorylation) intact. Electron Capture Dissociation (ECD) is also highly effective for achieving extensive sequence coverage, particularly on histone tails.

3. Interpreting the Complex Data

The highly detailed spectra generated require powerful, specialised software for interpretation.

Advanced algorithms (e.g., ProSight PTM, TOPPIC) deconvolute the data. They pinpoint modification sites and combinations by calculating precise fragment ion mass differences.

The analysis integrates highly charged fragment spectra with comprehensive database matching (using resources like UniProt) and modification mass shift libraries (e.g., UniMod) for confident identification.

4. Navigating Challenges and Embracing New Solutions

While powerful, the technique has limitations that are being actively addressed by new technologies.

Analysing Larger Proteins: Proteins over 50 kDa can have reduced ionisation efficiency. Pre-separation techniques, such as GELFrEE electrophoresis, help overcome this by isolating smaller fractions.

Detecting Rare Modifications: To study low-abundance modifications, targeted enrichment is often necessary. Antibody-based immunoprecipitation is a standard method to boost detection sensitivity for specific marks.

Increasing throughput: The field is moving towards higher-speed analysis. Integration with advanced platforms like 4D proteomics (e.g., Bruker's timsTOF) is dramatically accelerating intact protein analysis, making the technique more accessible for large-scale studies.

B. The Bottom-Up Proteomics Strategy: A Detailed Guide

The Bottom-Up approach is a cornerstone technique for detailed histone analysis. It provides exceptional sensitivity for identifying post-translational modifications (PTMs). This method is invaluable for epigenetic research and biomarker discovery programs. Understanding its workflow and limitations is key to generating reliable, high-quality data.

1. Unpacking the Bottom-Up Workflow

This strategy involves breaking proteins into smaller peptides before mass spectrometry analysis. This allows for highly sensitive detection of modifications.

Optimising the Digestion Process

The choice of enzyme dictates the peptides generated and the modifications you can detect.

• Enzyme Selection:
  • Trypsin: This is the standard workhorse. It cuts at lysine and arginine residues. Protocol refinement, like using low enzyme concentrations over extended periods, is often needed for complete digestion.
  • Alternative Enzymes: To get a different view, scientists use other enzymes. Glu-C cuts at glutamate, producing longer peptides that preserve modification contexts. Arg-C specifically targets arginine, avoiding issues caused by modified lysines.
• Preserving Modifications: A critical step is preventing the natural loss of PTMs during sample prep. Adding inhibitors, such as sodium butyrate to block deacetylases, maintains the modification landscape intact.

Modified Peptide Enrichment Strategies

• Phosphorylation: Metal-oxide affinity chromatography (MOAC) or TiO₂-based capture broadly enrich Ser/Thr/Tyr phosphorylated peptides
• Acetylation: Immunoaffinity enrichment using anti-acetyllysine antibodies offers high specificity, though at elevated antibody costs
• Ubiquitination: K-ε-GG antibodies enrich ubiquitinated peptides, with diGly remnant identification via HCD-MS³ fragmentation

Mass Spectrometric Advancements

• Fragmentation Modes:
  • Higher-energy collisional dissociation (HCD) generates high-accuracy fragments, enabling discrimination of ubiquitin linkage types (e.g., K48 vs. K63)
  • Data-independent acquisition (DIA) enhances reproducibility for low-abundance modified peptides in complex clinical samples
• Computational Analysis:
  • MaxQuant: Assigns modification site confidence using PTM localization scores
  • PhosphoRS: Specializes in precise phosphorylation site determination

2. Addressing Limitations with Modern Solutions

• Combinatorial Information Loss: Middle-down strategies (e.g., Glu-C digestion generating 3–9 kDa peptides) resolve local modification clusters (e.g., H31–50 segments)
• Digestion Bias: Chemically assisted digestion (e.g., dithiothreitol [DTT] reduction of disulfide bonds) improves accessibility in densely modified regions
• False-Positive Control: Orthogonal validation via immunoblotting (WB) or parallel reaction monitoring (PRM) ensures modification reliability

C. Top-Down vs. Bottom-Up Mass Spectrometry: A Strategic Guide

Choosing the right mass spectrometry strategy is critical for successful histone analysis. Your choice directly impacts the depth and type of data you acquire. This guide compares Top-Down and Bottom-Up approaches to inform your epigenetic research strategy. We will explore their core differences and ideal applications to help you select the best path.

1. Core Differential Analysis

The fundamental distinctions between Top-Down and Bottom-Up mass spectrometry approaches can be summarized across several critical dimensions:

• Modification Information Retention:
  • Top-Down: Preserves intact combinatorial modification patterns on single molecules (e.g., coexisting H3K4me3 and H3K27ac)
  • Bottom-Up: Provides single-site modification data but loses inter-site combinatorial relationships
• Throughput Efficiency:
  • Top-Down: Lower throughput (several hours per run), ideal for targeted protein characterization
  • Bottom-Up: High throughput (thousands of peptides per run), suitable for proteome-wide screening
• Sensitivity Performance:
  • Top-Down: Requires high protein abundance (detection limit >1%)
  • Bottom-Up: Detects low-abundance modifications (detection limit <0.1%)
• Technical Accessibility:
  • Top-Down: Demands advanced instrumentation (e.g., FT-ICR or high-end Orbitrap platforms)
  • Bottom-Up: Compatible with more accessible systems (e.g., Q-TOF or Orbitrap Exploris)

2. How to Choose the Right Strategy

Preferred Scenarios for Top-Down Approach

The Top-Down strategy is particularly advantageous when research objectives involve novel modification discovery or large-scale quantitative analysis. A recently developed online two-dimensional liquid chromatography-mass spectrometry (2D LC-MS/MS) platform exemplifies this application, enabling high-throughput characterization of histone modifications at the intact protein level.

Core Research Contributions

• Technological Innovation: Implementation of metal-free RPLC-WCX/HILIC-FTMS technology facilitates efficient histone mixture separation coupled with high-accuracy mass spectrometric identification.
• Substantial Findings: Analysis of merely 7.5 μg purified core histones permitted identification of 708 distinct histone isoforms (covering H4, H2B, H2A, and H3 variants) – surpassing traditional one-dimensional methods (∼130 identifications) by approximately 5-fold. This throughput breakthrough enables systematic discovery of novel histone proteoforms.
• Technical Resolution: The platform demonstrates enhanced capability for detecting labile modifications (e.g., phosphorylation representing 14% of total identifications), addressing a longstanding challenge in epigenetic analysis (Tian Z et al., 2012).

Overall experimental workflow as illustrated by the identification of H4 (P62805) isoform S1acK8acK12acK20me2 (Tian Z et al., 2012)

• Technical Superiority Over Bottom-Up Approaches:
• Why Top-Down Proteomics Was Essential

This methodology was critical for capturing the full complexity of the epigenetic response, far beyond what traditional methods offer.

The Top-Down strategy provides critical advantages for epigenetic studies:

This methodology directly reveals how metabolic states influence epigenetic regulation through quantifiable histone modification patterns (Taylor BC et al., 2025).

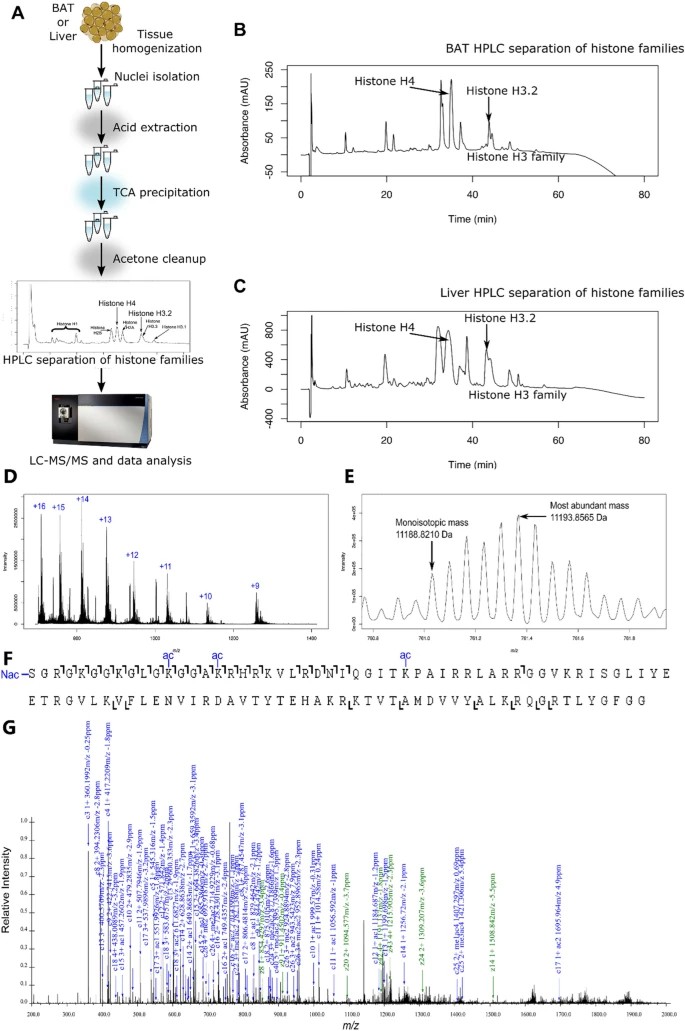

Workflow to obtain histone proteoform data from brown adipose tissue and liver (Taylor BC et al., 2025)

D. The Middle-Down Proteomics Strategy: Finding the Sweet Spot

For researchers in epigenetic drug discovery, choosing the right analytical tool is crucial. The Middle-Down strategy strikes an ideal balance between depth of information and practical throughput. This approach is rapidly gaining traction for histone analysis, offering a powerful compromise for characterizing critical quality attributes in complex biological samples. It provides a more complete picture than traditional peptide-based methods.

Why Consider a Middle-Down Approach?

This technique was developed to bridge a significant gap in proteomic analysis. It delivers more contextual data than Bottom-Up methods while being more feasible than full Top-Down analysis for many labs.

The core principle involves using specific enzymes, like Glu-C, to cleave histones into larger peptides (typically 3–9 kDa). These longer fragments preserve crucial clusters of modifications within key functional domains of the protein.

Key Advantages for Your Research

This methodology offers several distinct benefits that enhance epigenetic studies:

Resolves Local Modification Networks: It enables the mapping of coexisting modifications within specific regions, such as multiple PTM sites on a single H3 1-50 peptide.

Improved Practicality: It achieves sensitivity comparable to Bottom-Up approaches while maintaining a higher and more manageable throughput than full Top-Down protein analysis.

Unique Capabilities and Applications

The Middle-Down strategy offers distinctive analytical advantages:

Combinatorial Modification Analysis

Unlike traditional Bottom-Up methods that identify isolated modification sites, this approach analyzes large peptides (50–60 amino acids) while preserving combinatorial information across key histone tail residues (e.g., H3K27me2K36me2).

Dynamic Tracking Capacity

When integrated with metabolic labeling (using heavy isotope-labeled amino acids), the technique enables real-time monitoring of how modification patterns assemble on newly synthesized histones, providing unprecedented insights into epigenetic turnover kinetics.

Key Biological Insight: Rapid H3K27me3 Establishment

Application to epithelial-mesenchymal transition (EMT) revealed that the repressive mark H3K27me3 establishes significantly faster than H3K9me3. This suggests:

• Distinct dynamic properties among modification pathways during cellular reprogramming
• H3K27me3 may function as a rapid epigenetic switch initiating gene silencing
• Potential targeting opportunities for manipulating cell fate transitions (Sidoli S et al., 2017)

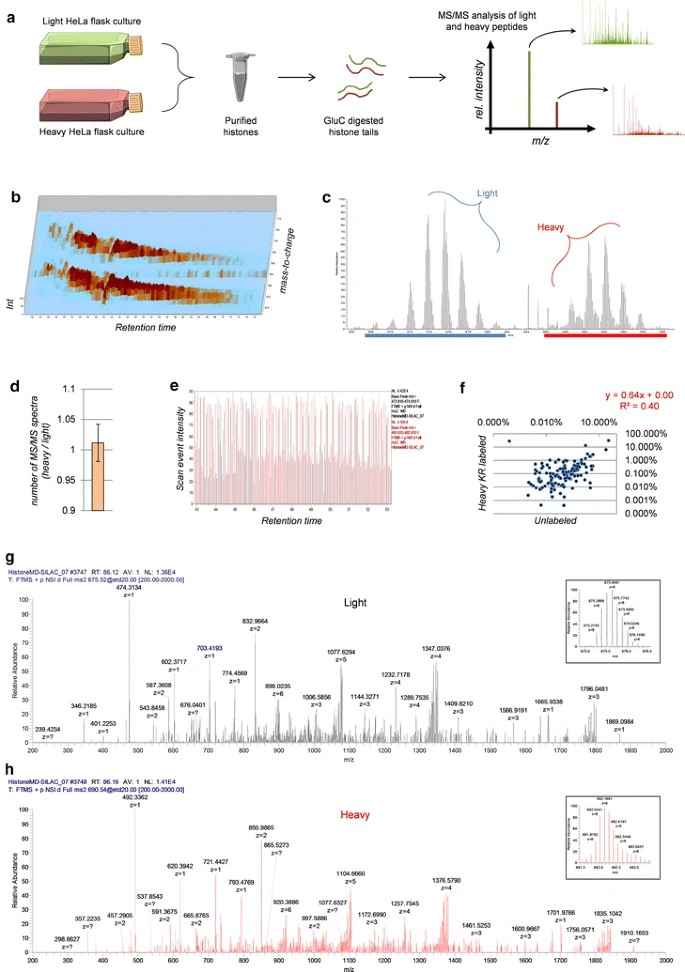

Analysis of histone H3 N-terminal tails from HeLa cells labeled with heavy lysine/arginine residues (heavy KR) (Sidoli S et al., 2017)

E. Choosing Your Mass Spectrometry Strategy: A Practical Guide

Selecting the right mass spectrometry approach is a critical first step in any proteomics project. Your choice directly impacts your ability to answer complex biological questions in drug discovery and development. This guide simplifies the decision-making process, helping you match your research objectives with the most effective mass spectrometry strategies to accelerate your pipeline.

Match Your Method to Your Research Goal

The optimal mass spectrometry approach should be selected based on specific research goals and requirements:

Complementary Strategic Integration

• Rather than opposing methodologies, these strategies form a complementary framework:
  • Primary Discovery Phase: Bottom-Up provides comprehensive modification mapping to identify disease-relevant targets
  • Mechanistic Investigation: Top-Down resolves complex modification patterns on specific proteins (e.g., H3 variant codes)
  • Technical Advancement: High-sensitivity platforms (e.g., Orbitrap Astral) enhance Top-Down throughput, while Middle-Down emerges as a potential new standard for histone PTM studies
• The ultimate selection should consider:
  • Specific scientific questions (combinatorial vs. single modification focus)
  • Available instrumentation (high-resolution mass spectrometry capability)
  • Sample throughput requirements
  • Required depth of mechanistic insight

Future Trends: Where the Field is Heading

• Throughput Enhancement: 4D mass spectrometry (e.g., timsTOF) significantly accelerates Top-Down analysis
• Artificial Intelligence Integration: Deep learning algorithms (e.g., AlphaFold-PTM) enable prediction of modification combinatorial patterns
• Multi-omics Convergence: Integration of ChIP-seq with Top-Down MS facilitates correlation of modification combinations with genomic localization
