Dealing with Isobaric PTMs: Strategies for Confident Histone Modification Identification

Accurately identifying histone post-translational modifications (PTMs) represents a fundamental challenge in epigenetic research. This is particularly true for isobaric PTMs—distinct modifications with identical or nearly identical molecular masses. For instance, the minimal mass difference between trimethylation and acetylation (approximately 0.036 Da) renders these modifications indistinguishable using conventional mass spectrometric techniques. Misidentification of such modifications can profoundly impact the interpretation of epigenetic regulatory mechanisms. This review systematically examines four strategic approaches overcoming this analytical limitation: advanced separation methodologies, innovative mass spectrometry techniques, sophisticated data analysis frameworks, and orthogonal verification protocols.

The Core Challenge of Analyzing Isobaric Modifications

Accurately characterising post-translational modifications is crucial for drug discovery and biomarker identification. Yet, one of the most persistent analytical hurdles involves isobaric modifications—different PTMs with nearly identical mass. This challenge impacts the reliability of epigenetic research and requires sophisticated solutions to resolve.

1. The Physical Measurement Hurdle

The core issue lies in the incredibly small mass differences between certain modifications.

• Exquisite Mass Precision Required: The mass difference between lysine trimethylation (+42.047 Da) and acetylation (+42.011 Da) is only 0.036 Da.
• High Instrumentation Demand: Distinguishing these modifications requires a high-resolution mass spectrometer (resolution > 100,000), which is not always available.
• Isotopic Interference Complication: Even when distinguishable, overlapping isotope peaks from other ions increase spectral complexity and hinder analysis.

2. The Problem of Chemical Isomers

Beyond simple mass, the chemical context creates another layer of complexity.

• Formation of Isobaric Isomers: Different modification combinations on the same peptide (e.g., H3K9me3/K14ac vs. H3K9ac/K14me3) yield molecules with identical mass.
• Co-elution During Chromatography: These isomers possess similar chemical properties, causing them to simultaneously elute from the chromatography system.
• Mixed Fragmentation Spectra: Co-eluted peptides fragment together, producing a combined MS/MS spectrum that is challenging to interpret and reduces identification confidence.

3. Why Traditional Methods Fall Short

• Antibody-Based Techniques (e.g., ChIP-seq, Western Blot):
  • Poor Specificity: Antibodies are prone to cross-reactivity (e.g., inability to distinguish Kme3 from Kac perfectly).
  • Low Throughput: Typically, only one modification can be targeted in a single experiment.
  • Detection Blind Spots: Novel or unanticipated modifications cannot be detected.
• Conventional Mass Spectrometry Strategies (e.g., DDA):
  • Detection Bias: The Data-Dependent Acquisition (DDA) mode frequently misses low-abundance modified peptides.
  • Fragmentation Limitations: Common fragmentation methods (CID/HCD) can cause loss of unstable modifications (e.g., acetylation, phosphorylation).
  • Inability to Resolve Mixtures: DDA struggles to deconvolute the mixed signals from co-eluted isobaric peptides.

4. The Path Forward: Integrated Solutions

A convergence of physical measurement limits, inherent chemical complexity, and methodological insufficiencies hinders the analysis of isobaric modifications. Overcoming this requires innovative, integrated strategies combining advanced instrumentation and novel computational approaches.

If you want to know the enrichment strategy for low abundance histone PTMS and related matters, please refer to "Enrichment Strategies for Low-Abundance Histone PTMs: Challenges and Solutions".

Breakthrough Strategies: From Separation to Verification

Accurate analysis of post-translational modifications is vital for drug discovery and advancing biomarker identification. Traditional methods often fail to distinguish subtle differences between key modifications. Here, we explore three advanced strategies that enhance physical separation and detection, moving beyond the limitations of standard workflows.

1. Enhanced Chromatography: Smarter Separation

The key to resolving complex samples lies in superior chromatography that exploits multiple peptide properties.

WCX-HILIC: A Two-Pronged Approach

• Principle and Advantages: This approach intelligently integrates two complementary separation mechanisms.
  • Weak Cation Exchange (WCX): Separates peptides based on their net charge at a specific pH. Positively charged peptides interact electrostatically with negatively charged groups on the stationary phase and are subsequently eluted using a mobile phase with an increasing ionic strength (salt gradient).
  • Hydrophilic Interaction Chromatography (HILIC): Operates under high organic phase conditions (typically >60% acetonitrile), where peptides are retained through interactions with a hydrated layer on the stationary phase's surface. Elution is achieved by reducing the organic phase concentration (increasing the aqueous phase).
• Synergistic Effect: The WCX-HILIC combination exhibits superior separation capabilities for positively charged and hydrophilic phosphorylated peptides, effectively addressing the issue of poor retention and frequent loss observed in standard reversed-phase chromatography (RPLC).
• Case Study: Employing ethylenediamine acetate as a buffer to substitute for conventional ammonium acetate, optimizes the pH and enhances ion exchange efficiency during the WCX phase. This significantly improves the resolution of complex modification patterns on the H4 tail peptide (e.g., peptides containing K12ac and K16ac), distinguishing previously co-eluting isobaric species.

Porous Graphitic Carbon (PGC): Capturing the Elusive

• Principle: The PGC surface consists of a uniform SP2 hybrid carbon plane that adsorbs molecules via strong dispersive forces, showing particular affinity for polar and aromatic compounds.
• Advantages: Strongly hydrophilic peptides, such as short peptides with multiple modifications, are often poorly retained on conventional C18 columns and can be lost during desalting or loading steps. PGC material effectively captures these peptides, facilitating their introduction into the mass spectrometer and thereby increasing the identification rate of hydrophilic modifications (e.g., H3K4me3) by over 30%.

2. Chemical Derivatization: Guiding the Analysis

Chemical modification of samples can strategically simplify analysis and improve results.

• Propionylation/Trimethylacetic Anhydride (TMA) Labeling:
  • Objective: To circumvent the inefficient tryptic cleavage at lysine (Lys) residues, thereby generating longer peptides suitable for Middle-Down proteomics analysis, encompassing multiple modification sites.
  • Mechanism: Histones are treated with chemical agents (propionic anhydride or TMA) to derivative all free Lys ε-amino groups and the protein N-terminus. This blocks recognition by trypsin, restricting cleavage solely to arginine (Arg) residues and producing longer peptides (typically 50-60 amino acids, such as the entire H3 N-terminal tail).
  • Advantages of TMA: Trimethylacetic anhydride serves as an optimized reagent substitute for propionic anhydride, offering greater steric hindrance that markedly reduces non-specific peracylation side reactions on serine (Ser) and threonine (Thr) residues. It also improves the chromatographic separation of isobaric modifications like H3K27me3 (+42.047 Da) and H3K27ac (+42.011 Da).

3. Advanced Techniques for Precise Protein Analysis

Electron Transfer/Capture Dissociation (ETD/ECD)

• Principle: ETD fragments multi-charged peptides via electron transfer from radical anions, while ECD utilizes electron capture. Both are non-ergodic fragmentation processes that cleave the N-Cα bond along the peptide backbone, producing c- and z-type ions while preserving labile post-translational modifications (PTMs) such as phosphorylation and acetylation.
• Applications and Limitations: Considered the gold standard for PTM analysis, the efficiency of these methods is highly dependent on the precursor ion charge state (z), declining significantly for peptides with z < 3. To address this, ETD is often coupled with higher-energy collisional dissociation (HCD) in EThcD mode, simultaneously yielding ETD's modification retention and HCD's extensive fragment ion information.

Data-Independent Acquisition (DIA) and Ion Mobility Spectrometry (IMS)

• SWATH-DIA:
  • How it Works: Unlike data-dependent acquisition (DDA), which selectively fragments intense ions, DIA systematically fragments all ions within pre-defined, contiguous mass windows (e.g., 25 Da wide) across the full scan range.
  • Advantages: This strategy acquires fragmentation maps for all ions, eliminating selection bias and ensuring exceptional quantitative reproducibility (CV < 9%). It is ideally suited for large-scale, high-precision histone PTM studies and can deconvolute signals from co-eluting peptides.
• Ion Mobility Spectrometry (IMS):
  • Principle: Separates ions in the gas phase based on their size, shape, and charge before mass analysis, characterized by their collision cross-section (CCS) value.
  • Advantages: IMS adds a complementary separation dimension to LC, effectively distinguishing isobaric species. For instance, peptides with H3K18ac and H3K23ac, though isobaric, may adopt distinct structures leading to different drift times.
  • Case Study: Coupling trapped ion mobility spectrometry (TIMS) with ECD successfully isolated and identified H3.1 tail isomers differing only in acetylation site placement (K18ac vs. K27ac).

General workflow of histone analysis using DI-MS (Sidoli S et al., 2019)

4. Moving Beyond Standard Data Analysis for Histone Research

Traditional proteomic software often misses key histone data. These programs filter out short, heavily modified peptides and overlook novel modifications. To overcome this, specialised histone data analysis strategies are essential for epigenetic drug discovery. These methods provide the deep, accurate profiling needed to identify novel therapeutic targets.

Histone-Specific Search Strategy (Chima)

• The Challenge: Standard search engines (e.g., MaxQuant), designed for general proteomics, often use settings suboptimal for highly modified histones, potentially filtering out short peptides or failing to identify novel modifications (e.g., crotonylation, lactylation).
• Chima Optimizations:
  • Customized Modification Library: Employs a specialized database inclusive of both common and novel histone PTMs, significantly boosting the identification rate for rare modifications (45-75% increase).
  • Dual Verification and Confidence Classification: Implements a tiered confidence system. Spectra with reasonable but incomplete evidence can be upgraded from "putative" to "confirmed" by verification against synthetically derived standard peptides analyzed via LC-MS/MS.
• Results: Re-analysis of existing datasets using the Chima strategy uncovered 113 previously missed histone modification sites.

Tracking Modification Dynamics with Metabolic Labeling

• pulsed SILAC (pSILAC): Tracks the dynamics of newly synthesized histone modifications by briefly switching cells to medium containing stable isotope-labeled amino acids (e.g., ¹³C₆-Lys). This revealed rapid acetylation turnover (hours) versus slow methylation turnover (days), linking modification dynamics to functional roles.
• Heavy Methyl SILAC (hmSILAC): Utilizes labeled methionine (e.g., L-[methyl-¹³C²H₃]-methionine), which leads to labeling of the methyl donor S-adenosylmethionine (SAM). This allows specific enrichment and quantification of newly deposited methylation events against a background of pre-existing modifications.

4. Validating Findings and Linking Modifications to Function

Synthetic Peptide Validation

This remains the gold standard for confirming PTM identifications. For any modification identified with ambiguity (e.g., novel PTMs or isobaric isomers), the suspected modified peptide is chemically synthesized and analyzed under identical LC-MS conditions. Confirmation is achieved by matching the retention time and fragmentation spectrum of the synthetic standard to the endogenous signal.

Single-Cell Multi-Omics Integration (scMTseq)

• Technological Advancement: This methodology enables the concurrent profiling of multiple histone modifications (e.g., H3K4me3, H3K27me3) and the full transcriptome within the same individual cell.
• Functional Insights:
  • Revealing Modification Cooperativity: Directly confirmed the existence of "bivalent promoters" at single-cell resolution, where the same genomic region co-harbors both activating (H3K4me3) and repressive (H3K27me3) marks, elucidating the epigenetic landscape of cell fate decisions.
  • Dissecting Regulatory Mechanisms: Demonstrated how the transcription factor TRPS1 binds to and impedes the deposition of the activating mark H3K27ac at specific genes in trophoblast cells, thereby repressing their expression and precisely guiding cell differentiation. This exemplifies how technological breakthroughs directly fuel biological discovery.

Application Scenarios and Future Directions

Clinical Research Application

A highly efficient and accurate "three-step methodology" was employed to identify and quantify histone post-translational modifications (PTMs) with nearly identical masses, such as methylation and acetylation.

Chemical Derivatization (Propionylation)

Histones were first treated with a chemical reagent (propionic anhydride) to propionylate all available, unmodified lysine residues. This "chemical locking" step ensures that subsequent enzymatic digestion occurs specifically at arginine residues. The result is the generation of longer peptides that contain multiple modification sites, thereby providing a more informative substrate for mass spectrometric analysis.

High-Resolution Mass Spectrometric Measurement

Ultra-high-resolution mass spectrometers (Orbitraps) functioned as precision instruments capable of discerning minute mass differences. This capability was crucial for distinguishing between isobaric modifications, such as the subtle 0.036 Da mass difference between trimethylation and acetylation.

Specialized Software Analysis (EpiProfile)

Quantification was performed using software specifically designed for histone PTM analysis. The relative abundance of a specific modification was calculated using the formula:

Relative modification level = Signal intensity of the modification / Sum of signal intensities for all possible modified forms of that peptide.

This targeted approach eliminates background interference and directly yields the precise proportional abundance of each modification state.

• Ultimate Objective: This integrated strategy successfully enabled the precise comparison of modification level alterations across various melanoma cell lines. Consequently, it facilitated the discovery of key epigenetic signatures strongly associated with cancer progression and metastatic behavior (Azevedo H et al., 2020).

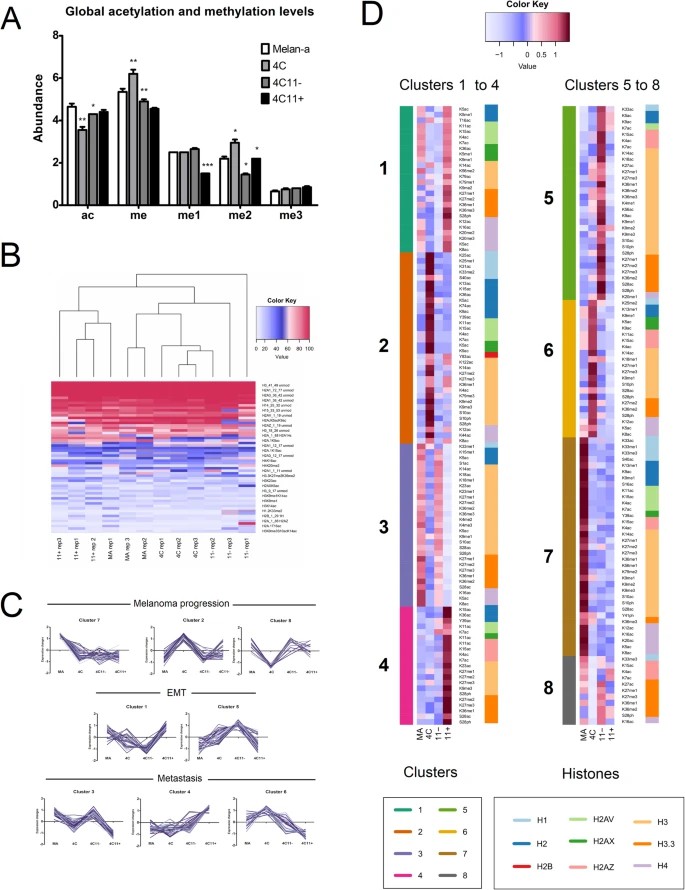

Analysis of global and combinatorial histone modifications (PTMs) during melanoma progression (Azevedo H et al., 2020)

A Closed-Loop Strategy Integrating Three Techniques for the Precise Quantification of Histone PTMs

1. Chemical Derivatization via Propionylation

• Procedure: Histone samples are treated with propionic anhydride prior to enzymatic digestion.
• Purpose: This reaction blocks all unmodified lysine residues and N-terminal amine groups, making these sites unrecognizable to trypsin.
• Outcome: Tryptic cleavage is restricted exclusively to arginine residues, generating longer peptide fragments (e.g., encompassing the entire H4 tail). These extended peptides contain multiple modification sites within a single sequence, providing more comprehensive information and a richer array of fragment ions essential for identifying isobaric modifications.

2. High-Resolution Mass Spectrometric Analysis

• Instrumentation: Analysis was performed using a high-performance mass spectrometer (LTQ-Orbitrap Velos).
• Key Capability: The instrument's exceptional mass accuracy is critical for resolving minute mass differences between PTMs.
• Example: It can differentiate the mere 0.036 Da mass disparity between trimethylation (+42.047 Da) and acetylation (+42.011 Da).
• Acquisition Mode: The data-dependent acquisition (DDA) mode was used to preferentially isolate and fragment target ions (e.g., from histones H3 and H4), enhancing detection specificity.

3. Relative Quantification Using Specialized Software

• Tool: Data processing was conducted with EpiProfile, a software package specifically designed for histone modification analysis.
• Quantification Principle: The relative abundance of a specific PTM is calculated as the extracted ion chromatogram peak area for that modified form divided by the sum of the peak areas for all possible modified variants of the same peptide.
• Advantage: This method effectively negates interference from co-eluting peptides, enabling precise discrimination and quantification of isobaric species (e.g., H3K27me3 vs. H3K27ac).

Summary

This integrated workflow combines:

• Chemical Derivatization to generate analytically advantageous long peptides.
• High-Resolution MS to deliver the requisite mass precision.
• Tailored Algorithms to enable accurate relative quantification.

This strategy successfully overcomes the challenge of identifying and quantifying isobaric histone PTMs. It has been reliably applied to monitor global dynamic changes in modifications like histone H4 polyacetylation during cell differentiation and to link specific epigenetic marks to the function of key regulatory proteins like BRD4 (Gonzales-Cope M et al., 2016).

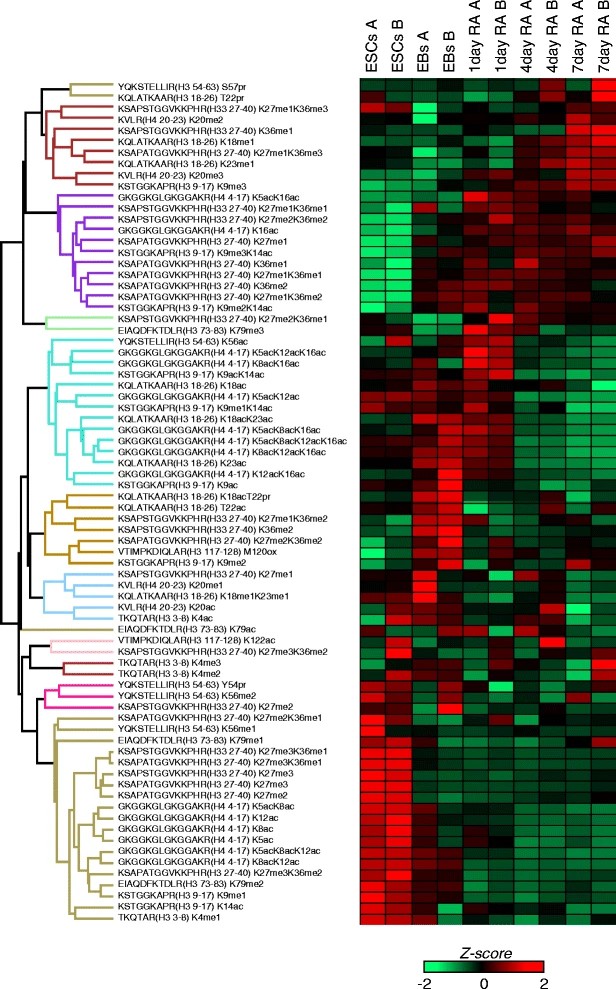

Heatmap of all quantified peptides using nLC-MS from histone H3 and H4 (Gonzales-Cope M et al., 2016)

Emerging Trends in Technology Convergence

• AI-Assisted Prediction: The integration of advanced deep learning computational models, such as AlphaFold for PTM prediction, enables the accurate forecasting of potential modification sites based solely on protein sequence data.
• Multidimensional Omics Integration: The combination of chromatin immunoprecipitation with mass spectrometry (ChIP-MS) is resolving the precise genomic localization and spatial distribution of histone modifications, thereby creating comprehensive epigenomic maps.

People Also Ask

What are the methods for detecting histone modification?

Mass spectrometry has recently become the preferred method for the identification and quantification of histone modifications.

What are the two main mechanisms by which histone modifications exert their effects?

Histone modifications exert their effects via two main mechanisms. The first involves the modification(s) directly influencing the overall structure of chromatin, either over short or long distances. The second involves the modification regulating (either positively or negatively) the binding of effector molecules.

How is chromatin immunoprecipitation used to determine the location of histone modifications?

Chromatin Immunoprecipitation (ChIP) is a widely used technique to determine the location of histone modifications on the genome. The basic workflow involves isolating chromatin from cells, immunoprecipitating histones with specific modifications, and identifying the genomic regions where these modified histones are located.

What region of histone proteins is found to be the most frequently post-translationally modified?

Perhaps due to their accessibility, the histone tails are the most post-translationally modified regions of the nucleosome and tail PTMs are intimately involved in many aspects of transcription, DNA repair, and DNA replication.
