Histone PTMs and Chromatin Structure Dynamics: Bridging Epigenetics and Structural Biology

Within the nucleus, chromatin forms the fundamental framework for gene expression. It serves two critical functions: safeguarding genetic information storage and transmission, while dynamically regulating gene activity. This regulation occurs through diverse molecular mechanisms that modulate chromatin structure. Histones represent central structural proteins within chromatin. Their role in orchestrating chromatin architecture and accessibility is particularly prominent. Recent advances in epigenetics and structural biology have increasingly recognized the importance of histone post-translational modifications (PTMs). These dynamic chemical alterations drive structural changes in chromatin, effectively bridging the conceptual and methodological gap between epigenetic regulation and structural mechanisms.

Histone Modifications and Chromatin Organization

Histone Modifications

Histone modifications represent a fundamental epigenetic mechanism governing chromatin dynamics. These chemical alterations directly influence chromatin compaction states, thereby regulating gene accessibility and gene expression. Common modification types and their functional consequences include:

1. Covalent Modifications

Chemical bonds attach these modifications to histone amino acid residues, altering charge distribution and spatial conformation to modulate chromatin function.

• Acetylation: Targets lysine residues (e.g., H3K9ac). Neutralizes positive charges, weakening histone-DNA affinity. This relaxes chromatin structure, facilitating transcription factor binding and enhancing transcriptional activation.
• Methylation: Occurs on lysine/arginine residues (e.g., H3K4me3 marks active genes). Functional outcomes depend on modification position and degree: while H3K4me3 promotes activation, H3K27me3 induces silencing.

2. Allosteric Modifications

These regulate chromatin states through conformational changes and recruitment of effector protein complexes.

• Ubiquitination: (e.g., H2BK120ub) Induces structural rearrangements in nucleosomes, modulating chromatin compaction and transcriptional regulation.
• Phosphorylation: (e.g., H3S10ph) Predominantly functions during cell division, coordinating chromosome condensation, segregation, DNA repair, and stress responses.

3. Topological Modifications

These govern chromatin's three-dimensional architecture and DNA accessibility.

• ADP-ribosylation: (e.g., H3R42ADPR) Alters histone-DNA interactions, influencing chromatin conformation and DNA openness to regulate transcription.

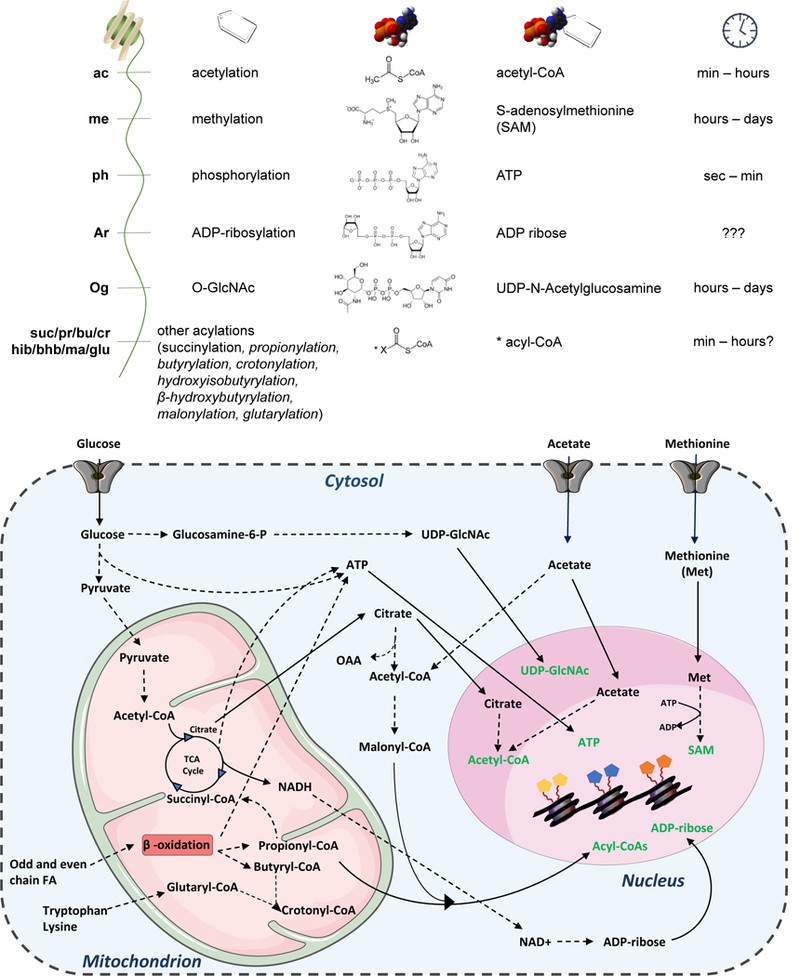

List of common histone PTMs, their immediate metabolic precursor and their estimated turnover rate (Simithy J et al., 2018)

Chromatin Structural Hierarchy

Chromatin organization operates across spatial and temporal dimensions, progressing from basic units to higher-order structures:

1. Nucleosomes

Fundamental repeating units where ~146 bp DNA wraps 1.65 times around a histone octamer (H2A, H2B, H3, H4). Nucleosome density and modification states directly determine chromatin accessibility.

2. 10-nm Fiber

Linear arrays of nucleosomes forming relaxed, transcriptionally permissive chromatin. This open configuration provides binding sites for transcriptional machinery.

3. 30-nm Fiber

Helical coiling of the 10-nm fiber into compact solenoids. This condensed structure represses gene expression and facilitates chromosomal organization.

4. Chromatin Loops

Folding of 30-nm fibers into anchored loop domains. These loops enable precise gene-regulatory interactions through spatial proximity.

5. Topologically Associating Domains (TADs)

Self-interacting genomic regions containing co-regulated genes and enhancers. TADs spatially constrain regulatory interactions, establishing insulated functional units.

6. Chromosome Territories

Discrete nuclear regions occupied by individual chromosomes. Territorial positioning influences gene expression patterns in a cell-type-specific and developmentally regulated manner.

Multi-Scale Chromatin Regulation by PTMs

Nucleosome-Scale Regulation: Charge Modulation and Structural Remodelling

Charge Neutralization Mechanism

Histone acetylation (e.g., H3K27ac, H3K9ac) eliminates lysine's positive charge, reducing electrostatic affinity between histones and DNA. This decompaction exposes gene regulatory elements, facilitating transcription factor binding and transcriptional activation. Promoter-enriched H3K27ac/H3K9ac serve as established biomarkers of active transcription (Hu N et al., 2025).

Allosteric Signalling Pathway

Conformational changes induced by modifications like H3K36me3 expose cryptic binding interfaces. This structural remodelling simultaneously regulates transcriptional elongation and recruits DNA repair machinery through H2B rearrangement, demonstrating dual functionality in genome maintenance (Sun Z et al., 2020).

30-nm Fiber Organization: Phase Separation Dynamics

Biomolecular Condensation

H3K9me3-triggered liquid-liquid phase separation enables HP1-mediated heterochromatin assembly. This physicochemical process establishes transcriptionally silent domains crucial for genomic integrity, extending beyond mere spatial compaction (Zhang J et al., 2024).

Repressive Domain Propagation

H3K27me3 recruits Polycomb repressive complex 2 (PRC2), creating a self-reinforcing feedback loop: PRC2 methylates adjacent nucleosomes, progressively expanding heterochromatic regions to maintain long-term transcriptional silencing (Guo Y et al., 2021).

Chromatin Loops and TAD Architecture

Enhancer-Promoter Circuit Formation

H3K4me1-marked enhancers recruit BRD4 and Mediator complexes. These co-activators facilitate CTCF/cohesin-mediated DNA extrusion, generating chromatin loops that spatially align regulatory elements with target promoters for precision transcriptional control (Lindqvist B et al., 2022).

Topological Boundary Enforcement

H4K20me2 stabilizes topologically associating domain (TAD) boundaries through direct SMC5/6 complex binding. This compartmentalization:

• Ensures coordinated gene expression within TADs
• Insulates regulatory crosstalk between adjacent domains
• Maintains 3D genome architecture integrity (Breimann L et al., 2022)

Cross-Scale Regulatory Integration

Multi-Level Coordination

• PTMs operate across structural hierarchies:
  • Nucleosomal acetylation simultaneously governs DNA accessibility and 30-nm fiber compaction
  • H3K4me3 coordinates transcription factor recruitment locally while organizing active chromatin hubs across TADs
  • H3K27me3 establishes repressive microenvironments from nucleosomes to loop configurations (Guo Y et al., 2021)

Nuclear Spatial Governance

• PTMs (e.g., H3K36me3, H3K4me3) regulate subnuclear chromatin positioning, determining exposure to:
  • Transcription factories
  • DNA repair complexes
  • Splicing machinery (Zhang T et al., 2015)

Remodelling Complex Recruitment

• ATP-dependent chromatin remodelers (SWI/SNF, CHD) interpret PTM patterns (H2A.Z, H3K9me2) to:
  • Catalyze nucleosome repositioning
  • Modulate chromatin accessibility
  • Implement gene silencing programs (Spracklin G et al., 2023)

Deconstructing Chromatin Dynamics via Structural Biology

1. High-Resolution Structure Determination

Technical Limitations and Applications

• Cryo-EM Single-Particle Analysis: Achieves 3-8 Å resolution for nucleosome-complex atomic models, though flexible chromatin regions remain challenging to resolve.
• Chromatin Electron Tomography: Visualizes in situ 3D chromatin architecture at 5-10 nm resolution, requiring cryo-fixed specimens that limit dynamic observations.
• X-ray Crystallography: Provides atomic-level detail (1.5-3 Å) of histone modification sites, but crystallization constraints prevent analysis of higher-order chromatin structures.

2. Dynamic Process Monitoring

Real-Time Tracking Approaches

• Single-Molecule FRET: Quantifies real-time DNA unwinding kinetics, revealing H3K9ac modification accelerates unwinding rates by 300%.
• Hi-C 3.0 with CUT&Tag: Maps spatial reorganization during cellular differentiation, demonstrating coordinated H3K27ac enrichment and chromatin loop remodeling in hematopoietic lineages.

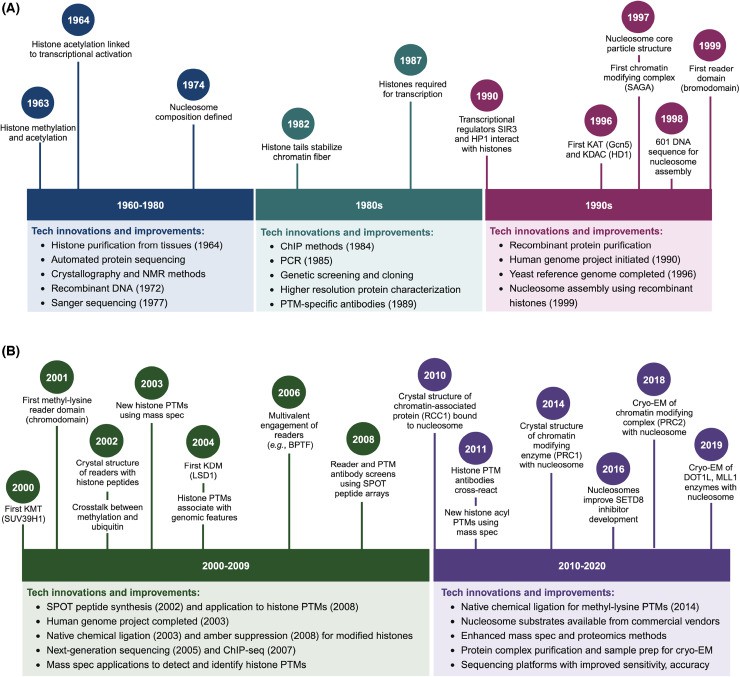

Our increasing understanding of chromatin biology, nucleosome structure, and histone PTM function was driven by continued technological innovation and improvement (Weinzapfel EN et al., 2024)

Disease associations driven by PTMS

Role of H3K27me3 in CNS Pathobiology

1. Core Molecular Functions

• Epigenetic Silencing: H3K27me3 constitutes a repressive histone mark involving trimethylation of histone H3 lysine 27. This modification maintains chromatin compaction through transcriptional silencing, exemplified by X-chromosome inactivation.
• Genomic Stability: As a heterochromatin signature, H3K27me3 safeguards chromosomal integrity by preventing illegitimate recombination and transcriptional noise.

2. Tumorigenic Mechanisms

• Pathological Consequences Across Cancers:
  • Diffuse Midline Glioma (DMG): H3K27M mutations (lysine→methionine) cause global H3K27me3 depletion → oncogene derepression (e.g., HOX clusters) → chromatin destabilization
  • Meningiomas: Grade 2 tumors with reduced H3K27me3 exhibit enhanced invasiveness and shortened recurrence-free survival
  • Posterior Fossa Ependymoma: H3K27me3 deficiency coupled with DNA hypomethylation predicts poor prognosis
• Key Molecular Drivers:
  • H3F3A/HIST1H3B/C mutations: Directly express H3K27M mutant proteins
  • EZHIP overexpression: Competitively inhibits EZH2 methyltransferase → indirect H3K27me3 reduction

3. Diagnostic Significance

• Immunohistochemical Hallmarks:
  • H3K27M⁺/H3K27me3⁻: Diagnostic for DMG (WHO Grade IV)
  • Double-negative (H3K27M⁻/H3K27me3⁻): Suggests EZHIP-overexpressing DMG subtype
• Molecular Stratification:
  • H3.1 mutations (pontine predominance; median survival: 15 months) confer better prognosis than H3.3 mutations (diffuse midline involvement; 11 months).

4. Therapeutic Implications

• Targeted Approaches:
  • EZH2 inhibitors (e.g., tazemetostat): Restore H3K27me3 levels (clinical trials ongoing)
  • DOT1L inhibitors: Disrupt compensatory epigenetic pathways
• Clinical Challenges:
  • H3K27me3 loss drives epigenetic plasticity → chemoresistance (e.g., temozolomide failure)
  • Anatomical location (pons > thalamus) outweighs mutational status in prognostic impact (Angelico G et al., 2024)

Diffuse midline glioma, H3 K27-altered (Angelico G et al., 2024)

H3K9me3 Regulation of Mammalian Spermatogenesis

1. Transcriptional Silencing Mechanisms

• Promoter Regulation:
  • During round spermatid development, H3K9me3 shows pronounced enrichment at promoters (particularly X-chromosomal genes), enforcing transcriptional repression
  • Dynamic remodeling occurs: promoter marks peak in pachytene spermatocytes but become partially erased in round spermatids, permitting post-meiotic gene reactivation
• Retrotransposon Control:
  H3K9me3 collaborates with DNA methylation to silence LTR/LINE elements through developmentally staged mechanisms:
  • Spermatogonial Stage: H3K9me3-mediated silencing predominates (pre-DNA methylation reestablishment)
  • Spermatocyte/Spermatid Stages: DNA methylation assumes primary silencing responsibility with progressive H3K9me3 loss

2. Sex Chromosome Dynamics

• Meiotic Inactivation: Pachytene spermatocytes deposit H3K9me3 across X-chromosome promoters, driving meiotic sex chromosome inactivation (MSCI)
• Post-Meiotic Remodeling: Round spermatids exhibit divergent epigenetic programming:
  • Escapee Genes (e.g., specific X-linked): H3K9me3/DNA methylation reduction enables reactivation
  • Silenced Genes (e.g., Y-chromosomal): Sustained H3K9me3/DNA methylation maintains repression

3. Genomic Imprinting Programming

• Paternal Imprinting Control Regions (ICRs): H3K9me3 actively maintains paternal methylation imprints throughout spermatogenesis
• Maternal ICRs: DNA methylation erasure occurs in spermatogonia independently of H3K9me3 regulation
• Paradigm Shift: H3K9me3 functions at ICRs demonstrate minimal correlation with DNA methylation patterns, challenging the conventional model where H3K9me3 recruits DNA methyltransferases (Liu Y et al., 2019).

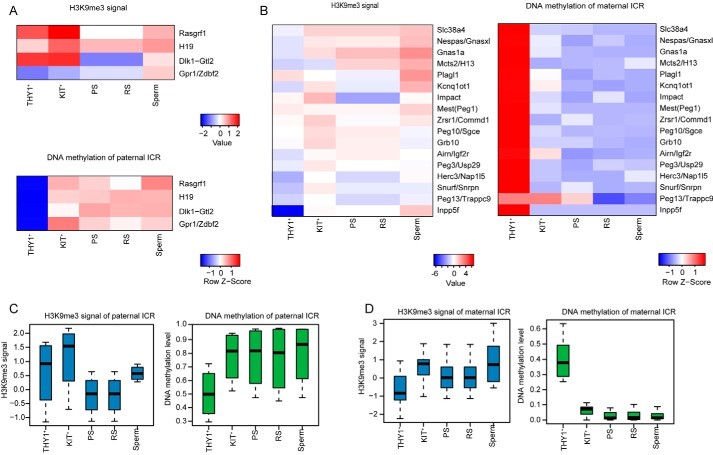

Dynamics of H3K9me3 modification and DNA methylation at gICRs during mouse spermatogenesis (Liu Y et al., 2019)

H3K36me3: Chromatin Regulation and Disease Mechanisms

1. Chromatin Structural Modulation

• Transcriptional Elongation Marker: H3K36me3 accumulates within actively transcribed gene bodies, maintaining chromatin accessibility and facilitating transcriptional elongation by RNA polymerase II.
• Epigenetic Antagonism Hub: The oncoprotein MDIG indirectly promotes chromatin compaction at pro-metastatic loci through H3K36me3 reduction, establishing an antagonistic regulatory axis.

2. Disease Pathogenesis (TNBC Paradigm)

• Molecular-Phenotypic Linkages:
  • Primary Tumor Growth: MDIG overexpression → H3K36me3 depletion → oncogene activation → accelerated proliferation
  • Metastatic Progression: MDIG suppression → H3K36me3 accumulation → pro-metastatic gene expression → invasion and dissemination
• Key Effector Pathways:
  • MAGED2 (X-chromosomal): H3K36me3 enrichment upregulates this cytoskeletal remodeler, enhancing cell migration (50% invasive phenotype reversal upon knockdown)
  • Lysosomal Genes (LAMP2/CTSD): Elevated H3K36me3 promotes extracellular matrix degradation, accelerating cancer cell extravasation

3. Pan-Cancer Relevance

Conserved Mechanisms: Lung cancer models (A549) replicate the axis: MDIG overexpression reduces H3K36me3 and suppresses invasion.

Clinical Prognostic Value: Elevated H3K36me3 predicts increased metastatic risk in TNBC, hepatocellular carcinoma (HCC), and prostate cancer, correlating with reduced patient survival (Thakur C et al., 2022).

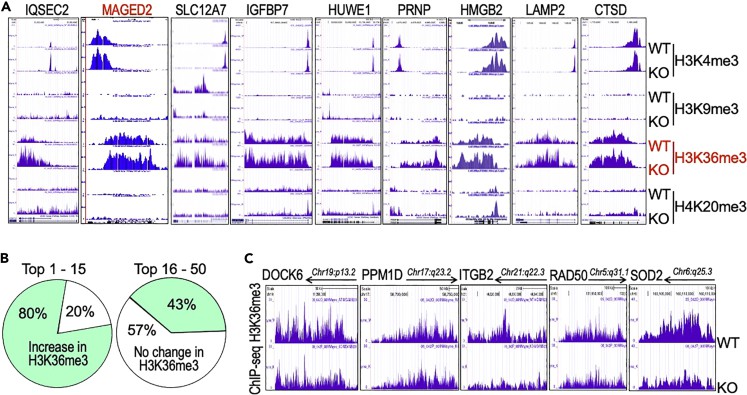

Correlation between the most increased expression of genes in metastasis and enhanced enrichment of H3K36me3 in the KO cells (Thakur C et al., 2022)

Cutting-Edge Technologies for Targeted Intervention

1. Epigenome Editing Tools

• CRISPR-dCas9 Fusion Systems:
  • dCas9-p300: Targets H3K27ac histone modifications to promote chromatin accessibility, thereby activating tumor suppressor genes.
  • dCas9-KRAB: Induces targeted H3K9me3 deposition, leading to chromatin condensation and oncogene silencing.
• Chemically Induced Dimer Systems: Enable recruitment of histone deacetylases (HDACs) to specific genomic locations, facilitating transient gene suppression.

2. Chromatin-Targeting Small-Molecule Drugs

• BET Inhibitors (e.g., JQ1): Block BRD4's recognition of acetylated histones, disrupting super-enhancer activity critical for oncogene expression.
• EZH2 Inhibitors (e.g., Tazemetostat): Prevent H3K27me3 deposition, potentially reversing the silencing of tumor suppressor genes.

Challenges and Future Directions

• Super-Resolution Dynamic Tracking: Advance live-cell chromatin imaging to achieve temporal resolution under 10 seconds.
• Quantitative Phase Separation Modeling: Develop thermodynamic and kinetic models describing droplet formation driven by histone post-translational modifications (PTMs).
• Synthetic Epigenomes: Engineer artificial PTM sequences to program defined cell fate transformation pathways.

Understanding histone ptms in neurobiology can be consulted "Histone PTMs in Neurobiology: From Memory to Neurodegeneration".

Conclusion

Research on histone PTMs and chromatin dynamics is evolving from structural characterization towards functional programming. Integrating cryo-EM, single-molecule imaging, deep learning, and synthetic biology will enable precise rewiring of epigenetic pathways. This convergence opens new paradigms for regenerative medicine and cancer therapy.

People Also Ask

How does histone modification affect chromatin structure?

Regulation of chromatin by histone modifications | Cell Research

Histone modifications exert their effects via two main mechanisms. The first involves the modification(s) directly influencing the overall structure of chromatin, either over short or long distances. The second involves the modification regulating (either positively or negatively) the binding of effector molecules.

What is the role of histone proteins in chromatin structure?

Histone proteins are highly conserved among all eukaryotes. They have two important functions in the cell: to package the genomic DNA and to regulate gene accessibility. Fundamental to these functions is the ability of histone proteins to interact with DNA and to form the nucleoprotein complex called chromatin.

What is the primary role of histone N terminal tails in chromatin structure and function?

Interactions of histone tails with nucleosomal and linker DNA modulate the nucleosome recognition by binding partners. Histone tail cleavage regulates chromatin structure and function. Histone tails play critical roles in the formation of higher-order chromatin structure.

Why are histone modifications important?

Histones are proteins that condense and package DNA neatly into chromosomes. Modifications to these proteins affect different processes in the cell such as the activation/inactivation of transcription, chromosome packaging, DNA damage and DNA repair.
