How to Interpret Lipidomic Data: a Comprehensive Guide

Lipidomics encompasses the systematic study of lipid molecules, encompassing their composition, structural characteristics, functional roles, and involvement in biological systems. Advances in mass spectrometry (MS) have driven the proliferation of high-dimensional lipidomic datasets, necessitating robust frameworks for extracting actionable insights. A critical challenge lies in translating raw spectral data into meaningful biological interpretations, requiring rigorous methodologies to unravel lipid interactions and pathway dynamics.

This review systematically delineates methodologies for lipidomic data interpretation, spanning initial data processing steps—including quality control, feature extraction, and metabolite annotation—through advanced analytical strategies such as multivariate statistical evaluation, pathway enrichment analysis, and biomarker discovery pipelines. By integrating technical principles with applied analytics, this work provides a roadmap for transforming complex lipidomic datasets into biologically relevant discoveries.

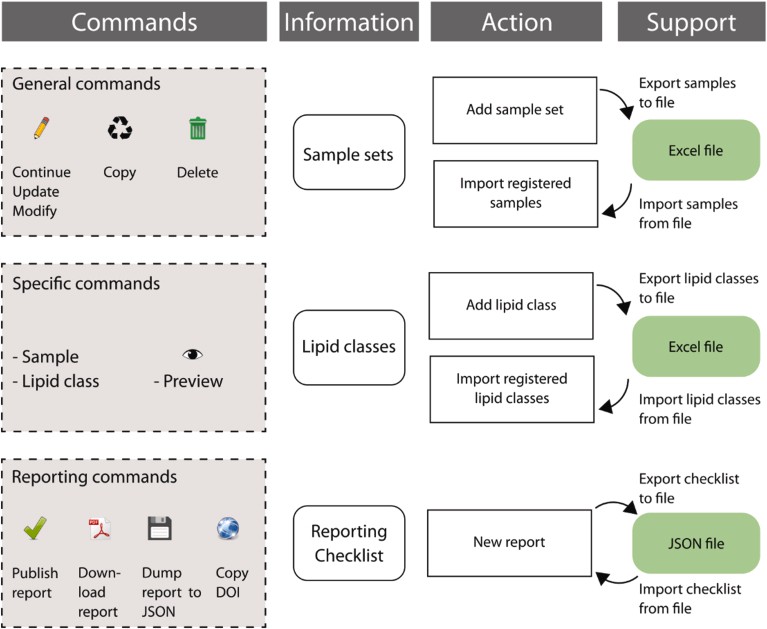

Scope and aim of the lipidomics reporting checklist (Kopczynski D et al., 2024).

Services You May Be Interested In:

Learn more

Comparative Analysis of Untargeted and Targeted Lipidomics

1. Data Preprocessing

Data preprocessing establishes the groundwork for lipidomic analysis, critically influencing the accuracy of downstream biological insights. This phase systematically addresses experimental and instrumental variability through rigorous data refinement, ensuring robust lipid identification and quantification. Below, we detail the technical principles, workflows, and quality control measures underpinning this process.

1.1 Feature Extraction

Objective: Identify and isolate lipid-specific ion signals from raw spectral data to construct a comprehensive lipid feature database.
Methodology:
- Software Selection: High-resolution MS data are processed via platforms like XCMS Online (open-source, scalable for large datasets) or Progenesis QI (commercial, matrix interference correction via proprietary algorithms).
- Parameter Optimization: Adjust m/z tolerance (±10 ppm) and retention time windows (±0.1 min) to balance sensitivity and specificity.
- Manual Verification: Low-abundance lipids (e.g., ceramides) require cross-referencing with retention time databases (e.g., LipidMaps).
Critical Considerations:
- Sensitivity-Specificity Trade-off: Excessive m/z tolerance introduces false positives (e.g., isomeric overlaps), while overly stringent thresholds miss trace signals.
- Dynamic Range Management: Quantile normalization mitigates signal suppression caused by abundant lipids (e.g., triglycerides).

1.2 Noise Mitigation

Objective: Enhance signal-to-noise ratios (S/N) by distinguishing true lipid peaks from background interference.
Approaches:
- Algorithmic Filtering:
  - Savitzky-Golay Smoothing: Local polynomial fitting (5–15-point window) preserves peak morphology.
  - Wavelet Transform: Multi-scale decomposition targets nonstationary noise (e.g., high-frequency artifacts).
  - Machine Learning: Random forest models trained on annotated lipid/noise libraries improve peak discrimination.
Precautions:
- Over-Smoothing Risks: Excessive filtering distorts peak shapes (e.g., shoulder peak loss); validate against raw spectra.
- Baseline Correction: Apply moving average or adaptive iterative reweighted penalized smoothing (AIRPLS) to address instrumental drift.

1.3 Retention Time Alignment

Objective: Correct chromatographic variability to enable cross-sample lipid comparisons.
Strategies:
- Dynamic Time Warping (DTW): Elastic alignment for datasets with significant retention time shifts (e.g., plasma lipidomics).
- Reference-Based Calibration: Anchor alignment using internal standards (e.g., PC 19:0/19:0) or conserved lipids (e.g., cholesteryl esters).
Quality Control:
- Batch Effect Correction: Apply ComBat algorithm to harmonize inter-batch variability.
- QC Monitoring: Ensure >80% of lipid features in QC samples exhibit alignment errors <0.05 min.

1.4 Data Normalization

Objective: Eliminate systematic biases from sample preparation or instrument response fluctuations.
Methods:
- Internal Standard Calibration: Isotope-labeled analogs (e.g., ¹³C-PC 16:0/18:1) enable absolute quantification.
- Total Ion Current (TIC) Scaling: Normalize signals relative to total ion intensity in label-free workflows.
Advanced Techniques:
- LOESS Regression: Nonparametric normalization for time-series data.
- Surrogate Variable Analysis (SVA): Removes latent confounders (e.g., metabolic state heterogeneity).
Validation:
- Class-Specific Adjustment: Stratify polar (e.g., phosphatidylcholines) and nonpolar lipids (e.g., triglycerides) due to divergent response factors.
- Distribution Testing: Shapiro-Wilk normality assessment; apply Box-Cox transformation for non-Gaussian data.

2. Structural Elucidation of Lipids in Lipidomics

The precise molecular identification of lipids constitutes a foundational step in lipidomic analysis, aiming to decode chemical structures and molecular species from mass spectrometry (MS) data to inform metabolic pathway investigations. This section outlines a tripartite framework encompassing analytical principles, computational tools, and quality assurance protocols.

2.1 Database-Driven Annotation

Objective: Achieve high-confidence lipid identification by aligning MS features with curated biochemical repositories.
Methodology:
- Data Resource Selection:
  - LIPID MAPS: A comprehensive repository spanning >400,000 lipid entries across eight classes (e.g., glycerophospholipids, sphingolipids), enabling hierarchical structural queries.
  - HMDB: Integrates lipid-metabolite associations to contextualize metabolic pathway dynamics.
- Annotation Workflow:
  - MS Feature Matching: Screen candidates via precursor ion mass (tolerance ±10 ppm) and retention time (±0.1 min window).
  - Fragment Validation: Corroborate identities using diagnostic fragments (e.g., m/z 184 for phosphatidylcholines).
- Quality Assurance:
  - Cross-Database Validation: Mitigate false positives by cross-referencing LIPID MAPS, KEGG, and HMDB.
  - Version Control: Quarterly updates to LIPID MAPS integrate newly characterized lipid species.

2.2 Fragmentation Pattern Analysis

Objective: Decipher structural details (e.g., acyl chain length, double bond positions) via MS/MS fragmentation patterns.
- Methodology:
- Tandem MS Strategies:
  - Collision-Induced Dissociation (CID): Variable collision energies (20–60 eV) generate isomer-discriminative fragments (e.g., PC 34:1 vs. PC 36:1).
  - Electron Transfer Dissociation (ETD): Preserve polar headgroups for sphingolipid characterization.
- Computational Tools:
  - LipidBlast: Spectral library-driven annotation (e.g., sn-2 fatty acid determination in triglycerides).
  - LipidXplorer: Rule-based analysis for complex lipids (e.g., sulfated ceramides).
- Validation Metrics:
  - Isotopic Pattern Verification: Validate against ¹³C-labeled lipid reference standards.
  - Machine Learning Filtering: Train random forest models to distinguish true fragments from noise.

2.3 Technical Challenges and Innovations

Isomer Resolution: Ion mobility spectrometry (IMS) resolves positional isomers (e.g., sn-1 vs. sn-2 acyl chains).
AI-Driven Prediction: Transformer-based models forecast fragmentation behaviors of novel lipids.
Standardized Databases: Initiatives like Lipidomics Gateway unify annotation criteria and quality metrics.

Reporting checklist data handling (Kopczynski D et al., 2024).

3. Statistical analysis

Statistical methodologies serve as the cornerstone for interpreting lipidomic datasets, enabling the elucidation of functional associations and regulatory networks through multidimensional modeling and hypothesis-driven inquiry. This section delineates analytical approaches across three domains: multivariate and univariate techniques, quality assurance protocols, and emerging integrative strategies.

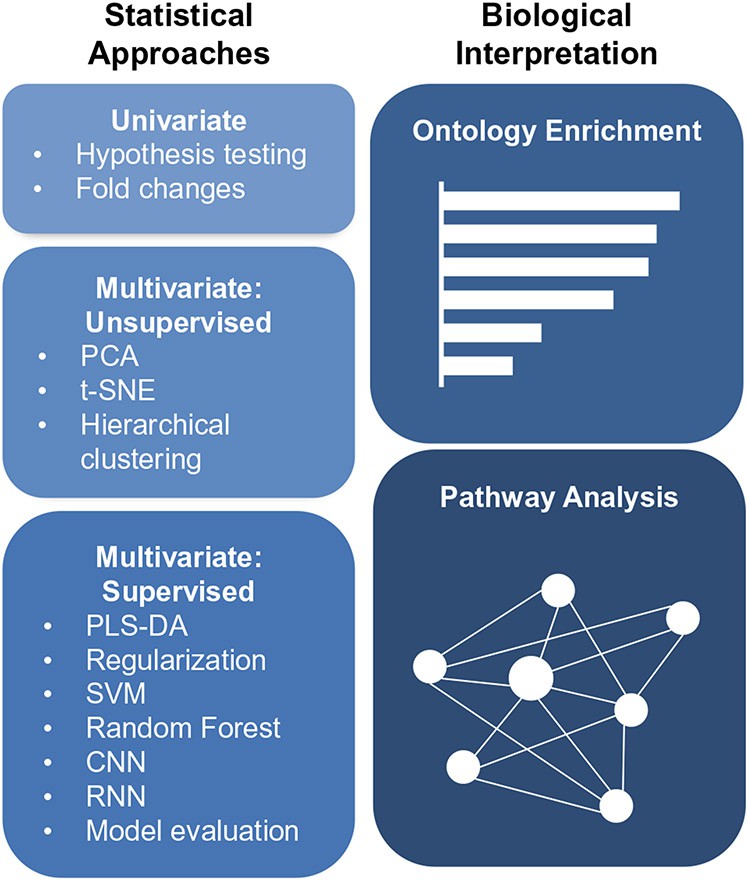

Overview of the analyses. Overview of the analyses (Chappel JR et al., 2024).

3.1 Multivariate Statistical Analysis

Objective: Uncover latent patterns within high-dimensional lipid data to identify phenotype- or disease-associated biomarkers and pathways.
Methodologies:
- Principal Component Analysis (PCA):
  - Dimensionality Reduction: Orthogonal transformation projects lipid features into lower-dimensional spaces (e.g., three principal components accounting for >80% variance), facilitating visualization of sample clustering or outliers.
  - Loading Analysis: Prioritize lipids driving group separation based on component contributions (e.g., PC 16:0/18:1 contributing >5% variance).
- Partial Least Squares-Discriminant Analysis (PLS-DA):
  - Variable Importance in Projection (VIP): Select discriminant markers (e.g., Cer d18:1/16:0) with VIP scores >1.0.
  - Model Validation: k-fold cross-validation (k=5–10) assesses predictive robustness (Q² >0.5 indicates strong performance).
Quality Control:
- Normality Assessment: Shapiro-Wilk test evaluates data distribution; Box-Cox transformations address non-normality.
- Multicollinearity Mitigation: Variance inflation factor (VIF <5) screens redundant variables to prevent overfitting.

3.2 Univariate Statistical Analysis

Objective: Quantify significant differences in lipid abundance across experimental groups.
Methodologies:
- Parametric Tests:
  - t-Test: Compare two independent groups (e.g., case vs. control) with Cohen's d effect size reporting.
  - ANOVA: Extend to multi-group comparisons (e.g., Tukey's HSD for treatment stages).
- Nonparametric Tests:
  - Mann-Whitney U Test: Analyze non-normally distributed data (e.g., phosphatidylinositol levels in murine models).
Quality Assurance:
- Multiple Testing Correction: Apply Bonferroni correction (stringent) or False Discovery Rate (FDR <0.05) adjustment.
- Effect Size Reporting: Supplement p-values with Cohen's d or AUC values (e.g., Cer d18:1/16:0 effect size d=1.2).

3.3 Integrative and Emerging Approaches

Machine Learning Integration:
- Random Forest: Rank lipids by feature importance scores (>0.8) for biomarker discovery.
- Support Vector Machines (SVM): Optimize classification boundaries using lipid signatures.
Pathway Enrichment Analysis:
- KEGG/WikiPathways: Identify enriched metabolic networks (e.g., sphingolipid metabolism, p=3.2×10⁻⁵).
Bayesian Network Modeling:
- Construct lipid-gene-phenotype interaction frameworks to infer regulatory mechanisms (e.g., ceramide-induced insulin resistance).

4. Metabolic pathway analysis

Metabolic Pathway Analysis in Lipidomics: Methodological Advances and Integrative Approaches

Pathway analysis serves as a pivotal component in lipidomic studies, bridging molecular profiles to biological function. By contextualizing lipid species within metabolic networks, this approach elucidates their roles in health and disease states through three key pillars: pathway annotation, enrichment evaluation, and emerging analytical innovations.

4.1 Metabolic Pathway Annotation

Objective: Map identified lipids to biosynthetic, catabolic, or regulatory pathways, revealing their mechanistic contributions.
Methodological Approaches:
- Database Integration:
  - KEGG PATHWAY: References >200 lipid-centric pathways (e.g., glycerophospholipid metabolism) for precise molecular-node associations.
  - MetaCyc: Specializes in niche pathways (e.g., mycosterol synthesis) for cross-species investigations.
- Annotation Strategies:
  - Structural Alignment: Match lipid backbones (e.g., sphingoid bases) to standardized database entries.
  - Reaction Dynamics: Infer pathway activity via enzyme-linked transformations (e.g., phospholipase A2-mediated hydrolysis).
- Validation Protocols:
  - Completeness Assessment: Ensure pathway coverage spans synthesis, modification, and degradation phases.
  - Multi-Database Consensus: Cross-reference HMDB and LIPID MAPS to minimize annotation biases.

4.2 Pathway Enrichment Evaluation

Objective: Identify pathways significantly altered under experimental conditions, linking lipid dynamics to phenotypic outcomes.
Analytical Frameworks:
- Statistical Models:
  - Overrepresentation Analysis: Hypergeometric testing quantifies pathway enrichment (e.g., sphingolipid metabolism, p = 2.1×10⁻⁵).
  - Small-Sample Rigor: Fisher's exact test assesses significance in limited datasets (e.g., triglyceride metabolism, FDR = 0.003).
- Computational Tools:
  - MetaboAnalyst 5.0: Enables multi-database (KEGG, Reactome) enrichment and network visualization.
  - Pathway Tools: Constructs custom networks to highlight regulatory nodes (e.g., lipid mediators in insulin signaling).
- Quality Assurance:
  - Multiple Testing Correction: Apply Benjamini-Hochberg adjustment (FDR < 0.05) to control false discoveries.
  - Biological Plausibility: Filter results via literature validation (e.g., exclude non-correlated lipid raft pathways).

4.3 Cutting-Edge Methodologies and Challenges

Dynamic Flux Analysis:
- Isotopic Tracers: Track real-time lipid trafficking (e.g., ¹³C-palmitate β-oxidation in hepatocytes) using stable isotope labeling.
Predictive Modeling:
- Graph Neural Networks (GNN): Forecast lipid-enzyme-pathway interactions (e.g., ceramide-sphingomyelinase binding dynamics).
Multi-Omic Integration:
- Data Fusion: Combine transcriptomic/proteomic datasets to dissect upstream regulators (e.g., SREBP-1c-driven cholesteryl ester synthesis).
Persistent Challenges:
- Isotope Standard Accessibility: Limited availability of labeled lipids for flux studies.
- Model Interpretability: Balancing complexity and transparency in machine learning applications.

5. Biomarker Discovery

The identification of lipid biomarkers stands as a central goal in lipidomics, aiming to pinpoint lipid species associated with disease mechanisms, progression, or therapeutic responses through systematic discovery and validation. This section outlines a tripartite framework encompassing differential analysis, validation protocols, and emerging technologies.

5.1 Differential Lipid Profiling

Objective: Identify candidate biomarkers by contrasting lipid profiles between healthy and diseased cohorts.
Methodologies:
- Multidimensional Comparative Evaluation:
  - Volcano Plot Analysis: Identifies differentially abundant lipids (e.g., ceramide Cer d18:1/16:0) using thresholds for fold change (FC > 2) and statistical significance (p < 0.05).
  - Heatmap Clustering: Hierarchical clustering (e.g., Ward's method) visualizes lipid expression patterns, highlighting disease-specific signatures (e.g., reduced triglyceride TG 54:3 in hepatocellular carcinoma).
- Multivariate Modeling:
  - Supervised Multivariate Models: Orthogonal partial least squares-discriminant analysis (OPLS-DA) extracts phenotype-associated lipids (e.g., phosphatidylcholine PC 16:0/18:1 with variable importance in projection (VIP) > 1.5).
  - Feature Ranking: Random forest quantifies lipid contributions to classification (e.g., Cer d18:1/24:0 Gini index > 0.8).
- Quality Assurance:
  - Multiple Hypothesis Testing: Benjamini-Hochberg adjustment controls false discovery rate (FDR < 0.05).
  - Batch Effect Mitigation: ComBat algorithm harmonizes inter-batch variability (e.g., cross-instrument data).
  - Replication Robustness: Require ≥3 biological replicates with coefficient of variation (CV) < 15%.

5.2 Biomarker Validation

Objective: Assess specificity, sensitivity, and clinical utility of candidate markers.
Methodologies:
- Targeted Quantification:
  - Multiple Reaction Monitoring (MRM): Optimizes collision energy (CE 30 eV) for specific ion transitions (e.g., Cer d18:1/16:0 m/z 648→264).
  - Absolute Quantification: Isotope-labeled standards (e.g., ¹³C-Cer d18:1/16:0) enable precise concentration measurements (ng/mL).
- Clinical Validation:
  - Independent Cohort Testing: Validates diagnostic accuracy in ≥100 samples (AUC > 0.8 in ROC analysis).
  - Longitudinal Monitoring: Tracks marker dynamics during disease progression (e.g., >30% concentration shift post-treatment).
- Quality Control:
  - Standardization: Adherence to CLSI/ISO 17025 protocols ensures reproducibility.
  - Model Generalizability: K-fold cross-validation (k = 5–10) confirms robustness (Q² > 0.7).
  - Clinical Relevance: Correlates markers with endpoints (e.g., overall survival hazard ratio HR = 2.1, 95% CI 1.4–3.2).

5.3 Innovations and Challenges

Machine Learning-Driven Discovery:
- Ensemble Models: XGBoost identifies combinatorial markers (e.g., PC 16:0/18:1 + Cer d18:1/16:0 achieves AUC = 0.92).
- Deep Neural Networks: Convolutional neural networks (CNNs) detect latent metabolic patterns (e.g., sphingolipid dysregulation subtypes).
Single-Cell Resolution:
- Nano-Electrospray Ionization (nESI): Profiles lipid heterogeneity at single-cell levels (e.g., ceramide C16:0 distribution in tumor microenvironments).
Systems Biology Integration:
- Network Pharmacology: Maps lipid-gene-pathway interactions (e.g., Cer d18:1/24:0 modulation of PPARγ signaling).

6.Data Visualization

Effective visualization of lipidomic data transforms complex datasets into interpretable insights, enhancing scientific communication and hypothesis generation. This section outlines methodologies for graphical representation, reporting frameworks, and emerging innovations, ensuring rigor and reproducibility.

6.1 Visual Analytics Strategies

Objective: Decipher lipid expression patterns, metabolic dynamics, and intergroup variations through multidimensional graphical representations.
Methodologies:
- Differential Expression Visualization:
  - Volcano Plots: Plot log2(fold change) against −log10(p-value) to highlight lipids with significant abundance shifts (e.g., ceramide Cer d18:1/16:0, FC > 2, p < 0.05).
  - Manhattan Plots: Map lipid-genome associations in GWAS, flagging loci with stringent significance thresholds (e.g., p < 5×10⁻⁸).
- Metabolic Pathway Dynamics:
  - Enrichment Maps: Bubble charts depict pathway significance (e.g., sphingolipid metabolism, p = 3.2×10⁻⁵) via size and directional effects via color gradients.
  - Longitudinal Heatmaps: Track temporal lipid changes (e.g., 40% reduction in TG 54:3 post-treatment) across experimental phases.
- Interactive Exploration:
  - Cytoscape Networks: Visualize lipid-protein-gene interactions (e.g., Cer d18:1/16:0-PPARγ axis) with node-click annotations.
  - Plotly Dashboards: Dynamic scatterplots correlate lipid levels with clinical indices (e.g., BMI, blood glucose).
- Quality Assurance:
  - Axis Standardization: Apply uniform transformations (e.g., log2 for FC) to ensure cross-plot comparability.
  - Legend Optimization: Use categorical color schemes and annotations to minimize clutter.
  - Reproducibility: Share raw data and code (e.g., R/Python scripts) for independent verification.

6.2 Scientific Reporting Guidelines

Objective: Synthesize findings into coherent, visually supported narratives for peer-reviewed dissemination.
Methodologies:
- Report Structure:
  - Abstract: Concisely summarize objectives, methods, and key discoveries (e.g., "15 lipids linked to atherosclerosis identified").
  - Methods: Detail workflows (e.g., "XCMS Online peak extraction; PLS-DA screening (VIP > 1.5)").
  - Results: Pair figures with textual interpretation (e.g., "Heatmap reveals case-group triglyceride upregulation").
  - Discussion: Contextualize results against literature (e.g., "Cer d18:1/16:0 elevation correlates with inflammatory pathway activation").
- Visual Integration:
  - In-Text Referencing: Label figures sequentially (e.g., "Figure 2: Post-treatment PC 16:0/18:1 reduction").
  - Figure Legends: Describe data sources, statistical tests (e.g., "p < 0.05 via t-test"), and key takeaways.
- Collaborative Tools:
  - R Markdown: Generate interactive HTML/PDF reports with embedded code and resizable visuals.
  - Jupyter Notebook: Combine Python analytics with dynamic output for team-based editing.
- Quality Control:
  - Logical Consistency: Align figure interpretations with textual conclusions.
  - Terminological Uniformity: Standardize lipid nomenclature (e.g., "PC 16:0/18:1" vs. "PC 16:0-18:1").
  - Compliance: Adhere to journal guidelines (e.g., 300 dpi resolution, Helvetica fonts for Nature).

6.3 Emerging Technologies and Challenges

AI-Enhanced Visualization:
- Automated Plot Generation: Tools like Tableau Magic create visuals from natural language queries (e.g., "Generate PCA plot").
- Anomaly Detection: Machine learning (e.g., Isolation Forest) flags outliers (e.g., aberrant lipid profiles).
Immersive Exploration:
- VR-Driven Networks: Navigate 3D lipid-protein interactomes via VR headsets (e.g., Oculus Quest) with gesture-controlled manipulation.
Scalable Rendering:
- WebGL Applications: Browser-based visualization of large datasets (e.g., 10,000+ lipid spatial distributions).

If you want to know the difference between targeted and non-targeted, please see "Comparative Analysis of Untargeted and Targeted Lipidomics".

If you want to know more about non-targeting, please see "Overview of Untargeted Lipidomics".
