Protein Sequencing Methods Compared: Edman vs LC-MS/MS vs Nanopore

Introduction: How to Choose a Protein Sequencing Method

“Protein sequencing” can mean several different deliverables, depending on your study design. Sometimes you need a short, ordered N-terminal readout to confirm processing. Other times you need confident protein identification from a gel band. And in projects where the sequence is not in a usable database (engineered constructs, antibodies, non-model organisms), you may need de novo interpretation.

The fastest way to choose a method is to start from the biological question, then work backward to the kind of evidence each technology can realistically produce from your sample.

Quick Answer for Method Selection

Key Questions Before Choosing a Method

A method choice that looks “right” in a review article can fail in the lab because of one practical constraint. Before selecting a workflow, it helps to answer a short set of questions that determine what kind of evidence is achievable.

• Is the sample a purified protein, peptide, gel band, antibody, or complex mixture?
• Is the protein sequence known, partially known, or unknown?
• Is the goal N-terminal confirmation, protein identification, de novo sequencing, PTM mapping, or proteoform analysis?
• Is the project routine confirmation or exploratory method development?
• How much sample is available, and what level of confidence is required?

What Protein Sequencing Can Mean in Research

Common Analytical Goals

In protein studies, “sequencing” does not always mean reconstructing every residue from N- to C-terminus. Many projects only need sequence information at one position, or a defensible identity call, or modification site localization.

Why Method Selection Is Project-Specific

Different technologies generate different kinds of evidence. Edman degradation produces an ordered, residue-by-residue N-terminal readout, but requires a clean sample and an unblocked N-terminus. LC-MS/MS is versatile and sensitive for identification and PTM mapping, but its conclusions often come from peptide evidence and can be limited by coverage, ambiguity, and inference.

For proteoform questions, the core problem is “connectivity”: do you need to know which PTMs and sequence variants co-exist on the same intact protein molecule? That is where top-down and middle-down approaches can be more informative than strictly bottom-up workflows.

Nanopore protein sequencing is best framed as complementary and exploratory. It is a serious research direction for single-molecule sensing, but it is not yet a drop-in replacement for routine MS-based protein identification and PTM workflows.

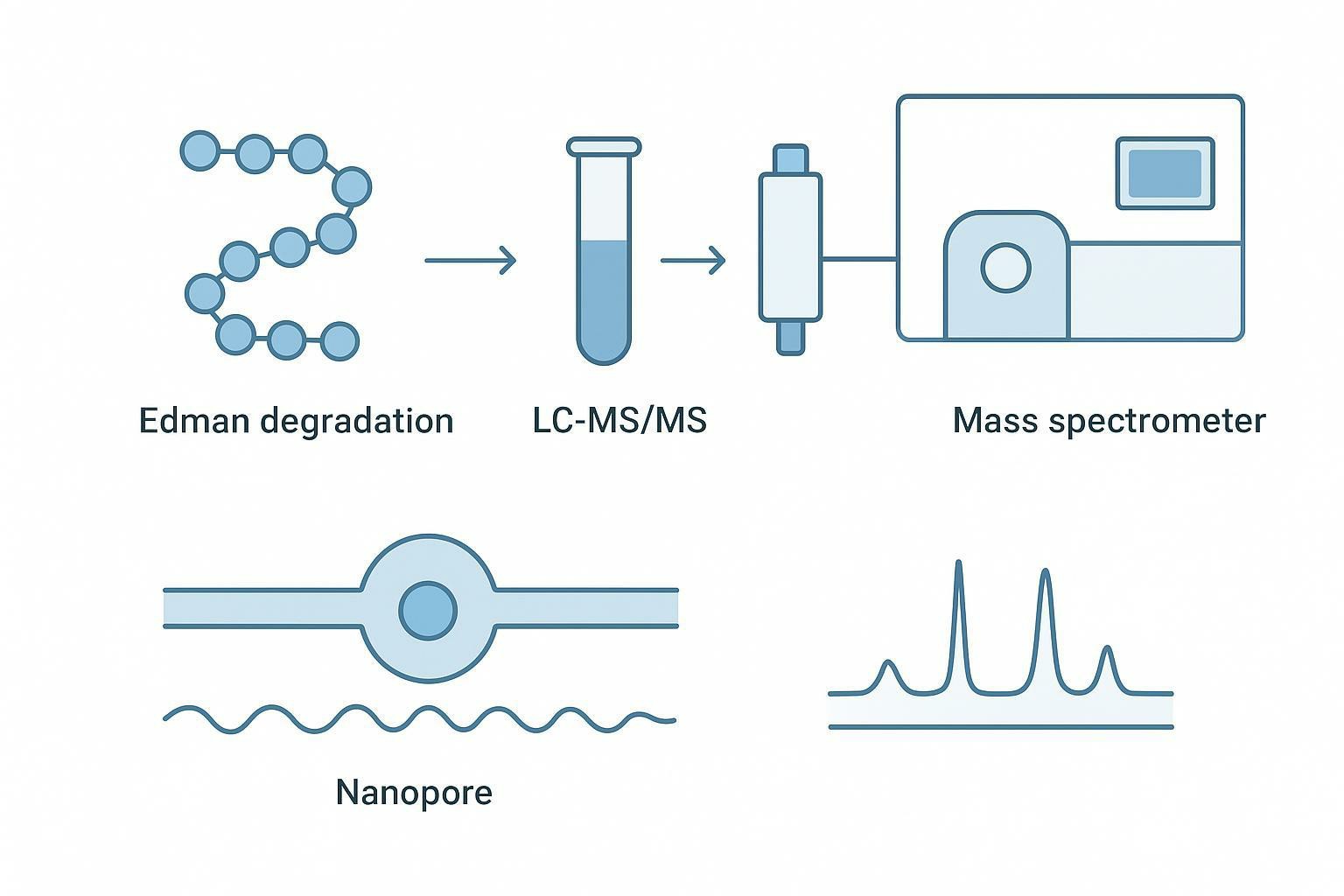

Protein sequencing methods compared: Edman, LC-MS/MS, and nanopore overview

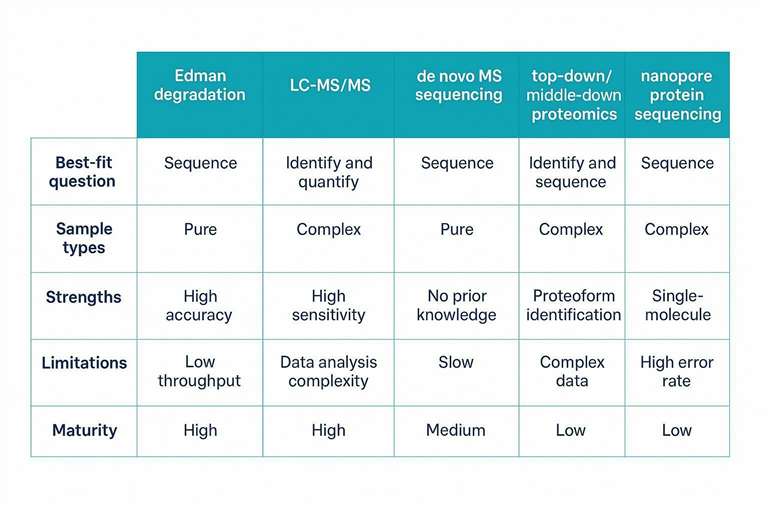

Method Comparison Table

Edman Degradation for N-Terminal Sequencing

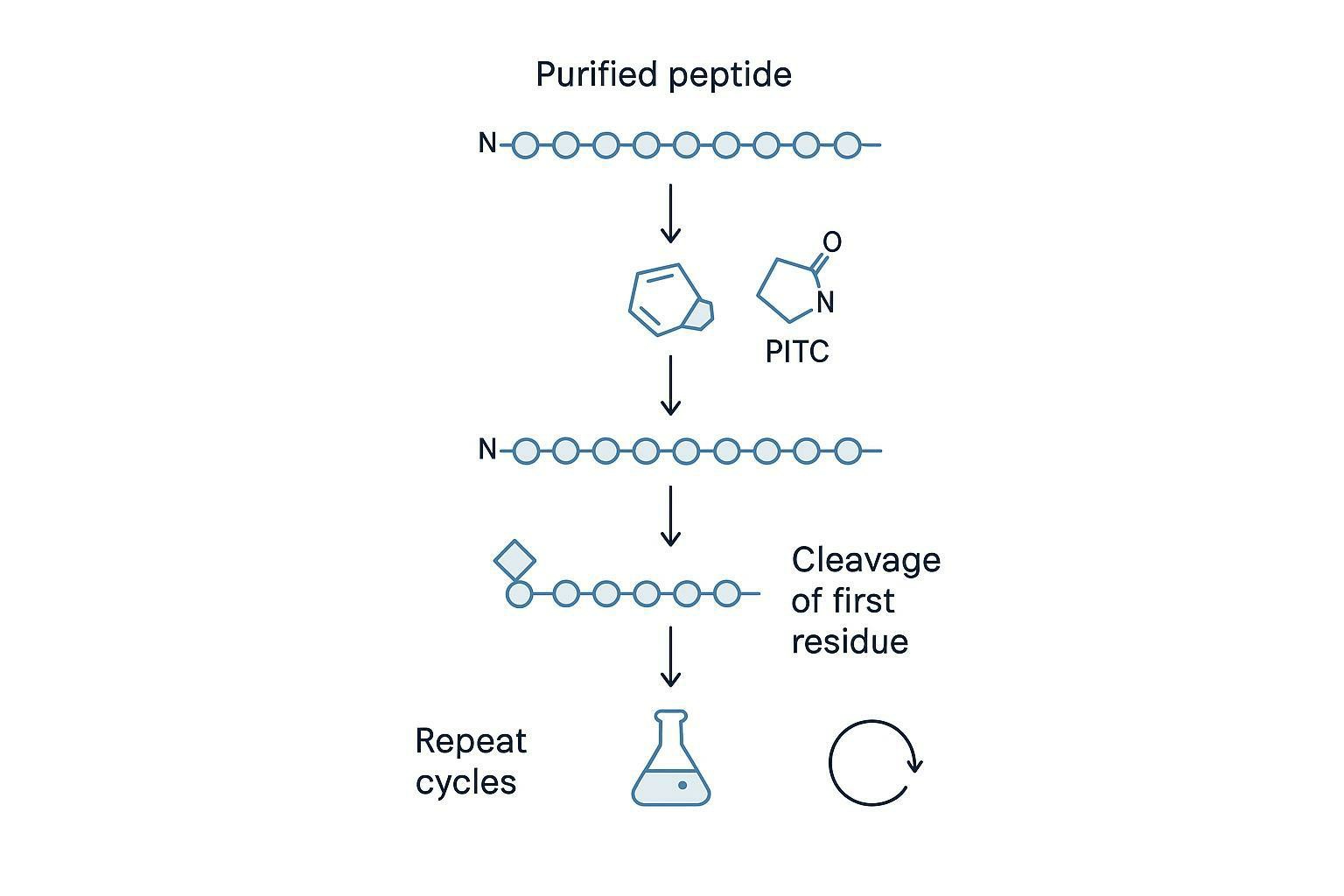

Principle of Edman Degradation

Edman degradation is a sequencing-by-degradation approach: it labels the free N-terminus of a peptide, cleaves off the first residue, identifies that residue, and repeats the cycle. Because the readout is ordered, Edman is a clean way to confirm N-terminal sequence and processing when the sample supports it.

If your experiment depends on a defensible N-terminus call (for example, signal peptide processing, protease cleavage, or unexpected truncation), Edman is often the most straightforward method to generate that ordered evidence.

Suitable Applications

In practice, a useful planning step is to ask whether the N-terminus is likely to be chemically blocked (for example, N-terminal acetylation or pyroglutamate formation) or masked by sample impurities. Those issues do not automatically end the project, but they can change what “sequencing success” looks like.

If Edman degradation is the right fit for your question, an external service workflow can also help by pairing sequencing with targeted sample assessment and optimization. For readers exploring service options, Edman Based Protein Sequencing is a relevant starting point.

Strengths and Limitations

Key Takeaway: Edman degradation is strongest when “ordering” matters: you need the first residues in the correct sequence, not a peptide-level inference.

LC-MS/MS-Based Protein Sequencing

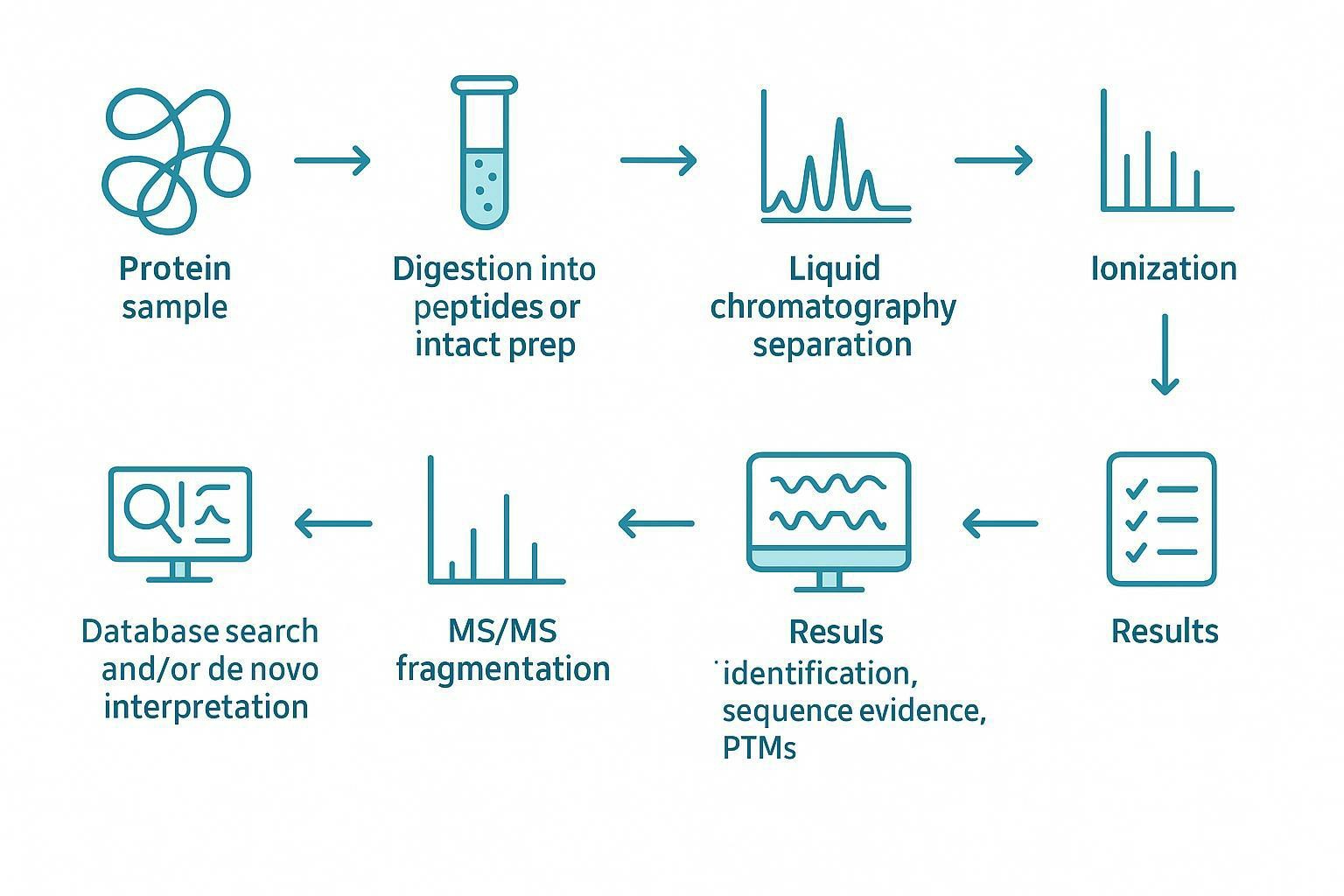

Principle of LC-MS/MS Protein Sequencing

LC-MS/MS approaches typically generate fragment evidence rather than a single continuous read. A common workflow digests proteins into peptides, separates peptides by liquid chromatography, measures their masses, and fragments selected ions to produce MS/MS spectra. Those spectra are interpreted using database search, de novo algorithms, and expert review, depending on how much sequence information is already known.

This flexibility is why LC-MS/MS has become the default tool for protein identification, peptide mapping, and most PTM analyses. It can be deployed in multiple configurations: bottom-up (peptide-centric), middle-down (larger proteolytic fragments), and top-down (intact proteins).

Bottom-Up LC-MS/MS for Protein Identification

The practical strength of bottom-up LC-MS/MS is that it works even when your protein is not perfectly purified. A gel band or fraction can be informative as long as digestion, separation, and spectral quality are good enough to identify multiple peptides.

Where researchers can get surprised is in how “protein-level” certainty is built. LC-MS/MS often gives you peptide-level identifications that are then assembled into protein calls. That’s usually fine for identification, but it can become limiting when the main claim depends on full coverage, terminal residues, or the exact combination of PTMs on a single molecule.

• Key limitations:
  • Protein-level interpretation may rely on peptide inference
  • Sequence coverage may be incomplete
  • PTM localization may require targeted workflows
  • Proteoform-level information may not be fully resolved

If your goal is broad identification plus sequence-related characterization, a service page such as Mass Spectrometry Based Protein Sequencing gives a sense of how bottom-up and top-down strategies are combined in practice for different sample types.

De Novo Sequencing by MS/MS

De novo MS/MS sequencing is best understood as a way to recover sequence information when database matching is not enough. In real projects, de novo results are often combined with database-assisted interpretation (for example, mapping sequence tags to homologs or custom transcriptomes) and orthogonal checks.

Two planning questions matter more than the algorithm name. First: will your sample prep and LC-MS/MS method generate fragmentation spectra that are clean, information-rich, and reproducible? Second: what “unknown” are you dealing with? A single point mutation in a known protein is a different problem than an antibody variable region, and both are different from an unannotated protein from an environmental isolate.

For projects that are explicitly centered on unknown sequence regions or variant detection, Protein De Novo Sequencing and Mutation Analysis and Peptide De Novo Sequencing are relevant internal service references.

• Key limitations:
  • Requires high-quality fragmentation spectra
  • Interpretation can be computationally complex
  • Often benefits from database-assisted or orthogonal validation

Top-Down and Middle-Down Proteomics

Top-down and middle-down approaches are most valuable when connectivity matters: you want to know which truncation, oxidation, glycosylation pattern, or other modification state belongs to which intact form. These methods are not always the first choice for high-throughput discovery, but they are often the cleanest way to support proteoform-level claims.

• Key limitations:
  • More technically demanding than bottom-up LC-MS/MS
  • Requires optimized separation, instrumentation, and data analysis
  • May not be the first choice for routine large-scale profiling without method optimization

If your work is headed toward intact proteoforms or terminal variant questions, Top-Down Protein Sequencing is the most directly relevant internal link to explore.

Nanopore Protein Sequencing

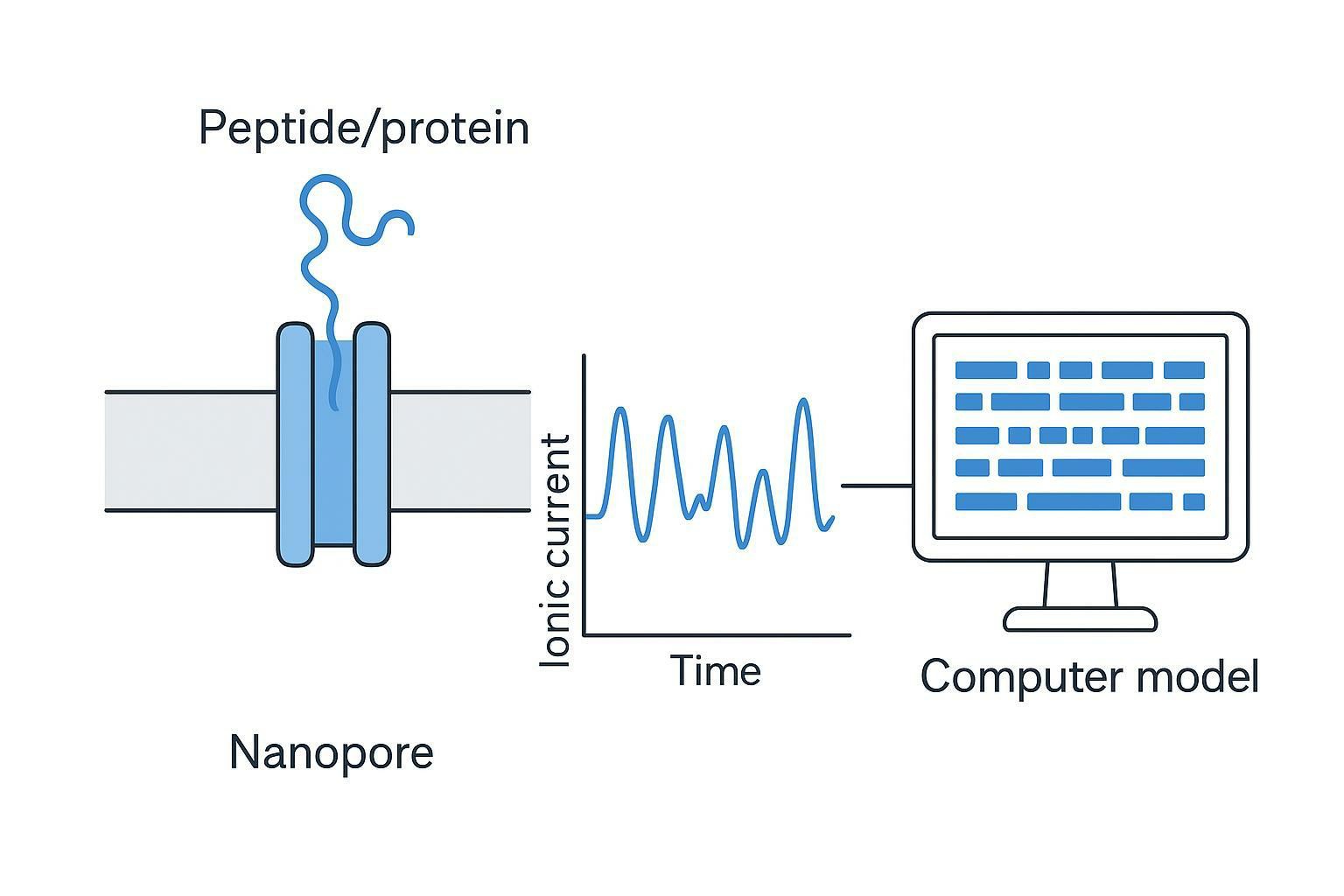

Principle of Nanopore-Based Protein Analysis

Nanopore protein sequencing is built on a single-molecule measurement concept. A peptide, protein, or related molecule interacts with a nanoscale pore in a membrane, and those interactions modulate ionic current through the pore. Signal patterns are then analyzed computationally to infer identity, sequence-related features, or modification-associated signatures.

The analogy to nanopore DNA/RNA sequencing is helpful at a high level, but proteins are more complex objects. They have 20 amino acids (not four bases), varied side-chain chemistries, and folding/charge behaviors that complicate controlled translocation and decoding.

Current Progress and Research Positioning

A practical way to position nanopore protein sequencing in a project plan is as exploratory: useful when your research question is about feasibility, single-molecule signal behavior, or method development that will later be benchmarked against established MS methods.

For readers looking for service context, Nanopore Protein Sequencing is the most relevant internal reference.

Potential Applications and Current Limitations

Method Selection by Research Objective

Research Objective Matching Table

A helpful rule of thumb is to separate “what you need to know” from “what you need to prove.” For example, if your paper only needs to confirm that a recombinant construct is what you think it is, bottom-up LC-MS/MS plus targeted checks is often enough. If your claim is that a proteoform with a specific combination of PTMs exists, you will likely need intact-level evidence, not just peptide calls.

Method Selection by Sample Type

Sample-to-Method Matching Table

Integrated Protein Sequencing Strategies

When Combined Methods Are Useful

Single-method plans tend to break when the sample is messy, the biology is heterogeneous, or the confidence bar is high. Combining methods can give you orthogonal evidence without forcing one workflow to answer questions it is not designed to answer.

Combined strategies are especially useful:

• When N-terminal confirmation and broader sequence coverage are both needed
• When protein identification requires additional sequence validation
• When PTM site localization and intact proteoform information are both important
• When an emerging nanopore workflow requires MS-based validation
• When sample complexity or modification heterogeneity makes a single method insufficient

Common Integrated Workflows

One pragmatic workflow pattern is to use LC-MS/MS to quickly establish identity, dominant modifications, and coverage gaps, then selectively deploy Edman or top-down methods to resolve exactly the part of the protein that your interpretation cannot defend.

Key Considerations Before Selecting a Protein Sequencing Method

Define the Analytical Objective

A sequencing workflow is easiest to design when you can describe the deliverable in one line. Examples that translate well into method plans include “confirm the N-terminus,” “identify the dominant protein in this gel band,” “recover the sequence of a monoclonal antibody variable region,” or “map phosphorylation sites with confident localization.”

• N-terminal sequence confirmation
• Protein identification
• Unknown protein or peptide sequencing
• PTM mapping
• Intact proteoform characterization
• Exploratory single-molecule analysis

Evaluate Sample Characteristics

Small sample-handling details can be the difference between a clean dataset and an uninterpretable one. If you are preparing material for sequencing, explicitly consider purity, buffer compatibility, and whether your protein is likely to be modified or processed at termini.

• Sample purity and complexity
• Protein or peptide size
• Available sample amount
• Buffer composition and compatibility
• Modification status
• Sequence reference availability

Match the Method to the Required Confidence Level

If you are in a publication-track project with high scrutiny, it can help to plan the “orthogonal check” from the beginning. That may mean a second protease digest, a terminal-specific confirmation, or intact-level evidence for a key proteoform claim.

FAQs

1) What is the difference between Edman degradation and LC-MS/MS for protein sequencing?

Edman degradation reads an ordered N-terminal sequence directly from a purified sample, while LC-MS/MS infers sequence-related evidence from peptide or protein fragments and is far more flexible for identification and PTM mapping.

Edman is strongest when you need a definitive N-terminus call (processing, cleavage site, tag verification). LC-MS/MS is the default when you need to identify proteins in gel bands, fractions, or complex samples, or when you need broad sequence coverage and modification evidence.

2) Which method is best for N-terminal sequencing?

Edman degradation is usually the most direct method when the N-terminus is accessible and the sample is sufficiently pure.

If the N-terminus is blocked or chemically modified, MS-based N-terminus strategies may be more practical, but the best choice depends on whether you need an ordered residue list or a modification-aware confirmation.

3) Can LC-MS/MS determine a full protein sequence?

LC-MS/MS can provide extensive sequence coverage, but “full sequence” is not guaranteed because peptide detectability and coverage gaps are common.

If full-length confirmation is essential, plan for complementary evidence (for example, multiple proteases, targeted methods, or intact/middle-down/top-down strategies) rather than assuming a single bottom-up run will close every gap.

4) What does “de novo protein sequencing” mean in mass spectrometry?

De novo MS sequencing means inferring peptide sequences from MS/MS fragmentation spectra without relying entirely on a reference database.

In practice, the output is often de novo peptide sequence tags that are assembled and validated using bioinformatics, homology, or orthogonal evidence, especially for antibodies and engineered proteins.

5) When do I need top-down proteomics instead of bottom-up LC-MS/MS?

You need top-down (or middle-down) approaches when your conclusion depends on proteoform connectivity, meaning which PTMs and variants coexist on the same intact protein molecule.

Bottom-up is often enough for identification and site mapping, but it can lose intact relationships between modifications and truncations that matter in proteoform-level claims.

6) How should I choose a sequencing method for an antibody or engineered protein?

Start with a workflow designed for incomplete databases: de novo MS/MS sequencing plus targeted validation.

Antibodies add specific complications (multiple chains, disulfides, glycosylation, variable regions), so method design and interpretation need to be matched to the exact deliverable (full-length vs variable region vs variant confirmation).

7) Can Edman sequencing work if the N-terminus is blocked?

No. Edman degradation requires a free, reactive N-terminus.

If the N-terminus is blocked, you usually need an MS-based strategy (often with specific sample preparation or enrichment) to characterize the terminal residue and modification state.

8) Is nanopore protein sequencing ready for routine de novo protein sequencing?

Not yet. Nanopore protein sequencing is best positioned as exploratory single-molecule analysis and method development that is typically benchmarked against established MS workflows.

It can be valuable when the research goal is to test feasibility, single-molecule signal properties, or potential fingerprinting strategies, rather than to deliver routine full de novo sequences.

9) What is a realistic way to interpret “sequence coverage” in an LC-MS/MS report?

Sequence coverage is a measure of which residues are supported by observed peptides, not a guarantee that every region was detectable.

Coverage gaps can come from peptide chemistry, digestion behavior, modifications, or dynamic range. Interpreting coverage is most meaningful when you connect gaps to the specific regions that matter for your biological claim.

10) What are the most common reasons protein sequencing fails or becomes ambiguous?

The most common causes are sample purity/complexity, blocked or modified termini, incomplete database support, and PTM heterogeneity that creates competing explanations.

Planning for orthogonal checks (a second protease, terminal confirmation, intact-level evidence, or targeted PTM localization) is often the difference between an answer and an unresolved ambiguity.

References

1. Protein Sequencing, One Molecule at a Time
2. Liquid Chromatography Mass Spectrometry-Based Proteomics
3. Computational Mass Spectrometry–Based Proteomics
4. Mass Spectrometry for Proteomics
5. Progress in Top-Down Proteomics and the Analysis of Proteoforms
