Quality Control for Recombinant Proteins: Validating Signal Peptide Cleavage Sites

Introduction

If the predicted cleavage site is wrong, the "same" protein can quietly become multiple N‑terminus variants. In QC, that translates into identity ambiguity, lot‑to‑lot inconsistency, and avoidable CMC risk.

The QC objective here is straightforward: confirm the mature N terminus by rigorous signal peptide cleavage site validation, and reduce identity and consistency risk before it cascades into specifications and comparability.

Why does orthogonal confirmation matter for IND‑enabling CMC? Because different methods miss different N‑terminus issues. Sequence coverage alone can overlook short, polar N‑terminal peptides; enrichment workflows can bias recoveries; Edman will fail on blocked ends; top‑down might lack sensitivity for trace variants. A layered strategy closes those gaps.

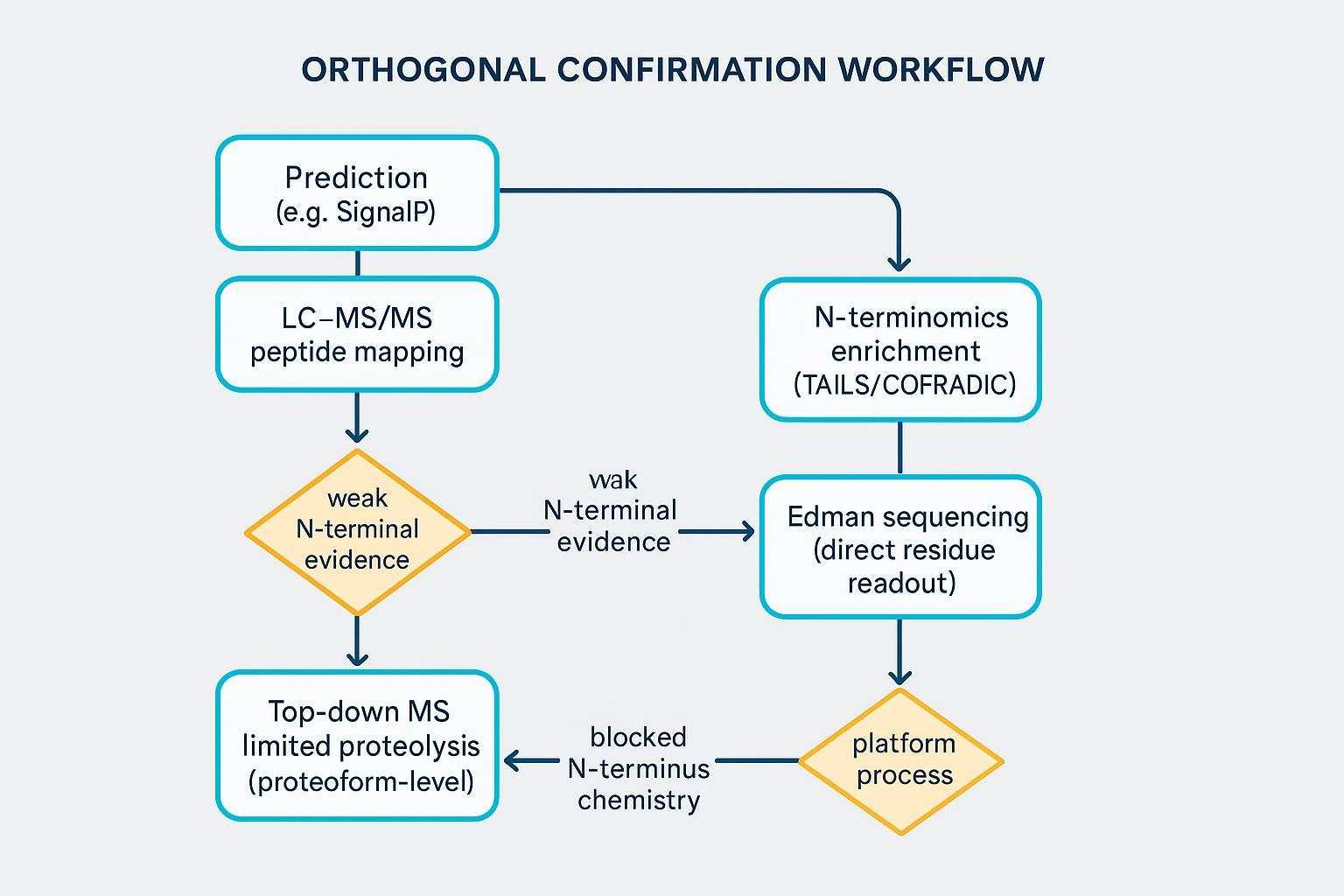

Preview of the workflow we'll use throughout: prediction → experimental proof → quantitation/thresholds → documentation → platform risks → lifecycle monitoring.

From Prediction to Hypothesis

Signal peptide anatomy and practical rules

Signal peptides generally comprise three segments that together govern secretion and cleavage:

• N‑region: positively charged residues that interact with the cytosolic side of the membrane.
• H‑region: a hydrophobic core that threads into the membrane and guides targeting.
• C‑region: the polar segment proximal to the cleavage site, containing the signal peptidase recognition motif.

A common starting point for cleavage site placement is the "−3, −1 rule," which favors small, neutral residues (often Ala/Ser/Thr) at the −3 and −1 positions relative to the scissile bond. Exceptions are not rare; motifs with Pro at −1, unusual charge distributions, or structural constraints near the junction can drive mis‑cleavage or under‑cleavage. In practice, "nearby" alternative sites (±2–5 residues) should be treated as realistic outcomes—especially when prediction confidence is split. For classic motif analyses that established these design rules, see von Heijne's early work on signal peptide cleavage motifs: consensus analyses of signal peptidase recognition.

In silico tools to propose cleavage sites

Modern prediction tools output both the most likely cleavage position and a probability/confidence score. Treat these as hypotheses for QC planning, not as facts. When tools disagree, designate a primary candidate site and 1–2 alternatives clustered nearby. Also remember that construct choices—signal peptide swaps, affinity tags, linkers—shift the local context and can move the predicted site.

Pragmatically, confidence scores guide how much orthogonality you'll need. High-confidence, canonical motifs may be confirmed with mapping plus a single orthogonal readout; low-confidence or multi‑site predictions warrant a fuller escalation.

Using predictions to design targeted assays

Translate candidate sites into N‑terminus–focused observables:

• Peptide-level: unique N‑terminal peptide sequences and their diagnostic fragment ions.
• Intact-level: mass deltas corresponding to removal/retention of specific signal peptide residues.
• Enrichment-level: free N‑termini captured by labeling or terminal‑focused fractionation.

Plan coverage to capture the primary and nearby alternative outcomes. Adjust digestion and prep for N‑terminal peptide detectability—e.g., consider Lys‑C or Glu‑C to lengthen short tryptic N‑terminal peptides, lower organic during trapping to retain polar peptides, and optimize gradient early elution to avoid co‑elution with salts.

Common Failure Modes and Root Causes

• Mis‑cleavage: cleavage at an alternative site yields an unexpected mature N terminus—often triggered by disfavored residues at P1/P1', secondary structure near the junction, or heavy secretion burden.
• Under‑cleavage: residual signal peptide remains attached, creating a higher‑mass or extended N terminus subpopulation; sequence context (e.g., certain residues at P2') can depress signal peptidase efficiency.
• Further processing: post‑secretion trimming by host proteases generates multiple mature N‑terminus variants.
• Construct‑ and process‑driven triggers: junction sequence design, secretion stress, cultivation changes (temperature, feed, pH), and upstream/downstream process shifts that alter processing efficiency.

Experimental Strategy for Orthogonal Confirmation

LC–MS/MS peptide mapping (baseline evidence)

Primary goal: obtain strong sequence coverage around the N terminus with confident site‑localizing evidence. Because N‑terminal peptides can be short and highly polar, they are prone to poor trapping/retention and low MS response. Improve observability via tailored protease selection, early‑gradient optimization, and method settings that ensure multiple MS1 scans across the peak.

Evidence framing should go beyond "coverage %." Document peptide‑spectrum match (PSM) quality, fragment ion support for the N‑terminal residue(s), and the logic by which the observed peptide sequence localizes the cleavage position.

If you need a structured service description of mapping deliverables for regulated contexts, see Creative Proteomics peptide mapping service.

N‑terminomics / enrichment (when mapping alone is insufficient)

Use terminal enrichment when low‑abundance variants matter, when the N‑terminal peptide is repeatedly missed, or when matrix complexity obscures signals. Enrichment increases the relative representation of free N‑termini, supporting clearer separation of mature, mis‑cleaved, and uncleaved populations. Your output should directly map each observed N‑terminus to a specific cleavage position and quantify it relative to a defined denominator (see Quantitation section).

Edman sequencing and handling blocked N‑termini

Use Edman when you need direct, residue‑by‑residue confirmation of the first amino acids. If Edman fails, treat a "blocked N‑terminus" as a chemistry problem (e.g., N‑terminal acetylation or pyroglutamate formation), not a negative result. Pair Edman with MS‑based evidence to maintain orthogonality even when end‑chemistry is complex.

For a neutral, technical description of N‑terminal confirmation options (including Edman) and when each is appropriate, refer to Creative Proteomics' N‑terminal sequencing.

Top‑down MS and limited proteolysis (proteoform‑level confirmation)

Use top‑down when you need proteoform‑level separation to resolve closely related N‑terminus variants or to confirm intact‑level mass differences corresponding to alternative cleavage outcomes. Limited proteolysis can generate variant‑specific fragments that simplify localization and strengthen assignments.

For a concise overview of top‑down and related terminal confirmation capabilities, see Creative Proteomics top‑down protein sequencing service.

N‑terminus Chemistry Considerations

Common N‑terminal modifications can mask or shift signals. Two frequent culprits are cyclization to pyroglutamate (from Gln/Glu) and N‑terminal acetylation. Either can prevent Edman sequencing and alter peptide ionization/retention.

Chemistry impacts method choice and search rules. For mapping and enrichment data analysis, enable variable modifications for N‑terminal acetylation and pyroGlu, and consider proteases that generate longer, more retainable N‑terminal peptides. For orthogonality, use Edman to confirm unblocked ends and top‑down or intact mass to confirm proteoform‑level changes when ends are blocked.

Practical mitigation: align sample prep to preserve native termini (avoid excessive basic pH or long incubations that promote cyclization), tune chromatographic conditions to capture early‑eluting peptides, and document data processing rules that prevent misclassification.

Quantitation, Thresholds, and Acceptance Criteria for Signal Peptide Cleavage Site Validation

Defining mature vs. mis‑/uncleaved proteoforms

Define each class by the observed N‑terminus sequence and exact cleavage position. If post‑secretion trimming is present (e.g., +EA/EAEA overhangs in yeast systems), track it as a distinct category rather than conflating it with mis‑cleavage.

Maintain consistent naming for each N‑terminus proteoform across development stages to enable clean trending and comparability.

Quantitation model (make the denominator explicit)

Choose peptide‑level vs. proteoform‑level quantitation based on the decision you need to support. Crucially, define the denominator upfront:

• All N‑terminus–related proteoforms detected (site‑centric comparability decisions), or
• Total protein signal (global abundance context).

Normalize using area %, response factors, or surrogate peptides—state your rules so results are comparable across lots, sites, and instruments.

Setting and justifying thresholds (≥95–100% mature)

Industry practice targets ≥95–100% "mature" when the N‑terminus is identity‑critical because regulators expect structural characterization to substantiate specifications and to quantify variant forms. This risk‑based numeric target should be justified by method performance (LOQ/LOD and repeatability) and comparability data: see ICH Q6B's requirement to determine relative amounts of variant forms and support specifications, the rationale for prediction→experimental confirmation in SignalP 6.0 (Teufel et al., Nature Biotechnology 2022), and typical N‑terminomics/TAILS sensitivity and CV ranges reported in method reviews (example: TAILS protocol and performance summary, Nature Protocols).

Tie thresholds to risk: push toward ≥95–100% mature where N‑terminus variants can alter identity, biological activity, stability, or downstream processing. Use staged criteria—broader during early development with trending, tightening as programs approach pivotal studies or commercial readiness. Explicitly state how you handle uncertainty from missing peptides, low S/N, or borderline localization.

System suitability, controls, and data quality

Include controls that demonstrate method performance (e.g., site‑specific peptide standards or representative reference material). Define minimum data quality expectations such as identification confidence, localization logic, mass accuracy limits, and run‑acceptance checks. Track drift and repeatability with predefined QC metrics.

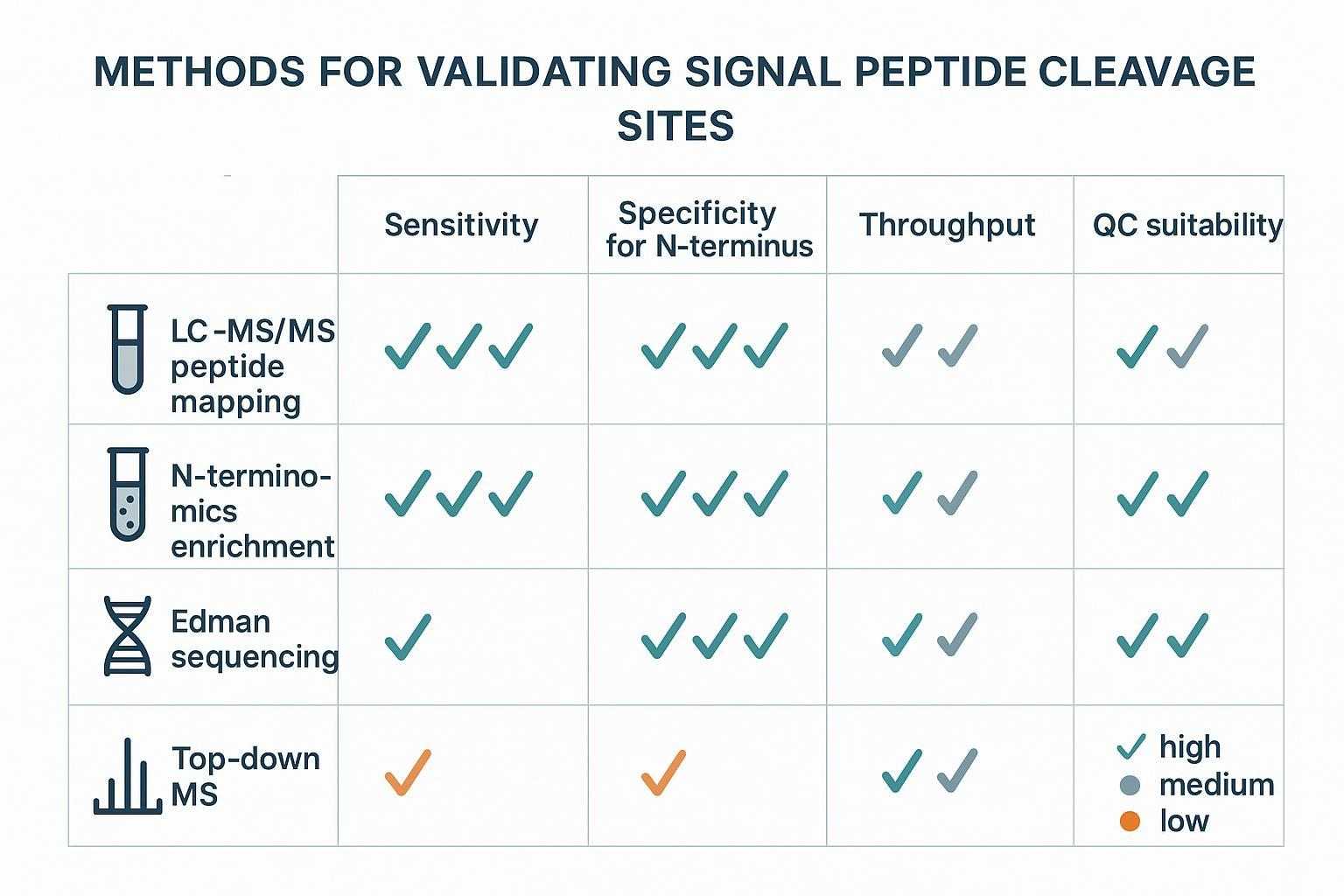

Methods at a glance (relative, context‑dependent):

Example proteoform reporting template (include in submissions and reports):

Regulatory and Documentation Expectations for Signal Peptide Cleavage Site Validation

Mapping to ICH Q6B/Q5E and FDA/EMA CMC

Position cleavage site validation as identity‑related evidence that supports your control strategy and lot consistency. Orthogonal confirmation reduces residual uncertainty left by any single method, aligning with the "totality of analytical evidence" agencies expect. For change management and comparability, apply these same principles to reconfirm N‑termini when processes or platforms shift.

What to include in submissions

• Representative spectra and site‑localizing evidence for each reported N‑terminus.
• Sequence coverage summaries focused on the N terminus—not only global mapping.
• Proteoform tables (identity, relative abundance, method, decision relevance) and clear denominator definitions.
• Methods overview: sample prep, data processing rules, acceptance criteria, and system suitability.

If you need a structured service description of mapping deliverables for regulated contexts, see Creative Proteomics' biopharmaceutical peptide mapping analysis service for an example of ICH‑aligned deliverables.

Orthogonality rationale and audit readiness

Explain how each method addresses a different failure mode: detectability (enrichment), localization (mapping/Edman), and proteoform resolution (top‑down). Ensure traceability with raw data availability, controlled processing parameters, and versioned reports.

Example (neutral): Some teams engage specialized providers to combine LC–MS/MS mapping with Edman or top‑down confirmation under reporting packages designed for CMC documentation. This can streamline audit readiness without replacing in‑house review.

Platform‑Specific Risks and Mitigations

Mammalian (CHO/HEK) considerations

Case A — CHO: low‑abundance alternative cleavage

• Observation: Routine LC–MS/MS peptide mapping identified a low‑abundance proteoform with an alternative N‑terminus (1.5% relative abundance).
• Orthogonal evidence: Targeted N‑terminomics confirmed the variant and reported an LOQ of ~0.2% for the enriched workflow.
• Disposition: Construct junction redesign and tightened upstream feeding reduced the variant to <0.1% across three subsequent lots.

Case B — CHO: process stress during scale‑up

• Observation: During scale‑up, peptide mapping showed weak N‑terminal peptide signal and inconsistent site localization.
• Orthogonal evidence: Edman sequencing on a purified fraction provided residue‑level confirmation; targeted top‑down intact analysis quantified the uncleaved species near an LOQ of ~0.5% (instrument‑dependent).
• Disposition: Process parameter correction (shorter harvest hold time) restored expected cleavage and reproducibility; repeatability improved to ~8% CV for N‑terminal peptide area.

Case C — E. coli (periplasmic export) and Pichia contrast

• E. coli: Intact mass plus mapping revealed residual signal peptide remnants at ~0.8% abundance; validated intact‑mass LOQ was ~0.3% under the workflow described.
• Pichia: Mixed Kex2/Ste13 processing produced +EA overhangs; mapping and enrichment detected these species with N‑terminomics repeatability of ~6% CV across technical replicates. Disposition: targeted sequence engineering and confirmatory top‑down produced stable profiles across subsequent lots.

Methods and quantitation snapshot

Interpretation and practical takeaways

• These anonymized micro‑cases demonstrate realistic detection and quantitation ranges (variant abundance, LOQ, and %CV) and illustrate how a risk‑based escalation (LC–MS/MS mapping → N‑terminomics/enrichment → Edman → top‑down) supports actionable dispositions and lifecycle control.
• Heterogeneity drivers: variability in signal peptide recognition, local junction sequence/structure, host‑specific processing (e.g., Kex2/Ste13 in Pichia), and N‑terminal chemistry (acetylation, cyclization) that can mask detection.
• Mitigation (operational checklist):
  1. Design assays to capture primary and nearby alternative cleavage sites (±2–5 residues) and choose proteases that produce retainable N‑terminal peptides.
  2. Escalate orthogonality when triggers appear (weak/missing N‑terminal peptide, multiple plausible sites, signs of blocked chemistry, or platform/process changes).
  3. Use enrichment workflows (e.g., N‑terminomics) to lower LOQ for low‑level variants, and confirm critical findings with Edman or top‑down where chemistry or proteoform resolution is needed.
  4. Track variant abundances with a consistent proteoform naming and a defined denominator (all N‑terminus–related proteoforms or total protein signal) to support comparability and trend analysis.

E. coli and periplasmic export pitfalls

• Risk patterns: signal peptide systems and context effects (e.g., disfavored residues near P2') can increase mis‑/under‑cleavage or leave remnants.
• Mitigation: ensure assays explicitly capture signal peptide remnants and adjacent alternative sites; consider alternate pathways or signal peptides; verify with intact mass plus mapping.

Yeast (Pichia) and further processing

• Risk patterns: additional processing (e.g., Kex2 cleavage followed by Ste13 trimming) can produce multiple mature N‑termini (+EA/EAEA overhangs).
• Mitigation: include "post‑cleavage trimming" as its own category in proteoform tables and verify with orthogonal evidence (Edman for overhangs; MS/MS mapping for positions).

Implementation Roadmap

• Stepwise checklist: plan → predict → assay design → orthogonal confirmation → quantify → set thresholds → compile CMC dossier.
• Risk triggers to escalate orthogonality:
  • Weak or missing N‑terminal peptide evidence
  • Multiple plausible cleavage sites from prediction or data
  • Signs of blocked N‑terminus chemistry
  • Platform/process changes impacting secretion or processing
• Comparability: re‑confirm the cleavage site and proteoform distribution after upstream or downstream process changes.
• Lifecycle monitoring: trend mature vs. variant proteoforms as part of the ongoing control strategy.

FAQ

How do you confirm the mature N terminus of a secreted recombinant protein in QC?

Map the N‑terminal region by LC–MS/MS, then add orthogonal confirmation based on risk: enrichment for low‑level variants, Edman for direct residue reads, and top‑down/limited proteolysis to resolve proteoforms. Define proteoforms explicitly and quantify against a clear denominator.

What if the N terminus is blocked and Edman sequencing does not work?

Treat it as a chemistry question. Test for N‑terminal acetylation or pyroglutamate by MS (mass deltas, diagnostic fragments), adjust search rules, and use top‑down or intact mass to confirm proteoform identity. Edman can be re‑attempted after selective deblocking if appropriate.

When is N‑terminomics needed beyond standard peptide mapping?

Use it when the N‑terminal peptide is consistently missed, when multiple low‑level variants must be quantified, or when complex matrices obscure termini. Enrichment improves detectability and supports trending across lots.

When should top‑down MS be used for cleavage site confirmation?

When closely related proteoforms must be separated at the intact level or when bottom‑up localization remains ambiguous. Limited proteolysis can assist by creating variant‑specific fragments.

How do you define the denominator for "% mature" when multiple proteoforms exist?

Choose based on decision context: "sum of all N‑terminus–related proteoforms" for site‑centric decisions, or "total protein signal" for broader context. Document the choice and stick with it for comparability.

What evidence is typically expected to justify orthogonality in CMC documentation?

Representative spectra with site‑localizing logic, proteoform tables with methods and abundances, method acceptance criteria, and a rationale showing how each method addresses a distinct failure mode.

What process changes should trigger a re‑validation of the cleavage site?

Any change that could affect secretion or processing (e.g., signal peptide swap, host/platform change, media/temperature shifts, or downstream cleavage conditions) should trigger reconfirmation.

How do you set acceptance criteria for mis‑cleaved or under‑cleaved proteoforms?

Link to risk: identity‑ or function‑affecting variants typically warrant ≥95–100% mature. Use staged tightening across development, and define how to handle uncertainty (missing peptides, low S/N, borderline localization).

Conclusion

Robust cleavage site validation supports identity, batch consistency, and a defensible control strategy. Next steps: align prediction with assay design, confirm with orthogonal evidence, quantify proteoforms with explicit denominators and thresholds, and document decision logic for CMC readiness.

References

1. International Council for Harmonisation (ICH). "Q6B: Specifications: Test Procedures and Acceptance Criteria for Biotechnological/Biological Products." ICH, 1999. https://database.ich.org/sites/default/files/Q6B%20Guideline.pdf
2. Teufel, F., Hegde, R. S., & von Heijne, G. "SignalP 6.0 predicts all five types of signal peptides using protein language models." Nature Biotechnology 40 (2022): 1023–1029. DOI: 10.1038/s41587-021-01156-3
3. Ree, R., Varland, S., & Arnesen, T. "Spotlight on protein N‑terminal acetylation." Experimental & Molecular Medicine 50 (2018): e456. DOI: 10.1038/s12276-018-0116-z
