Can You Sequence a Protein from an SDS-PAGE Band? LC-MS/MS Guide

Excising a distinct protein band from a sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) gel is one of the most fundamental and routine workflows in modern biological research. Whether isolating an unexpected recombinant expression product, verifying a purified biopharmaceutical candidate, or investigating an unknown binding partner from a pull-down assay, researchers frequently turn to mass spectrometry (MS) to determine what resides within that single band of blue dye.

However, a pervasive disconnect exists between standard laboratory routine and downstream sequencing realities. Bench scientists frequently conflate routine database identification—matching a few high-abundance tryptic peptides against a reference genome—with true, full-length de novo protein sequencing. While confirming a known protein's identity requires minimal material, reconstructing an entire amino acid sequence from scratch without a genomic template demands a fundamentally higher standard of sample quality, protein input, and enzymatic strategy.

Furthermore, the polyacrylamide gel matrix itself introduces severe physical and chemical constraints. Polymerized acrylamide acts as a steric cage, trapping digested peptides and capping extraction yields at a modest 30% to 60%. Combined with fixed dye cross-linking risks and airborne keratin contamination, achieving complete sequence coverage from a gel slice requires careful experimental design. This technical guide outlines the physical boundaries, staining compatibility rules, multi-protease strategies, and artifact prevention steps necessary to maximize sequence coverage and ensure project success when sequencing proteins from SDS-PAGE gel bands.

Protein Identification vs. Full-Length Sequencing: Defining Feasibility

To evaluate whether a gel band can yield the desired analytical outcome, researchers must first establish the clear distinction between standard protein identification and full-length de novo sequencing.

When evaluating an SDS-PAGE gel band sample, selecting the right analytical workflow depends directly on whether a reference sequence template is available:

• Standard Protein Identification: Requires 10–50 ng input (faint band), uses a single enzyme (trypsin), targets 10%–30% sequence coverage, and relies on matching reference databases (UniProt / NCBI).
• Full-Length De Novo Sequencing: Requires 1–5 µg input (dark band or pooled bands), utilizes a multi-protease panel, targets >95%–100% overlapping coverage, and operates without any reference genomic template.

Database Matching (Bottom-Up Identification)

Standard bottom-up protein identification relies on matching experimentally measured peptide masses and tandem mass spectra (MS/MS) against known theoretical spectra derived from public databases such as UniProt or NCBI.

• Mechanism: High-resolution mass spectrometers analyze tryptic peptides generated from in-gel digestion. Search engines (such as Mascot, Sequest, or Andromeda) cross-reference these spectra against a specified species proteome.
• Input Feasibility: Highly feasible even from faint, barely visible gel bands containing as little as 10 to 50 ng of total protein. Identifying a protein requires matching only 2 to 3 high-confidence, non-redundant peptides, representing as little as 10% to 30% overall sequence coverage. Researchers seeking standard database matching can readily utilize commercial in-gel digestion and LC-MS/MS protein identification services.

Full-Length & De Novo Protein Sequencing

In contrast, full-length protein sequencing—and specifically de novo sequencing—aims to reconstruct the continuous, end-to-end amino acid sequence of a protein from the N-terminus to the C-terminus without relying on a pre-existing genetic or amino acid template.

• Mechanism: De novo sequencing requires generating dense, contiguous, and overlapping peptide fragments using multiple parallel protease digestions. Advanced algorithms (such as PEAKS Studio or spectral network assemblers) then align these overlapping fragments to derive the primary sequence, differentiate isobaric or near-isobaric amino acids (such as Leucine vs. Isoleucine), and map site-specific post-translational modifications (PTMs).
• Input Feasibility: Requires significantly higher protein input—typically 1 to 5 µg of pure protein, or 3 to 5 pooled dark gel bands. Because the sample must be split into multiple aliquots for parallel digestion with orthogonal proteases (e.g., Trypsin, Chymotrypsin, Glu-C, Asp-N), low-nanogram samples simply do not contain sufficient material to yield informative spectra across all required enzyme pools. Reconstructing novel, non-templated proteins from gel bands requires specialized de novo protein sequencing services capable of processing multi-enzyme digests.

Comparison Summary: Protein ID vs. De Novo Sequencing

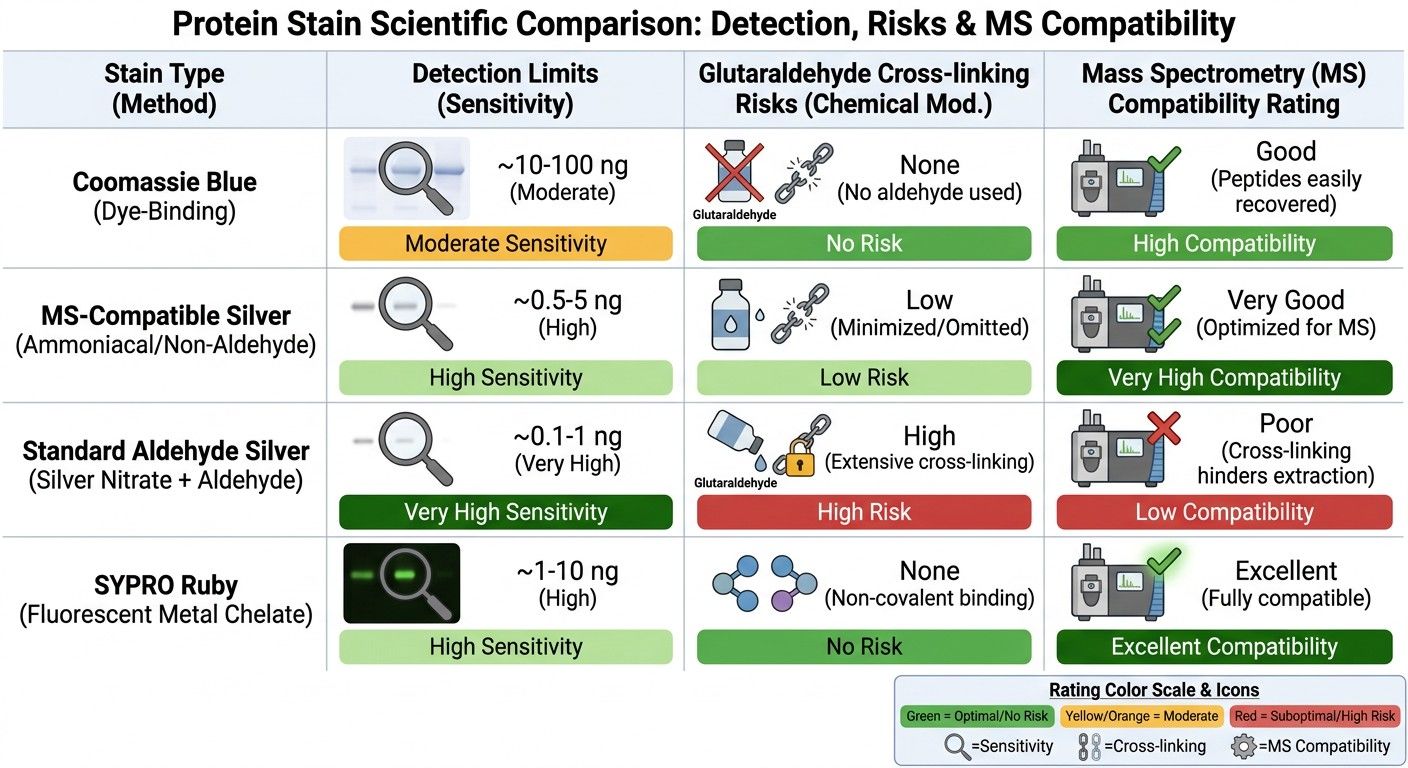

Gel Staining Chemistry and Mass Spectrometry Compatibility

The choice of gel staining chemistry is the single most critical procedural decision made prior to mass spectrometry analysis. Chemical fixatives that preserve gel band aesthetics can permanently compromise downstream enzymatic cleavage and peptide extraction.

Coomassie Brilliant Blue (CBB R-250, G-250, Colloidal Blue)

Coomassie Brilliant Blue remains the gold standard dye for mass spectrometry workflows.

• Mechanism & Compatibility: Coomassie dyes bind to proteins non-covalently primarily through ionic interactions with basic amino acids (Arginine, Lysine, Histidine) and hydrophobic interactions with aromatic residues. Because no covalent bonds are formed, the dye is completely reversible and easily washed out during organic destaining steps (typically using 50% acetonitrile in 50 mM ammonium bicarbonate). Coomassie staining is 100% compatible with downstream in-gel digestion and nano-LC-MS/MS.
• Detection Limit: Approximately 10 to 50 ng per band for Colloidal Coomassie G-250. A clearly visible Coomassie band usually contains sufficient protein for database identification, while intense, dark Coomassie bands approach the microgram threshold needed for multi-enzyme sequencing.

Silver Staining: The Dangerous Glutaraldehyde Trap

While silver staining offers exceptional sensitivity, standard histology protocols represent a major hazard for mass spectrometry.

• The Glutaraldehyde Danger: Traditional silver staining protocols utilize glutaraldehyde or formaldehyde as sensitizers or fixatives. Aldehydes react covalently with primary amines on lysine side chains and protein N-termini, forming irreversible inter- and intra-molecular cross-links. This cross-linking prevents proteases (like trypsin) from accessing cleavage sites, locks peptides within the polyacrylamide matrix, and introduces complex chemical adducts that ruin mass spectral interpretations.
• MS-Compatible Silver Stain Solutions: If silver staining must be used due to low sample abundance, researchers must strictly employ MS-compatible silver staining protocols that omit glutaraldehyde entirely and shorten formaldehyde exposure. Furthermore, thorough de-silvering (using potassium ferricyanide and sodium thiosulfate) is mandatory prior to digestion to prevent metallic silver ions from inhibiting trypsin activity.

Fluorescent & Stain-Free Options (SYPRO Ruby, Deep Purple, Bio-Rad Stain-Free)

Fluorescent dyes and stain-free imaging platforms offer an optimal balance of sensitivity and MS compatibility.

• SYPRO Ruby & Deep Purple: These non-covalent fluorescent stains achieve sensitivity comparable to silver staining (~1 ng per band) across a broad linear dynamic range without altering protein structure or cross-linking residues. Band excision requires a UV or blue-light transilluminator and eye protection.
• Stain-Free Technology: Bio-Rad Stain-Free gels utilize a trihalo compound that covalently modifies tryptophan residues upon UV activation. While introducing a minor mass modification on tryptophan residues (+58 Da), stain-free protocols avoid liquid staining steps and are generally compatible with mass spec identification workflows.

Sample Quality, Protein Input, and Extraction Efficiency

Even with an optimal staining protocol, recovering digested peptides from a polyacrylamide gel matrix presents significant physical hurdles. Polymerized acrylamide forms a dense hydrogel mesh whose cross-links physically trap digested peptides—a phenomenon known as steric trapping—which typically limits total peptide recovery rates to between 30% and 60%.

The In-Gel Extraction Bottleneck

Unlike in-solution digestion—where proteases act freely in an open liquid phase yielding near quantitative peptide recovery (>80%–90%)—in-gel digestion suffers from inherent physical recovery bottlenecks:

1. Steric Entrapment: Polyacrylamide gels form a dense 3D hydrogel network. Even after dicing the gel into 1 mm³ cubes, proteases must passively diffuse into the matrix, and resulting peptides must diffuse out.
2. Hydrophobic Retention: Larger, hydrophobic peptides interact with the polyacrylamide polymer backbone and tend to precipitate inside the gel matrix during organic dehydration cycles.
3. Yield Limits: Routine in-gel extraction protocols (using alternating washes of 50% acetonitrile and 5% formic acid) achieve peptide extraction efficiencies of only 30% to 60%. Consequently, if 1 µg of protein is loaded onto the gel, only 300 to 600 ng of peptides may ultimately reach the LC-MS/MS auto-sampler.

Key Takeaway: In-gel digestion inherently loses 40% to 70% of peptide material to matrix entrapment. For de novo sequencing tasks requiring high sequence coverage, starting protein input must be scaled up accordingly to compensate for extraction losses.

Gel Band Pooling Strategies

When a single SDS-PAGE gel lane does not yield sufficient protein mass, pooling identical bands across multiple gel lanes is a highly effective strategy:

• Protocol: Run 3 to 5 identical lanes of the sample on the same gel. Following Coomassie staining, carefully excise the target band from each lane and combine all 3 to 5 gel slices into a single 1.5 mL low-binding microcentrifuge tube.
• Processing: Perform destaining, reduction, alkylation, and in-gel digestion on the pooled gel pieces simultaneously. Dicing the pooled bands into small 1 mm³ pieces ensures that solvent reagent volumes remain modest while dramatically scaling total peptide output for LC-MS/MS analysis.

Evaluating Band Purity & Complexity

De novo sequencing algorithms assume that spectral data originates from a single, homogeneous protein species. Co-migrating proteins or background contaminants fragment simultaneously, generating overlapping b- and y-ion series that corrupt automated contig assembly.

• 1D vs. 2D SDS-PAGE: 1D SDS-PAGE separates proteins solely by molecular weight. Bands that appear homogeneous often contain co-migrating background proteins of similar size. If a 1D band contains multiple unresolved species, 2D gel electrophoresis (separating by isoelectric point pI and molecular weight MW) or high-resolution narrow-gradient gels (e.g., 4%–20% or 8%–16% gradient gels) should be utilized to confirm single-protein purity before sequence reconstruction.

Overcoming Sequence Coverage Bottlenecks with Multi-Protease Digestion

Achieving complete, unbroken amino acid sequence coverage from an excised gel band is impossible using a single enzymatic digest.

The Limitation of Trypsin Alone

Trypsin is the default enzyme in mass spectrometry because it cleaves specifically at the C-terminus of Lysine (Lys/K) and Arginine (Arg/R) residues, producing peptides with basic C-termini that ionize exceptionally well in positive-mode electrospray ionization (ESI). However, relying exclusively on trypsin creates severe coverage gaps:

• Tryptic Cleavage Distribution Gaps: Lysine and Arginine residues are not evenly distributed across all protein sequences. Protein domains rich in basic residues produce tiny di- or tri-peptides that escape LC retention or fall below the mass spectrometer's mass-to-charge ratio (m/z) scan threshold. Conversely, hydrophobic transmembrane domains, signal peptides, or acidic regions lacking Lys/Arg yield oversized peptides (>30 amino acids) that fragment poorly in collision-induced dissociation (CID) or higher-energy collisional dissociation (HCD).
• Mass Window Constraints: Standard tandem mass spectrometry optimal fragmentation windows range from m/z 700 to 3500 Da (peptides containing roughly 7 to 25 amino acids). Trypsin alone typically achieves only 30% to 60% sequence coverage, leaving critical unmapped gaps across the primary structure.

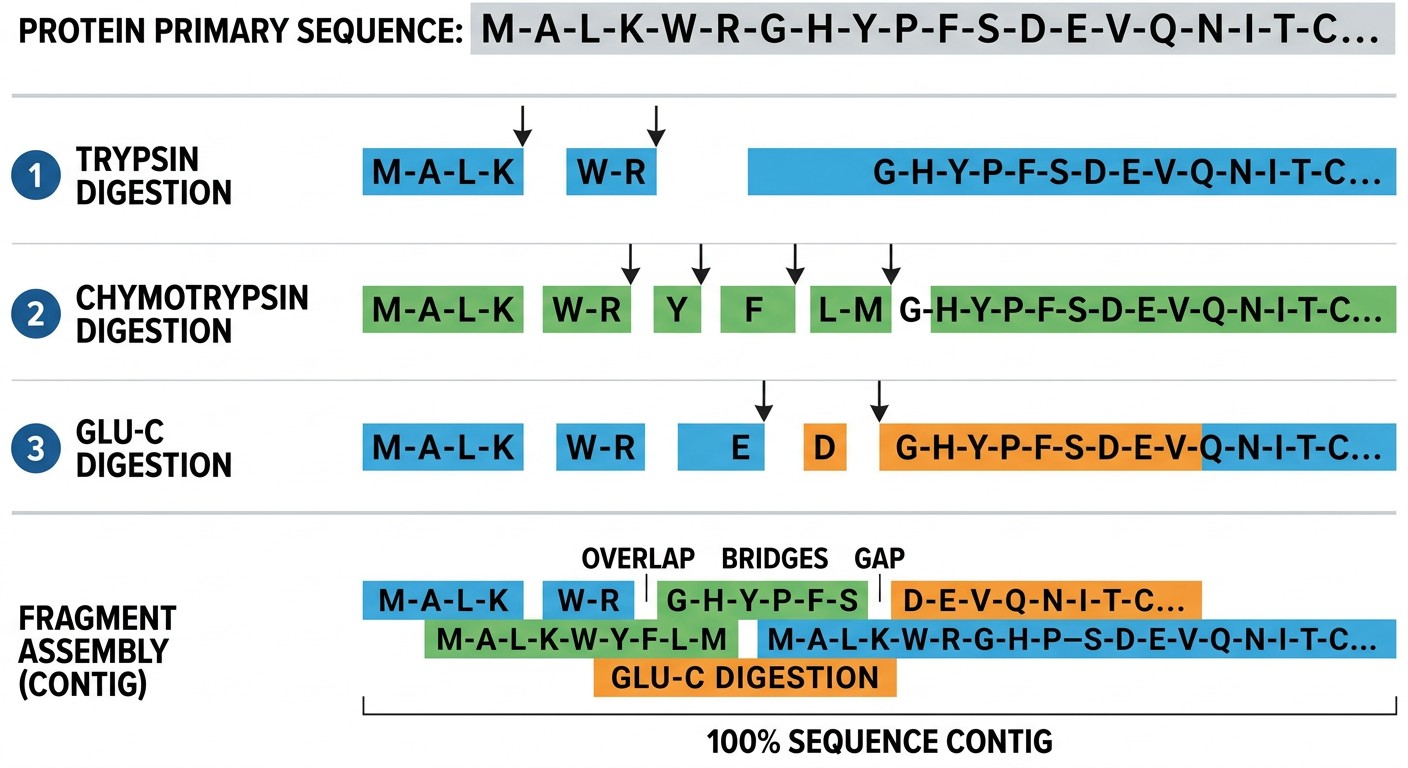

Orthogonal Multi-Protease Digestion Panels

To bridge these coverage gaps, the original sample must be split into parallel aliquots and digested with a panel of complementary proteases operating under orthogonal cleavage rules:

1. Chymotrypsin: Cleaves C-terminal to hydrophobic and aromatic residues—Phenylalanine (Phe/F), Tyrosine (Tyr/Y), and Tryptophan (Trp/W). It effectively targets hydrophobic domains where tryptic sites are absent.
2. Glu-C (Endoproteinase Glu-C): Cleaves C-terminal to Glutamic acid (Glu/E) residues in ammonium bicarbonate buffer (pH 7.8), or after both Glu and Aspartic acid (Asp/D) in phosphate buffer (pH 4.0).
3. Asp-N (Endoproteinase Asp-N): Cleaves specifically at the N-terminal side of Aspartic acid (Asp/D) residues, generating peptides complementary to C-terminal cleaving enzymes.
4. Lys-C & Pepsin: Endoproteinase Lys-C cleaves strictly at Lysine residues (tolerating denaturants like 8 M urea), while Pepsin offers non-specific cleavage under acidic conditions (pH 1.2–2.0), valuable for highly tightly folded or hydrophobic targets.

Assembling Overlapping Peptides for High-Confidence De Novo Reconstruction

When multi-enzyme digests are analyzed via high-resolution nano-LC-MS/MS, software suites like PEAKS Studio align the resulting peptide spectra. Because each enzyme cleaves at different positions, the resulting peptides physically overlap (e.g., a tryptic peptide spans residues 12–28, while a chymotryptic peptide spans residues 20–35).

These overlapping sequence tags allow computational assemblers to stitch individual peptide readings into continuous sequence contigs, resolving ambiguous amino acid assignments and delivering complete sequence confirmation across the entire molecule. Researchers requiring continuous sequence validation across challenging regions can leverage specialized full-length protein sequencing solutions utilizing multi-protease regimes.

Avoiding Critical Artifacts: Keratin, Chemical Adducts, and PTMs

Working with gel-isolated samples introduces significant chemical and environmental noise. Differentiating true biological post-translational modifications (PTMs) from in-gel chemical artifacts is paramount for accurate data interpretation.

Combating Human Keratin Contamination

Human skin and hair keratins (specifically KRT1, KRT10, and cytokeratins around 50–65 kDa) are the single most common contaminant in gel-based mass spectrometry. Environmental keratin dust settles on gel rigs, staining trays, and open benchtop tubes. Because keratin ionizes efficiently, high keratin signals suppress the ionization of low-abundance target peptides, obscuring the protein of interest.

Cleanroom SOP for Keratin Minimization:

• Perform all gel handling, staining, and band cutting inside a certified laminar flow hood.
• Clean glass electrophoresis plates, casting frames, and cutting surfaces with 70% ethanol and LC-MS-grade Milli-Q water.
• Wear clean powder-free nitrile gloves (latex gloves contain slip agents that foul mass specs); never touch gel surfaces directly.
• Use brand-new, sterile disposable scalpel blades for every band excised.
• Pre-rinse microcentrifuge tubes and gel trays with LC-MS grade water before use.

Polyacrylamide Chemical Modifications

Unpolymerized acrylamide monomers present within the gel hydrogel matrix act as potent electrophiles that react chemically with protein functional groups:

• Propionamidation (+71.04 Da): Free acrylamide reacts with the nucleophilic thiol group of free cysteine residues via a Michael addition, adding a propionamide adduct (+71.04 Da). If cysteine reduction (using dithiothreitol, DTT) and alkylation (using iodoacetamide, IAA, yielding +57.02 Da) are incomplete, variable propionamidation creates split mass peaks that complicate database searches and de novo mass matching. Complete gel polymerization (allowing gel solutions to cast for at least 1 hour) and thorough reduction/alkylation protocols prevent this artifact.

Oxidation & Deamidation Artifacts

Sample storage and electrophoresis thermal stress induce non-biological chemical modifications:

• Methionine Oxidation (+15.99 Da): Exposure to atmospheric oxygen during gel electrophoresis and ambient storage converts methionine thioether side chains to methionine sulfoxide (+15.99 Da).
• Asparagine Deamidation (+0.98 Da): Prolonged exposure to basic buffers (such as tris-glycine running buffers) converts asparagine to aspartic acid or isoaspartic acid, accompanied by a subtle +0.98 Da mass shift.
• Tracking In Vitro Artifacts: Mass spectrometry search parameters must include Met oxidation (+15.99 Da) and Asn/Gln deamidation (+0.98 Da) as variable modifications to prevent unassigned fragment spectra.

Practical SOP: From Gel Cutting to Sample Submission

To ensure optimal sample preservation and maximum peptide recovery, follow this standardized operating procedure (SOP) when preparing excised SDS-PAGE gel bands for downstream LC-MS/MS analysis.

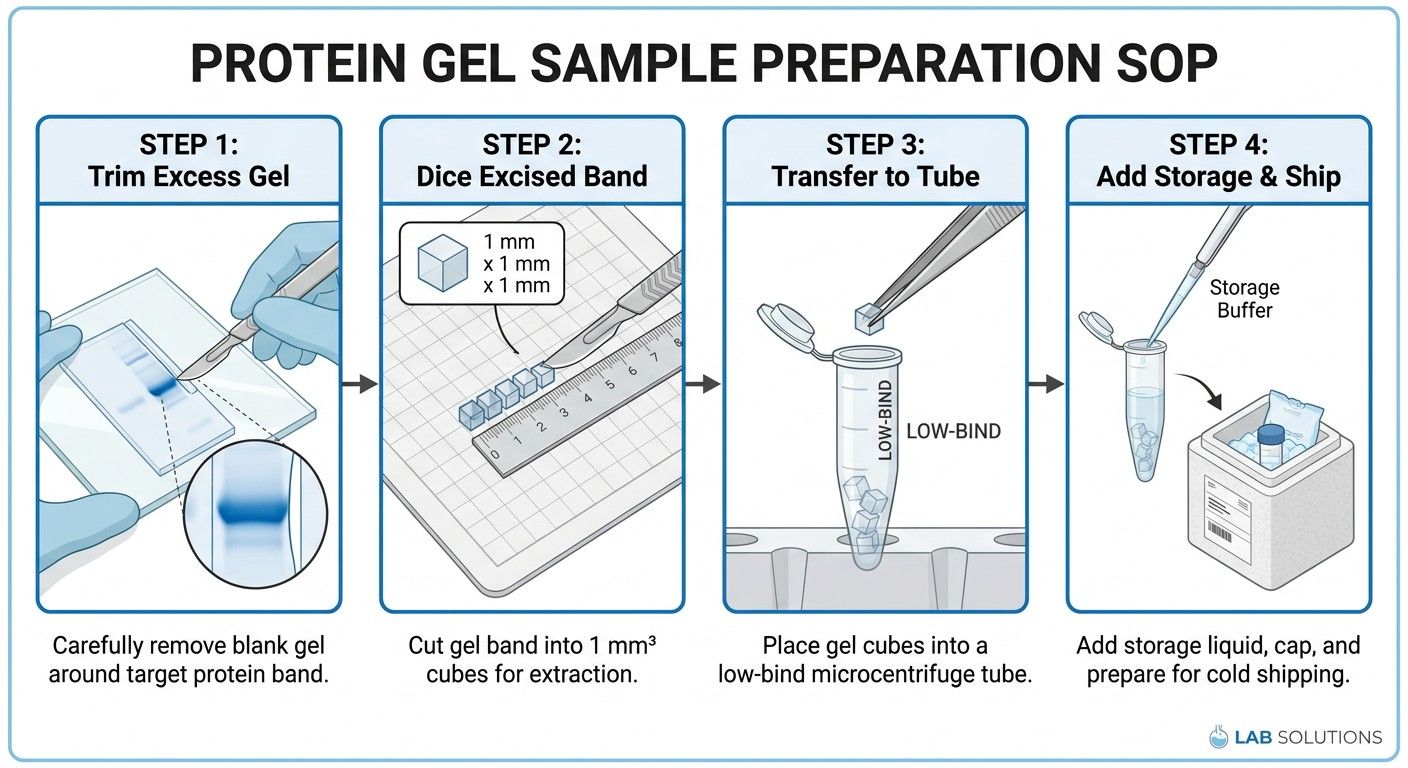

Step-by-Step Gel Band Excision Protocol

1. Clean the Work Surface: Thoroughly wipe down a clean glass transilluminator plate or cutting board with 70% ethanol, followed by LC-MS grade water. Wear a clean lab coat and fresh powder-free nitrile gloves.
2. Excite and Trim the Band: Place the gel on the clean illuminated surface. Using a fresh, sterile scalpel, carefully cut around the target protein band. Trim excess blank polyacrylamide gel as closely as possible; excess blank gel matrix absorbs reagents and traps peptides without contributing target protein mass.
3. Dice the Gel Slice: Dice the excised band into small 1 mm³ cubes using the scalpel blade. Dicing dramatically increases the gel surface-area-to-volume ratio, facilitating reagent penetration and enhancing peptide diffusion during in-gel digestion.
4. Transfer to Low-Bind Tubes: Using the scalpel blade tip or clean ethanol-rinsed forceps, transfer the 1 mm³ gel cubes into a sterile, protein low-binding 1.5 mL microcentrifuge tube (e.g., Eppendorf Protein LoBind). Avoid standard polypropylene tubes, which leach plasticizers and bind peptides non-specifically.

Storage and Cold-Chain Shipping

• Storage Solution: Cover gel pieces with 100 to 200 µL of sterile LC-MS grade Milli-Q water or a 50% methanol/water solution to prevent gel dehydration.
• Temperature: If submitting samples within 24–48 hours, store tubes at 4°C. For long-term storage, freeze sample tubes at -20°C or -80°C.
• Shipping: Ship samples on sufficient dry ice (or with frozen gel cold packs for overnight local courier delivery) to prevent thermal degradation during transit.

Sample Submission & Feasibility Checklist

Before submitting gel band samples for mass spectrometry analysis, complete the following pre-flight verification checklist:

• Visual Clarity: Is the band clearly visible by Coomassie Blue or MS-compatible silver stain? (Faint bands = Protein ID only; Dark bands / Pooled lanes = De Novo Sequencing feasible).
• Staining Safety: Have glutaraldehyde and formaldehyde fixatives been strictly avoided during silver staining?
• Defined Target Goal: Has the analytical objective been established? (Standard Mascot ID vs. Full-length De Novo Sequencing).
• Physical Dicing: Has the gel slice been trimmed of blank matrix and diced into 1 mm³ cubes in a certified low-binding tube?
• Keratin SOP: Were powder-free gloves, fresh scalpel blades, and clean hood conditions maintained throughout band cutting?

Need to identify an unknown gel band or reconstruct a novel protein primary sequence from an SDS-PAGE gel? Contact the Creative Proteomics Proteinseq Team to evaluate your gel image and receive a tailored plan for mass spectrometry-based protein sequencing.

For research use only, not intended for any clinical use.
