N-Terminal Sequencing of Monoclonal Antibodies: Overcoming Pyroglutamate Blocking

Introduction

Confirming the true N-terminus of a monoclonal antibody (mAb) underpins identity, comparability, and CMC-ready characterization packages. Yet many mAbs begin with Gln or Glu, which can cyclize to pyroglutamate (pGlu) and "cap" the N-terminus, producing an Edman "N-terminus blocked" outcome. This how-to focuses on an MS-first mAb N-terminal characterization workflow designed for low-input, fast-turnaround conditions. You'll get a practical decision path to localize the N-terminus, verify pGlu formation, separate lookalikes (e.g., truncation), and know when to escalate—without wasting precious sample. Scope: characterization/QC use only.

Key takeaways

• Start with intact/subunit MS to flag small mass deltas (−17/−18 Da) and mixtures before deeper localization.
• "Sequencing pGlu" means confirming the first residues and verifying cyclization; don't assume pGlu without localization evidence.
• Use middle-/top-down for residue-level end mapping; deploy targeted bottom-up to confirm chain-specific peptides and quantify minor variants.
• PAP deblocking is an orthogonal check; consider Edman after deblocking when residue-by-residue confirmation reduces decision risk.
• Report chain-specific proteoforms with defensible denominators and traceability aligned to ICH Q6B expectations.

Why pGlu Blocks Edman

Chemistry and prevalence (mAb-focused)

N-terminal Gln or Glu can intramolecularly cyclize to a five-membered lactam, forming pGlu and removing the free α-amino group that Edman chemistry requires. pGlu is commonly observed on heavy and light chains of recombinant mAbs, and partial conversion or chain-to-chain differences are frequently reported in the literature, influenced by pH, buffer, and temperature according to peer-reviewed studies such as Chelius (2006) and Liu (2011).

Edman failure mechanism (practical, not a chemistry lecture)

Edman degradation needs a free N-terminal amine for PITC derivatization in cycle 1. A pGlu-capped terminus blocks derivatization, yielding "no sequence obtained." Treat this as a symptom that triggers orthogonal confirmation rather than a conclusion on the underlying residue.

Impact on timelines and sample budgets

Assuming "it must be pGlu" can lead to rework or missed truncation events. A triage-first workflow—screening mass shifts, then localizing only when needed—reduces sample waste and avoids circular troubleshooting under tight timelines.

How to Sequence an N-Terminal Pyroglutamate (Direct Answer)

"Sequencing pGlu" is about building a minimal, defensible evidence package rather than forcing Edman cycles through a blocked end:

• Detect the chain-specific N-terminal peptide carrying pGlu with site-localizing fragments.
• Confirm whether an unmodified counterpart exists to estimate conversion.
• Rule out lookalikes (unexpected truncation or other caps) with orthogonal checks when ambiguity remains. Escalate evidence when mixtures, unexpected truncations, or borderline localization appear.

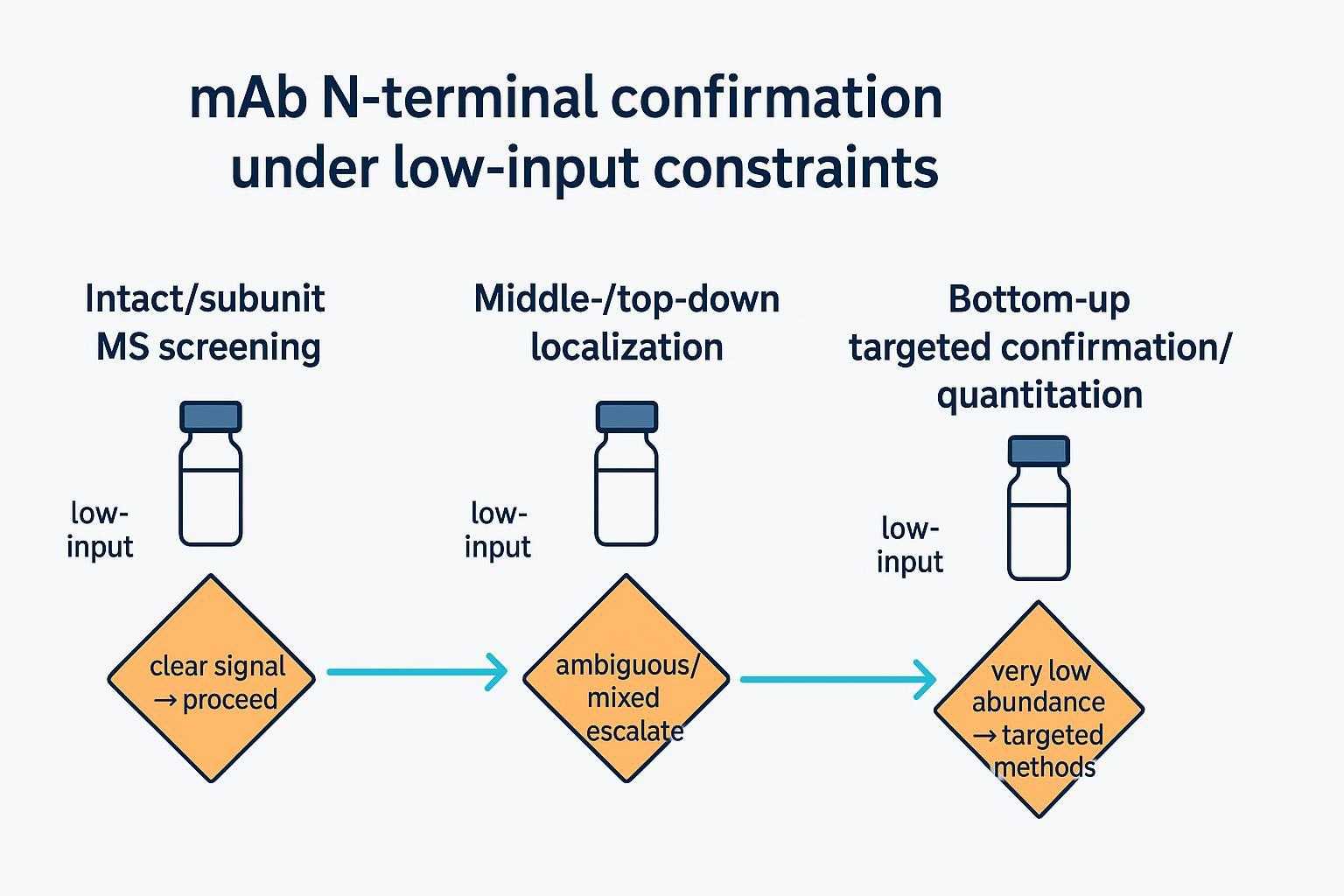

MS-First Screening for the mAb N-terminal characterization workflow (Intact / Subunit)

Inputs, setup, and safeguards

Begin with intact and/or subunit LC-MS to rapidly detect mass shifts consistent with N-terminal modification or truncation. Safeguards: use a reference material where available, run replicate injections, and standardize deconvolution parameters so results are traceable and comparable.

For a broader view of MS-first sequencing options that support intact, subunit, and confirmatory workflows, refer to our protein sequencing service.

Readouts and decision thresholds (triage logic)

• Clear signal: stable −17 Da (Gln→pGlu) or −18 Da (Glu→pGlu) per chain across replicates, or a consistent larger loss compatible with truncation.
• Needs localization: mixed populations (heterogeneity), ambiguous shifts, or overlapping explanations. Proceed to middle-/top-down or targeted bottom-up based on sample limits and urgency.

Common variant triage (mAb-relevant)

Flag patterns consistent with partial conversion (mixed capped/uncapped termini), truncation/clipping (larger mass losses), or mixed N-termini. Don't conclude "pGlu" without localization when multiple explanations fit.

Table 1. Quick triage readouts and actions

Mass deltas are a screen, not a proof—confirm pGlu with N-terminal MS/MS localization when other explanations remain plausible.

When intact/subunit screening suggests proteoform-level ambiguity, top-down protein sequencing can provide an orthogonal route to end-focused localization.

Localize and Confirm (Middle-/Top-Down, Bottom-Up)

Middle-/top-down localization for N-termini

Use middle-/top-down MS when intact/subunit indicates heterogeneity or modification and residue-level localization is needed. Favor ETD-family fragmentation (ETD, EThcD, AI-ETD) to preserve labile termini and improve end mapping. "Good localization" shows an ion series that pins the first residue(s) and distinguishes close alternatives.

Orthogonal bottom-up checks (targeted and efficient)

Apply peptide mapping to confirm chain-specific N-terminal peptides and to quantify variant populations. Use targeted acquisition (e.g., PRM) if the unmodified or minor population is low abundance. Keep interpretation-focused; defer SOP-level prep details to dedicated resources.

If you're using mapping as the confirmatory layer, our LC–MS/MS peptide mapping service summarizes typical outputs used for terminal verification and variant tracking.

Minimum localization criteria (principle-based):

For a defensible N-terminal localization call, require:

(1) N-terminus–anchoring fragment evidence that supports the first residues and distinguishes close alternatives;

(2) consistency with intact/subunit mass and replicate observations (when available);

(3) clear labeling as "Ambiguous" when fragment support is sparse, conflicts with mass evidence, or reproducibility is not demonstrated.

Distinguish Gln→pGlu vs Glu→pGlu (decision relevance)

Combine small mass deltas (−17 vs −18 Da) with MS/MS localization at the N-terminus and retention-time behavior. Avoid relying on a single ambiguous feature; use full ion-series logic to separate near-isobars.

For projects needing consultative MS workflows and CMC-ready reporting, teams may partner with providers such as Creative Proteomics for antibody N-terminal cyclization analysis.

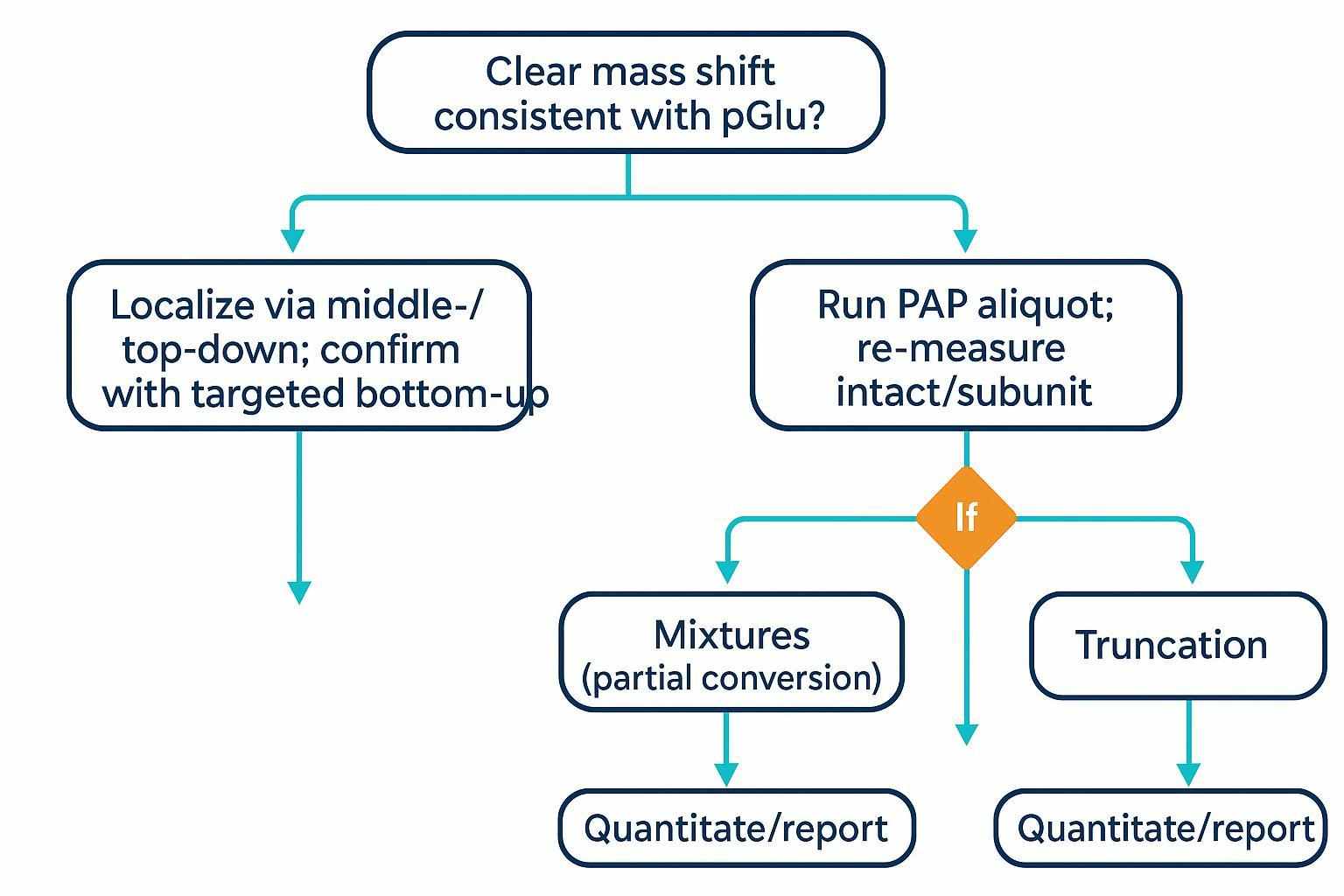

Deblocking Options and Decision Path

PAP deblocking as an orthogonal check

Pyroglutamate aminopeptidase (PGAP; sometimes abbreviated PAP) can test the hypothesis that pGlu is the primary blocker and help restore interpretability of N-terminal reads. Controls: parallel untreated aliquot, monitor for side reactions, and confirm post-treatment by LC‑MS/MS.

After deblocking, Edman can serve as a confirmatory readout; our Edman-based protein sequencing outlines where it fits alongside MS evidence.

When to re-route to Edman post-deblocking

Use Edman after deblocking when a residue-by-residue read materially reduces uncertainty for the decision at hand. Under low-input constraints, treat Edman as confirmatory rather than first-line.

Artifact control and sample handling

Avoid confusing deblocking artifacts or handling-induced truncations with true variants. Document aliquoting, chain-handling, and decision rationales to keep conclusions traceable.

Quantitation, Acceptance Criteria, and Decision Outputs

Define what you will report (avoid mixing categories)

Report chain-specific categories: pGlu-modified N-terminus, unmodified N-terminus, and truncation/clipping variants. Keep heavy and light chains separate.

Quantitation model and denominators (make it defensible)

Specify the denominator (per chain): "all N-terminus proteoforms detected" vs "total signal," and explain why. Avoid double counting when combining peptide- and proteoform-level views. Label clearly: Not detected (ND), Below reporting threshold (BRT), and Ambiguous localization.

Table 2. Reporting matrix and labeling (per chain)

What "good enough" looks like for the intended use

Define fit-for-purpose acceptance logic (screening vs deeper confirmation). Trend N-terminal heterogeneity across lots to support comparability narratives when processes change.

Compliance, Reporting, and Timelines

Evidence structure aligned to CMC expectations (non-clinical framing)

Maintain a coherent evidence chain: screening → localization → orthogonal confirmation → quantitation. Retain traceability from raw data to terminal assignments; document deconvolution settings, replicate logic, aliquoting history, and decision rationales.

Throughput, turnaround, and resource planning

Plan which steps can run in parallel (e.g., subunit prep while intact data is deconvolved). Define re-route triggers when first-pass evidence is inconclusive. Keep the mAb N-terminal characterization workflow reproducible and audit-friendly.

Conclusion

Pyroglutamate is common—and manageable—when you use an MS-first triage-to-confirmation approach with clear escalation triggers. In practice: screen quickly, localize decisively, quantify consistently, and document the evidence package for comparability and CMC readiness.

FAQ

What counts as sufficient evidence to call a pGlu N-terminus?

A chain-specific N-terminal peptide with site-localizing fragments plus intact/subunit consistency. Use targeted bottom-up if a minor unmodified counterpart exists.

When is Edman still useful?

After PAP deblocking, when residue-by-residue confirmation reduces decision risk or supports a filing-ready narrative. Treat as confirmatory under low-input constraints.

How do I distinguish Gln→pGlu from Glu→pGlu?

Combine −17 vs −18 Da deltas with N-terminal MS/MS localization and retention behavior; don't rely on mass alone when alternatives fit.

How should mixed N-termini be reported across lots?

Report chain-specific proteoform percentages using a single denominator per chain; trend across lots with clear ND/BRT/Ambiguous labels.

What if intact/subunit data are ambiguous?

Escalate to middle-/top-down for localization; run a PAP aliquot to test the pGlu hypothesis; confirm with targeted bottom-up.

References

1. Chelius D, et al. Formation of pyroglutamic acid from N-terminal glutamic acid in recombinant monoclonal antibodies. 2006. PubMed: https://pubmed.ncbi.nlm.nih.gov/16579622/
2. Liu YD, et al. N-terminal Glutamate to Pyroglutamate Conversion in Vivo for Human IgG2 Antibodies. 2011. PMC: https://pmc.ncbi.nlm.nih.gov/articles/PMC3064176/
3. Hinterholzer A, et al. Unambiguous Identification of Pyroglutamate in Full Proteins. 2019. PubMed: https://pubmed.ncbi.nlm.nih.gov/31589410/
4. Lodge JM, et al. Top-Down Characterization of an Intact Monoclonal Antibody. 2020. PMC: https://pmc.ncbi.nlm.nih.gov/articles/PMC8210841/
5. ICH Q6B Guideline: Specifications: Test Procedures and Acceptance Criteria for Biotechnological/Biological Products. PDF: https://database.ich.org/sites/default/files/Q6B_Guideline.pdf
