Hybridoma Antibody Sequence Verification: Heavy & Light Chain Pairing by Mass Spectrometry

Hybridoma-derived monoclonal antibodies are often treated as if they were inherently "sequence-defined" once you've obtained a clean heavy chain (HC) and light chain (LC) nucleotide sequence by NGS or RACE. In practice, hybridoma biology can be messier: a culture can contain multiple immunoglobulin transcripts, and the most abundant transcript does not always correspond to the antibody species that dominates binding.

That's why protein-level confirmation matters. DNA sequencing tells you what is encoded; MS-based protein verification can tell you what is actually expressed, processed, and assembled—an essential distinction for hybridoma antibody sequence confirmation and protein-level confirmation before CLD.

Why Hybridoma Sequences Need Protein-Level Confirmation

Hybridoma cell lines are not guaranteed to be genetically or transcriptionally "single-antibody" systems. Hybridization, ongoing rearrangements, and selection history can leave you with more than one productive heavy and/or light chain transcript in the same line. In a widely cited analysis of hybridoma-derived antibodies, Bradbury and colleagues documented that additional productive chains are common enough to change binding behavior and undermine monospecificity, even when the clone is used as a monoclonal reagent (see the reference list for the PubMed-linked paper title).

For teams preparing for cell line development (CLD), the practical concern is not philosophical—it's economic and operational:

• DNA sequencing identifies what the genome or transcriptome can encode; MS confirms what the secreted protein does express.
• A single mispaired HC/LC pair can sit at low abundance, remain invisible in early functional screening, and still contaminate the material you take into downstream engineering.
• Confirming the expressed sequence and checking for alternative chains before CLD reduces the chance of investing in a line that is "correct on paper" but heterogeneous at the protein level.

Key Takeaway: If your hybridoma expresses more than one chain transcript, the "right" nucleotide sequence is necessary—but not sufficient—to guarantee you are advancing the intended antibody species.

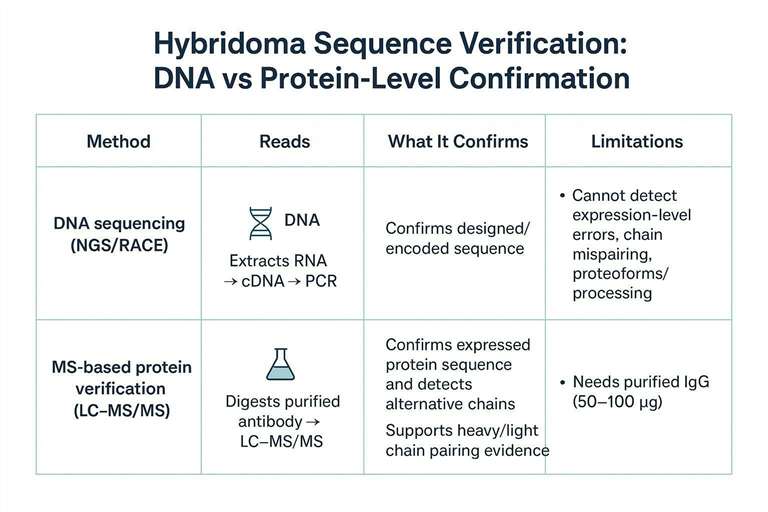

What DNA Sequencing Cannot Tell You

NGS, RACE, and PCR-based workflows are indispensable for identifying candidate immunoglobulin genes. But even a flawless nucleotide sequence does not answer several protein-level questions that matter for developability and reproducibility.

1) Are the candidate transcripts actually translated and secreted?

A hybridoma can carry multiple Ig transcripts while preferentially translating one, secreting another, or secreting a mixture. The mismatch can arise from transcriptional dominance, translational efficiency, secretion bottlenecks, or stability differences.

2) Do the expressed HC and LC form the intended heterodimer?

Hybridoma mixtures can generate combinatorial pairing: one heavy chain can associate with more than one light chain (and vice versa), especially when multiple productive chains are present. DNA sequencing alone cannot prove which pairing dominates in the secreted IgG pool.

3) Have post-translational modifications altered specific residues or micro-heterogeneity?

Even if the encoded sequence is correct, protein processing can introduce heterogeneity: oxidation, deamidation, glycosylation heterogeneity, N-terminal pyroglutamate formation, C-terminal processing, and other proteoform features. These are protein-level phenomena.

4) Does the expressed antibody retain the antigen-binding properties implied by the DNA sequence?

MS does not replace functional testing. But protein-level verification reduces one major ambiguity: whether you are testing the intended expressed sequence (and not a mixture) when interpreting binding and specificity data.

MS Workflow for Hybridoma Sequence Verification

A practical MS verification workflow is usually built on bottom-up LC–MS/MS peptide mapping for antibodies, often paired with targeted sequence confirmation against the specific candidate HC/LC sequences you identified by DNA sequencing.

Step 1: Sample Preparation

Protein-level confirmation starts with protein that is clean enough to digest reproducibly and interpret confidently.

A typical workflow:

• Purify IgG from hybridoma culture supernatant using protein A/G.
• Provide on the order of tens of micrograms of purified antibody (commonly ~50–100 µg) to support robust digestion and MS/MS coverage.
• If needed, perform buffer exchange into a digestion-compatible buffer such as ammonium bicarbonate.
• Reduce (e.g., DTT) and alkylate (e.g., iodoacetamide) to stabilize disulfide bonds and improve digestion consistency.

In many labs, this stage is where "hidden variability" is introduced—carryover detergents, salts, and incomplete reduction can create uneven peptide recovery and complicate the downstream interpretation. If you want the peptide-mapping readout to be diagnostic (not just descriptive), sample cleanliness is part of the method.

For a peptide-mapping approach tailored to sequence confirmation and modification profiling, see Peptide Mapping.

Step 2: Enzymatic Digestion and LC-MS/MS

Bottom-up peptide mapping converts your antibody into a set of peptides that can be separated and sequenced by tandem MS.

Common design choices:

• Digest with trypsin (often overnight at 37°C) or use complementary protease strategies (e.g., Lys-C followed by trypsin) to improve cleavage completeness and coverage of challenging regions.
• Separate peptides on a reversed-phase C18 LC column; narrow-bore formats improve sensitivity when samples are limited.
• Acquire MS/MS on high-resolution platforms such as Orbitrap or Q-TOF instruments with HCD-type fragmentation for confident peptide identification.

If your goal is not just PTM profiling but sequence confirmation against specific candidate hypotheses, digestion strategy should be decided with that in mind: your protease choice and LC gradient should maximize informative peptides in variable regions and junctions that discriminate among candidate chains.

For workflows used to confirm biopharmaceutical proteins (where method controls and reporting conventions are often stricter), Biopharmaceutical Peptide Mapping Analysis Service can provide a useful reference point for how peptide mapping is applied in regulated-style characterization.

Step 3: Data Interpretation

Interpretation is where hybridoma verification differs from "generic peptide mapping." Your search space is not simply "mouse IgG"—it is a set of candidate heavy and light chains, potentially including primary and alternative transcripts.

A robust analysis strategy usually includes:

1. Search against all candidate HC and LC sequences identified by DNA sequencing.
2. Generate a peptide list that distinguishes the primary pairing hypothesis from plausible alternatives.
3. Flag peptides that uniquely match a secondary chain not present in the primary pairing.
4. Compare relative signal intensity of primary vs. secondary chain–specific peptides to estimate whether alternative species are trace-level or substantial. While bottom-up evidence alone is not always definitive for intact pairing, this comparison is often the first quantitative clue in heavy and light chain pairing verification.

Two practical interpretive cautions:

• Bottom-up peptide mapping is excellent for confirming that a given chain sequence is present in the sample and for locating PTMs. However, pairing evidence can be indirect if you only have separated peptide evidence and no linkage information.
• In hybridoma contexts, the question is not merely "Is this sequence present?" but "Is the intended HC/LC combination the dominant expressed species?"

When you need deeper protein-level confirmation of antibody chains and variable regions, MS-centered approaches designed specifically for antibody sequence confirmation are typically used, such as Mass Spectrometry Based Antibody Sequencing and Antibody Light and Heavy Chain Variable Region Sequencing.

Detecting Heavy and Light Chain Pairing by Middle-Down MS

If your primary risk is mispairing—not just "do I have the right sequences present?"—middle-down MS for antibody pairing can provide more direct evidence of intact HC–LC association.

The logic is simple: instead of digesting the antibody into many small peptides, you preserve larger subunits (or the interchain linkage) so the MS signal retains pairing information.

A typical middle-down pairing-oriented approach can include:

• Reduce only enough to simplify the species while keeping the interchain disulfide bond intact (design varies by antibody class and experimental goal).
• Enrich and separate the dominant heterodimer from potential homodimers/aggregates using non-reducing SEC or comparable native separation strategies.
• Analyze the resulting ~tens-of-kDa subunits directly by MS, without full proteolytic digestion.

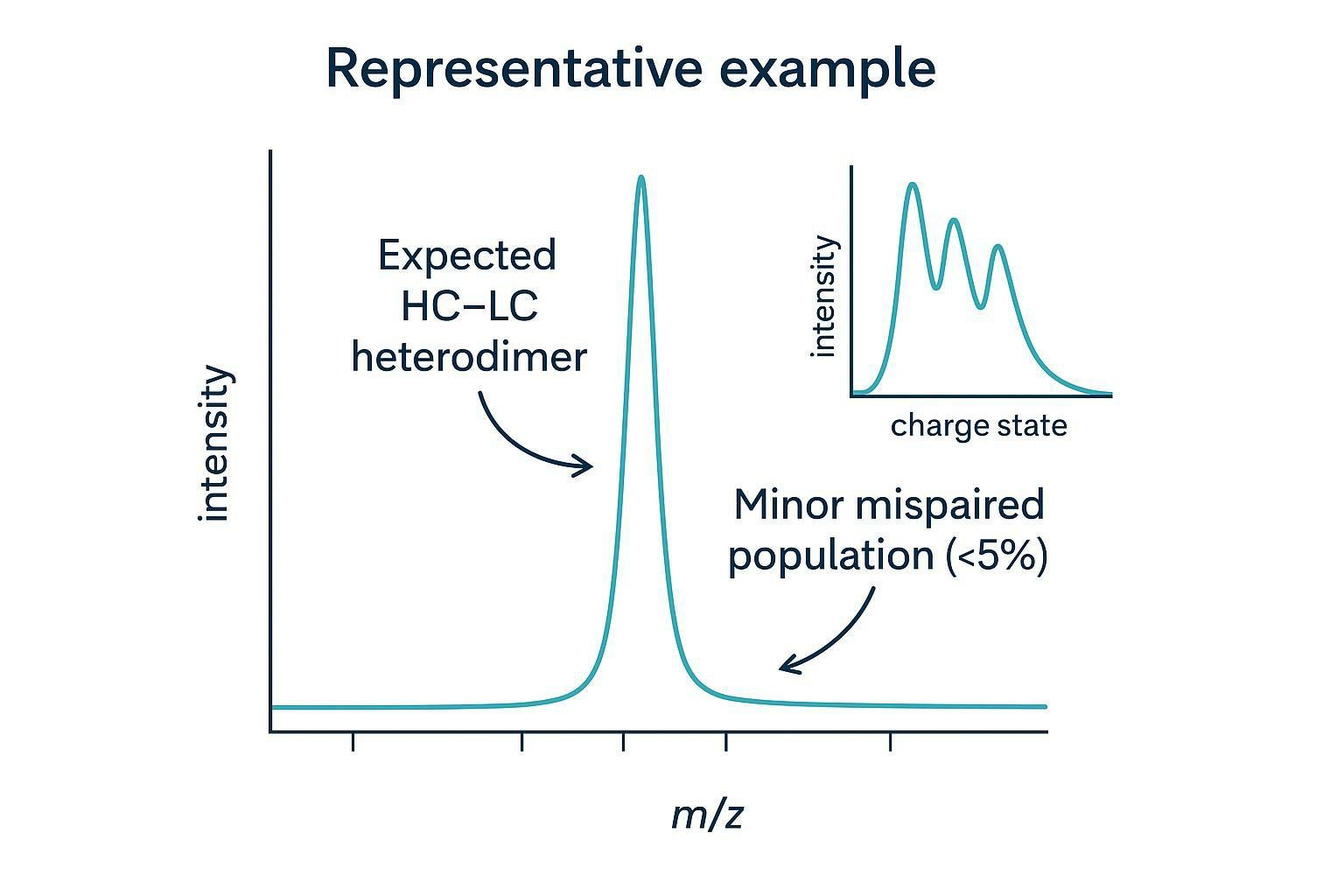

• Confirm pairing by detecting the intact mass consistent with the expected HC–LC heterodimer.

If you observe unexpected masses—especially consistent additional peaks rather than isolated noise—it can suggest secondary pairing populations and/or proteoform differences (e.g., glycoforms, truncations) that merit follow-up.

Pro Tip: Treat "pairing confirmation" as an evidence stack. Middle-down can strengthen the case for the dominant paired species; bottom-up peptide mapping can then localize sequence- and PTM-level details that explain any mass deviations.

What to Do When Secondary Chains Are Detected

Secondary chains are not automatically disqualifying. The decision is contextual: intended use, downstream engineering plans, sensitivity of your functional assays to minor species, and how much CLD investment is at stake.

A conservative, practical response framework:

1. Quantify the ratio

• If secondary-chain peptide signals are trace-level (often treated as "low single-digit percent" in many analytical decision contexts), some teams may proceed—especially if the intended application tolerates a minor heterogeneous background.
• If the secondary population is substantial, the risk shifts from "minor impurity" to "mixed antibody product," and it's typically safer to re-derive a cleaner clone.

2. Assess whether the secondary chain is productive and pairing-capable

• Some transcripts are present but non-productive; MS evidence of translated peptides is a strong discriminator.

3. Decide whether to return to cloning

• If contamination is meaningfully high or rising across passages, consider re-screening the hybridoma (e.g., limiting dilution or another single-cell approach) before committing to CLD.

4. Keep DNA and MS outputs together

• For downstream developability discussions, the combination of transcript-level data and protein-level confirmation is stronger than either alone.

If you are in the "ambiguous middle" (not trace, not dominant), pairing-oriented MS (middle-down) plus targeted peptide mapping can be a rational way to convert uncertainty into a decision.

Practical Considerations Before Submitting Samples

Hybridoma verification tends to fail for practical—not theoretical—reasons. A few checks before you submit material can save a full iteration.

A final note on expectations: MS verification is strongest when you predefine what you are trying to confirm (primary sequence, alternative chains, pairing evidence, PTM hotspots). A "tell me what it is" request is possible in some contexts, but it's not the most efficient way to answer a CLD go/no-go question.

If you want an execution path that prioritizes expressed sequence confirmation and chain-level clarity, Antibody Full Amino Acid Sequencing is often used as a protein-first option when nucleic-acid information is incomplete or when the focus is on what is present in the purified antibody.

When to Use This Service in Your Workflow

References

1. When monoclonal antibodies are not monospecific
2. Determination of variable region sequences from hybridoma cell lines
3. Mass Spectrometry-Based De Novo Sequencing of Monoclonal Antibodies
4. PCR amplification of the functional immunoglobulin heavy chain variable gene from a hybridoma in the presence of two aberrant transcripts
