Sequencing Disulfide-Rich Peptides: Reduction, Mapping, and De Novo MS/MS

Key Takeaways

• Dual-Track Analytical Strategy: Resolving disulfide-rich peptides (DRPs) requires combining complete reduction for 100% primary linear sequence coverage with non-reduced acidic mapping for native bond topology.
• Kinetic Control of Disulfide Scrambling: Conducting sample preparation strictly at acidic pH < 6.0 (optimal pH 2.0–5.5) and deploying rapid maleimide alkylation eliminates nucleophilic thiolate attacks (RS^-) and prevents artificial isomer formation.
• Orthogonal Mass Spectrometry: Integrating High-Field Asymmetric Waveform Ion Mobility Spectrometry (FAIMS) with complementary electron-transfer/higher-energy collision dissociation (EThcD) and 193 nm ultraviolet photodissociation (UVPD) overcomes physical fragmentation barriers in cyclic/knotted peptide frameworks.
• Automated & Expert De Novo Assembly: Cross-aligning multi-spectral fragment ladders (c/z and b/y), filtering internal loop fragments, and tracking sulfur-specific neutral losses (-32 Da, -34 Da, -64 Da) ensures error-free structural assignment and Leu/Ile differentiation.

Disulfide-rich peptides (DRPs) represent one of the most structurally fascinating and analytically challenging classes of biological molecules. Spanning venom toxins (such as conotoxins and agatoxins), cystine-knot miniproteins (knottins), engineered peptide therapeutics, and antibody fragments, these biomolecules owe their exceptional metabolic stability, receptor selectivity, and thermal resistance to densely woven covalent frameworks. However, these same structural characteristics present severe bottlenecks for tandem mass spectrometry (MS/MS).

From an analytical standpoint, researchers face a central structural and analytical dilemma: the rigid, highly cross-linked covalent architecture of native DRPs resists conventional collision-induced dissociation, shielding the peptide backbone from efficient cleavage. Conversely, subjecting the peptide to complete chemical reduction untangles the scaffold for sequence analysis but permanently erases the spatial map of native disulfide connectivity.

Adding to this complexity is the primary experimental risk during sample preparation: in vitro disulfide scrambling. Driven by base-catalyzed thiol-disulfide exchange at neutral or basic pH, unpaired thiols or mismatched linkages spontaneously re-arrange during cell lysis, denaturation, or enzymatic digestion, yielding non-native structural artifacts.

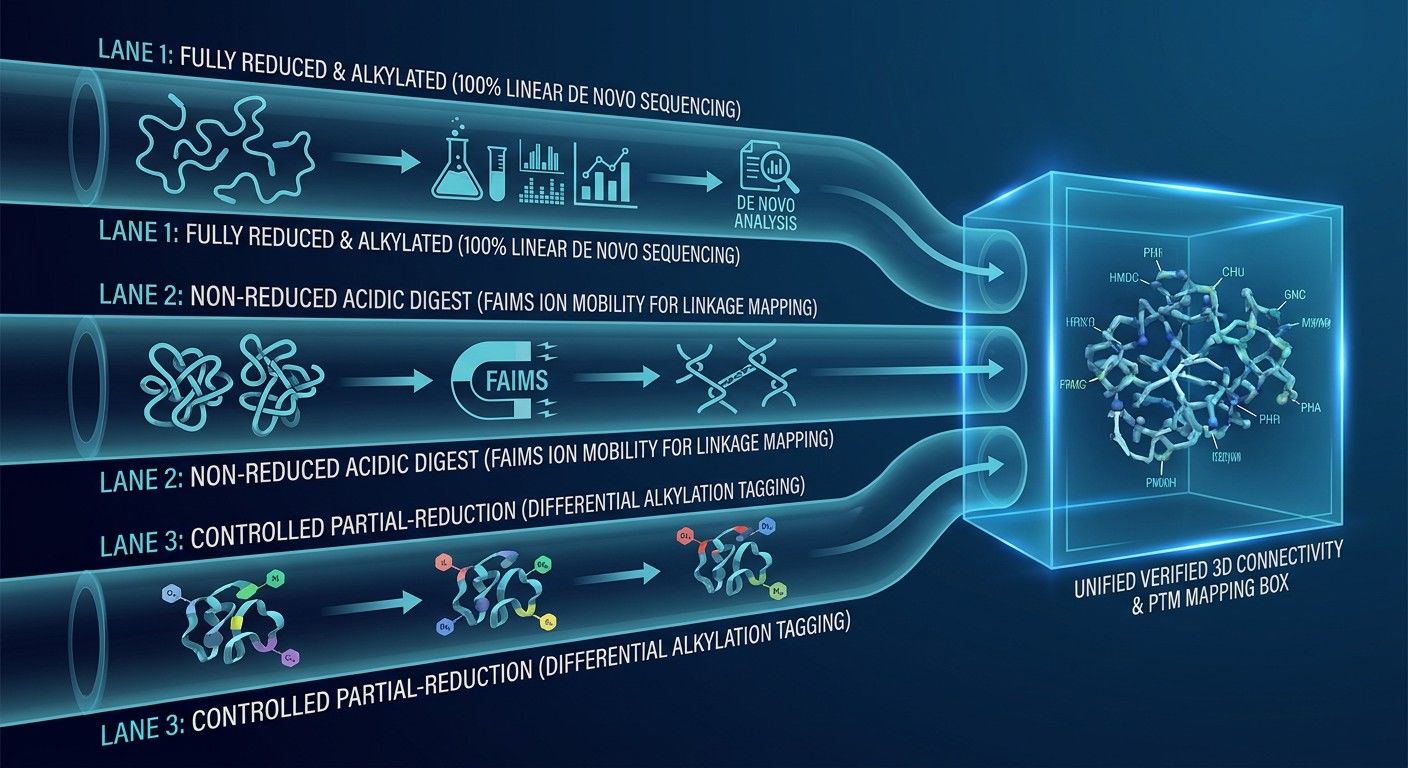

To overcome these obstacles, this guide outlines a multi-lane mass spectrometry pipeline. By pairing complete reduction for 100% de novo primary linear sequencing with acidic non-reduced mapping, gas-phase ion mobility separation (FAIMS), and advanced electron- and photon-driven fragmentation modes (ETD, EThcD, UVPD), researchers can achieve unambiguous primary sequence and 3D disulfide topology assignment.

Controlling Disulfide Scrambling: Chemical and Kinetic Suppression

The structural integrity of a disulfide connectivity map relies entirely on preserving the native linkages established in vivo or during controlled biomanufacturing. Preventing artificial isomer formation during extraction and digestion requires strict kinetic control over chemical re-equilibration.

The Mechanism of Thiol-Disulfide Exchange

Disulfide scrambling occurs through a reversible nucleophilic substitution (SN2) reaction known as thiol-disulfide exchange. The primary driver of this reaction is the deprotonation of unlinked cysteine thiols into highly reactive thiolate anions (RS⁻) at alkaline or neutral conditions (pH > 7.0):

R-SH + B ⇌ R-S⁻ + BH⁺

R-S⁻ + R'-S-S-R'' ⇌ R-S-S-R' + R''-S⁻

Because the pKa of unconstrained cysteine side-chain thiols typically ranges between 8.0 and 8.5, neutral or slightly basic processing buffers generate significant thiolate concentrations. These nucleophilic anions attack nearby disulfide bridges, triggering cascading exchange reactions that scramble native connectivity within minutes.

The Acidic Preservation Benchmark

To suppress thiol-disulfide exchange, all sample denaturation, solubilization, and enzymatic processing must be performed under strict acidic conditions (pH < 6.0, with an optimal operating range of pH 2.0–5.5). At pH < 5.5, cysteine thiol groups remain fully protonated (RSH), reducing thiolate concentration by more than four orders of magnitude and rendering the sulfur atoms chemically inert. Maintaining an acidic environment acts as a chemical kinetic lock, preserving native connectivity throughout sample preparation.

Acidic Preservation Threshold:

pH > 7.0 → Deprotonation to RS⁻ → Rapid Disulfide Scrambling (HIGH RISK)

pH < 6.0 → Protonated RSH → Scrambling Kinetics Suppressed (>10⁴-fold)

pH 2.0-5.5 → Optimal Range → Complete Thiol Inertness (BENCHMARK)

Rapid Alkylation and Free-Thiol Capping

Even under acidic conditions, trace free cysteines or partially reduced intermediates must be capped immediately to prevent downstream oxidation. Conventional alkylating agents like iodoacetamide (IAA) require basic conditions (pH 8.0–8.5) and long incubation times, making them unsuitable for non-scrambling protocols.

Instead, workflows deploy fast-acting maleimide reagents, such as N-ethylmaleimide (NEM) or specialized alkyl maleimides, directly during initial denaturation. Maleimides undergo rapid, quantitative Michael addition with free thiols at pH 6.0–6.5, instantly quenching unpaired cysteines without inducing disulfide shuffling.

Partial vs. Complete Reduction Strategies

Resolving complex, multi-layered disulfide frameworks often requires differential mass-tagging:

• Complete Reduction: Unfolds the entire peptide scaffold using strong reductants (e.g., 10–20 mM DTT or TCEP at elevated temperatures) followed by dense alkylation, creating a uniform linear precursor optimized for full-length de novo peptide sequencing platform workflows.
• Controlled TCEP Titration: Stepwise, low-temperature reduction leverages the differential solvent accessibility and ring strain of individual disulfide pairs. Exposed, high-strain disulfides are reduced first at low TCEP concentrations and tagged with a primary alkylating agent (e.g., NEM). Buried or low-strain disulfides are subsequently reduced under denaturing conditions and tagged with an isotopically labeled or distinct alkylating agent (e.g., d₅-NEM or IAA), creating a differential mass footprint that unambiguously decodes linkage order.

Non-Reduced Mapping by LC–MS/MS & Ion Mobility

While complete reduction yields linear sequences, establishing native 3D topology requires analyzing intact, non-reduced disulfide-linked peptide clusters.

Orthogonal Protease Digestion Under Acidic Conditions

Standard proteomic digestion relies on trypsin at pH 8.0, which is incompatible with non-scrambling requirements. Non-reduced disulfide mapping utilizes orthogonal proteases engineered or selected for high activity in acidic media:

• Pepsin: Operates at pH 1.5–3.0, cleaving broadly after aromatic and hydrophobic residues to generate short, dense disulfide-linked dipeptides.
• Aspergillus Acid Proteases (e.g., Protease A / Protease XIII): Active at pH 2.5–5.0, offering complementary cleavage specificity to pepsin.
• Micro-Acidic Trypsin: Employed under modified low-pH conditions (pH 5.5–6.0) with shortened incubation times to cleave basic residues (Lys/Arg) while remaining below the scrambling threshold.

By combining complementary acidic digests, researchers generate overlapping disulfide-linked fragment clusters that cover every cysteine residue in the native sequence. Leveraging a specialized disulfide bond analysis service or robust peptide mapping service ensures that these delicate dipeptide fragments are preserved and accurately annotated.

Gas-Phase Separation of Linked Peptides via FAIMS

In non-reduced digests, cross-linked dipeptides co-elute alongside a dense background of linear, unlinked peptides. Because cross-linked species carry higher net charge states (+3 to +5) and possess compact, three-dimensional collision cross-sections, they interact distinctly with electric fields in the gas phase.

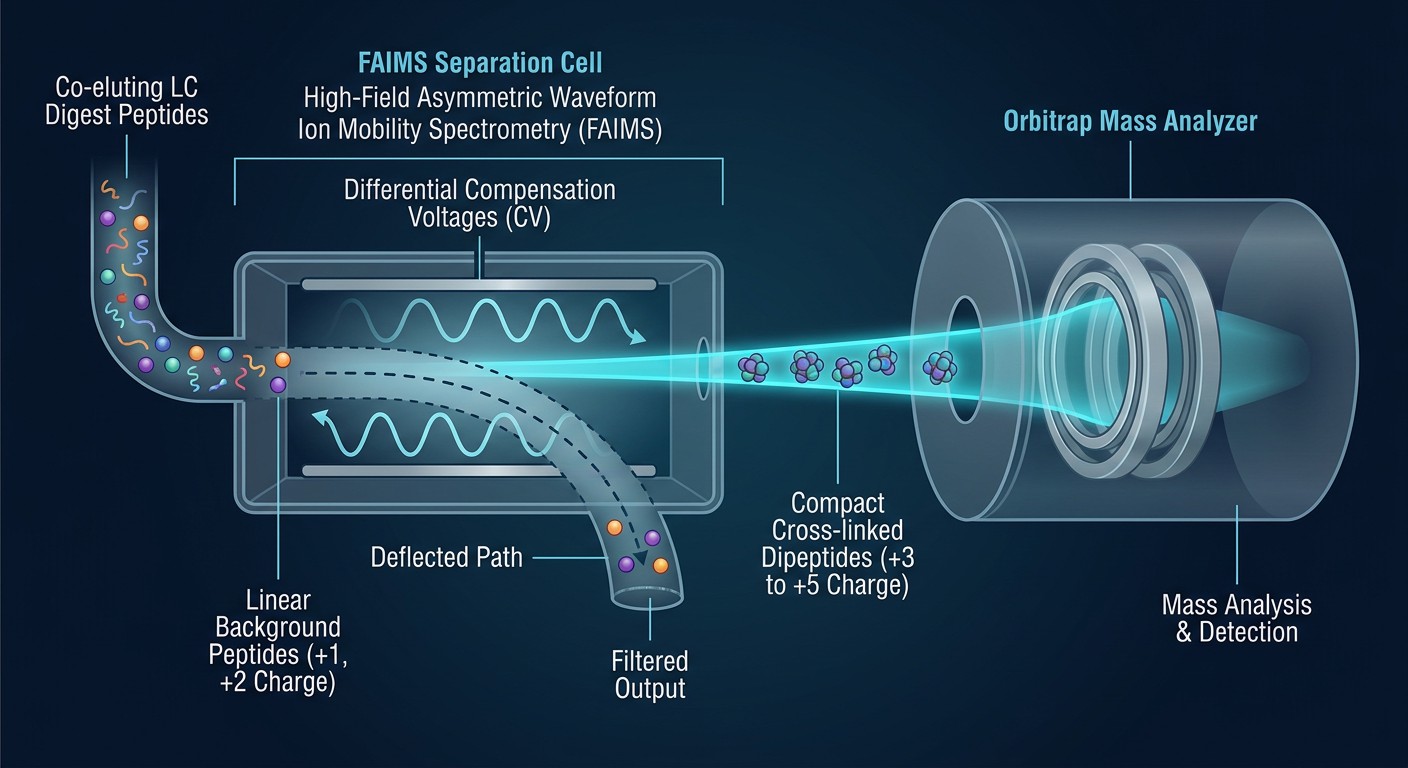

High-Field Asymmetric Waveform Ion Mobility Spectrometry (FAIMS) acts as a gas-phase physical filter prior to mass analysis:

By stepping Compensation Voltages (CVs, e.g., -40 V, -55 V, -70 V), FAIMS selectively focuses highly charged, compact cross-linked precursors into the mass spectrometer while deflecting singly and doubly charged linear background ions. This gas-phase separation increases spectral dynamic range and boosts precursor selection efficiency for complex cross-linked species by up to 10-fold.

Discriminating Native vs. Scrambled Disulfide Isomers

To confirm that observed linkages reflect true biological structures rather than processing artifacts, analytical workflows apply dual validation criteria:

1. Chromatographic Baseline Verification: Native structural conformers exhibit distinct, sharp retention times on high-resolution reverse-phase HPLC (RP-HPLC). The presence of broad, multi-peak clusters or tailing for a single isobaric mass indicates conformational heterogeneity caused by partial scrambling.
2. Monoisotopic Intact Mass Matching: Every identified cross-linked dipeptide must match the theoretical monoisotopic mass of the native sequence framework within sub-ppm mass tolerance (Δ m < 2 ppm), ruling out non-specific adducts or mismatched disulfide loops.

Advanced Fragmentation Strategies for Constrained DRPs

Once non-reduced cross-linked precursors are isolated, selecting the appropriate tandem mass spectrometry (MS/MS) fragmentation energy pathway is critical for reading the sequence across cystine bridges.

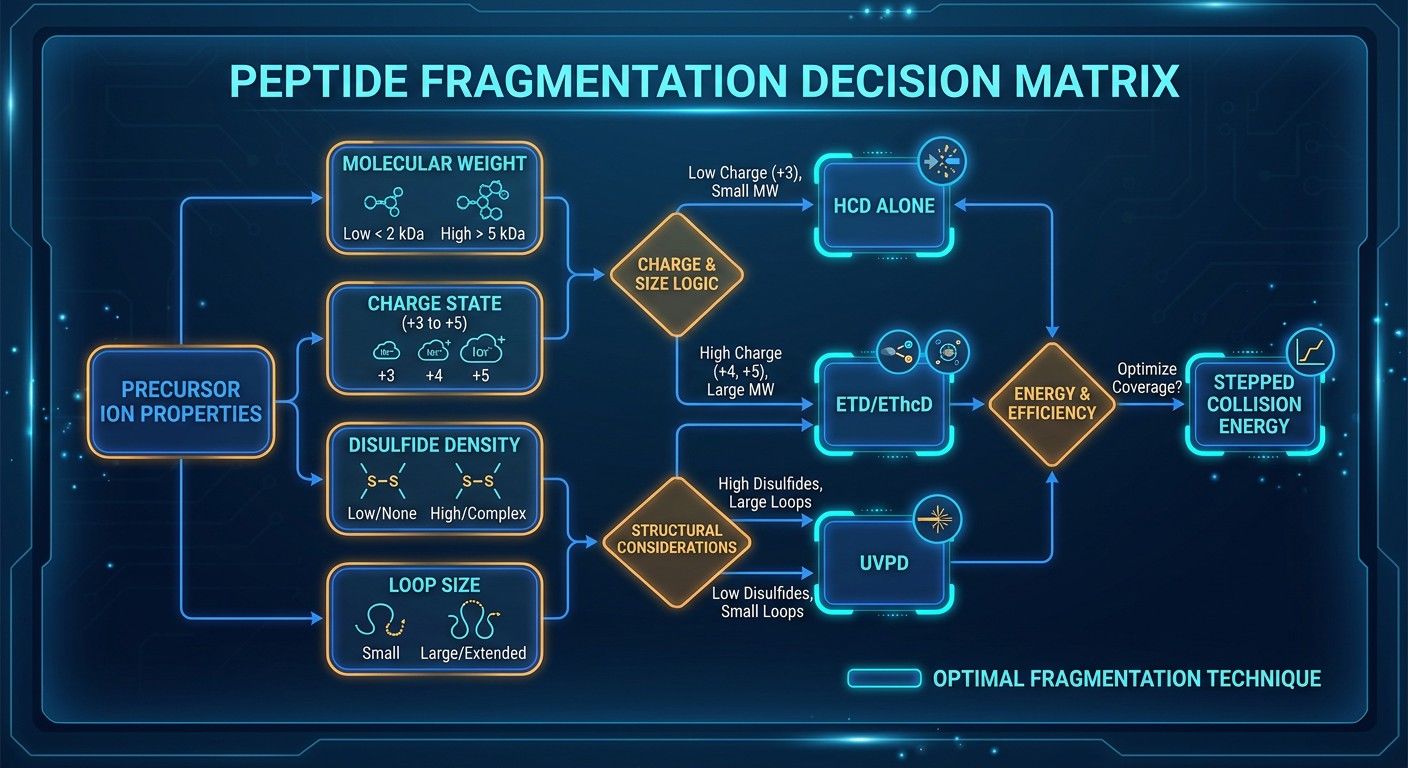

Precursor Selection & Fragmentation Decision Flow:

• High Charge (+3 to +5), Dense Disulfides: Deploy ETD / EThcD → Sever S-S Bridges First (Gas-Phase Unfolding) → Yields Comprehensive Fragment Spectrum (c/z and b/y Sequence Ladders)
• Low Charge (+2), Sparse Disulfides: Deploy HCD / UVPD → Direct Energy Activation (Backbone & S-S Cleavage)

Physical Limitations of Conventional CID/HCD

Conventional Collision-Induced Dissociation (CID) and Higher-Energy Collisional Dissociation (HCD) rely on slow, vibrational thermal activation. In non-reduced disulfide-rich peptides, vibrational energy preferentially cleaves the weakest amide (C-N) bonds along the peptide backbone.

However, because the covalent disulfide bridge (S-S, bond dissociation energy ~251 kJ/mol) remains intact, the resulting fragment ions remain physically trapped inside the cyclic loop:

Conventional HCD Fragmentation Dilemma:

Amide Cleavage (HCD)
        ↓
H₂N-Ala-Cys-Gly-Lys-...-Cys-Val-COOH <-- Fragment trapped inside loop!
        |                 |
        +-------S---S-----+

No free b/y ion detected in MS/MS

As a result, HCD spectrum of an intact DRP yields sparse, uninterpretable spectra populated by uninformative internal loop fragments and intact precursor ions.

When and How to Deploy ETD and EThcD

To bypass loop trapping, non-ergodic dissociation methods transfer electronic energy rather than vibrational heat:

• Electron Transfer Dissociation (ETD): Involves gas-phase ion-ion reactions where polycationic peptide precursors accept an electron from a radical anion (e.g., fluoranthene). The resulting radical cation site preferentially targets disulfide bonds, inducing homolytic cleavage of the S-S linkage while preserving the peptide backbone. This unfolds the cyclic loop in the gas phase, releasing diagnostic c and z• fragment ions.
• EThcD Dual-Mode Activation: ETD efficiency drops for lower charge states or tight structural loops. Electron-Transfer/Higher-Energy Collision Dissociation (EThcD) applies a supplemental HCD collisional activation pulse (15–25% Normalized Collision Energy) to non-dissociated charge-reduced species generated during the ETD reaction. Within a single scan, EThcD cleaves both the covalent disulfide bridges and the peptide backbone, generating dual, overlapping c/z and b/y fragment ladders that yield complete sequence coverage across tightly linked regions.

Ultraviolet Photodissociation (UVPD) & Alternative Dissociation

Ultraviolet Photodissociation (UVPD) utilizing 193 nm vacuum ultraviolet photons (6.4 eV per photon) provides an activation mechanism that operates independently of precursor charge state. A single nanosecond pulse delivers high photon energy directly into the peptide backbone and disulfide chromophores, driving direct electronic excitation.

UVPD induces simultaneous homolytic cleavage of S-S bonds, Cα-C bonds (a/x ions), C-N bonds (b/y ions), and N-Cα bonds (c/z ions). This charge-state-agnostic activation renders UVPD particularly effective for challenging doubly charged or neutral non-reduced peptide precursors that fail to react efficiently during ETD.

De Novo MS/MS Interpretation & Structural Assembly

Translating raw, multi-channel fragment spectra into a verified sequence contig and structural topology requires specialized bioinformatics handling.

Orthogonal Multi-Spectral Alignment

Because no single fragmentation technique guarantees 100% cleavage across complex scaffolds, modern de novo sequencing algorithms align complementary spectra acquired from the same precursor mass. Combining HCD (b/y series), ETD (c/z series), and EThcD (b/y/c/z combined) creates an orthogonal spectral overlay:

Deconvolving Internal Fragments and Neutral Losses

Cyclic peptide loops bounded by disulfide bridges can undergo double-backbone cleavage events during HCD or EThcD, generating non-canonical internal fragments (e.g., by or ax type ions lacking N- or C-termini). Automated de novo engines must filter these internal fragment noise peaks to avoid false-positive amino acid assignments.

Furthermore, cysteine radical cations produced during ETD/EThcD fragmentation undergo characteristic sulfur-related neutral losses that serve as diagnostic mass signatures:

• -32 Da: Loss of sulfur atom (S•) from a cysteine radical.
• -34 Da: Loss of hydrogen sulfide (H₂S).
• -64 Da: Loss of a disulfide radical species (S₂ or 2×S).

Tracking these diagnostic mass losses allows algorithms to unequivocally tag cysteine-containing fragment ions in complex tandem mass spectra.

Software Automation and Expert Manual Validation

High-throughput de novo sequence contigs generated by automated platforms (such as PEAKS Studio or Novor) are cross-referenced against specialized disulfide-mapping algorithms (including pLink-SS, DBond, and MassMatrix) through a systematic multi-stage workflow:

1. Raw MS/MS Acquisition: Collecting high-resolution tandem mass spectra across complementary ionization and fragmentation channels.
2. Multi-Spectral Alignment: Cross-aligning fragment ladders from HCD (b/y ions), ETD (c/z ions), and EThcD (combined b/y/c/z ions) to build overlapping sequence contigs.
3. Automated Contig Scoring: Scoring and assembling primary sequences using specialized engines (PEAKS Studio or Novor) to establish initial candidate frameworks.
4. Disulfide Topology Mapping: Executing automated cross-link assignment algorithms (pLink-SS, DBond, or MassMatrix) to match native cystine connectivity patterns.
5. Manual Expert Verification: Validating low-intensity diagnostic ions, confirming sulfur-specific neutral losses (-32 Da, -34 Da, -64 Da), and resolving isobaric Leucine/Isoleucine assignments.

Finally, expert manual inspection verifies baseline noise levels, validates low-intensity diagnostic ions, and resolves isobaric residues:

• Leucine (Leu) vs. Isoleucine (Ile): Isobaric residues (113.084 Da) are differentiated by observing high-energy w-ion fragments resulting from side-chain radical loss (yielding a -15 Da loss for Ile or -42 Da loss for Leu) or via secondary chemical derivatization.

Sample-Specific Analytical Workflows

Different biological and therapeutic peptide classes present distinct structural hurdles, requiring tailored execution strategies.

Venom Toxins and Cystine-Knot Miniproteins (Knottins)

• Structural Challenges: Small size (2–5 kDa), dense disulfide bridges (3 to 5 bonds per scaffold), presence of adjacent cysteine motifs (-CC- or -CXC-), and a scarcity of basic cleavage sites for trypsin.
• Targeted Strategy: Employ a multi-protease acid digestion panel (Pepsin + Protease A) combined with micro-scale partial TCEP reduction. Apply EThcD and FAIMS to isolate dense, highly charged dipeptide clusters and resolve adjacent cysteine linkages.

Therapeutic Peptides & Constrained Biologics (e.g., Ziconotide)

• Structural Challenges: Stringent regulatory requirements (FDA/EMA) demanding precise quantification of low-abundance (<0.1%) scrambled structural isoforms and critical post-translational modifications (PTMs) such as C-terminal amidation, deamidation, and methionine oxidation.
• Targeted Strategy: Deploy targeted, high-resolution LC-MS/MS under non-scrambling acidic conditions. Compare retention times and fragment spectra against synthetic reference standards to quantify native versus mismatched disulfide topology with high precision.

Antibodies, Subunits, and Complex Fusion Constructs

• Structural Challenges: Highly complex, multi-domain architectures featuring intertwined inter-chain (heavy-light, hinge region) and intra-chain disulfide loops.
• Targeted Strategy: Utilize a middle-down enzymatic subunit dissection strategy using domain-specific proteases (e.g., IdeS or GingisKHAN) to digest the construct into distinct ~ 25 kDa fragments (F ab, Fc, Fd). Subject isolated domains to parallel fully reduced sequencing and non-reduced acidic mapping.

End-to-End Execution, Reporting Essentials, and Sample Submission

Executing a successful disulfide-rich peptide sequencing project requires strict quality control metrics and standardized reporting deliverables.

Standardized Reporting Essentials

When receiving a completed analytical report from a professional mass spectrometry-based protein sequencing workflow, ensure the following core deliverables are included:

• Disulfide Connectivity Map: Comprehensive tabular assignment linking every cysteine pair in the construct, supported by high-resolution diagnostic MS/MS annotated spectra (c/z and b/y fragments).
• Full-Length Sequence Coverage: Continuous peptide contig map demonstrating >95%–100% linear sequence coverage, including unambiguous verification of N- and C-termini.
• Scrambling & Isomer Quantification: Quantitative percentage breakdown comparing native disulfide topology against non-native or shuffled structural isoforms down to sub-percent detection limits.

Sample Submission Guidelines

To ensure optimal results during MS processing, samples submitted for disulfide mapping and de novo sequencing should meet the following technical criteria:
