Beyond the N-Terminus: Integrating N- and C-Terminal Sequencing for Full Protein Integrity

Introduction

Terminal sequencing isn't just a box to tick—it's the most direct way to prove that what you made is what you intended to make. Anchoring both the N- and C-termini strengthens identity, clarifies integrity, and reduces ambiguity in comparability, change control, and IP claims. In practice, dual-terminal confirmation complements peptide mapping, intact mass, and subunit analyses to deliver a defensible, orthogonal evidence package that satisfies CMC scrutiny and accelerates decision-making.

Across biologics (mAbs, bispecifics), de novo efforts, recombinant enzymes, and novel modalities, the combination of Edman (when the N-terminus is accessible) and LC–MS-based approaches (for blocked N-termini and C-terminal confirmation) offers interpretability and sensitivity—even when inputs are scarce. The outcomes you want are consistent: high-confidence terminal assignments corroborated by independent methods, feasibility at low input, and documentation that stands up to audits.

Key takeaways

• Use terminal sequencing for CMC identity and integrity to reduce false certainty from single-end evidence; always aim to confirm both termini.
• Build an orthogonal evidence package for N- and C-terminus confirmation by combining intact mass, terminal-specific methods (Edman, laddering), and mapping/top- or middle-down readouts.
• For terminal heterogeneity reporting and acceptance criteria, define clear denominators and link thresholds to risk and process knowledge.
• Detecting N- and C-terminal truncation by LC–MS benefits from intact mass triage, carboxypeptidase ladders, and targeted terminal peptide evidence.
• Maintain audit-ready documentation for terminal sequencing workflows using ALCOA+ data integrity principles and explicit processing rules.

Where Terminal Sequencing Adds Value (Use Cases)

Confirming identity when truncation or clipping is suspected

When size or charge variants appear, terminal sequencing helps separate true product variants from handling artifacts. An unexpected mass deficit in intact mass or a shifted charge variant often signals N- or C-terminal clipping. Direct terminal evidence—Edman cycles for an accessible N-terminus or a carboxypeptidase ladder for the C-terminus—can confirm or refute suspected truncations that generic peptide mapping might miss due to poor terminal peptide behavior or non-unique sequences.

Supporting comparability after construct or process changes

Construct edits (signal peptides, tags), purification changes, or scale-up can introduce terminal heterogeneity. Re-anchoring N/C termini after these changes ensures continuity of identity claims and supports lifecycle monitoring. Track terminal variants over time and lots; if terminal peptides are non-unique or missing, rely on complementary digests and subunit strategies to maintain the chain of evidence linking termini to the internal sequence.

Strengthening IP and program decisions with terminal anchors

In patenting and portfolio governance, ambiguity around end residues complicates variant attribution. Terminal confirmation narrows claims, improves reproducibility across teams, and provides an evidence package that cross-functional stakeholders can interpret. Defining explicit denominators and acceptance criteria for terminal heterogeneity also streamlines go/no-go calls during development.

Case study — Recombinant enzyme with C-terminal clipping

A recombinant enzyme batch showed an unexpected −330 Da intact‑mass deficit and a shifted charge profile during QC. Multi‑enzyme peptide mapping (trypsin + Glu‑C) localized the deficit to the C‑terminus; a CpB time‑course ladder produced a monotonic mass ladder missing three residues and MS/MS b/y ions confirmed the truncation site. Decision: root‑cause linked to proteolysis; process change (protease inhibitors during purification) accepted after repeat batches showed elimination of the clipped proteoform.

Case study — Therapeutic protein with N‑terminal blocking and charge variants

Routine CEX revealed a new acidic shoulder representing ~15% of product. Edman failed due to N‑terminal block; targeted PRM and MS/MS localized an N‑terminal cyclization (pyroGlu) at the heavy‑chain N‑terminus, while CpY laddering verified an intact C‑terminus. Decision: purification pH adjusted and hold times shortened; cyclized fraction reduced to <5% in follow‑up lots and the change was accepted for continued development.

N-Terminal Sequencing Playbook

Edman sequencing when the N-terminus is accessible

Edman remains a direct, residue-by-residue method to identify the first amino acids. It shines when the N-terminus is free and the sample supports several clean cycles. Establish pass criteria up front: clean PTH-amino acid chromatograms for cycles 1–5, expected residues aligned to the construct, appropriate blanks and positive controls, and documentation of any carryover. Treat early-cycle ambiguity as a signal to corroborate with LC–MS evidence rather than to force interpretation.

Handling blocked or modified N-termini

An Edman failure is chemistry information, not a negative result. Common blocking/modifications (pyroglutamate formation, acetylation, signal peptide remnants) often preclude Edman but are tractable by LC–MS. Pivot to MS-based N-terminomics: enrich terminal peptides, apply targeted PRM/SRM, and consider enzymatic or chemical treatments (e.g., pyroGlu removal) to restore interpretability. Where variants co-occur, add intact mass and subunit analyses to keep the proteoform context intact.

Low-input N-terminal tactics

With 1–2 pmol, every transfer matters. Use low-bind plastics, minimize tube changes, shorten workflows, and orient assays around the terminal region. When signal is limited, use orthogonal confirmation: intact mass to flag truncations, targeted terminal peptides by LC–MS, and short Edman runs if feasible. When terminal peptides are elusive, add complementary digests (e.g., Lys-C or Glu-C) to improve uniqueness and coverage.

C-Terminal Sequencing Playbook

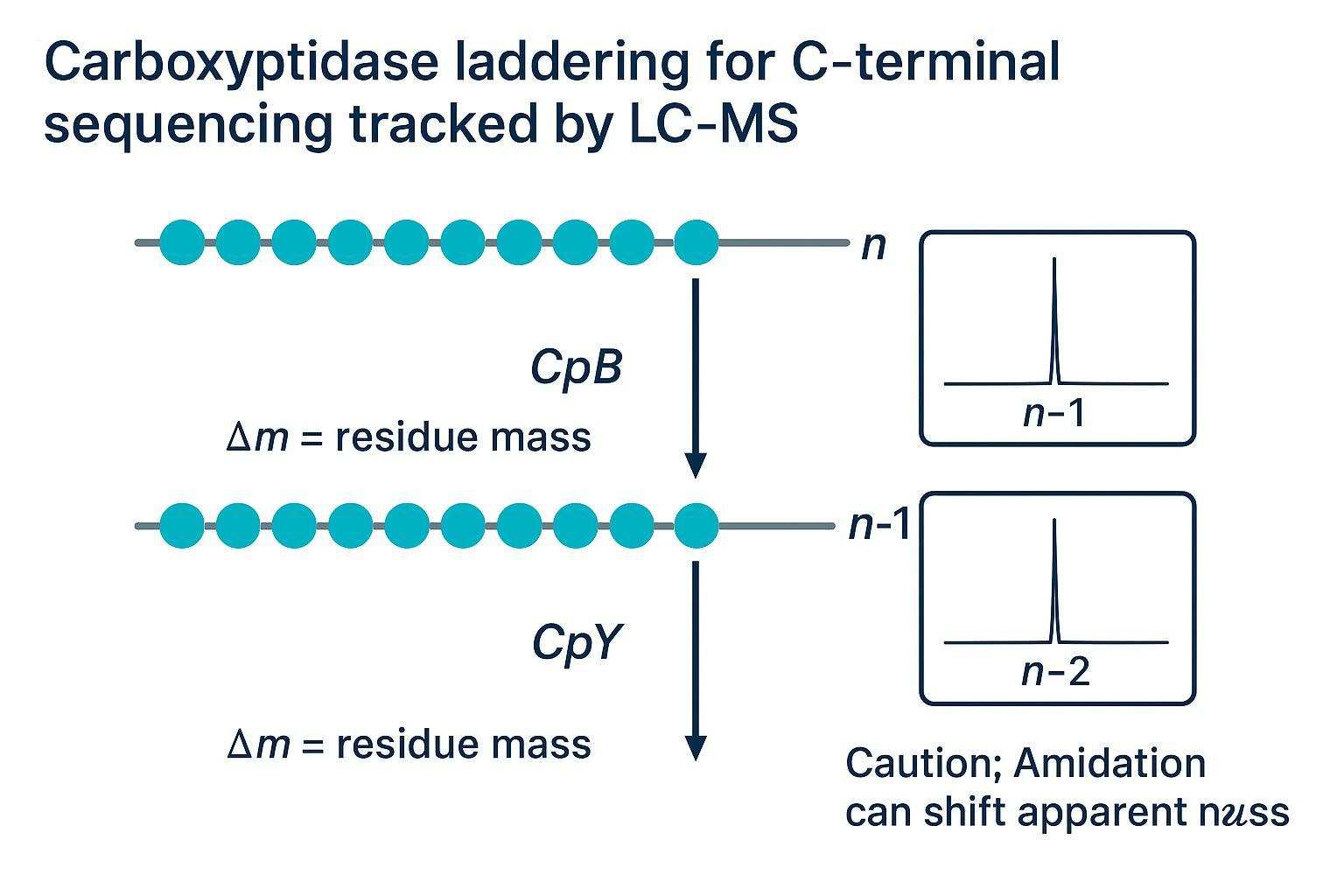

Carboxypeptidase laddering by LC–MS

C-terminal laddering uses enzymes such as CpB and CpY to remove residues stepwise, producing predictable mass decreases detectable by LC–MS. A monotonic series of deconvoluted masses anchors the true C-terminus and can separate clipping mixtures if partial ladders appear. Control digestion time and enzyme concentration to avoid over-digestion; verify ladders with an undigested control and, when needed, MS/MS of the terminal peptide.

Top-down and middle-down readouts

When closely related proteoforms confound mapping or ladders, escalate to top-down or middle-down MS. Top-down preserves the full proteoform and localizes terminal changes alongside PTMs. Middle-down fragments large sequence stretches to improve localization while retaining strong terminal evidence. Use high-resolution instruments and electron-based fragmentation to preserve labile modifications and to enhance end-localization.

Detecting amidation and terminal clipping

Terminal amidation introduces a characteristic mass shift; clipping presents as expected mass deficits and altered ladder behavior. Confirm both with peptide mapping and orthogonal controls. Establish rules to separate genuine processing from sample-derived artifacts—e.g., correlation of variant signals with handling changes, or resistance patterns in laddering that do not match known enzyme specificity.

Common Failure Modes and Decision Triggers

N-terminus failure modes

Blocked chemistry (pyroGlu, acetylation), low-abundance variants, and poorly behaving terminal peptides can obscure the first residues. Trigger escalation when early Edman cycles are ambiguous, when terminal peptides are missing, or when N-terminal localization is uncertain after initial mapping.

C-terminus failure modes

Mixed clipping populations, C-terminal amidation ambiguity, and enzyme specificity limitations can complicate interpretation. Trigger escalation when ladders are incomplete or overlapping, or when proteoform assignments conflict across methods.

Handling artifacts vs true variants

Degradation during prep, adsorption losses, or prep-induced truncation can mimic real heterogeneity. Use blanks, replicate preps, and stability holds to reveal handling-correlated signals. If a terminal variant scales with storage or surface exposure, treat it as an artifact until disproven by controlled experiments.

When to escalate orthogonality

Move from mapping to enrichment/targeting to top-/middle-down based on ambiguity, risk, and sample limits. Ask: Does intact mass suggest multiple proteoforms? Are terminal peptides non-unique or absent? Is laddering inconclusive? Escalate when the cost of a wrong call exceeds the cost of added evidence.

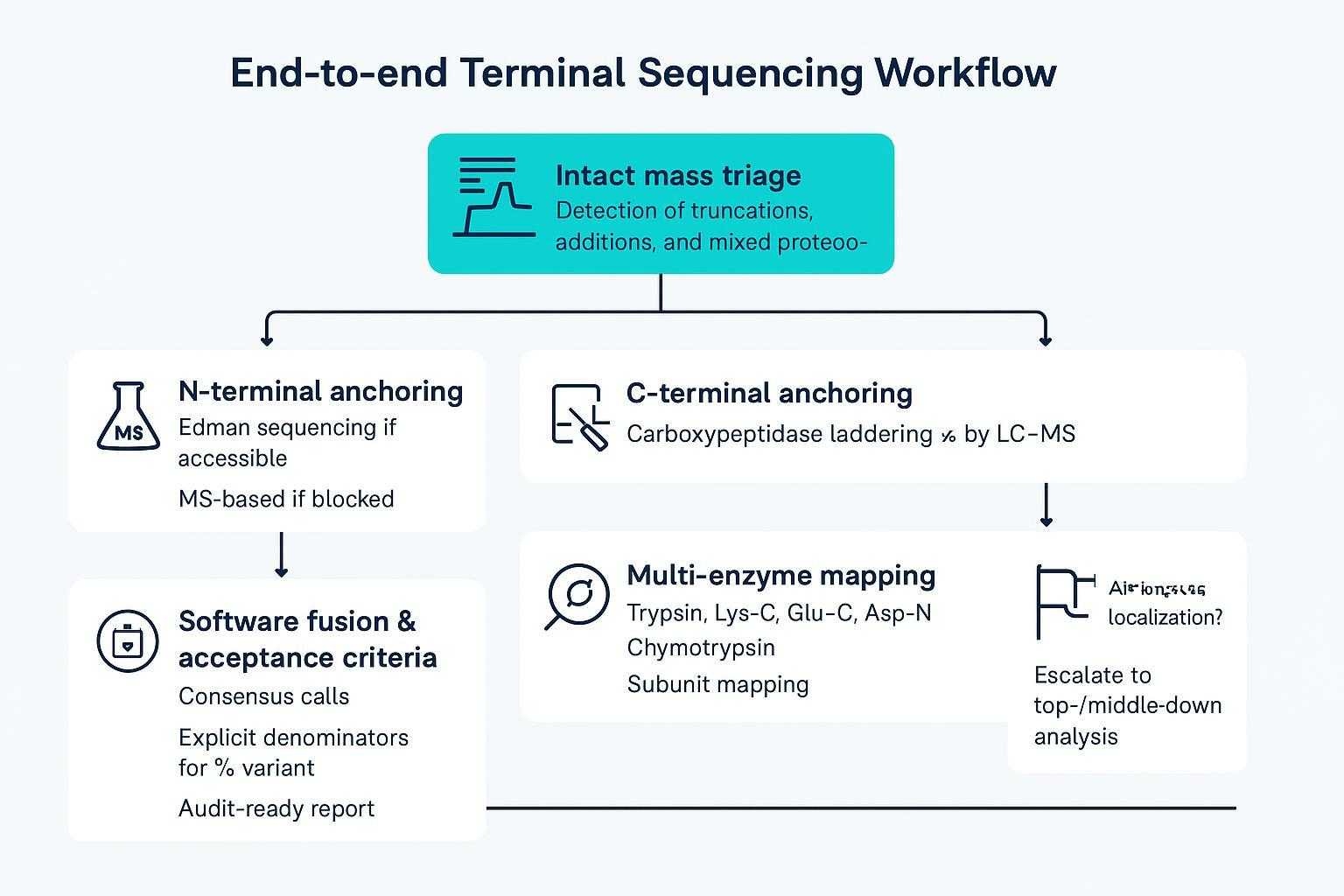

Integrated Orthogonal Workflow

Intact mass first (triage)

Start with intact mass to detect truncations, unexpected additions, or mixed proteoform populations. This informs whether peptide-level evidence will suffice or whether top-/middle-down is warranted. Intact mass also sets expectations for laddering (e.g., presence of C-terminal Lys) and helps prioritize efforts when material is limited.

Parallel N- and C-terminal anchoring

Confirm both ends to avoid overconfidence from single-end evidence. For the N-terminus, attempt Edman if accessible; otherwise use MS-based enrichment and targeted detection. For the C-terminus, run carboxypeptidase ladders under controlled conditions and corroborate with MS/MS. Align results to a shared proteoform nomenclature so cross-functional teams read the same playbook.

Multi-enzyme mapping to connect the anchors

Use complementary digests when terminal peptides are missing or non-unique. Combine trypsin with Lys-C, Glu-C, Asp-N, or chymotrypsin to create overlapping coverage that links terminal assignments to the interior sequence. Add subunit mapping when needed to preserve context.

Software fusion and acceptance criteria

Define how evidence is merged—peptide, fragment, intact, ladder—into a consensus terminal call. Set clear denominators for any "% variant" figures tied to terminal heterogeneity, and document processing parameters and software versions for reproducibility.

Notes: sample‑input ranges are conservative estimates and vary with instrument sensitivity, enrichment strategy, and workflow design. Use intact mass triage to prioritize methods: Edman only if N is free and material ample; LC–MS approaches preferred for low‑input or blocked termini. Define denominators for % variant reporting and require at least two orthogonal methods for QC‑ready terminal claims.

Low-Input Tactics and QC Package

Loss-minimizing prep and handling

At sub-pmol levels, think of your sample as paint on glass: every touch leaves some behind. Use low-bind plastics and glass, minimize transfers, work at higher concentrations in smaller volumes, and shorten timelines. Favor targeted readouts around the termini to conserve material, and confirm results with orthogonal methods to avoid repeating runs.

Regulatory alignment (non-clinical, QC/CMC context)

Frame terminal evidence as identity and integrity support, in line with global quality expectations. Keep ALCOA+ principles front and center: record operators and timestamps, preserve original raw files, version processing software, make deviations explicit, and ensure traceability from raw data to reported terminal calls.

Reporting and figures

Standardize how terminal evidence is displayed: ladders with step masses and timepoints; terminal maps with residue numbers; proteoform tables with denominators for % calculations; and decision trees that document escalation triggers.

Disclosure: Creative Proteomics is our product. For integrated N/C-terminal confirmation using LC–MS workflows plus Edman or top-/middle-down options—with reporting templates suitable for CMC—you can consult the Biopharmaceutical N/C-Terminal Sequencing Service on the Creative Proteomics site: integrated N/C-terminal sequencing service.

Where relevant, see internal resources that deepen the terminal concepts and signal peptide context: Analysis of N-terminus and C-terminus in Protein and Signal Peptides: Essential Elements of Protein Targeting and Translocation.

Example acceptance-criteria rubric (terminal heterogeneity)

FAQ

How do you confirm a blocked N-terminus when Edman sequencing fails?

Treat the failure as chemistry information. Enrich N-terminal peptides and use targeted LC–MS (PRM/SRM). Consider enzymatic removal of pyroGlu where appropriate. Corroborate with intact mass and subunit data when variants co-occur.

What does carboxypeptidase laddering prove, and what can it miss?

It proves the C-terminal residue by stepwise mass loss. It can miss amidation or be confounded by mixed clipping and enzyme specificity limits. Use undigested controls, time-course ladders, and peptide MS/MS to confirm.

How do you detect C-terminal amidation by LC–MS?

Look for the characteristic mass shift and resistance to carboxypeptidase. Confirm with peptide MS/MS and, if needed, alternative enzymes or labeling strategies.

When is top-down or middle-down necessary for terminal confirmation?

When mapping is non-unique, mixtures are present, or localization is ambiguous. TD/MD preserves proteoform context and improves end-localization.

How do you distinguish real truncation from sample handling artifacts?

Correlate signals with handling conditions, include blanks and replicate preps, and check stability holds. Artifact signals often scale with storage time or surface exposure.

What evidence counts as "orthogonal" for terminal assignments in QC documentation?

Combine at least two methods based on different principles, such as intact mass, Edman or terminal peptide MS, and carboxypeptidase laddering. Document parameters and software versions.

What changes should trigger re-confirmation of N- and C-termini?

Construct edits (signal peptides, tags), new purification steps, scale-up, process parameter shifts, or observed shifts in charge/size variants.

How should terminal heterogeneity be summarized in reports?

Use proteoform tables with explicit denominators (e.g., total deconvoluted mass area). Provide method details, acceptance criteria, and rationale for thresholds.

Partner Evaluation Checklist

Capabilities to verify

Look for terminal-specific expertise, especially with blocked N-termini chemistry and reliable carboxypeptidase laddering. Confirm proficiency in interpreting top-/middle-down data when proteoform-level resolution is required. Evaluate experience handling low-input constraints without inflating uncertainty.

Turnaround and throughput

Ask for prioritization options that separate triage from deep confirmation, and make sure rework pathways are defined when initial evidence is ambiguous. Clarity here shortens decision cycles without sacrificing quality.

Data integrity practices

Expect traceable processing parameters, versioned software outputs, and reproducible reports with an audit trail from raw data to terminal assignment. Ensure that the team follows ALCOA+ and retains raw vendor files.

Conclusion

Anchoring both termini is the fastest way to de-risk identity and integrity calls under scarce samples and tight timelines. Start with intact mass triage, confirm N/C ends in parallel, connect anchors with multi-enzyme mapping, and fuse all evidence in software with explicit denominators and audit-ready documentation. That workflow consistently delivers terminal sequencing for CMC identity and integrity with clarity your stakeholders can trust.

References

1. Turner, A. et al. Qualification of NISTmAb charge heterogeneity control methods. mAbs. 2018. NISTmAb charge heterogeneity control methods (2018).
2. Füssl, F. et al. Comprehensive characterisation of adalimumab heterogeneity. mAbs. 2018. Comprehensive characterization of adalimumab heterogeneity (2018).
3. Formolo, T. et al. Determination of the NISTmAb Primary Structure. ACS Symposium Series. 2015. Determination of the NISTmAb Primary Structure (2015).
4. Beck, A. et al. Risk-Based Control Strategies for recombinant monoclonal antibodies. Pharmaceutics. 2022. Risk-Based Control Strategies (2022).
5. Mann, M., & Kelleher, N. L. "Mass spectrometry–intensive top‑down proteomics: an update on technology advancements and biomedical applications." Analytical Methods. 2024. Mass spectrometry–intensive top‑down proteomics (2024) (DOI: 10.1039/d4ay00651h).
6. Kelleher, N. L., et al. "Top‑down proteomics: challenges, innovations, and applications in basic and clinical research." Expert Review of Proteomics. 2020;17(10):719–733. Top‑down proteomics overview (2020) (DOI: 10.1080/14789450.2020.1855982).
7. U.S. Food and Drug Administration. "Quality Essentials: Inspectional Coverage of QMS and Data Integrity." 2023. FDA Quality Essentials: Inspectional Coverage of QMS and Data Integrity (2023).
8. European Medicines Agency. "Guideline on computerised systems and electronic data in clinical trials." 2023. EMA guideline on computerised systems and electronic data (2023).
