Common C-Terminal Issues in Biopharma: Truncation, Tag Loss, Heterogeneity and Comparability (mAbs & Fusion Proteins)

The C-terminus is where small biochemical changes can echo loudly across analytics and decision-making. For mAbs and engineered fusion proteins, even minor shifts—lysine clipping, true truncations, terminal amidation, or adjacent glycation—can alter intact mass envelopes, charge variant profiles, and ultimately your ability to make confident, CMC-oriented calls. In this guide, we focus on C-terminal heterogeneity in mAbs and fusion proteins, separating true product-related variants from process or handling artifacts and outlining audit-friendly evidence language that stands up to internal review.

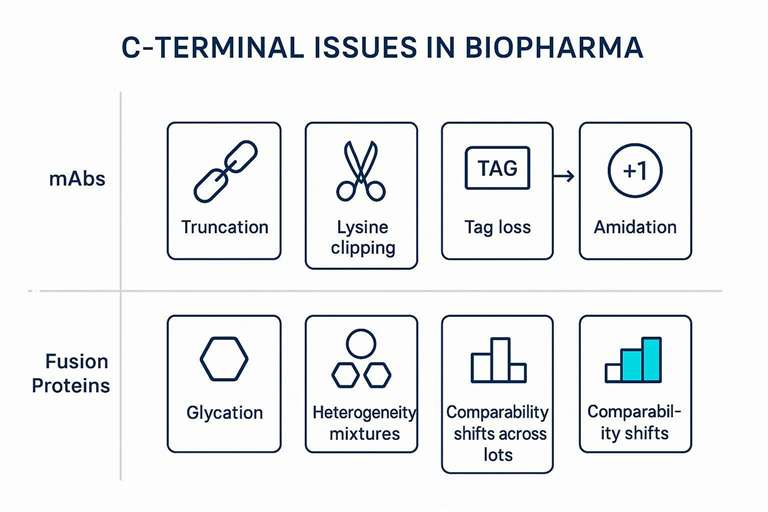

A quick map of the most common C-terminal risk categories in mAbs and fusion proteins.

Key takeaways

• Treat terminal findings as distributions, not binaries: small populations can matter later, especially for lot-to-lot comparability of C-terminal variants.
• Require terminal peptide localization MS/MS evidence before declaring truncation or tag loss; sequence coverage alone is not enough.
• When peptide mapping cannot resolve mixed proteoforms, escalate to top-down proteomics for proteoform comparability to secure intact-level confirmation.
• Normalize how you quantify C-terminal heterogeneity: define proteoforms, set integration rules, report relative abundance with stability ranges.
• Prevent artifacts up front: protease inhibitors, cold-chain, and MS-compatible buffers reduce spurious C-terminal truncation mass spectrometry biopharma signals.
• Use audit-friendly evidence language and risk-based comparability assessment rather than compliance claims; frame outputs as CMC-oriented comparability documentation.

Why the C-Terminus Becomes a Biopharma Risk Hotspot

C-terminal chemistry shows up prominently in the very assays teams rely on (intact/subunit MS, CEX/cIEF, peptide mapping). As a result, modest changes at the terminus can look like potency drift or obscure real potency trends by adding noise. "C-terminal integrity" means you can: (1) identify the terminal residue/state, (2) localize evidence to the terminus, and (3) describe variant distributions consistently over time and conditions. Practically, this allows you to separate product-related variants (e.g., antibody C-terminal lysine clipping heterogeneity or true truncations) from artifacts introduced by sample handling, stress, or process excursions.

For clarity, we will use neutral, audit-friendly phrasing familiar from CMC discussions (e.g., method performance characteristics, risk-based comparability assessment) without implying regulatory endorsement.

High-Impact C-Terminal Issue Categories (mAbs & Fusion Proteins)

• Truncation: true residue loss at the terminus, sometimes forming a ladder of proteoforms at decreasing mass.
• Tag loss: missing affinity/retention tags, linkers, or fusion junction evidence in engineered constructs.
• Heterogeneity: multiple terminal proteoforms co-existing (e.g., K2/K1/K0, truncated, amidated, glycated) within a lot.
• Comparability: shifts in the distribution of terminal variants across process changes, storage, or manufacturing sites.

Truncation in Biopharma: What It Looks Like and Why It Happens

Common sources include proteolysis (during holds or downstream processing), incomplete C-terminal processing, formulation stress, or purification-induced clipping. Risk signals are often subtle but consistent: new shoulders in intact mass, altered basic/acidic balance in charge variants, or emergent low-mass species in subunit maps. Confirmation requires terminal localization—showing exactly which residue is missing—rather than citing overall sequence coverage alone. When distributions remain ambiguous, combining peptide-level evidence with proteoform-level confirmation via top-down approaches improves confidence in decisions.

• Risk signals to watch:
  • Intact/subunit MS: laddering patterns, missed expected lysine series, low-mass shoulders.
  • Charge methods (CEX/cIEF): basic variants shifting toward main/acidic as lysines are clipped; unexpected acidic species if true truncation or modifications accumulate.
  • Bottom-up LC–MS/MS: inconsistent detection of terminal peptide; altered diagnostic fragments.

Truncation Patterns That Matter for Decision-Making

• Single dominant truncation vs broad truncation ladder: a dominant state suggests a discrete protease or processing event; a ladder suggests ongoing proteolysis or stress.
• Site-consistent truncation across lots vs sporadic: consistent sites with stable levels may be lower risk; sporadic emergence hints at handling or process variability.
• Correlation with stress, hold times, or formulation: link distribution shifts to process steps to triage root cause and plan mitigation.

Truncation vs Modification: Avoiding Mis-calls

Mass shifts can mimic truncation (e.g., dehydration, amidation, deamidation-proximal shifts), and coelution/cofragmentation can blur terminal localization. Use a short evidence checklist:

• Terminal-confirming fragments (e.g., y/b for peptides; c/z or a/x for intact) pinpoint the last residue.
• Evaluate interference: chromatographic separation, ion mobility/FAIMS, or alternate proteases to avoid shared peptide confusion.
• Replicate support and controls under matched conditions.
• Orthogonal support: targeted terminal workflows or intact-level methods when ambiguity persists.

For targeted terminal resolution and packaging of results in an audit-friendly way, teams often route challenging cases to specialized workflows such as Creative Proteomics' Protein C-Terminal Sequencing, which can complement LC–MS/MS by focusing explicitly on terminal-state confirmation.

C-Terminal Tag Loss and Junction Integrity (Fusion Proteins, Engineered Constructs)

Tag loss can arise from protease-sensitive linkers, engineered processing motifs, or stress-induced degradation. Junction verification means positively detecting fusion boundary peptides and terminal residues—not simply noting "tag peptide not observed." When construct details or processing outcomes are incompletely represented in databases, consider de novo strategies to recover unknown terminal/junction sequences.

• Practical notes for fusion protein C-terminal tag loss verification:
  • Capture junction peptides with complementary proteases (e.g., trypsin/Lys-C and Glu-C); confirm with targeted PRM/SRM when needed.
  • Assess terminal PTMs (amidation) that can mask detectability; explore enrichment or alternative digestion to improve observability.
  • If sequence uncertainty remains, consider mass spectrometry-based de novo protein sequencing to resolve unexpected termini and validate with orthogonal MS evidence.

C-Terminal Heterogeneity: How to Describe and Quantify It

Describe heterogeneity in practical terms: the number of terminal proteoforms present and their relative abundance. Establish quantitation rules—consistent integration windows, normalization to 100% per lot, and reporting in relative percent with mean ± SD over replicates. When peptide-level quantitation is unstable due to shared peptides or cofragmentation, escalate to intact/proteoform analysis to stabilize estimates of distribution.

• Reporting suggestion: list variant families (e.g., K2/K1/K0, truncated, amidated, glycated, other) with relative abundance and historical ranges. This language supports CMC-oriented comparability documentation without making regulatory claims.

Common Heterogeneity Drivers in mAbs

• Lysine clipping and related C-terminal variants that produce characteristic basic-to-main shifts.
• Glycation or nearby modifications altering charge profiles and intact mass patterns.
• Microheterogeneity arising from cell line, media, and purification conditions.

When distributions remain mixed, a top-down proteomics service can provide proteoform-level resolution and top-down proteomics for proteoform comparability, helping confirm terminal states directly on intact subunits or the whole protein.

Comparability: What to Track Across Lots and Process Changes

Define "comparability-ready" terminal evidence as identity + localization + distribution stability. Track shifts in terminal variant distributions across lots, not just presence/absence. Tie changes to process steps (harvest, Protein A, polishing, formulation, fill–finish) and present results using audit-friendly evidence language and risk-based comparability assessment.

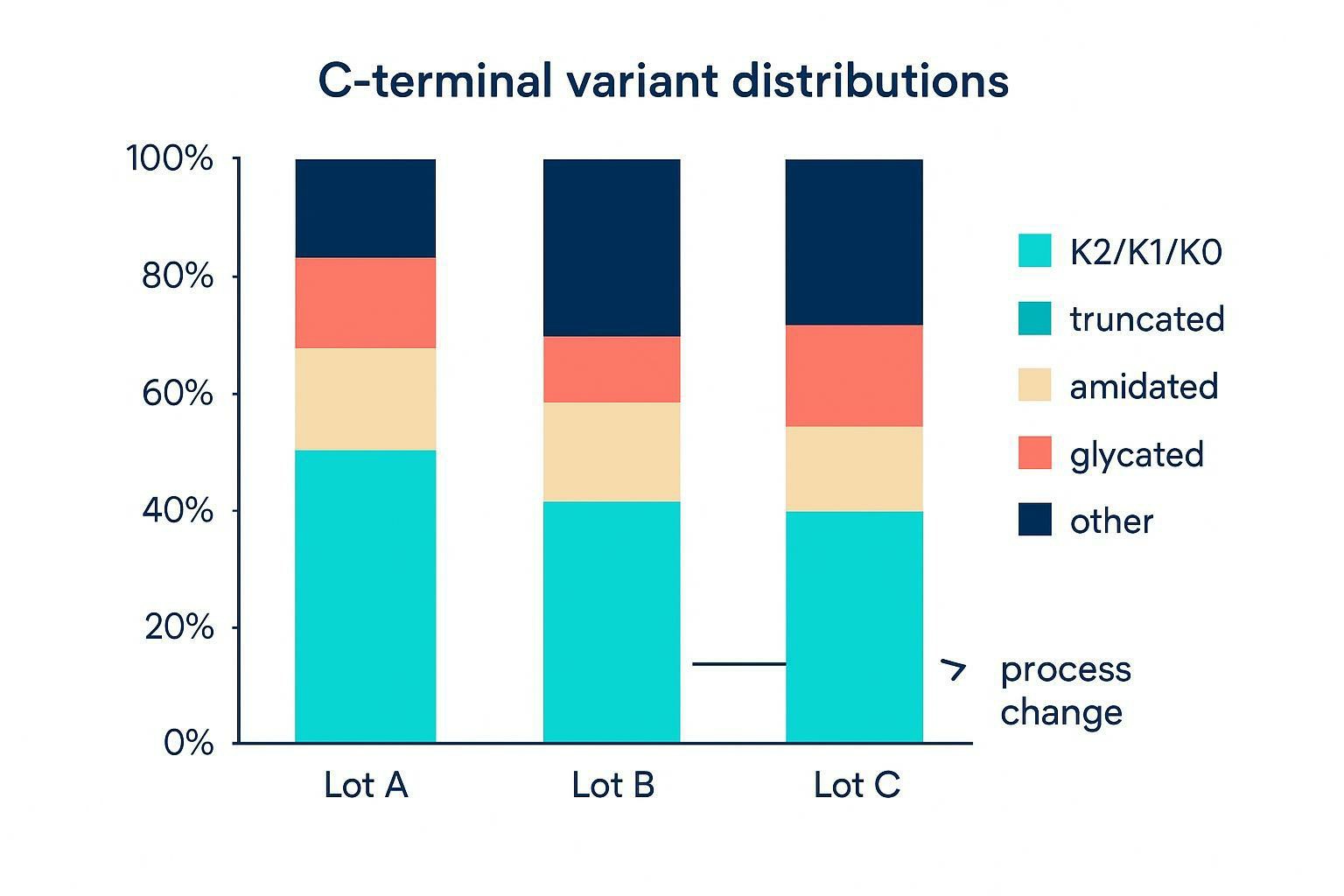

Image of a conceptual stacked bar chart of C-terminal variant distribution across lots

Decision Table: Which C-Terminal Issue Needs Which Evidence

Practical Workflow: From Signal to Root Cause

• Step 1: Define the claim (identity, processing, quantitation, comparability) and the minimal terminal peptide localization MS/MS evidence required.
• Step 2: Pick the minimal evidence level needed for the decision; do not over-sample if a targeted assay will resolve the question.
• Step 3: Confirm terminal localization and rule out interference (alternate proteases, improved separation, or mobility).
• Step 4: Quantify variants with consistent rules across lots; report relative abundance and historical ranges.
• Step 5: Escalate to orthogonal confirmation (native/intact/top-down) when ambiguity persists or when lot-to-lot comparability of C-terminal variants depends on intact-level distribution stability.

If terminal confirmation remains ambiguous after targeted mapping, a neutral path is to consult specialized terminal-focused workflows such as Creative Proteomics' Protein C-Terminal Sequencing; for unresolved proteoform mixtures, consider intact-level escalation via top-down proteomics.

Sample and Handling Checks That Prevent Artifactual C-Terminal Changes

• Protease inhibitor strategy and cold-chain handling to reduce clipping artifacts during harvest and prep.
• Buffer/detergent compatibility (MS-friendly) to protect LC–MS/MS sensitivity and avoid adducts or carbamylation.
• Shipment and stability guardrails (document temperatures/hold times) to preserve terminal forms.
• Submission alignment: for practical packaging of terminal findings, see the neutral resource on peptide sequencing report interpretation.

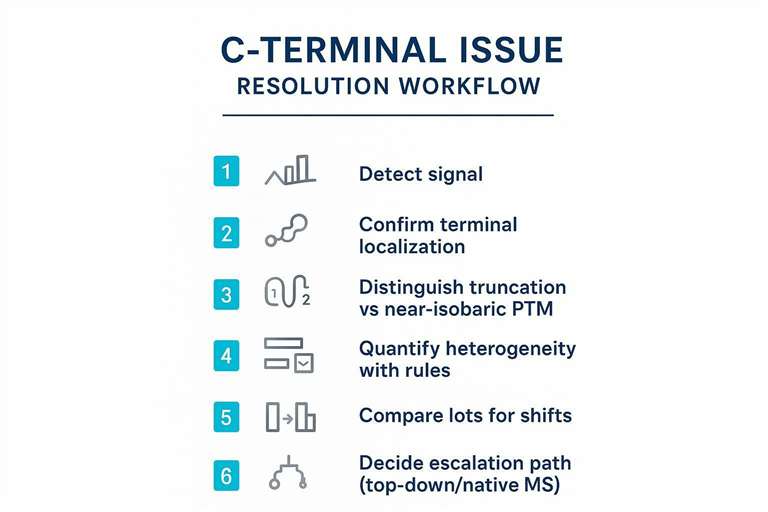

Image of a one-page checklist workflow for resolving biopharma C-terminal issues

Reporting Outputs That Biopharma Teams Actually Need

• Variant summary table with quantitation rules, acceptance ranges, and thresholds expressed as relative abundance.
• Representative terminal-confirming spectra (annotated) with clear notes on method performance characteristics and known limitations.
• Lot-to-lot comparability view (stacked bars or overlaid electropherograms) using standardized integration windows and normalization.
• Clear limitations: what cannot be concluded from the dataset; list alternative hypotheses tested and why they were deprioritized.
• For end-to-end terminal characterization in biologics contexts, see the Biopharmaceutical N/C-Terminal Sequencing Service.

FAQs

What are the most common C-terminal issues in monoclonal antibodies?

The most common patterns are C-terminal lysine clipping (K2→K1→K0), low-level true truncations, and terminal-adjacent modifications (e.g., glycation or amidation) that contribute to mass and charge heterogeneity.

How do I know whether "tag peptide not observed" means the tag is missing?

Treat non-detection as inconclusive. Seek terminal or junction-localizing MS/MS evidence and, if needed, targeted PRM/SRM or de novo sequencing to confirm true tag loss versus observability limits.

What is the best way to distinguish truncation from a near-isobaric modification?

Require terminal-localizing fragments and control for coelution/cofragmentation; when ambiguity persists, test both hypotheses under matched conditions and escalate to intact/top-down confirmation.

How should I evaluate comparability when C-terminal variants shift across lots?

Track distribution shifts with standardized quantitation rules and historical ranges; frame interpretations using risk-based comparability assessment and correlate with process steps.

When should I escalate to top-down proteomics for C-terminal problems?

Escalate when peptide-level mapping cannot resolve mixed proteoforms, when heterogeneity quantitation is unstable, or when decisions depend on intact-level distribution stability.

References

1. Walsh G. Biopharmaceutical benchmarks 2022. Nature Biotechnology. 2022;40(12):1722–1760. https://doi.org/10.1038/s41587-022-01530-1
2. Liu H, Gaza-Bulseco G, Faldu D, Chumsae C, Sun J. Heterogeneity of monoclonal antibodies. Journal of Pharmaceutical Sciences. 2008;97(7):2426–2447. https://doi.org/10.1002/jps.21180
3. Beck A, Wagner-Rousset E, Bussat M-C, Lokteff M, Klinguer-Hamour C, Haeuw J-F, et al. Trends in antibody and related biologics characterization by hyphenated mass spectrometry. Analytical Chemistry. 2013;85(2):715–736. https://doi.org/10.1021/ac3032355
4. Xu Y, Roach W, Sun T, et al. Structure, heterogeneity and developability assessment of therapeutic antibodies. mAbs. 2018;10(8):1253–1274. https://pmc.ncbi.nlm.nih.gov/articles/PMC6380400/
5. Camperi J, et al. Multi-dimensional LC–MS strategies in therapeutic antibody analysis. Analyst. 2021. https://pubs.rsc.org/en/content/articlehtml/2021/an/d0an01963a
6. Jakes C, et al. Monitoring therapeutic mAb product quality attributes including C-terminal Lys content. Journal of the American Society for Mass Spectrometry. 2021. https://pubs.acs.org/doi/10.1021/jasms.0c00432
7. Chen L, et al. Post-translational modifications of protein termini. Proteomics. 2021. https://pmc.ncbi.nlm.nih.gov/articles/PMC8358657/
8. Lantz C, et al. Internal fragment analysis in top-down MS (ClipsMS). Journal of the American Society for Mass Spectrometry. 2021. https://pmc.ncbi.nlm.nih.gov/articles/PMC8174100/
9. Zenaidee MA, et al. Internal fragments from top-down fragmentation improve sequence coverage. Analytical Chemistry. 2021. https://pmc.ncbi.nlm.nih.gov/articles/PMC9090460/
10. Melby JA, et al. High-sensitivity top-down proteomics. PNAS. 2023. https://www.pnas.org/doi/10.1073/pnas.2222081120
11. Searfoss RM, et al. Proteoform-resolved quantitation with top-down MS. Annual Review of Analytical Chemistry. 2024. https://pmc.ncbi.nlm.nih.gov/articles/PMC11326232/
