Bispecific Antibody Heterodimer Purity: Chain Pairing and Mispairing Control

Bispecific Antibody Heterodimer Purity and Chain Pairing Risk

Bispecific antibodies create analytical challenges that are not present, or are much less prominent, in conventional monoclonal antibodies. A standard IgG contains two identical heavy chains and two identical light chains. Many IgG-like bispecific formats, especially asymmetric designs, are built from two different heavy chains and either one common light chain or two different light chains. This makes the intended product a correctly assembled heterodimer rather than a simple homodimeric IgG.

The desired bispecific molecule must therefore be evaluated at two levels. First, the molecule must meet general purity expectations for aggregation, fragmentation, charge variants, and degradation. Second, the analytical team must confirm whether the heavy and light chains have paired correctly. This second layer is where heterodimer purity becomes a format-specific quality attribute.

In a development setting, chain pairing risk depends on the antibody format, expression strategy, engineering approach, purification process, and analytical resolution. Knobs-into-holes, CrossMab, common light chain designs, electrostatic steering, and orthogonal Fab interfaces can reduce mispairing risk, but they do not remove the need for analytical confirmation. Even a well-engineered bispecific antibody can contain low-level homodimers, half antibodies, mispaired light chains, clipped species, or aggregates that closely resemble the intended product.

For this reason, bispecific antibody heterodimer purity analysis is not a single assay. It is a structured evidence package that combines separation, mass measurement, subunit interpretation, and peptide-level confirmation.

Product-Related Impurities in Bispecific Antibody Production

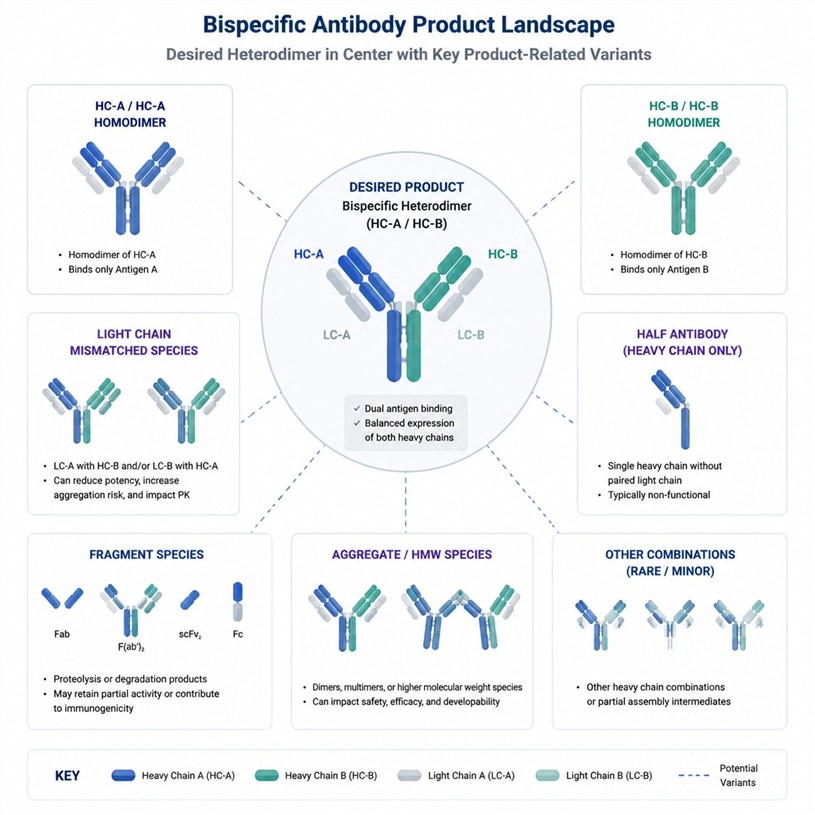

Product-related impurities are variants derived from the antibody product itself rather than from host cells, media, or reagents. For IgG-like bispecific antibodies, these impurities often arise because multiple polypeptide chains are expressed, assembled, or re-associated in the same production system.

The most common concern is incorrect chain pairing. Heavy chain homodimers occur when two copies of the same heavy chain pair instead of one chain from each parental arm. Light chain mispairing occurs when a light chain associates with the non-cognate heavy chain. In asymmetric formats, incomplete assembly can also create half antibodies, three-quarter antibodies, low molecular weight species, and fragments. Aggregates and high molecular weight species may form during expression, purification, or storage.

This impurity map helps explain why heterodimer purity should not be reduced to one percentage from SEC-HPLC. Size-based assays are useful, but a homodimer and a heterodimer can have very similar size. Charge-based and hydrophobicity-based assays can improve separation, but they still require molecular identity confirmation when the impurity is structurally close to the target bsAb.

Analytical Workflow for Heterodimer Purity Assessment

A practical analytical workflow starts broad and then becomes more specific. Screening methods identify whether the sample contains aggregate, fragment, charge, or hydrophobicity heterogeneity. Mass-based methods then assign molecular identity to the main species and suspected variants. Peptide-level methods are used when the question becomes chain-specific, sequence-specific, or localization-specific.

The key is not to overinterpret any single result. SEC can show that a product is mostly monomeric, but it cannot prove that the monomer is the correct heterodimer. Reducing CE-SDS can show whether heavy and light chain bands are present, but it cannot prove which light chain was paired with which heavy chain in the intact molecule. Intact mass can identify major mass species, but peptide mapping may be needed to confirm chain-specific sequence features or to localize modifications.

LC-MS/MS Strategies for Chain Pairing and Mispairing Control

LC-MS and LC-MS/MS are central to bsAb chain pairing assessment because they can connect chromatographic peaks to molecular identity. The most useful strategy depends on the format and the expected impurity profile.

Intact LC-MS is often used first to compare the observed molecular mass with the theoretical mass of the intended heterodimer, homodimeric variants, clipped species, glycoforms, and other expected forms. Deglycosylation can reduce glycan heterogeneity and simplify deconvolution. Native MS may help preserve noncovalent assemblies and reveal species in a more assembly-relevant state, while denaturing LC-MS can provide sharper protein mass information for some formats.

Subunit LC-MS adds another layer. Enzymatic digestion into Fc and Fab-related subunits can reveal which arm carries a mass shift, whether a half antibody is present, and whether a suspected variant is compatible with the intended heavy/light chain combination. For some formats, reduced chain analysis provides useful mass confirmation of each heavy and light chain, but it must be interpreted carefully because reduction removes the original pairing context.

Peptide mapping and LC-MS/MS are used when the team needs sequence-level evidence. This is especially important for distinguishing highly similar chains, confirming engineered residues, evaluating CDR-containing peptides, verifying interface mutations, and localizing PTMs or clipping sites. Peptide-level evidence is also valuable when a chromatographic impurity peak is isolated or enriched and needs to be assigned.

Creative Proteomics can support this type of evidence-building workflow when a project requires mass-based confirmation beyond routine purity assays. Depending on the decision point, this may involve mass spectrometry-based antibody sequencing, antibody light and heavy chain sequencing, or peptide mapping. The practical goal is not to run every assay by default, but to select the smallest orthogonal panel that can answer the chain pairing question with enough confidence for research, process development, or characterization decisions.

Identifying Heavy-Chain Homodimers and Light-Chain Mispaired Species

Heavy chain homodimers and light chain mispaired species are often the hardest impurities to control because they can be similar to the intended heterodimer in molecular size, charge, hydrophobicity, and binding features. Their detectability depends on how different the chains are and whether the format includes engineered sequence differences that create measurable mass or chromatographic shifts.

Heavy chain homodimers are usually modeled by calculating the masses of the intended heterodimer and both possible homodimers. If the mass differences are large enough, intact LC-MS may directly detect low-level variants. If the mass differences are small, subunit analysis or chromatography coupled to MS can help. Some workflows use independently expressed homodimer standards, enriched impurity fractions, or process-stressed samples to improve assignment confidence.

Light chain mispairing is more complex. A mispaired light chain may not change the intact molecular mass enough to be obvious, especially when two light chains have similar molecular weights. In that situation, analytical teams may need Fab-level subunit analysis, chain-specific peptide markers, or chromatographic separation followed by MS. The goal is to show not only that both light chains are present, but that the correct light chain is associated with the correct arm.

The strongest interpretation usually combines theoretical mass modeling, observed mass data, chromatographic behavior, and peptide-level evidence. When results disagree, the report should explain the ambiguity rather than force a single conclusion.

Native MS, Intact Mass, and Subunit Analysis for Bispecific Antibody Variants

Native MS, intact denaturing LC-MS, and subunit analysis answer related but different questions. Native MS is useful when the analyst wants to preserve assembly information and evaluate complex mixtures with minimal disruption. It can help distinguish bispecific IgG variants and can support interaction or binding-state studies. However, native MS requires careful buffer exchange, instrument conditions, and deconvolution.

Intact denaturing LC-MS is often more accessible for routine characterization. It can verify whether the molecular mass of the main species agrees with the theoretical heterodimer and whether additional mass envelopes suggest homodimer, half-antibody, glycoform, truncation, or clipping variants. Deglycosylation is frequently used to simplify interpretation, particularly when Fc glycans broaden the mass distribution.

Subunit analysis provides a useful bridge between intact mass and peptide mapping. By cleaving the antibody into defined domains or reducing it into individual chains, the analyst can localize mass differences to Fab, Fc, heavy chain, or light chain components. This is especially valuable when intact mass alone cannot resolve multiple possible assignments.

A good heterodimer purity report should clearly state which method supports each conclusion. For example, a report may say that SEC indicates monomeric purity, intact LC-MS supports the expected heterodimer mass, subunit analysis detects no major arm-level mispairing, and peptide mapping confirms chain-specific engineered residues.

Purification and Process Control for Mispairing Reduction

Analytical characterization is closely connected to process control. Once a mispaired species is identified, process teams need to decide whether the impurity can be reduced upstream, removed downstream, or controlled by analytical acceptance criteria.

Upstream strategies include chain expression balancing, vector ratio optimization, cell line screening, and format engineering. Molecular design strategies such as heavy chain heterodimerization interfaces or light chain pairing solutions can reduce the statistical chance of incorrect assembly. Downstream strategies include affinity chromatography, ion exchange, hydrophobic interaction chromatography, mixed-mode chromatography, and polishing steps designed around the physicochemical difference between the target heterodimer and the impurity.

The challenge is that many bsAb impurities are product-like. A homodimer may bind Protein A, appear monomeric by SEC, and elute near the target species in charge-based methods. That is why process development often needs analytical methods that can detect impurity identity before and after each purification step.

This is also where service-supported characterization can be useful without replacing internal process development. A focused external LC-MS/MS package can help identify which impurity is present, whether a polishing step is removing the right species, and whether a chromatographic shoulder represents a real chain-pairing variant.

Evidence Standards for Bispecific Antibody Heterodimer Purity Reports

A heterodimer purity report should be written as an evidence trail. The most useful reports separate observed data from interpretation, show the expected masses or sequence features used for assignment, and document limitations. This is particularly important for early-stage bsAbs, where impurity profiles may still change as the expression and purification process matures.

For many projects, the most important output is not simply a purity percentage. It is a defensible answer to three questions: what is the main species, what product-related impurities are present, and how confident is the chain-pairing assignment?

Service-Supported Analytical Strategy for Bispecific Antibody Characterization

Bispecific antibody characterization benefits from project-specific assay design. A common light chain bispecific may need a different strategy from a four-chain asymmetric format. A discovery-stage sample may only require an impurity ID screen, while a process development sample may require comparison across purification fractions.

Creative Proteomics can support bispecific antibody projects through sample triage, intact and subunit mass analysis, peptide mapping, chain-specific interpretation, and impurity evidence review. This support is most useful when the project team already has a concrete decision to make, such as clone selection, purification troubleshooting, chain-pairing confirmation, or comparison of process fractions.

This balanced approach keeps the resource practical. The service role is to strengthen the evidence chain, not to imply that every bsAb requires the same exhaustive package.

FAQs

What is bispecific antibody heterodimer purity?

Bispecific antibody heterodimer purity describes the proportion and identity of the correctly assembled bispecific antibody relative to product-related variants such as heavy chain homodimers, light chain mispaired species, half antibodies, fragments, and aggregates.

Why are chain pairing problems common in bispecific antibodies?

Many IgG-like bispecific antibodies require two different heavy chains and, in some formats, two different light chains. When multiple chains are co-expressed or assembled, incorrect heavy/heavy or heavy/light associations can form unless the format and process strongly favor correct pairing.

Can SEC-HPLC prove that a bispecific antibody is correctly paired?

No. SEC-HPLC can show size distribution and monomeric purity, but it generally cannot prove correct chain pairing. A homodimer or mispaired antibody may have a size similar to the desired heterodimer, so mass-based methods are needed for identity confirmation.

How does LC-MS help detect homodimer impurities?

LC-MS compares observed molecular masses with theoretical masses for the intended heterodimer and possible homodimers. Deglycosylation, subunit analysis, and native MS can improve interpretation when glycoforms or co-eluting species complicate the intact mass spectrum.

How is light chain mispairing confirmed?

Light chain mispairing is usually confirmed with subunit LC-MS, chain-specific peptide markers, peptide mapping LC-MS/MS, or MS analysis of enriched variant peaks. Reduced chain analysis alone is usually not enough because it does not preserve the original pairing context.

When is native MS useful for bispecific antibodies?

Native MS is useful when assembly-state information is important, especially for complex mixtures, noncovalent species, or cases where denaturing conditions may obscure the relationship between molecular species. It should be paired with careful sample preparation and interpretation.

What should a heterodimer purity report include?

A strong report should include theoretical mass models, observed intact or subunit masses, chromatographic profiles, orthogonal purity data, peptide-level confirmation where needed, impurity assignments, relative abundance notes, and clearly stated ambiguity or limitation sections.

Can purification remove all mispaired bispecific antibody variants?

Not always. Some variants are very similar to the desired bispecific antibody. Purification can reduce many impurities, but analytical methods are needed to verify whether the correct species is being enriched and which product-related variants remain.

Is peptide mapping required for every bispecific antibody?

No. Peptide mapping is most useful when sequence-level confirmation, engineered residue verification, PTM localization, or light-chain-specific evidence is needed. For simpler questions, intact and subunit MS may be sufficient.

When should external analytical support be considered?

External support is useful when routine purity assays cannot identify a variant, when chain pairing must be confirmed by mass evidence, when process fractions need comparison, or when a project requires an integrated heterodimer purity interpretation.

References

1. Labrijn, A. F.; Janmaat, M. L.; Reichert, J. M.; Parren, P. W. H. I. "Bispecific antibodies: a mechanistic review of the pipeline." Nature Reviews Drug Discovery, 2019. https://www.nature.com/articles/s41573-019-0028-1
2. Woods, R. J.; Xie, M. H.; Von Kreudenstein, T. S.; Ng, G. Y. K.; Dixit, S. B. "LC-MS characterization and purity assessment of a prototype bispecific antibody." mAbs, 2013. https://doi.org/10.4161/mabs.25488
3. Schachner, L.; Han, G.; Dillon, M.; Zhou, J.; McCarty, L.; Ellerman, D.; Yin, Y.; Spiess, C.; Lill, J. R.; Carter, P. J.; Sandoval, W. "Characterization of Chain Pairing Variants of Bispecific IgG Expressed in a Single Host Cell by High-Resolution Native and Denaturing Mass Spectrometry." Analytical Chemistry, 2016. https://doi.org/10.1021/acs.analchem.6b02866
4. Li, Y. "A brief introduction of IgG-like bispecific antibody purification: Methods for removing product-related impurities." Protein Expression and Purification, 2019. https://doi.org/10.1016/j.pep.2018.11.011
5. "Identification and quantification of chain-pairing variants or mispaired species of asymmetric monovalent bispecific IgG1 monoclonal antibody format using reverse-phase polyphenyl chromatography coupled electrospray ionization mass spectrometry." Journal of Chromatography B, 2024. https://doi.org/10.1016/j.jchromb.2024.124085
6. "Effectively removing the homodimer in bispecific antibodies by weak partitioning mode of anion exchange chromatography." Journal of Chromatography B, 2023. https://doi.org/10.1016/j.jchromb.2023.123767
7. DiSpirito, C.; Parasnavis, S.; Aspelund, M.; Cramer, S. M. "A single column multimodal cation exchange process for removal of half antibody, homodimer and light chain mispaired product-related impurities from a bispecific antibody." Journal of Chromatography A, 2026. https://www.sciencedirect.com/science/article/abs/pii/S0021967326000750
