DAR Mapping in ADC Development: LC–MS/MS vs. ELISA

In antibody–drug conjugate (ADC) development, drug-to-antibody ratio (DAR) mapping is not a cosmetic exercise. DAR is a structural attribute that influences how much payload is delivered per binding event, how the conjugate behaves in circulation, and how consistently the manufacturing process is controlling product heterogeneity.

That’s why DAR mapping has moved from “nice-to-have characterization” to a routine decision point in lead optimization, CMC packages, and IND-enabling studies. Regulators and internal QA teams increasingly expect that critical quality attributes are supported by fit-for-purpose analytical methods and documented performance checks, including validation elements and system suitability criteria.

In practice, two method families dominate DAR-related bioanalysis:

• Ligand binding assays (LBAs), often implemented as ELISA-style formats, which are strong at high-throughput quantitation of total antibody (tAb) or conjugated antibody.
• Mass spectrometry (LC–MS/MS / LC–HRMS) workflows, which can directly resolve molecular species and provide payload mapping at different structural levels.

This resource explains where ELISA helps, where it can mislead, and why LC–MS-based strategies (intact, middle-down subunit, and bottom-up peptide mapping) are now the technical backbone for precise drug-to-antibody ratio (DAR) mapping.

The Core Challenge: Average DAR vs. DAR Distribution

A chemically conjugated ADC is almost never a single molecular species. Conjugation generates a distribution of species with different drug loads (for example, DAR 0, 1, 2, 3, 4, and beyond), often alongside additional micro-heterogeneity such as glycoforms, oxidation, deamidation, or linker-related variants.

That mixture creates a core analytical trap: average DAR can look acceptable while the distribution contains sub-populations that materially change risk.

• Low- or zero-loaded species (e.g., DAR 0) can dilute potency.
• Overloaded species can show altered hydrophobicity, aggregation propensity, and clearance behavior.
• Two batches with the same average DAR can have very different distributions, and therefore different in vivo performance or comparability risk. [4]

A useful way to think about it is this: average DAR answers “what is the mean?” while DAR distribution answers “what are we actually dosing?” In most ADC heterogeneity analysis workflows, the more your decision depends on sub-populations, the less informative the mean becomes.

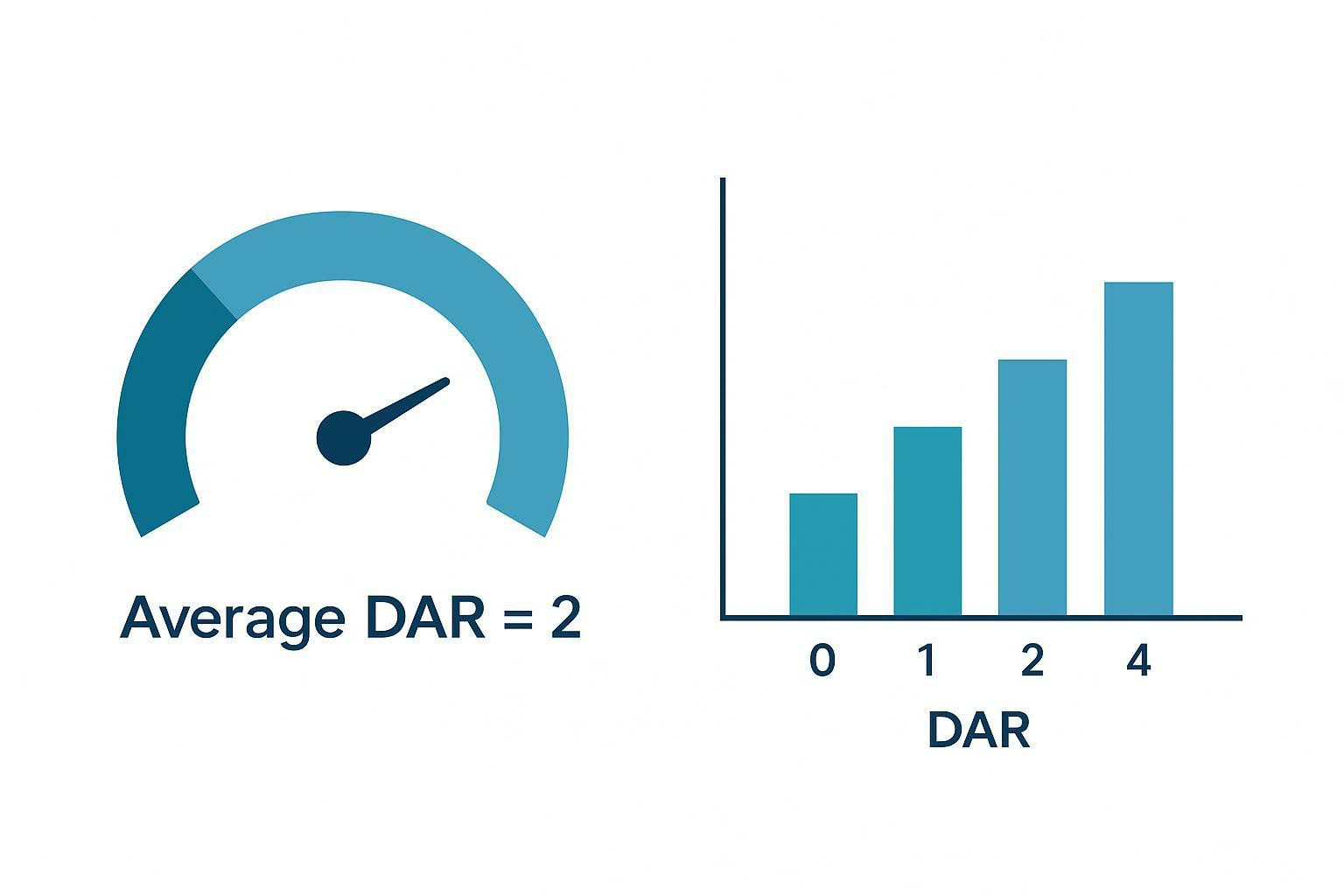

Average vs distribution

You’ll sometimes see teams describe this as “average DAR vs DAR distribution.” That’s a useful shorthand, as long as you remember they answer different questions, not different levels of accuracy.

Key Takeaway: If DAR will be used to justify safety margins, comparability, or linker stability decisions, distribution usually matters more than the mean.

ELISA in ADC Analysis: Strengths and Critical Limitations

ELISA-format assays (and other LBAs) remain deeply useful in ADC programs because they are sensitive and scalable. They are often the fastest way to quantify exposure-related readouts such as total antibody, conjugated antibody, or free payload using established reagent sets and workflows.

Where ELISA performs well

ELISA and related LBAs are strongest when the goal is quantitation rather than structural resolution:

• High throughput for large study sets.
• Good sensitivity in complex biological matrices.
• Operational simplicity for routine monitoring of total antibody or a specific binding-defined analyte.

These advantages explain why many teams use LBAs extensively in early discovery and in PK/TK workflows.

Critical limitations for DAR mapping

The same mechanism that makes an LBA “selective” also creates blind spots for ADC heterogeneity:

1. No direct DAR distribution
   LBAs do not resolve molecular species by drug load. A DAR2 and DAR4 molecule can look identical to an assay if the binding epitope and assay geometry do not discriminate them.
2. Epitope masking and structural bias
   Conjugation can change local structure or block antibody epitopes used for capture or detection. That can bias apparent concentration and make comparisons across lots or formats harder.
3. Cross-reactivity and interference risk
   Any binding reagent can introduce cross-reactivity risk, and biological matrices contain endogenous proteins and antibodies that may interfere.
4. No payload attachment site information
   Even a well-performing ELISA generally can’t answer “where is the payload attached?” or “did we create a new conjugation hotspot?”

These are not reasons to abandon LBAs. They’re reasons to treat ELISA as one layer in a measurement strategy, not as the final word on ADC heterogeneity.

LC-MS/MS: The Gold Standard for Precision Drug-to-Antibody Ratio (DAR) Mapping

LC–MS-based workflows can measure DAR with molecular resolution because they quantify mass and structure-derived signals, not only binding.

In practice, there is no single LC–MS experiment that answers every question. ADC characterization typically uses a stack of workflows that trade off resolution, interpretability, and effort. A widely used framework is to combine:

• Intact mass analysis for global DAR species and major mass shifts.
• Middle-down subunit workflows to improve interpretability while preserving a substantial portion of the molecule.
• Bottom-up peptide mapping for site localization and modification context.

A useful overview of these LC–MS strategies and their roles in ADC characterization is summarized in Current LC-MS-based strategies for characterization and bioanalysis of antibody-drug conjugates, which also explains why intact, subunit, and peptide-level readouts answer different parts of the same question. [2]

Intact Mass Analysis (Top-Down Profiling)

Intact (or “top-down/intact”) approaches analyze the ADC at the whole-molecule level. Practically, teams often simplify spectral complexity (for example by enzymatic deglycosylation when appropriate) so that deconvolution yields clearer separation of drug-loaded species. This is often the first place where the practical difference between average DAR vs DAR distribution becomes visible in a single dataset.

What you get from intact mass analysis is typically:

• A fast view of major DAR species and relative abundance.
• Clear detection of large mass changes that could reflect conjugation shifts, clipping, or major glycoform changes.
• A sanity check for whether a sample behaves like “one controlled distribution” or “a complicated mixture.”

If your question is “what does the intact conjugate distribution look like?”, intact LC–MS is the most direct place to start.

For projects where intact mass determination is central, Creative Proteomics offers molecular weight determination (intact mass) service, which can support intact mass analysis for ADCs when you need a clear readout of mass shifts and major drug-load species.

If your study requires a deeper top-down characterization mindset beyond mass measurement alone, the top-down protein sequencing service can be relevant for intact/proteoform-level questions.

Subunit Analysis (Middle-Down Workflows)

Middle-down is sometimes described as an IdeS subunit analysis workflow because IdeS cleavage is such a common entry point. The reason is practical: it preserves meaningful structural context while reducing spectral complexity.

Middle-down (subunit) analysis has become a practical “sweet spot” for many ADC programs.

A common workflow uses a hinge-specific protease such as IdeS to cleave the antibody into defined subunits (for example, F(ab')2 and Fc), often combined with reduction to generate smaller fragments (light chain, Fd’, Fc/2) that are easier to resolve by MS.

Why teams like middle-down for ADC DAR mapping:

• Better interpretability than intact-only: smaller subunits reduce spectral overlap and make deconvolution less fragile.
• More structural specificity than average DAR methods: you can often see which portion of the antibody carries more loading.
• Balanced complexity: fewer steps than full peptide mapping, but more detail than intact mass alone.

In real workflows, intact and middle-down are frequently paired: intact analysis gives the macro view; subunit analysis explains where within the molecule the heterogeneity is accumulating.

Peptide Mapping (Bottom-Up Analysis)

Bottom-up peptide mapping is the method of choice when you need site-specific conjugation information.

In this workflow, the ADC is digested into peptides, followed by LC–MS/MS to identify modified peptides and localize payload attachment (and related modifications) down to specific residues. In other words, intact workflows tell you what species you have, while peptide mapping tells you where the chemistry landed.

Peptide mapping helps answer questions like:

• Which residues are modified, and are there multiple conjugation hotspots?
• Do we see unexpected payload-related modifications or co-occurring PTMs in the same region?
• Are there digestion-resistant regions where coverage is dropping, potentially hiding modifications?

It’s also the workflow that best supports “mechanistic debugging” when something looks off at the intact or subunit level.

For peptide-level structural confirmation in biopharmaceutical programs, the biopharmaceutical peptide mapping analysis service is the most directly relevant internal resource for ADC peptide mapping LC–MS/MS questions (site localization, coverage gaps, and modification context).

Head-to-Head Comparison: LC-MS/MS vs. ELISA

Below is a practical comparison for ADC teams choosing analytical coverage. The goal is not to declare a universal winner. It’s to match method capability to the question you’re trying to answer. [1]

Quick comparison matrix

“Which method when?” (development-phase view)

Pro Tip: If you are debating ELISA vs LC–MS, start by writing down the decision you need to make. If the decision depends on sub-populations (DAR0 tail, high-DAR tail), ELISA can’t see the thing you’re deciding on.

System Suitability and Pitfall Mitigation

When DAR mapping results are used to support high-stakes decisions (comparability, control strategies, or interpretation of in vivo stability), the “how” matters as much as the number.

Common LC–MS pitfalls (and what to control)

• Ionization differences across DAR species: More hydrophobic, high-DAR species may ionize differently. Control with consistent sample prep, internal standards where appropriate, and orthogonal confirmation when results are decision-critical.
• In-source fragmentation or labile linker chemistry: Some linker/payload chemistries can create fragment ions that complicate interpretation. Monitor with tuned source conditions and confirm suspected artifacts using alternative fragmentation or sample prep conditions.
• Deconvolution sensitivity: Intact workflows depend on deconvolution. Use reference materials and acceptance criteria for deconvolution quality.

Common ELISA/LBA pitfalls (and what to control)

• Epitope masking: Conjugation can reduce binding signal. A “good” calibration curve does not guarantee that the conjugated sample behaves like the calibrator.
• Cross-reactivity and drug interference: Evaluate selectivity, parallelism, and interference from free drug, linker catabolites, or anti-drug antibodies when applicable.

Why system suitability is not paperwork

System suitability is a compact set of checks that show the instrument and method are performing within defined expectations before (and often during) a run. It is one of the practical mechanisms that turns “we ran the samples” into “the data are technically defensible.”

Parameter examples (illustrative only; define your own acceptance criteria during method development/validation):

System suitability (intact/subunit LC–MS):

• Mass accuracy: set a method-appropriate tolerance (commonly expressed in ppm) for calibrant and QC checks.
• Retention time stability: define an allowable shift for key peaks/standards across a batch.
• Carryover: set a maximum % of the LLOQ (or a method-defined response limit) in blanks after high samples.
• S/N or response threshold: minimum signal for the system suitability standard(s) to confirm sensitivity.

Deconvolution QC (intact/subunit profiling):

• Model fit / residuals: require a stable fit metric (e.g., low residuals) for the deconvolution output.
• Replicate consistency: define an allowable CV (or max absolute difference) for average DAR and for major DAR species proportions.
• Peak assignment checks: flag unexpected adducts, clipping, or broad unresolved envelopes that can distort species calls.

Tip: Put these criteria into a one-page run sheet. If any criterion fails, document the deviation and predefine what triggers re-prep or re-run.

For LC–MS-based bioanalysis, system suitability typically includes performance checks on retention, signal, carryover, and mass accuracy (or MRM transitions), using reference standards and acceptance criteria appropriate to the method.

For broader validation concepts (selectivity, accuracy, precision, recovery, matrix effects, stability, robustness), the FDA’s guidance document Analytical Procedures and Methods Validation for Drugs and Biologics provides a canonical framing that many teams adapt into fit-for-purpose validation plans.

Synergistic Bioanalysis: Immunocapture LC-MS/MS for PK Studies

It’s tempting to frame DAR mapping as LC–MS vs ELISA. Modern ADC bioanalysis is usually better described as a layered toolkit.

A good example is immunocapture LC–MS/MS (hybrid LBA–LC–MS), where an immunoaffinity step enriches the ADC (or total antibody) from plasma or serum, followed by targeted LC–MS/MS quantitation. [3,5]

Why this approach is useful:

• Improved selectivity in complex matrices: immunocapture removes much of the background that drives matrix effects.
• Flexible readouts: depending on the capture and readout strategy, you can quantify total antibody, conjugated payload proxies, or signature peptides.
• Stability signals: divergence between “total antibody exposure” and “conjugated payload exposure” can flag linker or payload instability and motivate deeper structural follow-up.

For a technical overview of hybrid immunocapture LC–MS in pharmacokinetics, see the review titled Immunocapture LC–MS methods for pharmacokinetics of biotherapeutics (linked in References). [5]

Case Study: From Preclinical Mapping to IND Reporting

Consider an anonymized, common workflow in an ADC program moving from preclinical selection toward IND-enabling characterization.

Scenario

A program has two process variants that both report a similar average DAR from routine measurements. In vivo PK curves, however, show meaningful differences in clearance and tolerability signals.

A practical, staged analytical response

1. Intact LC–MS screen to check distribution shape
   The first goal is not to over-interpret. It is to check whether one process variant is accumulating a DAR0 tail (under-loaded species) or a high-DAR tail (overloaded species). If the distributions are different, the average DAR is not an adequate descriptor.
2. Middle-down IdeS subunit analysis to localize the heterogeneity
   If one variant shows a heavier tail, subunit analysis can help determine whether the heterogeneity is concentrated in specific subunits (e.g., heavy-chain–associated loading) or is broadly distributed.
3. Targeted peptide mapping to confirm site patterns and rule out surprises
   When a lot-to-lot shift correlates with PK changes, site-level confirmation helps answer: is this a normal shift in occupancy at the usual conjugation sites, or a change in where conjugation is occurring?
4. System suitability and fit-for-purpose validation thinking
   At this stage, the question is not just “what number did we get?” It becomes “can we defend the method’s ability to produce this conclusion?” That’s where predefined suitability criteria, controls, and validation elements protect the interpretation. If you are preparing a package for cross-team review, it helps to explicitly document method validation logic (what was checked, why it was checked, and what would invalidate the run) instead of relying on informal lab memory.

One common challenge: hydrophobic payload-driven aggregation

Highly hydrophobic payloads can increase non-specific adsorption and aggregation tendencies, which complicate both sample prep and measurement (regardless of platform). A practical mitigation is to implement consistent, documented sample handling conditions, evaluate recovery, and confirm key conclusions with orthogonal readouts.

Frequently Asked Questions (FAQs) in ADC Characterization

Can LC-MS/MS fully replace ELISA in ADC development?

Not in most programs. LC–MS provides molecular resolution for DAR distribution and site-level mapping, while ELISA/LBAs remain efficient for high-throughput quantitation of exposure-related readouts. Many teams use ELISA to scale routine quantitation and LC–MS to answer structural questions that binding assays cannot resolve.

Why does standard ELISA sometimes underestimate DAR heterogeneity?

Because ELISA reports a binding-defined signal rather than a species-resolved measurement. If different DAR species bind similarly to the capture/detection reagents, the assay collapses a heterogeneous mixture into a single readout. Conjugation can also mask epitopes, which introduces additional bias that is not tied to drug load in a simple way.

When is the right time to transition from ELISA to LC-MS/MS?

When project decisions start depending on heterogeneity and comparability, not only exposure. That transition often occurs during lead optimization and becomes hard to avoid during CMC characterization and IND-enabling packages, where distribution, attachment patterns, and method controls matter.

What is a “good” DAR for an ADC?

There is no universal “good” DAR. The workable DAR range depends on the antibody, linker, payload, conjugation chemistry, and target biology. The practical goal is to control a distribution that supports potency without creating an overloaded tail that changes stability or clearance behavior.

How do you measure DAR distribution in serum or plasma?

You typically need either intact/subunit LC–MS workflows designed for complex matrices or a hybrid immunocapture LC–MS/MS workflow. Immunoaffinity enrichment is often used first to reduce matrix interference, and then LC–MS readouts quantify species or signature peptides tied to the ADC components.

What does “system suitability” mean for LC–MS DAR mapping?

It means a defined, documented set of checks showing the LC–MS system is performing as expected for that method before you rely on the results. For example, suitability can include retention stability, signal response, carryover control, and mass accuracy or transition performance using appropriate standards.

Expert Solutions for Complex ADC Characterization

DAR mapping is easiest when you treat it as a strategy, not a single assay.

• Use intact mass for fast distribution visibility.
• Add middle-down subunit workflows when you need interpretability without the full overhead of peptide mapping.
• Use peptide mapping when you need site-level confidence.
• Combine platforms (including hybrid immunocapture LC–MS/MS) when working in complex matrices or when linker stability is a central risk.

If you need an integrated workflow that includes DAR evaluation and conjugation-site insight, Creative Proteomics’ Antibody-Drug Conjugate (ADC) Sequencing Services can support ADC characterization workstreams alongside broader biopharmaceutical analysis.

References

1. Challenges and advances in the assessment of antibody-drug conjugates
2. Current LC-MS-based strategies for characterization and bioanalysis of antibody-drug conjugates
3. Analytical methods for the detection and quantification of antibody-drug conjugates in biological matrices
4. Effects of Drug–Antibody Ratio on Pharmacokinetics, Biodistribution, Efficacy and Safety of Antibody–Drug Conjugates
5. Immunocapture LC–MS methods for pharmacokinetics of biotherapeutics
6. A Two-Step Immunocapture LC/MS/MS Assay for Plasma Quantification of Conjugated Payloads, Total Antibodies, and Migrated Payloads
