Ultra-Performance Liquid Chromatography (UPLC) is a modern liquid chromatographic technique that operates at pressures exceeding 15,000 psi using columns packed with sub-2-micron particles to achieve separation efficiency, resolution, and speed that conventional HPLC cannot match. UPLC represents not merely an incremental improvement over HPLC but a fundamental re-engineering of the chromatographic system — from the stationary phase particle architecture to the fluidic path pressure tolerance — that enables separations in minutes that would require tens of minutes on conventional systems. This guide provides a comprehensive overview of UPLC principles, system components, separation mechanisms, advantages, and applications while extending into the practical considerations that determine whether UPLC is the right tool for a given analytical challenge: its theoretical basis in the van Deemter equation, its limitations including frictional heating and method transfer challenges, column selection strategies, troubleshooting protocols, and its evolving role in the omics sciences. All methods and instrumentation described are for research applications.
UPLC-based analysis services provide high-resolution separations using sub-2-micron column technology for proteomics, metabolomics, and lipidomics research applications.

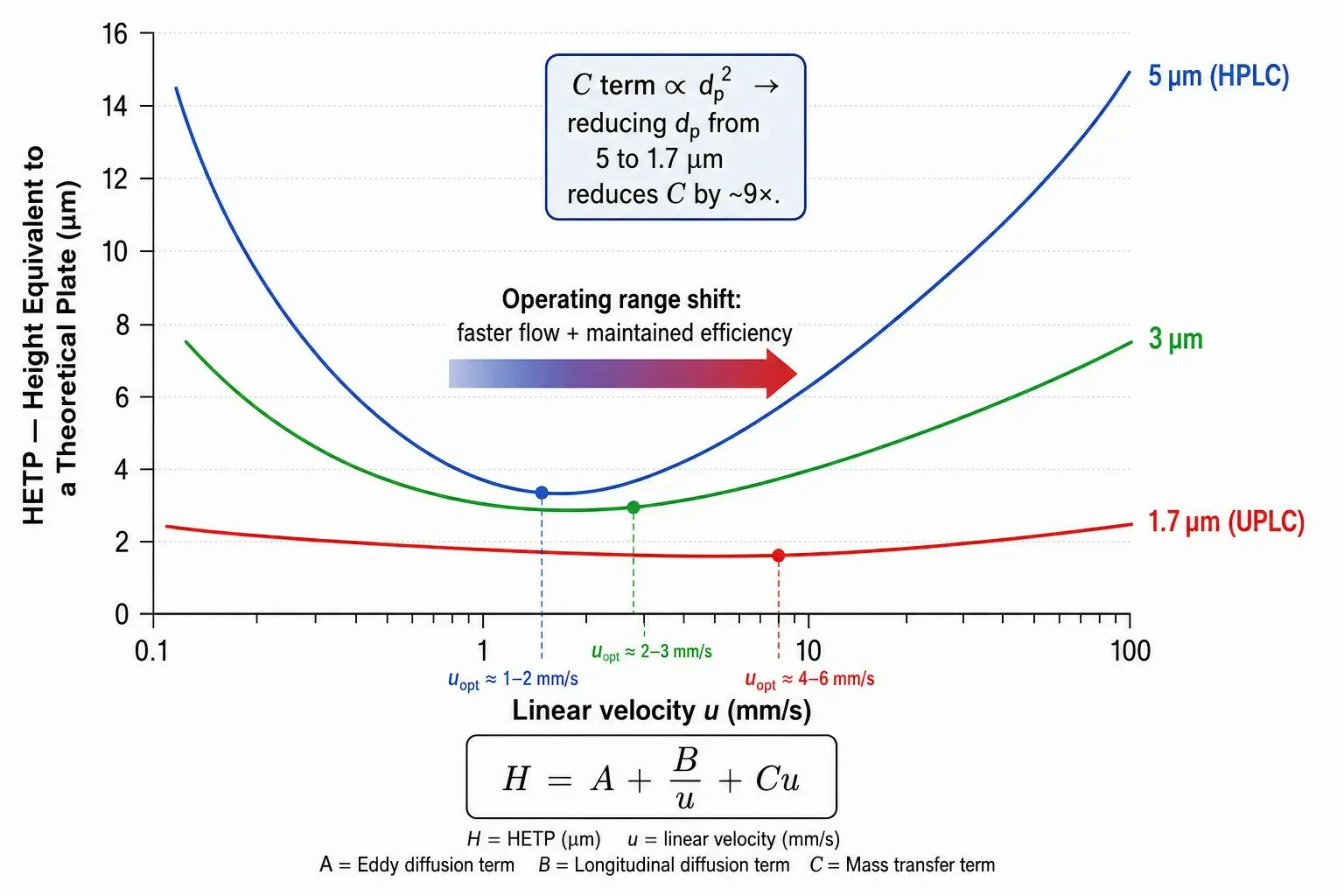

Figure 1: The van Deemter curve — theoretical basis of UPLC performance
Definition of UPLC
Ultra-Performance Liquid Chromatography (UPLC) is an advanced liquid chromatography technique that utilizes columns packed with particles smaller than 2 micrometers in diameter and operates at pressures significantly higher than those used in conventional HPLC systems. By employing these sub-2-µm particles, UPLC achieves superior chromatographic resolution, faster analysis times, and greater sensitivity compared to traditional HPLC methods. The technique maintains the same fundamental separation principles as HPLC — differential partitioning of analytes between a mobile phase and a stationary phase — while pushing the physical parameters of the separation into a regime where efficiency is dramatically improved. The combination of high pressure capability, optimized fluidic paths with minimal dead volume, and sensitive detection systems makes UPLC indispensable in modern analytical laboratories where throughput and data quality are equally valued.
Historical Background of UPLC
The development of UPLC traces its origins to the early 2000s, when Waters Corporation recognized the fundamental limitation of conventional HPLC: the particle size of the stationary phase dictated both the achievable efficiency and the required analysis time. Larger particles (5 µm, the HPLC standard) produced columns with modest backpressure but limited efficiency. Smaller particles (below 2 µm) promised dramatic improvements in efficiency, but no commercially available pumping system could deliver mobile phase at the pressures required to force solvent through a sub-2-µm packed bed at useful flow rates.
Waters Corporation introduced the first commercial UPLC system — the ACQUITY UPLC — in 2004-2005, accompanied by the development of the first sub-2-µm hybrid particle stationary phases (ACQUITY BEH, or bridged ethyl hybrid). This launch required simultaneous advances in multiple technologies: pumps capable of delivering precise, pulse-free flow at pressures exceeding 15,000 psi, injectors with minimal dispersion volume, columns with the mechanical strength to withstand the pressure without particle fracture, and detectors with sufficiently small flow cells and fast acquisition rates to capture the narrow peaks (typically 2-5 seconds wide at baseline) produced by the high-efficiency separation. The development represented a true paradigm shift in liquid chromatography — for the first time, the theoretical efficiency predicted by the van Deemter equation for sub-2-µm particles could be realized in routine laboratory practice.
Principles of UPLC
UPLC operates on the same fundamental principle as HPLC: the separation of components in a mixture based on their differential distribution between a mobile phase (a liquid solvent) and a stationary phase (the column packing material). What distinguishes UPLC is the use of columns packed with particles smaller than 2 µm in diameter, which, according to chromatographic theory, offer significantly higher separation efficiency compared to the larger particles used in conventional HPLC (3-5 µm).
The efficiency of a chromatographic column is described by the van Deemter equation: H = A + B/u + Cu, where H is the height equivalent to a theoretical plate (HETP, smaller values indicate higher efficiency), u is the linear velocity of the mobile phase, and A, B, and C are coefficients representing eddy diffusion, longitudinal diffusion, and mass transfer resistance, respectively. The critical term for understanding UPLC's advantage is the C term — the resistance to mass transfer — which is proportional to the square of the particle diameter (d₂). Reducing the particle diameter from 5 µm to 1.7 µm reduces the C term by a factor of approximately 9, meaning that analytes can move into and out of the stationary phase pores much more rapidly. This has two consequences: first, the minimum of the van Deemter curve (the optimum linear velocity) shifts to higher values, allowing faster separations; second, the curve flattens at high velocities, meaning that efficiency is maintained even when operating well above the optimum velocity. In practical terms, a 1.7 µm column produces approximately 2-3 times more theoretical plates per unit length than a 5 µm column, and a 50 mm UPLC column can deliver comparable or better resolution than a 150 mm HPLC column in one-third to one-fifth of the analysis time. This inverse relationship between particle size and efficiency — as particle size decreases, efficiency increases — is the theoretical foundation upon which UPLC is built.
However, the benefit of smaller particles comes at a cost: the pressure required to drive the mobile phase through the column is inversely proportional to the square of the particle diameter (ΔP ∝ 1/dp²). Reducing the particle diameter from 5 µm to 1.7 µm increases the backpressure by a factor of approximately 9 at the same flow rate and column length. This is why UPLC systems must be engineered to withstand operating pressures of 15,000-18,000 psi — approximately 3-4 times the typical maximum pressure of a conventional HPLC system. Every component in the fluidic path, from the pump pistons and check valves to the injection valve rotor seal and the column end fittings, must be designed to maintain a leak-free seal at these pressures over thousands of injections.

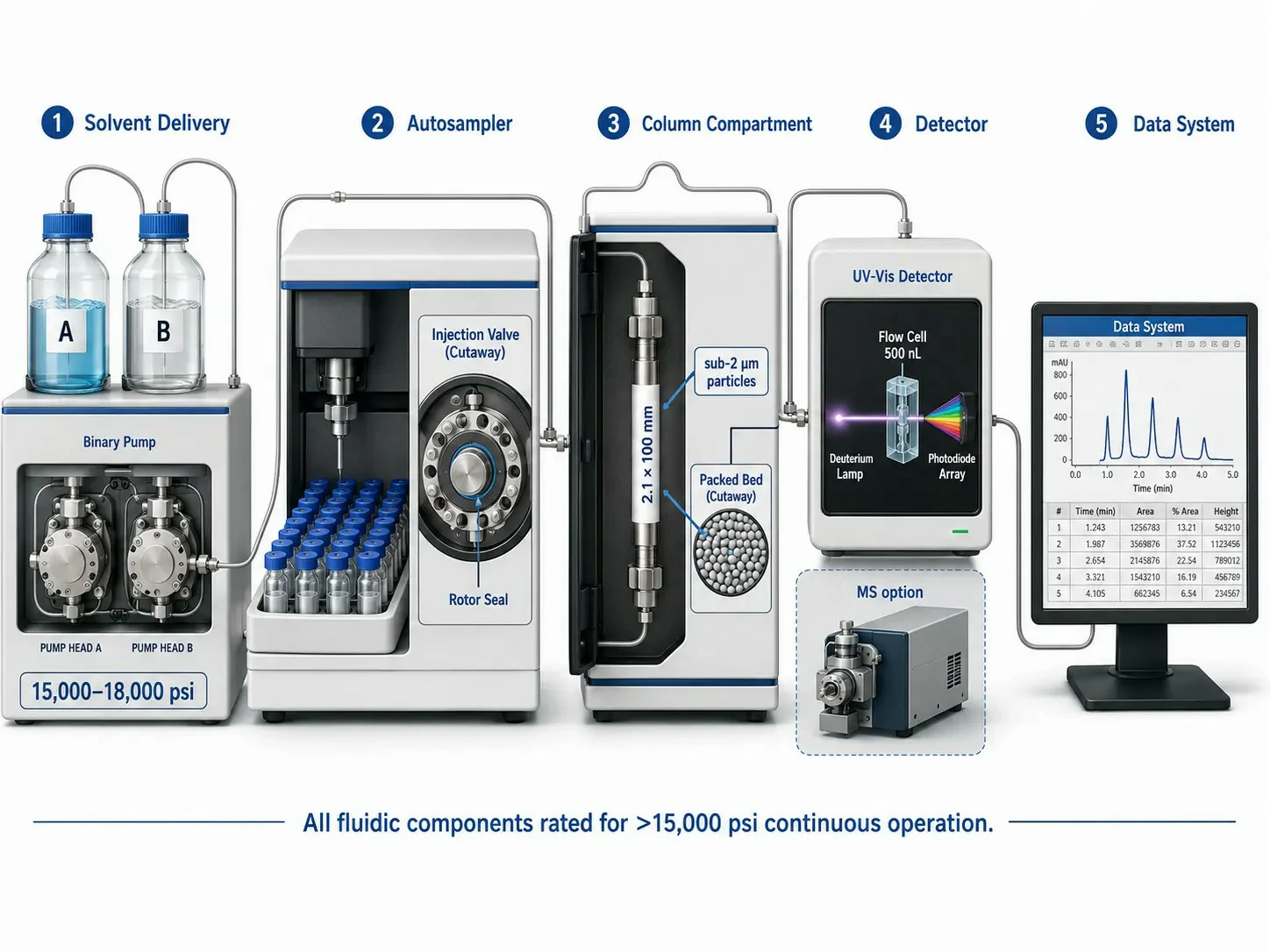

Figure 2: Key components of a UPLC system
Key Components of a UPLC System
Ultra-High-Pressure Pumps: UPLC systems employ binary or quaternary solvent delivery pumps capable of operating at pressures up to 15,000-18,000 psi while maintaining precise, low-pulsation flow with flow rate accuracy better than 1%. The pump design typically uses a dual-piston, serial flow configuration with electronic compressibility compensation to correct for the fact that solvents are slightly compressible at UPLC pressures. At 15,000 psi, the volume of methanol decreases by approximately 5-6% compared to its volume at atmospheric pressure; without compressibility compensation, this volume change would produce periodic flow fluctuations that degrade retention time reproducibility. Modern UPLC pumps monitor the pressure profile during each piston stroke and adjust the piston velocity in real time to maintain a constant flow rate regardless of the solvent composition and compressibility.
Injectors and Autosamplers: UPLC autosamplers are designed with minimized internal volumes and optimized fluidic paths to reduce band broadening. The injection valve uses a small-volume rotor seal (typically 0.1-0.5 µL internal groove volume) and the sample needle and needle seat are designed for minimal dispersion. Typical injection volumes range from 0.1 to 10 µL, considerably smaller than those used in conventional HPLC. The autosampler must also be capable of operating at system pressure — modern UPLC injectors use either a pressure-assisted injection mechanism or a flow-through needle design that withstands the full system backpressure without leaking.
High-Resolution Columns: UPLC columns are packed with sub-2-µm particles in stainless steel columns designed to withstand high operating pressures. The most common stationary phases are based on hybrid organic-inorganic silica particles. The BEH (Bridged Ethyl Hybrid) particle, the original UPLC stationary phase, incorporates ethylene bridges into the silica matrix, providing mechanical strength to withstand UPLC pressures and chemical stability across a wide pH range (pH 1-12). The CSH (Charged Surface Hybrid) particle adds a low-level positive surface charge to the BEH base particle, improving peak shape for basic analytes by reducing the secondary interactions with residual silanol groups. The HSS (High Strength Silica) particle is a fully porous silica particle optimized for maximum mechanical strength, designed for the highest-pressure UPLC applications. For specialized separations, UPLC columns are also available with superficially porous (core-shell) particles, where a 1.3-1.7 µm solid silica core is surrounded by a 0.2-0.5 µm porous shell layer — this architecture reduces the diffusion path length while maintaining the mechanical strength of a solid-core particle.
Detectors: UPLC detectors are optimized for the narrow, high-intensity peaks produced by the separation. UV-Vis detectors use small-volume flow cells (typically 500 nL) with short optical path lengths to minimize band broadening while maintaining sensitivity. The detector acquisition rate must be sufficiently fast to capture the narrow UPLC peaks — at least 10-20 data points across a peak that is 2-5 seconds wide at baseline, corresponding to acquisition rates of 5-80 Hz. Photodiode array (PDA) detectors operating at 20-80 Hz and mass spectrometers with scan rates of 10,000-20,000 Da/second provide the acquisition speed needed for UPLC peak detection. Fluorescence detectors, with their inherent high sensitivity and selectivity, are widely used for targeted analysis of fluorescent analytes or fluorescently derivatized compounds.
Data Acquisition and Analysis Software: UPLC systems generate large volumes of high-resolution data that require sophisticated software for peak detection, integration, and compound identification. Modern chromatography data systems (CDS) employ advanced peak detection algorithms — such as the ApexTrack or intelligent baseline recognition algorithms — capable of deconvoluting co-eluting peaks and accurately integrating peaks with widths below 1 second. The software also manages instrument control, automated method development sequences, and compliance with regulatory requirements including 21 CFR Part 11 for electronic records.

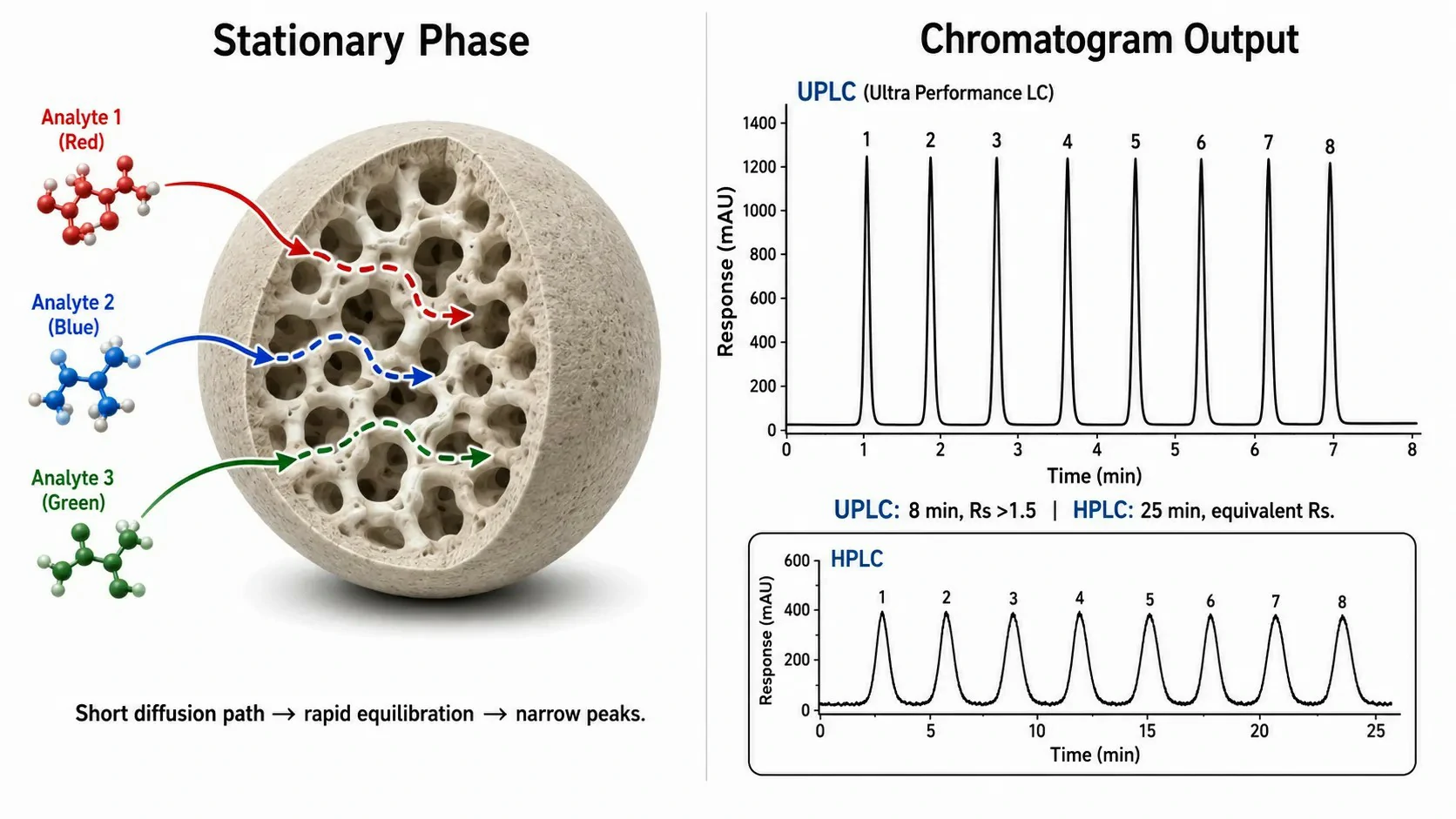

Figure 3: The UPLC separation process — stationary phase/mobile phase interactions and chromatogram output
The Separation Process in UPLC
The separation process in UPLC follows the same fundamental mechanism as in conventional liquid chromatography: analytes are separated based on their differential partitioning between a mobile phase and a stationary phase. However, the sub-2-µm particle size changes the dynamics of this process in ways that enhance separation performance.
Stationary Phase and Mobile Phase Interaction: The column contains the stationary phase — the sub-2-µm particles whose chemistry determines the retention mechanism. Reversed-phase (C18, C8, phenyl), normal-phase (silica, amino, cyano), ion-exchange, size-exclusion, and HILIC chemistries are all available in UPLC column formats. The mobile phase is a solvent or solvent mixture that carries the sample through the column under high pressure. In reversed-phase UPLC, the mobile phase is typically a mixture of water and an organic modifier (acetonitrile or methanol), often with a buffer or acid additive (0.1% formic acid, 10 mM ammonium formate) to control pH and improve peak shape. The gradient composition is programmed to change over the course of the separation, typically starting at a low percentage of organic solvent and increasing to elute progressively more hydrophobic analytes.
Chromatographic Conditions Optimization: UPLC allows for finer control of chromatographic conditions than HPLC. The effect of particle size on column efficiency means that smaller changes in mobile phase composition, flow rate, and column temperature produce larger changes in retention and selectivity on a UPLC column than on an HPLC column. This increased sensitivity to chromatographic variables is both an advantage — it allows for more precise optimization of separations — and a challenge — UPLC methods require tighter control of mobile phase preparation, column temperature, and gradient delivery than HPLC methods. Column temperature control is particularly critical: the heat generated by viscous friction of the mobile phase flowing through the sub-2-µm packed bed can produce axial and radial temperature gradients within the column. A temperature difference of 2-3°C across the column radius is sufficient to cause peak broadening and retention time shifts. Active column thermostating — using either a forced-air column oven or a column compartment with pre-heated mobile phase — is essential for UPLC reproducibility.
Analyte Interaction with the Stationary Phase: The smaller particle size provides a larger surface area for interaction between analytes and the stationary phase per unit column volume. This increased surface area, combined with the shorter diffusion path length within the porous particles, means that analytes equilibrate between the mobile phase and the stationary phase more rapidly and more completely. The practical result is narrower peaks with higher signal-to-noise ratios, improved resolution between closely eluting compounds, and more accurate quantification at low concentrations.
Detector Response and Data Acquisition: UPLC's narrow peaks place specific demands on the detector. The peak volume — the volume of mobile phase containing a given analyte — is typically 5-20 µL for UPLC, compared to 50-200 µL for conventional HPLC. The detector flow cell volume must be smaller than approximately one-tenth of the peak volume to avoid additional band broadening; the standard 500 nL UPLC UV flow cell achieves this for all but the earliest-eluting peaks. The detector time constant or acquisition rate must also be fast enough to avoid distorting the peak shape — for a peak 3 seconds wide, a detector time constant of 0.1 seconds captures approximately 30 data points across the peak, sufficient for accurate integration. For mass spectrometric detection, the scan rate must similarly be fast enough to acquire multiple spectra across the narrow UPLC peak; modern high-resolution mass spectrometers operating at 10-20 Hz provide 5-10 spectra across a 2-second peak, sufficient for both quantification and spectral library matching.

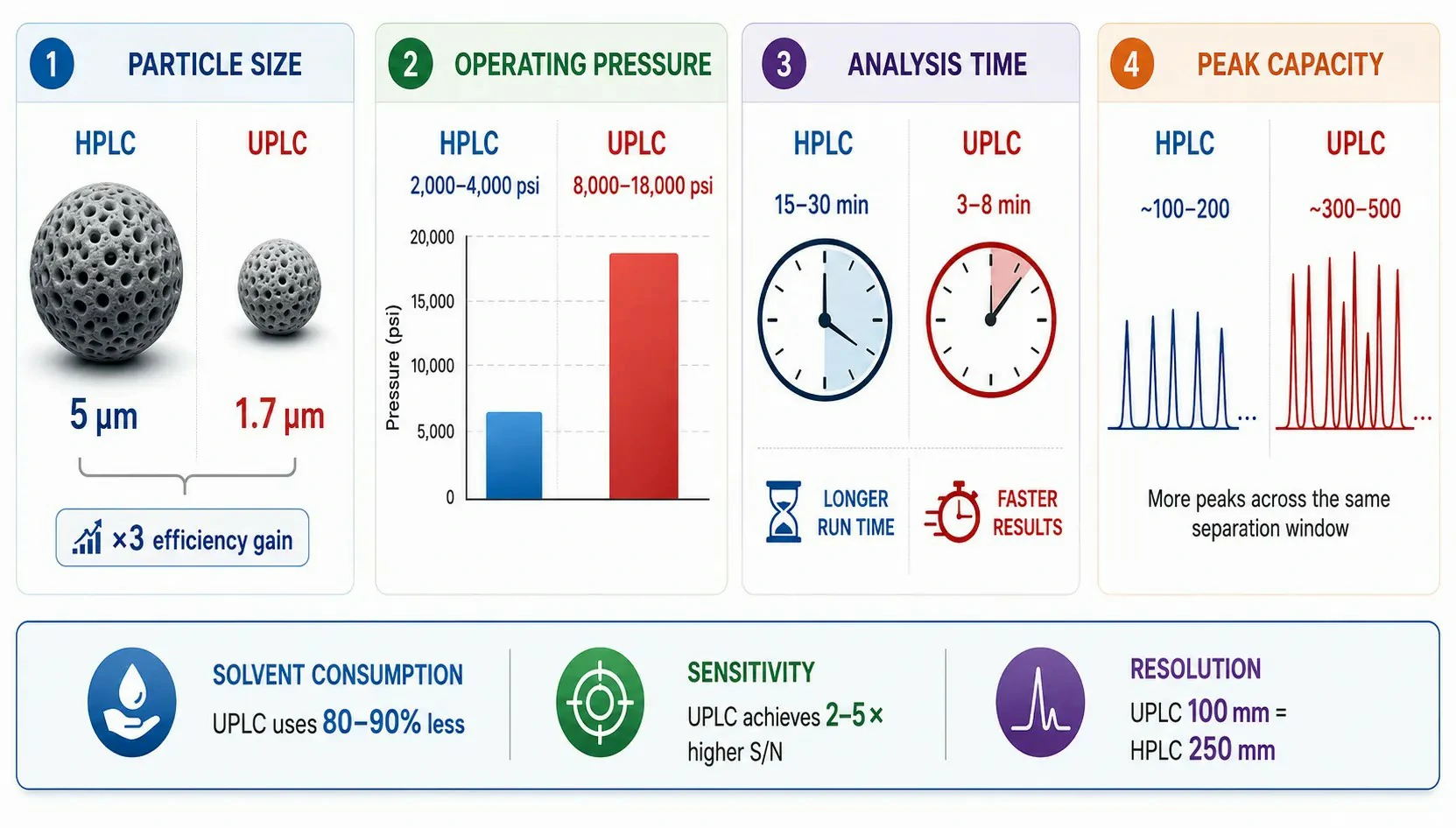

Figure 4: HPLC vs UPLC — quantitative comparison across key performance parameters
Advantages of UPLC
Improved Resolution and Speed Compared to HPLC: UPLC's sub-2-µm particles generate substantially higher plate counts than conventional HPLC columns, enabling the resolution of closely eluting compounds that would co-elute on an HPLC column. A 100 mm UPLC column packed with 1.7 µm particles provides approximately the same number of theoretical plates as a 250 mm HPLC column packed with 5 µm particles — producing equivalent resolution in less than half the time. In practice, UPLC methods routinely reduce analysis times by 60-80% compared to the corresponding HPLC methods while maintaining or improving resolution. The increased peak capacity — the number of peaks that can theoretically be resolved in a given gradient time — is particularly valuable for complex samples such as biological extracts, environmental samples, and pharmaceutical impurity profiles, where dozens to hundreds of components must be separated and quantified. LC-MS analysis services leverage UPLC resolution for complex sample characterization in pharmaceutical research.
Increased Sensitivity and Efficiency: The narrow, concentrated peaks produced by UPLC produce higher signal-to-noise ratios than the broader peaks from conventional HPLC. For a peak of constant mass, the height is inversely proportional to the peak width — halving the peak width doubles the peak height and the signal-to-noise ratio. In practice, UPLC typically achieves 2-5 fold improvements in sensitivity compared to HPLC for the same injected mass, translating to lower limits of detection and quantification. This improved sensitivity is particularly advantageous for trace analysis applications — pharmaceutical impurity profiling at the 0.05% level, pesticide residue analysis at parts-per-billion concentrations, and biomarker discovery where analytes of interest may be present at concentrations near the detection limit of conventional methods.
Reduction in Solvent and Sample Consumption: UPLC methods use smaller column internal diameters (typically 2.1 mm, compared to 4.6 mm for conventional HPLC) and shorter columns operated at higher linear velocities, reducing the mobile phase flow rate from 1.0-1.5 mL/min (HPLC) to 0.3-0.5 mL/min (UPLC). Over the course of a typical analytical run, UPLC consumes 80-90% less solvent than HPLC — a 10-minute UPLC run at 0.4 mL/min consumes 4 mL of solvent, compared to 20-25 mL for a 25-minute HPLC run at 1.0 mL/min. This reduction in solvent consumption translates directly to reduced purchase and disposal costs for high-purity solvents and reduced environmental impact. Sample injection volumes are similarly reduced, typically from 10-50 µL for HPLC to 1-5 µL for UPLC.
Enhanced Data Quality and Reproducibility: The precise control over chromatographic conditions afforded by UPLC instrumentation produces highly reproducible retention times and peak areas. Retention time relative standard deviations below 0.1% and peak area RSDs below 2% are routinely achievable on well-maintained UPLC systems. The high acquisition rates of UPLC-compatible detectors provide well-defined peaks with 15-30 data points across the peak width, improving the accuracy of peak integration and the reliability of automated data processing. For laboratories operating under regulatory oversight (GLP, GMP, or ISO 17025), the enhanced reproducibility of UPLC data supports method validation and reduces the frequency of system suitability test failures.
Limitations of UPLC — Practical Considerations
Despite its substantial advantages, UPLC has limitations that must be considered when deciding whether to adopt the technique for a specific application or to transfer an existing HPLC method to a UPLC platform.
Frictional Heating: The flow of mobile phase through a sub-2-µm packed bed generates heat through viscous friction. The amount of heat generated is proportional to the pressure drop across the column and the flow rate. At typical UPLC operating pressures of 8,000-15,000 psi, the temperature at the column inlet can be 5-15°C higher than the temperature at the column outlet, creating an axial temperature gradient. Additionally, the core of the packed bed is warmer than the walls (which are in contact with the column oven air or the column heater block), creating a radial temperature gradient. These thermal gradients cause the mobile phase viscosity to vary across the column, producing variations in the linear velocity and retention factor that degrade peak shape and reduce the effective plate count. The severity of frictional heating depends on the column internal diameter — columns with an internal diameter of 2.1 mm or smaller dissipate heat efficiently to the column wall and suffer minimal efficiency loss, while columns of 3.0-4.6 mm internal diameter show progressively greater efficiency losses at high pressures. For this reason, 2.1 mm internal diameter columns are standard for UPLC, and the use of larger-bore columns on UPLC systems requires reduced flow rates to limit frictional heating.
Column Clogging and Particulate Sensitivity: The narrow interstitial channels in a sub-2-µm packed bed are easily blocked by particulate matter in the sample or mobile phase. A 0.2 µm in-line filter between the autosampler and the column is essential for UPLC operation, and samples must be filtered through 0.2 µm syringe filters or centrifuged at high speed to remove particulates before injection. Even with these precautions, UPLC columns have shorter lifetimes than HPLC columns — typically 500-2,000 injections before column performance degrades to an unacceptable level due to irreversible particulate accumulation at the column inlet. For samples with a high particulate load or complex matrices, guard columns (2.1 mm × 5 mm, packed with the same stationary phase as the analytical column) are recommended to protect the analytical column from contamination.
Method Transfer from HPLC: Transferring an existing HPLC method to a UPLC system is not a simple matter of installing a smaller-particle column and increasing the flow rate. The dwell volume — the volume from the point of mobile phase mixing to the column inlet — is typically smaller in UPLC systems (100-400 µL) than in HPLC systems (500-2,000 µL). This difference in dwell volume changes the effective gradient profile experienced by the sample: an HPLC gradient with a 5-minute hold at initial conditions before the gradient ramp begins will produce a different separation on a UPLC system because the gradient reaches the column sooner. Geometric scaling of the gradient profile is required for successful method transfer: the gradient time and flow rate are adjusted proportionally to the column dimensions and particle size to maintain the same number of column volumes of gradient delivered to the column. The scaling equation requires calculating the column volume ratio, adjusting the gradient time proportionally, and compensating for the difference in dwell volume between the two systems.
Higher Instrument and Maintenance Costs: UPLC systems have higher acquisition costs than conventional HPLC systems, and the consumables — sub-2-µm columns, high-pressure pump seals, injection valve rotor seals — are more expensive and have shorter service intervals. Pump seals that might last 6-12 months in an HPLC operating at 3,000-4,000 psi may require replacement every 3-6 months in a UPLC operating at 12,000-15,000 psi. The high pressures place greater stress on all fluidic components, and small leaks that would be inconsequential at HPLC pressures become significant sources of flow inaccuracy and retention time drift at UPLC pressures. Regular preventive maintenance — pump seal replacement, check valve cleaning, injection valve rotor seal replacement, and detector lamp replacement — is essential for maintaining UPLC system performance.

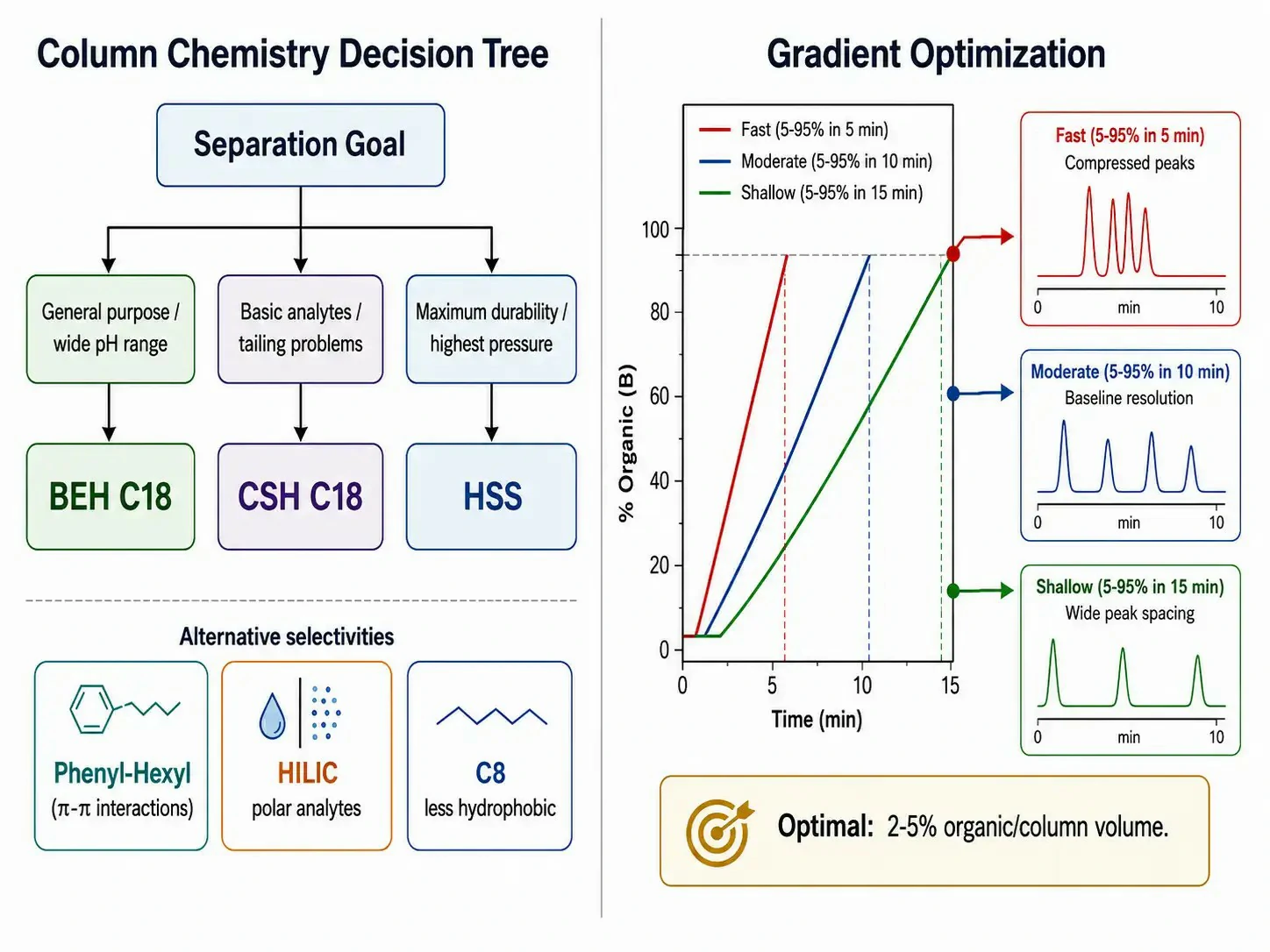

Figure 5: UPLC method development and column selection guide
UPLC Method Development and Column Selection
Developing a robust UPLC method requires systematic optimization of column chemistry, mobile phase composition, gradient profile, and operating conditions. The choice of stationary phase is the most consequential decision in method development because it determines the fundamental selectivity of the separation.
Column Chemistry Selection: The three major UPLC stationary phase families address different separation challenges. BEH columns provide the widest pH operating range (pH 1-12) and the broadest applicability for method development screening. CSH columns, with their low-level positive surface charge, produce superior peak shapes for basic analytes — particularly amines and nitrogen-containing heterocycles — that tail on neutral BEH surfaces due to interactions with residual silanols. HSS columns provide the highest mechanical strength and are the preferred choice for the highest-pressure applications or for columns that will be subjected to the maximum number of injections. For method development screening, a three-column approach — testing a BEH C18, a CSH C18, and a BEH Phenyl-Hexyl or HILIC column — covers the most common selectivity differences and identifies the column chemistry that provides the best resolution for the target analytes. The column internal diameter (2.1 mm for maximum sensitivity and minimum solvent consumption; 1.0 mm for nano-UPLC applications) and length (50 mm for rapid screening, 100 mm for most applications, 150 mm for complex separations requiring maximum resolution) are selected based on the required resolution and analysis time.
Mobile Phase and Gradient Optimization: For reversed-phase UPLC, the mobile phase is typically a water/acetonitrile or water/methanol mixture containing 0.1% formic acid (for positive ion LC-MS compatibility and acidic analyte peak shape), 10 mM ammonium formate or ammonium acetate (for buffering at pH 3-7), or 0.1% ammonium hydroxide (for basic pH separations and negative ion LC-MS). The gradient profile — the rate at which the organic modifier concentration increases — determines the peak spacing. A shallower gradient (e.g., 5% to 95% organic over 15 minutes) provides more time for analytes to differentially interact with the stationary phase, improving resolution but increasing analysis time. A steeper gradient (5-95% over 5 minutes) reduces analysis time but may compress peaks. The optimal gradient slope is typically in the range of 2-5% organic modifier change per column volume and is determined empirically by adjusting the gradient time until acceptable resolution is achieved for the most critical peak pair.
Temperature Optimization: Column temperature affects retention, selectivity, and mobile phase viscosity. Higher temperatures reduce mobile phase viscosity, lowering the column backpressure, and increase the mass transfer rate, producing narrower peaks. However, temperature also changes the relative retention of analytes — particularly for ionizable compounds, where temperature affects the pKa and therefore the degree of ionization. A temperature of 30-50°C is typical for reversed-phase UPLC, with the exact temperature selected to balance the competing effects on resolution, analysis time, and column backpressure. For methods intended for long-term use, column temperature should be actively controlled within ±0.5°C to ensure retention time reproducibility.
Equilibration and Column Care: After each gradient run, the column must be re-equilibrated with the initial mobile phase composition before the next injection. For UPLC columns, 3-5 column volumes of the initial mobile phase are sufficient for re-equilibration — approximately 0.5-1.0 minutes at a typical UPLC flow rate of 0.4 mL/min for a 2.1 mm × 100 mm column. At the end of each analytical batch, the column should be washed with a high-organic solvent (95% acetonitrile or methanol) to remove strongly retained compounds and then stored in the solvent recommended by the manufacturer (typically 100% acetonitrile for reversed-phase columns). UPLC method development services provide optimized separation conditions for research-specific analyte panels across multiple column chemistries.

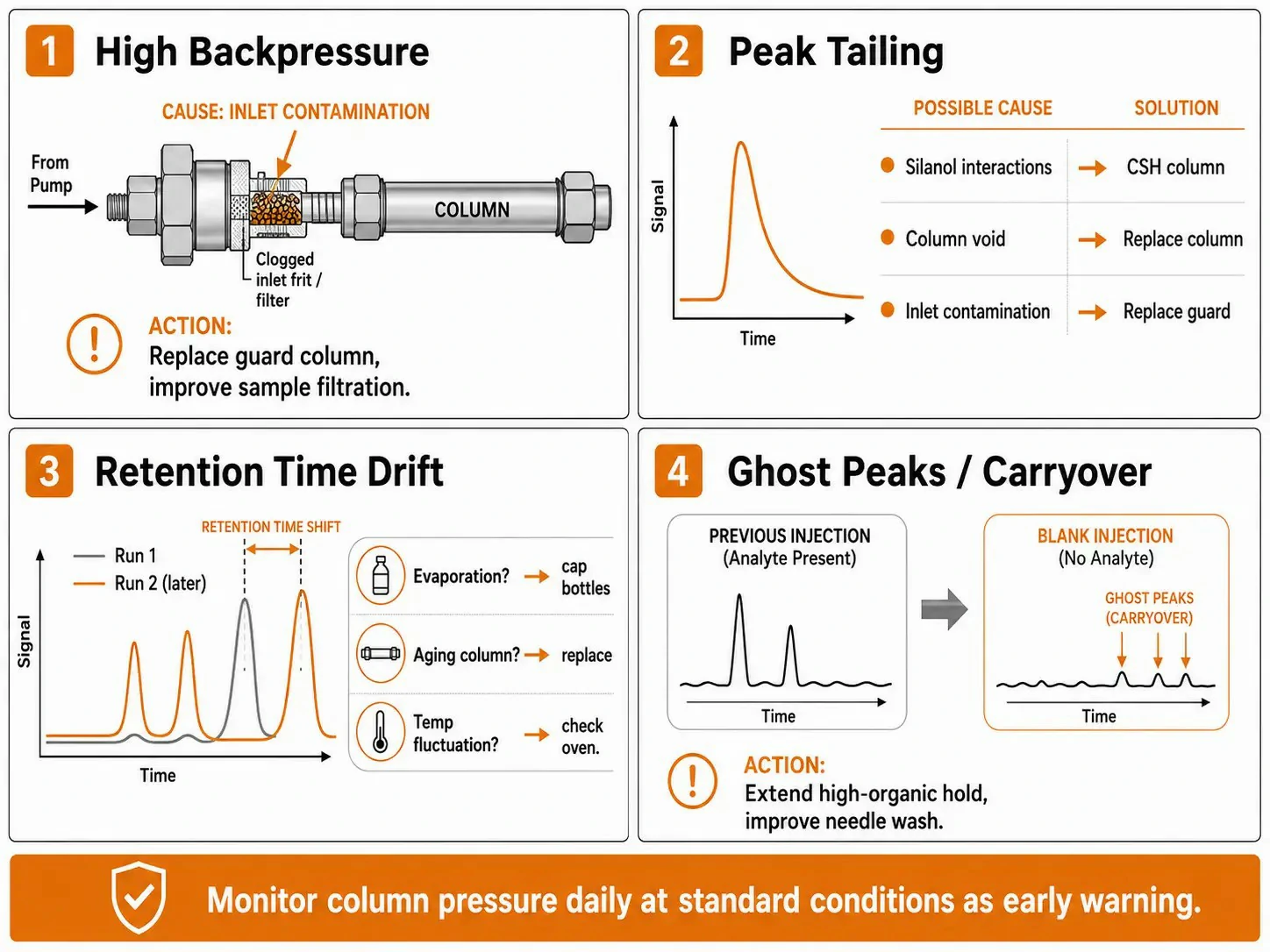

Figure 6: UPLC troubleshooting guide — common problems and solutions
UPLC Troubleshooting Guide
High or Fluctuating Backpressure: A gradual increase in backpressure over multiple injections is the most common sign of column inlet contamination by particulates. The solution is to replace the guard column and to improve sample filtration. A sudden increase in backpressure may indicate a blocked column inlet frit, requiring column replacement or reverse-flushing if the column design permits. Pressure fluctuations (pulsations exceeding 2-3% of the average pressure) indicate pump problems — worn pump seals producing erratic piston movement, check valve malfunction, or air bubbles in the pump heads requiring priming and purging. Regular monitoring of the column backpressure at a standard flow rate and mobile phase composition provides an early warning of developing problems.
Peak Tailing and Peak Shape Problems: Peak tailing — asymmetry where the right side of the peak is broader than the left — can have multiple causes. Tailing for all peaks in a chromatogram suggests a column chemistry problem: secondary interactions with residual silanol groups (addressed by using a CSH column or by adding a silanol-masking agent to the mobile phase), column voiding or channeling (requiring column replacement), or a contaminated column inlet frit (replace guard column). Tailing for specific peaks, particularly basic analytes, suggests overload of the silanol interaction sites — reducing the injection amount or switching to a CSH column typically resolves this. Fronting — asymmetry where the left side is broader — suggests column overload: the mass of analyte injected exceeds the linear capacity of the column, and reducing the injection volume or sample concentration is required.
Retention Time Drift: A progressive shift in retention times in one direction over a sequence of injections indicates a systematic change in chromatographic conditions. Drift toward shorter retention times suggests a gradual increase in the organic modifier concentration — typically from evaporation of the aqueous component of the mobile phase (ensure mobile phase bottles are tightly capped) or from incomplete column re-equilibration between gradient runs (increase the equilibration time). Drift toward longer retention times suggests a decrease in organic modifier concentration or a loss of stationary phase (column aging). Random retention time variability suggests pump flow inaccuracy, temperature fluctuations, or incomplete mobile phase mixing.
Ghost Peaks and Carryover: Peaks that appear in blank injections at the same retention times as analyte peaks from the previous injection indicate carryover — residual sample that was not completely eluted during the previous gradient run or was not completely washed from the injection system. Carryover from the column is addressed by extending the high-organic hold at the end of the gradient or by including a column wash step with a stronger solvent. Carryover from the injection system requires more thorough needle wash — the autosampler wash solvent should be strong enough to dissolve any residual sample (typically the same organic solvent used in the mobile phase or a slightly stronger solvent).
Applications of UPLC
Pharmaceutical Analysis: UPLC is the standard separation technique in pharmaceutical development and quality control, where its combination of speed, resolution, and sensitivity supports applications from early-stage purity screening to final product release testing. In impurity profiling, UPLC resolves structurally similar impurities from the active pharmaceutical ingredient (API) and from each other — a critical requirement for establishing impurity specifications and for demonstrating that potential genotoxic impurities are controlled below the threshold of toxicological concern. In dissolution testing and content uniformity assays, the reduced analysis time of UPLC (2-5 minutes per injection vs 10-20 minutes for HPLC) dramatically increases the sample throughput for the hundreds of individual tablet or capsule samples required for a single batch release. A 2025 review in ResearchGate covering UPLC in analytical method development for in-vitro studies documented the routine application of UPLC to pharmaceutical assays, dissolution testing, forced degradation studies, and bioanalytical method validation.
Food and Beverage Analysis: UPLC is used for the detection and quantification of contaminants, adulterants, and quality markers in food matrices. Applications include the simultaneous determination of vitamins in fortified foods and dietary supplements, the profiling of polyphenols and flavonoids in beverages, the quantification of pesticide residues in fruits and vegetables, and the detection of mycotoxins in grains and nuts. The technique's high sensitivity allows for the detection of contaminants at concentrations below regulatory limits, while its high resolution allows for the separation of multiple analytes in a single run.
Environmental Analysis: UPLC-MS/MS is the technique of choice for the analysis of emerging contaminants — pharmaceuticals, personal care products, endocrine-disrupting compounds, and per- and polyfluoroalkyl substances (PFAS) — in surface water, groundwater, wastewater, and soil. The high sensitivity of UPLC-MS/MS enables detection at the sub-ng/L concentrations that are environmentally relevant for these compounds, and the high resolution allows for the simultaneous quantification of dozens of analytes in a single analytical run.
Clinical Research and Omics Applications: UPLC coupled with high-resolution mass spectrometry is the primary analytical platform for untargeted metabolomics and lipidomics studies, where the goal is to detect and identify as many metabolites or lipids as possible in a biological sample. The 2024 Metabolomics review documented UHPLC-MS analysis strategies including full-scan MS, data-dependent acquisition, data-independent acquisition (SWATH/MSᴱ), and targeted MRM approaches, each with different trade-offs between metabolite coverage and quantification accuracy. A 2024 Waters application notebook presented validated UPLC methods for metabolomics and lipidomics across multiple biological matrices — plasma, serum, urine, tissue homogenates, and cell extracts. In targeted clinical applications, UPLC-MS/MS methods quantify panels of diagnostic biomarkers — amino acids for inborn errors of metabolism, acylcarnitines for fatty acid oxidation disorders, steroid hormones for endocrine testing — in plasma or dried blood spot samples with analysis times of 3-8 minutes per sample, enabling high-throughput newborn screening and clinical diagnostic workflows. Targeted metabolomics services utilize UPLC-MS/MS for high-throughput, high-sensitivity quantification of metabolite panels in research samples. Untargeted metabolomics services leverage UPLC-HRMS for comprehensive metabolite detection in biomarker research.
Other Applications: UPLC is applied across additional specialized fields including forensic toxicology, agricultural chemistry (pesticide residue analysis), cosmetic analysis, and nutraceutical quality control. The technique's versatility makes it applicable to virtually any analytical problem requiring high-resolution liquid chromatography.
FAQ
What is the fundamental difference between UPLC and HPLC?
UPLC uses sub-2-µm particles (typically 1.7 µm) operated at 8,000-18,000 psi, while HPLC uses 3-5 µm particles at 2,000-4,000 psi. The smaller particles provide 2-3 times more theoretical plates per unit column length and allow faster separations at higher linear velocities with minimal efficiency loss.
Why does the van Deemter equation favor smaller particles?
The C term (mass transfer resistance) is proportional to the square of the particle diameter. Reducing the particle diameter from 5 µm to 1.7 µm reduces the C term by ~9-fold, flattening the van Deemter curve at high velocities and enabling faster, more efficient separations.
What are the main limitations of UPLC?
Frictional heating from the high operating pressures can create temperature gradients across the column that degrade efficiency. Sub-2-µm columns are more susceptible to clogging by particulates. Method transfer from HPLC requires geometric gradient scaling. Instrument acquisition and maintenance costs are higher than HPLC.
How do I choose between BEH, CSH, and HSS UPLC columns?
BEH: broad pH range (1-12), general-purpose method development. CSH: improved peak shape for basic analytes through surface charge modification. HSS: maximum mechanical strength for highest-pressure applications. Screen all three chemistries during method development to identify the best selectivity.
What causes retention time drift in UPLC?
Drift toward shorter times: organic solvent evaporation or incomplete column re-equilibration. Drift toward longer times: stationary phase loss (column aging). Random variability: pump flow inaccuracy, temperature fluctuations, or incomplete mobile phase mixing.
What are the key UPLC applications in omics research?
UPLC-HRMS is the standard platform for untargeted metabolomics and lipidomics, enabling detection of thousands of features in a single run. A 2024 review documented the analysis strategies (full-scan MS, DDA, DIA/SWATH, MRM) used for different experimental objectives ranging from biomarker discovery to targeted quantification.
References
- Perez de Souza L, et al. UHPLC-HRMS variants for metabolomics research. Nature Methods. 2021;18:733-746.
- Analysis types and quantification methods in UHPLC-MS metabolomics. Metabolomics. 2024;20:115.
- UPLC in analytical method development and validation for in-vitro studies. International Journal of Pharmaceutical Sciences. 2025.
- Untargeted metabolomics based on UPLC-MS for serum, urine, and tissue analysis. Frontiers in Nutrition. 2024;11:1367589.
- Thermostatting in UHPLC: forced air mode, still air mode, and frictional heating effects. Thermo Fisher Scientific Poster. 2024.
