ATP and ADP are often introduced as a neat pair. ATP is framed as the energy-rich molecule. ADP is presented as the lower-energy product left behind after work is done. That summary is useful at teaching level, but it is too thin for a serious research resource. In living systems, ATP and ADP do not behave like two labels on a battery icon. They belong to a buffered adenylate system whose behavior depends on molecular structure, charge density, magnesium coordination, phosphate availability, and rapid exchange with AMP.
This distinction matters because the ATP/ADP ratio does more than report whether ATP is present. It reflects how much free-energy headroom remains available for ATP-coupled chemistry. A cell can retain measurable ATP and still be moving toward an energetically restricted state if ADP and inorganic phosphate are rising in parallel. In that setting, the main problem is not immediate ATP disappearance. The problem is that phosphorylation potential is being compressed.
That is why ATP alone is often an incomplete readout. Many experimental perturbations do not trigger an instant ATP crash. They first narrow the thermodynamic margin that allows ATP-dependent reactions to proceed efficiently. Mitochondrial perturbation, oxygen-limited culture conditions, nutrient restriction, transport burden, or rapid biosynthetic demand can all shift ATP, ADP, and AMP in ways that are far more informative than one ATP value by itself. For that reason, studies aiming to resolve adenylate balance often move beyond generic ATP assays and use targeted metabolomics or a dedicated adenosine triphosphate analysis solution when ATP, ADP, and AMP need to be interpreted together.
A second simplification also needs to be corrected early. ATP is commonly said to contain a "high-energy bond," as though one unusual bond stores energy in a way that explains the whole phenomenon. That phrase is convenient, but it is not precise. ATP hydrolysis is favorable because the entire chemical system moves toward a more stable state. Relief of charge repulsion, resonance stabilization of inorganic phosphate, favorable hydration of the products, and the actual intracellular relationship among ATP, ADP, and Pi all contribute to the free-energy change. The bond matters, but the bond alone is not the explanation.
This resource therefore treats ATP as a conditional free-energy carrier rather than a universal energy token. Its effective biochemical value changes with context. Ionic conditions matter. Concentration ratios matter. Enzyme binding matters. Compartment state matters. Once that framework is in place, the ATP/ADP switch stops looking like a textbook slogan and starts looking like what it really is: a dynamic physicochemical control system. This resource discusses ATP/ADP/AMP biology, analytical workflows, and research interpretation in a research-use context only.
ATP and ADP share a scaffold, but not the same thermodynamic behavior
ATP and ADP have the same adenine base and the same ribose scaffold. The decisive difference lies in the phosphate tail. ATP carries three phosphates, conventionally named alpha, beta, and gamma. ADP carries only alpha and beta. On paper, that looks like a small structural difference. In thermodynamic terms, it is not small at all.
The phosphate chain is the most electrostatically crowded region of the molecule. Under near-physiological pH, the phosphate oxygens carry substantial negative charge. Those charges do not sit comfortably at a distance. They are forced into close spatial proximity along the same molecular framework. That creates local electrostatic tension.
This is the first reason ATP behaves differently from ADP. The extra gamma phosphate does not simply add one more chemical group. It increases local charge density and raises the energetic tension of the triphosphate region. ATP is therefore best understood as a chemically stable but electrostatically crowded reactant. It can persist in aqueous solution and function productively in cells, but it does not represent the most relaxed arrangement available to that chemical system.
The structure is also more dynamic than many static illustrations suggest. The adenine base can sample syn and anti conformations relative to the ribose. The phosphate tail is flexible rather than locked into one idealized geometry. Hydration, protonation, and ion binding all influence the local arrangement of the triphosphate chain. These details matter because phosphoryl transfer is not governed by composition alone. Geometry matters too. The terminal phosphate must be presented in a way that allows catalytic attack, charge redistribution, and product release.
That is why ATP should not be imagined as a simple icon with three circles on a line. It is better understood as a hydrated, metal-sensitive phosphoanhydride system whose reactivity depends on environment. When experiments expand from ATP status into wider nucleotide remodeling, the most useful analytical frame is often not a single endpoint assay but a broader metabolomics service that can place adenylates inside the rest of the small-molecule landscape.
What the "high-energy bond" shorthand gets wrong
The phrase "high-energy phosphoanhydride bond" survives because it is short and memorable. The problem is that it encourages the wrong mental model. It makes ATP sound like a molecule that stores energy inside one special bond, ready to release it when that bond is broken. Chemically, that is misleading.
Bond cleavage by itself requires energy input. ATP hydrolysis becomes favorable because the full reaction moves from a less favorable reactant state to a more favorable product state. The useful question is therefore not, "How much energy sits inside one bond?" The better question is, "Why are the products more stable than the reactant under cellular conditions?"
The answer has several parts, but they point in the same direction.
First, ATP is more charge-crowded than ADP plus inorganic phosphate. Hydrolysis separates one phosphate from the chain and reduces local electrostatic compression.
Second, inorganic phosphate is better stabilized after release. Its negative charge can be distributed more effectively across multiple oxygen atoms through resonance.
Third, water strongly stabilizes the products. ADP and inorganic phosphate each acquire favorable hydration shells. In biological solution, solvation is not background scenery. It is part of the thermodynamic result.
These three features are enough to explain why ATP hydrolysis is favorable without relying on the myth of a magical bond. The phrase "high-energy bond" is acceptable only if it is treated as shorthand for a broader thermodynamic landscape. ATP is not useful because one bond contains mysterious power. ATP is useful because its hydrolysis products are better stabilized in the chemical environment of the cell.
Electrostatic crowding is real, but ATP is not a literal spring
A popular analogy describes ATP as a spring-loaded molecule. That analogy can help, but only if it is used with care. ATP is not literally a compressed spring. It behaves like a spring-loaded system only in the limited sense that its triphosphate tail contains built-in electrostatic crowding.
At physiological pH, several negatively charged oxygen atoms are positioned close enough to create internal repulsion. That repulsion does not make ATP unstable in the everyday sense. ATP is stable enough to exist, diffuse, bind enzymes, and participate in tightly controlled biochemical work. But it does make ATP a higher free-energy reactant than the combination of ADP and inorganic phosphate produced by hydrolysis.
That distinction is important for enzyme logic. Kinases and ATPases do not merely "break ATP." They bind ATP in ways that reorganize the electrostatic field around the phosphate tail, position catalytic residues, stabilize metal coordination, and enable a productive attack on the gamma phosphate. In other words, they exploit a preloaded energetic landscape rather than inventing one.
Why ADP plus Pi are thermodynamically favored
To understand ATP hydrolysis deeply, it helps to focus less on ATP itself and more on why the products are favored.
ADP is less charge-dense than ATP. That alone reduces local repulsion.
Inorganic phosphate is even more important. Once released, it accesses a resonance-stabilized state in which negative charge is distributed more effectively across several oxygen atoms. That makes the product side chemically more comfortable than a flat bond diagram suggests.
Water then reinforces the difference. Hydration shells around ADP and Pi contribute strongly to the stabilization of the hydrolysis products. In biological solution, solvation is not background scenery. It is part of the thermodynamic result.
This is why ATP hydrolysis should be described as a full-system thermodynamic event. Relief of charge crowding, resonance stabilization, and solvation all point in the same direction. The products are favored not because ATP contains one exotic bond, but because the product ensemble sits in a lower free-energy state.
Figure 1. Molecular basis of the ATP/ADP switch. ATP should be understood as a charge-crowded triphosphate system, not as a molecule with one literal "energy bond" acting like a mechanical spring. Hydrolysis becomes favorable because ADP and inorganic phosphate achieve greater stabilization through electrostatic relief, resonance, hydration, and Mg2+-dependent organization of the phosphate environment.
The real Delta G in cells is not the textbook number
The standard biochemical free-energy value for ATP hydrolysis is often given as about -30.5 kJ/mol. That number is useful as a reference, but it is not the effective value experienced inside a living cell.
The actual free-energy change depends on conditions. In copy-friendly form:
Delta G = Delta G°' + RT ln(([ADP][Pi])/[ATP])
This equation changes the interpretation of ATP immediately. It shows that ATP hydrolysis is not defined by one fixed number. It depends on the actual intracellular relationship among ATP, ADP, and inorganic phosphate.
If ATP remains high while ADP and Pi stay relatively low, the logarithmic term becomes more negative, and ATP hydrolysis is more favorable than the standard reference value. If ATP falls or the products accumulate, the driving force weakens. The underlying chemistry has not changed, but the usable free-energy margin has.
That is why phosphorylation potential is a more informative concept than ATP concentration alone. A cell may still contain plenty of ATP in absolute terms while already losing thermodynamic leverage. ATP abundance tells you what is present. The ATP-to-product relationship tells you how much work that pool can still support.
In practical research, this matters in almost every high-demand setting. A perturbation may leave ATP levels apparently acceptable while ADP and Pi are already shifting the system toward a narrower energetic operating window. When turnover rather than pool size becomes the core question, metabolic flux analysis can become more informative than a static endpoint alone, because it helps distinguish altered redistribution from simple depletion.
Why the ATP/ADP ratio outperforms ATP alone
ATP concentration is easy to report, but it can create false confidence. Two samples can show similar ATP values while having very different energetic states if their ADP and Pi values differ. One sample may still have strong phosphorylation potential. The other may already be operating under much tighter free-energy constraints.
This is one reason the ATP/ADP ratio remains so useful. It captures direction, not just amount. It indicates whether the adenylate system is still strongly ATP-dominant or whether it is being drawn toward a more stressed distribution.
This difference becomes critical in perturbation studies. A treatment may not eliminate ATP rapidly, but it may still increase ADP enough to compress the thermodynamic margin. A culture under oxygen restriction may maintain bulk ATP transiently while losing usable free-energy headroom. A rapidly growing system may sustain ATP only by increasing turnover pressure that becomes obvious once ADP and AMP are measured alongside it.
For mechanistic work, ATP-only claims are often too weak. If the goal is to understand cellular energy state rather than simply ATP presence, then ATP, ADP, and ideally AMP should be interpreted together.
Mg2+ is not a side note. It is part of the operating definition of ATP
Magnesium is often mentioned briefly in ATP biology and then dropped. That is a mistake. In real cells, ATP and ADP are not present only as free anions. A significant fraction exists in metal-bound form, and many enzymes recognize Mg-ATP as the functionally relevant substrate.
This changes the chemistry at several levels.
First, Mg2+ reduces the effective charge density around the phosphate tail. That lowers the electrostatic penalty associated with bringing reactive groups into proximity.
Second, Mg2+ reorganizes phosphate geometry. It helps position phosphate oxygens in ways that are more compatible with productive catalysis.
Third, Mg2+ changes nucleotide speciation. ATP is not one fixed molecular entity in solution. It exists as a set of related states influenced by protonation, ionic strength, and metal coordination. Free ATP, Mg-ATP, and protein-bound Mg-ATP are chemically related, but they are not functionally identical situations.
Fourth, Mg2+ lowers the effective barrier to nucleophilic attack on the gamma phosphate. A nucleophile approaching a strongly negative phosphate region faces electrostatic resistance. Magnesium reduces that resistance and helps create a more catalytically accessible environment.
This is why many enzyme reactions are better described as reactions of Mg-ATP rather than ATP in the abstract. Once Mg2+ is included, ATP chemistry becomes more realistic. The system is no longer only about nucleotide concentration. It is also about which nucleotide species are present in a catalytically competent form.
Mg2+ changes how ATP thermodynamics should be interpreted
The presence of Mg2+ also changes the meaning of measured free energy. If ATP and ADP exist in multiple ion-bound forms, then thermodynamic interpretation cannot stop at nominal metabolite abundance.
This does not make standard equations useless. It means they are incomplete if magnesium is ignored. The intracellular free-energy landscape depends not only on ATP, ADP, and Pi, but also on how strongly these species are coordinated, buffered, and distributed among local microenvironments.
This matters because magnesium is too often presented as a helper ion rather than as a structural and thermodynamic participant. A stronger explanation treats Mg2+ as part of the active definition of the adenylate system. It is not decoration around ATP. It is one of the variables that determines how ATP actually behaves.
Adenylate kinase is the fast buffer that prevents ATP from collapsing too early
The ATP/ADP relationship becomes much more interesting once AMP is brought in. Adenylate kinase, usually abbreviated AK, catalyzes the reaction:
2 ADP <-> ATP + AMP
This is one of the most elegant buffering steps in metabolism. It does not create new energy. It redistributes the existing adenylate pool.
When ATP is being consumed and ADP begins to rise, AK can convert two ADP molecules into one ATP and one AMP. This produces two effects at once.
First, it slows the immediate decline in ATP. Even under increasing energetic pressure, some ATP can be regenerated from the expanding ADP pool.
Second, it generates AMP. Because AMP often starts at lower abundance than ATP or ADP, even modest flux into AMP can produce a large proportional increase. That makes AMP a highly sensitive indicator of low-energy pressure.
This dual effect is why the adenylate system behaves more like a switch than a smooth linear meter. The same buffering step that protects ATP also amplifies the warning signal that energy demand is beginning to outpace supply.
Energy Charge is useful because it describes a linked system, not three separate molecules
The classical Atkinson Energy Charge, or EC, can be written in copy-friendly form as:
EC = ([ATP] + 0.5[ADP]) / ([ATP] + [ADP] + [AMP])
This equation gives full energetic weight to ATP, half weight to ADP, and no direct high-energy weight to AMP. The output is a normalized value between 0 and 1.
What makes EC powerful is not the arithmetic by itself. It is the biology encoded in the arithmetic. ATP, ADP, and AMP do not drift independently. They are coupled through rapid interconversion, especially through adenylate kinase. That means EC behaves like a systems metric rather than a single-metabolite readout.
A high EC indicates an ATP-dominant pool capable of supporting energy-consuming processes such as biosynthesis, active transport, growth, and structural remodeling. A falling EC indicates that the adenylate system is moving toward a more restricted operating state in which energy conservation and adaptive redistribution become more important.
This is why EC should be read as a buffered operating variable. It summarizes the balance of the adenylate pool in a way that ATP alone cannot. The cell does not simply attempt to maximize ATP concentration. It attempts to maintain a workable adenylate distribution.
AMP is powerful because it amplifies small disturbances
AMP becomes such a strong low-energy signal because the adenylate system is designed to amplify small changes.
A modest drop in ATP usually causes ADP to rise first. AK then redistributes part of that ADP into ATP plus AMP. Because the AMP pool starts smaller, its relative increase can be large even when the initial ATP decline remains moderate.
That amplification is one of the most important design features of the adenylate system. It allows the cell to detect energetic strain early rather than waiting for severe ATP depletion to become obvious.
This is also why AMP has long been associated with energy-sensing pathways such as AMPK. Modern interpretation is more refined than older textbook summaries, because ADP also contributes to cellular energy-sensing circuitry under perturbation conditions. But AMP remains the clearest amplification signal because of how strongly its relative abundance can shift.
For datasets that need to connect adenylate redistribution with broader pathway behavior across multiple conditions or time points, bioinformatic analysis for metabolomics study can add interpretive structure after the core measurements are in place.

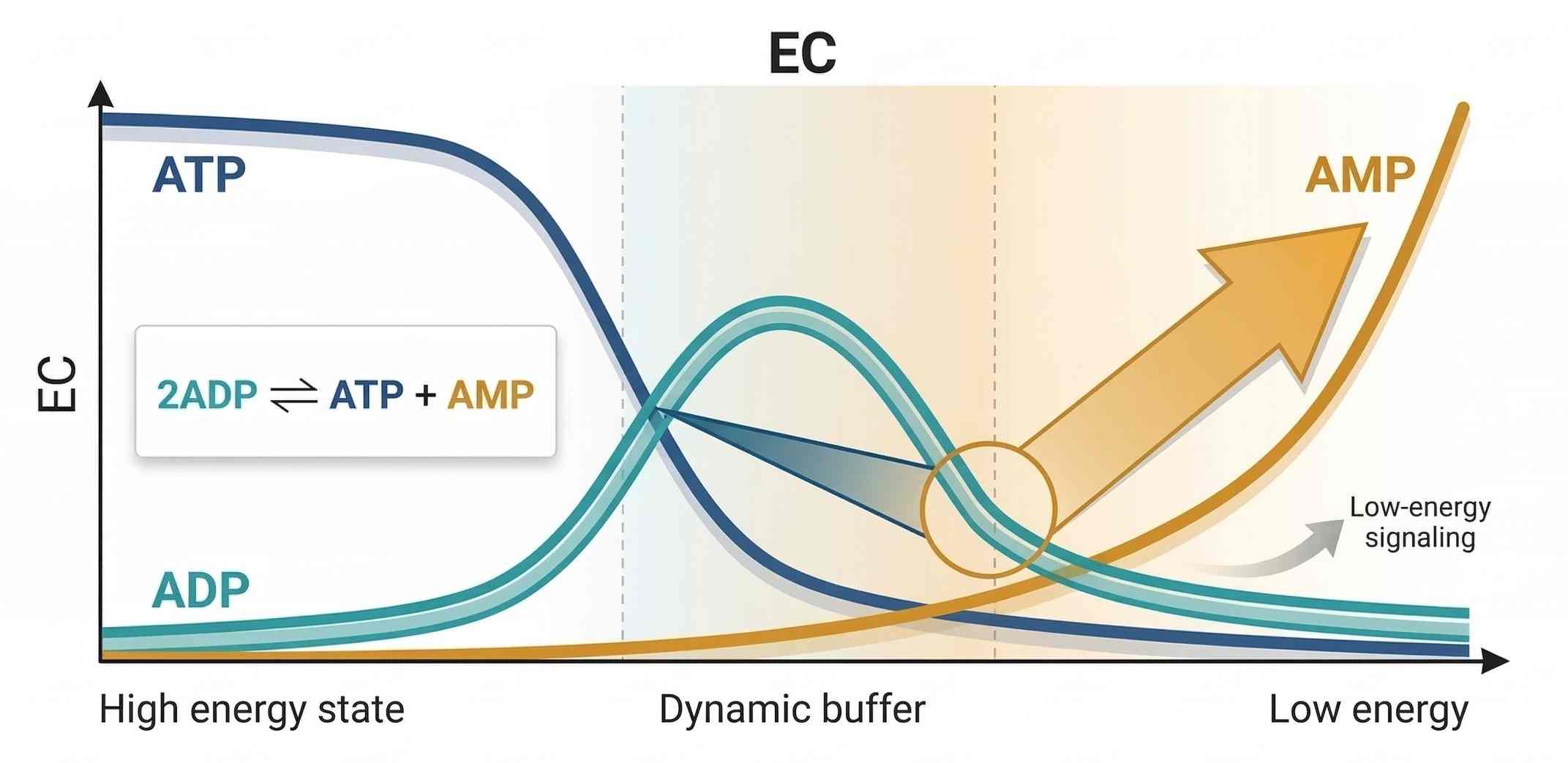

Figure 2. The adenylate pool behaves as a buffered control system rather than a simple ratio. At the center is the adenylate kinase reaction, 2 ADP <-> ATP + AMP. One side of the figure should show how this reaction buffers ATP decline; the other should show how it amplifies AMP as a low-energy signal. The EC relationship captures this linked behavior as a systems metric rather than a static formula.
The adenylate switch is best understood as a control architecture
The elegance of the adenylate system is that buffering and signaling are built into the same chemistry.
AK delays ATP collapse by recycling ADP.
The same reaction exposes energetic strain by generating AMP.
That means the system protects function while also reporting danger. It buys time, but it does not hide the problem.
This is the logic that makes the adenylate switch such a strong biological design. It is not just a fuel ledger. It is a control architecture that balances immediate support for ATP-dependent reactions against rapid amplification of low-energy signaling.
Once ATP, ADP, AMP, Mg2+, and actual intracellular Delta G are viewed together, the familiar ATP/ADP story becomes much richer. These molecules are not simply interconverted. Together they define the energetic operating state of the cell.
Rotary catalysis converts proton motive force into ATP
So far, the adenylate system has been described from the side of ATP consumption, hydrolysis, and redistribution. But the switch is only half explained until ATP regeneration is brought in. ATP synthesis is not a passive reversal of ATP hydrolysis. ADP and Pi do not simply drift back into ATP at a useful rate under ordinary cellular conditions. The reaction needs work input.
That work is supplied by the F-type ATPase, better known in ATP-producing mode as ATP synthase. This enzyme is not just associated with energy conversion. It is the machine that makes ATP regeneration mechanically possible. It couples electrochemical free energy across a membrane to physical rotation, and then couples that rotation to conformational work in the catalytic headpiece. The result is ATP formation from ADP plus inorganic phosphate.
This is one of the clearest places where ATP biology stops being a story about metabolites alone. The ATP/ADP ratio is shaped not only by chemistry in solution, but also by the performance of a molecular motor.
The proton motive force is a directional energy source, not a vague gradient
The proton motive force, often written as Delta p, combines membrane potential and proton concentration difference across a membrane. In simplified diagrams, it is often shown as a stored gradient waiting to be "used." In practice, it behaves as a directional bias that can be harvested by a rotary machine.
As protons move through the membrane sector of ATP synthase, they bind and unbind in a way that drives directional rotation of the c-ring. This motion is not random. The structure of the enzyme biases proton movement into a productive rotational cycle. That mechanical bias is what allows electrochemical free energy to be converted into torque.
This distinction matters. ATP synthesis is not achieved by simply bringing ADP and Pi close together. The enzyme must do work on its active sites. It must bind substrates, reshape catalytic geometry, and cycle through states that favor synthesis and then release. The proton motive force pays for that conformational work by driving rotation.
ATP synthase is a true rotary engine
It is worth being explicit here because the idea still sounds metaphorical. ATP synthase really rotates.
The membrane-embedded F0 sector is mechanically linked to the soluble F1 catalytic sector through a central stalk. Proton translocation through F0 rotates the c-ring and shaft. That shaft then imposes asymmetrical structural changes on the catalytic beta subunits in F1.
This is the core logic of the enzyme. A static active site would not be enough. ATP synthesis requires a repeating structural cycle, and that cycle is imposed mechanically. The enzyme therefore acts as a converter that turns electrochemical energy into rotational motion and rotational motion into chemistry.
That mechanochemical step is central to the ATP/ADP ratio, even if it is often discussed separately. Whenever ATP synthase performance falls, ATP regeneration weakens, ADP rises, and the adenylate pool begins to shift toward a more restricted energy state.
The Loose, Tight, and Open cycle explains how ATP is made
The best-known description of F1 catalysis is the Loose, Tight, and Open model.
In the Loose state, substrates can bind.
In the Tight state, the catalytic environment favors ATP formation.
In the Open state, ATP can be released.
These states are not abstract labels. They describe distinct structural environments in the catalytic beta subunits. Rotation of the central shaft forces each beta subunit through these conformations in sequence.
This is why ATP synthesis cannot be reduced to simple substrate binding. The enzyme does not merely hold ADP and Pi together and wait. It actively remodels the catalytic pocket. One state binds, one state stabilizes condensation, and one state releases product. Mechanical work is therefore translated into a conformational sequence that makes ATP synthesis feasible.
Why ATP synthase belongs inside an ATP/ADP article
It may seem that ATP synthase belongs to a different chapter from ATP/ADP ratio, but the link is direct. The ATP/ADP ratio is the running output of production, consumption, buffering, and redistribution. ATP synthase sits on the production side of that balance.
When proton motive force weakens, ATP synthesis becomes less effective. ATP may remain measurable for some time because buffering still operates, but the ratio usually begins to move before gross depletion becomes obvious. That is why adenylate profiling can reveal early loss of energetic balance before severe ATP depletion becomes apparent.
When projects need to connect nucleotide balance with broader cellular remodeling rather than treating ATP/ADP as an isolated endpoint, integrated proteomics and metabolomics analysis can provide a wider systems frame for interpretation.
ATP synthesis and ATP hydrolysis are best read as one cycle
At a conceptual level, ATP hydrolysis and ATP synthesis are often taught separately. For technical interpretation, it is better to read them as one cycle.
Hydrolysis explains why ATP works as a phosphoryl donor.
Rotary catalysis explains how cells rebuild that donor by spending electrochemical free energy.
The ATP/ADP ratio sits between these two directions. It is the running balance between ATP generation and ATP use. Once the ratio falls, enzyme performance, transport work, biosynthetic capacity, and signaling priorities all begin to shift.
That is why the adenylate system is more than a pool of nucleotides. It is a continuously updated summary of energetic traffic.
Quantifying adenylate flux starts with stopping metabolism fast enough
Once ATP/ADP is understood as a fast and sensitive systems variable, the measurement problem becomes obvious. Adenylates are biologically informative because they move quickly. That is also what makes them analytically difficult.
If metabolism continues during sample handling, the measured nucleotide state can drift away from the real biological state before the instrument ever sees it. ATP may fall during washing, scraping, delayed extraction, or incomplete quenching. ADP and AMP may rise during the same interval. The resulting profile can look coherent, even though part of it reflects handling rather than biology.
That is why adenylate analysis always begins with one practical question: how quickly was the biological state frozen?
Rapid quenching defines whether ATP/ADP/AMP data are trustworthy
Quenching is the step that arrests metabolism quickly enough to preserve the nucleotide distribution present at the time of sampling. That sounds straightforward, but ATP turnover is fast enough that mild delays can matter.
As long as ATPases, kinases, phosphatases, and related enzymes remain active, the adenylate pool can keep moving. A valid quenching step therefore needs to do more than cool the sample. It must suppress ongoing chemistry fast enough to prevent meaningful redistribution.
This is why ATP, ADP, and AMP data should never be interpreted without a clear view of the pre-analytical workflow. In adenylate work, sample handling is part of the biology being measured.
PCA and boiling ethanol address the same problem differently
Two of the most common quenching strategies are perchloric acid, or PCA, and boiling ethanol.
PCA works by rapidly denaturing proteins and suppressing ongoing turnover. Its main strength is aggressive metabolic arrest. In adenylate analysis, that speed can be decisive because the earlier chemistry is stopped, the more faithfully the measured nucleotide profile reflects the original biological moment.
Boiling ethanol also aims to halt metabolism while extracting small molecules. It can be operationally attractive because quenching and extraction are combined into one workflow concept. But it is not automatically interchangeable with PCA in every sample type.
The real question is not which method sounds cleaner. The real question is how quickly each method penetrates the sample, how effectively it suppresses residual enzymatic activity, how well nucleotide integrity is preserved, and how compatible the extract is with downstream analysis.
This is why matrix-specific workflow design matters. Cell pellets, monolayers, organoids, tissues, and microbial samples do not all respond the same way to quenching. When protocol optimization rather than generic extraction is the main need, customized experiments can be a more realistic starting point than forcing every system into the same inherited method.
Energy Charge is only as reliable as the measurements behind it
Energy Charge looks mathematically clean. That can create the illusion that it is automatically robust. It is not. EC is only as reliable as the underlying ATP, ADP, and AMP values.
If handling altered those values before analysis, the calculated EC may be precise but biologically false. This is especially dangerous in mild perturbation studies, where the differences being tested are modest enough that sample-preparation artifacts can create or erase the main result.
The practical lesson is simple. Adenylate analysis should be designed backward from analyte instability. The biology has to be preserved first. Only then can the instrument produce a meaningful answer.
Why LC-MS/MS is one of the strongest adenylate readouts
Once metabolism has been quenched properly, the next challenge is separation and detection. ATP, ADP, and AMP are small, highly polar, strongly charged molecules. They do not behave like easy hydrophobic analytes in standard reversed-phase chromatography.
This is why LC-MS/MS remains one of the most powerful approaches when specificity matters. Its strength lies not just in mass detection, but in the combination of chromatographic retention, clean separation, and controlled ionization. A good adenylate workflow separates ATP, ADP, and AMP clearly enough that ratio logic and energy-charge calculations are chemically defensible.
This is where simple ATP readouts and true adenylate profiling begin to diverge. A single ATP assay can be enough when the question is narrow. But once the claim depends on ATP/ADP balance, AMP amplification, or adenylate redistribution, the analytical bar rises sharply.
Ion-pairing reversed-phase LC helps make nucleotides tractable
One of the most useful solutions for nucleotide analysis is ion-pairing reversed-phase LC. The reason is practical. ATP, ADP, and AMP are anionic and highly polar. Without deliberate chromatographic design, they may show weak retention, poor separation, or behavior that is difficult to interpret reliably.
Ion-pairing makes these molecules more manageable in reversed-phase systems by improving retention and resolution. It does not make adenylate analysis trivial, but it makes it analytically workable.
A strong ATP/ADP/AMP workflow therefore depends on multiple steps being aligned at once: fast quenching, compatible extraction, disciplined chromatography, and ion-source conditions that do not introduce avoidable ambiguity. When adenylate shifts need to be interpreted within a larger panel of small molecules, a broader metabolomics service can help determine whether the nucleotide changes are isolated or part of wider metabolic remodeling.
Bulk chemistry and live-cell sensors answer different questions
Even a strong LC-MS/MS workflow has limits. Chemical extraction gives concentration data, but it usually collapses space and time into one endpoint snapshot. Once the sample is lysed, mitochondrial, cytosolic, and other local differences are averaged together.
That does not make endpoint chemistry weak. It makes it different.
Bulk quantification is powerful when the question is comparative or absolute: how much ATP, ADP, or AMP is present; how Energy Charge shifts between groups; whether one condition has a larger adenylate pool disturbance than another.
But other questions are spatial and dynamic. Which compartment shows an earlier shift in energetic state? How fast does that shift spread? Does one compartment recover while another remains strained? Those questions require a different class of tool.
ATeam and PercevalHR expose what pooled extraction cannot
Genetically encoded biosensors changed adenylate biology because they allow energy state to be observed in living cells rather than reconstructed after lysis.
ATeam is widely used as a FRET-based ATP sensor and can be directed to defined cellular compartments. PercevalHR is especially useful when ATP:ADP-related dynamics are the main readout. Together, these sensors make it possible to follow energy-state changes across time and space rather than only at endpoint.
The conceptual advantage is large. LC-MS/MS tells you what the pooled system contains. ATeam and PercevalHR help show where and when the energetic balance begins to change.
This matters because whole-cell lysates average away local structure. A bulk measurement may show a modest ATP shift, while a live-cell sensor reveals that one compartment changed early, another remained buffered longer, and recovery was asynchronous.
Spatial heterogeneity is a core feature of ATP biology
ATP is often spoken of as if it were one well-mixed pool. Diffusion matters, but it does not erase all local differences.
ATP production and ATP consumption are not uniformly distributed. Mitochondria are major ATP-generating sites. The cytosol contains strong ATP demand from transport, biosynthesis, trafficking, cytoskeletal remodeling, and signaling assemblies. Organelle geometry, local enzyme density, and localized demand create timing differences that whole-cell averages cannot fully resolve.
That is why mitochondrial and cytosolic ATP-related states can diverge during perturbation. One region may show energetic strain earlier. Another may remain buffered for longer. Spatial heterogeneity is therefore not a niche observation. It is a basic property of how the adenylate system behaves in real cells.
When ATP-related measurements need to be interpreted alongside organelle-specific molecular context, subcellular proteomics can complement nucleotide profiling by linking energetic differences to compartment-resolved protein environments.

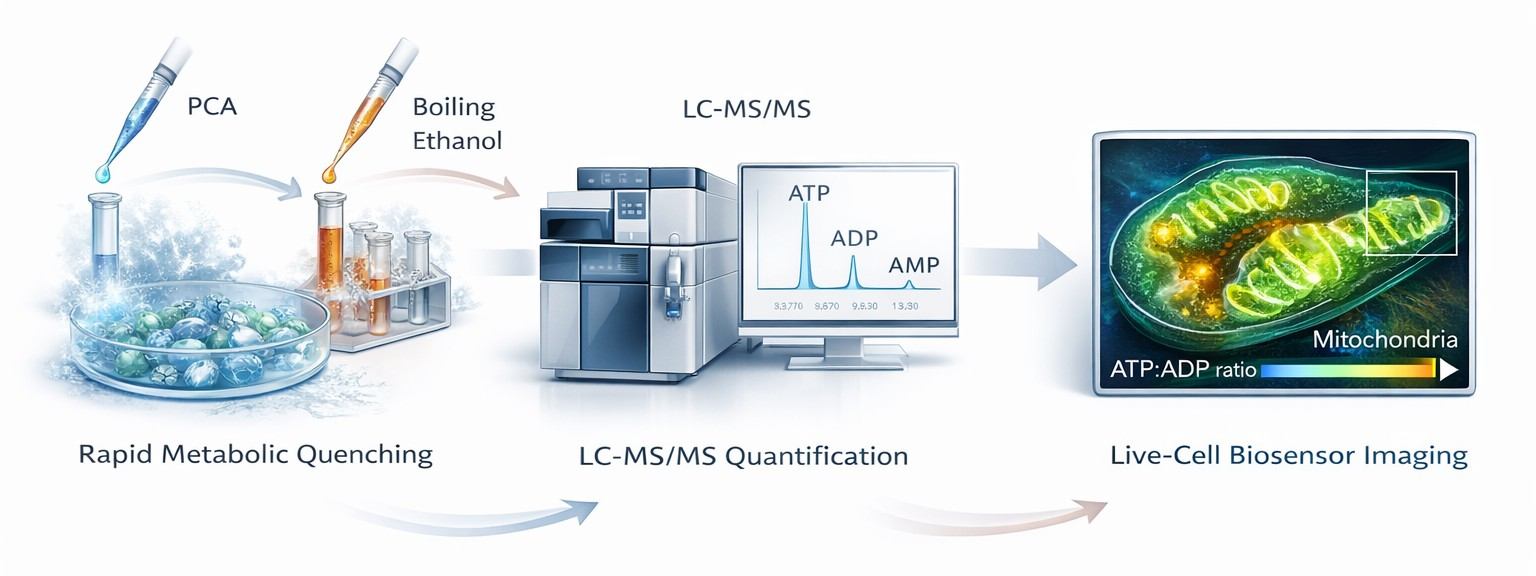

Figure 3. Adenylate measurement architecture. Rapid quenching preserves the original ATP, ADP, and AMP state. LC-MS/MS resolves pooled nucleotide chemistry with endpoint precision. Live-cell biosensors then reveal compartment dynamics that pooled chemistry cannot preserve, including differences between mitochondria and cytosol.
When ATP alone is enough, and when a broader workflow is necessary
Not every project needs the same analytical depth. Sometimes ATP alone is enough. If the question is narrow, the perturbation is strong, and the goal is simply to know whether ATP abundance changed, a focused ATP readout may be sufficient.
But ATP alone becomes insufficient when the interpretation depends on energetic balance rather than simple abundance. If the question involves buffering, low-energy signaling, early stress detection, or thermodynamic headroom, then ATP, ADP, and AMP should be measured together so that ATP/ADP ratio and Energy Charge can be calculated directly.
A broader workflow becomes necessary when adenylate shifts need to be connected to pathway-level remodeling, compartment behavior, or large-scale response programs. In those settings, the key question is no longer only "Did ATP change?" It becomes "How is energy-state redistribution linked to the rest of the system?" That is the point at which workflow selection should move from a nucleotide-only panel toward integrated designs.
Interpreting adenylate data still requires causal discipline
Adenylate datasets are powerful, but they are easy to overclaim from. A falling ATP/ADP ratio does not identify the upstream cause by itself. It does not automatically prove mitochondrial dysfunction, glycolytic limitation, transport overload, or signaling failure. It reports a systems consequence.
The same is true for Energy Charge. A falling EC indicates a shift in adenylate balance, but it does not by itself reveal which compartment changed first or whether the primary driver was reduced ATP production or increased ATP demand.
That is why ATP/ADP/AMP data become most convincing when interpreted alongside timing, compartment information, and broader pathway context. When the dataset expands beyond a few nucleotide peaks into a larger response pattern, statistical analysis service can help separate real structured differences from variation that only looks meaningful at first glance.
Conclusion
The adenylate system is not simply a pool of related nucleotides. It is a dynamic energetic control architecture.
ATP is effective not because one bond is mysteriously loaded with energy, but because hydrolysis moves the chemical system toward a more stable state shaped by charge relief, resonance stabilization, hydration, and intracellular concentration ratios. ADP is not just a spent byproduct. It is part of the live thermodynamic balance that determines phosphorylation potential. AMP is not an afterthought. It is the amplified signal that reveals when buffering capacity is being challenged.
Mg2+ makes this system more realistic and more interesting. It changes charge density, nucleotide geometry, and catalytic accessibility. Adenylate kinase gives the adenylate pool resilience while simultaneously exposing strain. ATP synthase closes the cycle by turning proton motive force into the conformational work required to regenerate ATP.
From the analytical side, adenylate biology rewards rigor. Rapid quenching matters. Extraction chemistry matters. LC-MS/MS method design matters. Live-cell biosensors matter. The ATP/ADP ratio is therefore not just a metabolic statistic. It is a compact report on the state of the cell's free-energy economy, the performance of its molecular machinery, and the fidelity of the experiment used to observe it.
Before choosing a workflow, it is often helpful to decide whether the real question is ATP abundance, ATP/ADP/AMP redistribution, pathway-level remodeling, or integrated energetic context. That is where a workflow-selection hub or integrated bioenergetics pathway page can be useful as the next internal step.
FAQ
What does the ATP/ADP ratio actually tell you?
It tells you more than whether ATP is present. It reflects how much phosphorylation potential remains available for ATP-coupled work. A falling ratio usually means the free-energy margin is narrowing.
Why is ATP hydrolysis more favorable in cells than the textbook value suggests?
Because the actual Delta G depends on intracellular ATP, ADP, and Pi rather than only on standard reference conditions. High ATP relative to ADP and Pi makes hydrolysis more favorable.
Why is Mg2+ so important in ATP biology?
Mg2+ changes nucleotide speciation, lowers effective charge density around the phosphate tail, and helps organize catalytically productive geometry. In many reactions, Mg-ATP is the biologically relevant substrate.
What is the difference between ATP/ADP ratio and Energy Charge?
ATP/ADP ratio focuses on the relationship between ATP and its immediate lower-energy partner. Energy Charge includes AMP and summarizes the whole adenylate pool as a linked control variable.
Why does AMP rise so sharply under energetic strain?
Because adenylate kinase converts 2 ADP into ATP plus AMP. Since AMP often starts at lower abundance, even modest redistribution can create a large relative increase.
Is ATP alone enough to define cellular energy state?
Not always. ATP alone can miss early or subtle stress. Measuring ATP together with ADP and AMP is much stronger when the interpretation depends on buffering, signaling, or Energy Charge.
Why can sample handling distort ATP/ADP/AMP data?
Because adenylates keep changing after sampling unless metabolism is quenched quickly enough. Delayed handling can lower ATP and raise ADP or AMP before analysis begins.
Why use LC-MS/MS for adenylate analysis?
Because it can resolve ATP, ADP, and AMP together and support ratio-based interpretation. That is much more informative than ATP alone when the question is energetic balance.
What do ATeam and PercevalHR add beyond extraction-based assays?
They provide spatial and temporal information in living cells. Bulk extraction gives pooled composition, while biosensors reveal where and when the energetic state begins to shift.
Does a falling ATP/ADP ratio prove mitochondrial dysfunction?
No. It shows energetic imbalance, but not the cause by itself. Strong causal claims require broader context from timing, compartment data, and complementary measurements.
References
- Atkinson DE. The energy charge of the adenylate pool as a regulatory parameter. Interaction with feedback modifiers. Biochemistry. 1968. DOI: 10.1021/bi00845a001
- Alberty RA. Thermodynamic data for the hydrolysis of adenosine triphosphate as a function of pH, magnesium ion concentration, and ionic strength. Journal of Biological Chemistry. 1969. DOI: 10.1016/S0021-9258(18)93131-5
- Knowles JR. Enzyme-catalyzed phosphoryl transfer reactions. Annual Review of Biochemistry. 1980. DOI: 10.1146/annurev.bi.49.070180.004305
- Yoshida M, Muneyuki E, Hisabori T. ATP synthase — a marvellous rotary engine of the cell. Nature Reviews Molecular Cell Biology. 2001. DOI: 10.1038/35089509
- Imamura H, Huynh Nhat KP, Togawa H, Saito K, Iino R, Kato-Yamada Y, Nagai T, Noji H. Visualization of ATP levels inside single living cells with fluorescence resonance energy transfer-based genetically encoded indicators. PNAS. 2009. DOI: 10.1073/pnas.0904764106
- Berg J, Hung YP, Yellen G. A genetically encoded fluorescent reporter of ATP:ADP ratio. Nature Methods. 2009. DOI: 10.1038/nmeth.1288
- Hardie DG, Ross FA, Hawley SA. AMPK: a nutrient and energy sensor that maintains energy homeostasis. Nature Reviews Molecular Cell Biology. 2012. DOI: 10.1038/nrm3311
- Kühlbrandt W. Structure and mechanisms of F-type ATP synthases. Annual Review of Biochemistry. 2019. DOI: 10.1146/annurev-biochem-013118-110903
