Sequence Verification in Bispecific Antibodies: Resolving CDR Assignment by Mass Spectrometry

Bispecific antibodies (bsAbs) don't just add a second binding specificity—they change the analytical problem you have to solve. In practice, sequence verification in bispecific antibodies becomes a combined question of assembly, arm identity, and CDR-level evidence.

In many formats, you're no longer verifying one heavy chain variable region paired with one light chain variable region. You're verifying two distinct antigen-binding arms that must assemble correctly, carry the intended sequences, and preserve the intended inter-chain connectivity.

For teams moving from early construct confirmation into comparability, stability, and CMC-facing documentation, the question is rarely "Do I have an antibody?" It's: Can I unambiguously assign each CDR loop to the correct chain and arm, and can I prove the molecule assembled the way we think it did?

Key Takeaway: bsAb sequence verification is a CDR assignment problem as much as it is a sequence-coverage problem—because four variable regions can create plausible, but wrong, mappings if the workflow is not designed for asymmetry.

Why bsAb Sequence Verification Demands More Than Standard mAb Workflows

In other words: when you're doing sequence verification in bispecific antibodies, you're validating not only "what amino acids are present," but also which arm those amino acids belong to.

The core structural reality is simple, but it has consequences: dual antigen binding often requires four distinct variable regions—VH1, VH2, VL1, and VL2—co-expressed and assembled into a single molecule. Even in "IgG-like" bsAbs that look familiar on a cartoon, the sequence verification task is closer to verifying a small mixture of highly homologous immunoglobulin domains than verifying a single monoclonal antibody.

In a standard mAb workflow, most MS-based antibody sequencing or peptide mapping pipelines implicitly assume each CDR belongs to one well-defined chain sequence database: one VH and one VL (with their frameworks), plus constant regions. That assumption breaks down in bsAbs because CDR-containing peptides from different arms can be similar enough that a database-driven assignment can appear internally consistent—even when an arm identity is swapped.

The challenges that make bsAbs qualitatively harder include:

• CDR assignment ambiguity: shared framework peptides and near-identical CDR-adjacent motifs can produce "multiple valid-looking" peptide-to-chain mappings.
• Chain mispairing impurities: even when heavy chain heterodimerization is engineered, light chain pairing can drift into mispaired species that are hard to notice without arm-specific evidence.
• Disulfide scrambling: correct sequences do not guarantee correct connectivity. Asymmetric assembly can elevate the risk of non-native disulfide patterns or mismatched pairings.
• Orthogonal confirmation needs: before progressing into CMC packages, teams often need evidence that is robust across levels—intact/subunit/peptide—rather than relying on a single analytical viewpoint.

To see why this matters, it helps to think in terms of risk coverage:

How bsAb Engineering Formats Shape Your MS Strategy

A practical implication for method design is that there isn't one universal "bsAb MS workflow." The analytical approach should be explicitly tailored to whether your molecule is symmetric or asymmetric and which engineering mechanisms are used to enforce pairing.

KiH and cFAE Heterodimerization

Knob-into-Holes (KiH) and controlled Fab-arm exchange (cFAE) are powerful strategies to enforce heavy chain heterodimerization. Analytically, that's useful because it reduces one class of assembly impurities.

But neither approach inherently resolves light chain pairing ambiguity. In other words, you can achieve the intended heavy chain pairing while still carrying a population where VL1 and VL2 are swapped relative to the intended arms.

In these designs, bsAb sequence verification becomes especially dependent on whether your peptide mapping strategy can distinguish VL1 vs VL2 at the CDR level. If the workflow relies heavily on shared framework peptides, it may confirm "a light chain" without confirming the right light chain on the right arm.

A natural place to connect sequencing support to method needs is Creative Proteomics' Antibody Sequencing Service, which covers VH/VL and CDR annotation using MS-based de novo strategies when only protein material is available.

CrossMab and Common Light Chain Approaches

CrossMab formats (commonly implemented as CH1/CL domain swaps) are designed to mathematically solve light chain mispairing by changing domain compatibility. That can simplify the pairing problem—but it also introduces structural asymmetry in the Fab arms.

That asymmetry matters for enzymatic digestion and peptide mapping because cleavage efficiency and accessibility can differ near swapped interfaces, which may shift which peptides you actually observe. In practice:

• You may need to re-optimize protease selection so that each arm generates distinctive, CDR-spanning peptides.
• You may need to validate digestion completeness separately for each arm, rather than assuming the same digestion behavior across an apparently symmetric IgG scaffold.

Common light chain (cLC) designs reduce the overall combinatorial complexity by making VL shared. That's a real simplification—but it doesn't remove the need for precise, arm-specific verification on the heavy chains (VH1 vs VH2). In cLC molecules, heavy-chain CDR confirmation becomes the primary arm-identity proof.

Non-IgG Constructs: Bispecific Fabs, scFvs, and Tandem Abs

Smaller constructs—bispecific Fabs, tandem scFvs, and other non-IgG-like molecules—often lack Fc heterodimerization domains and can present different stability and heterogeneity profiles.

For these format-switching molecules, variable region assignment may require more specialized strategies:

• Middle-down or native MS to preserve higher-order associations and reduce "peptide-only" ambiguity.
• Fragmentation methods and data interpretation that can handle highly homologous domains without relying on simplistic chain assumptions.

The key is not to treat these as "small antibodies." They are different analytical objects, and they deserve a tailored verification plan.

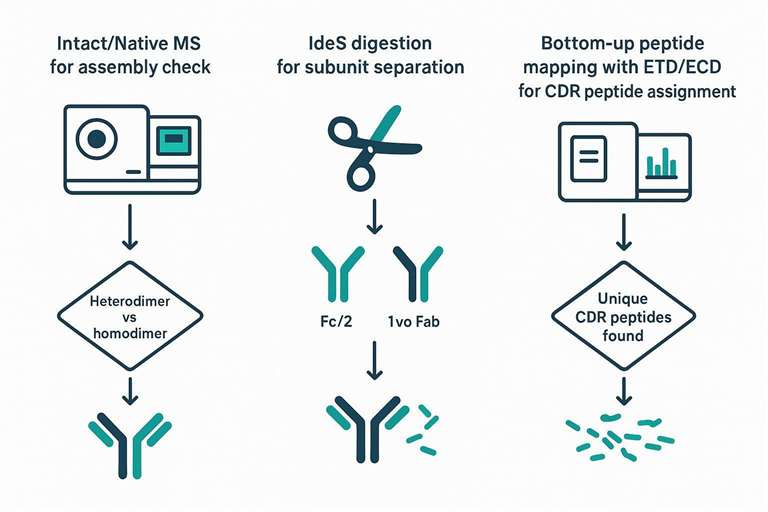

Orthogonal MS Workflow for Sequence Verification in Bispecific Antibodies

A robust way to reduce bsAb CDR assignment ambiguity is to combine orthogonal layers of MS evidence. Instead of asking one technique to answer everything, you assign each technique a specific "risk slice."

Intact and Native MS for Assembly Confirmation

Intact mass measurement is often the quickest way to confirm whether the dominant species matches the expected global molecular weight of the bsAb heterodimer—and whether obvious contaminants (homodimers, truncations, unexpected conjugations) are present.

Native MS can add another dimension: because it preserves non-covalent assembly, it can help resolve subtle assembly and pairing issues and reveal low-abundance misassembled species that may be obscured after denaturation.

If your goal is to screen constructs or lots before deeper work, intact-level molecular weight confirmation is commonly a sensible first gate; for that layer, Molecular Weight Determination Service can function as an initial evidence point.

Subunit-Level Separation with IdeS

IdeS (FabRICATOR) is widely used as a middle-down entry point because it cleaves IgG below the hinge, producing Fc/2 and Fab-containing subunits.

The bsAb-specific value of IdeS is not only convenience—it's mathematics. Subunit measurement reduces the mapping problem:

• At the intact level, you're analyzing a complex containing multiple domains and modifications.
• After IdeS, each Fab subunit is closer to a two-chain context (one heavy chain portion + one light chain), which drastically narrows CDR assignment ambiguity and reduces spectral complexity for subsequent peptide-level analysis.

In practical terms, subunit analysis can become a "bridge layer" that tells you which arm-specific verification problems are worth solving with expensive MS/MS effort.

Mapping Disulfide Scrambling and Subunit Connectivity

A subtle but important bsAb liability is that a correct amino acid sequence can still yield a partially incorrect molecule if inter-chain disulfide bonds scramble during asymmetric assembly.

That risk is often underappreciated because reduced peptide mapping can look clean: you can recover excellent sequence coverage while missing the fact that native disulfide connectivity is wrong.

To address this, a non-reduced or specialized mapping workflow can be used to identify disulfide-linked peptides and confirm the intended connectivity. When the goal is explicitly disulfide linkage and free-thiol control, Disulfide Bond Analysis Service is the most direct internal service link for that analytical layer.

⚠️ Warning: High sequence coverage under reducing conditions is not the same as correct inter-chain connectivity. For bsAbs, disulfide evidence is often the difference between "confirmed sequence" and "confirmed structure-relevant assembly."

CDR-Focused Peptide Mapping Tactics for bsAbs

Once you're at the peptide level, the goal is not just coverage—it's uniqueness. You want peptide evidence that can only belong to VH1 (not VH2), and only belong to VL1 (not VL2), especially within the CDRs.

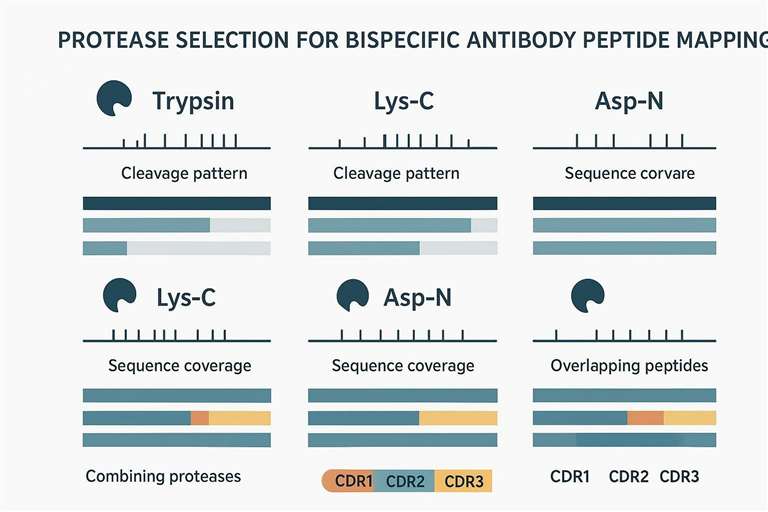

Multi-Protease Design for Differentiated CDR Coverage

Single-enzyme digestion is a common failure mode in bsAbs because it tends to generate shared framework peptides that "fit" multiple chains. If you only see those shared peptides, you can confirm "there is an Ig-like domain," but you can't confirm arm identity.

A multi-protease design helps because it produces overlapping peptides with shifted boundaries—often converting a shared region into an arm-specific peptide once cleavage sites change.

A practical strategy is to use Trypsin + Lys-C + Asp-N as complementary tools:

• Trypsin is efficient and well-supported by databases.
• Lys-C can produce longer peptides that span into CDR boundaries differently.
• Asp-N provides orthogonality that can break up homologous frameworks into differentiating fragments.

This is also where standard peptide mapping—done with bsAb-aware uniqueness criteria—becomes foundational. For broader peptide mapping capability and sequence/variant/PTM readouts, Peptide Mapping is a natural internal entry point.

Advanced Fragmentation: ETcD and UVPD for CDR-H3/L3

CDR-H3 (and in some cases CDR-L3) frequently carries the highest diversity and the highest analytical difficulty: it can be long, structurally constrained, and enriched in residues that complicate fragmentation or localization of modifications.

Two fragmentation strategies are commonly discussed for improving confidence:

• EThcD / ETD-derived methods: often valued for preserving labile PTMs while producing complementary ion series that improve sequencing confidence in homologous regions.
• UVPD (ultraviolet photodissociation): can generate rich fragmentation patterns that increase sequence coverage and help resolve difficult loops.

The method choice should be guided by what you need to disambiguate: residues vs PTM localization vs homology-driven ambiguity.

Targeted PRM/MRM for Known CDR Peptides

Once you know which CDR peptides are diagnostic of each arm, targeted acquisition (e.g., PRM) can be used for consistent monitoring across pilot lots or engineering iterations.

This is particularly useful when the question is not "what is the sequence?" but "is the intended CDR peptide present at the expected relative abundance, and does it show evidence of common chemical liabilities (oxidation, deamidation)?"

Targeted monitoring can also help you separate:

• true sequence variants (unexpected residues)
• from process- or handling-driven modifications that change mass but not the underlying sequence.

Quality Criteria and Reporting Standards

Coverage and Spectral Evidence

For bsAbs, the most defensible reporting standard is to treat each CDR loop as its own confirmatory unit.

A pragmatic benchmark:

• Each of the 12 CDR regions (VH1-CDR1/2/3, VH2-CDR1/2/3, VL1-CDR1/2/3, VL2-CDR1/2/3) should have ≥1 unique peptide supporting unambiguous confirmation.

Framework peptides remain important—but they should be treated as identity support rather than CDR proof, because shared framework peptides can generate false confidence in arm assignment.

CDR Confirmation Letter and Technical Package

A bsAb-ready technical package often needs to be more explicit than a standard "coverage report." One useful deliverable format is a CDR-focused confirmation summary that:

• annotates each of the 12 CDR loops
• lists the MS-identified peptide sequence(s) supporting each loop
• indicates coverage depth and any ambiguity notes

A package like this can be incorporated into CMC documentation to support go/no-go decisions before IND-enabling studies, especially when the molecule has undergone rounds of engineering, humanization, or affinity maturation.

Creative Proteomics Service: bsAb Sequence Verification

If you want a bsAb-ready verification package (assembly check, arm-resolved subunit evidence, and CDR-level peptide support), you can share your molecule format and expected chain sequences for a scoping discussion through the Online Inquiry form.

When to Order This Service

Teams commonly consider bsAb sequence verification and arm-specific CDR assignment when:

• After initial bsAb construction and purification—before committing to downstream development.
• Following any affinity maturation or engineering round that modifies one or more CDR sequences.
• During early process development to monitor chain pairing fidelity across expression systems and conditions.

Service Specifications

Frequently Asked Questions

CDR assignment & arm identity

Q1: How is CDR assignment different for bsAbs compared to monoclonal antibodies?

A: In a standard mAb, each CDR can be mapped back to one VH and one VL with minimal ambiguity. In many bsAbs, four variable regions (VH1, VH2, VL1, VL2) coexist, so shared framework peptides and homologous motifs can make multiple chain assignments look plausible. A bsAb-ready approach emphasizes arm-aware databases plus unique CDR-spanning peptide evidence—often supported by subunit-level (IdeS) context to reduce ambiguity.

Q2 (PAA): Can mass spectrometry verify correct heavy–light chain pairing in a bispecific antibody?

A: Yes—when the workflow is designed to be pairing-sensitive. Intact/native MS can flag misassembled species at the whole-molecule level, but pairing confirmation typically requires subunit or peptide evidence that distinguishes VL1 vs VL2 (or arm-specific VH peptides in common-light-chain designs). The key is to require unique peptides for each CDR loop rather than accepting shared framework coverage as proof of correct pairing.

Format-dependent considerations

Q3: My bsAb uses the CrossMab format. Does the CH1/CL swap affect the MS strategy?

A: Yes. CrossMab asymmetry can change digestion accessibility and alter which peptides you observe near the swapped interface, which may indirectly reduce CDR coverage if enzyme choice is not adjusted. Multi-protease panels and arm-specific uniqueness criteria help ensure that each CDR loop is still supported by unambiguous peptides.

Q4 (PAA): Is intact mass analysis alone enough to confirm a bsAb sequence?

A: Not usually. Intact mass is excellent for confirming global mass consistency and screening for obvious assembly variants, but it rarely provides residue-level evidence for CDR identity—and it cannot, by itself, prove that each CDR belongs to the intended arm. Pairing and CDR confirmation typically require subunit and peptide-level evidence.

PTMs, heterogeneity, and confidence

Q5: Can you handle bsAbs with asymmetric glycosylation on each arm?

A: Often yes, but the strategy matters. Glycan heterogeneity can obscure peptide-level assignments if glycopeptides dominate or suppress key CDR peptides. Subunit separation and targeted glycopeptide interpretation can help keep arm identity intact while still characterizing arm-specific glycosylation patterns.

Q6 (PAA): What information should I provide to reduce ambiguity in CDR verification?

A: Provide the intended format (KiH, CrossMab, cLC, BiTE/tandem scFv), the expected chain sequences (even if only partial), and any known engineered liabilities (extra cysteines, unusual linkers, non-canonical disulfides, or expected PTMs). This allows the peptide-to-arm database to be constructed correctly and helps select proteases that maximize unique CDR-spanning peptides.

Service selection

Q7: What is the difference between CDR-level sequence verification and chain mispairing analysis?

A: CDR-level verification is an identity question: do the observed peptides prove that each of the 12 CDR loops matches the intended chain and arm? Chain mispairing analysis is a composition question: what species and mispaired products exist, and at what relative levels? In bsAbs, teams often use both perspectives because you can have correct sequences with wrong pairing, or correct pairing with subtle sequence/variant issues.

References

1. Bispecific antibodies: a mechanistic review of the pipeline
2. Sequencing a Bispecific Antibody by Controlling Chain Concentration Effects When Using an Immobilized Nonspecific Protease
3. Integrated Approach for Characterizing Bispecific Antibody/Antigens Complexes and Mapping Binding Epitopes with SEC/MALS, Native Mass Spectrometry, and Protein Footprinting
4. Middle-down analysis of monoclonal antibodies with electron transfer dissociation orbitrap fourier transform mass spectrometry
5. Characterization of Therapeutic Monoclonal Antibodies at the Subunit-Level using Middle-Down 193 nm Ultraviolet Photodissociation
