Step-by-Step N-Terminal Sequencing Sample Preparation for Liquid Samples and PVDF Membranes

Importance of Proper Sample Preparation for N-Terminal Sequencing

Why Sample Preparation Matters

Proper sample preparation is essential for high-quality N-terminal sequencing, as impurities or improper handling can lead to inaccurate results. In practice, the chemistry of Edman degradation is highly sensitive to detergents, primary amines, and certain stains, while mass spectrometry (MS) is susceptible to salts, polymers, and carryover. Getting the basics right—sample purity, protein solubility, and clean handling—dramatically improves read length, signal-to-noise, and interpretability.

Types of Samples for N-Terminal Sequencing

• Liquid Samples: Proteins in solution, often from cell lysates or culture supernatants after purification.
• PVDF Membrane Samples: Proteins transferred from SDS-PAGE gels onto PVDF membranes for analysis, frequently used for Edman sequencing.

Preparing Liquid Samples for N-Terminal Sequencing

Step 1: Protein Extraction and Solubilization

Use extraction methods appropriate for your sample (cell lysis, tissue homogenization), followed by purification steps to isolate the target protein. Use extraction and purification methods that keep the final sample free of primary amines and detergents. Avoid Tris, glycine, ethanolamine, SDS, Triton X-100, and Tween in the final submission because they can suppress Edman chemistry and increase MS background. If you must use these reagents during lysis for solubility, remove them completely during cleanup and exchange into water or dilute volatile acid (e.g., 0.1% formic acid) before sequencing.

Step 2: Protein Purification

Purify from complex mixtures using affinity chromatography, size exclusion, or ion-exchange chromatography, and then remove small-molecule interferents. Choose one cleanup route and finish it end-to-end: (1) desalting spin column or PD-10 for salt removal; (2) ultrafiltration (MWCO matched to your protein) to concentrate; (3) optional C18 ZipTip/reversed-phase cleanup to remove polymers/detergent traces. Confirm the final sample is a single dominant species by SDS-PAGE before submission.

Step 3: Sample Quantification

Quantify by BCA, Bradford, UV at 280 nm, or amino acid analysis (AAA) to estimate molar amount. For Edman sequencing, aim to submit ~20–100 pmol of a single, high-purity protein when possible; for LC–MS, lower amounts may work if cleanup is excellent. Record the quant method (BCA/UV/AAA), the standard used, and keep a small aliquot for verification.

Step 4: Preparing Samples for Sequencing

For Edman or MS, ensure samples are free of interfering salts, detergents, and primary amines. Submit the sample as lyophilized protein or in 10–100 µL of water or 0.1% formic acid (no Tris/glycine/detergent). Use low-bind tubes and powder-free gloves to reduce keratin and plasticizer contamination.

If the N-terminus may be blocked (e.g., acetylated or pyroglutamate), consider a quick MS screen to assess modification status before committing to Edman. Keep handling contamination-free (powder-free gloves, clean tubes, low-bind plastics) to minimize keratin and polymer carryover.

Preparing PVDF Membrane Samples for N-Terminal Sequencing

Step 1: Protein Transfer to PVDF Membrane

Run SDS-PAGE and transfer proteins to PVDF (not nitrocellulose) for PVDF membrane Edman sequencing. Many facilities recommend sequencing-oriented transfer conditions that avoid Tris-glycine buffers due to free amines; CAPS buffer (around 10 mM, pH ~11, often with ~10% methanol) is commonly used in practice. Pre-wet PVDF in methanol, equilibrate per the manufacturer, and ensure full contact without bubbles. Keep current and heat within the instrument's recommended limits.

Step 2: Membrane Staining and Protein Detection

Use stains compatible with subsequent sequencing and easy destaining. Ponceau S provides a reversible, rapid check of transfer and band position; Coomassie-based PVDF stains also work with brief destain steps. Avoid silver staining for Edman-destined PVDF. Capture an image of the stained membrane for documentation before excision.

After staining, rinse the membrane well with ultrapure water to remove salts and buffer residues before cutting the band.

Step 3: Protein Blotting and Sample Handling

For sequencing, skip blocking steps that introduce amines or polymers and avoid antibody incubations. Handle membranes only with clean forceps and wear masks to prevent keratin contamination. Do not let the membrane dry before you remove salts and buffer residues. After thorough rinsing, submit the PVDF wet or dry as required by the receiving facility.

Step 4: Cutting Membrane for Sequencing

Using a new sterile scalpel for each band, cut just outside the visible band while minimizing surrounding background. Transfer each piece into a pre-labeled low-bind tube. Keep samples segregated, and document gel, transfer, staining, and excision with images to enable traceability and submission QC.

PVDF quick reference (parameters and compatibility)

Troubleshooting Sample Preparation Issues

Common Challenges in Liquid Sample Preparation

• Protein aggregation or precipitation: Add a small percentage of MS-compatible organic solvent (e.g., acetonitrile or isopropanol) or use mild chaotropes followed by cleanup. Keep temperature low and use protease inhibitors during extraction. Re-check purity by SDS-PAGE or HPLC before resubmission.
• Sample purity issues: If BCA/UV shows adequate mass but Edman cycles are weak or MS spectra show high background, suspect salts, detergents, or polymers. Re-desalt (spin columns, ultrafiltration), avoid amine-containing buffers, and re-quantify.

Common Challenges in PVDF Membrane Sample Preparation

• Inefficient protein transfer: Confirm firm gel–membrane contact, remove bubbles, control current/heat, and consider reducing methanol or using CAPS buffer optimized for sequencing-ready blots.
• Membrane blocking issues: Non-specific background arises when blocking agents or antibody steps are used; for sequencing inputs, avoid blocking entirely and rely on stain-only visualization.

Troubleshooting quick map

Mini case — cleanup improves sequencing readiness

A research lab submitted a 25 kDa recombinant protein with visible SDS-PAGE bands but noisy Edman cycles and high baseline in MS. The team desalted the sample using a PD-10 column, concentrated it with a 10 kDa ultrafiltration device, and performed a C18 ZipTip cleanup prior to re-analysis. Result: Edman cycle clarity increased qualitatively (distinct PTH peaks across the first 10 cycles) and MS chemical background decreased, with signal-to-noise estimated to improve ~2–3×; the sample produced an unambiguous N-terminal read on the second attempt.

Key Considerations for N-Terminal Sequencing

Protein Modification Impact

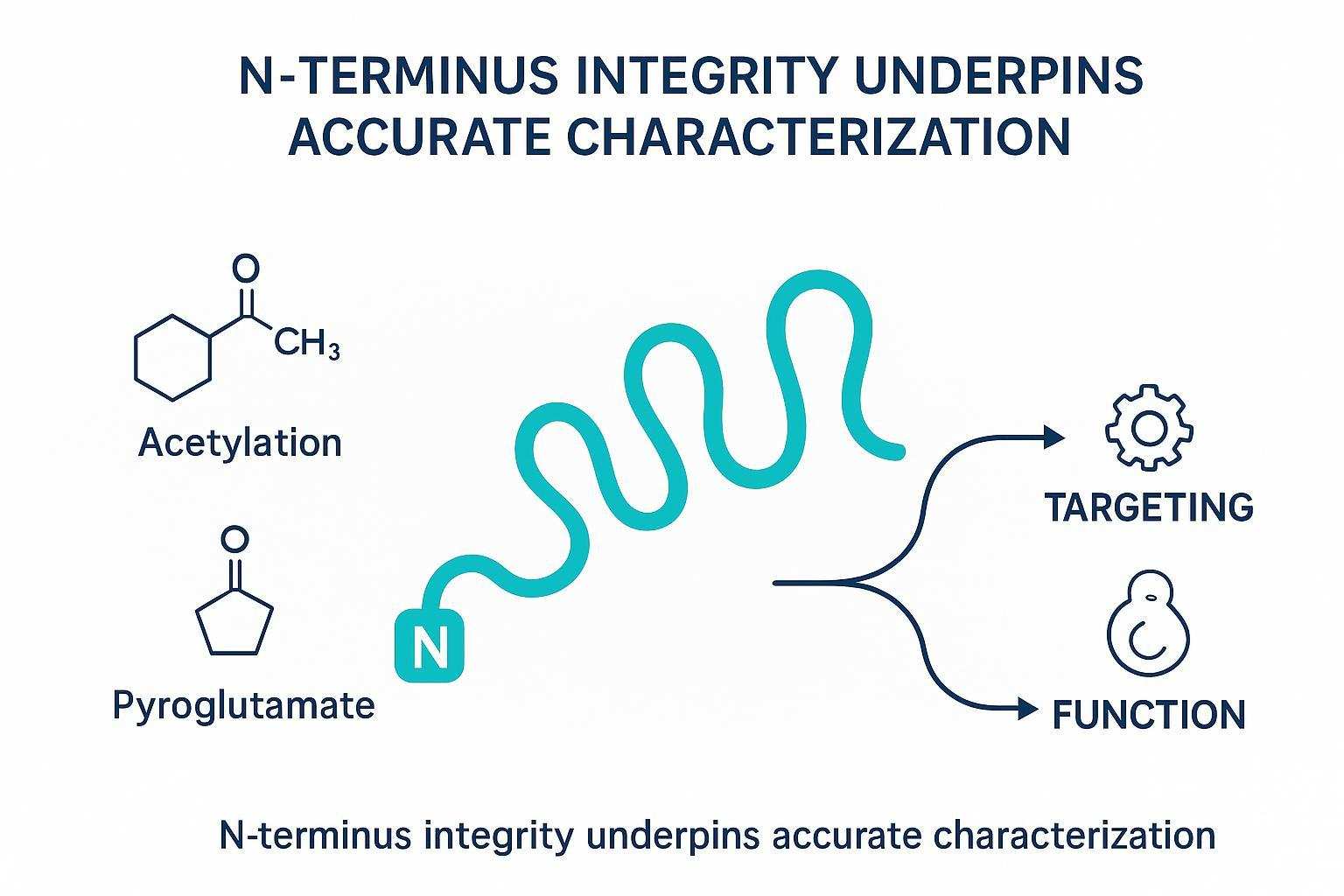

Common N-terminal modifications—such as acetylation and pyroglutamate formation—can block Edman chemistry. Pyroglutamate may often be removed enzymatically (e.g., with pyroglutamate aminopeptidase under mild conditions) followed by cleanup and verification by MS or a short Edman test run. There is no broad enzymatic method to reverse N-terminal acetylation; if acetylation is suspected or confirmed, MS is typically the analysis route for N-terminus identification and modification mapping.

Sample Quality Control

Use SDS-PAGE or HPLC to assess purity and confirm a single species prior to sequencing. Keep salts and primary amines out of the final sample. For PVDF workflows, document bands with reversible staining and ensure clean excision. When applicable, confirm the presence or absence of N-terminal blockage by a quick MS scan to inform whether Edman is suitable or a deblocking step is warranted.

Best Practices for N-Terminal Sequencing Sample Preparation

Optimizing Sample Preparation for Best Results

Proper sample preparation is essential for high-quality N-terminal sequencing results. Here are the best practices:

• Choose compatible buffers and solvents: Use amine-free buffers and MS-compatible solvents during protein extraction to prevent interference.
• Ensure cleanliness: Change blades between bands and use low-bind plastics to avoid contamination.
• For PVDF membrane samples: Use sequencing-friendly transfer buffers and reversible stains. Cut bands with minimal margin to ensure quality.
• Address N-terminal modifications: For acetylation or pyroglutamate modifications, confirm with Mass Spectrometry (MS) or apply enzymatic deblocking.

Facility acceptance summary: Facilities typically accept samples as purified solution, lyophilized material, or PVDF‑bound bands and expect a single, dominant species rather than complex mixtures. Typical purity guidance is ≥75–80% minimum with >90% ideal (assessed by SDS‑PAGE or HPLC); quantitative expectations vary by platform, but labs commonly request low‑tens of pmol as a practical minimum for short Edman runs and larger input (hundreds of pmol to nmol or µg amounts) for extended cycle lengths or lower‑yield proteins.

Avoid additives that interfere with Edman chemistry or sequencing readout—notably Tris and other primary‑amine buffers, glycine, SDS and nonionic detergents, guanidine, glycerol, and high salt. When these are present, desalting, precipitation, or ultrafiltration is recommended before submission. For concise, facility‑level guidance see the ABRF PSRG sample‑preparation tutorial and manufacturer/core‑facility PVDF transfer notes, and consult our internal submission criteria on the Creative Proteomics Edman service page for specifics appropriate to PVDF and solution submissions.

Creative Proteomics' Expertise

For submission-ready sequencing, Creative Proteomics offers detailed guidelines on acceptable sample forms and incompatible additives, helping you align preparation to downstream chemistry. Learn more on our Protein N-Terminal Sequencing.

For Edman chemistry or PVDF band processing, we provide guidance on our Edman Based Protein Sequencing.

FAQ:

Q: What is the minimum amount of protein needed for N-terminal sequencing?

A: For Edman degradation, labs commonly aim for tens of pmol of a single, high-purity species to sustain multiple cycles. MS can often work with lower pmol amounts if the sample is very clean. Always confirm the receiving facility's current acceptance ranges.

Q: Can I use PVDF membrane samples for Edman?

A: Yes. After SDS-PAGE, transfer to PVDF with sequencing-friendly conditions (often CAPS buffer), verify bands with reversible staining, and excise with a clean blade. Avoid blocking and antibody incubations.

Q: How do I prepare membrane samples for sequencing?

A: Keep PVDF moist, stain reversibly to locate bands, and use a new sterile scalpel for each band. Cut just outside the band, place each piece in a labeled low-bind tube, and avoid cross-contamination.

Q: How do blocked N-termini affect sequencing and how can I address them?

A: Edman requires a free N-terminus. Pyroglutamate can sometimes be removed enzymatically (pyroglutamate aminopeptidase) before sequencing. N-terminal acetylation cannot be broadly removed enzymatically; in that case, use MS to identify the N-terminus and its modification.

Q: Edman vs mass spectrometry for N-terminus—how should I choose?

A: Choose Edman for single, clean proteins when a short N-terminal read is needed (e.g., identity confirmation). Choose MS when mixtures, post-translational modifications, or suspected N-terminal blockage are in play, or when broader characterization is required. The methods are complementary.

References

1. Goldman, A. Detection of Proteins on Blot Membranes. Current Protocols in Protein Science. 2016; Chapter: Unit 3.2. PMC5646381. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC5646381/
2. Komatsu, S. Western blotting/Edman sequencing using PVDF membrane. J Biochem. 2009. PMID: 19378055. https://pubmed.ncbi.nlm.nih.gov/19378055/
3. Miyashita, M., et al. Attomole-level protein sequencing by Edman degradation. Proceedings of the National Academy of Sciences. 2001;98(8):4325–4330. https://www.pnas.org/doi/10.1073/pnas.071047998
4. Jawhar, S., et al. Pyroglutamate formation and enzymatic removal: implications for N-terminal sequencing. (Review). PubMed Central. PMC3234707. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC3234707/
