CDR Sequencing in High-Homology Antibodies: Strategies for Accurate Variant Differentiation

When you run affinity maturation, CDR shuffling, or site-directed mutagenesis, the "hard part" often starts after you get binders. It's not unusual to end up with panels where candidates differ by only 1–5 amino acids—sometimes concentrated in a single CDR loop. Those small changes can alter affinity, specificity, developability, and even apparent mechanism.

But the closer two antibody sequences are, the easier it becomes to make a wrong call based on the wrong evidence. A DNA read can tell you what could be in a clone, yet still leave two practical questions unanswered:

1. Which heavy-chain/light-chain (HC/LC) combinations are actually paired in the same expressed IgG molecule?
2. If multiple variants are present, which sequence is the dominant, function-driving species—and which is low-level contamination?

This resource focuses on CDR sequencing in high-homology antibodies from a practical perspective: how to differentiate closely related antibody clones and make lead-selection decisions with protein-level evidence. The emphasis is on middle-down mass spectrometry antibody subunit analysis as a high-throughput screen, and on targeted follow-ups (including targeted peptide mapping for CDR variants) when the difference is only one residue.

Key takeaways

• When high-homology clones differ by only a few residues, protein-level evidence is often the fastest way to confirm what is truly expressed.
• Middle-down (subunit) MS is a practical first screen for mixtures because it can reveal multiple heavy-chain or light-chain masses in the same preparation.
• For single-amino-acid differences in CDR peptides, targeted peptide mapping with variant-specific peptides and reference standards can resolve ambiguous identifications.
• A workflow that starts broad (middle-down) and escalates to specific (targeted mapping, then sequence confirmation) reduces wasted effort on deep sequencing of mixed samples.

The High-Homology Challenge in Antibody Discovery

High-homology antibody panels are a feature of modern discovery—not an exception. In practice, they arise from several common workflows.

Affinity maturation campaigns tend to introduce a handful of substitutions to shift kinetics and specificity. CDR shuffling intentionally recombines loop variants to explore sequence space. Site-directed mutagenesis and back-mutation are used to tune epitope preference or mitigate liabilities.

The result is a set of antibodies that can look nearly interchangeable on paper: sometimes one or two substitutions in CDR-H3, sometimes a subtle swap in CDR-L1 that changes binding in a way no one expected.

The complication is that genetic information alone may not map cleanly to the protein you are actually testing.

• Expression can be biased: one variant may dominate protein output even if multiple sequences are present at the DNA level.
• Clone panels can cross-contaminate during cloning, expansion, or purification.
• Hybridoma repertoires and display outputs can carry more than one functional antibody sequence, making it unclear which clone is driving observed binding.

If you need the practical question answered—"which CDR sequence is in the molecule that bound my antigen?"—you eventually need protein-level confirmation.

Why Standard Sequencing Fails When Sequences Are Nearly Identical

Standard sequencing workflows are excellent at cataloging possibilities. They are less reliable at proving pairing and expression dominance when sequences are very close.

Sequencing a mixed pool by NGS or Sanger can return overlapping reads that clearly indicate heterogeneity, but it cannot directly tell you which HC/LC combinations are physically paired in the same IgG molecule. You may learn that two heavy-chain variants and two light-chain variants exist—without being able to confidently assign the correct pairings. That pairing uncertainty is why many teams look for heavy chain light chain pairing evidence at the protein level before they lock a lead.

The "small minority" problem is equally common. A variant present at ~15% abundance in a pool might be irrelevant noise, or it might represent a critical low-frequency clone—especially when binding is driven by a small number of high-affinity molecules.

Determining which variant to carry forward is therefore not only a sequence question. It is a protein identity and purity question. This is why MS-based strategies are often used to complement or de-risk DNA-based selection.

If your goal is to generate protein-grounded evidence for what a clone is producing (especially when genetic material is missing, mixed, or untrusted), Antibody Sequencing Service can be used as a route to protein-level sequence confirmation.

MS Strategies for Resolving High-Homology CDR Clones

The most practical way to think about MS here is not "one technique," but a set of escalating strategies. You can start with a broad screen that answers, "is this sample clean?" and then move to targeted methods that answer, "which exact CDR variant is present?"

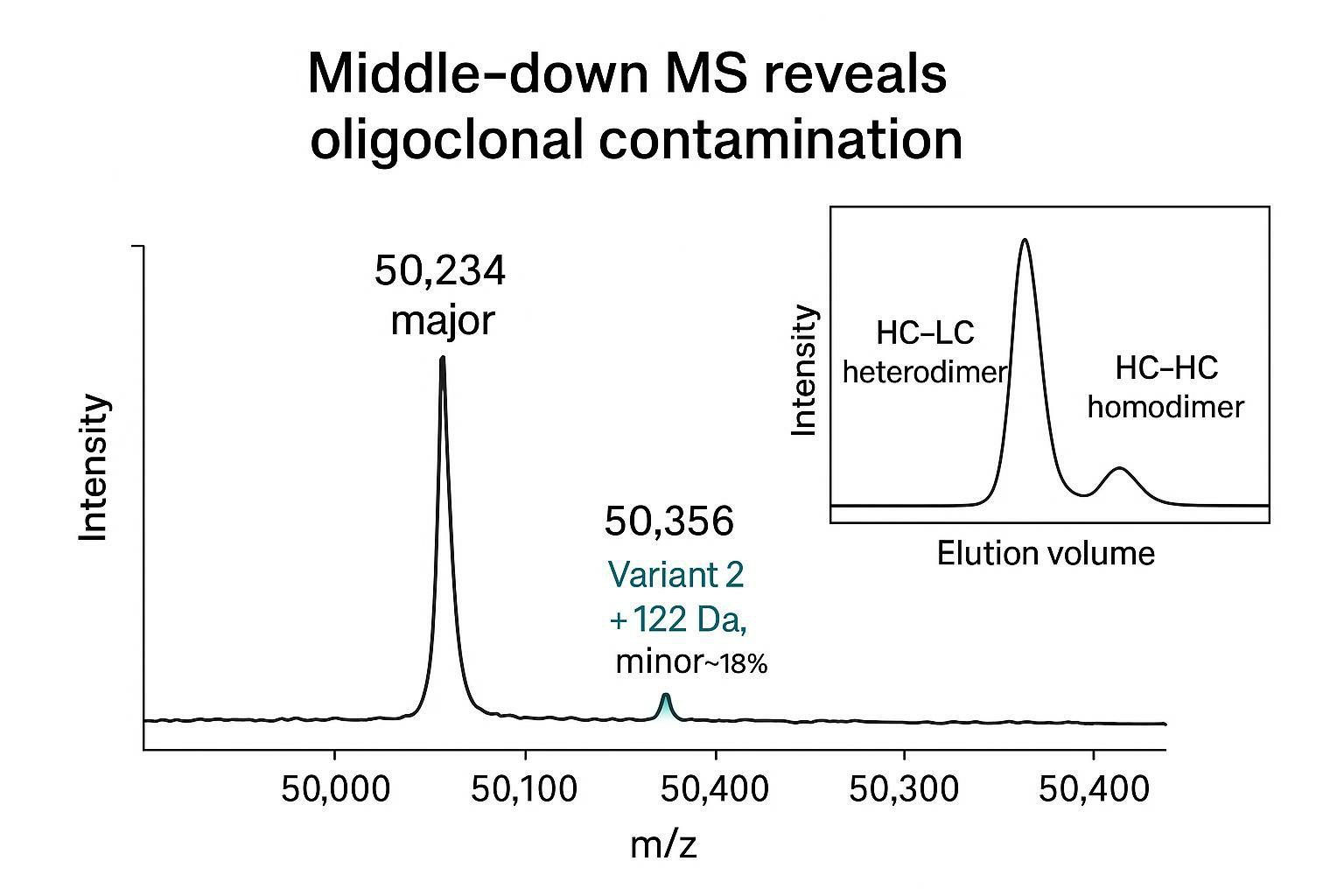

Detecting Oligoclonal Contamination by Middle-Down MS

Middle-down MS (often described as subunit-level MS for antibodies) reduces an IgG into large, informative fragments rather than digesting all the way down to small peptides.

A practical version of this approach is:

• Reduce the antibody sample to generate heavy-chain and light-chain subunits (often on the order of ~25 kDa per subunit, depending on the cleavage strategy).
• Separate HC–LC heterodimer from HC–HC homodimer by non-reducing SEC when aberrant pairing is suspected.
• Measure the exact mass of each subunit at high resolution.

The analytical advantage is straightforward: when two clones differ by a small number of residues, the deconvoluted subunit masses can show distinct peaks. In high-resolution instruments, small mass deltas can be visible, and multiple distinct HC masses are a strong indicator that more than one heavy-chain sequence is being expressed in the same preparation.

In practice, the readout is often binary and useful:

• One HC mass + one LC mass → consistent with a dominant single species.
• Multiple HC masses (or multiple LC masses) → suggests multiple sequences co-expressing in the sample.

Key Takeaway: Middle-down MS is often the fastest way to answer the question "is my clone clean at the protein level?" before investing in deeper mapping or sequencing.

For readers who want more context on how MS workflows support antibody identity and variant analysis, Mass Spectrometry Based Antibody Sequencing provides an overview of how digestion strategy, LC–MS/MS, and bioinformatics fit together.

Distinguishing Single-Amino-Acid CDR Variants by Targeted Peptide Mapping

Middle-down can tell you that two proteoforms exist; it may not always tell you where the difference sits (for example, in a CDR loop versus a framework region) without additional fragmentation or mapping.

This is where targeted peptide mapping becomes useful—especially when the variant is in a short CDR peptide that is hard to call confidently in a standard database search. This is also the scenario you face when you need to confirm CDR identity after affinity maturation and cannot afford to advance the wrong one-residue variant.

A targeted strategy looks like this:

• Design synthetic reference peptides covering each expected CDR variant sequence.
• Spike the synthetic peptide into the LC–MS run as an internal retention-time standard.
• Compare the LC–MS signal of the endogenous variant peptide against the reference to confirm which variant is present.

This approach resolves ambiguities that conventional searching can struggle with, particularly in CDR-H3 where differentiating peptides can be short and share many fragment ions.

To make the logic concrete, here is what targeted mapping buys you when sequences are nearly identical:

Confirming Variant Purity Before Moving to Next Stage

Differentiation is rarely the only goal. Lead selection usually requires confidence that the variant you chose is the variant you will carry through scale-up and characterization.

A practical purity confirmation step typically includes:

• Quantifying the relative abundance of each variant from the MS signal (subunit MS and/or peptide-level quantitation).
• Watching specifically for oligoclonal antibody contamination detection signals—such as multiple discrete HC masses or a consistent minor CDR-variant peptide across runs.
• Setting a purity threshold tied to downstream risk.
  • As a pragmatic heuristic, many groups treat >90% dominance of a primary variant as acceptable for moving forward, but the right threshold depends on your next step (for example, developability screens tolerate more uncertainty than a program about to invest in stable cell lines).
• If contamination from a secondary variant exceeds the acceptable limit, re-cloning or re-screening is often cheaper than carrying ambiguity into expensive experiments.

⚠️ Warning: A small secondary species can become a major species later. Selection pressure, cell adaptation, or process changes can shift relative expression and make a once-minor contaminant visible at scale.

Practical Workflow: From Mixed Clone Panel to Confirmed Lead

The workflow below moves from "we have binders, but they look too similar" to "we have a protein-confirmed lead whose CDR identity is not ambiguous." It uses a broad-to-specific escalation to prevent over-investing in deep sequencing too early.

Step 1: Initial Screen by Middle-Down MS

Start with the highest-risk question: is each clone preparation oligoclonal?

A practical pattern is:

• Purify antibody from each clone (or from a mixed pool).
• Run non-reducing middle-down MS on all clones in parallel.
• Identify which clones share identical HC mass (often consistent with the same sequence) and which differ.

Multiple HC masses in a nominally "single clone" should be treated as a contamination hypothesis until proven otherwise.

Step 2: Targeted Confirmation by Peptide Mapping

For clones with distinct middle-down masses, perform peptide mapping.

Then make the confirmation targeted and decision-oriented:

• Design variant-specific tryptic peptides for each unique CDR sequence.
• Quantify variant abundance using the spiked synthetic peptide as reference.

Step 3: Sequence Confirmation for Lead Selection

Once you have evidence that one variant dominates and its identity is consistent across subunit and peptide-level readouts, perform final sequence confirmation.

Depending on downstream needs, this can involve standard MS-based sequencing, de novo sequencing of uncertain segments, or both. Retain the middle-down data as supporting evidence that the lead is the primary sequence in the pool.

If the program requires a full-length amino-acid blueprint for recombinant expression or engineering work, Antibody Full Amino Acid Sequencing is an option for complete sequence confirmation.

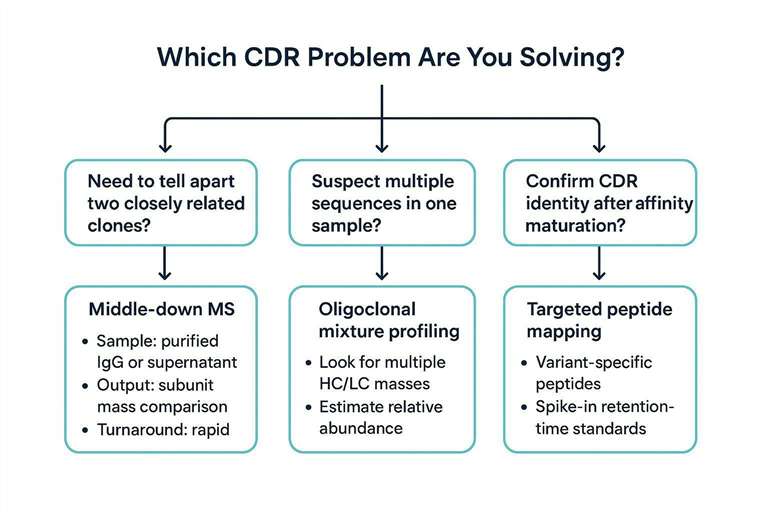

When to Apply Each Strategy

Common Mistakes in High-Homology Clone Selection

High-homology clone selection failures tend to look reasonable in the moment—and then become expensive later.

A common mistake is making lead selection decisions from NGS data alone without confirming that the primary sequence is the one actually being expressed as protein. Another is skipping middle-down screening and going directly to full de novo sequencing on a mixed pool, which can waste time and budget while still leaving pairing ambiguity.

It is also risky to assume that if two clones have different DNA sequences, they must express different proteins. Expression-level variation can mask differences, and process-derived changes (for example, certain modifications) can sometimes mimic mass shifts that look like "sequence differences" if the workflow is not interpreted carefully.

Finally, low-abundance variants below 10% are often ignored. That is not always wrong, but it is not universally safe: low-level variants can re-emerge during scale-up if selection pressure changes.

References

1. Characterization of charge variants of a monoclonal antibody by weak anion exchange chromatography, LC-MS and IdeS digestion
2. Multiplexed Middle-Down Mass Spectrometry as a Method for Pairing Light and Heavy Chains in Monoclonal Antibodies
3. Interlaboratory Study for Characterizing Monoclonal Antibodies by Top-Down and Middle-Down Mass Spectrometry
4. Middle-down analysis of monoclonal antibodies with electron-transfer dissociation orbitrap MS
5. A perspective toward mass spectrometry-based de novo sequencing of endogenous antibodies
6. Absolute quantification of the glycosylation site occupancy of a therapeutic antibody using liquid chromatography and multiple reaction monitoring mass spectrometry
7. Top-Down and Middle-Down Mass Spectrometry of Antibodies: A 30-Year Perspective
