Why Bottom-Up Peptide Mapping Misses the C-Terminus: Root Causes & Strategies

Introduction

Bottom-up peptide mapping is excellent for broad sequence coverage, yet the C-terminus is disproportionately likely to be underrepresented or missing. Many teams see high global coverage and assume the terminal question is answered—until reviewers ask for direct terminal evidence. This guide explains the most common root causes of missing C-terminal peptides and provides practical, lab-ready strategies to improve C-terminus coverage and confidence in LC–MS/MS.

If you need broader context on C-terminal sequencing beyond peptide mapping, see the in-depth resource: C-Terminal Protein Sequencing: A Comprehensive Practical Guide.

Key takeaways

• The primary reasons for a missing C-terminus in peptide mapping are non-ideal terminal peptides (length/charge/hydrophobicity), hydrophobic C-termini that elute late, fragmentation biases under HCD, acquisition undersampling (especially in DDA), and terminal heterogeneity.
• High global coverage does not guarantee C-terminal proof; design methods to explicitly favor C-terminal peptide detection in LC–MS/MS.
• Highest-yield fixes include orthogonal/sequential proteases, late-gradient LC and loss-minimizing cleanup, ETD/EThcD for difficult peptides, DIA or targeted PRM/MRM for reproducibility, and semi-specific searches with focused terminal modifications.
• Treat low-evidence terminal IDs conservatively: require replicate support, interpretable MS/MS ions, and, where needed, orthogonal confirmation.

What "missing C-terminus" looks like in peptide mapping data

• High overall sequence coverage with no terminal peptide identified
• A terminal peptide appears once, then disappears across replicates
• Multiple weak terminal candidates that cannot be resolved into a defensible call
• A clean peptide map that still fails to answer "Is the C-terminus intact?"

Typical peptide mapping output patterns where overall coverage looks strong but the C-terminus remains unresolved.

Why the C-terminus is uniquely vulnerable in bottom-up workflows

Terminal peptides are often "non-ideal" by default. Depending on sequence context, trypsin can generate C-terminal peptides that are too short to fragment informatively or too long and hydrophobic to elute cleanly. Subtle shifts in digestion severity, peptide solubility, or acquisition priorities can disproportionately affect terminal recovery compared with internal peptides. Moreover, biological processing frequently creates terminal microvariants—truncations, clipping, or incomplete maturation—that split signal across several low-abundance peptides, degrading ID confidence. Reviews of bottom-up proteomics note these systemic disadvantages and the role of orthogonal proteases and tuned MS settings in mitigating them, as summarized in the 2020 critical review of bottom-up workflows and fragmentation behavior published by a major PMC-indexed group in 2020 (see References for details).

Root causes of missing C-terminal peptides

Protease specificity and missed cleavages

• Trypsin-centric workflows can produce C-terminal peptides that are too short/long or poorly ionizing. Alternative or sequential proteases (e.g., LysC, GluC/V8, AspN, LysargiNase) often reshape terminal peptide properties to be more MS-friendly.
• Missed cleavages near the terminus can generate competing terminal peptides that dilute identification probability.
• Local sequence and structure can reduce cleavage efficiency or generate ragged ends.

According to a 2020 Analytical Chemistry overview of protease alternatives, multi-enzyme strategies improve terminal observability by generating complementary peptide sets while retaining mapping value. See the peer-reviewed overview of protease choices for terminal coverage in 2020 (Analytical Chemistry) and multi-protease applications in 2021 (Molecular & Cellular Proteomics) in the References.

Hydrophobicity and late elution

• Hydrophobic C-terminal peptides may precipitate during digestion/cleanup or elute late where MS sampling is less effective and ion suppression is stronger.
• Extending and flattening the late gradient, warming the column, and optimizing trapping/loading conditions can materially improve recovery.

Recent chromatography reviews (2020–2022) discuss how shallow late gradients and appropriate column chemistries help difficult, late-eluting peptides while minimizing ion suppression. See the cited chromatography optimization overviews in the References.

Charge state and fragmentation physics

• Low-charge or highly basic terminal peptides may fragment sub-optimally under standard HCD settings and benefit from ETD/EThcD.
• ETD/EThcD often preserves labile PTMs and generates c/z• ions that make sequence interpretation more robust for difficult peptides.

Comparative studies in 2017 and 2022 showed EThcD advantages for PTM-rich and challenging peptides compared with HCD-only methods, improving sequence-informative fragments and site localization (see References for publishers/years).

Terminal processing, microheterogeneity, and truncation mixtures

• Co-existing C-terminal variants (processing, clipping, incomplete maturation) split signal across multiple low-level peptides, so no single terminal peptide dominates.
• Interpreting multiple weak candidates as a variant mixture—then confirming with targeted methods—is often the correct call.

Biotherapeutic examples such as heavy-chain C-terminal Lys clipping (K0/K1/K2) illustrate how terminal heterogeneity complicates bottom-up confirmation even when global coverage is strong. Representative 2018 and 2021 studies document prevalence and analytical remedies (see References).

Acquisition limitations in DDA and complex matrices

• DDA undersamples low-abundance terminal peptides when high-intensity internal peptides dominate.
• Co-isolation and chimeric spectra obscure terminal ions and reduce search confidence.

Data-independent acquisition (DIA) increases consistency for low-level peptides when methods/libraries are appropriate, and PRM/MRM can decisively verify predicted terminal candidates across replicates. A 2015 study in Molecular & Cellular Proteomics showed improved reproducibility with DIA compared to DDA, particularly for low-abundance features (see References).

Search configuration and scoring pitfalls

• Overly strict enzyme rules hide true terminal peptides; semi-specific candidates are never considered.
• Missing terminal-relevant variable modifications (e.g., N-terminal acetylation, Met oxidation, pyroGlu formation where applicable) block matches.
• Conservative scoring/FDR filters disproportionately remove low-evidence terminal IDs even when real.

A 2021 semi-specific search evaluation found that disciplined relaxation (tight ppm, restrained variable mods, rigorous 1% FDR) can recover many authentic terminal peptides without inflating false positives (see References).

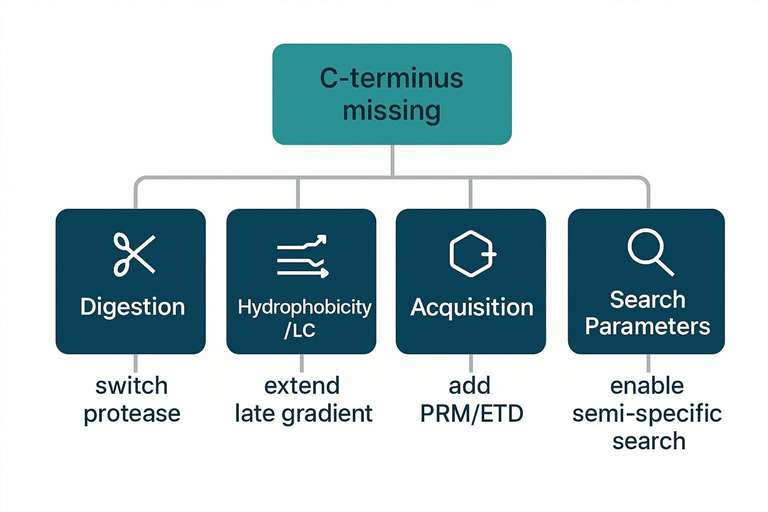

Quick diagnosis: map symptoms to the most likely cause

A practical decision flow to identify why the C-terminus is missing and what to change first.

Strategy 1: Protease tactics that rescue C-terminal detectability

Orthogonal and sequential digests

• Use orthogonal proteases (e.g., GluC/V8, AspN) to reshape the terminal peptide into a more MS-friendly length/charge profile; pair with trypsin or LysC in sequential designs.
• Sequential digests can improve terminal observability without sacrificing global mapping value; e.g., LysC pre-digest followed by trypsin for balanced segment sizes.
• When terminal variants are suspected, include proteases that generate distinct terminal candidates to separate hypotheses.

Peer-reviewed method studies in 2020–2021 (Analytical Chemistry; Molecular & Cellular Proteomics) report substantial coverage gains from multi-enzyme approaches in complex matrices, often resolving trypsin-centric blind spots.

Enzyme conditions that stabilize terminal recovery

• Tune digestion severity: reduce over-cleavage and ragged ends near the terminus by moderating enzyme:substrate, temperature, and time; verify with small pilot digests.
• Favor solubility: if the predicted terminal peptide is hydrophobic, use surfactant-compatible buffers or denaturants validated for downstream LC–MS to keep terminal peptides in solution.

Vendor whitepapers and chromatography reviews consistently emphasize that surfactant-compatible cleanup and controlled digestion improve recovery of late-eluting peptides. See the chromatography optimization references for rationale and parameter ranges.

When peptide mapping needs reinforcement

Bottom-up peptide mapping can be strengthened with targeted terminal strategies, but some questions require complementary approaches such as top-down proteomics for intact-level terminal context. Related service context: top-down proteomics.

Strategy 2: LC and sample-prep choices for hydrophobic or fragile C-termini

LC gradient and column considerations for late-eluting terminal peptides

• Extend late-gradient separation and keep a shallow slope at high organic to reduce co-elution and increase MS sampling opportunities for hydrophobic C-termini.
• Consider high-performance C18 columns (including superficially porous particles with large mesopores) and elevated column temperatures (40–60°C; validate stability) to aid elution and reduce adsorption.
• Maintain nano-flow (200–300 nL/min) balance for sensitivity versus ion suppression; optimize loading/trapping to prevent breakthrough of short or very hydrophobic peptides.

These practices are aligned with chromatography-focused overviews from 2020–2022 that document late-gradient benefits and column/temperature effects on hydrophobic peptide recovery (see References).

Cleanup approaches that preserve terminal peptides

• Prefer cleanup protocols that minimize loss of hydrophobic species and reduce detergent carryover (e.g., detergent-compatible precipitation or polymer-capture approaches validated for proteomics).
• Validate recovery specifically for late-eluting peptides, not just total peptide yield; monitor terminal candidates in spiked/pilot samples.

A brief reminder on sample compatibility

If you're preparing samples for external analysis, prioritize MS-compatible buffers and minimize detergents/salts; detailed logistics live here: Sample Submission Checklist for C-Terminal MS.

Strategy 3: Acquisition and fragmentation settings that improve terminal identification

Fragmentation choices for "difficult" C-terminal peptides

• Use ETD/EThcD for highly basic, PTM-rich, or HCD-resistant terminal peptides to improve sequence-informative fragment ions and preserve labile modifications.
• If ETD is unavailable, try stepped HCD (e.g., 25/30/35% NCE) and longer fill times to coax informative ions from low-charge or borderline peptides.

Studies comparing EThcD with HCD-only approaches (2017; 2022) reported improved sequence coverage and site localization for challenging peptides, consistent with practical lab experience in terminal confirmation.

DDA vs DIA vs targeted methods for consistent terminal detection

• DIA can stabilize detection of low-level terminal peptides relative to DDA, provided appropriate windowing and libraries.
• PRM/MRM is a practical way to verify predicted terminal candidates across replicates and matrices; optimize isolation width (1–2 m/z), resolution (≥17.5k), AGC (1e5–5e5), and fill time (50–250 ms) with scheduled windows.

A 2015 Molecular & Cellular Proteomics study demonstrated DIA's reproducibility advantages, while PRM guidelines highlight settings that maximize sensitivity and selectivity for terminal peptides (see References).

Where services can help accelerate troubleshooting

If your project needs rapid iteration across digestion, LC–MS/MS, and interpretation, expert peptide mapping support can shorten the loop from hypothesis to validated terminal evidence. For example, peptide mapping at Creative Proteomics can be used to implement multi-enzyme designs, late-gradient LC, and targeted PRM confirmation in a coordinated manner (Knowledge Base Source).

Strategy 4: Search settings and validation that "unlock" the true C-terminus

Search configurations that commonly recover C-terminal peptides

• Enable semi-specific rules when ragged ends or endogenous processing are likely; keep tolerances tight (e.g., 10–20 ppm on high-res instruments) and limit variable mods to terminal-relevant sets (e.g., N-term acetylation, Met oxidation, and context-appropriate pyroGlu).
• Reflect your protease mix in enzyme rules (e.g., GluC/AspN specificity) to avoid masking terminal candidates.
• Apply rigorous 1% FDR at PSM/protein and confirm that terminal IDs are supported by interpretable ion series.

A 2021 evaluation of semi-specific workflows found that careful relaxation of specificity recovers authentic terminal peptides without unacceptable FDR inflation when controls are in place (see References for publisher and year).

Validation practices that reduce false positives (without overcomplicating)

• Require replicate support (biological or technical) or orthogonal confirmation for low-evidence terminal calls.
• Distinguish "candidate terminal peptide" from "decision-grade terminal proof"; consider targeted PRM or intact-level confirmation as needed.
• For a deeper framework on evidence language and audit-friendly reporting, see: Proving C-Terminal Integrity: Evidence Levels & QC Benchmarks.

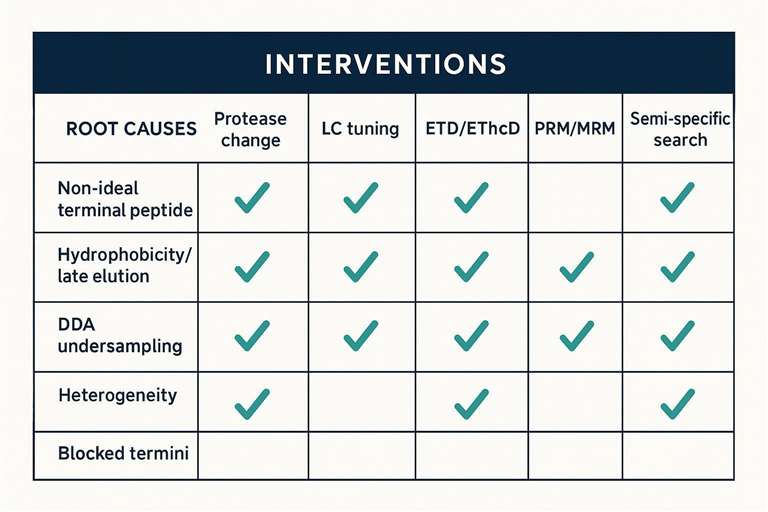

root-cause-to-remedy map for improving C-terminus coverage in bottom-up peptide mapping.

When bottom-up fixes are enough vs when to switch approaches

Stay in bottom-up when

• One or two targeted changes make the terminal peptide reproducible with interpretable MS/MS evidence.
• Your goal is confirming presence/absence of a terminal segment rather than full proteoform context. This directly addresses the common challenge of the missing C-terminus in peptide mapping while maintaining existing workflows.

Consider an alternative when

• The terminal peptide remains undetectable after digestion, LC, acquisition, and search optimization.
• Multiple C-terminal variants must be resolved with higher confidence.
• You need intact-level terminal context to distinguish truncations and proteoforms.

Related service context: protein sequencing services and a complementary option, top-down protein sequencing, which directly observes termini and proteoforms when bottom-up evidence remains ambiguous (Knowledge Base Source).

FAQs

Why does bottom-up peptide mapping miss the C-terminus even with high sequence coverage?

High global coverage does not guarantee terminal-specific evidence. Terminal peptides are often non-ideal (too short/long, hydrophobic), late-eluting, or low-charge and fragment poorly under HCD; DDA also undersamples low-abundance signals. Use orthogonal proteases, late-gradient LC, ETD/EThcD, and, if needed, DIA or PRM to improve C-terminal peptide detection in LC–MS/MS.

What is the fastest way to troubleshoot a missing C-terminal peptide?

Start minimally: predict terminal peptide properties (length, charge, hydrophobicity), review late-elution regions for faint signals, and run a small orthogonal-protease test. If the peptide appears sporadically, add a targeted PRM confirmation of terminal peptides to stabilize detection across replicates.

Should I use semi-tryptic or semi-specific searches to find the C-terminus?

Yes, selectively. Semi-specific searches recover true terminal peptides when ragged ends or endogenous processing occur, but they expand search space. Keep ppm tolerances tight, restrict variable mods to terminal-relevant sets, enforce 1% FDR, and confirm with interpretable MS/MS and replicate support.

How do I tell whether the issue is digestion vs acquisition?

If predicted terminal peptides are reasonable yet never appear, digestion/solubility is the prime suspect. If the terminal peptide appears sporadically or at very low intensity, acquisition competition and DDA undersampling are more likely—PRM targeting is an efficient discriminant.

Can C-terminal heterogeneity make the C-terminus appear missing?

Yes. Truncation or processing variants split signal across several low-level peptides, so no single terminal peptide dominates. Interpret multiple weak candidates as potential heterogeneity and confirm with PRM or intact-level strategies when decisions require higher confidence.

When should I consider top-down proteomics for a C-terminus problem?

If bottom-up optimization still fails or if you need intact-level context to distinguish truncations and proteoforms. Top-down can directly observe terminal differences that are hard to reconstruct from fragments alone.

References

1. Cox, J., and Mann, M. MaxQuant enables high peptide identification rates, individualized p.p.b.-range mass accuracies and proteome-wide protein quantification. Nature Biotechnology 26(12) (2008): 1367–1372. https://doi.org/10.1038/nbt.1511
2. Bruderer, R., et al. Extending the limits of quantitative proteome profiling with data-independent acquisition and application to acetaminophen-treated three-dimensional liver microtissues. Molecular & Cellular Proteomics 14(5) (2015): 1400–1410. https://doi.org/10.1074/mcp.M114.044305
3. Kelleher, N. L. Top-down proteomics: ready for prime time? Nature Methods 1(1) (2004): 3–4. https://doi.org/10.1038/nmeth0104-3
4. Standing, K. G. Peptide and protein de novo sequencing by mass spectrometry. Current Opinion in Structural Biology 13(5) (2003): 595–601. https://doi.org/10.1016/j.sbi.2003.09.012
5. Dupree-style critical review of bottom-up proteomics pitfalls (2020). A Critical Review of Bottom-Up Proteomics. PMC (2020). https://pmc.ncbi.nlm.nih.gov/articles/PMC7564415/
6. Dau, T., et al. (2020). Trypsin alternatives in proteomics: specificity, performance, and applications. Analytical Chemistry 92:9523–9532. https://doi.org/10.1021/acs.analchem.0c00478
7. Fossati, A., et al. (2021). Orthogonal proteases expand coverage and depth in plasma proteomics. Molecular & Cellular Proteomics 20:e100132. PMC8442619. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC8442619/
8. Maia, T. I., et al. (2020). Gradient partitioning and late-elution management in deep proteomics. Proteomics Methods overview. PMC7114614. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC7114614/
9. Tóth, E., et al. (2022). Chromatography optimization for glyco/proteomics with shallow gradients and nanoLC. PMC9573374. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC9573374/
10. Yu, Q., et al. (2017). EThcD enhances sequence coverage and PTM localization for difficult peptides. Journal article. PMC5711575. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC5711575/
11. Zeng, W. F., et al. (2022). Comparative glycoproteomics shows advantages of EThcD-sceHCD hybrids. PMC8907888. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC8907888/
12. Fahrner, M., et al. (2021). Semi-specific searches recover authentic peptides with tight FDR controls. PMC8162549. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC8162549/
13. Xu, Y., et al. (2018). mAb charge heterogeneity and C-terminal Lys clipping: prevalence and analysis. PMC6380400. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC6380400/
14. Faid, V., et al. (2021). Functional implications of C-terminal Lys variants in antibodies. PMID:33493670. https://pubmed.ncbi.nlm.nih.gov/33493670/
