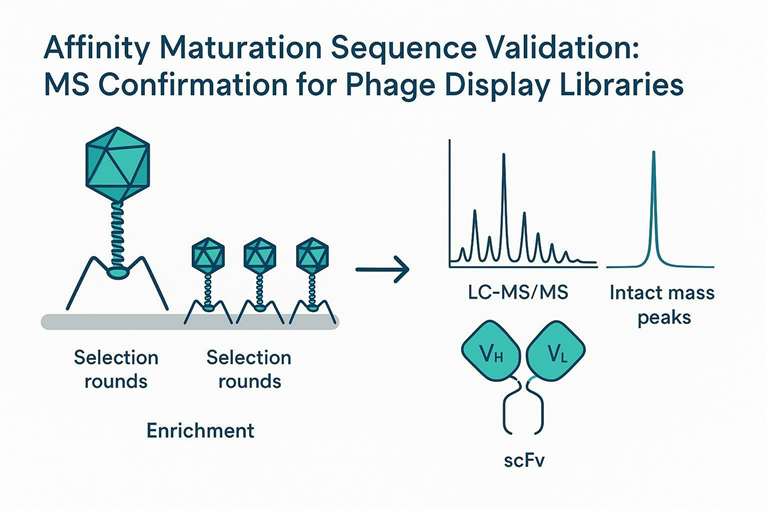

Affinity Maturation Sequence Validation: MS Confirmation for Phage Display Hits

Phage display (and related display technologies) can move you from an enormous library to a handful of high-affinity binders with remarkable speed. But the moment you re-express a "hit" as a soluble scFv or reformat it into a developability-friendly format (Fab/IgG), a new class of risks appears—risks that DNA sequencing alone cannot see.

This resource article lays out a practical, phage-display-specific confirmation roadmap: scFv failure modes → mass spectrometry (MS) workflows → intact mass as a first-pass screen → layered orthogonal verification → what to expect from a service-style deliverable.

Key Takeaway: Before CLD, you want to know not only that the clone's DNA is correct, but that the expressed protein is intact, correctly processed, and free of format-specific degradation that can quietly break binding or manufacturability.

Why Confirm Phage Display Hits at the Protein Level Before CLD

DNA sequencing alone cannot detect scFv-specific degradation risks after re-expression

Sequencing (Sanger or NGS) is excellent at telling you what you intended to express. It does not tell you what your host actually produced once the antibody fragment is folded, secreted (or exported to the periplasm), purified, and stored.

For phage display-derived hits, that gap matters. A single-chain variable fragment is a synthetic, flexible format: two variable domains joined by a peptide linker, often with affinity tags appended. That architecture can create protease-accessible regions and heterogeneous processing outcomes. If you only validate at the nucleotide level, you can carry "silent" liabilities into CLD—then discover them later as poor yield, instability, or loss of functional activity.

Linker Clipping and Tag Loss are invisible at the nucleotide level but critical for downstream developability

Two of the most common scFv-specific problems—linker clipping and affinity tag loss—are post-translational events. The DNA is still "correct," but the protein population is now a mixture: intact scFv alongside fragments missing the linker, termini, or tags.

That heterogeneity is not just an analytical nuisance. It can directly affect:

• functional binding readouts (if VH/VL domains separate or mis-pair)
• purification recoveries (if a tag is missing or masked)
• downstream comparability (batch-to-batch consistency becomes hard to interpret)

This is why protein-level verification is a sensible gate before CLD: you can fail fast on clones that look great in binding screens but collapse as expressed proteins.

Core roadmap: failure modes → MS workflows → intact mass screening → orthogonal strategy → service specs

The remainder of this article follows a simple, decision-oriented flow:

1. Identify the scFv failure modes that typically appear after phage display selection.
2. Map each failure mode to the MS workflow most likely to detect it.
3. Use intact mass as a rapid first pass for fragmentation and tag-related mass shifts.
4. Build an orthogonal confirmation "stack" (DNA + protein + function + intact mass).
5. Translate the strategy into concrete service-style specifications and deliverables.

scFv-Specific Failure Modes After Phage Display Selection

Phage display selection biases for binding under the conditions you test—often with fragments displayed on phage particles. Once you re-express the clone as a soluble protein, the environment changes: different proteases, different secretion/export pathways, different folding and redox context, and different purification steps.

What follows are three failure modes that frequently matter for scFv-format hits.

Linker Clipping in scFv Constructs

The VH–VL linker in scFv constructs is designed to be flexible enough to allow proper domain pairing. That flexibility is also a liability: it can expose peptide bonds to host proteases, especially in bacterial systems (e.g., periplasmic expression in E. coli) but also in other expression contexts.

When the linker is clipped, you effectively generate separate VH and VL domains (or partially truncated fragments). Even if fragments remain associated transiently, the result is often reduced binding consistency, poorer stability, and confusing functional readouts.

Why intact mass helps: intact mass analysis measures the molecular weight of the expressed species directly. Linker clipping often produces discrete, lower-mass species that appear as additional peaks. Because those peaks reflect the real product distribution, intact MS can quantify an "intact vs clipped" ratio without needing to infer cleavage from DNA.

Practical interpretation:

• A single dominant intact peak suggests format stability.
• A clear second peak (or set of peaks) at lower mass suggests cleavage/truncation heterogeneity.
• The peak-area ratio can be used as a screening metric to triage clones before deeper sequencing workflows.

Affinity Tag Loss During Expression or Purification

His-tag, Myc-tag, and other affinity tags are conveniences—until they vanish.

Tag loss (or masking) can occur during secretion/export, proteolysis, or purification. The consequences are not subtle:

• capture steps fail (e.g., Ni-NTA yield collapses)
• analytical detection becomes inconsistent
• purity varies across batches

Why MS is the right orthogonal check: tag loss is commonly invisible at the nucleotide level. Protein-level MS can detect missing tag peptides in bottom-up workflows, and intact mass can reveal mass shifts consistent with truncation or tag removal (depending on tag size and heterogeneity).

Translation Errors at Rare Codon Regions

Even with a correct DNA sequence, expression hosts can introduce protein-level heterogeneity through mistranslation, frameshifting, or context-dependent misincorporation—especially when codon usage is poorly matched or when sequence features induce ribosomal pausing.

In antibody fragments, translation errors are most damaging when they occur in the variable domains—particularly in or near CDRs, where even a single amino acid substitution can change affinity, specificity, or developability.

Why MS matters: protein-level MS is the orthogonal layer that can surface unexpected amino acid changes as peptide-level sequence discrepancies. It's not the only way to detect expression artifacts, but it is the most direct route to verifying "what the protein actually is."

MS Protein-Level Confirmation: From Sample to Verified Sequence

Mass spectrometry confirmation is not one monolithic assay. In practice, teams combine intact mass (fast screen for heterogeneity) with bottom-up LC-MS/MS (sequence-level confirmation and PTM visibility). Where the format and question demand it, middle-up or middle-down strategies can provide additional orthogonality.

A useful mental model is: intact mass tells you whether your protein population looks like one thing or many; LC-MS/MS sequencing tells you what the thing is made of.

Sample Preparation for scFv and Fab Fragments

A confirmation workflow lives or dies on sample handling. For antibody fragments, the goal is to keep the workflow simple enough for throughput while preserving confidence in the result.

Typical preparation looks like this:

• One-step affinity capture (Ni-NTA for His-tagged fragments, or Protein A/G for Fc-containing formats) from culture supernatant.
• Minimum material requirements depend on platform and depth:
  • 10–50 μg purified protein is a common comfort zone for robust characterization.
  • nanoLC-MS can reduce this into the low-μg range when sensitivity is required.
• Buffer exchange into digestion-friendly conditions (e.g., 50 mM ammonium bicarbonate, pH ~8) before enzymatic digestion.

If you're optimizing throughput, the key decision is whether your goal is:

• rapid triage (intact mass + limited peptide mapping), or
• deeper verification (high coverage, deliberate CDR targeting, PTM screening).

Standard Bottom-Up LC-MS/MS Sequencing

Bottom-up LC-MS/MS is the workhorse for protein-level sequence confirmation. The core idea is straightforward: digest the protein into peptides, separate them, fragment them, and interpret the fragment spectra to confirm sequence identity.

In antibody fragments, bottom-up sequencing is especially valuable because it can:

• provide high sequence coverage across VH and VL
• confirm each CDR contains at least one unique peptide (a practical criterion for "CDR covered")
• detect missing terminal peptides consistent with truncation
• identify major post-translational modifications (PTMs) that affect stability or heterogeneity

For MS confirmation workflows, high-resolution instruments (Q-TOF or Orbitrap-class) are commonly used, with database search augmented by de novo assembly when the sequence is unknown or when mutations need confirmation.

If your goal is to validate mutations after an affinity maturation round, workflows aligned with Protein De Novo Sequencing and Mutation Analysis are conceptually relevant because they frame the output around sequence-level confirmation rather than mere identification.

Key Deliverable Metrics

The value of MS confirmation is that it produces deliverables you can gate on. The table below provides a practical set of metrics that map directly onto "go/no-go" decisions.

Two practical notes:

1. Coverage is not everything. For antibodies, missing peptides in framework regions can sometimes be tolerable if CDRs are confidently confirmed and intact mass is clean. Conversely, "high coverage" that misses a CDR is not fit-for-purpose if you're trying to validate binding-critical mutations.
2. Intact mass is a sanity check. If intact mass shows multiple strong species, bottom-up results can become harder to interpret (you may be sequencing a mixture). This is why intact mass is so useful as a first pass.

Intact Mass Screening: Catching Linker Clipping and Tag Loss at First Pass

Intact mass screening is often the fastest way to learn whether your "single clone" behaves like a single protein.

In a phage-display-to-CLD workflow, intact mass plays a particular role: it detects size and processing heterogeneity early enough that you can avoid investing sequencing depth and development effort into a clone that is already unstable.

Linker Cleavage Quantitation

For scFv constructs, linker cleavage frequently manifests as discrete mass populations:

• intact scFv peak
• one or more lower-mass peaks representing clipped fragments or truncations

If the workflow is configured for quantitation (not just detection), the ratio of intact-to-clipped peak areas can be reported as a linker cleavage ratio.

Interpretation depends on your tolerance:

• For discovery-stage triage, even moderate clipping can be a "yellow flag" that triggers redesign (linker engineering, format switch to Fab, protease inhibitor changes, or expression condition adjustment).
• For CLD initiation, many teams prefer to advance clones that present as a dominant intact species to reduce downstream comparability risk.

Tag Presence Check

Intact mass can also surface changes consistent with tag loss—especially when the tag is removed cleanly and produces a stable truncated species.

However, tag-related heterogeneity can be subtle (small tags, partial clipping, additional processing). A practical approach is:

• Use intact mass to flag heterogeneity quickly.
• Use bottom-up LC-MS/MS to confirm whether tag peptides are present, partially present, or missing.

This is a good example of orthogonality: intact mass tells you "something happened," bottom-up tells you "what exactly happened."

Crude Sample Rapid Assessment

A key operational advantage is that intact mass can sometimes be applied earlier than deep sequencing. With appropriate sample prep and desalting, it can serve as a rapid screen—even before you invest in full purification.

That said, crude matrices can increase adducting, suppression, and complexity. The best practice is to treat intact mass screening as a triage step: if the spectrum is clean enough to interpret, you save time; if it's not, you still have a clear rationale for moving to deeper cleanup and bottom-up confirmation.

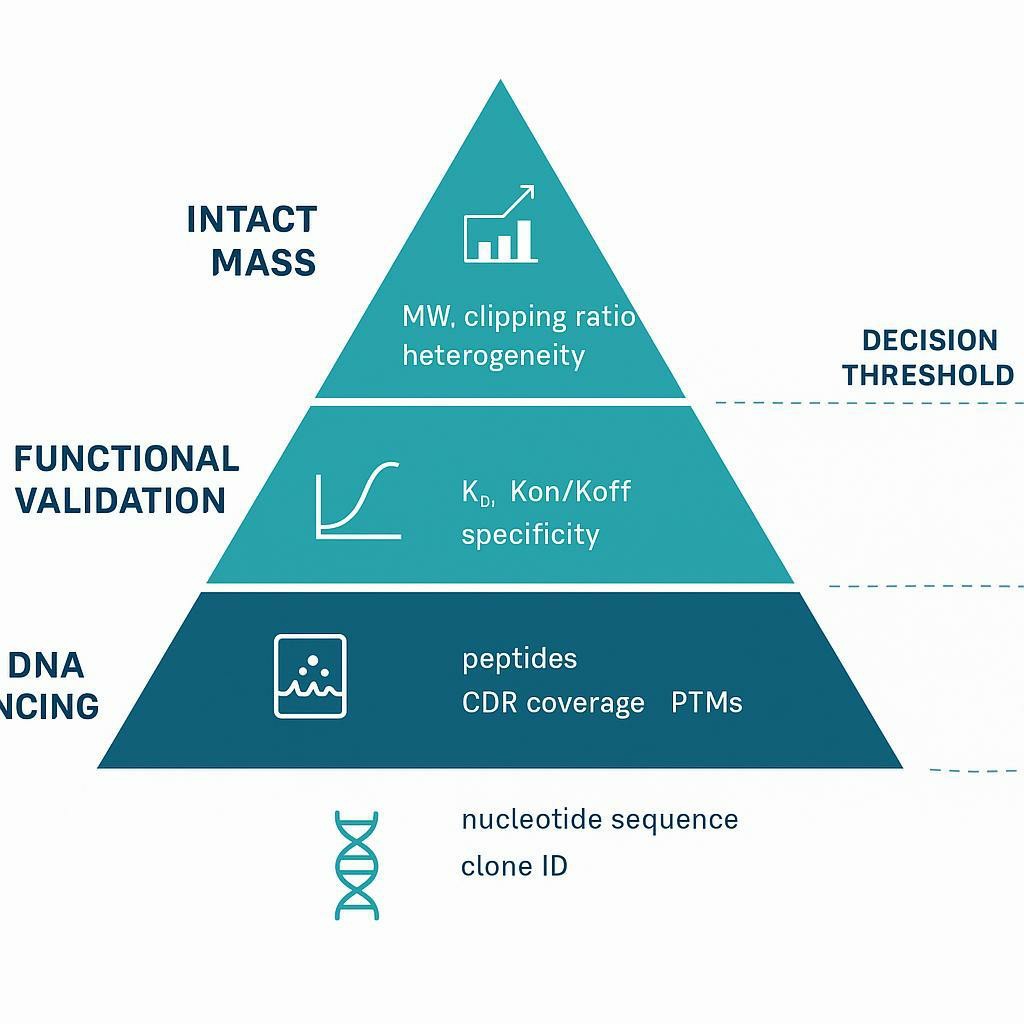

Building a Multi-Layer Orthogonal Verification Strategy

The most reliable strategy is not "pick one method." It's to set a layered verification stack where each layer answers a different question.

DNA vs. Protein vs. Functional vs. Structural Verification Layers

To avoid confusion: intact mass is sometimes grouped as "protein-level," but operationally it behaves like a structural integrity and heterogeneity screen—so it's useful to think of it as its own layer.

Minimum Requirements Before CLD Initiation

A practical "minimum viable confirmation" before CLD often includes:

1. DNA confirmation of the candidate clone(s) you intend to advance.

2. Intact mass showing a dominant intact species (or at least a quantified, acceptable heterogeneity profile).

3. Bottom-up MS with:

• high overall sequence coverage,
• explicit CDR peptide coverage,
• a short PTM screen for obvious liabilities.

4. A functional check (SPR/BLI) performed on the same expressed material (or an analytically comparable batch), to confirm that the protein you verified is the protein that binds.

The point isn't to add bureaucracy. It's to prevent the most frustrating failure mode in discovery-to-development handoffs: "the sequence was correct, but the protein wasn't."

Creative Proteomics Service: Affinity Maturation Sequence Validation

Sequence validation is most useful when it sits at a decision boundary. In antibody engineering, that boundary is often "advance this clone into CLD vs iterate another round."

Where a service workflow is appropriate, it typically combines intact mass (rapid integrity screen) with bottom-up LC-MS/MS sequencing (amino-acid-level confirmation).

A related service category for sequence confirmation is Mass Spectrometry Based Protein Sequencing, which reflects the broader toolkit (bottom-up, and where relevant, top-/middle-down strategies).

When to Order This Service

This type of confirmation is usually most valuable in three situations:

• After top candidate clones (1–5 hits) are selected from phage/yeast display screening and before CLD initiation.
• After each round of affinity maturation to verify mutation fidelity at the protein level.
• When oligoclonal mixtures require protein-level subtyping and you need an orthogonal readout beyond DNA.

In contexts where variable-region confirmation is the focus, Antibody De Novo Sequencing is a relevant internal reference point because it frames deliverables around variable-domain sequence correctness.

Service Specifications

If your specific risk is "did the affinity maturation mutation actually express as the intended amino acid change," mutation-aware confirmation workflows (conceptually aligned with Protein De Novo Sequencing) can make the deliverable easier to interpret.

Frequently Asked Questions

Q1: Crude supernatant without purification — can MS proceed?

Yes, in many cases MS can proceed from crude or minimally processed material, but interpretability depends on matrix complexity.

Practically:

• Intact mass typically benefits from cleanup/desalting, because salts and media components can increase adducting and suppress signal.
• Bottom-up LC-MS/MS can tolerate more complexity, especially with robust digestion and cleanup, but contaminants can still reduce coverage.

If the goal is rapid triage, a minimal affinity capture step (even if not "full purification") often gives a better cost-to-signal outcome.

Q2: Linker cleavage > 50% — is this clone salvageable?

Sometimes—but it's a redesign and process question, not just an analytical one.

Common salvage paths include:

• switching format (e.g., scFv → Fab) to remove the scFv linker liability
• engineering a more protease-resistant linker sequence
• changing expression conditions or host to reduce proteolysis

The key is to treat the cleavage ratio as an engineering input. If cleavage is high and reproducible, advancing directly into CLD often increases downstream risk unless the format is changed.

Q3: What does the CDR Confirmation Letter include?

At a minimum, a CDR confirmation letter should clearly document:

• which CDRs were covered by unique peptides
• the peptide sequences (or mapped regions) supporting each CDR call
• any regions that were not covered and why (e.g., peptide properties)
• how ambiguity was handled (e.g., isoleucine/leucine indistinguishability in MS/MS)

The deliverable should read like a decision document: "Do we have protein-level evidence that the binding-determining regions match the intended clone?"

Q4: Can CHO / HEK293 glycosylation be detected simultaneously?

Often, yes—especially when the expressed format includes glycosylation sites (for example, Fc-containing constructs).

However, what you can conclude depends on the workflow:

• Bottom-up peptide mapping can localize glycosylation sites and describe glycoforms, depending on method and enrichment.
• Intact mass can reveal global mass shifts consistent with glycosylation heterogeneity, but usually does not localize sites without additional steps.

For scFv fragments expressed without Fc, glycosylation may be absent or limited unless engineered. For Fc-containing formats, glycosylation becomes a standard part of heterogeneity and should be interpreted alongside other PTMs.
