Troubleshooting Blocked N-Terminals: Causes, Detection, and Solutions

Introduction: The Critical Role of N-Terminal Integrity

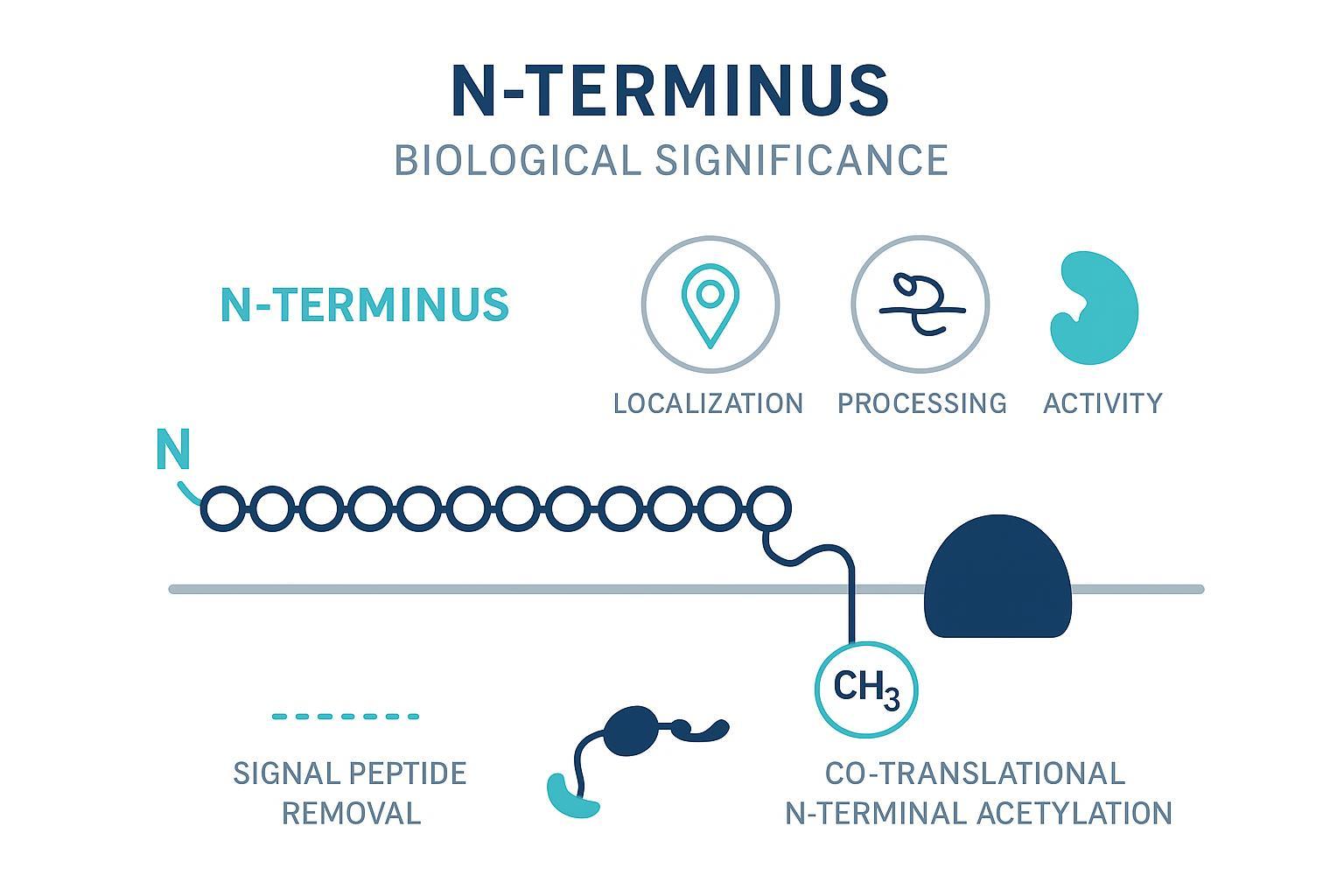

Understanding N-Terminals and Their Importance

The N-terminus of a protein shapes biological function, stability, localization, and interactions. In drug development and advanced analytics, confident N-terminal sequencing underpins sequence validation, comparability assessments, and regulatory documentation for recombinant proteins, biosimilars, and other biotherapeutics.

When a blocked N-terminus prevents conventional sequencing, identity testing and structure-function assessment can stall. In practice, that means ambiguity in sequence validation and slower decisions for clone selection, CMC filings, and root-cause investigations.

• Blocked N-terminals can derail sequence validation, creating risk for drug development and protein function analysis.

Causes of Blocked N-Terminals

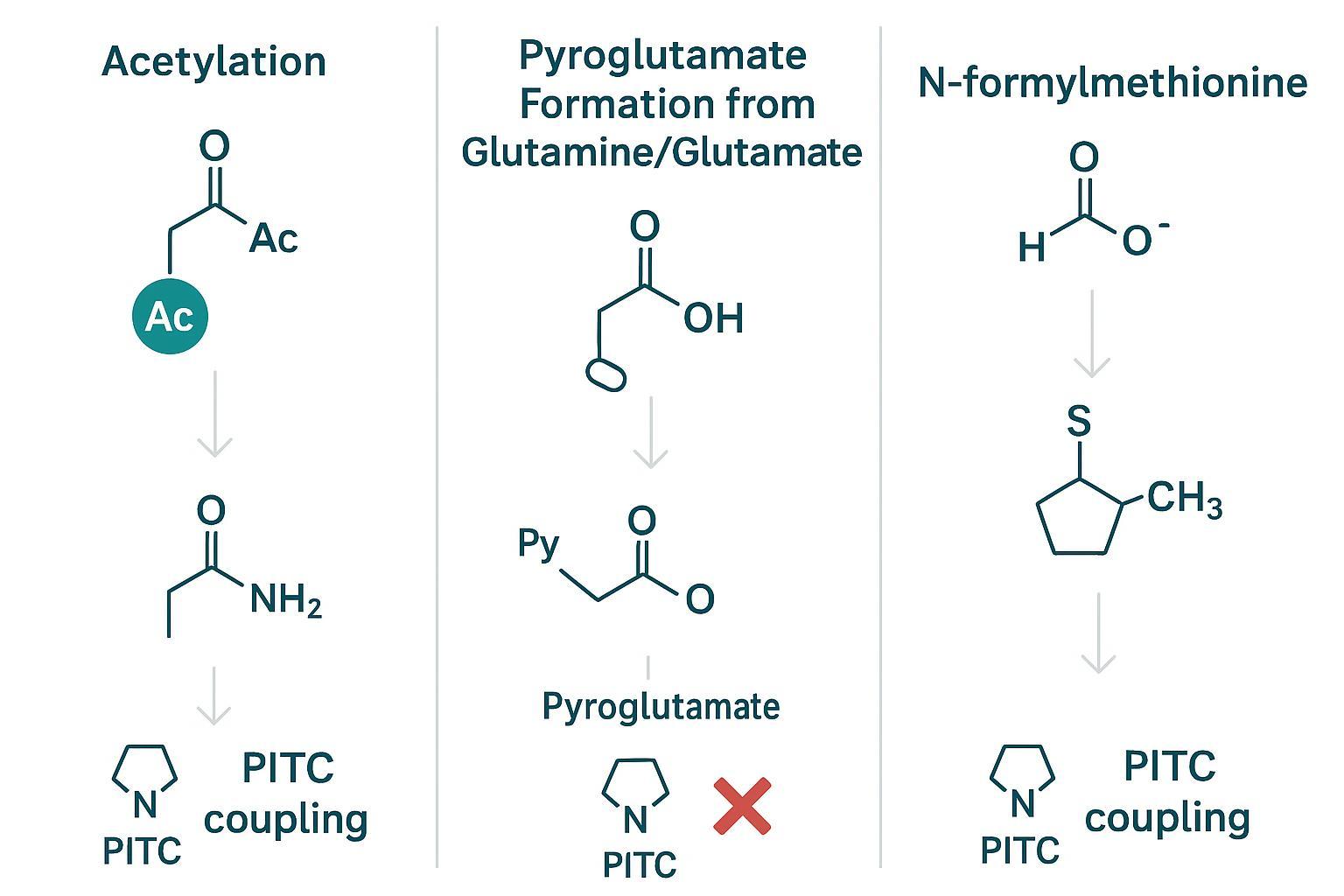

Post-Translational Modifications (PTMs)

• Acetylation: Highly prevalent in eukaryotic expression; neutralizes the terminal amine and often results in blocked sequencing.
• Formylation: Retained N-formylmethionine in bacterial constructs may block Edman coupling.
• Pyroglutamate Formation: Non-enzymatic or enzymatic cyclization from N-terminal Gln/Glu; common on monoclonal antibodies (mAbs) and a frequent cause of sequencing challenges.

Other Factors Leading to Blockage

• Recombinant Protein Expression: Fusion tags, initiator Met retention, or expression systems can introduce N-terminal acetylation or other caps.
• Expression-Induced Modifications: Overexpression stress or misfolding can favor modification and apparent N-terminal blockage.
• Degradation and Handling: Suboptimal storage or buffers (especially amine-reactive contaminants) can alter or mask the N-terminus.

Two quick clues help you triage: If Edman fails at cycle 1 with a clean sample, suspect a cap; if MS shows a +42 Da shift on the N-terminal peptide, think acetylation; if heavy/light chains in mAbs show −17/−18 Da vs. Gln/Glu, think pyroglutamate.

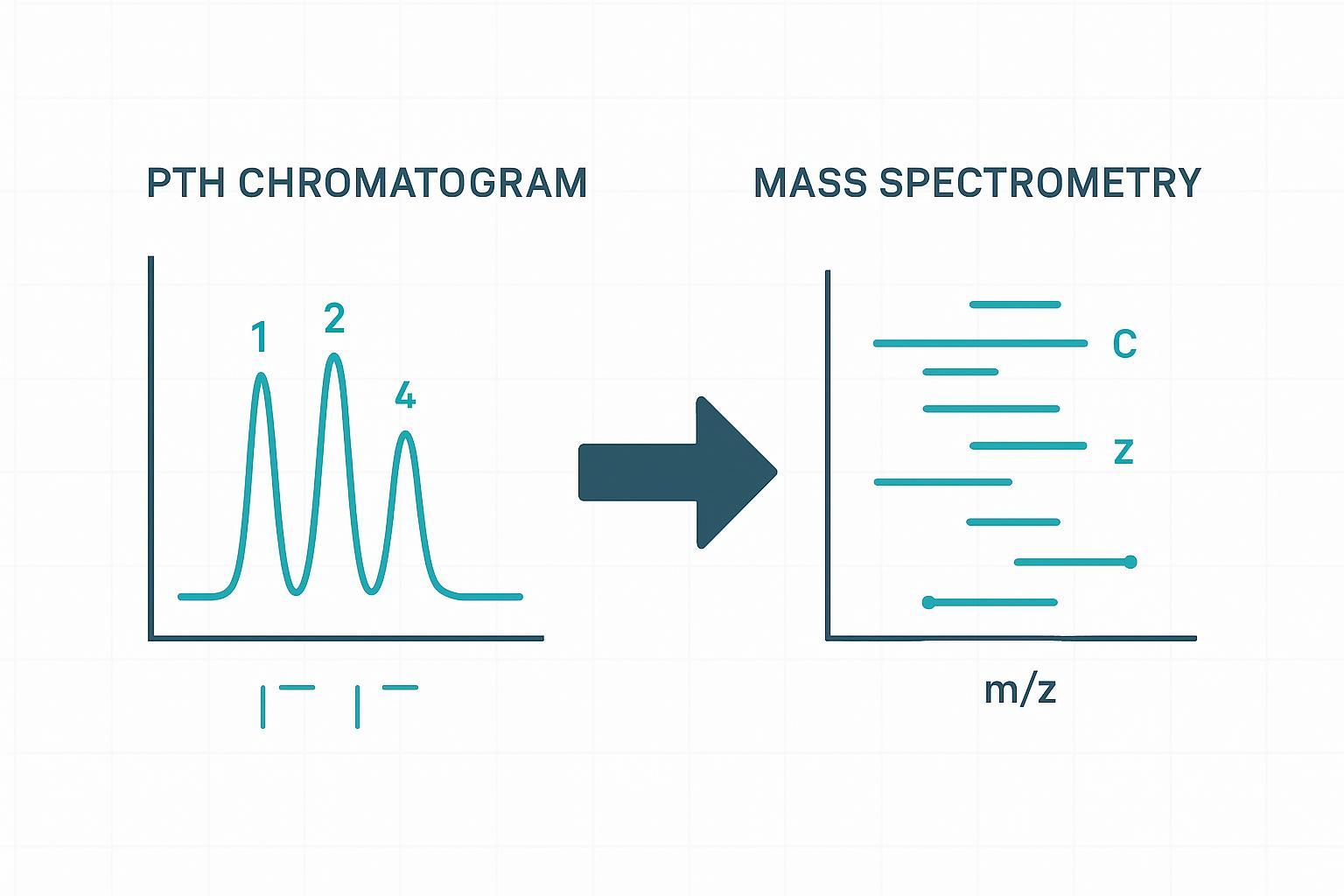

Detection of Blocked N-Terminals

Edman Degradation Limitations

Edman degradation requires a free N-terminal amine to couple phenyl isothiocyanate (PITC); any cap (e.g., acetyl, formyl, pyroglutamate) blocks cycle 1. A typical diagnostic sign is the absence of a first-cycle PTH–amino acid peak on the chromatogram. If sample purity is adequate yet cycle 1 is blank, a blocked N-terminus is likely.

Mass Spectrometry (MS) Detection

When Edman stalls, MS can still illuminate what’s happening. Top-down strategies (e.g., ECD/ETD/EID) preserve labile PTMs and generate informative c/z• ion ladders that map terminal regions. MALDI in-source decay (ISD) is particularly good at producing terminal fragment ladders rapidly, which often clarifies whether the N-terminus is modified and what the cap might be. Conventional peptide mapping complements top-down by confirming mass deltas on the N-terminal peptide and localizing PTMs.

Hybrid Detection Approaches

Combining Edman with high-resolution MS often yields the fastest, most defensible path to an answer. A pragmatic sequence is: run a short Edman screen (3–5 cycles); if cycle 1 is blank, move to top-/middle-down MS or MALDI-ISD to identify the cap; if enzymatic deblocking is feasible (e.g., pyroglutamate), apply it and re-check by Edman or MS. For a service that integrates both methodologies for challenging cases, see the N-terminal Sequencing Service from Creative Proteomics.

Solutions to Overcome Blocked N-Terminals

Enzymatic Solutions

• De-blocking Enzymes: Certain caps can be removed enzymatically. For example, pyroglutamate aminopeptidase can cleave pGlu from N-termini, restoring a free amine and enabling Edman or improving MS-based terminal mapping. Always verify completeness of the reaction and check for side reactions with an orthogonal method.
• Pyroglutamate Removal: On mAbs, pGlu at heavy or light chains is common. Gentle denaturation or mild detergents can improve enzyme access; confirm removal by monitoring the expected mass change and restored N-terminal detection.

Chemical Solutions

• Chemical Deprotection: Some residue-specific chemistries can unmask certain caps. A classic example is deprotection of N-acetyl–Ser/Thr through an N→O acyl shift followed by elimination under carefully controlled conditions. This route is not universal, may be harsh, and is usually not recommended for sensitive or limited samples.
• Solubilization and Stabilization: For hydrophobic proteins, the apparent “blockage” can stem from poor solubility or aggregation. Employ mild non-ionic detergents (e.g., DDM, CHAPS) and buffer screens to maintain a native-like, analyzable state. Remove incompatible components prior to Edman.

Hybrid Solutions

A robust approach combines enzymatic steps and high-resolution MS to pinpoint or remove the cap, followed by confirmatory Edman when feasible. A typical path: diagnose by MS; if pGlu is present, perform enzymatic removal; re-run Edman for unambiguous terminal residue identification; archive spectra and chromatograms to support traceability and ICH expectations for specificity and orthogonality.

Special Considerations for Specific Proteins

Monoclonal Antibodies (mAbs) and Pyroglutamate

mAbs often begin with Gln/Glu, which can cyclize to pyroglutamate during processing or storage. This modification blocks Edman but can be addressed by pGlu aminopeptidase treatment. Use gentle conditions to expose the terminus without compromising higher-order structure, then verify loss of the −17/−18 Da signature and restored terminal readability.

Mini case (anonymized): An IgG heavy chain with an N-terminal Gln showed a blank first-cycle Edman trace and an N-terminal mass shift of −17/−18 Da by LC‑MS, consistent with pyroglutamate. The sample was treated illustratively with pyroglutamate aminopeptidase in 50–100 mM Tris‑HCl (pH 7.5–8.0), 1 mM DTT at 37°C for 2–4 hours (conditions for demonstration; validate per antibody). Post‑treatment LC‑MS showed loss of the −17/−18 Da species and Edman returned a clear first‑cycle PTH peak, confirming deblocking and restored N‑terminal readout (see Liu et al., 2011).

Recombinant Proteins and Acetylation

N-terminal acetylation is extremely common in eukaryotic expression systems and will block Edman cycle 1. The first-line solution is MS-based identification of the N-terminal peptide (+42.01 Da shift). Only consider chemical deprotection if the N-terminal residue and sample constraints permit; otherwise proceed with MS-driven sequence confirmation and document the modification as part of the product’s structural profile.

Hydrophobic Membrane Proteins

For membrane proteins and other hydrophobic targets, poor solubility can masquerade as blockage. Optimize detergents and buffer ionic strength; consider MALDI-ISD or top-down ETD/ECD, which can be more tolerant of challenging matrices. Remove detergent fully before Edman to prevent interference with PVDF binding or coupling chemistry.

Best Practices for Handling Blocked N-Terminals

Standard Operating Procedures (SOPs) for Protein Preparation

• Sample Purification: Use high-purity preparations and avoid amine-reactive contaminants (e.g., Tris, primary amine buffers) before Edman. For PVDF-based Edman, confirm efficient binding and perform brief diagnostic cycles to detect a cap early.
• Buffer Optimization: Maintain neutral pH and reduce conditions that promote cyclization (for Gln/Glu termini) or unintended derivatization. For hydrophobic proteins, screen mild non-ionic detergents but exchange into Edman-compatible buffers prior to sequencing.
• Documentation: In an ICH Q6B/Q2/Q14 framework, record system suitability, reference standards, acceptance criteria, and orthogonal confirmations (e.g., top-down MS + peptide mapping) to demonstrate specificity and traceability.

Step-by-Step Troubleshooting

1. Quick Edman Screen: Run 3–5 cycles. If cycle 1 shows no PTH–amino acid with good sample quality, suspect a cap.
2. MS Diagnosis: Use top-/middle-down MS or MALDI-ISD to identify the cap type and localize it. Complement with peptide mapping to confirm mass deltas on the N-terminal peptide.
3. Targeted Deblocking: If pyroglutamate is present, apply pyroglutamate aminopeptidase under mild conditions; for N-acetyl on Ser/Thr, consider the classical deprotection route only when appropriate. Reassess by MS or Edman.
4. Confirmation and Records: Re-run Edman for terminal identity when feasible. Archive MS spectra and Edman traces with metadata to support method suitability, orthogonality, and audit readiness.

FAQs

How can I tell whether the cap is acetylation or pyroglutamate?

Look for a +42.01 Da shift on the N-terminal peptide for acetylation; pGlu from Gln/Glu presents as −17/−18 Da from the unmodified residue. Edman cycle 1 will be blank for either; MS distinguishes them.

Can N-terminal acetylation be removed to enable Edman?

Only in specific cases (often Ser/Thr) using harsh chemistry; for most proteins, prefer MS-based N-terminal sequencing and document the modification.

Is MALDI-ISD suitable for hydrophobic proteins?

Often yes; it can yield terminal ion ladders even when solution-phase methods struggle. Still optimize detergents and cleanup to improve signal.

What do regulators expect for terminal confirmation?

Show specificity and traceability through orthogonal methods (e.g., Edman + MS), defined acceptance criteria, and preserved raw data, aligned with ICH Q6B/Q2/Q14 expectations.

Conclusion: Ensuring Accurate N-Terminal Sequencing

Overcoming a blocked N-terminus is essential for unambiguous protein characterization. A hybrid approach—short Edman diagnostics, high-resolution MS for cap identification, targeted enzymatic deblocking when feasible, and confirmatory Edman—delivers defensible, audit-ready results for biopharmaceutical development and academic research.

If your team faces a stubborn blocked N-terminus, consider a combined Edman plus high-resolution MS workflow backed by rigorous documentation. For practical guidance and integrated support, explore the N-terminal Sequencing Service from Creative Proteomics.

References

1. Wellner, D., Panneerselvam, C., & Horecker, B. L. (1990). Sequencing of peptides and proteins with blocked N-terminal amino acids: N-acetylserine or N-acetylthreonine. Proceedings of the National Academy of Sciences of the United States of America, 87(5), 1947–1949. https://doi.org/10.1073/pnas.87.5.1947
2. Liu, Y. D., Goetze, A. M., Bass, R. B., & Flynn, G. C. (2011). N-terminal glutamate to pyroglutamate conversion in vivo for human IgG2 antibodies. Journal of Biological Chemistry, 286(13), 11211–11217. https://doi.org/10.1074/jbc.M110.185041
3. Nicolardi, S., Kilgour, D. P. A., Watts, P., & Wuhrer, M. (2020). Improved N- and C-terminal sequencing of proteins by combining positive and negative ion MALDI in-source decay mass spectrometry. Analytical Chemistry, 92(18), 12429–12436. https://doi.org/10.1021/acs.analchem.0c02198
4. Catherman, A. D., Skinner, O. S., & Kelleher, N. L. (2014). Top down proteomics: Facts and perspectives. Biochemical and Biophysical Research Communications, 445(4), 683–693. https://doi.org/10.1016/j.bbrc.2014.02.041
