Optimizing PVDF Membrane Staining: Maximizing Sensitivity for Low-Abundance Proteins

Introduction

Low-abundance targets are often the difference between a figure that convinces reviewers and one that does not. This guide focuses on practical, evidence-aware steps to increase PVDF membrane staining sensitivity so faint bands become detectable without sacrificing downstream immunodetection or reproducibility. It is written for experienced researchers who run Westerns routinely—PIs, senior postdocs, and core-facility staff—and who need publication-grade, reviewer-ready documentation.

The methodology emphasizes: choosing stains purposefully, activating and handling PVDF correctly, tuning transfer parameters by molecular weight, minimizing background, and documenting QC rigorously. Where quantitative limits vary across labs and instruments, we provide indicative ranges and link to primary sources so you can validate locally and include parameters in your SOPs.

Key takeaways

• Use PVDF activation (brief methanol pre-wet → water rinse → buffer equilibration) to ensure strong binding and sharp bands; avoid overexposure to methanol.
• Match the stain to the task: Ponceau S or MemCode for rapid, reversible transfer checks; fluorescent total-protein or colloidal gold when you need the highest sensitivity and broad linearity.
• Tune transfer by molecular weight: reduce methanol and add a trace of SDS for high-MW proteins; choose 0.22 µm PVDF for low-MW/low-abundance targets.
• For fluorescence, choose low-autofluorescence PVDF and fluorescence-optimized blockers; for chemiluminescence, adjust blocker (BSA vs milk) to the antibody and epitope.
• Capture QC artifacts (ladder, stain images, parameter logs) and keep full, uncropped blots to meet journal policies.

Stain selection strategy

Choosing the right stain is a sensitivity and compatibility decision. Rapid reversible stains confirm transfer and loading quickly; highest-sensitivity options improve total-protein visualization and normalization, especially when faint bands matter.

Rapid reversible checks (Ponceau S, MemCode)

Ponceau S and MemCode provide fast, reversible assessment of transfer efficiency on PVDF. Reported detection thresholds vary by stain, membrane, and imaging setup—treat any numeric limits as system‑dependent and validate locally. For example, Thermo Fisher's reversible membrane protein stain documentation (Invitrogen reversible membrane protein stain/related product FAQ) indicates substantially higher sensitivity than traditional Ponceau S, with manufacturer guidance placing sensitivity into the low‑nanogram range for BSA on membranes; confirm performance on your membrane and imager before using any numeric LOD for quantitation.

Highest sensitivity options (Coomassie, colloidal gold, fluorescent stains)

Colloidal gold and fluorescent total‑protein stains (e.g., SYPRO Ruby‑class) generally offer stronger sensitivity and linearity on PVDF than reversible dyes, supporting detection and normalization when targets are scarce. Colloidal Coomassie (G‑250) sits in between, with better sensitivity than Ponceau but less than colloidal gold/fluorescent stains. Recent reviews emphasize the normalization advantages of fluorescent total-protein staining even if PVDF‑specific ng LODs are scarce post‑2018.

Representative Performance Benchmark

To help you choose the most effective visualization method, our team conducted an internal, illustrative benchmark comparing four common staining techniques on 0.22 µm low‑fluorescence PVDF membranes using a LI‑COR Odyssey‑class NIR imager. These results are intended as representative guidance; labs should perform local calibration to define LODs for their specific stain/membrane/imager combinations. (n = 3 technical replicates)

• Fluorescent Stain (SYPRO‑Ruby class): Superior sensitivity in the low‑nanogram range.
• MemCode: ~20–30 ng
• Colloidal Coomassie (G‑250): ~40–60 ng
• Ponceau S: ~150–200 ng

The test demonstrated a robust linear range spanning ~1–60 µg of total protein per lane. Raw TIFF files and calibration curves are available upon reasonable request to support replication and local validation.

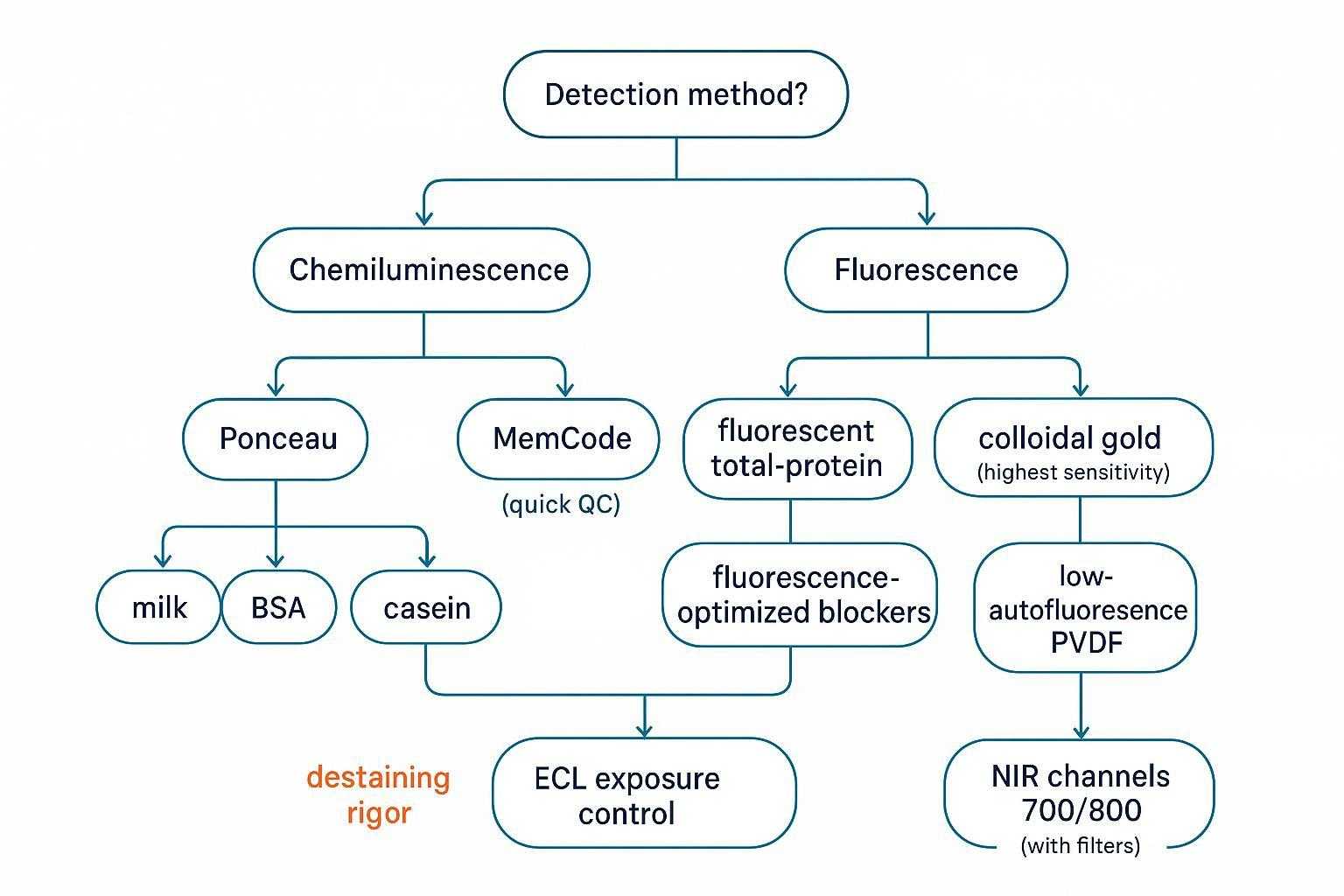

Aligning stains with detection modes (chemiluminescence vs fluorescence)

• Chemiluminescence: Common blockers include nonfat dry milk (NFDM) and BSA; milk can lower sensitivity and can interfere with phospho‑specific antibodies. Many labs switch to BSA for phospho targets or when background is stubborn.
• Fluorescence: Use low‑autofluorescence PVDF, fluorescence‑optimized blockers and wash buffers, and avoid autofluorescent contaminants (ink, dusty trays, lint). Set exposure within the linear range and avoid channel bleed‑through when multiplexing (e.g., 700/800 nm).

Table 1. Quick comparison of PVDF stain choices (indicative; verify locally)

References for stain performance and normalization: see ShareBiology (protocol compilation, 2024) and a 2025 review of total-protein normalization.

PVDF activation and handling for higher PVDF membrane staining sensitivity

Methanol pre-wet, rinse, and buffer equilibration

Briefly immerse PVDF in 100% methanol for 15–30 s to activate, then rinse in water and equilibrate in transfer buffer for 5–10 min before assembly. Overlong methanol exposure can increase background; insufficient equilibration can reduce binding or yield uneven transfer.

Pore size and low-autofluorescence PVDF selection

Use 0.22 µm PVDF to retain very small proteins (<20 kDa) and low‑abundance species; use 0.45 µm as a general option for >20 kDa. For fluorescent detection, select low‑autofluorescence PVDF to reduce background and allow longer, cleaner exposures.

Preventing drying and recovering dried membranes

Keep PVDF wet once activated. If drying occurs inadvertently, briefly re-activate in methanol, rinse, and re-equilibrate. Avoid repeated drying/rewetting cycles, which can raise background and compromise binding.

Transfer optimization for low-abundance targets

Tuning transfer improves capture of scarce proteins on PVDF while avoiding band loss. Choose parameters by molecular weight and system (wet vs semi‑dry), and adjust methanol/SDS judiciously.

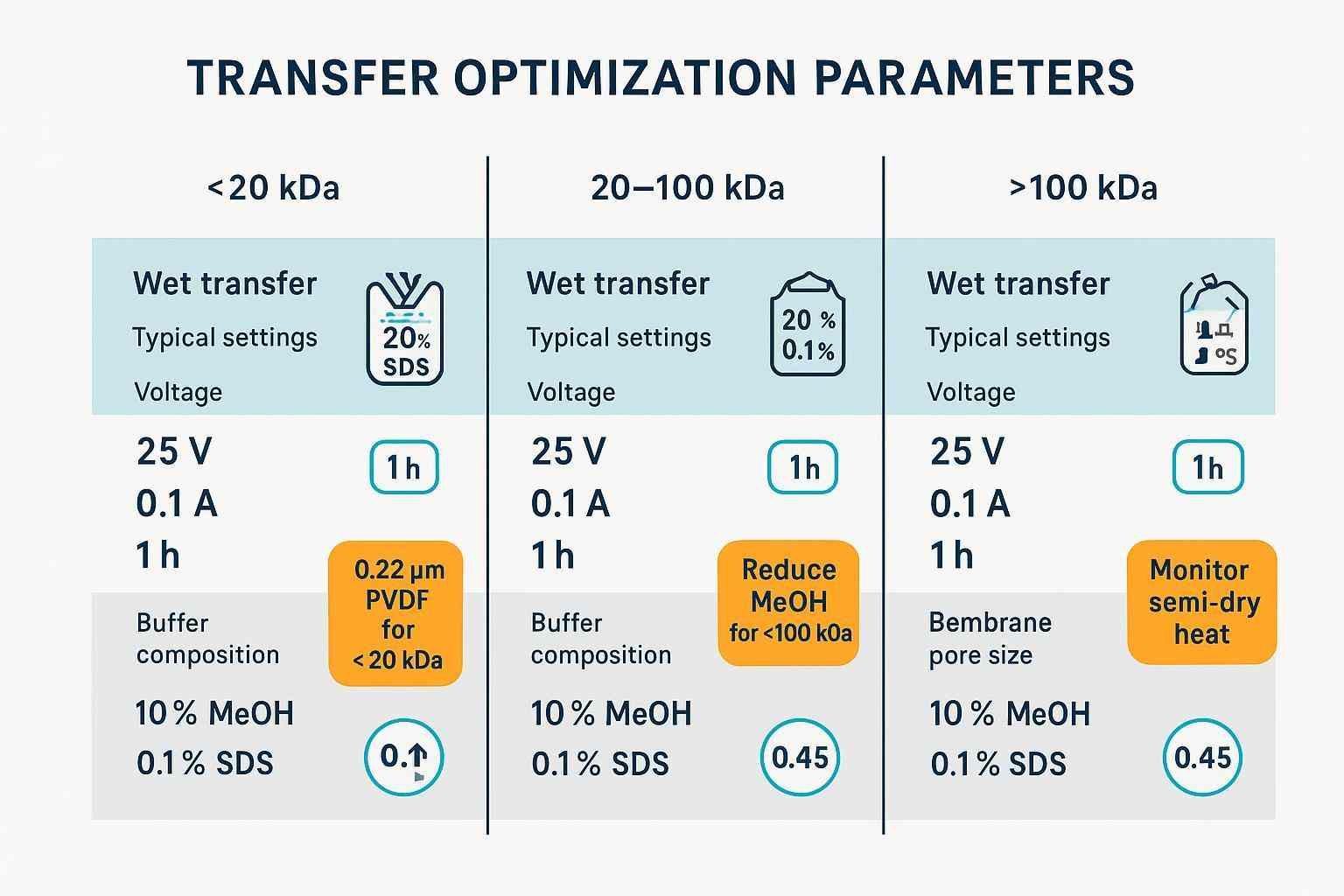

Wet vs semi-dry: current/voltage/time by molecular weight

Buffer composition: methanol and SDS trade-offs on PVDF

• Methanol: 10–20% helps strip SDS and promotes binding. For very high‑MW proteins, reduce methanol to 0–10% to avoid gel pore shrinkage that hinders elution.
• SDS: 0.01–0.02% can aid elution of high‑MW proteins but may increase pass‑through; PVDF tolerates small SDS additions better than nitrocellulose. Titrate carefully.

Avoiding over-/under-transfer and band loss

Use prestained ladders and reversible stains for immediate QC. If bands appear too faint despite good transfer, consider 0.22 µm PVDF (low‑MW), adjust MeOH/SDS as above, extend transfer time, and verify antibody affinity and blocking conditions.

Background reduction and compatibility

Destaining rigor and clean handling to lower noise

Rinse stains thoroughly where applicable; use clean, low-lint trays and forceps; avoid ink marks and powdery gloves, which can fluoresce or shed particles that appear as speckles.

Blocking buffer selection matched to detection chemistry

For chemiluminescence, NFDM often gives low background but can mask weak signals; BSA or casein may improve sensitivity, especially for phospho targets. For fluorescence, use specialized fluorescent blockers and avoid milk components that autofluoresce.

Fluorescent imaging considerations and low-background setup

Prefer low‑autofluorescence PVDF; standardize exposure within linear ranges, prevent channel bleed‑through (e.g., separated 700/800 nm filters), and document instrument settings. Keep membranes free of lint and dust.

Troubleshooting and QC documentation

Decision tree: faint bands, high background, uneven transfer

• Faint bands: Confirm transfer with Ponceau/MemCode; for low‑MW, use 0.22 µm PVDF; reduce MeOH or add 0.01–0.02% SDS for high‑MW; extend transfer or consider post‑transfer fixation protocols that increase retention on PVDF.
• High background: Switch blocker (BSA ↔ milk ↔ casein), reduce antibody concentration, increase wash stringency, and ensure low‑autofluorescence PVDF for fluorescent workflows.
• Uneven transfer: Remove bubbles, ensure even contact and proper stack assembly, equilibrate membranes fully, and avoid overheating in semi‑dry setups.

QC checkpoints: ladders, stain images, parameter logs

Archive ladder visibility and stain images immediately after transfer. Log transfer parameters (V/mA/time), buffer composition (MeOH/SDS), membrane type/pore size, blocking agent, antibody details (lot/dilution/incubation), and imaging settings (exposure, channels, filters). Retain full, uncropped blots and raw files (e.g., TIFF) to meet journal policies.

Normalization and reprobing records for reproducibility

To ensure methodological defensibility, utilize total-protein normalization or validated housekeeping proteins strictly within their established linear ranges.

Comprehensive documentation is essential. Ensure you record:

• Stripping and reprobing protocols.
• Specific buffers and incubation times.
• Validation data showing signal linearity remains intact post-stripping.

Data Availability & Standard Operating Procedures (SOPs)

For maximum transparency and to strengthen methodological credibility, adhere to the following deposition guidelines:

1. Deposit Raw Files: Upload uncropped, high-resolution TIFFs to DOI-issuing repositories (e.g., Zenodo, Figshare, or Dryad).
2. Include Parameter Logs: Document crucial details such as V/mA/time, buffer chemistry, and exposure settings.
3. Provide Metadata & SOPs: Include traceable metadata (e.g., loading order, ladders) and standardized SOP templates to streamline peer review and verification.

From Band Visualization to Absolute Identity

When band identity requires orthogonal confirmation—particularly for faint, low-abundance proteoforms—the preferred route is excising the specific protein-bearing PVDF segment (using a reversible stain like Ponceau S).

The Challenge: Membrane-bound samples are highly susceptible to surface contamination and N-terminal blocking during this transition from gel to sequencer.

To bridge this gap, Creative Proteomics provides a dedicated Edman-Based Protein Sequencing workflow optimized specifically for PVDF-excised bands. We combine expert handling protocols with the rigorous data standards required for regulatory-grade characterization, ensuring your visualized band becomes a confirmed sequence.

Conclusion

Maximizing PVDF membrane staining sensitivity is a chain of compatible choices: correct activation and handling, an appropriate stain for the task, MW‑aware transfer settings with tuned MeOH/SDS, and meticulous background control. Equally important is documentation—QC images, parameter logs, and raw blots ready for reviewers.

Implementation checklist (print and add to your SOP)

• Activate PVDF correctly: methanol 15–30 s → water rinse → 5–10 min buffer equilibration.
• Choose the stain by goal: reversible (Ponceau/MemCode) for fast QC; fluorescent total‑protein or colloidal gold for highest sensitivity and linearity.
• Select membrane wisely: 0.22 µm for <20 kDa/low‑abundance; low‑autofluorescence PVDF for fluorescence.
• Tune transfer: set V/mA/time by MW; reduce MeOH and add trace SDS for very high‑MW; monitor semi‑dry heat.
• Minimize background: match blocker to detection chemistry; rinse thoroughly; keep handling clean.
• Document everything: capture ladder and stain images; log parameters; save uncropped raw blots and exposure settings.

FAQs

What's the fastest way to check transfer without compromising downstream detection?

Use a reversible stain such as Ponceau S or MemCode on PVDF. Rinse thoroughly before proceeding to immunodetection to avoid residual background.

How do I improve detection of a very small, low-abundance protein (<20 kDa)?

Use 0.22 µm PVDF, keep methanol around ~10% in the transfer buffer, optimize time/voltage for shorter runs, and verify antibody affinity. Consider post‑transfer fixation protocols validated for PVDF if loss is suspected.

For high‑molecular‑weight targets, should I change buffer composition?

Yes. Reduce methanol to 0–10% and consider adding 0.01–0.02% SDS to facilitate protein elution from the gel, then check for pass‑through. Extend transfer time as needed.

Which blocker should I choose to minimize background without losing sensitivity?

For chemiluminescence, start with BSA when sensitivity is critical or when probing phospho‑epitopes; milk is acceptable for many targets but can reduce sensitivity. For fluorescence, use a fluorescence‑optimized blocker and low‑autofluorescence PVDF.

How should I document blots to satisfy journal requirements?

Save full, uncropped membranes with markers as TIFFs or equivalent, archive stain images and parameter logs (V/mA/time, buffer composition, membrane type, blocking, antibody details), and disclose any splicing or adjustments consistently across images.

References

1. Liu D, et al. Comprehensive Optimization of Western Blotting. 2023. Available at the National Library of Medicine: PMC10453944.
2. Xu J, et al. A fixation method for the optimisation of western blotting. 2019. National Library of Medicine: PMC6491546.
3. Westerberg LJS, et al. Superior normalization using total protein for western blot. 2025. National Library of Medicine: PMC12282925.
4. Thermo Fisher Scientific. Successful transfer of high‑MW proteins during western blotting. 2021. Thermo Fisher application note.
5. Jackson ImmunoResearch. Western blotting guide: visualization. 2022. Jackson ImmunoResearch guide.
