Interpreting Edman Sequencing Results: A Guide to HPLC Chromatograms and PTH-Amino Acids

Introduction

The run finished. Peaks are on the screen. But is that shoulder real or just noise? This practical guide turns subjective peak-picking into defensible residue calls—so your Edman sequencing interpretation can stand up to internal review and audits.

You'll learn how PTH–amino acids present on RP-HPLC, how to assign residues cycle-by-cycle, and how to document confidence with a simple rubric. The guide is written for protein scientists and QC/CMC teams, and for CRO/CDMO users who need to assess third-party Edman reports. It is not a deep dive into Edman chemistry, sample-prep SOPs, or blocked N-terminus troubleshooting; those topics are covered in foundational resources and method-selection articles.

For foundational background and when to choose Edman vs. alternatives, see Edman Degradation vs. Mass Spectrometry: Which is Best for N-Terminal Sequencing?.

Key takeaways

• Use standards or a validated RT library as the anchor; absolute RT drifts—alignment is what matters.
• Make calls with evidence: RT match within your lab's window, acceptable S/N, and clean separation.
• Prefer "no call" over false precision; use "mixed" only when two residues are consistently supported.
• Score each cycle (High/Medium/Low) and capture the rationale; keep an exceptions log.
• Recognize pattern archetypes (clean, mixed, carryover, co‑elution, low S/N) and respond accordingly.
• Escalate to LC–MS/MS mapping or top-/middle-down MS when ambiguity persists or proteoform context is required.

What You Actually Receive from an Edman Run

Typical deliverables and how to use them

Most labs deliver per-cycle chromatograms (or integrated peak tables), a called sequence, and method notes. Better packages also include PTH standards runs or an RT library reference, blanks, and system suitability evidence. Use system suitability to confirm separation of known near neighbors, verify RT drift stays within your validated window, and ensure baseline/noise performance is acceptable before making any residue calls. Treat "sequence length" as a function of yield and sample quality, not a fixed capability; read length usually decays with cycles as chemistry efficiency drops. If reported, track initial yield (IY) and repetitive yield (RY) (or estimate decay from integrated peak areas under consistent processing) to justify where confidence drops and why later cycles become uninterpretable.

How to use the deliverables:

• Overlay cycles with standards or consult the RT library to identify candidate peaks.
• Review blank injections to detect memory effects (carryover) at prior-cycle RTs.
• Use method notes (column ID, gradient, temperature) to contextualize any RT drift.

Key terms used in Edman reports (quick glossary)

• Cycle: One round of PITC labeling and cleavage yielding a PTH–amino acid.
• Yield: Fraction of chains successfully advanced in a cycle.
• Carryover/memory: Residual analyte appearing in subsequent injections.
• Background: Baseline signal unrelated to analyte.
• Co‑elution: Two analytes eluting together or partially overlapping.
• Retention time (RT): Elution time under the method; identity is assigned by matching to standards or a validated library.
• Signal-to-noise (S/N): Peak intensity relative to baseline noise using your lab's defined noise algorithm and processing settings; a practical gate for reliability.
• No call vs ambiguous vs mixed: "No call" = insufficient evidence; "ambiguous" = competing identities not resolved; "mixed" = two residues supported above threshold.

PTH-Amino Acids and HPLC Readouts: The Minimum You Need

Why PTH derivatives are identifiable on HPLC

Edman converts the N-terminal residue each cycle into a phenylthiohydantoin (PTH) derivative. PTH–amino acids separate by RT on RP-HPLC; identity is assigned by matching to concurrently run standards or a validated RT library. Because columns, gradients, and temperature cause RT drift, standards (or normalized relative RT) are the anchor for interpretation. Educational primers illustrate the logic of mapping peaks to PTH identities on HPLC traces, while regulatory frameworks such as ICH Q6B place Edman within totality-of-evidence for primary structure confirmation (terminal sequencing alongside peptide mapping).

• See the didactic overview in the Pearson Edman data analysis module and the role of terminal sequencing in ICH Q6B's primary structure characterization.

If your lab has not yet formalized this, build a lab‑specific RT library and validate it under your exact column/gradient/temperature. A practical overview of standards‑based identification is outlined in Shimadzu's 2014 "N‑terminal protein sequencing in drug development", and the use of concurrent PTH standards to anchor identification and control drift is demonstrated in Miyashita et al.'s 2001 PNAS attomole‑level Edman study.

Minimum RT‑library practice (adapt to your SOP):

• Run a full PTH standards set under your method and record RTs with replicate precision; define a lab‑validated RT window and document acceptable drift.
• Include a standard or reference mix with each run to enable cycle‑by‑cycle alignment; normalize to relative RT if absolute RT shifts.
• Maintain a co‑elution watchlist (near neighbors, known modifiers) and annotate exceptions; update the library when method changes occur.
• Verify ambiguous identities with orthogonal evidence (e.g., re‑injection or LC–MS) before upgrading confidence beyond "tentative."

Note: Resolution is method-dependent. If your standards do not demonstrate baseline separation under your conditions, report an allowed ambiguity (e.g., Leu/Ile) rather than forcing a single-residue call.

What "good" chromatographic behavior looks like

A stable baseline, narrow symmetrical peaks, clear separation between known near neighbors, and consistent RT alignment to standards characterize a "good" readout. Red flags include shoulders, broad or split peaks, and late-eluting by-product "garbage" peaks. When you see these artifacts, treat affected cycles cautiously and consider downgrading confidence.

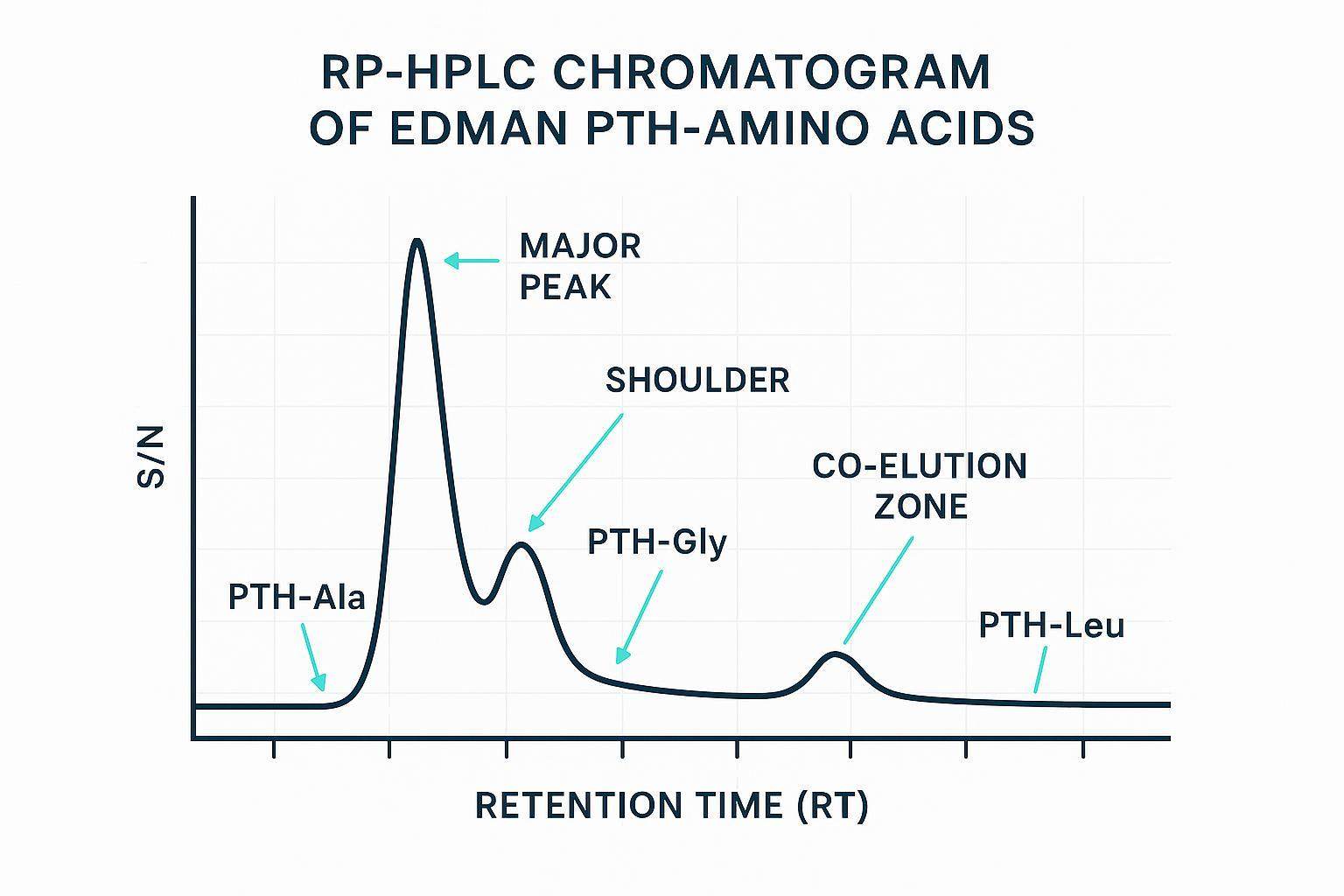

Caption: Example annotations you should confirm before calling peaks—baseline stability, major peak identity, shoulder/co‑elution zones, RT markers, and S/N.

A Cycle-by-Cycle Interpretation Workflow (Peak Calling Rules)

Step 0: Verify run context before calling residues

Confirm that the data package includes standards or a validated RT library, at least one blank, and method notes. Check RT alignment to standards; confirm a stable baseline. If standards are missing, use a verified library and document that limitation.

Step 1: Identify candidate peaks for the cycle

Start with the dominant peak within the expected RT window from standards/library. Log any secondary peaks above your predefined S/N threshold so you can evaluate potential mixtures or carryover.

Define your RT windows and S/N gate from system suitability runs using fixed integration settings (baseline handling, smoothing, peak width, and noise definition). Do not compare S/N across instruments or software unless processing parameters are harmonized. Document the noise definition and integration settings used to compute S/N.

Step 2: Assign residue identity using RT and quality criteria

Require RT agreement within your lab's validated tolerance window, with acceptable peak shape and separation from near neighbors. If a shoulder or partial overlap is present, downgrade confidence; consider targeted re-injection or method adjustments.

Step 3: Decide "call / no call / mixed"

Call a residue only when RT match plus quality criteria are met. If not, prefer "no call" to avoid false precision. Use "mixed" only when two residues repeatedly exceed thresholds (e.g., across replicate injections) and pattern coherence supports a true mixture.

Before reporting mixed, (1) confirm blanks do not show the same peaks at those RTs, (2) verify the two-peak pattern persists across replicate injections, and (3) check that peak ratios behave coherently across cycles. If any of these fail, downgrade to ambiguous or no call.

Step 4: Check sequence continuity across cycles

Examine whether calls form a coherent progression. Sudden identity flips, peaks repeating at prior-cycle RTs, or inconsistent patterns can indicate contamination, carryover, or unresolved co‑elution.

Step 5: Score confidence and capture rationale

Adopt a simple rubric and record your rationale per cycle. The table below can be adapted into your report template.

Note: Numeric tolerances must be defined via your system suitability, not copied from another lab. General chromatographic identity practices and Edman teaching resources support this validation-first approach (see the Pearson module; ICH Q6B context above).

Many vendor reports include per-cycle tables and PTH standard overlays. When reviewing a third-party package, prioritize clear RT-alignment evidence, blank runs, and an exceptions log that captures any ambiguous cycles and how they were handled. If one of these is missing, it's worth requesting it before you sign off on residue calls.

If you'd like help translating chromatograms into a QC-ready, traceable sequence call—especially when cycles are borderline or mixed—reach out to Creative Proteomics to discuss your project needs, or review our Edman sequencing service options.

Common Chromatogram Patterns and What They Usually Mean

Clean single-sequence reads

Expect one clear peak per cycle and a predictable decay in yield. State read length conservatively: "Readable for N cycles with High/Medium confidence as scored; later cycles downgraded due to S/N."

Mixed N-termini (two populations)

Two substantial peaks appear within expected RT windows early in the series; ratios may drift over cycles as one population advances more efficiently. Report candidate sequences, confidence per cycle, and whether relative quantitation is valid (often not without response-factor calibration).

Carryover (memory effects)

Ghost peaks recur at prior-cycle RTs or at prominent RTs from previous samples. Blanks help differentiate memory from true mixtures. If a blank shows peaks above your S/N threshold at those RTs, treat affected cycles as carryover-influenced and adjust calls accordingly.

Co‑elution and shoulders (ambiguity hotspots)

When a peak has a shoulder or partial overlap with a known neighbor, treat the cycle as ambiguous unless additional evidence resolves the identity. Consider method tweaks (gradient, temperature) or orthogonal confirmation.

Low signal / noisy baselines

When S/N is too low, refrain from calling. Options include concentrating the sample, purifying the band/spot, extending acquisition, or confirming by orthogonal MS.

Practical case — mixed N‑termini vs. carryover

Example (anonymized): simplified per-cycle summary using the article rubric.

Note: If raw chromatograms and blank/standard files are provided, annotate and archive them with the per-cycle table for audit readiness.

Quantitation and "How Much of Each Residue" (Use Carefully)

Peak area can suggest relative trends but is not proportional to molar amount without response-factor calibration—PTH derivatives differ in UV response and stability. Prefer qualitative language ("major/minor") unless your lab has calibrated response factors. Peer-reviewed work has highlighted derivative-specific behavior and why small area differences can mislead.

• For conceptual grounding, see the cautionary context on response behavior in PNAS work describing ultra-sensitive Edman detection.

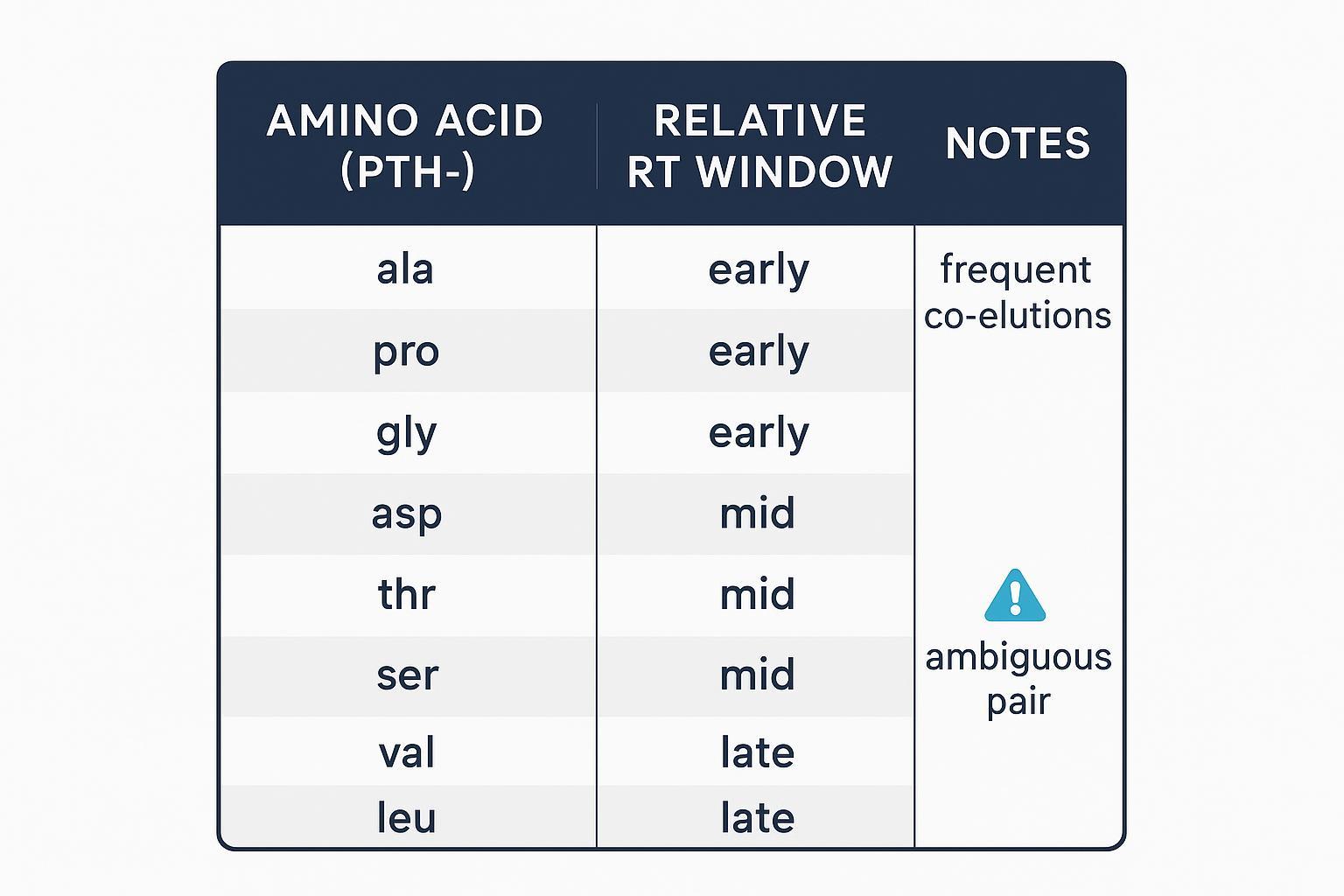

Caption: Quick map to speed PTH identification. Use it as a memory aid—not a substitute for lab-validated RT windows. Build and maintain your own RT library and co‑elution watchlist.

Reporting for QC/CMC and Audit Readiness

Minimum reporting package for defensible interpretation

Your QC-ready package should include raw chromatograms (or exports), standards/blank evidence, RT alignment notes, and a per-cycle call table plus an exceptions log.

Per-cycle call table schema:

Exceptions log: ambiguous cycles, suspected carryover, co‑elution notes, re‑run decisions, and rationale.

How to describe scope without over-claiming

Say explicitly what Edman confirms: ordered N-terminal residues for readable cycles. Say what it does not confirm: blocked N-terminus chemistry, internal sequence, or full proteoform complexity. This framing aligns with ICH Q6B's expectation for primary-structure characterization using complementary evidence, and with how regulators assess a totality-of-evidence package.

When to escalate to orthogonal confirmation (without duplicating other articles)

Use LC–MS/MS peptide mapping when Edman evidence is ambiguous or mixtures are suspected; use top-/middle-down when proteoform-level resolution is required. Reviews and practical tutorials outline how mapping resolves ambiguities and how middle-down adds structural context.

• See a streamlined mapping overview in a 2023 LC–MS peptide mapping article (open access) and a proteoform validation perspective in a middle-up/middle-down workflow review (2016).

Implementation Checklist (for teams reviewing vendor reports)

• Pre-run: Request standards or a validated RT library, at least one blank, and a reporting template that includes a per-cycle table and exceptions log.
• Post-run: RT check → candidate peaks → call/no call/mixed → continuity check → confidence scoring → documentation.
• Acceptance logic: Accept when evidence is coherent and well-documented; request clarification when alignment or blanks are missing; re‑run when carryover or low S/N compromises multiple cycles; escalate to LC–MS/MS or top-/middle-down when identity remains ambiguous or proteoform context is needed.

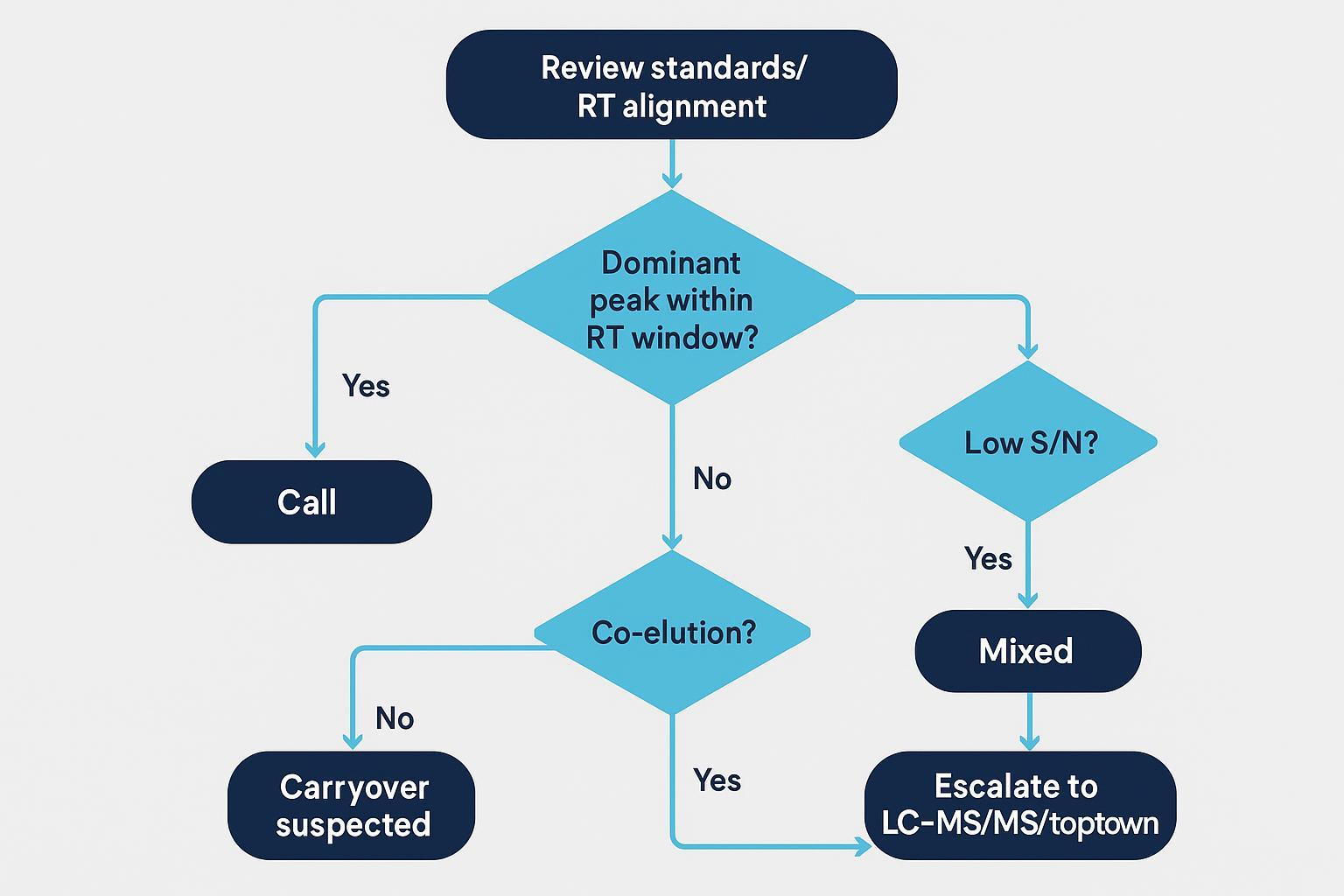

Caption: Operational decision-tree for Edman result review. Customize thresholds (RT window, S/N) to your validated system.

FAQ

How do you read an Edman HPLC chromatogram and assign PTH–amino acids?

Identify the dominant peak within your lab-validated RT window using standards or a reference library, verify acceptable S/N and peak shape, then call the residue and document the rationale. If a shoulder or overlap occurs, downgrade confidence or mark "no call." This is the essence of how to read Edman degradation chromatograms in a QC setting.

What does "no call" mean, and when is it the right decision?

"No call" means the evidence is insufficient (e.g., RT outside window, poor S/N, or co‑elution). It's appropriate whenever a confident assignment cannot be defended. Document the reason and any follow-up (re‑run, method tweak, or orthogonal confirmation).

How can you tell a mixed sequence from carryover contamination?

A true mixture shows two peaks within expected RT windows without appearing in blanks; carryover repeats prior-cycle RTs and appears in blanks. Track patterns across cycles and consult the exceptions log; if a blank shows the same RT peak, treat it as carryover.

Why do retention times drift, and how do you correct for it?

RT drifts with column aging, temperature, and mobile-phase conditions. Correct by aligning to standards or a validated RT library, normalizing to relative RT where appropriate, and documenting system suitability. If drift exceeds your window, investigate and consider re‑runs.

How many cycles are typically interpretable, and why does yield decay?

Interpretability depends on sample quality and chemistry efficiency. Yield generally decays per cycle, lowering S/N and increasing ambiguity; report the effective read length with confidence scores rather than a fixed number.

When should you request a re‑run versus switching to LC–MS/MS confirmation?

Re‑run when carryover or low S/N compromises a limited set of cycles and method fixes are feasible. Escalate to LC–MS/MS peptide mapping or top-/middle-down when ambiguity persists, mixtures are suspected, or proteoform-level context is needed.

What should be included in a QC-ready Edman sequencing report?

Include raw chromatograms/exports, standards/blank evidence, RT alignment notes, a per-cycle call table with confidence scores, and an exceptions log. This aligns with how regulators evaluate primary structure within a totality-of-evidence approach.
