Edman Degradation: The Gold Standard for N-Terminal Sequencing in the MS Era

Why N-Terminal Identity is Non-Negotiable

The Biological Signature

The N-terminus of a protein is often described as its birth certificate—an anchor for molecular identity and function. Confirming this end is central to product quality attributes (PQA) and functional integrity, because it reports on the primary structure and any sequence variants that can alter biological activity.

The Modern Paradox

Even as mass spectrometry (MS) dominates proteomics, Edman degradation—developed seven decades ago—remains a gold-standard readout for terminal identity. The paradox makes sense: Edman offers a definitive, step-by-step chemical read at the N-terminus, yielding unambiguous PTH–amino acid calls that don't rely on computational inference.

The Holistic View

N-terminal sequencing is indispensable, but it isn't the whole story. C-terminal confirmation matters too. In practice, high-confidence biotherapeutic characterization often pairs N-terminal Edman with C-terminal MS mapping to catch truncations or PTMs that can impact function.

The Regulatory Stakes: Meeting ICH Q6B Expectations

Regulatory Imperatives

Regulators expect identity tests that are specific, comprehensive, and reproducible—especially for new biological entities and biosimilars. According to the ICH guideline for biotechnological/biological products, identity sections for both drug substance and drug product emphasize methods such as peptide mapping with fragment identification using N-terminal sequencing and mass spectrometry. See the official text in the ICH document: ICH Q6B Guideline (Sections 4.1.2 and 4.2.2) on identity testing.

Orthogonal Identity Testing

Orthogonality is the keyword. Independent, non-overlapping methods strengthen dossiers by cross-validating sequence features. In this context, Edman sequencing and MS provide complementary evidence: a direct terminal read and a broad peptide map, respectively. For broader characterization expectations in biologics, EMA guidelines reinforce the value of orthogonal methods for purity and structural assessment; see the EMA guidance for mAbs and related products (Revision 1).

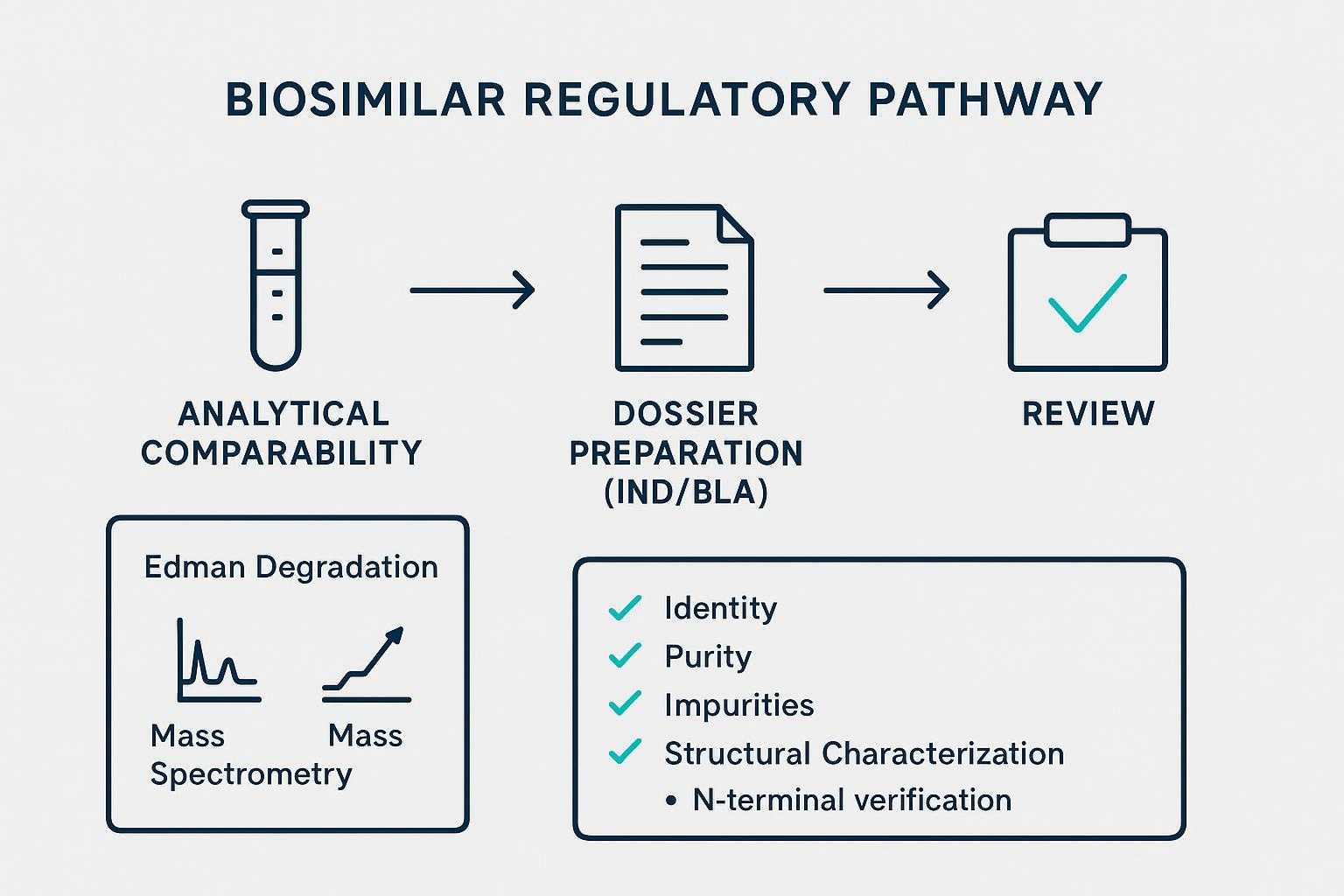

Biosimilar Comparability

For biosimilars, dossiers typically document N-terminal and C-terminal variants alongside intact mass and peptide-level evidence. Edman N-terminal reads remain especially persuasive for identity confirmation and for resolving tricky ambiguities at the terminus. Public assessment reports (EPARs) frequently discuss terminal variants (e.g., pGlu at the light/heavy chain starts) as part of characterization packages, reflecting the same Q6B-aligned expectations.

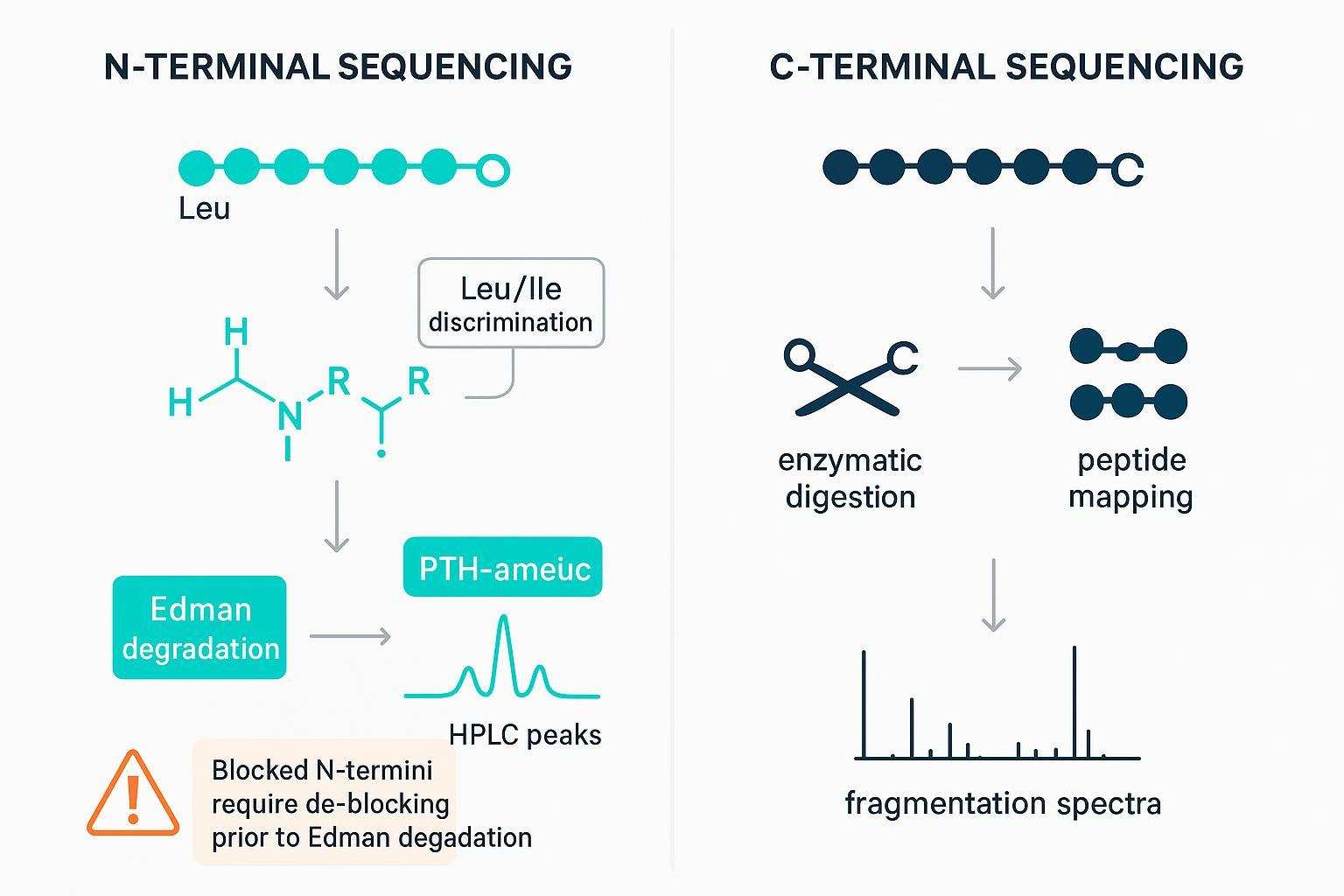

Edman Degradation vs. Mass Spectrometry: The Gold Standard vs. Cutting-Edge Technology

Direct Read vs. Inference

Edman degradation is a direct chemical cycle that removes the N-terminal residue and identifies it as a PTH–amino acid via HPLC—no inference required. MS, by contrast, infers sequence from peptide fragmentation spectra; it is extraordinarily powerful and scalable, but terminal identity may still benefit from a direct read when evidence must be irrefutable. If you're weighing Edman vs mass spectrometry for terminal confirmation, consider whether your use case values direct chemistry or broad coverage most.

The Leu/Ile Challenge

A standout advantage of Edman is differentiating isobaric residues like leucine and isoleucine at the N-terminus. Because PTH–Leu and PTH–Ile are chromatographically separable, Edman can resolve this ambiguity without elaborate MS workflows. In MS, distinguishing Leu/Ile often requires specialized fragmentation (e.g., EThcD, UVPD) or additional separation (e.g., ion mobility), which are not always practical in routine identity testing.

Confidence in De Novo Sequencing

When a protein's N-terminus is unknown or suspected to carry unexpected variants, Edman's stepwise chemistry provides an unambiguous starting point. MS still carries the day for throughput, PTM mapping, and mixtures, but a direct terminal read can anchor de novo efforts and remove doubt at the exact start site.

Edman vs mass spectrometry at a glance

Overcoming the "Silent" Terminus: Challenges & Solutions

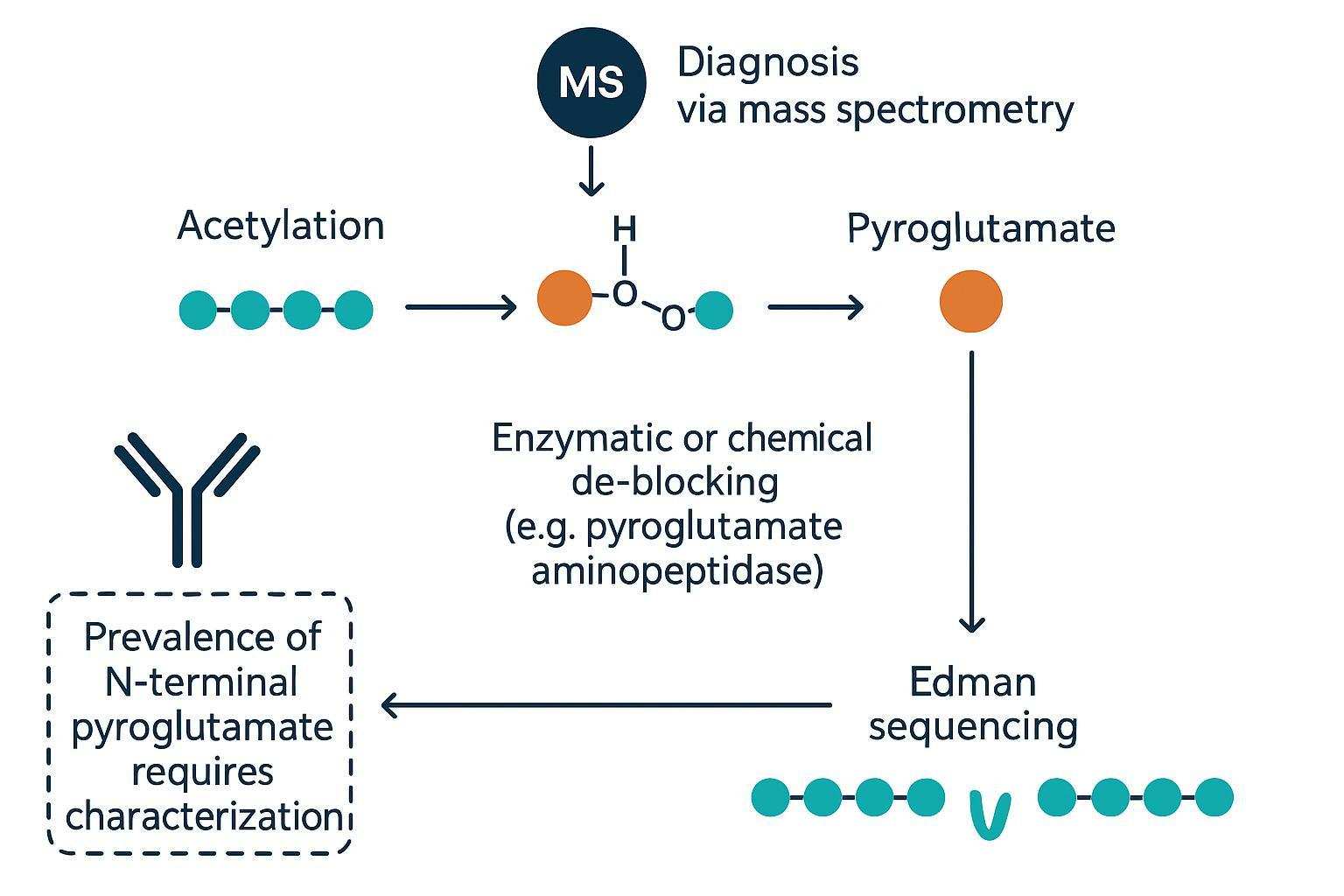

The Blocked N-Terminal Crisis

Many proteins present blocked N-termini—acetylation in eukaryotes, formylation in prokaryotes, or pyroglutamate (pGlu) from cyclized Gln/Glu. These modifications prevent Edman chemistry by masking the free α-amino group, stalling terminal identity efforts unless removed.

Diagnosis and Recovery

Best practice: diagnose first by MS to confirm the blocking group and overall sample integrity; then apply validated enzymatic (e.g., pyroglutamate aminopeptidase for pGlu) or chemical workflows to regenerate a free N-terminus before Edman. Confirm successful de-blocking by MS and proceed to Edman for the definitive terminal read.

Monoclonal Antibody Specialization

mAbs commonly show pGlu at light-chain or heavy-chain N-termini, contributing to charge variants and sequence ambiguity. Specialized de-blocking plus orthogonal confirmation helps ensure dossier-ready documentation of chain starts and variants.

A real-world example:

In antibody projects where pGlu masked the light-chain N-terminus, a hybrid approach proved effective: MS first confirmed pGlu and overall integrity; targeted enzymatic de-blocking regenerated the free N-terminus; Edman then delivered an unambiguous start sequence. For readers who want to see how a service workflow aligns with this sequence of steps, review the Edman N-terminal sequencing service description, which outlines sample forms (solution or PVDF) and buffers to avoid: Edman N-terminal sequencing service.

For submission specifics (sample forms, compatible buffers, and PVDF handling), see our Edman N-terminal sequencing service.

Practical Implementation: SOPs and QC Parameters

Sample Purity and Matrices

Clean inputs drive reliable terminal reads. Aim for >90–95% purity before Edman. If your sample is a mixture, purify the target band by SDS-PAGE and electroblot to PVDF. Use high-retention PVDF, pre-wet in methanol, and avoid silver staining (residual reagents can inhibit Edman chemistry). Coomassie or Ponceau is acceptable for band visualization.

The Execution Blueprint

Keep buffers and additives simple. Avoid Tris, glycine, guanidine, glycerol, sucrose, ethanolamine, SDS/Triton/Tween, and ammonium sulfate in final materials submitted for sequencing. If Tris–glycine was used during transfer, rinse thoroughly before excising the band. For in-solution samples, submit a clean buffer and keep total protein in the low microgram range (often 1–10 μg) or a few pmol on PVDF.

Interpreting the Data

Edman reads appear as PTH–amino acid peaks on HPLC chromatograms, cycle by cycle. Evaluate retention-time matches, signal-to-noise, and background. When peaks co-elute, replicate cycles and context from MS peptide maps help disambiguate calls. Your report should tie terminal identities back to sequence expectations, MS evidence, and any de-blocking steps applied.

SOP/QC quick-reference

The Future of Terminal Sequencing: A Hybrid Era

Beyond the Traditional

Emerging single-molecule approaches (e.g., fluorosequencing, nanopore variants) are exciting, but they don't yet replace the practical certainty of a hybrid Edman + MS workflow for regulated submissions or high-stakes publications. Think of Edman as the immovable anchor for terminal identity and MS as the panoramic lens for the rest of the molecule.

Best Practices for Submissions

A pragmatic path for dossiers: screen termini and PTMs by MS; resolve blocks if present; confirm the N-terminus by Edman; then present orthogonal evidence in line with ICH Q6B expectations (identity, purity/impurities, structural characterization). This approach keeps teams confident under audit and reviewers aligned with the evidence trail.

FAQs

What is the practical difference between Edman and MS for terminal identity?

Edman gives a direct, cycle-by-cycle N-terminal read; MS infers sequence from fragment spectra. For dossiers needing unequivocal terminal identity, Edman is often the clarifying step.

Can Edman distinguish leucine from isoleucine at the N-terminus?

Yes. PTH–Leu and PTH–Ile are chromatographically separable, whereas MS typically needs advanced fragmentation or ion mobility to differentiate them.

What if my N-terminus is blocked (e.g., acetylation or pyroglutamate)?

Diagnose with MS, apply validated enzymatic or chemical de-blocking, verify by MS, then run Edman for the definitive terminal read.

Is Edman still relevant in a modern MS-driven lab?

Absolutely. As an orthogonal, direct method, it removes ambiguity at the terminus and aligns well with identity expectations in ICH Q6B-informed dossiers.

How much material do I need for N-terminal Edman sequencing?

Often low micrograms in solution or a few pmol on PVDF suffice, provided purity is high and buffers are compatible. Check your provider's submission guidelines.

Where does Edman fit in biosimilar comparability?

It supports orthogonal identity confirmation alongside MS peptide mapping and intact mass, helping document terminal variants in a Q6B-aligned package.

References

1. International Council for Harmonisation (ICH). "Specifications: Test Procedures and Acceptance Criteria for Biotechnological/Biological Products (ICH Q6B)." 1999. URL: https://database.ich.org/sites/default/files/Q6B%20Guideline.pdf
2. Zhokhov, S. S., Kovalyov, S. V., Samgina, T. Y., and Lebedev, A. T. "An EThcD-Based Method for Discrimination of Leucine and Isoleucine Residues in Tryptic Peptides." Journal of the American Society for Mass Spectrometry 28.8 (2017): 1600–1611. DOI: https://doi.org/10.1007/s13361-017-1674-3
3. Chang, E., et al. "N-Terminal Amino Acid Sequence Determination of Proteins by N-Terminal Dimethyl Labeling: Pitfalls and Advantages When Compared with Edman Degradation Sequence Analysis." Journal of Biomolecular Techniques 27.2 (2016): 61–74. DOI: https://doi.org/10.7171/jbt.16-2702-002
4. Timp, W., and S. A. S. "Beyond mass spectrometry: emerging single-molecule protein sequencing technologies." Nature Reviews Genetics (review context) (2020). DOI: https://doi.org/10.1126/sciadv.aax8978
