Antibody Humanization Validation: Confirm CDR Grafting by Mass Spectrometry

Antibody humanization is often discussed as a design problem: pick a human framework, graft the murine complementarity-determining regions (CDRs), add a few backmutations, and then check whether binding survives. In practice, the validation problem is just as important.

If you're advancing a humanized monoclonal antibody (mAb) toward lead selection or an IND-enabling package, you need to answer a blunt question: did the protein you expressed actually contain the CDRs you designed? Functional assays (SPR, ELISA, neutralization) are essential, but they can't prove molecular identity. Mass spectrometry can.

The sections below explain why antibody humanization validation should include protein-level confirmation, what MS reveals that binding assays cannot, and how to choose an MS approach (intact MS, middle-down MS, or peptide mapping) to confirm CDR grafting without over-collecting data you don't need.

Why Confirm CDR Grafting at the Protein Level

CDR grafting shifts the structural basis of antigen recognition from a murine variable region environment to a human framework. That sounds like a purely sequence-level operation, but the consequences are physical: the framework influences how CDR loops sit, flex, and present key side chains.

Historically, the field showed that you can transfer specificity by transplanting CDRs into a human framework, but also that the result is not automatically "the same antibody with a human coat." Subtle framework and interface effects can change loop geometry and binding. Early reshaping work and humanization case studies made this clear, and later studies underscored how even a single framework backmutation can rescue binding in a previously unsuccessful humanization attempt.

Affinity retention (SPR/ELISA) confirms function. It does not confirm sequence.

A single backmutation error inside a CDR loop can silently abolish binding without necessarily affecting expression level, SEC profiles, or basic electrophoresis. And intact mass alone may not help: many amino-acid substitutions are near-isobaric.

From a quality perspective, regulatory expectations reflected in ICH Q6B emphasize molecular identity and product characterization beyond binding data. In other words, protein-level identity confirmation is part of what makes your "humanized antibody" claim defensible.

What MS Reveals That Binding Assays Cannot

Mass spectrometry-based CDR verification is not "better binding data." It is a different category of evidence.

• Direct readout of amino-acid sequence evidence at CDR positions (via MS/MS fragmentation) for MS-based CDR verification.
• Detection of unexpected sequences from contamination, expression errors, or clone admixture.
• Ability to estimate ratios of sequence isoforms in mixed populations when differentiating peptides are observed.

This is also why peptide mapping for antibody sequence confirmation remains the most widely used MS-based approach for sequence-level identity checks.

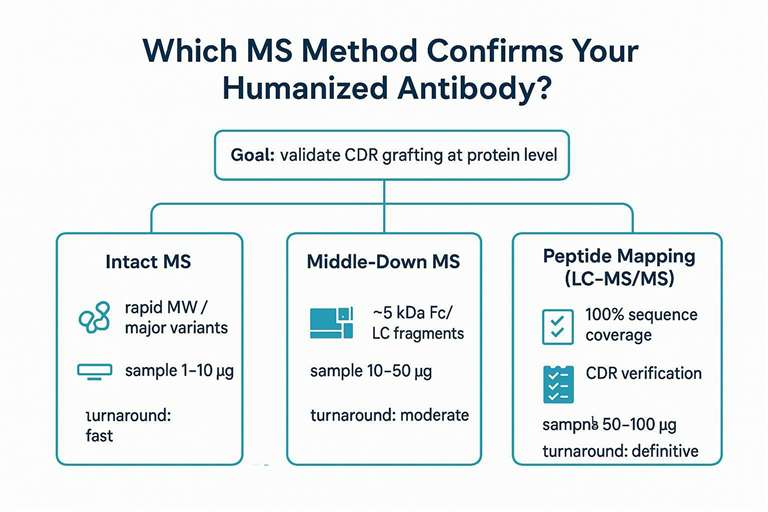

Choosing the Right MS Approach for Humanization Validation

Different MS methods answer different questions. A fast method that's ideal for early screening is not necessarily appropriate for confirming CDR grafting by mass spectrometry.

Intact MS supports rapid mass confirmation and major variant screening. Middle-down mass spectrometry for antibodies can add partial localization by analyzing large subunits or fragments, but it still won't reliably confirm every CDR residue.

Peptide mapping, by contrast, can give sequence evidence across variable regions and is the defensible choice before regulatory-facing milestones.

As a practical option when you need protein-level confirmation of antibody sequences (including variable regions and CDRs), relevant service pages include Antibody Sequencing Service | De Novo & LC-MS/MS, which describes MS-based sequencing strategies aligned with engineered antibody verification.

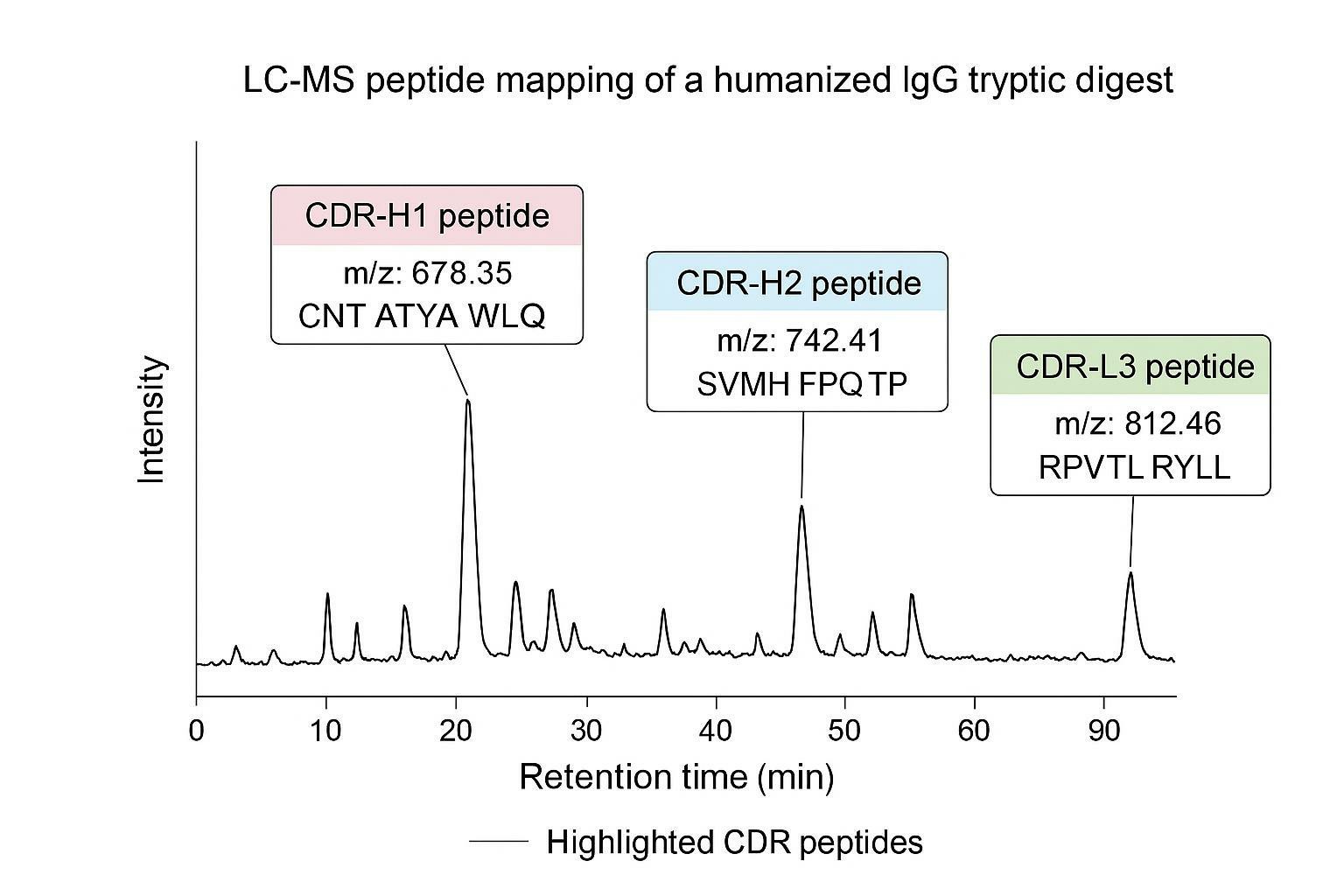

Step-by-Step Peptide Mapping Workflow for CDR Verification

This workflow is framed for confirmation, not just "run a digest." The key is to design the experiment so that CDR-containing peptides are actually observed and can be compared to the intended humanized sequence.

Sample Preparation

A typical preparation includes reduction, alkylation, digestion, and cleanup/desalting.

A practical point: antibodies often arrive in buffers that are not MS-friendly. Depending on formulation (salts, detergents, excipients), desalting may be required. If your differentiating CDR peptides are low abundance, buffer carryover can be the difference between "observed and confirmed" versus "missing and ambiguous."

LC-MS/MS Acquisition

Typical parameters (to be tuned per lab and instrument):

• Column: C18 reversed-phase, 75 µm i.d. for sensitivity
• Instrument: Orbitrap or Q-TOF with data-dependent acquisition
• Fragmentation: HCD around 28–32% NCE for peptide identification

For CDR confirmation, the goal is not maximum peptide IDs. It's coverage of the right peptides, especially those spanning CDR residues or engineered backmutation sites.

Data Interpretation

To validate humanization at the protein level, interpret data against what you designed.

• Search against the designed humanized sequence plus the parental murine reference.
• Flag any peptide that matches the murine sequence instead of the grafted human version.
• Confirm grafted CDR peptides are covered at a high relative signal within the method's quantification approach (for example, aiming for dominance in the observed peptide signal rather than relying on a single borderline-spectrum match).

If your project requires protein-level confirmation without relying on a database sequence (or when the parental sequence is uncertain), Antibody De Novo Sequencing is a relevant service page describing de novo LC–MS/MS workflows used to reconstruct antibody sequences directly from protein evidence.

Common Grafting Errors Detectable by MS

Many "humanization failures" are not failures of the concept. They're implementation errors. MS is valuable because it exposes the actual protein sequence evidence.

• Backmutation not introduced at the DNA level: murine peptide found in MS data where the designed sequence predicts a change.
• Framework contamination from expression host or clone admixture: non-expected peptides are identified that do not match either the designed or parental sequence.
• CDR loop truncation due to PCR primer error: missing expected tryptic peptides, or new junction peptides.

When the goal is IgG-focused confirmation in a humanized antibody program, IgG Antibody Sequencing is an example of an MS-based service description aligned with IgG sequencing and verification use cases.

Practical Considerations Before You Start

These details determine whether your confirmation is persuasive or ambiguous.

• Match the MS sample preparation conditions to your antibody buffer (desalting may be required).
• Store samples at –80°C; avoid repeated freeze-thaw cycles.
• Prepare both humanized antibody and parental murine antibody as reference standards when possible.

Phase-Appropriate Validation Strategy

Pro Tip: Close to a decision gate, design the peptide mapping method around the differentiating peptides (murine vs humanized residues) rather than treating "more IDs" as success.

References

1. Replacing the complementarity-determining regions in a human antibody with those from a mouse
2. Reshaping human antibodies for therapy
3. A humanized antibody that binds to the interleukin 2 receptor
4. A single backmutation in the human kIV framework of a previously unsuccessfully humanized antibody restores the binding activity...
5. Critical contribution of VH-VL interaction to reshaping of an antibody: the case of humanization of anti-lysozyme antibody, HyHEL-10
