Resolving Unexpected Mass Shifts in Recombinant Proteins: MS Troubleshooting Guide

An unexpected recombinant protein mass shift is best resolved by treating the intact-mass result as a direction, not a final identification. First establish whether the shifted feature is reproducible and associated with the protein; then use the size, sign, heterogeneity, and location of the shift to choose peptide mapping, terminal analysis, disulfide analysis, or de novo sequencing. A mass difference alone rarely proves its cause.

This distinction is important when an expression batch, purification fraction, or engineered construct does not match its calculated mass. The same observed difference can arise from a genuine proteoform, incomplete processing, a covalent modification, a residual tag, salt/adduct behavior, a co-purifying species, or a data-processing artifact. An efficient investigation reduces the candidate set in stages rather than beginning with an unrestricted modification search.

Key Takeaways

• Intact mass establishes the existence and approximate size of a difference. It does not usually localize a modification or distinguish all possible chemical causes.
• The sign and pattern of the shift guide the next method. A single, repeatable negative mass feature suggests a different set of questions from a broad positive envelope or several charge-variant peaks.
• Peptide mapping is the primary localization tool. It identifies which peptide region carries the mismatch, modification, cleavage event, or sequence variant.
• N- and C-terminal methods answer questions that a standard digest can leave unresolved. They are particularly useful for signal-peptide processing, tag retention, terminal clipping, and unexplained terminal extensions.
• Do not interpret a search-engine assignment without evidence review. Recent work shows that sequence mismatches and isotope interpretation can produce plausible but false modification calls (Gruszczyńska et al., 2025).

Start With the Mass-Shift Pattern, Not a List of Possible PTMs

The first useful output is a concise comparison of the observed and expected molecular forms. Include the theoretical mass calculated from the exact expressed construct, the observed neutral mass or mass envelope, whether the result is reduced or non-reduced, the apparent proportion of each feature, and whether the difference repeats across injections or batches. A gel band, chromatographic peak, or purification fraction can help establish context, but it is not interchangeable with the intact-mass finding.

The goal is to decide what class of explanation is most plausible before running a deeper method. A single, well-defined shift that is reproduced after a second desalting preparation points in a different direction from a broad cluster that disappears under changed sample handling. The former may reflect a discrete sequence or processing variant. The latter may reflect heterogeneous modification, co-eluting material, incomplete desolvation, or adduction.

Use the direction and shape of the difference as triage evidence

This table is not a catalogue of assignments. It is a way to avoid a common mistake: calling every positive difference a post-translational modification or every negative difference a truncation. An intact protein measurement reports a molecular population. It does not establish where the mass resides or whether the species arose before or during analysis.

Confirm That the Unexpected Protein Mass Is Real

Before escalating into sequence confirmation, verify the analytical observation. Re-examine construct information, including affinity tags, signal peptides, initiator methionine expectations, fusion junctions, protease-cleavage sites, and engineered cysteines or glycosylation motifs. The calculated target mass should correspond to the molecular form expected after expression and purification—not merely to the coding sequence entered in a plasmid map.

Next, test whether the feature follows the sample. A repeat injection establishes limited technical reproducibility, but a separately prepared aliquot is more informative when salts, residual buffers, or handling oxidation are plausible. Where a standard or a previously characterized batch exists, it can reveal whether the deviation is sample-specific or acquisition-specific. If the shift is absent after a change in desalting or sample buffer, the investigation should not proceed as though a stable covalent variant has been established.

Distinguish discrete molecular variants from analytical artifacts

Some artifacts mimic genuine shifts. Nonvolatile salts, solvent clusters, metal binding, residual detergent, and incomplete desolvation can move or broaden an apparent intact mass. A processing or deconvolution setting can also create a credible-looking component when the charge-state series is weak or overlapping. These possibilities are particularly relevant for large, glycosylated, or strongly heterogeneous recombinant proteins, where individual charge states may not be cleanly resolved (Burlingame et al., 2023).

The appropriate response is not to dismiss the result. It is to record the conditions and request an orthogonal check: altered buffer exchange, reduced-chain analysis, separation of charge or size variants, or peptide-level confirmation. If the feature survives independent preparation and remains associated with the same chromatographic species, it becomes a stronger candidate for structural localization.

Match the Follow-Up Method to the Mass-Shift Question

No single method answers every unexpected-mass question. A useful workflow begins with intact mass for rapid detection, then moves to a method whose resolution matches the uncertainty left by the first result. The customer-facing decision is therefore not “Which MS method is best?” but “What must be shown before this construct, fraction, or sequence variant can be advanced?”

Intact mass analysis: confirm the molecular population

Intact mass analysis is the fastest way to determine whether the expected protein is present and whether additional molecular forms occur. It is especially useful for detecting a dominant mass deficit, a mass addition, or a heterogeneous distribution across fractions. However, intact mass cannot reliably localize a modification to a residue, determine an unknown terminal sequence, or resolve many isobaric explanations.

Use intact mass when the immediate question is whether a discrete shifted population exists, whether its relative abundance changes between batches, or whether a purification fraction contains more than one principal molecular form. If the purpose is to identify the residue or sequence event responsible for the shift, intact mass should be followed by peptide-level or terminal evidence.

Peptide mapping: localize the difference

Peptide mapping converts the global mass discrepancy into localized evidence. After digestion, observed peptide masses and MS/MS fragment ions can reveal a missing terminal peptide, a retained leader segment, an oxidation/deamidation site, an unexpected cleavage product, or a sequence mismatch. The value of peptide mapping is not simply coverage percentage; it is whether the mapping strategy gives informative coverage across the region implicated by the intact-mass result.

One enzyme may leave a critical region in a peptide that is too long, too short, poorly retained, or not uniquely assigned. Alternative proteases can therefore be a design choice rather than an afterthought. In recombinant monoclonal-antibody work, combining complementary digests helped detect low-level sequence variants that would have been difficult to establish with a single tryptic map (Zhang et al., 2010).

Explore our mass spectrometry-based protein sequencing services when the project requires an intact-mass observation to be converted into residue-level sequence or modification evidence.

Terminal sequencing: resolve processing, clipping, and extensions

Terminal questions deserve an explicitly terminal method. A missing signal peptide, unremoved affinity tag, N-terminal blockage, C-terminal clipping, or extension can generate a clear intact-mass difference while being ambiguous in a routine digest. N- and C-terminal analysis establishes the actual terminal residue or sequence context and can be combined with peptide mapping when the shift appears to be a processing event.

For a repeatable mass deficit centered on construct integrity, refer to integrating N- and C-terminal sequencing for protein integrity. This article takes the broader next step: how to decide whether terminal analysis is appropriate in the first place.

De novo sequencing: investigate what the reference does not contain

Database-guided mapping works well when the expected construct is known and the change resembles an allowed modification or simple substitution. It is less reliable when the observed mass cannot be explained by the supplied sequence, when a vector-derived extension is possible, or when a novel sequence region is suspected. In those cases, de novo protein and peptide sequencing can generate sequence evidence without assuming that the correct answer is already in the database.

An Fc-extension investigation provides a useful illustration: after LC-MS located a low-level species roughly 1177 Da above the expected form, LC-MS/MS and de novo interpretation identified a C-terminal peptide matching sequence from the expression-vector context (Qiu et al., 2018). The general lesson is not that every higher mass is a vector extension. It is that a reference-limited search must be expanded when the evidence points outside the expressed target sequence.

Figure 1. A staged workflow for moving from an unexpected intact-protein mass to localized and decision-ready evidence.

Common Causes of Recombinant Protein Mass Shifts

Processing and construct-related variants

Lower-than-expected masses often trigger questions about N-terminal methionine removal, signal-peptide processing, proteolysis, tag cleavage, or terminal clipping. Higher-than-expected species can arise from retained leader or affinity sequences, unanticipated terminal extension, incomplete processing, or fusion-junction errors. Sequence variants such as substitutions, frameshifts, and translational errors are less common explanations but become important when peptide mapping identifies a mismatch that cannot be reconciled with ordinary modifications.

A frameshift case in a CHO-derived recombinant IgG1 illustrates the need to keep this class open. An atypical fragment was not explained by common modifications; peptide mapping identified expected heavy-chain sequence followed by a novel 20-residue segment consistent with a −1 reading-frame event (Gomez et al., 2016). This is why a “common PTMs only” search can be insufficient for unexplained features.

Covalent modifications and heterogeneous proteoforms

Oxidation, deamidation, glycosylation, disulfide changes, glycation, and other covalent modifications can alter mass while creating a single species or a distribution of related species. Their interpretation depends on site localization and context. A +16 Da change is compatible with oxidation but does not prove which residue is modified; a +1 Da difference can be difficult to distinguish from isotope or processing effects at intact-protein level.

Expression conditions can also create unexpected covalent chemistry. In recombinant E. coli GM-CSF, intact mass detected a +70 Da modification and peptide mapping localized it to the N-terminus and lysine side chains; further fragmentation and chemical evidence supported a crotonaldehyde-related modification (Hartmann et al., 2021). This is an informative model for project design: intact mass detects the event, peptide mapping locates it, and orthogonal chemistry tests a specific hypothesis.

Disulfides, glycans, and higher structural complexity

Proteins with multiple cysteines or glycosylation sites need special consideration. A disulfide mismatch may be invisible in a simple reduced peptide map, while a glycan distribution can produce broad intact-mass heterogeneity that is not resolvable as one mass. Use disulfide bond analysis when the question is whether cysteine connectivity or disulfide-linked peptides explain the observed structural heterogeneity.

For glycoproteins, the decision is often whether the immediate goal is global molecular mass, site-specific glycan occupancy, or the relationship between glycan state and a separated proteoform. These are different analytical claims and should not be collapsed into an “unexpected mass shift” label.

Avoid Three Common Interpretation Errors

The first error is overfitting a modification to a mass difference. Many mass deltas are shared by more than one chemical explanation, and high-resolution acquisition does not by itself resolve residue location or protein origin. The correct response is to use the observed delta to prioritize candidates, then require peptide-level or orthogonal evidence before assigning a cause.

The second error is treating full peptide coverage as proof that no variant exists. Coverage can be high while the most informative peptide is absent, misassigned, or not fragmented well enough to discriminate a near-isobaric substitution. The 2025 analysis by Gruszczyńska and colleagues documents examples in which automated workflows generated artificial modification assignments to compensate for sequence mismatches, underscoring the value of manual review of decisive MS/MS evidence.

The third error is using an unrestricted search as the first response. A wide modification space can inflate false positives and obscure the relationship between intact mass and localized evidence. Begin with construct-aware hypotheses and a justified modification list; expand deliberately when the data conflict with that model. If the expected sequence itself is uncertain, define whether an expanded database, vector context, or de novo workflow is needed before assigning a site.

What to Provide for an Unexpected-Mass Investigation

An efficient submission gives the analytical team the information needed to calculate the correct expected form and to distinguish genuine product variants from sample or construct ambiguity. Provide the amino-acid sequence of the expressed target, including all tags, leaders, linkers, and intended cleavage sites. Add the expression host, purification history, buffer composition, known modifications, reducing/non-reducing state, and the observed intact-mass data or a clear description of the mass difference.

It is also helpful to state the research decision that depends on the answer. Is the objective to confirm protein identity, localize an unexpected modification, determine whether a tag was removed, compare batches, investigate a low-level peak, or verify a sequence change? The required evidence and analytical depth differ across these questions.

Creative Proteomics can combine full-spectrum protein analysis, intact-mass profiling, peptide mapping, terminal characterization, and de novo interpretation into a staged plan matched to the observed shift. If the aim is to establish the whole proteoform rather than only a local peptide event, top-down protein sequencing may be considered as a complementary route where sample properties and the structural question support it.

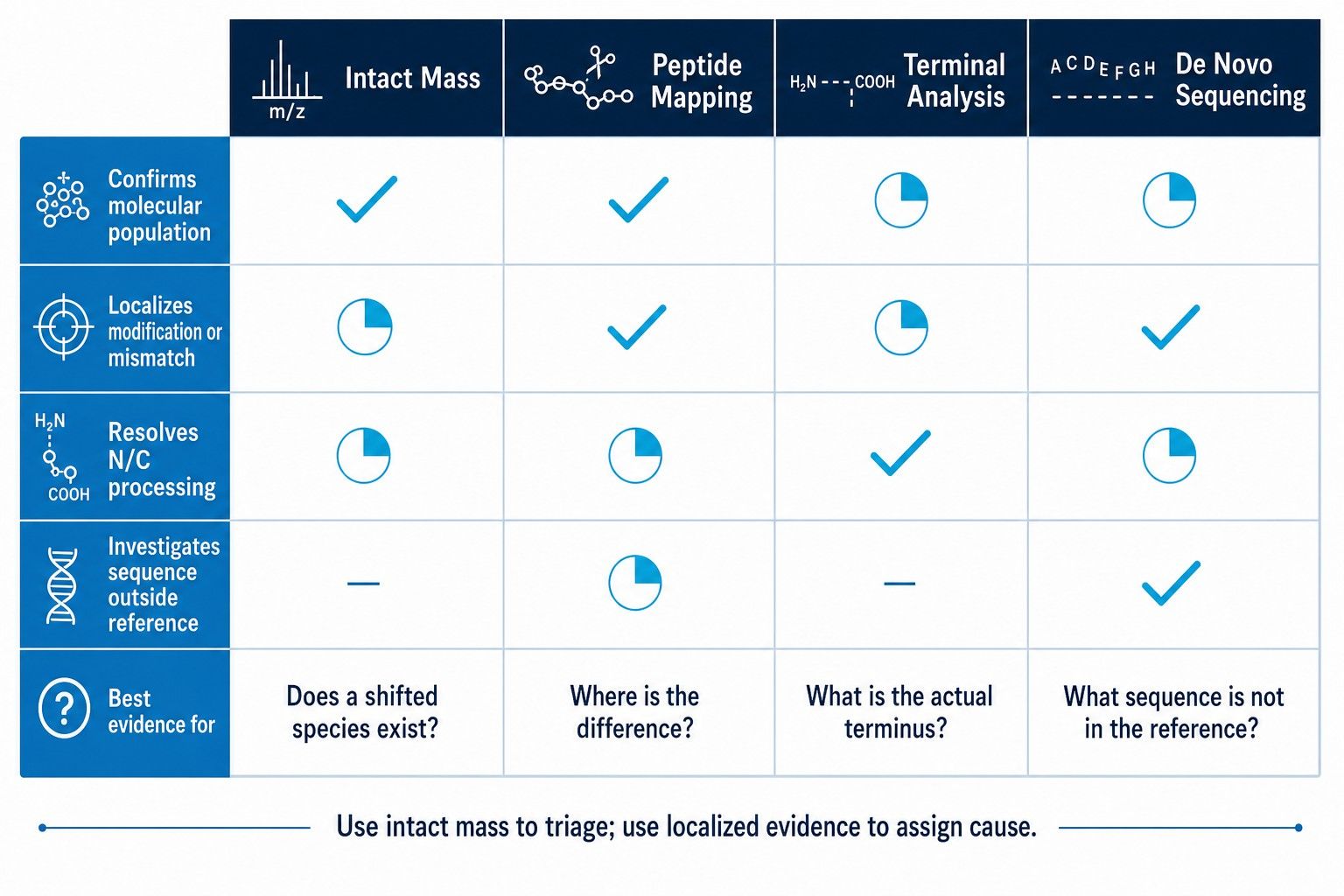

Figure 2. A method-selection matrix linking common recombinant-protein mass-shift patterns to the evidence needed for interpretation.

FAQ: Unexpected Recombinant Protein Mass Shifts

Does an intact-mass difference identify the modification?

No. Intact mass establishes that a molecular population differs by an approximate mass, but it usually cannot localize the event to a residue or distinguish all chemical explanations. Peptide mapping and MS/MS provide the localization evidence needed for a structural assignment.

When should I request peptide mapping after intact mass?

Request peptide mapping when a repeatable mass feature requires residue-level localization, including suspected truncation, tag retention, oxidation, deamidation, glycosylation, or sequence difference. It is also appropriate when a construct has a mismatch that cannot be explained from the intact mass alone.

Can a missing or retained tag cause an unexpected protein mass?

Yes. Tags, signal peptides, leader sequences, fusion junctions, and engineered protease-cleavage sites should be included in the expected-mass calculation and examined through terminal or peptide-level evidence when processing is uncertain.

Why might a mass shift disappear after sample cleanup?

The original feature may have reflected salts, detergents, solvent clusters, metal adducts, or other handling-related effects rather than a stable covalent proteoform. A separately prepared and desalted aliquot is a useful check before committing to an extensive sequence-variant investigation.

Can routine database searching miss the explanation?

Yes. A search constrained to the expected sequence and common modifications can miss vector-derived extensions, frameshifts, unexpected substitutions, and unregistered modifications. Expanded sequence context or de novo sequencing is appropriate when the evidence points beyond the reference model.

Which samples should be compared in a batch-to-batch mass-shift study?

Compare material prepared and analyzed under matched conditions, ideally including a reference batch when available. The sequence, host, purification state, buffer, reduction state, and sample handling should be documented because these factors influence the observed molecular population.

References

1. Srebalus Barnes, C. A. & Lim, A. Applications of mass spectrometry for the structural characterization of recombinant protein pharmaceuticals. Mass Spectrometry Reviews 26, 370–388 (2007).
2. Hartmann, J., et al. Characterization of a novel +70 Da modification in rhGM-CSF expressed in E. coli using chemical assays in combination with mass spectrometry. Journal of Pharmaceutical and Biomedical Analysis (2021). PMID: 34453584.
3. Gomez, N., et al. Identification and characterization of a −1 reading frameshift in the heavy chain constant region of an IgG1 recombinant monoclonal antibody produced in CHO cells. mAbs 8, 50–61 (2016).
4. Qiu, H., et al. Discovery, characterization, and remediation of a C-terminal Fc-extension in proteins expressed in CHO cells. mAbs (2018). PMID: 30148415.
5. Gruszczyńska, M., et al. Peptide Mapping for Sequence Confirmation of Therapeutic Proteins and Recombinant Vaccine Antigens by High-Resolution Mass Spectrometry: Software Limitations, Pitfalls, and Lessons Learned. Journal of the American Society for Mass Spectrometry (2025). PMID: 41155256.
6. Hada, V., et al. Recent advancements, challenges, and practical considerations in the mass spectrometry-based analytics of protein biotherapeutics. Journal of Pharmaceutical and Biomedical Analysis 161, 214–221 (2018). PMID: 30205300.

Author: CAIMEI LI, Senior Scientist

For research use only, not intended for any clinical use.
