Protein Separation Techniques: Methods, Advantages, and Applications

Protein separation is a foundational technique in life science and biotech. This guide compares core methods—SDS-PAGE, 2D-PAGE, SEC, IEX, affinity chromatography, and centrifugation—covering how they work, when to use them, and how to integrate them into efficient multi-step workflows across proteomics, biopharma, and quality control.

What Is Protein Separation and Why It Matters?

Protein Separation Definition

Protein separation is an analytical process that fractionates protein mixtures by exploiting differences in molecular size, charge, hydrophobicity, or specific affinity. The goal is resolution and characterization, not bulk recovery of a single protein (that is purification, a preparative process).

Use protein separation when: identifying components, comparing samples, performing QC, or preparing fractions for downstream assays.

Avoid relying on separation alone when: you need high-purity, functional protein for structural/biophysical studies—use purification workflows instead.

Importance of Protein Separation

Basic research: Enables enzyme assays, interaction mapping, PTM analysis, and supports structural work (e.g., selecting fractions for crystallography or cryo-EM).

Biopharma & bioprocessing: Acts as part of downstream processing (DSP) and in-process QC (e.g., CE-SDS, SEC-HPLC) to monitor purity, variants, and aggregates.

Clinical & diagnostics: Facilitates biomarker discovery/verification by isolating low-abundance targets from complex fluids (blood, urine, CSF).

Protein Separation & Downstream Analytics — The Handshake

Effective separation improves data quality for analytical readouts:

• SDS-PAGE/2D-PAGE → MS: Excise bands/spots for in-gel digestion and LC-MS/MS identification.
• Chromatography → WB/Sequencing/Biophysics: Use fractionated, buffer-matched samples directly for Western blot, sequence confirmation, or assays (DSF, SPR, MST).
• SEC before native MS or activity assays: Removes aggregates and exchanges buffers under mild conditions, preserving native states.

Quick mapping:

• Need composition/profile? → SDS-PAGE / 2D-PAGE / analytical IEX/SEC.
• Need variant/aggregate QC? → SEC-HPLC / CE-SDS / IEX-HPLC.
• Need functional protein? → Move to purification (AC → IEX/HIC → SEC).

Quick Overview of Core Protein Separation Techniques

To address diverse research needs and sample characteristics, scientists have developed multiple separation techniques based on different principles. The table below provides a quick overview:

Gel Electrophoresis Methods: SDS-PAGE & 2D-PAGE

Gel electrophoresis is the most classic and intuitive technique for protein separation and analysis.

Under the drive of an electric field, charged protein molecules migrate through the gel matrix. Their migration rate primarily depends on molecular weight, charge, and shape.

Sodium Dodecyl Sulfate-Polyacrylamide Gel Electrophoresis (SDS-PAGE)

Principle Overview

SDS-PAGE is the most commonly used one-dimensional electrophoresis technique. By adding SDS and a reducing agent (such as β-mercaptoethanol), proteins are denatured, depolymerized, and uniformly charged with a negative charge. This ensures their migration rate in the gel correlates solely with molecular weight.

Applications

SDS-PAGE is primarily used to estimate protein molecular weight, assess sample purity, compare protein expression differences between samples, and prepare samples for Western Blot analysis.

Advantages and Limitations

Its advantages include low cost, simple operation, and strong visualization. However, it causes protein denaturation and has low throughput, making it unsuitable for large-scale purification.

2D-PAGE

Principle Overview

2D-PAGE expands separation into two dimensions, achieving exceptionally high resolution. The first dimension employs isoelectric focusing (IEF) to separate proteins based on their isoelectric point (pI). The second dimension uses SDS-PAGE for molecular weight separation. The final result displays hundreds or thousands of distinct protein spots on the gel, each theoretically representing a single protein.

Applications

2D-PAGE is highly suitable for differential proteomics studies, such as comparing protein expression profiles in cells or tissues between diseased and healthy states.

Advantages and Limitations

Its primary advantage is exceptional resolution. However, significant limitations exist: cumbersome procedures, high demands for technical reproducibility, poor separation efficiency for proteins with extreme sizes (very large or very small), extreme pIs (highly acidic or highly basic), or strong hydrophobicity, and low sample throughput.

Liquid Chromatography Techniques: SEC, IEX, AC Compared

Liquid chromatography represents the most powerful and versatile family of techniques for protein preparation, purification, and high-throughput analysis. Its core principle involves propelling protein samples through a stationary phase (chromatographic packing material) using a mobile phase (liquid). Proteins elute from the column at varying rates based on their distinct interactions with the stationary phase, thereby achieving separation.

SEC

Separation Basis

Molecular size and hydrodynamic volume. Smaller molecules can enter the pores of the packing material, travel longer distances, and exhibit longer retention times; larger molecules are excluded from the pores and elute first.

Applications

Separating proteins in their native state, analyzing protein complex composition, removing aggregates or salts. Ideal for preserving protein bioactivity due to its use of mild buffer systems.

Process and Application Notes

Simple operation with straightforward buffer conditions. resolution is relatively low, and excessive injection volume or volume fraction causes peak broadening and significant sample dilution.

IEX

Separation Principle

Net surface charge of proteins. Net charge depends on the relative relationship between buffer pH and the protein's isoelectric point (pI).At pH values below its pI, proteins carry a positive charge and bind to cation-exchange (CEX) columns; above their pI, they are negatively charged and bind to anion-exchange (AEX) columns. Elution is achieved by gradually increasing the salt concentration (ionic strength) of the buffer.

Applications

Ideal for intermediate purification following crude purification, effectively removing substantial impurities. Widely used for separating charge isoforms (e.g., glycosylation variants). Its high sample loading capacity and column efficiency facilitate easy scale-up to industrial production.

Method Optimization Key Points

Selecting the appropriate anion or cation exchange resin is critical. This requires adjusting the buffer pH to ensure the target protein carries the opposite charge to the impurity proteins. Optimizing pH and salt concentration gradients is essential for achieving high resolution.

AC

Separation Principle

Biologically specific interactions. Utilizes highly specific, reversible binding between the target protein and immobilized ligands, such as antigen-antibody, enzyme-substrate/inhibitor, receptor-ligand, or tag (e.g., His-tag) with metal ions (e.g., Ni²⁺).

Applications

Enables "one-step purification,“ rapidly enriching high-purity target proteins from complex samples with exceptionally high purification yields. Serves as a core technology in biopharmaceuticals (e.g., Protein A/G chromatography for monoclonal antibody purification) and recombinant protein research (e.g., His-tag purification).

Trade-offs

Its efficiency and unparalleled selectivity are major advantages. However, it is costly (due to resin and ligand expenses) and carries a risk of ligand leaching into the product, necessitating subsequent steps for removal.

Centrifugation Techniques for Protein Separation

Centrifugation is typically employed as the initial step in protein separation workflows to process large-volume samples and prepare initial materials, laying the groundwork for subsequent high-resolution purification steps such as chromatography.

Principle

Centrifugation is a separation technique based on differences in sedimentation coefficients (related to particle size, density, and shape). By applying intense centrifugal force, components within a mixture settle at varying rates.

Differential Centrifugation

By progressively increasing centrifugal speed, components with significant size and density differences in the sample are sequentially precipitated. Low-speed centrifugation first removes cellular debris, followed by medium-speed centrifugation to precipitate organelles (e.g., mitochondria, lysosomes), and finally ultracentrifugation to precipitate small particles like ribosomes and viruses.

This serves as a coarse separation method, primarily used for pretreatment and preliminary enrichment.

Density Gradient Centrifugation

A density gradient solution of an inert substance (e.g., sucrose, iopamidol) is pre-laid in the centrifuge tube, with the sample added to the top layer. Under ultracentrifugation, each component migrates to the gradient zone matching its density, forming distinct zones.

This method offers higher resolution and can be used for the precise separation of different types of organelles, lipoproteins, or protein complexes.

For more detailed technical principles, please refer to: [Protein Purification vs. Protein Separation：Key Differences and When to Use Each]

Pros and Cons: Protein Separation Techniques Comparison Table

The following table provides a visual comparison of key technologies' features to help you quickly weigh your options:

How to Choose the Right Separation Technique for Your Goal

Protein Separation Technology Decision Flowchart

For detailed guidance on selecting protein separation technologies, check out [How to Choose the Right Protein Separation Method for Your Research]

Multi-Step Purification Workflow: From Capture to Final Polish

In practical applications, particularly in industrial-scale production, virtually no single technology can achieve the target product with the required purity and yield in a single step. Therefore, a well-designed multi-step purification process is necessary, combining technologies based on different principles in series to progressively enhance purity.

A typical three-step purification strategy includes:

This "process integration design“ mindset is crucial. For example, a classic reconstituted His-tag protein purification workflow could be: affinity capture (Ni-NTA column) → ion exchange (removal of nucleic acids and contaminating proteins) → molecular sieve purification (removal of aggregates and buffer exchange). Each step relies on distinct separation mechanisms, thereby efficiently eliminating different types of impurities.

Applications of Protein Separation in Research and Industry

Applications in Basic Research

Proteomics

2D-PAGE and multidimensional liquid chromatography (e.g., LC-IEX-SEC) coupled with mass spectrometry (MS) serve as core technologies for large-scale identification and quantification of protein expression in complex biological samples.

Enzymology and Structural Biology

Pure, homogeneous, and active enzymes or target proteins must be purified to study their kinetics, functional mechanisms, and to perform X-ray crystallography or cryo-EM structural analysis.

Signaling Pathway Research

Affinity-based methods like immunoprecipitation (Co-IP) or pull-down enrich specific protein complexes to investigate protein interactions and signaling networks.

Applications in Biopharmaceuticals and Biotechnology

Monoclonal Antibody (mAb) Purification

Downstream processes for large-scale mAb production heavily rely on Protein A affinity chromatography for capture, followed by IEX, HIC, and SEC for virus removal, aggregate clearance, and final purification.

Vaccine Development and Production

Used to purify various components in virus-like particles (VLPs), recombinant protein antigens, or polysaccharide-protein conjugate vaccines, followed by concentration and eluent exchange.

Biomarker Discovery and Validation

Isolation of disease-specific proteomic signatures or target proteins from clinical samples (blood, tissue) for novel diagnostic reagent development.

Quality Control (QC)

SDS-PAGE, CE-SDS (capillary electrophoresis), SEC-HPLC, and IEX-HPLC serve as standard analytical methods for monitoring product purity, identifying degradation products, and detecting aggregates in biologic drug release testing.

To learn more, click on the article [How Protein Separation Drives Biomedical Research and Drug Discovery]

Frequently Asked Questions (FAQ)

I need to balance separation efficiency and activity retention. Which method should I choose?

Prioritize non-denaturing chromatography methods such as affinity chromatography (AC), ion exchange chromatography (IEX), and size exclusion chromatography (SEC). These methods operate in mild aqueous buffers, maximizing preservation of the protein's native conformation and biological activity. Avoid denaturing methods like SDS-PAGE or reverse-phase chromatography (RPLC, typically using organic solvents).

Is SEC or IEX required after affinity chromatography?

Typically, yes. While affinity chromatography achieves high purity, certain scenarios may still arise: ① Ligand leakage into the product; ② Presence of minor impurities weakly bound to the ligand; ③ Aggregation of the target protein. SEC effectively removes aggregates and elutes the product into the final storage buffer; IEX further eliminates charge isomers or residual impurities, ensuring maximum purity of the final product.

Can SDS-PAGE samples be used for LC-MS?

Yes, but processing is required. SDS severely inhibits mass spectrometry ionization and contaminates columns. Before LC-MS analysis, samples must undergo either in-gel digestion (cutting out target bands, decolorizing, alkylating, and digesting) or desalting/SDS removal after electrophoresis before injection.

How to determine if a sample is suitable for 2D-PAGE?

Consider the following factors: ① Protein complexity: Suitable for highly complex samples (e.g., whole-cell lysates) requiring global comparisons. ② Protein characteristics: Extremely large (>200 kDa), extremely small (<10 kDa), extreme pI (<3 or >10), or highly hydrophobic proteins may separate poorly or be lost in 2D-PAGE. ③ Sample volume: 2D-PAGE typically requires substantial sample quantities. If insufficient, liquid chromatography-mass spectrometry (LC-MS/MS) strategies are preferable.

What is the recommended sequence when combining multiple methods?

General principles: ① Begin with high-throughput, highly selective methods (e.g., AC or IEX) to rapidly enrich target proteins and remove bulk contaminants; ② Position methods with high resolution and moderate throughput (e.g., IEX, HIC) in intermediate steps to remove impurities with similar properties; ③ Reserve the mildest, fine-tuning method (e.g., SEC) for the final step to remove aggregates, perform buffer exchange, and obtain the final product. SEC is placed last due to its small loading capacity and sample dilution, making it unsuitable for processing crude samples.

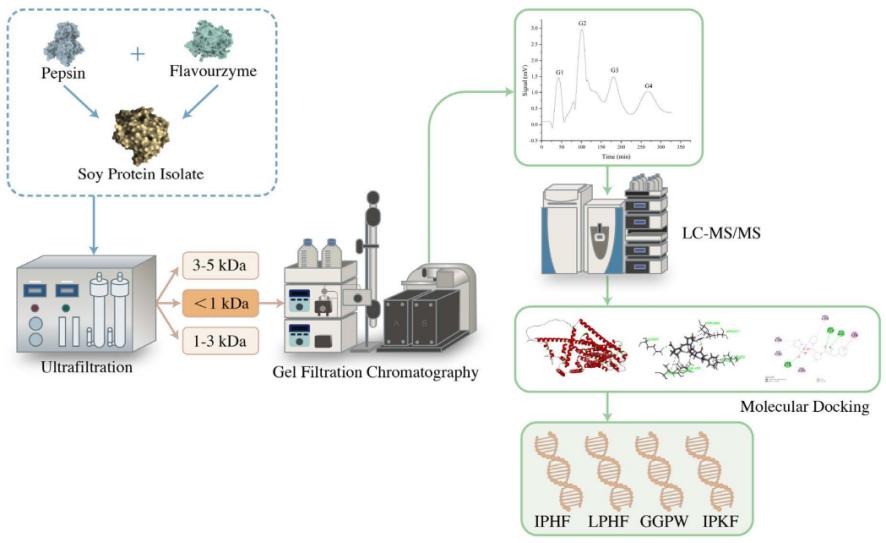

Flowchart for Enzymatic Hydrolysis of Soy Protein: Ultrafiltration Separation, Chromatographic Purification, Mass Spectrometry Identification, etc. (Figure from Ziying Zhao, 2024)

References

1. Alberti, S., Saha, S., Woodruff, J. B., et al. (2018). A User's Guide for Phase Separation Assays with Purified Proteins. Journal of molecular biology.
2. Mohammadzadehmarandi, A., Determan, A., Krumm, C., et al. (2023). High-performance countercurrent membrane purification for host cell protein removal from monoclonal antibody products. Biotechnology and bioengineering.
3. Shixiang Liu, Zhihua Li, et al. (2020) Recent advances on protein separation and purification methods. Advances in Colloid and Interface Science.
